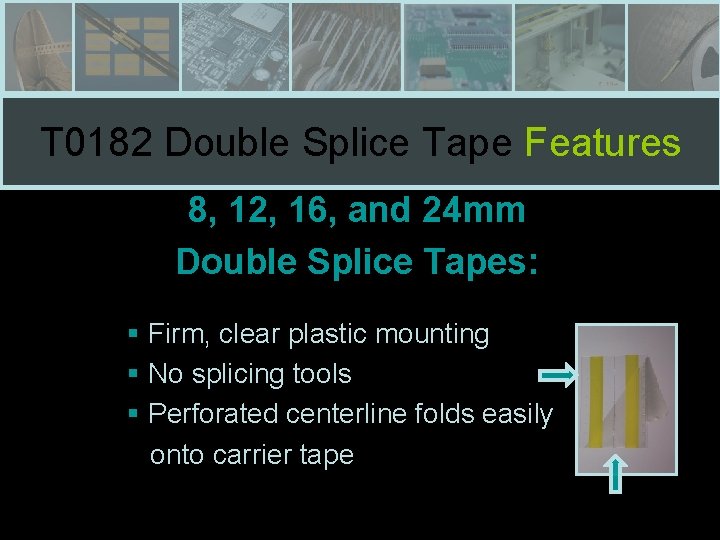

T 0182 Double Splice Tape Features 8, 12, 16, and 24 mm Double Splice Tapes: § Firm, clear plastic mounting § No splicing tools § Perforated centerline folds easily onto carrier tape

T 0182 Double Splice Tape Features 8, 12, 16, and 24 mm Double Splice Tapes: § Two strips of powerful adhesive § One strip firmly secures cover tape § Second strip firmly joins paper carrier tape

T 0182 Double Splice Tape Features 8, 12, 16, and 24 mm Double Splice Tapes: § Two rows of precision-spaced, raised dots § Easy accurate alignment and spacing of the joined carrier tapes

T 0182 Double Splice Tape Features 8, 12, 16, and 24 mm Double Splice Tapes: § Opaque protector sheet § Long shelf life

T 0182 Double Splice Tape Features Create perfect, reliable splice joints quickly and simply with SMD Double Splice Tapes.

T 0182 Double Splice Tape Features

T 0182 Double Splice Tape Instructions

T 0182 Double Splice Tape Instructions Step 1: § Cut carrier tape end across a sprocket hole (leave slightly less than ½ the hole) § For best results, use SC 100 Carrier Tape Scissors

T 0182 Double Splice Tape Instructions Step 2: § Remove the cover sheet from the Tape Connector leaving the yellow adhesive strips attached to the clear plastic carrier.

T 0182 Double Splice Tape Instructions Step 3: Beginning at the top, join the ends by aligning the raised dots with the sprocket holes in the carrier tape.

T 0182 Double Splice Tape Instructions Step 3: Press the yellow adhesive strip onto the cover tape.

T 0182 Double Splice Tape Instructions Step 4: Fold the Tape Connector on the perforations, around the carrier tape.

T 0182 Double Splice Tape Instructions Step 4: Engage the dots in the sprocket holes. Press the other yellow adhesive strip onto the underside of the SMD tape.

T 0182 Double Splice Tape Instructions Step 4:

T 0182 Double Splice Tape Instructions Step 5:

T 0182 Double Splice Tape Instructions Step 5: Remove and discard the clear plastic carrier.

T 0182 Double Splice Tape Instructions The splice is complete!
