Dosimetric Control System for the IBR2 Reactor Joint
Dosimetric Control System for the IBR-2 Reactor Joint Institute for Nuclear Research Frank Laboratory of Neutron Physics A. S. Kirilov M. L. Korobchenko S. V. Kulikov F. V. Levchanovskiy S. M. Murashkevich T. B. Petukhova NEC’ 2011 1

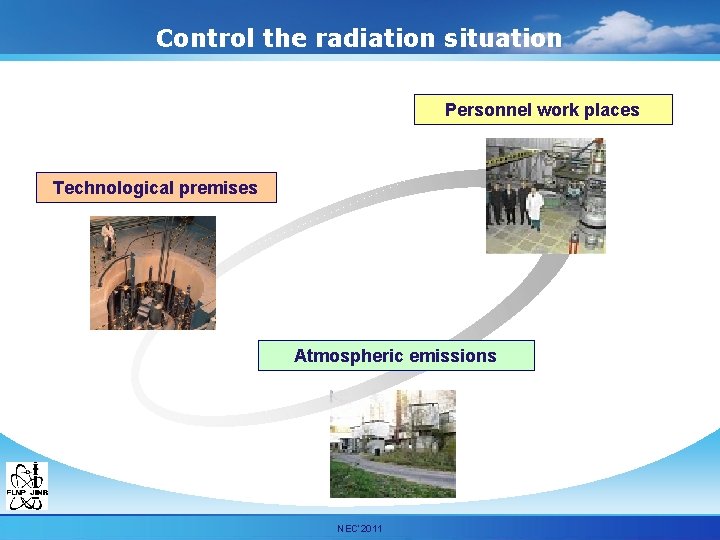

Control the radiation situation Personnel work places Technological premises Atmospheric emissions Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011

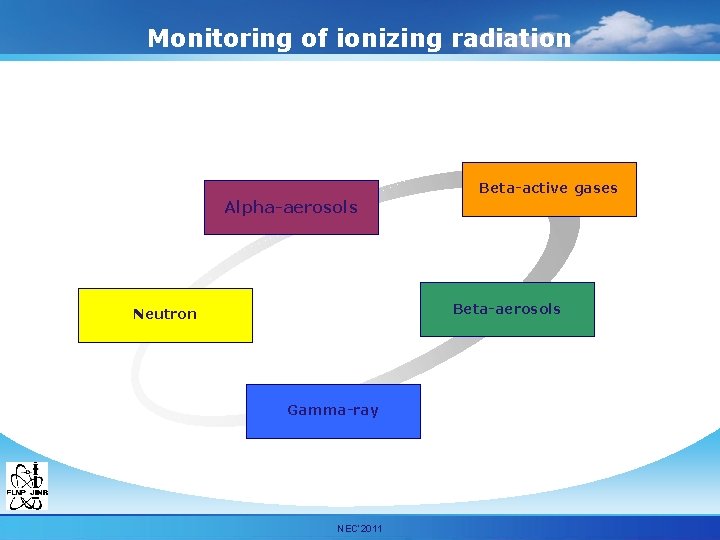

Monitoring of ionizing radiation Beta-active gases Alpha-aerosols Beta-aerosols Neutron Gamma-ray Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011
Dosimetric Control System “System 8004 -01” TC P/ IP Remote computer Main control room of the reactor Multichannel C A M A C block of counters FT 245 USB FIFO USB-in terface 132 detectors 12 shutters Control computer The reactor dosimetric control room Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011
Hardware: Block of counters Detectors Control Circuit Data-transfer Circuit D 001 F 001 USB interface ALTERA FT 245 R D 132 F 132 Detector Signal Shapers Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011 PC
Software package Control computer d_sdc US B Hardware Multichannel Block of Counters Block Driver Database VARMAN s_sdc SDC_SERVER Data Procession IP P/ TC SDC User Graphical Interface SDC_CLIENT User Graphical Interface Remote computer Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011

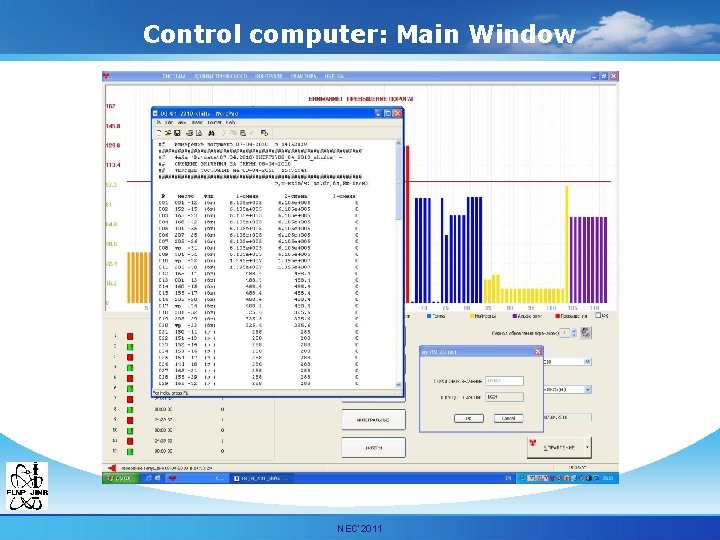

Control computer: Main Window Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011

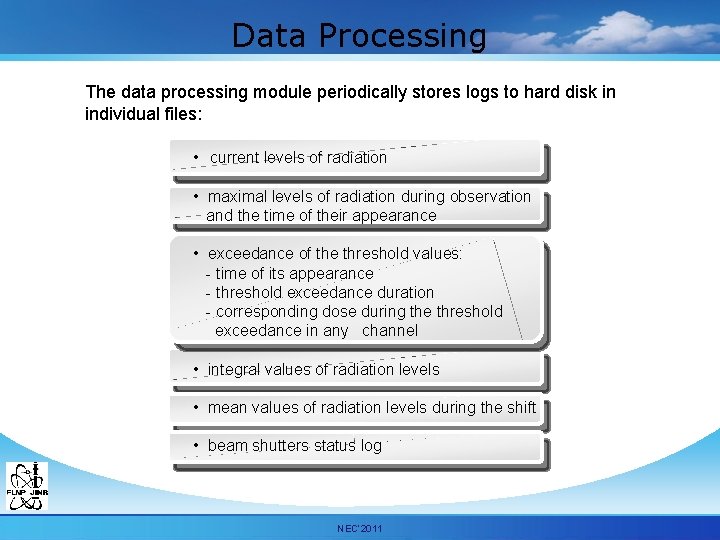

Data Processing The data processing module periodically stores logs to hard disk in individual files: • current levels of radiation • maximal levels of radiation during observation and the time of their appearance • exceedance of the threshold values: - time of its appearance - threshold exceedance duration - corresponding dose during the threshold exceedance in any channel • integral values of radiation levels • mean values of radiation levels during the shift • beam shutters status log Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011
Control computer: Main Window Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011
Remote computer: graphical interface Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011
Conclusion A new dosimetric control hardware and software complex for the IBR-2 reactor was put into operation in the winter of 2010. In the summer of 2011 the complex was successfully tested during the trial start-up of the modernized reactor. Мурашкевич С. М. ОИЯИ ЛНФ НЭОКС NEC’ 2011
NEC’ 2011 12
