Dorcus Ln Classic St Storm Water Dan Weitzel
- Slides: 18
Dorcus Ln. & Classic St. Storm Water Dan Weitzel Public Works 10/07/2020
Workshop talking points • • • What is the problem Project location Area that is affected Possible solutions Cost Timeline of events
The problem • Currently there is a storm water outfall along the edge of Classic St. about 150’ south of the Dorcus Ln intersection. • Although the outfalls on City property, there is no way to contain it to City property. • Water overflows onto adjacent properties which include the Golf Corse and Private Property. • Project is time sensitive. As the owner would like to build on their land cannot do so until the storm water is delt with. • “Oregon Drainage law” prohibits this type of drainage.

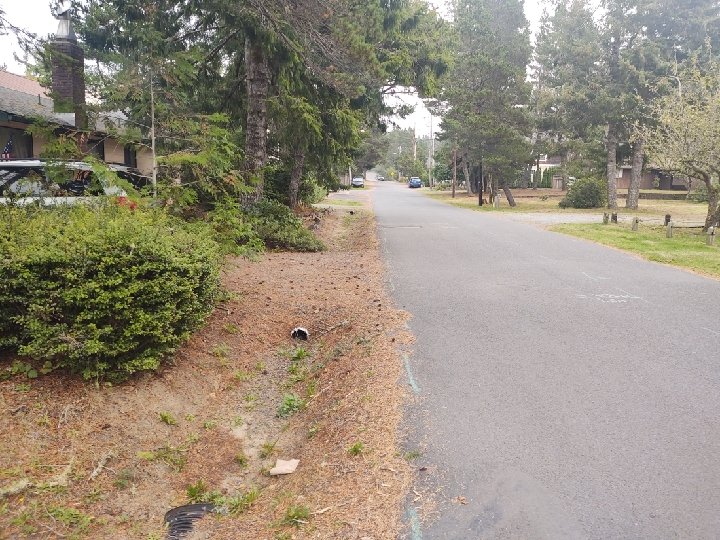

Current outfall location
Little History • Outfall is believed to be constructed some time between 1999 and 2005. • Other street projects have contributed to stormwater directed to the outfall includes: – Classic and Dorcus intersection construction – Laneda Ave east improvement – Classic St Between Laneda Ave and Manzanita Ave
Current service area
Possible solutions • Some of the solutions that were looked at were: – Boring a storm line under part of the golf course. • Pros – lower construction cost • Cons – Lability issues for property damage – Legal obligations (drainage ditch clearing, repairs, etc) – Maintains current drainage area – Converting 5 th St. parking lot to large retainage pond
Possible solutions – Install an 18” storm line only from 3 rd St storm system to Classic & Dorcus. ($828, 061) • Pros – Storm main can be used for future connections – Storm main is proper size for drainage area – Storm main connects to 3 rd St and use’s Pacific St Beach outfall. • Cons – Cost – Only handles the current drainage area of Classic and Dorcus – Trench patch down both 4 th St S. and Dorcus Ln
Current service area
Possible solutions – “Street Project” Install an 18” storm line from 3 rd St storm system to Classic & Dorcus. Water Distribution replacement. Complete road replacement with new subgrade. ($1, 122, 508) • Pros – – – – Storm main can be used for future connections Storm main is proper size for drainage area Storm main connects to 3 rd St and use’s Pacific St Beach outfall. Most storm ditches no longer needed. 5 th St Parking area can be served by storm drain system. Remove of dry ponds. Division St can be connected at later date and ponds be filled Water Wain and service line replaced. • Cons – Cost – Project to last until late June.
Current service area
Cost Storm Project only Total: Road Cost Storm Cost Water Cost Engineering $370, 000 $332, 000 $0 $126, 000 Street Project $828, 000 Total Road Cost Storm Cost Water Cost Engineering $372, 000* $364, 000 $224, 000 $162, 000 *some road costs are shared with water. $1, 122, 000 $292, 000 Difference
Time Line Proposed time: • 10/7/2020 Design Contract approval • 12/4/2020 95% Design review • 1/1/2021 Project advertisement • 1/7/2021 Mandatory Pre-bid Walk through • 1/20/2021 Bid Opening • 3/1/2021 – 6/30/21 Construction
Questions?
