Door Types

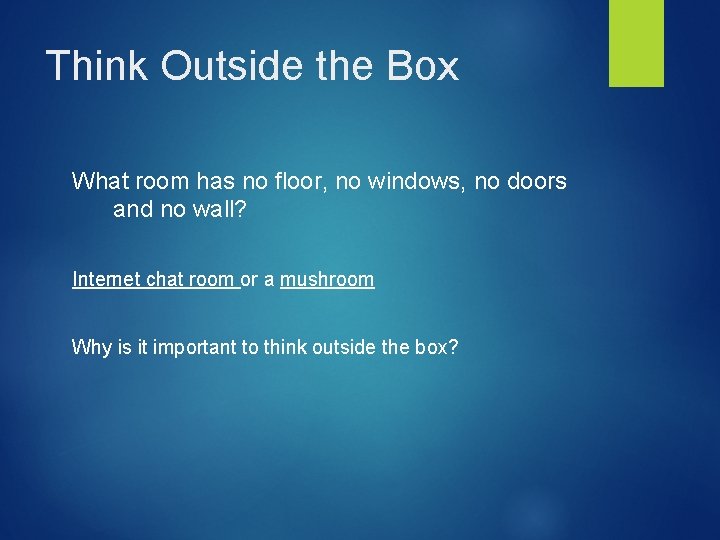

Think Outside the Box What room has no floor, no windows, no doors and no wall? Internet chat room or a mushroom Why is it important to think outside the box?

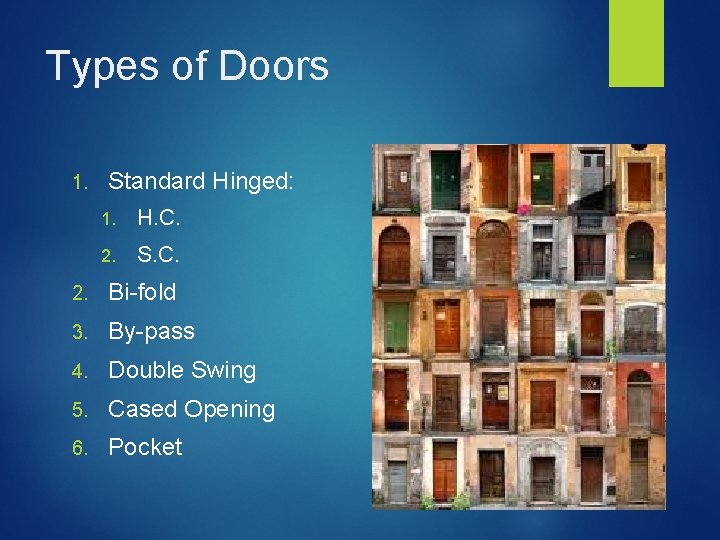

Types of Doors 1. Standard Hinged: 1. H. C. 2. S. C. 2. Bi-fold 3. By-pass 4. Double Swing 5. Cased Opening 6. Pocket

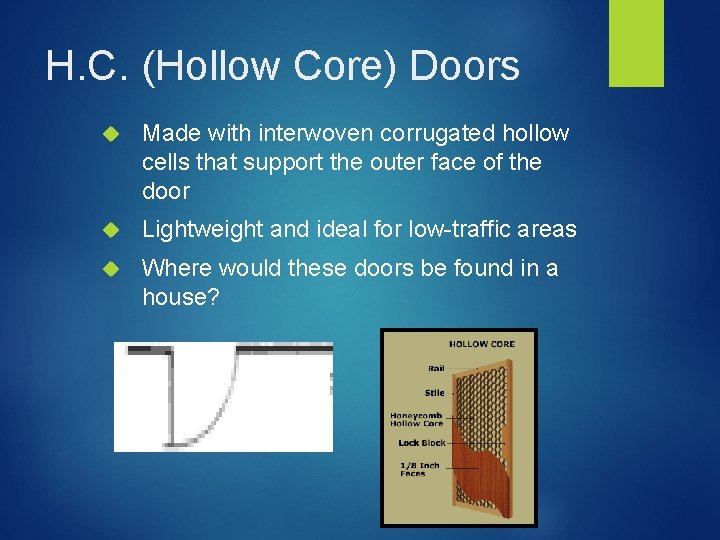

H. C. (Hollow Core) Doors Made with interwoven corrugated hollow cells that support the outer face of the door Lightweight and ideal for low-traffic areas Where would these doors be found in a house?

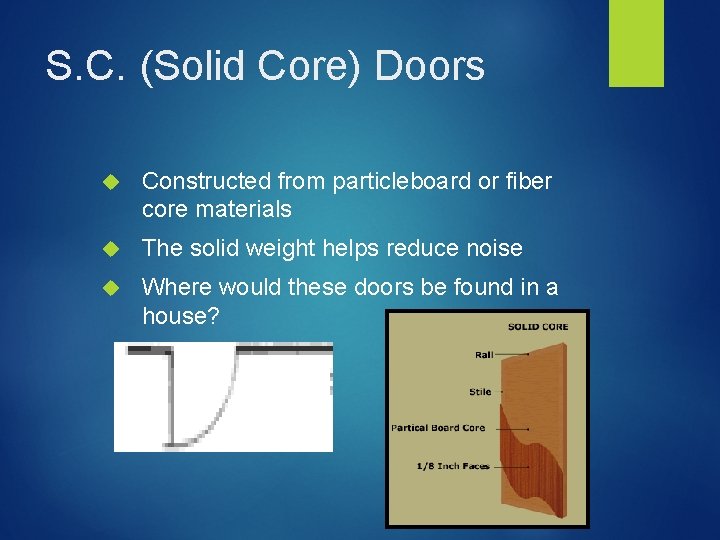

S. C. (Solid Core) Doors Constructed from particleboard or fiber core materials The solid weight helps reduce noise Where would these doors be found in a house?

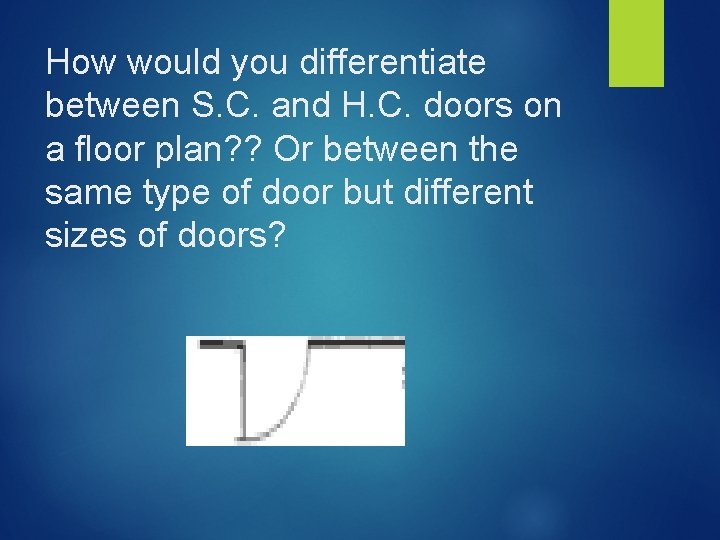

How would you differentiate between S. C. and H. C. doors on a floor plan? ? Or between the same type of door but different sizes of doors?

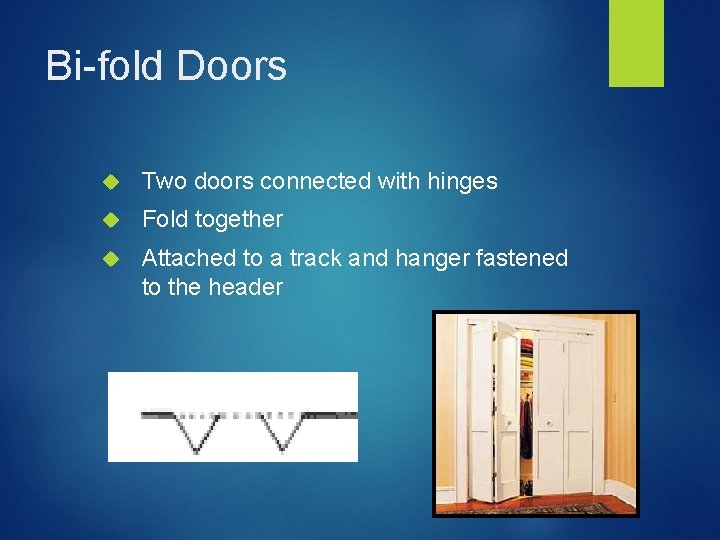

Bi-fold Doors Two doors connected with hinges Fold together Attached to a track and hanger fastened to the header

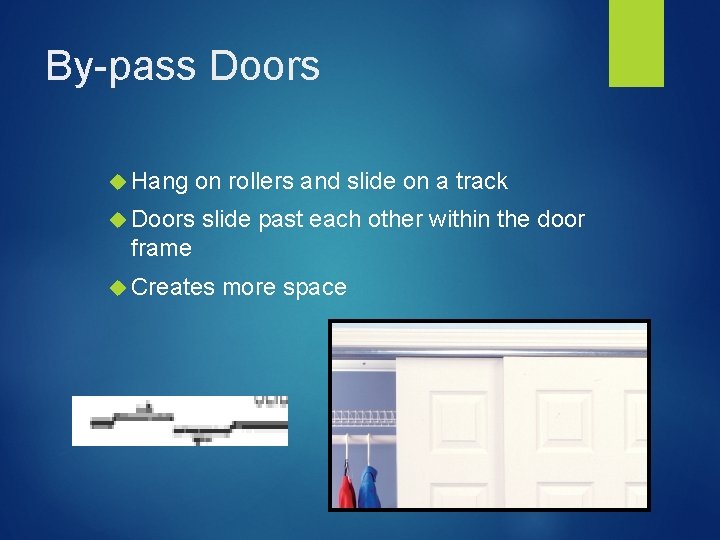

By-pass Doors Hang Doors on rollers and slide on a track slide past each other within the door frame Creates more space

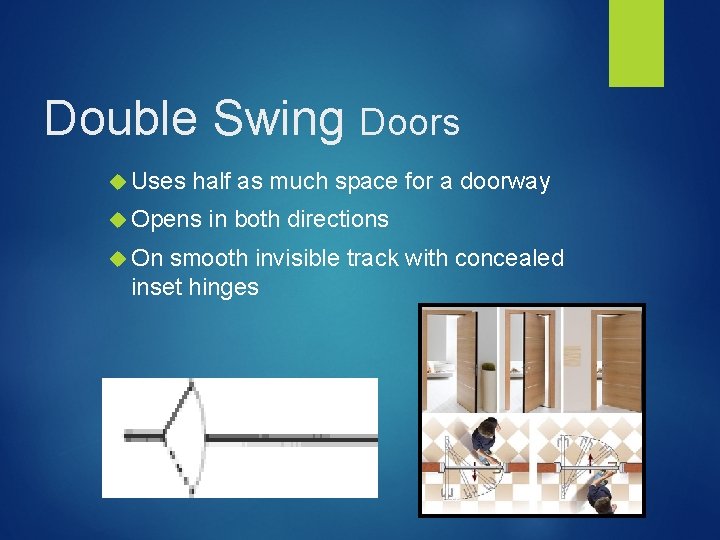

Double Swing Doors Uses half as much space for a doorway Opens On in both directions smooth invisible track with concealed inset hinges

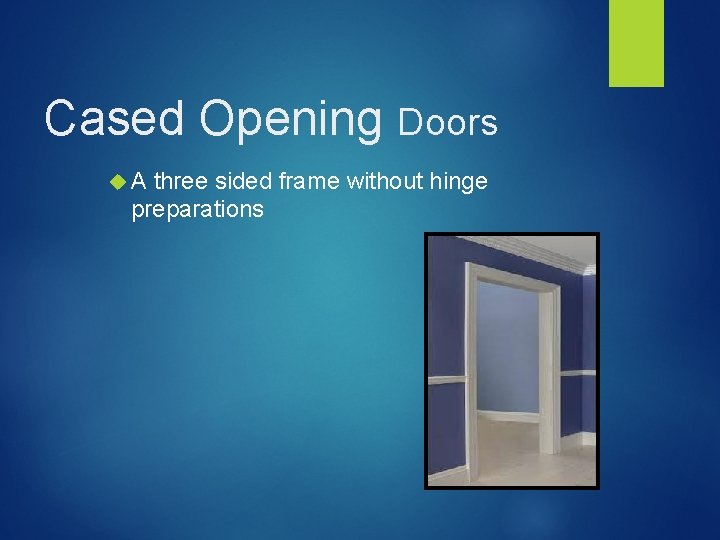

Cased Opening Doors A three sided frame without hinge preparations

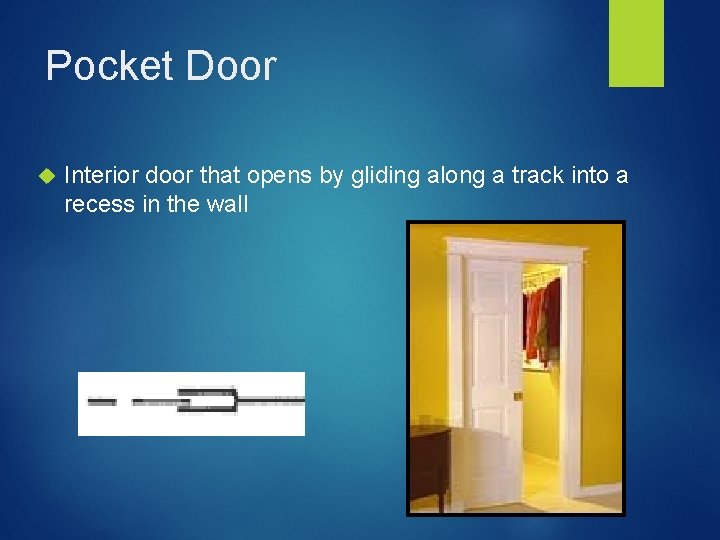

Pocket Door Interior door that opens by gliding along a track into a recess in the wall

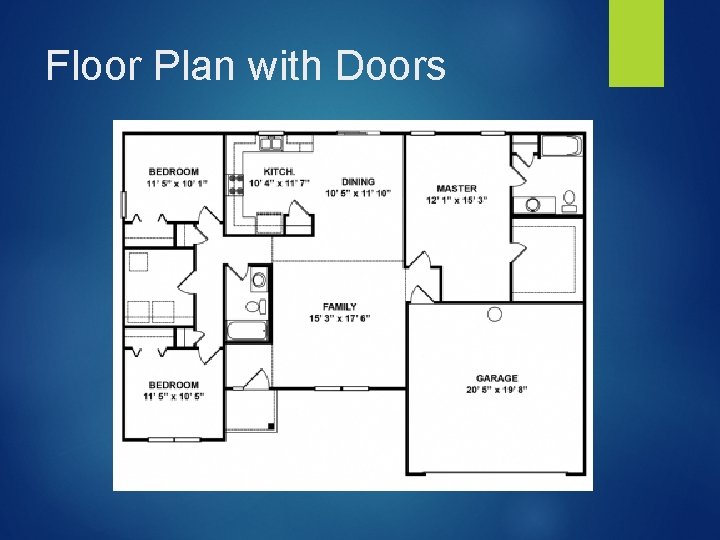

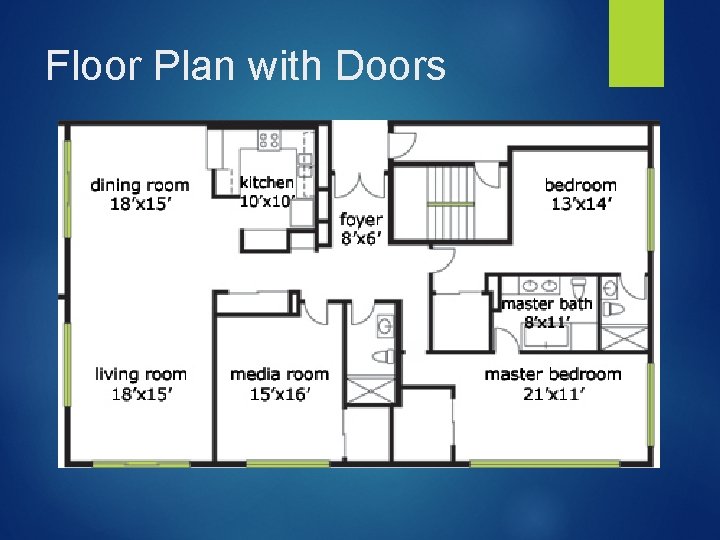

Floor Plan with Doors

Floor Plan with Doors

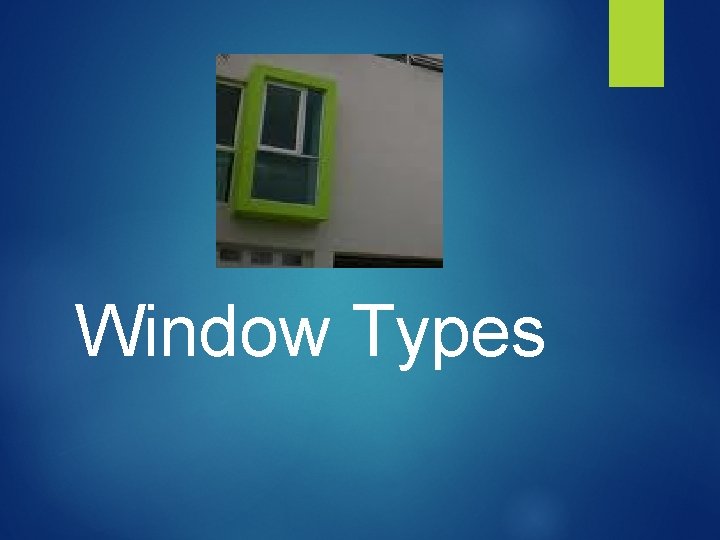

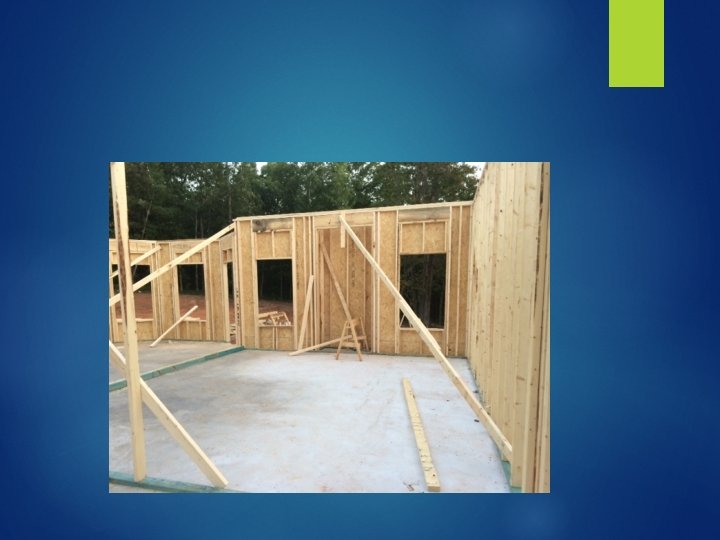

Window Types

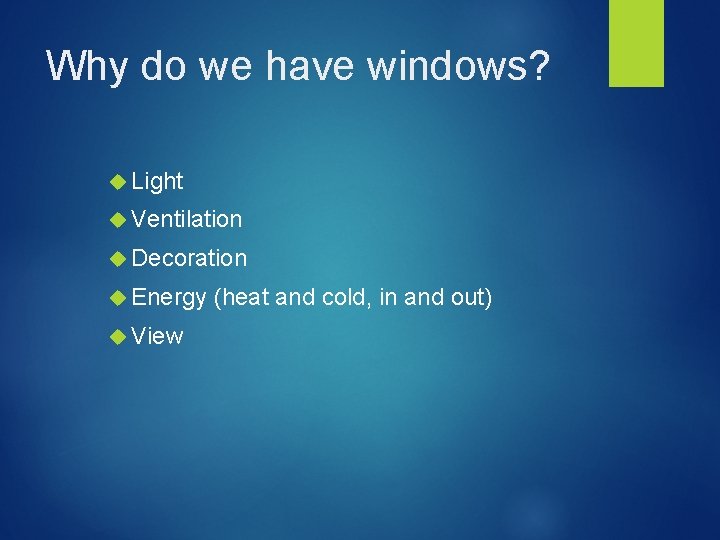

Why do we have windows? Light Ventilation Decoration Energy View (heat and cold, in and out)

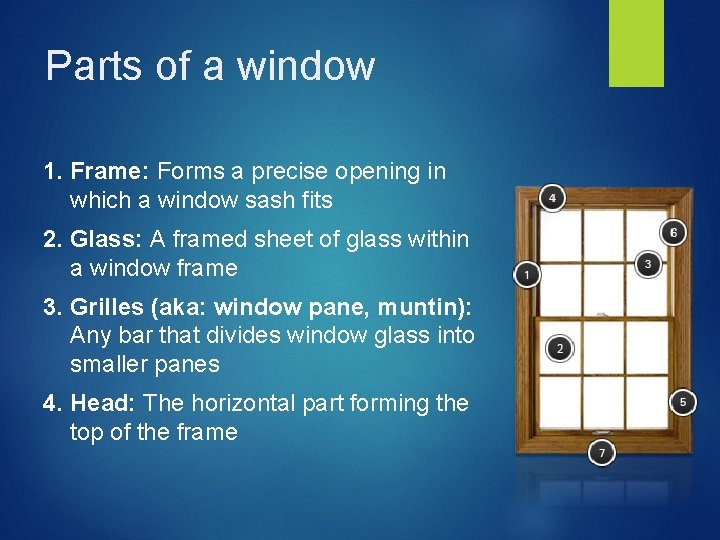

Parts of a window 1. Frame: Forms a precise opening in which a window sash fits 2. Glass: A framed sheet of glass within a window frame 3. Grilles (aka: window pane, muntin): Any bar that divides window glass into smaller panes 4. Head: The horizontal part forming the top of the frame

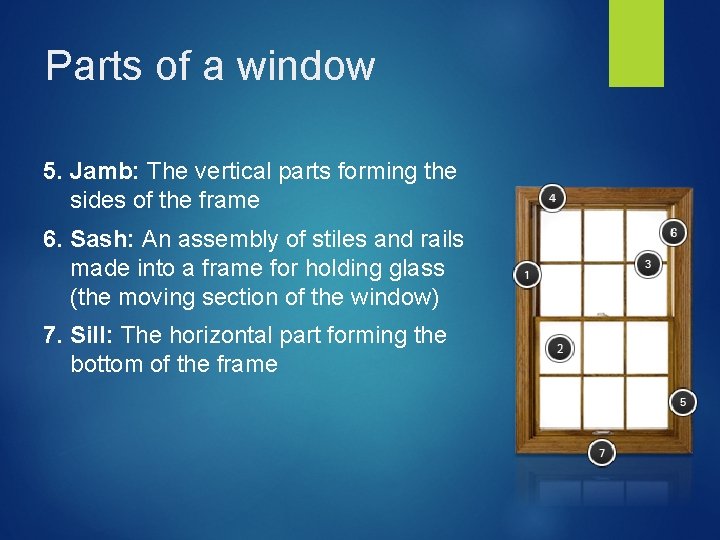

Parts of a window 5. Jamb: The vertical parts forming the sides of the frame 6. Sash: An assembly of stiles and rails made into a frame for holding glass (the moving section of the window) 7. Sill: The horizontal part forming the bottom of the frame

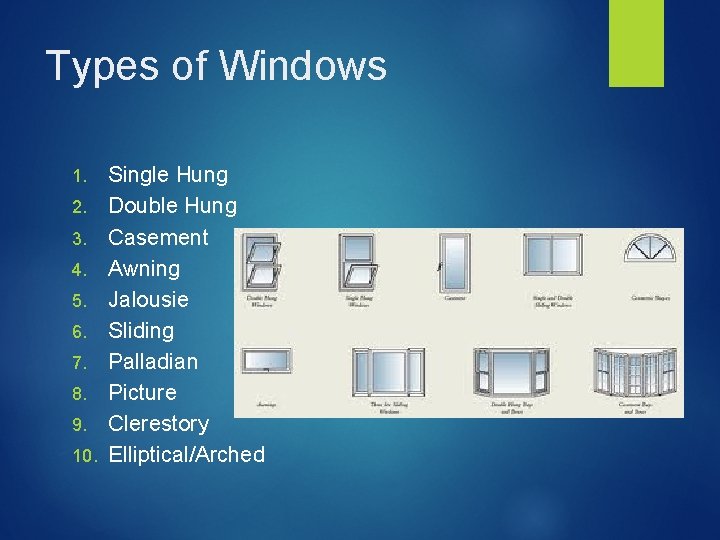

Types of Windows 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Single Hung Double Hung Casement Awning Jalousie Sliding Palladian Picture Clerestory Elliptical/Arched

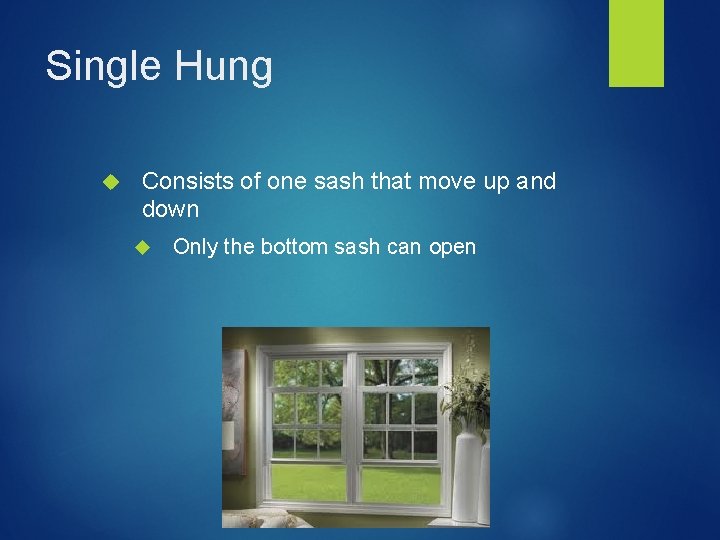

Single Hung Consists of one sash that move up and down Only the bottom sash can open

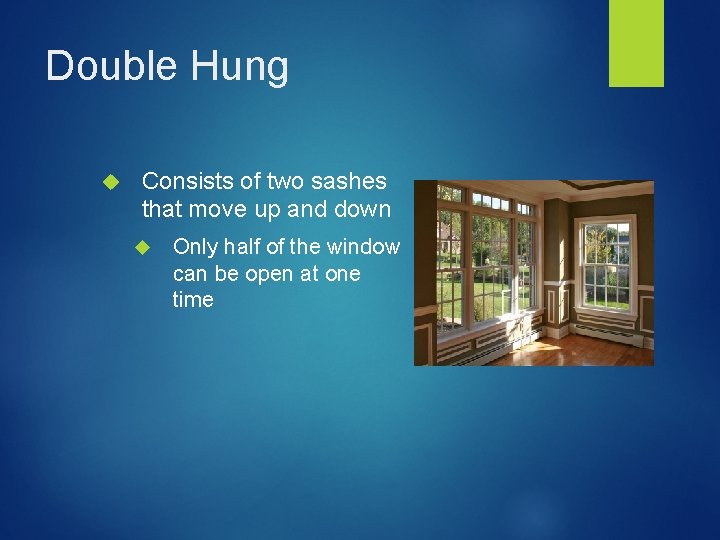

Double Hung Consists of two sashes that move up and down Only half of the window can be open at one time

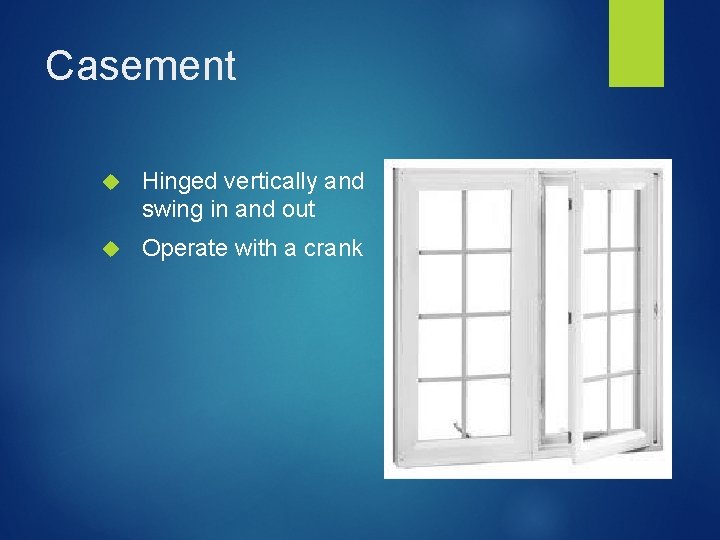

Casement Hinged vertically and swing in and out Operate with a crank

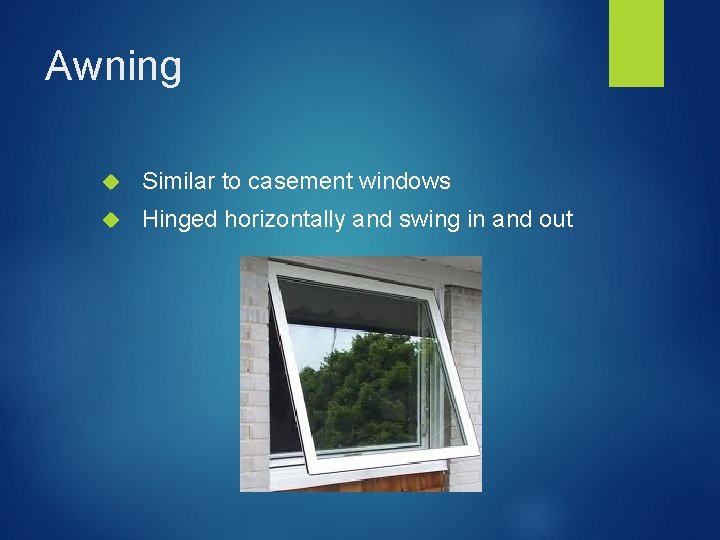

Awning Similar to casement windows Hinged horizontally and swing in and out

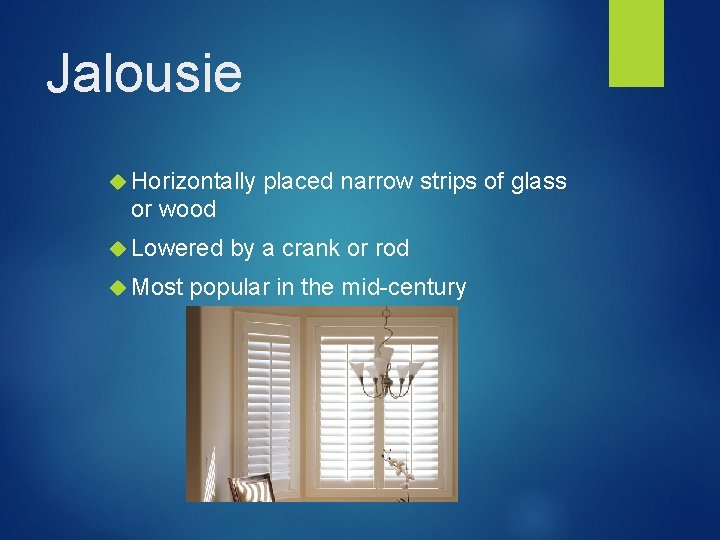

Jalousie Horizontally placed narrow strips of glass or wood Lowered Most by a crank or rod popular in the mid-century

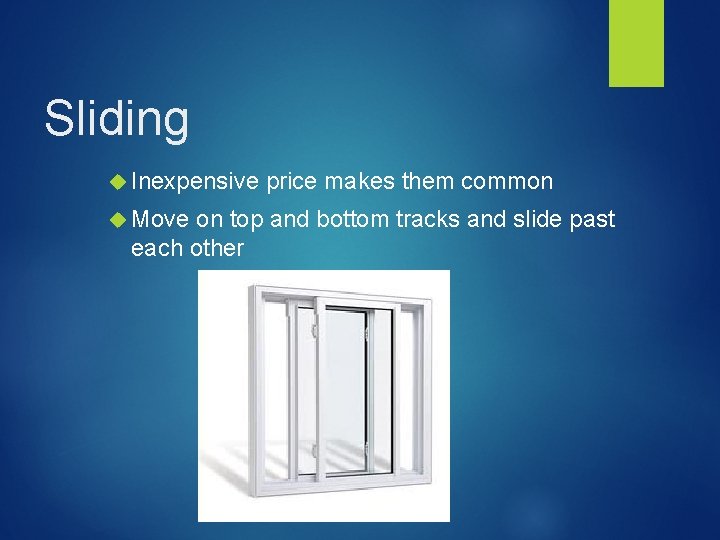

Sliding Inexpensive Move price makes them common on top and bottom tracks and slide past each other

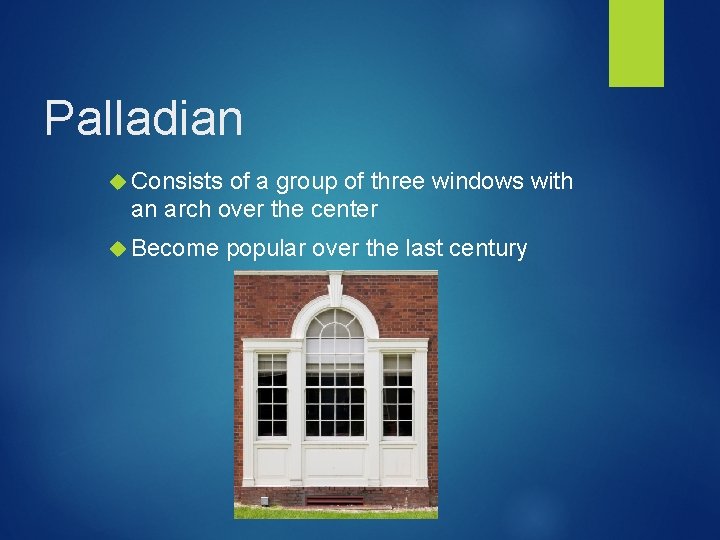

Palladian Consists of a group of three windows with an arch over the center Become popular over the last century

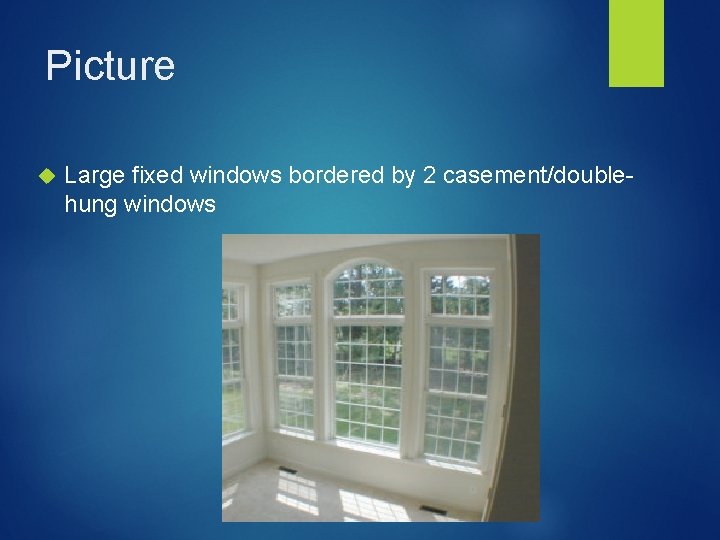

Picture Large fixed windows bordered by 2 casement/doublehung windows

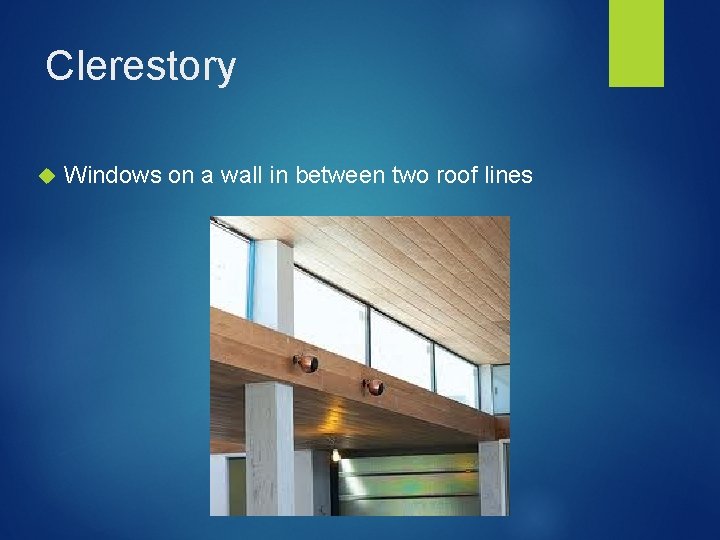

Clerestory Windows on a wall in between two roof lines

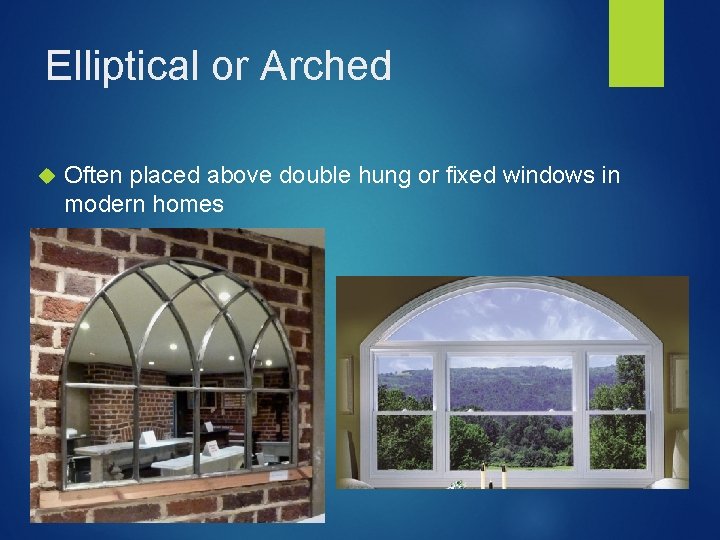

Elliptical or Arched Often placed above double hung or fixed windows in modern homes

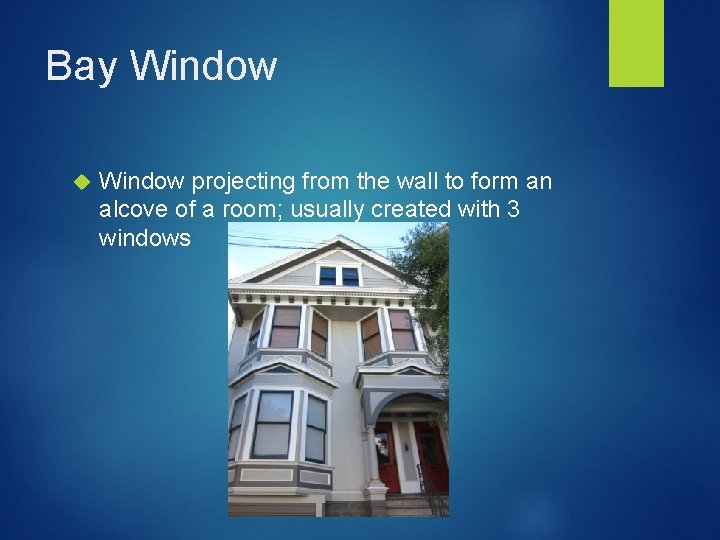

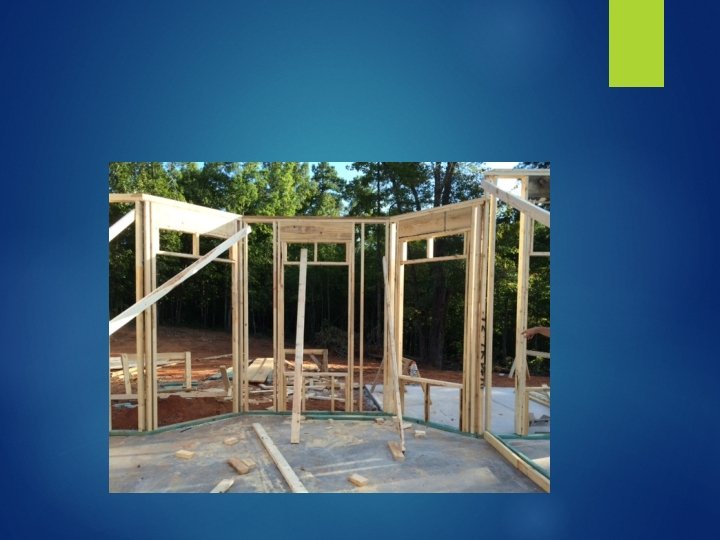

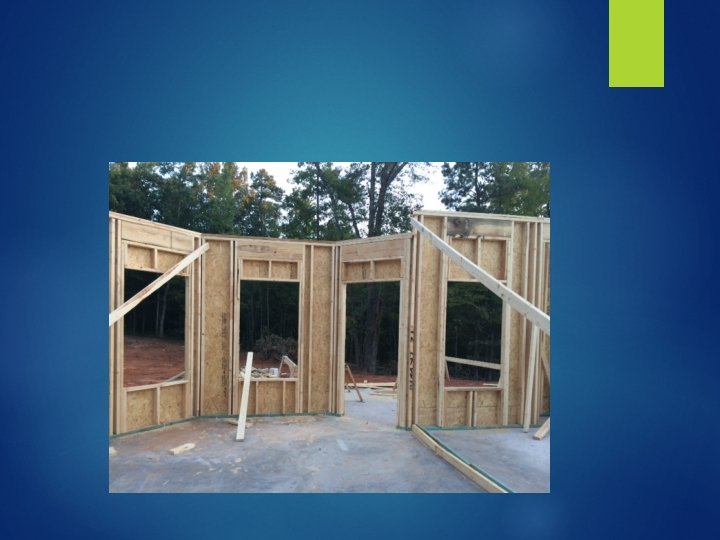

Bay Window projecting from the wall to form an alcove of a room; usually created with 3 windows

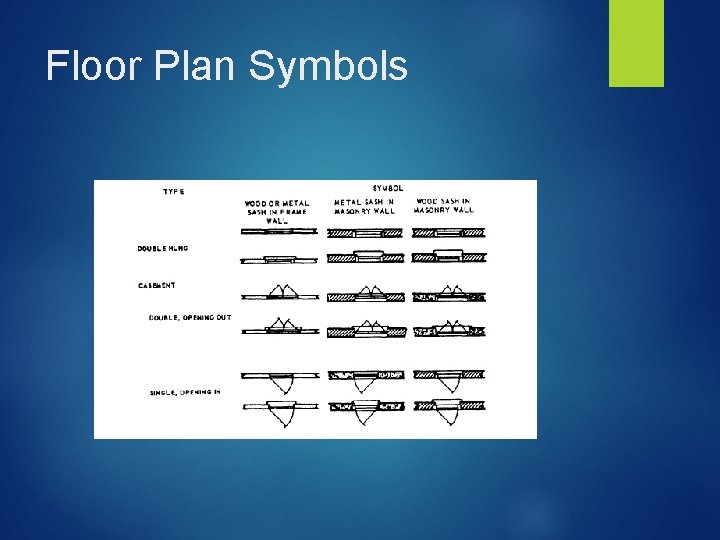

Floor Plan Symbols

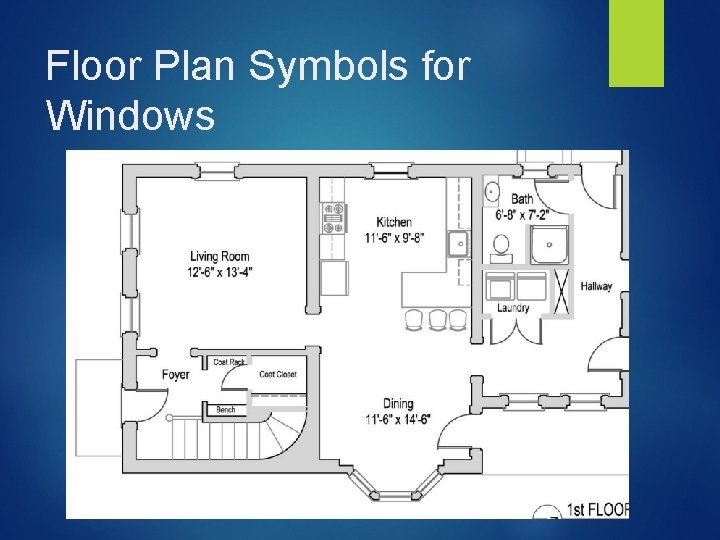

Floor Plan Symbols for Windows
