DOING MASKING PROCEDURE WAY OF USING A MASKING

DOING MASKING PROCEDURE WAY OF USING A MASKING BODY OTOMOTIF (F-022) SK – KD 12

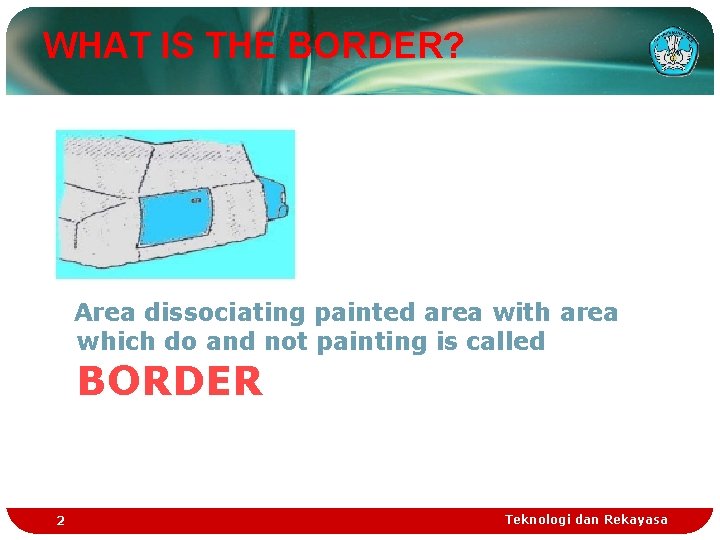

WHAT IS THE BORDER? Area dissociating painted area with area which do and not painting is called BORDER 2 Teknologi dan Rekayasa

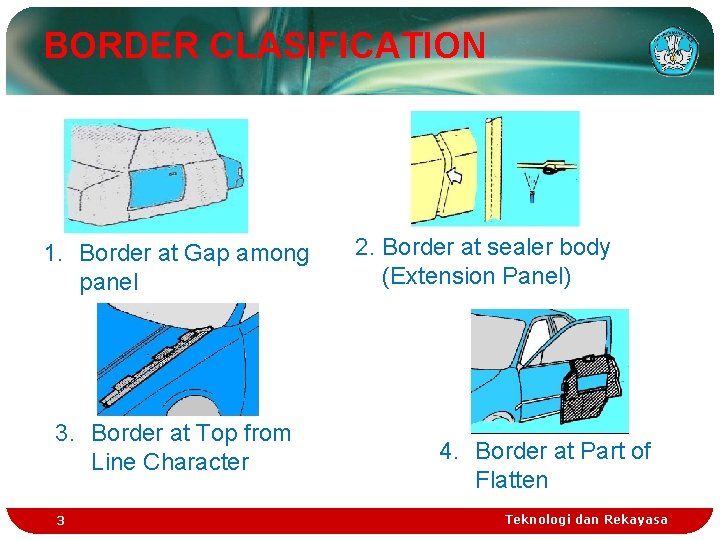

BORDER CLASIFICATION 1. Border at Gap among panel 3. Border at Top from Line Character 3 2. Border at sealer body (Extension Panel) 4. Border at Part of Flatten Teknologi dan Rekayasa

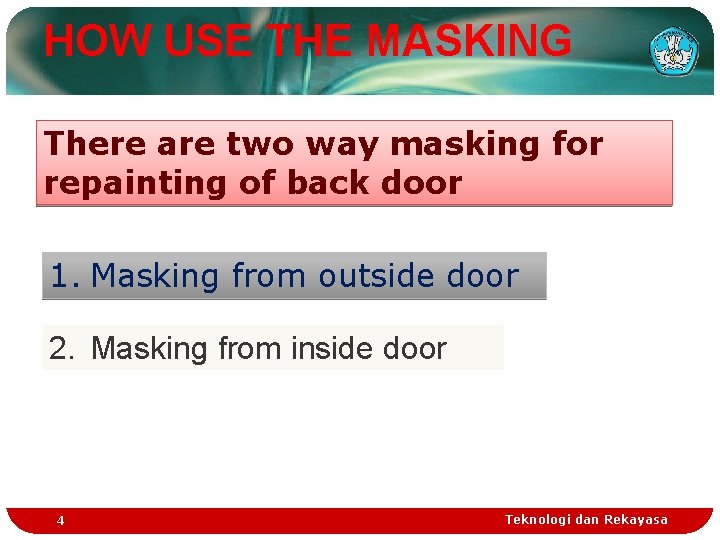

HOW USE THE MASKING There are two way masking for repainting of back door 1. Masking from outside door 2. Masking from inside door 4 Teknologi dan Rekayasa

HOW USE THE MASKING 1. Masking from outside door Start masking from hole edge Then, close middle of hole 5 Teknologi dan Rekayasa

HOW USE THE MASKING 2. Masking from inside door Gluing tape masking for to covered the hole which used to install handle door Gluing tape masking in such a manner, so that tape pass part of fold from door 6 Teknologi dan Rekayasa

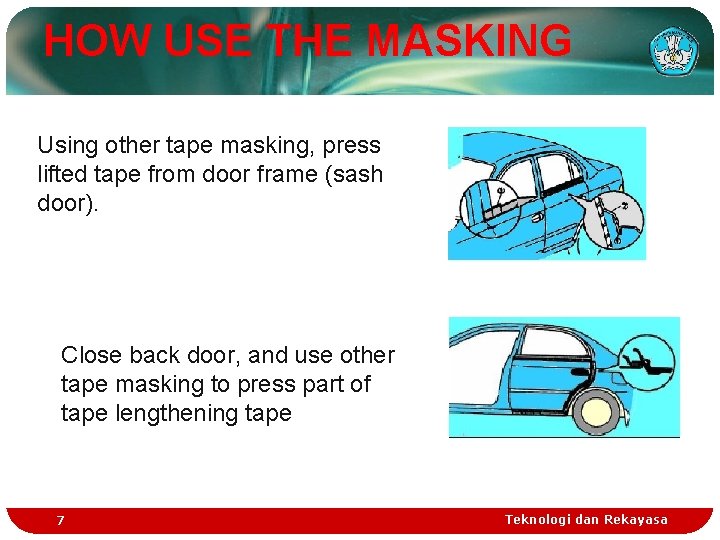

HOW USE THE MASKING Using other tape masking, press lifted tape from door frame (sash door). Close back door, and use other tape masking to press part of tape lengthening tape 7 Teknologi dan Rekayasa

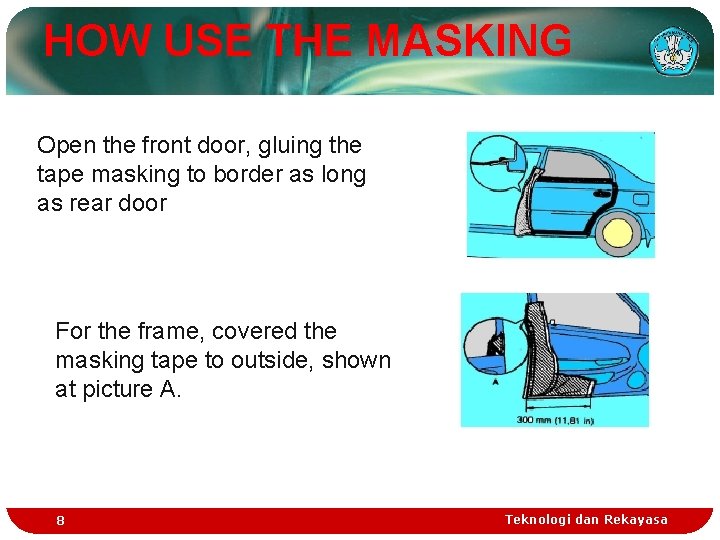

HOW USE THE MASKING Open the front door, gluing the tape masking to border as long as rear door For the frame, covered the masking tape to outside, shown at picture A. 8 Teknologi dan Rekayasa

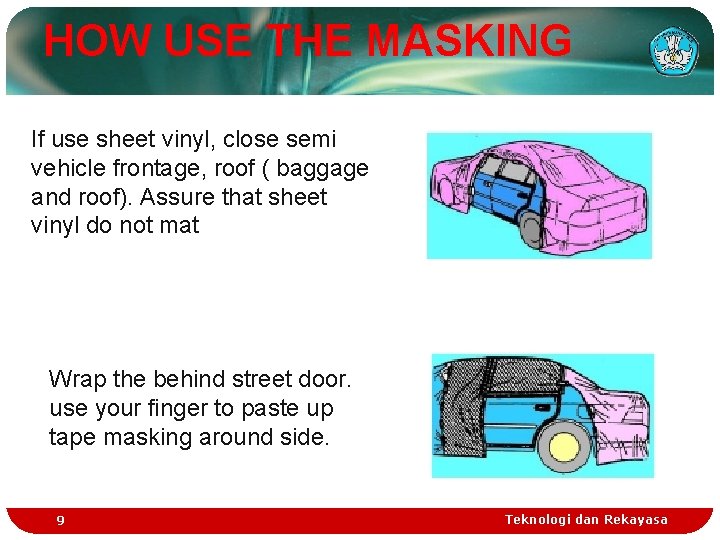

HOW USE THE MASKING If use sheet vinyl, close semi vehicle frontage, roof ( baggage and roof). Assure that sheet vinyl do not mat Wrap the behind street door. use your finger to paste up tape masking around side. 9 Teknologi dan Rekayasa

HOW USE THE MASKING Masking around rear mirror Masking vehicle quarter panel Masking around wheel house 10 Teknologi dan Rekayasa
