Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Agenda • • • Why ? What ? When ? Where? How? 2
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Why ? Reviewing manipulation Navigation Annotate Measure Capture configuration 3
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 What ? ENOVIA 3 DLive Examine is a web visualization component that is used to view 3 D and 2 D images (CGM, CGR or 3 DXML files) associated with parts and CAD models (windows only). • manipulation, navigation and reviewing functionality 3 DPlay for Dashboard is a unified cross-platform lightweight player offering an intuitive and playful navigation experience to discover 3 D models and their associated experiences in real-time (Mac and windows). 4
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 When • • Need to open quickly, view and measure Last indexed object-best so far Handle larger assemblies In mac • • • Browse tree structure Open configurations Take snapshots Annotate Save the review 5
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Common- mozilla ESR 45. 4. 0 Z: Machines DirectorateEngineering and Integration Support DivisionPublic Read WriteArdhendu_repository1_Mozilla ESR 45. 4. 0_3 dplay and 3 dlive examine 6
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Where ? • Chess. esss. lu. se • Can be found only under 3 D modeling apps-3 DPlay ( ) • Works only in 3 D dash board 7

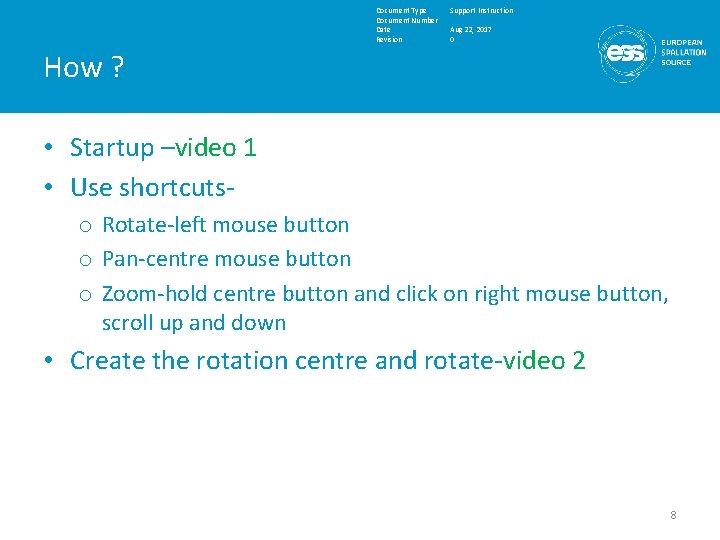

Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 How ? • Startup –video 1 • Use shortcutso Rotate-left mouse button o Pan-centre mouse button o Zoom-hold centre button and click on right mouse button, scroll up and down • Create the rotation centre and rotate-video 2 8
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 How? • Use standard view tool to align the model 9
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 • Standard view-control select –hide elements-show all -video 3 • Hide lineic elements-video or demonstration 4 • Section-move viewpoint-hide section view-measure with points-video 5 -remake • Annotate-share as picture-save-video 6 • Print pictures-pdf 10
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Where ? 11

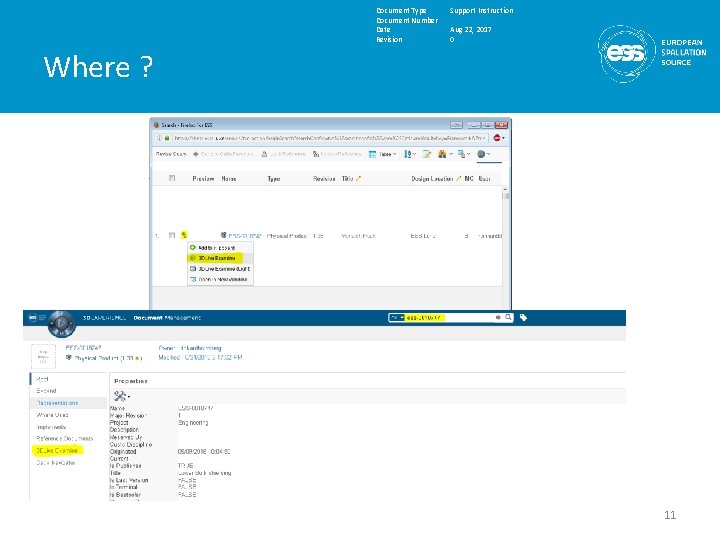

Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 1. Click on the small arrow next to the CATIA product that is to be opened. 2. Then select on 3 Dlive Examine 1 2 12
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Loading. . . If the Plugin is installed on the computer, 3 Dlive examine viewer will load the model in few minutes. Please wait untill then. 13
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Viewer 3 Dlive examine viewer will appear in a new tab 14
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 15
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Settings Preferences/ General /3 DLive Examine Choose Show 16
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 Settings Date format –decimal symbol should be a dot (comma is not accepted) 17
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 How ? • Installation of plugin and Start up-video 7 • Use shortcuts-pan, zoom rotate • Standard views available as preselections • Change background to design crystal lab-view mode to shading with edges- plane normal to surfacemeasure between two points-measure axis to axisvideo 8 18
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 How ? • Correct revision-Measure –enter comments-change text color and font size-capture-video 9 19
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 • Control select+hide- section cut-hide plane-change measurements-measure points-create a slide-savevideo 10 • Double click hide and select the objects-swap visible space-video 11 • Open configuration from slides and measure angular measurement-video 12 • Search for released products-open major revisionuse B. I essential to check the major revision statusvideo 13 20
Document Type Document Number Date Revision Support Instruction Aug 22, 2017 0 21
