Document number SLR03 13 Simplification of Regulations Lighting

Document number: SLR-03 -13 Simplification of Regulations Lighting and Light Signalling Regulations inclusive Regulation 48 analysis and way forward GRE IWG SLR Informal Working Group Simplification of Lighting Regulations

EXECUTIVE SUMMARY for presentation 2

Scope of this presentation Principle Concept for Horizontal Reference Document (HRD) Principle Structure of thr “Device” – Regulations for Horizontal Reference Document (HRD) the major objectives of the concept are: • Reduction of “Collective Amendments” in future • Simple concept for References • Simple handling in application of the Regulation 3

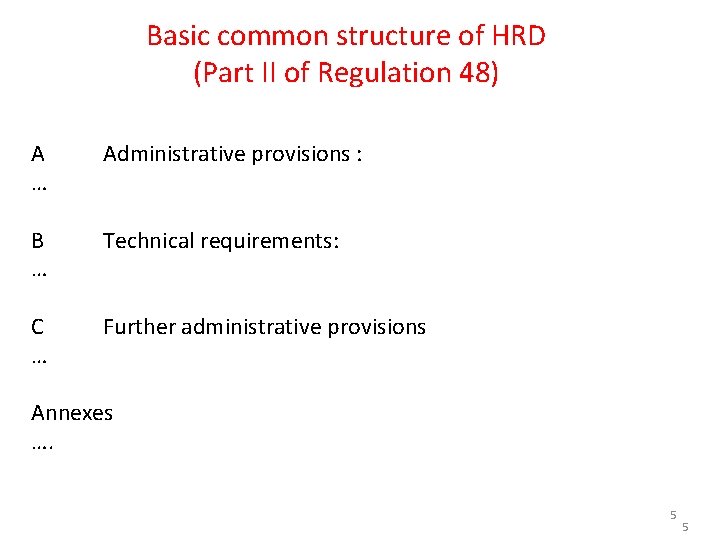

Basic common structure of the HRD by putting in Regulation 48 Part I Regulation 48 “Classic” … Annexes …. Part II HRD … Annexes …. 4 4

Basic common structure of HRD (Part II of Regulation 48) A … Administrative provisions : B … Technical requirements: C … Further administrative provisions Annexes …. 5 5

Common structure of HRD A Administrative provisions : 0. Scope 1. Definitions of Type 2. Definitions … sorted … 3. Application for approval 4. Markings 5. Approval 6

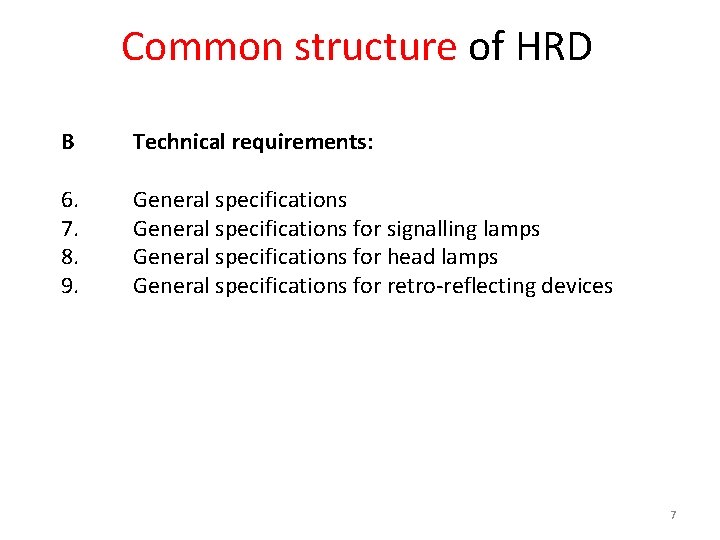

Common structure of HRD B Technical requirements: 6. 7. 8. 9. General specifications for signalling lamps General specifications for head lamps General specifications for retro-reflecting devices 7

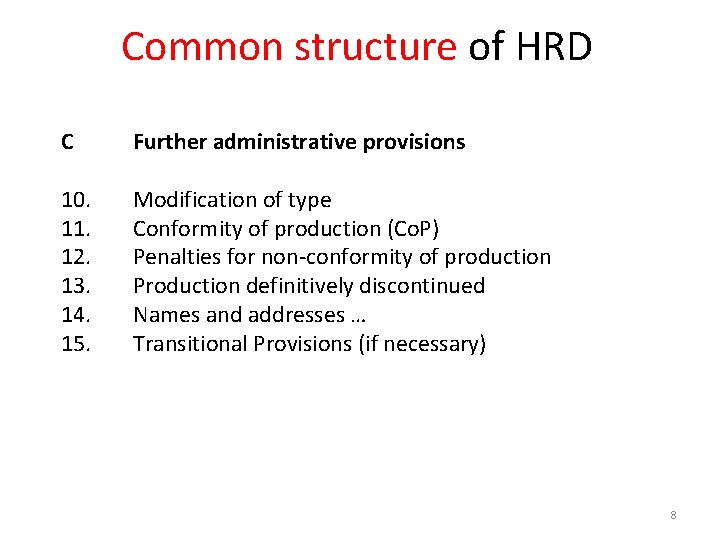

Common structure of HRD C Further administrative provisions 10. 11. 12. 13. 14. 15. Modification of type Conformity of production (Co. P) Penalties for non-conformity of production Production definitively discontinued Names and addresses … Transitional Provisions (if necessary) 8

Common structure of HRD Annexes: 1. Examples of arrangements of approval marks 2. Minimum requirements for conformity of production control procedures 3. Minimum requirements for sampling by an inspector 4. Colour of Lights 5. Photometric measurement provisions for signaling lamps 6. Photometric measurement provisions for head lamps 7. Photometric measurement provisions for retro-reflecting devices 8. Tests for stability of photometric performance of signaling lamps and headlamps in operation 9

Common structure of HRD Annexes (continued): 10. Examples of arrangements of approval marks 11. Requirements for lamps incorporating lenses of plastic material Testing of lens or material samples and of complete lamps Apendices … 12. Colour fastness to artificial light Xenon-arc lamp test for retro – reflecting devices 13. Reserved 14. Requirements for LED modules and headlamps including LED modules 15. Gonio(photo)meter system used for the photometric measurements 10 16. …

Basic common structure of “Device” - Regulations A … Administrative provisions : B … Technical requirements: C … Further administrative provisions Annexes …. 11 11

Common structure of “Device” - Regulations A 0. 1. 2. 3. 4. Administrative provisions : Scope Definitions Application for approval Markings Approval 12

Common structure of “Device” - Regulations B Technical requirements: 5. 6. 7. 8. General specifications Intensity of light emitted Test Procedure Colour of light emitted 13

Common structure of “Device” - Regulations C Further administrative provisions: 9. 10. 11. 12. 13. 14. Modification of type Conformity of production (Co. P) Penalties for non-conformity of production Production definitively discontinued Names and addresses … Transitional Provisions (if necessary) 14

Common structure of “Device” - Regulations Annexes: 1. 2. 3. 4. Examples of arrangements of approval marks Communication Photometric measurement Light distribution in space fixed 5. Additional Annexes for individual needs of the specific Regulation 6. … 15

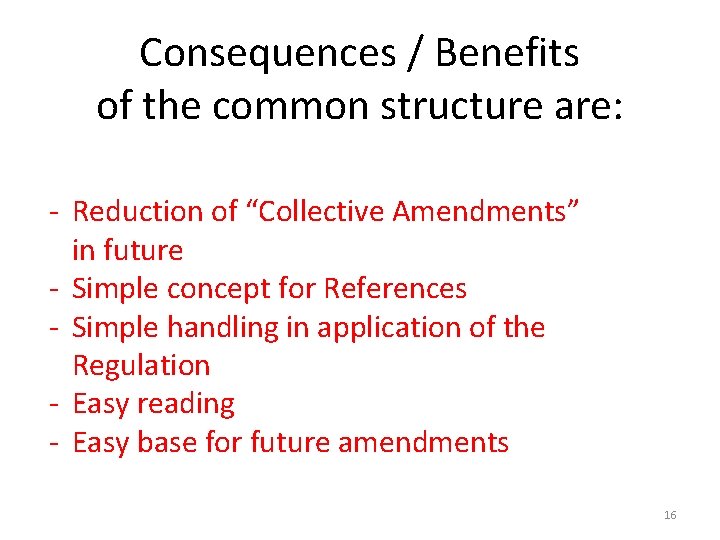

Consequences / Benefits of the common structure are: - Reduction of “Collective Amendments” in future - Simple concept for References - Simple handling in application of the Regulation - Easy reading - Easy base for future amendments 16

Consequences / Benefits of the common structure in examples: A handling of approval marks: Regulation 7 HRD 5. …. APPROVAL 5. 4. In addition to this paragraph 5, further provisions for marking stated in paragraph 4 of the pertinent Regulation shall apply. 4. 1. General The applicant shall follow instructions stated in paragraph 5. in Part II of Regulation 48 (Horizontal Reference Document (HRD)). 4. 2. In addition for the composition of the approval mark, the approval mark has also to include following additional symbol or symbols. 17

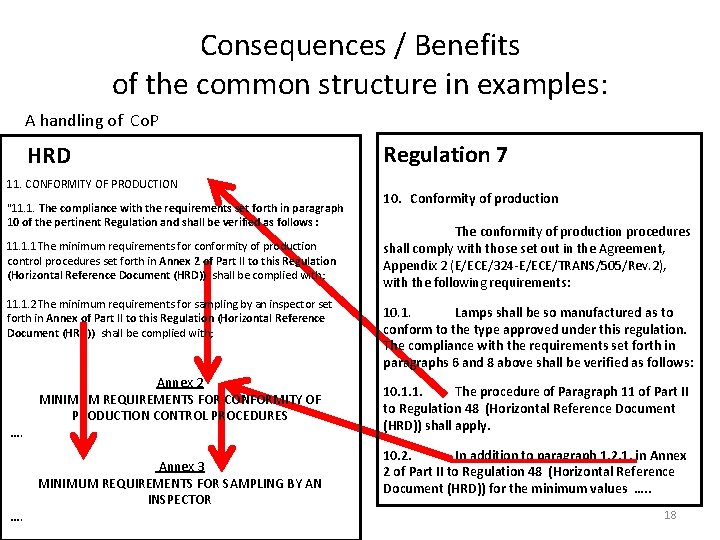

Consequences / Benefits of the common structure in examples: A handling of Co. P HRD 11. CONFORMITY OF PRODUCTION "11. 1. The compliance with the requirements set forth in paragraph 10 of the pertinent Regulation and shall be verified as follows : 11. 1. 1 The minimum requirements for conformity of production control procedures set forth in Annex 2 of Part II to this Regulation (Horizontal Reference Document (HRD)) shall be complied with; 11. 1. 2 The minimum requirements for sampling by an inspector set forth in Annex of Part II to this Regulation (Horizontal Reference Document (HRD)) shall be complied with; …. Annex 2 MINIMUM REQUIREMENTS FOR CONFORMITY OF PRODUCTION CONTROL PROCEDURES Annex 3 MINIMUM REQUIREMENTS FOR SAMPLING BY AN INSPECTOR Regulation 7 10. Conformity of production The conformity of production procedures shall comply with those set out in the Agreement, Appendix 2 (E/ECE/324 -E/ECE/TRANS/505/Rev. 2), with the following requirements: 10. 1. Lamps shall be so manufactured as to conform to the type approved under this regulation. The compliance with the requirements set forth in paragraphs 6 and 8 above shall be verified as follows: 10. 1. 1. The procedure of Paragraph 11 of Part II to Regulation 48 (Horizontal Reference Document (HRD)) shall apply. 10. 2. In addition to paragraph 1. 2. 1. in Annex 2 of Part II to Regulation 48 (Horizontal Reference Document (HRD)) for the minimum values …. . 18

Consequences • Basis for a later investigation for reduction of the number of active Regulations • Than significantly less complex amendments 19

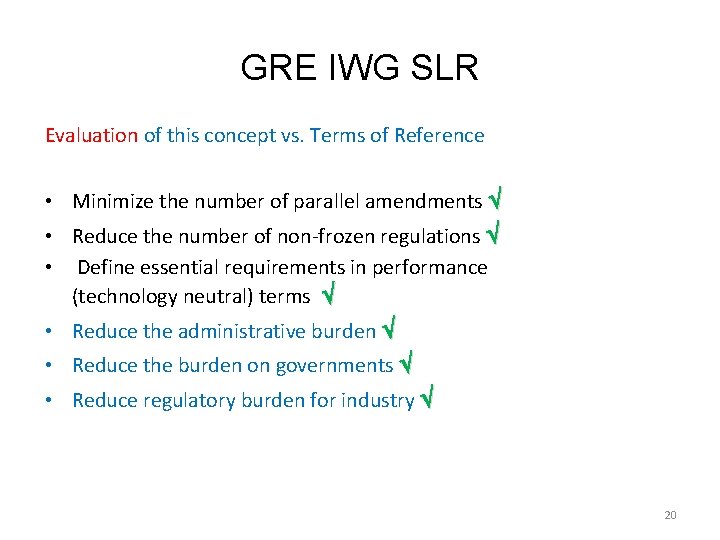

GRE IWG SLR Evaluation of this concept vs. Terms of Reference • Minimize the number of parallel amendments • Reduce the number of non-frozen regulations • Define essential requirements in performance (technology neutral) terms • Reduce the administrative burden • Reduce the burden on governments • Reduce regulatory burden for industry 20

Follow-up General question 1. Is this concept of HRD acceptable? 2. Is this concept of the Regulations on the base of HRD acceptable? 3. Can IWG SLR confirm that IWG SLR can continue working on this concept? 21
