Document No: GSC 16 -PLEN-65 Source: ATIS Contact: Brian Daly, brian. k. daly@att. com GSC Session: PLENARY Agenda Item: 6. 2 ATIS Emergency Communications (EC) Standards Development Brian K. Daly, Director, Core Standards AT&T Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

Highlights (1) General Types of Emergency Comm. N. America Example ATIS Standards Role* Citizen-to-Authority E 911, Non-Voice Emergency Services (NOVES) E 911 for wireless, Vo. IP, NGN, NG 911 in ESIF, PTSC, WTSC, NGIIF, INC, PRQC; NOVES in WTSC Authority-to-Citizen Emergency Alert System (EAS); Commercial Mobile Alert System (CMAS); Emergency Notification System (ENS) EAS for IPTV in IIF; CMAS and ENS for wireless in WTSC, NGIIF; ENS for wireline voice in NGIIF, PTSC Authority-to. Authority ETS** (Priority Services in support of National Security & Emergency Preparedness); Public Safety 700 MHz ETS in PTSC, PRQC, WTSC, NGIIF and TMOC See Supplementary Slides (11 -14) for details regarding these ATIS committees **Note ETS is also referred as NGN GETS 2

Highlights (2) GSC 16 -PLEN-65 • ATIS created an Interim Non-Voice Emergency Services (INES) Incubator to identify interim solution(s) for text-based wireless communications to existing 9 -1 -1 services as an alternative to the text telephone system (TTY) while Next Generation 9 -1 -1 (NG 9 -1 -1) solutions are under development. – First meeting in April 2011 – Target to complete its work by the end of 2011 – Work is being closely monitored by the FCC – See ATIS ICT Accessibility presentation for additional information Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 3

Highlights (3) GSC 16 -PLEN-65 • Completed multiple Commercial Mobile Alert System (CMAS) and Cell Broadcast deliverables – Working to align with 3 GPP deliverables – Currently developing implementation guidelines for the incorporation of the Spanish language – Target launch date of April 2012 • Supporting public safety mission critical voice requirements for the 700 MHz broadband networks via modifications to existing and development of new 3 GPP and ATIS standards • Developing supplement to NENA’s i 3 standard to support interface from IMS-originating networks to NENA’s emergency services networks Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 4

Highlights (4) GSC 16 -PLEN-65 • ATIS is a member of the FCC’s third Communications Security, Reliability and Interoperability Council (CSRIC) – Provides recommendations and critical input to the FCC to ensure optimal security and reliability of communications systems, including telecommunications, media, and public safety – Multiple Working Groups (WGs) established to address a wide array of topics • • • E 9 -1 -1 Location 9 -1 -1 Prioritization Security Etc. – ATIS has representation in CSRIC WGs, as many align with existing ATIS work plans and deliverables • ATIS is a member of the FCC’s Emergency Access Advisory Committee (EAAC) – Makes recommendations to the FCC regarding policies and practices for the purpose of achieving equal access to emergency services by individuals with disabilities, as a part of the migration to a national Internet protocol-enabled emergency network, also known as NG 911 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 5

Strategic Direction GSC 16 -PLEN-65 • Work in response to regulatory mandates and statutory changes • Work proactively with DHS/NCS to define Industry Requirements and Standards in support of ETS • Work proactively to support Public Safety needs – Public Safety Endorsement of LTE for 700 MHz broadband • Provide guidance to the FCC on its NG 9 -1 -1 and MMES to NG 9 -1 -1 rulemaking efforts. • Focus on regional needs (North America) and in coordination with global directions • Coordinate/collaborate with other organizations where appropriate (e. g. , 3 GPP, TIA, ITU, IETF, NENA, etc. ) Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 6

Challenges GSC 16 -PLEN-65 • Working at the nexus where law, regulation, technology, social trends, and standards come together • Delivering standards to satisfy aggressive regulatory mandate target dates such that reliable implementations can be deployed (per target dates) • Regarding E 9 -1 -1, the NG 9 -1 -1 standards can get far ahead of deployments given that there are 6, 000+ PSAPs in the United States and there are generally different deployment timeframes – Messaging to NG 911 is receiving significant interest • Regarding MMES, anticipate the requirements of both users with special needs and the general public, develop a reliable solution that does not have the limitations of SMS, and define the interface to the PSAPs • Regarding ETS, providing priority routing/processing for NGN Services, including data services (e. g. , messaging, email, etc. ), enhanced authentication, authentication assurance, security and Identity Management Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 7

Next Steps/Actions GSC 16 -PLEN-65 • Continue to proactively support Public Safety stakeholder needs • Continue supporting DHS/NCS ETS service requirements • Continue with cross-organizational coordination and collaboration • Participate in Government Advisory Committees • Collaborate with DHS/FEMA on future updates and releases related to CMAS Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 8

Proposed Resolution GSC 16 -PLEN-65 • No changes proposed to existing Resolution (GSC-15/02) at this time. Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 9

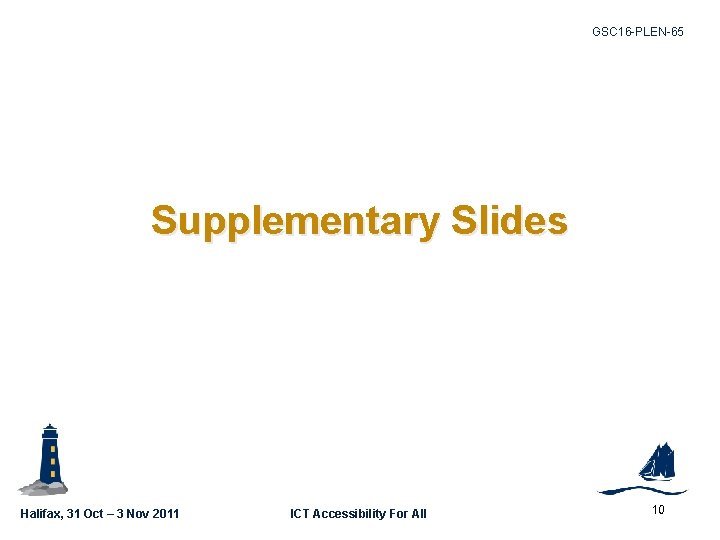

GSC 16 -PLEN-65 Supplementary Slides Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 10

Summary of General Activity GSC 16 -PLEN-65 • Citizen-to-Authority (E 911, NOVES) – Focus on NG 911 (e. g. , NGN/IMS and Location Parameter Acquisition, Conveyance Architecture, and Protocols) and various near term/legacy matters (e. g. , routing number administration for Vo. IP and wireless, NG Messaging to NG 911) – Non-Voice Emergency Services for those with special needs and for the general public • Authority-to-Citizen (EAS, CMAS, ENS) – Focus on emergency notification standards support for various technologies: • IPTV EAS requirements and metadata • Wireless CMAS functions and interfaces: – Common aspects (i. e. , Gov-to-Service Provider [gateway-togateway] interface, and mobile device behavior) done in collaboration with TIA – GSM/UMTS/LTE specific aspects • Wireline ENS best practices • Authority-to-Authority (ETS) – Focus on supporting ETS for NGN Vo. IP and Data services • NGN/IMS Core Network Requirements • Wireline Access Network Requirements • ETS service description (including End-to-end call flows), authentication, and security standards/recommendations • Gap requirements brought to the IETF and 3 GPP, where appropriate Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 11

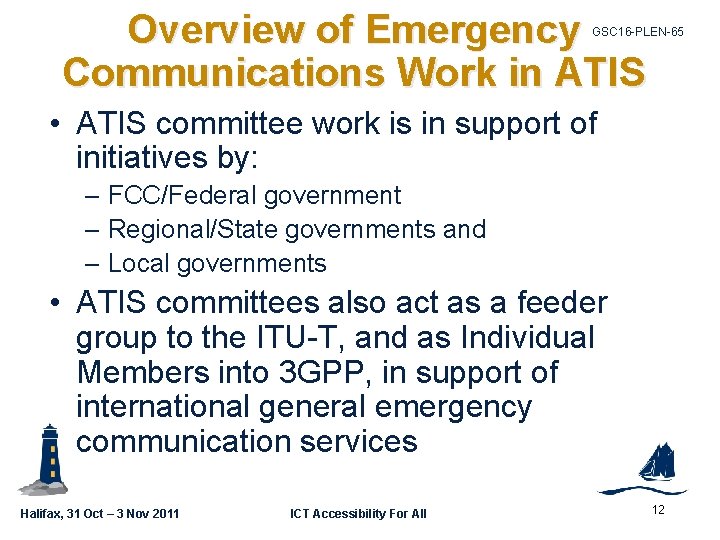

Overview of Emergency Communications Work in ATIS GSC 16 -PLEN-65 • ATIS committee work is in support of initiatives by: – FCC/Federal government – Regional/State governments and – Local governments • ATIS committees also act as a feeder group to the ITU-T, and as Individual Members into 3 GPP, in support of international general emergency communication services Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 12

GSC 16 -PLEN-65 ATIS Involvement with FCC – CMAS • Federal Communications Commission (FCC) Commercial Mobile Service Alert Advisory Committee (CMSAAC) – ATIS was a member of the FCC advisory committee, which completed in October 2007 – Advisory Committee recommendations was the basis for the FCC rules for CMAS • ATIS worked closely with the government (DHS, FEMA) on the development of an interface specification, as well as a testing specification, to the Federal Alert Gateway Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 13

GSC 16 -PLEN-65 Committee/Forum Mission/Scope • Emergency Services Interconnection Forum (ESIF): ESIF provides a venue to facilitate the identification and resolution of technical and/or operational issues related to the interconnection of emergency services networks with other networks (e. g. , wireline, cable, satellite, Internet, etc. ). – http: //www. atis. org/esif • Industry Numbering Committee (INC): INC provides an open forum to address and resolve industry-wide issues associated with planning, administration, allocation, assignment and use of the North American Numbering Plan (NANP) numbering resources within the NANP area. – http: //www. atis. org/inc/index. asp Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 14

GSC 16 -PLEN-65 Committee/Forum Mission/Scope • Next Generation Interconnection Interoperability Forum (NGIIF): The NGIIF addresses next-generation network interconnection and interoperability issues associated with emerging technologies. Specifically, it develops operational procedures which involve the network aspects of architecture, disaster preparedness, installation, maintenance, management, reliability, routing, security, and testing between network operators. In addition, the NGIIF addresses issues which impact the interconnection of existing and next generation networks and facilitate the transition to emerging technologies. – http: //www. atis. org/ngiif/index. asp Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 15

GSC 16 -PLEN-65 Committee/Forum Mission/Scope • IPTV Interoperability Forum (IIF): The IIF enables the interoperability, interconnection, and implementation of IPTV systems/services by developing ATIS standards and facilitating related technical activities. This forum will place an emphasis on North American and ATIS Member Company needs in coordination with other regional and international standards development organizations. – http: //www. atis. org/iif/index. asp • Wireless Technologies and Systems Committee (WTSC): WTSC develops and recommends standards and technical reports related to wireless and/or mobile services and systems, including service descriptions and wireless technologies. WTSC develops and recommends positions on related subjects under consideration in other North American, regional and international standards bodies. – http: //www. atis. org/0160/index. asp Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 16

GSC 16 -PLEN-65 Committee/Forum Mission/Scope • Packet Technologies and Systems Committee (PTSC): PTSC develops and recommends standards related to services, architectures, and signaling, in addition to related subjects under consideration in other North American and international standards bodies. – http: //www. atis. org/0191/index. asp • Telecom Management and Operations Committee (TMOC): TMOC develops operations, administration, maintenance and provisioning standards, and other documentation related to Operations Support System (OSS) and Network Element (NE) functions and interfaces for communications networks - with an emphasis on standards development related to U. S. A. communication networks in coordination with the development of international standards. – http: //www. atis. org/0130/index. asp Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 17

ATIS Emergency Communications Standards (recent deliverables) GSC 16 -PLEN-65 • ESIF Standards: – ATIS-0500001. v 002: High Level Requirements for Accuracy Testing Methodologies – ATIS-0500013: Approaches to Wireless E 911 Indoor Location Performance Testing – ATIS-0500014: Initial Stage 2/3 NG 9 -1 -1 Standard Based on NGN/IMS – ATIS-0500015: Standardization of location parameter conveyance architecture and protocols – ATIS-0500016: Process to Remove Dialable p-ANIs from 9 -1 -1 Networks – ATIS-0500017: Considerations for an Emergency Services Next Generation Network (ES-NGN) – ATIS-0500018: p-ANI Allocation Tables for ESQKs, ESRKs, and ESRDs – ATIS-0500019: Request for Assistance Interface (RFAI) Specification Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 18

ATIS Emergency Communications Standards (recent deliverables) GSC 16 -PLEN-65 • NGIIF Standards: – ATIS-0300098, Best Practices for Emergency Notification System (ENS) Call Volume Testing Procedure: Wireline – ATIS-0300013, NIIF Reference Document, Part III, Attachment B, ISUP Compatibility Tests – NIIF Reference Document ATIS-0300016, Part III, Installation, Testing and Maintenance Responsibilities for SS 7 Links and Trunks, Attachment E, SS 7 Network Gateway Screening • PTSC Standards: – ATIS-1000020, ETS Packet Priority for IP NNI Interfaces. Requirements for a Separate Expedited Forwarding Mechanism Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 19

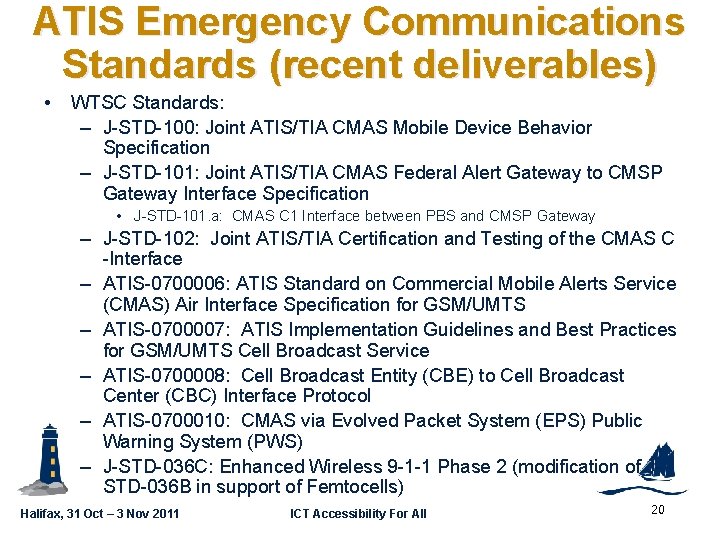

ATIS Emergency Communications Standards (recent deliverables) GSC 16 -PLEN-65 • WTSC Standards: – J-STD-100: Joint ATIS/TIA CMAS Mobile Device Behavior Specification – J-STD-101: Joint ATIS/TIA CMAS Federal Alert Gateway to CMSP Gateway Interface Specification • J-STD-101. a: CMAS C 1 Interface between PBS and CMSP Gateway – J-STD-102: Joint ATIS/TIA Certification and Testing of the CMAS C -Interface – ATIS-0700006: ATIS Standard on Commercial Mobile Alerts Service (CMAS) Air Interface Specification for GSM/UMTS – ATIS-0700007: ATIS Implementation Guidelines and Best Practices for GSM/UMTS Cell Broadcast Service – ATIS-0700008: Cell Broadcast Entity (CBE) to Cell Broadcast Center (CBC) Interface Protocol – ATIS-0700010: CMAS via Evolved Packet System (EPS) Public Warning System (PWS) – J-STD-036 C: Enhanced Wireless 9 -1 -1 Phase 2 (modification of JSTD-036 B in support of Femtocells) Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 20

GSC 16 -PLEN-65 ATIS Emergency Communications Standards (recent deliverables) • Publications available via the ATIS Document Center at: https: //www. atis. org/docstore/default. aspx Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 21

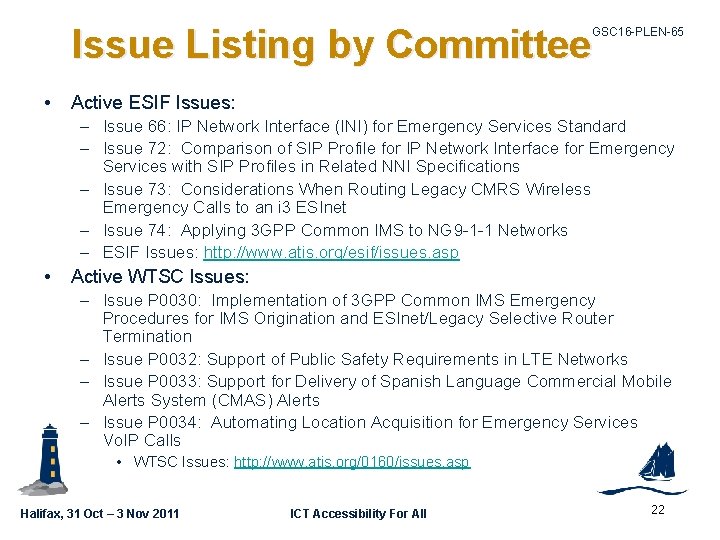

Issue Listing by Committee GSC 16 -PLEN-65 • Active ESIF Issues: – Issue 66: IP Network Interface (INI) for Emergency Services Standard – Issue 72: Comparison of SIP Profile for IP Network Interface for Emergency Services with SIP Profiles in Related NNI Specifications – Issue 73: Considerations When Routing Legacy CMRS Wireless Emergency Calls to an i 3 ESInet – Issue 74: Applying 3 GPP Common IMS to NG 9 -1 -1 Networks – ESIF Issues: http: //www. atis. org/esif/issues. asp • Active WTSC Issues: – Issue P 0030: Implementation of 3 GPP Common IMS Emergency Procedures for IMS Origination and ESInet/Legacy Selective Router Termination – Issue P 0032: Support of Public Safety Requirements in LTE Networks – Issue P 0033: Support for Delivery of Spanish Language Commercial Mobile Alerts System (CMAS) Alerts – Issue P 0034: Automating Location Acquisition for Emergency Services Vo. IP Calls • WTSC Issues: http: //www. atis. org/0160/issues. asp Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 22

Issue Listing by Committee GSC 16 -PLEN-65 • Active NGIIF Issues: – Issue 07: Mass Call Blast Impact on Telecommunication Networks – Issue 10: Interoperability and Services Restoration Guidelines for Telecommunications Disaster Recovery – Issue 11: Need for Emergency Notification Best Practices – Issue 21: Transition to Next Generation Network (NGN) Priority Services – Issue 26: Enhanced Overload Performance for National Security/Emergency Preparedness (NS/EP) Wireless Priority Service (WPS) on Code Division Multiple Access (CDMA) Networks • NGIIF Issues: http: //www. atis. org/ngiif/issues. asp • Active IIF Issues: – Issue 51: IPTV EAS Update and Maintenance • IIF Issues: http: //www. atis. org/iif/issues. asp Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 23

Issue Listing by Committee GSC 16 -PLEN-65 • Active PTSC Issues: – – – Issue S 0045: Service Requirements for ETS in NGN Issue S 0063: ATIS ETS Authentication Issue S 0081: ETS Wireline Access Requirements Issue S 0082: ETS Phase 2 Network Element Requirements Issue S 0085: NGN GETS (ETS) End-to-End Call Flows Issue S 0097: Emergency Telecommunications Service (ETS) Profile & Test Suites for IP Network-to-Network Interconnection (IP-NNI) • PTSC Issues: http: //www. atis. org/0191/issues. asp Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 24
