Document No: GSC 16 -PLEN-62 Source: TIA Contact: Jane Brownley (jane. brownley@alcatel-lucent. com) John Oblak (joblak@efjohnson. com) GSC Session: PLENARY Agenda Item: 6. 2 Emergency Communications Jane Brownley Chair TR-45 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

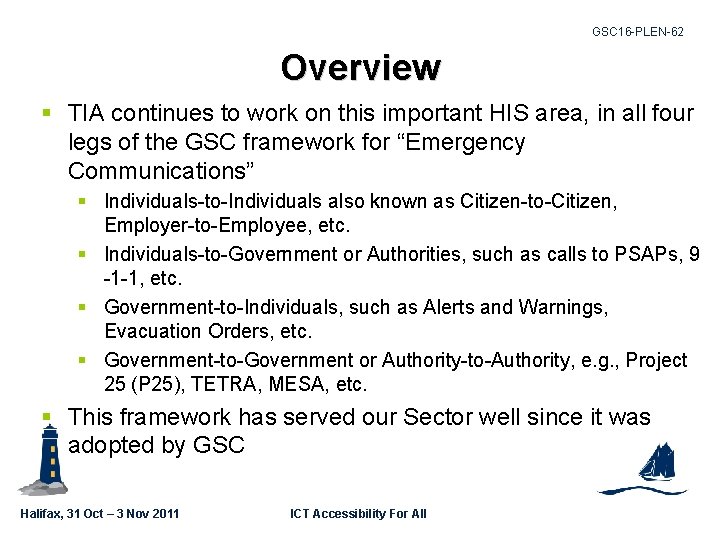

GSC 16 -PLEN-62 Overview § TIA continues to work on this important HIS area, in all four legs of the GSC framework for “Emergency Communications” § Individuals-to-Individuals also known as Citizen-to-Citizen, Employer-to-Employee, etc. § Individuals-to-Government or Authorities, such as calls to PSAPs, 9 -1 -1, etc. § Government-to-Individuals, such as Alerts and Warnings, Evacuation Orders, etc. § Government-to-Government or Authority-to-Authority, e. g. , Project 25 (P 25), TETRA, MESA, etc. § This framework has served our Sector well since it was adopted by GSC Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 TIA’s Activities on 700 MHz § While TIA has not taken a position on whether to give the D Block to public safety or auction it commercially, TIA has long supported the swift deployment of an interoperable broadband public safety network. § TIA has meet with the FCC and filed comments urging the adoption of rules that will ensure the technical and economic viability of a public safety network. § TIA regularly meets with public safety, including PSST (Public Safety Spectrum Trust) and APCO (Association of Public-Safety Communications Officials), to coordinate and learn of their priorities. § TIA has also provided technical expertise to the FCC’s Emergency Response Interoperability Center on public safety network priority access and roaming for the 700 MHz public safety band waiver grantees and the overall public safety network. Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 TIA’s Activities on 700 MHz (cont) § TIA has filed comments on technical requirements for public safety entities seeking to build interoperable networks, urging that technologyneutral rules that ensure seamless interoperability among public safety networks. § We strongly support the President’s goal of ensuring that future spectrum auction proceeds are directed to building a nationwide interoperable broadband public safety network; we are working with the White House, FCC Commissioners, the Wireless Telecommunications Bureau, and key Members of Congress to achieve this goal. Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 Highlight of TR-8 Activities § TIA, through the TR-8 committee on Private Land Mobile Radio, develops standards for Emergency Communications in several areas: § Maintains standards for existing analog (Frequency Modulated) radio systems § Develops and maintains a suite of standards for Project 25, a digital radio system targeted at Public Safety and Disaster Relief § Develops and maintains standards and bulletins relating to radio propagation, interference, and frequency coordination § Develops standards and bulletins relating to wideband broadband radio systems for Public Safety and Disaster Relief applications Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 Highlight of Current Activities • TR-8 develops standards for Project 25 digital radio systems (TIA-102 series of standards) – Standards suite consists of 69 documents covering topics such as • Over-the-air interface • Services such as Trunking, Encryption, Data Transport, Overthe-Air Rekeying (OTAR) • Fixed network interfaces such as Inter-Sub-System Interface, Console Interface, Fixed Station Interface • Network Management • Telephone Interface • Key Management Facility (KMF) Interface • Compliance Assessment Testing • Phase II 2 -slot TDMA trunking systems Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 6

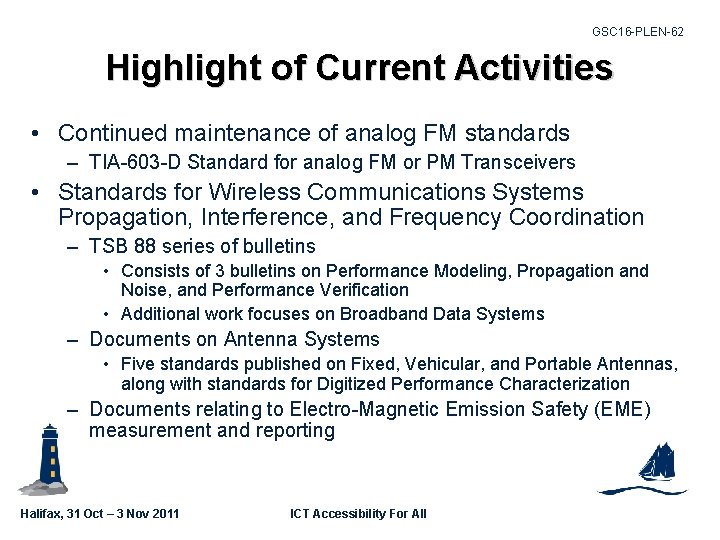

GSC 16 -PLEN-62 Highlight of Current Activities • Continued maintenance of analog FM standards – TIA-603 -D Standard for analog FM or PM Transceivers • Standards for Wireless Communications Systems Propagation, Interference, and Frequency Coordination – TSB 88 series of bulletins • Consists of 3 bulletins on Performance Modeling, Propagation and Noise, and Performance Verification • Additional work focuses on Broadband Data Systems – Documents on Antenna Systems • Five standards published on Fixed, Vehicular, and Portable Antennas, along with standards for Digitized Performance Characterization – Documents relating to Electro-Magnetic Emission Safety (EME) measurement and reporting Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 Highlight of TR-45 Activities • TR-45 does work to support Government-to. Government, CMAS, and Wireless Priority Services – continues to actively partner with ATIS WTSC developing joint standards for CMAS – working with 3 GPP 2 on the requirements and network support for Multimedia Priority Services – Completed work on Packet Data Emergency Services – Completed work on a Call Back to an Emergency Call Origination capability – Newly initiated work item on DRVCC Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 8

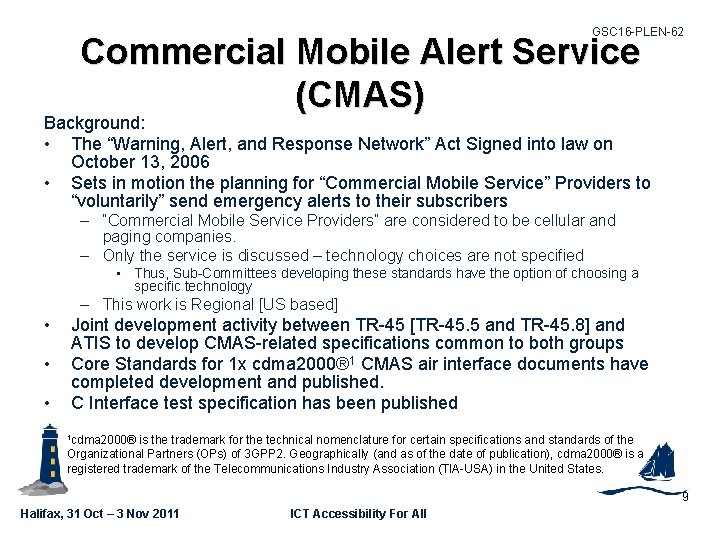

GSC 16 -PLEN-62 Commercial Mobile Alert Service (CMAS) Background: • The “Warning, Alert, and Response Network” Act Signed into law on October 13, 2006 • Sets in motion the planning for “Commercial Mobile Service” Providers to “voluntarily” send emergency alerts to their subscribers – “Commercial Mobile Service Providers” are considered to be cellular and paging companies. – Only the service is discussed – technology choices are not specified • Thus, Sub-Committees developing these standards have the option of choosing a specific technology – This work is Regional [US based] • • • Joint development activity between TR-45 [TR-45. 5 and TR-45. 8] and ATIS to develop CMAS-related specifications common to both groups Core Standards for 1 x cdma 2000® 1 CMAS air interface documents have completed development and published. C Interface test specification has been published 1 cdma 2000® is the trademark for the technical nomenclature for certain specifications and standards of the Organizational Partners (OPs) of 3 GPP 2. Geographically (and as of the date of publication), cdma 2000® is a registered trademark of the Telecommunications Industry Association (TIA-USA) in the United States. 9 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

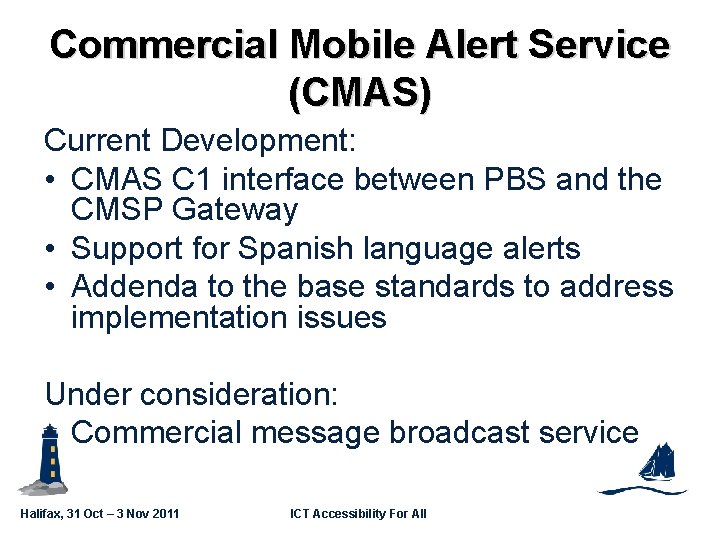

Commercial Mobile Alert Service (CMAS) GSC 16 -PLEN-62 Current Development: • CMAS C 1 interface between PBS and the CMSP Gateway • Support for Spanish language alerts • Addenda to the base standards to address implementation issues Under consideration: • Commercial message broadcast service Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

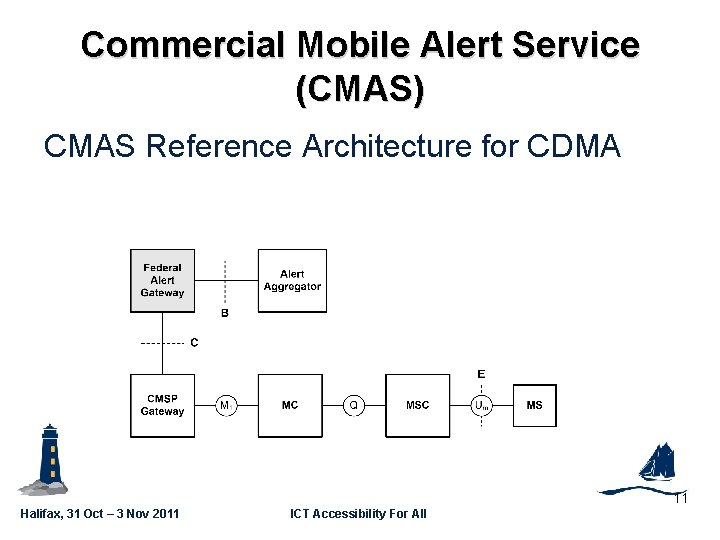

Commercial Mobile Alert Service (CMAS) GSC 16 -PLEN-62 CMAS Reference Architecture for CDMA 11 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

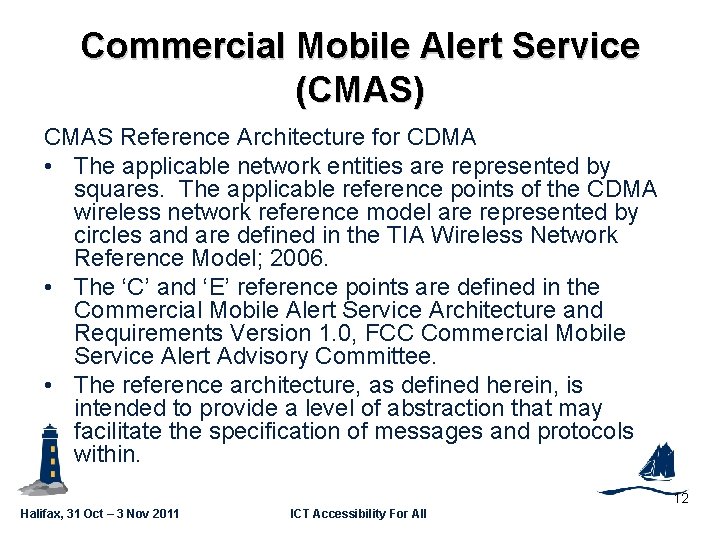

GSC 16 -PLEN-62 Commercial Mobile Alert Service (CMAS) CMAS Reference Architecture for CDMA • The applicable network entities are represented by squares. The applicable reference points of the CDMA wireless network reference model are represented by circles and are defined in the TIA Wireless Network Reference Model; 2006. • The ‘C’ and ‘E’ reference points are defined in the Commercial Mobile Alert Service Architecture and Requirements Version 1. 0, FCC Commercial Mobile Service Alert Advisory Committee. • The reference architecture, as defined herein, is intended to provide a level of abstraction that may facilitate the specification of messages and protocols within. 12 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 E 911 and Priority Services • Support of granting priority access to cdma 2000 services to a government related special class of users. • Support identification of emergency calls originated by the mobile station. This indication is passed to the network. • Support Multimedia Priority Services for 1 x and HRPD • Support of enhanced Packet Data Emergency Services capabilities 13 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 Location • Continued evolution of location based services • Significant updates to Position Location documents, which enhances availability of location based services, e. g. , E 911. • Completing test specifications commences with major position location updates. • Improved protocols and procedures to enable mobile station based Advance Forward Link Trilateration (AFLT) for 1 x, HRPD, and UMB technologies. 14 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All

GSC 16 -PLEN-62 Location • More general support for Global Navigation Satellite Systems in addition to GPS, including • • • GLONASS Galileo Quazi-Zenith Satellite Systems (QZSS) Compass/Bei. Dou The protocols can also be extended to systems not yet defined. – Support for Satellite Based Augmentation Systems • American Wide Area Augmentation System (WAAS) • European Geostationary 28 Navigation Overlay Service (EGNOS) • Indian GPS Aided GEO Augmented Navigation Systems (GAGAN) • 29 and Japanese Multi-functional Satellite Augmentation Systems (MSAS) Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 15

GSC 16 -PLEN-62 Strategic Direction • Ongoing support of Commercial Mobile Alert System (CMAS) • Ongoing support for Multimedia Priority Services and Enhanced 9 -1 -1 Service Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 16

GSC 16 -PLEN-62 Next Steps/Actions • Continuing cooperation among all PSOs and groups working on Emergency Communications. Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 17

Summary GSC 16 -PLEN-62 • Contributions from ATIS, CCSA, ETSI, ITU, and TIA – Highlights • Focus on architectures, services, and functional capabilities for standardization requirements in various emergency circumstances and environments. • Areas of standardization include satellite emergency communications, land to sky, emergency SMS, disaster recovery, citizen-to-authority (E 911, NOVES), authority-to-citizen (EAS, CMAS, ENS), authority-to-authority (ETS), automated calls to emergency services, wireless and multimedia priority services, emergency services for femto, position location. • Regional regulatory requirements and mandates in coordination with global directions. – Next Steps • Continue to develop new standards and make revisions to existing standards. • Continue to support the various public safety needs and regulations including non-voice emergency services, public warning research, sensor monitoring, unified IMS, priority call in public communications, call forwarding and referral of emergency calls and RRS-based public safety communications infrastructure. • Continue cross-organizational coordination, collaboration, and liaisons. • Recommendation – Reaffirm the existing Resolution GSC-14/02 – Retain HIS for GSC-17 Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 18

GSC 16 -PLEN-62 Supplementary Slides Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 19

Recent TR-45 Standards for Emergency Services GSC 16 -PLEN-62 • Recently Completed Standards – IOS for CECO • TIA-2001 -C-1 ( 3 G 1 x-IOS v 5. 0. 2) - These standards provide the interoperability for the new enhanced features on cdma 2000 1 x. They are bug fixes for v 2. 0 and support for callback of an emergency call. Publication was approved in September 2010 meeting. • TIA-2001 -D-2 (3 G 1 x-IOS v 5. 1. 2) - These standards provide the interoperability for the new enhanced features on cdma 2000 1 x. They are bug fixes for v 2. 0 and support for callback of an emergency call and EVRC-NW capacity operating point 0. The R&F was approved in January meeting. Publication was approved in May 2011 meeting. – TIA-1163 -A - E-UTRAN - e. HRPD Connectivity and Interworking: Core Network Aspects Halifax, 31 Oct – 3 Nov 2011 ICT Accessibility For All 20
