Document for Technical and Sales Training KX-NS 700 Basic Specification July 21, 2016 Panasonic System Networks PBX SE team This document explains basic specification of KX-NS 700 version 4. 4. It is recommended to know basic specification of KX-TDE or KX-NCP before reading this document. However it is not required to know KXNS 1000 before reading this document. Specifications are subject to change without notice. www. Oskuei-Store. com

1. Introduction (PBX Line-up) KX-NS 700 is successor of KX-TDE 100 -200 and KX-NCP with built-in solution based on KX-NS 1000. Max. Ext NS IP/Digital Hybrid PBX KX-NS 700 Max. 134 Ext TDE/NCP as IP/Digital Hybrid PBX TDE 600　　　　 Max. 960 Ext NS Pure IP PBX NS 1000 x 3 + TDA 620 x 5　　　　　 Max. 1000 Ext 128 TDE 200 Max. 168 Ext 64 TDE 100 Max. 64 by Power-S 24 NCP Max. 40 Ext KX-TE Max. 24 Ext Analog Digital IP (more features) Max. Ext = Digital PT + Analog SLT (except D-XDP and except IP Phone) 2

2. Introduction (Feature) KX-NS 700 provides same features and same operations as KX-TDE/KXNCP and KX-NS 1000 with built-in Solution. KX-NS 1000 Version 2 Version 3 Version 4. 0 KX-NS 700 Version 4. 0 KX-TDE/NCP Version 4 Version 7 Version 8 Built-in Solution VM(KX-TVM base) / Recording / UM / Call Center / UC / Mobility / Security KX-NS 700 First version is 4. 0. 2 nd version is 4. 1. Web programming is supported instead of Unified PCMC. So it is not required to download and install Unified PCMC application. www. Oskuei-Store. com 3

3. Table of Contents Chapter Contents 1 Configuration 2 Optional Card 3 Activation Key 4 Built-in Solution 5 Installation 6 IP Phone Line-up www. Oskuei-Store. com 4

Chapter 1 Configuration www. Oskuei-Store. com 5

11. Main Cabinet Cost Saving You can save cost because required hardware is factory pre-installed. - Digital PT 2 -port (+ 2 D-XDP) - SLT 4 -port with caller ID and message waiting - External Paging 1 -port and external BGM 1 -port (This can be changed to Paging 2 -port or BGM 2 -port by programming. ) Digital e. Xtra Device Port - 8 -ch Internal BGM / Recording time : 17 min (WAV file can be copied. ) - 2 -ch DISA or Simple VM / Recording time : 120 min (Simple VM specification is same as ESVM 2 card on OPB 3 card of KX-TDE/NCP. ) - 2 -ch PFT (Power Failure Transfer) - LAN port (10/100 Base TX) - USB port - Power supply LAN USB 1 -RJ 45 www. Oskuei-Store. com 2 -PFT Paging 1 -RJ 45 BGM RS 232 is not supported. SMDR is available using LAN. 2 -DPT 1 -RJ 45 PT = PBX Proprietary Telephone 4 -SLT 2 -RJ 45 External battery port is not supported. 6

Cost Saving 12. Expandability KX-NS 700 has expandability with optional cards and expansion cabinets. You do not need to discard KX-NS 700 to increase capacity in future. KX-NS 700 without option KX-NS 700 Trunk 16 -DPT or SLT 2 -DPT + 4 -SLT KX-NS 720 Trunk 16 -DPT or SLT External battery port is not supported. Connection is like KX-TDE 600 and KX-TDE 620. KX-NS 720 KX-NS 700 34 DPT 66 DPT 98 DPT www. Oskuei-Store. com D-XDP = Digital e. Xtra Devise Port KX-NS 720 KX-NS 700 130 DPT w/o D-XDP 7

Cost Saving 13. More Expandability Capacity can be increased to 1, 000 extensions using KX-NS 700 version 4. 1 software with KX-NS 1000. (Hardware of KX-NS 700 version 4. 1 is same as 1 st version. ) You do not need to discard KX-NS 700 to increase capacity in future. KX-NS 720 KX-NS 720 KX-NS 720 KX-NS 700 KX-NS 1000 1, 000 Extensions KX-NS 700 IP Network 100 % Feature Transparency like TDE 600 and TDE 620 Max. 15 KX-NS 700 with KX-NS 720 can be slave unit of KX-NS 1000 works as “KX-TDE 600”. KX-NS 700 with KX-NS 720 works as “KX-TDE 620”. www. Oskuei-Store. com 8

PRI 30 14. Card Installation for KX-NS 700 Each 2 free slots are supported for trunk and extension. Software of DLC / DHLC should be latest. Max. 2 cards Max. 1 card DPH 2 (Door phone) Each 1 card SD (M/S/XS) DSP (L/M/S) RMT (Modem) EXP-M (to NS 720) KX-NS 700 MPR www. Oskuei-Store. com Max. 2 cards LCOT 6 (Analog CO) DHLC 4 (Hybrid) BRI 2 (4 -ch) DLC 8 (DPT) BRI 4 (8 -ch) DLC 16 (DPT) MCSLC 8 (SLT) Max. 1 card PRI 30 / E 1 MCSLC 16 (SLT) for Optional Trunk or Door for Optional Extension 2 -DPT + 4 -SLT (Factory Pre-install) 9

PRI 30 15. Card Installation for KX-NS 720 Each 2 free slots are supported for trunk and extension. Max. 2 cards Max. 1 card DPH 2 (Door phone) PRI card and BRI card cannot be installed together to one KX-NS 720. LCOT 6 (Analog CO) DHLC 4 (Hybrid) BRI 2 (4 -ch) DLC 8 (DPT) BRI 4 (8 -ch) DLC 16 (DPT) Max. 1 card KX-NS 720 Connection to KX-NS 700 Max. 2 cards MCSLC 8 (SLT) PRI 30 / E 1 MCSLC 16 (SLT) for Optional Trunk or Door for Optional Extension (Factory Pre-install) www. Oskuei-Store. com 10

PRI 23 14. Card Installation for KX-NS 700 Each 2 free slots are supported for trunk and extension. Max. 2 cards Each 1 card SD (M/S/XS) DSP (L/M/S) RMT (Modem) EXP-M (to NS 720) KX-NS 700 MPR www. Oskuei-Store. com Max. 2 cards Max. 1 card DHLC 4 (Hybrid) DPH 2 (Door phone) LCOT 6 (Analog CO) DLC 8 (DPT) DLC 16 (DPT) MCSLC 8 (SLT) Max. 1 card PRI 23 MCSLC 16 (SLT) for Optional Trunk or Door for Optional Extension 2 -DPT + 4 -SLT (Factory Pre-install) 11

PRI 23 15. Card Installation for KX-NS 720 Each 2 free slots are supported for trunk and extension. Max. 2 cards Max. 1 card DPH 2 (Door phone) LCOT 6 (Analog CO) Max. 1 card KX-NS 720 Connection to KX-NS 700 Max. 2 cards DHLC 4 (Hybrid) DLC 8 (DPT) DLC 16 (DPT) MCSLC 8 (SLT) PRI 23 MCSLC 16 (SLT) for Optional Trunk or Door for Optional Extension (Factory Pre-install) www. Oskuei-Store. com 12

PRI 30 16. Capacity for Trunk Type NS 700 w/o option NS 700 Max. NS 700 + 1 NS 720 NS 700 + 2 NS 720 NS 700 + 3 NS 720 Trunk (Legacy + IP) 0 102 (38+64) 138 (74+64) 174 (110+64) 210 (146+64) Trunk (Legacy) 0 38 (30+BRI 4) 74 (38+36) 110 (38+36 x 2) 146 (38+36 x 3) PRI 30 / E 1 0 30 ch 60 ch 90 ch 120 ch BRI 0 16 ch (BRI 4 x 2) 32 ch 48 ch 64 ch Analog CO 0 12 24 36 48 Trunk (IP) 0 64 SIP 0 64 H. 323 0 32 PRI card and BRI card cannot be installed together to one KX-NS 720. Vo. IP DSP card and activation key are required for IP trunk : H. 323 and SIP. www. Oskuei-Store. com 13

PRI 23 16. Capacity for Trunk Type NS 700 w/o option NS 700 Max. NS 700 + 1 NS 720 NS 700 + 2 NS 720 NS 700 + 3 NS 720 Trunk (Legacy + IP) 0 93 (29+64) 122 (58+64) 151 (87+64) 180 (116+64) Trunk (Legacy) 0 29 (23+6) 58 (29 x 2) 87 (29 x 3) 116 (29 x 4) PRI 23 0 23 46 69 92 Analog CO 0 12 24 36 48 Trunk (IP) 0 64 SIP 0 64 H. 323 0 32 Vo. IP DSP card and activation key are required for IP trunk : H. 323 and SIP. www. Oskuei-Store. com 14

17. Capacity for Extension Type NS 700 w/o option NS 700 Max. NS 700 + 1 NS 720 NS 700 + 2 NS 720 NS 700 + 3 NS 720 6 (6+0) 166 (38+128) 198 (70+128) 230 (102+128) 262 (134+128) 6 (4+2) 38 (16 x 2+6) 70 (16 x 4+6) 102 (16 x 6+6) 134 (16 x 8+6) SLT 4 36 68 100 132 DTxx / T 76 xx without D-XDP 2 34 (16 x 2+2) 66 (16 x 4+2) 98 (16 x 6+2) 130 (16 x 8+2) T 77 xx 0 8 16 24 32 Ext (Legacy + IP) without D-XDP Extension (Legacy) without D-XDP Extension (IP) 0 128 Vo. IP DSP card and activation key are required for IP extension. Max. is 262 + D-XDP Extension capacity with D-XDP is limited by power supply capacity. Item LF Digital PT DTxxx / T 76 xxx 1 Model Load Figure KX-NS 700 40 Digital PT by D-XDP KX-NS 720 40 Analog PT www. Oskuei-Store. com Item LF For example, DHLC 4 4 KX-NS 700 4 LF 0. 5 SLC 8 8 DLC 16 x 2 0 LF 1. 5 SLC 16 16 DT 300 x 24 24 LF KX-NS 700 4 D-XDP x 24 12 LF Digital PT I/F CS (2 -ch) 2 Digital PT I/F CS (8 -ch) 8 48 DT+D-XDP 40 LF Value of Load Figure is different from KX-TDA/TDE because KX-NS is new hardware design. 15

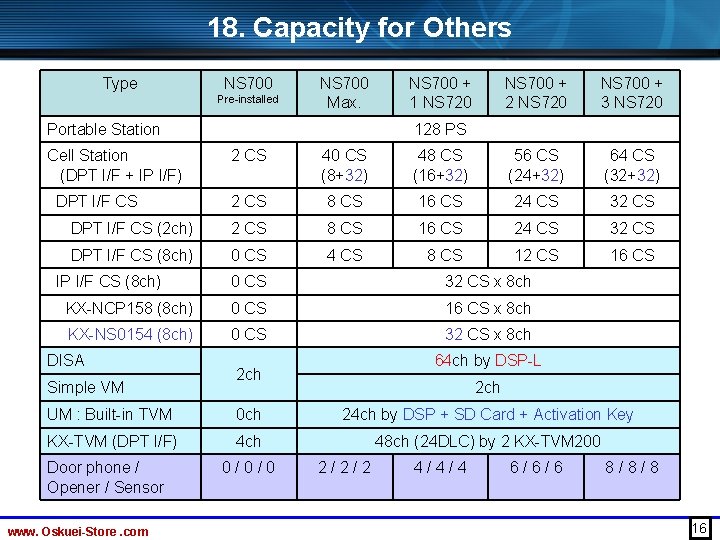

18. Capacity for Others Type NS 700 Pre-installed NS 700 Max. Portable Station Cell Station (DPT I/F + IP I/F) NS 700 + 1 NS 720 NS 700 + 2 NS 720 NS 700 + 3 NS 720 128 PS 2 CS 40 CS (8+32) 48 CS (16+32) 56 CS (24+32) 64 CS (32+32) 2 CS 8 CS 16 CS 24 CS 32 CS DPT I/F CS (2 ch) 2 CS 8 CS 16 CS 24 CS 32 CS DPT I/F CS (8 ch) 0 CS 4 CS 8 CS 12 CS 16 CS DPT I/F CS IP I/F CS (8 ch) 0 CS 32 CS x 8 ch KX-NCP 158 (8 ch) 0 CS 16 CS x 8 ch KX-NS 0154 (8 ch) 0 CS 32 CS x 8 ch DISA Simple VM 64 ch by DSP-L 2 ch UM : Built-in TVM 0 ch 24 ch by DSP + SD Card + Activation Key KX-TVM (DPT I/F) 4 ch 48 ch (24 DLC) by 2 KX-TVM 200 Door phone / Opener / Sensor www. Oskuei-Store. com 0/0/0 2/2/2 4/4/4 6/6/6 8/8/8 16

19. Compatibility for Telephone Cost Saving You do not need to discard old phones, when you upgrade PBX from Panasonic old PBX to KX-NS 700. PT KX-T 70 xx / KX-T 71 xx / KX-T 73 xx KX-T 72 xx / T 74 xx / T 75 xx (Load Figure : 2) DHLC 4 No (*) DLC 8 / DLC 16 2 -ch digital port on main cabinet No for Analog PT No for old Digital PT KX-T 77 xx Yes No for Analog PT KX-T 76 xx / KX-DT 3 xx / KX-DT 5 xx Yes *) These phones can be connected technically using DHLC 4. However since these phones are too old, it is recommended to replace to KX-DT 5 xx phone. These phones consume more electric power because old design. DHLC port can provide strong power. <Compatible IP Phone> KX-NT 265 KX-NT 3 xx / KX-NT 5 xx KX-UTxxx / KX-HDVxxx KX-NTV <No Support> KX-NT 136 / KX-NT 400 / KX-UDT / KX-HGT 100 2. 4 G system phone KX-TDA 0300 and KX-TDA 0350 (Application for Digital PT using USB) www. Oskuei-Store. com 17

Chapter 2 Optional Card www. Oskuei-Store. com 18

PRI 30 21. Optional Card for Extension / Trunk Model Symbol Specification KX-NS 5170 DHLC 4 4 -port for KX-DT and old Digital PT / Analog PT / CS (DPT I/F) / KX-TVM (DPT I/F) and 4 -port SLT - DPT port : with XDP and Digital XDP - SLT port : with Caller ID but without MSW KX-NS 5171 DLC 8 8 -port for Digital PT : KX-T 76 xx / KX-DTxxx and CS (DPT I/F) / KX-TVM (DPT I/F) KX-NS 5172 DLC 16 16 -port for Digital PT : KX-T 76 xx / KX-DTxxx and CS (DPT I/F) / KX-TVM (DPT I/F) KX-NS 5173 MCSLC 8 8 -port SLT I/F with Caller ID and Message Waiting KX-NS 5174 MCSLC 16 16 -port SLT I/F with Caller ID and Message Waiting KX-NS 5180 LCOT 6 6 -port Analog Trunk I/F with Caller ID KX-NS 5282 BRI 2 2 -port x 2 -ch ISDN KX-NS 5284 BRI 4 4 -port x 2 -ch ISDN KX-NS 5290 PRI 30/E 1 30 -ch ISDN or E 1 by one card KX-NS 5162 DPH 2 Each 2 I/F for Door phone / Opener / Sensor T 1, E&M and analog DID card are not supported. Pay tone feature is not available. www. Oskuei-Store. com 19

PRI 23 21. Optional Card for Extension / Trunk Model Symbol Specification KX-NS 5170 DHLC 4 4 -port for KX-DT and old Digital PT / Analog PT / CS (DPT I/F) / KX-TVM (DPT I/F) and 4 -port SLT - DPT port : with XDP and Digital XDP - SLT port : with Caller ID but without MSW KX-NS 5171 DLC 8 8 -port for Digital PT : KX-T 76 xx / KX-DTxxx and CS (DPT I/F) / KX-TVM (DPT I/F) KX-NS 5172 DLC 16 16 -port for Digital PT : KX-T 76 xx / KX-DTxxx and CS (DPT I/F) / KX-TVM (DPT I/F) KX-NS 5173 MCSLC 8 8 -port SLT I/F with Caller ID and Message Waiting KX-NS 5174 MCSLC 16 16 -port SLT I/F with Caller ID and Message Waiting KX-NS 5180 LCOT 6 6 -port Analog Trunk I/F with Caller ID KX-NS 5290 PRI 23 23 -ch ISDN KX-NS 5162 DPH 2 Each 2 I/F for Door phone / Opener / Sensor T 1, E&M and analog DID card are not supported. Pay tone feature is not available. www. Oskuei-Store. com 20

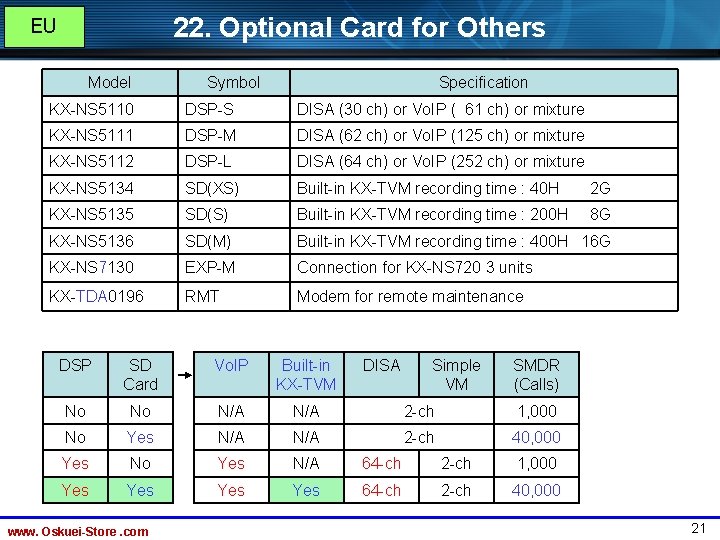

22. Optional Card for Others EU Model Symbol Specification KX-NS 5110 DSP-S DISA (30 ch) or Vo. IP ( 61 ch) or mixture KX-NS 5111 DSP-M DISA (62 ch) or Vo. IP (125 ch) or mixture KX-NS 5112 DSP-L DISA (64 ch) or Vo. IP (252 ch) or mixture KX-NS 5134 SD(XS) Built-in KX-TVM recording time : 40 H 2 G KX-NS 5135 SD(S) Built-in KX-TVM recording time : 200 H 8 G KX-NS 5136 SD(M) Built-in KX-TVM recording time : 400 H 16 G KX-NS 7130 EXP-M Connection for KX-NS 720 3 units KX-TDA 0196 RMT Modem for remote maintenance DSP SD Card Vo. IP Built-in KX-TVM No No N/A 2 -ch 1, 000 No Yes N/A 2 -ch 40, 000 Yes No Yes N/A 64 -ch 2 -ch 1, 000 Yes Yes 64 -ch 2 -ch 40, 000 www. Oskuei-Store. com DISA Simple VM SMDR (Calls) 21

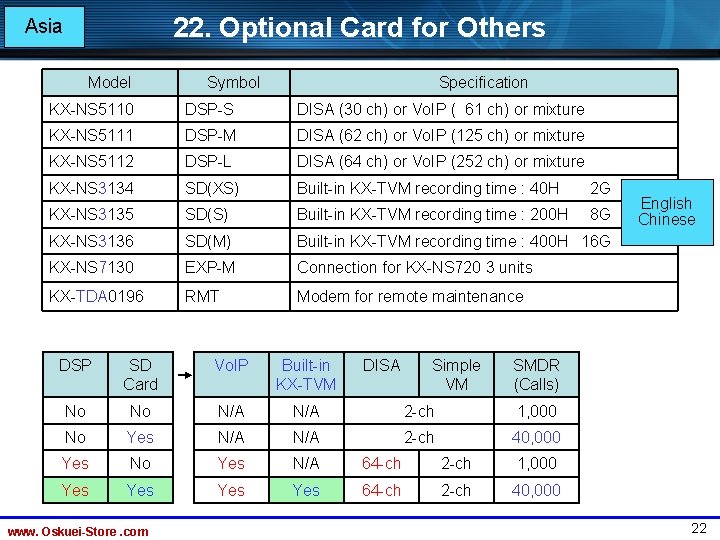

22. Optional Card for Others Asia Model Symbol Specification KX-NS 5110 DSP-S DISA (30 ch) or Vo. IP ( 61 ch) or mixture KX-NS 5111 DSP-M DISA (62 ch) or Vo. IP (125 ch) or mixture KX-NS 5112 DSP-L DISA (64 ch) or Vo. IP (252 ch) or mixture KX-NS 3134 SD(XS) Built-in KX-TVM recording time : 40 H 2 G KX-NS 3135 SD(S) Built-in KX-TVM recording time : 200 H 8 G KX-NS 3136 SD(M) Built-in KX-TVM recording time : 400 H 16 G KX-NS 7130 EXP-M Connection for KX-NS 720 3 units KX-TDA 0196 RMT Modem for remote maintenance DSP SD Card Vo. IP Built-in KX-TVM No No N/A 2 -ch 1, 000 No Yes N/A 2 -ch 40, 000 Yes No Yes N/A 64 -ch 2 -ch 1, 000 Yes Yes 64 -ch 2 -ch 40, 000 www. Oskuei-Store. com DISA Simple VM English Chinese SMDR (Calls) 22

USA Canada 22. Optional Card for Others Model Symbol Specification KX-NS 5110 DSP-S DISA (30 ch) or Vo. IP ( 61 ch) or mixture KX-NS 5111 DSP-M DISA (62 ch) or Vo. IP (125 ch) or mixture KX-NS 5112 DSP-L DISA (64 ch) or Vo. IP (252 ch) or mixture KX-NS 7134 SD(XS) Built-in KX-TVM recording time : 40 H 2 G KX-NS 7135 SD(S) Built-in KX-TVM recording time : 200 H 8 G KX-NS 7136 SD(M) Built-in KX-TVM recording time : 400 H 16 G KX-NS 7130 EXP-M Connection for KX-NS 720 3 units KX-TDA 0196 RMT Modem for remote maintenance DSP SD Card Vo. IP Built-in KX-TVM No No N/A 2 -ch 1, 000 No Yes N/A 2 -ch 40, 000 Yes No Yes N/A 64 -ch 2 -ch 1, 000 Yes Yes 64 -ch 2 -ch 40, 000 www. Oskuei-Store. com DISA Simple VM SMDR (Calls) 23

Chapter 3 Activation Key www. Oskuei-Store. com 24

30. Activation Key for Capacity Extension capacity is limited without KX-NSF 991 activation key. (1) KX-NS 7130(EXP-M) is disabled. (2) Maximum IP extensions capacity becomes 32. (Not 128) 　　　 One KX-NSF 991 removes both (1) and (2). Type NS 700 w/o option NS 700 Max. 6 (6+0) 70 (38+32) 6 (4+2) 38 (16 x 2+6) SLT 4 36 DTxx / T 76 xx without D-XDP 2 34 (16 x 2+2) T 77 xx 0 8 0 32 Ext (Legacy + IP) without D-XDP Extension (Legacy) without D-XDP Extension (IP) www. Oskuei-Store. com For example, KX-NSM 720 x 2 + KX-NSF 991 x 1 supports 40 SIP phone. KX-NSM 720 x 2 w/o KX-NSF 991 supports only 32 SIP phone. KX-NSM 720 x 1 w/o KX-NSF 991 supports 20 SIP phone. 25

31. Activation Key for Vo. IP IP Trunk Activation Key as Trunk I/F Card KX-NSM 102 2 ch IP Trunk (SIP or H. 323) KX-NSM 104 4 ch KX-NSM 108 8 ch KX-NSM 116 16 ch IP Extension Activation Key as Extension I/F Card KX-NSM 201 KX-NSM 205 Panasonic KX-NT based IP Software phone (and KX-NT/UT/HDV/NTV hardware phone) 1 ch 5 ch KX-NSM 210 10 ch KX-NSM 220 20 ch KX-NSM 501 KX-NSM 505 Panasonic KX-NT/UT/HDV/NTV hardware phone　 (Not including Panasonic KX-NT 700) KX-NSM 510 KX-NSM 520 KX-NSM 701 KX-NSM 705 KX-NSM 710 KX-NSM 720 1 ch 5 ch 10 ch 4 -ch is pre installed. 20 ch SIP hardware/software phone (including Panasonic KX-NT 700) 　 　 　 1 ch 5 ch 10 ch 20 ch Activation keys in this page and following pages are for both KX-NS 700 and KX-NS 1000. www. Oskuei-Store. com 26

32. Activation Key for UM UM (Built-in KX-TVM) Activation Key KX-NSU 002 UM : Automatic Two-way Recording by supervisor KX-NSU 003 UM : Message Backup KX-NSU 102 KX-NSU 104 UM : Channel Expansion as TVM 204 card 2 -ch is pre-installed. KX-NSU 201 UM : E-mail 1 AK for All supervisors 1 AK　 2 ch 4 ch 1 mailbox user KX-NSU 205 5 mailbox user KX-NSU 210 10 mailbox user KX-NSU 220 20 mailbox user KX-NSU 299 All mailbox user KX-NSU 301 KX-NSU 305 KX-NSU 310 1 extension user UM : Two-way Recording by user 5 extension user 10 extension user KX-NSU 320 20 extension user KX-NSU 399 All extension user <Vo. IP (AK for previous page)> DSP is also required. www. Oskuei-Store. com <UM> SD card and DSP are also required. 27

33. Activation Key for PBX Features PBX Extension Feature Activation Key KX-NSE 101 KX-NSE 105 1 extension user Extension and Mobile parallel feature 5 extension user KX-NSE 110 10 extension user KX-NSE 120 20 extension user PBX to PBX Network Activation Key KX-NSN 001 One-look Network　 KX-NSN 002 QSIG Network with Enhance Feature　 　 System Feature Activation Key KX-NSF 101 3 rd party CTI Interface　 KX-NSA 020 Multiple CTI Connection　 KX-NSF 201 Built-in web call center report Announcement of waiting order in queue Refer to Installation Manual for other activation keys such as AK for IP-CS. www. Oskuei-Store. com 28

34. Activation Key for UC (Communication Assistant) CA Activation Key KX-NSA 201 1 extension user CA Pro KX-NSA 205 5 extension user KX-NSA 210 10 extension user KX-NSA 240 40 extension user KX-NSA 249 128 extension user KX-NSA 301 CA Supervisor 　 1 extension user KX-NSA 401 CA Operator Console 　 1 extension user KX-NSA 901 CA Network Plug-in 1 CA user KX-NSA 905 5 CA user KX-NSA 910 10 CA user KX-NSA 940 40 CA user KX-NSA 949 128 CA user KX-NSA 010 www. Oskuei-Store. com CA Thin Client Server Connection　 29

35. Pre-Installed Activation Key Some features are available without buying activation key and without expiration. Please confirm using Web-MC. <Vo. IP> DSP is also required. www. Oskuei-Store. com <UM> SD card and DSP are also required. 30

36. Pre-Installed Activation Key for Trial 60 -day trial is available before buying activation key for followings. 60 -day can start anytime for each feature. (not start after default clear) Trial cannot be used repeatedly. (only one time) UM (Built-in KX-TVM) : Automatic Two-way Recording by Supervisor UM (Built-in KX-TVM) : Message Backup UM (Built-in KX-TVM) : E-mail (128 mailbox users) UM (Built-in KX-TVM) : 2 Way Recording (30 extension users) Mobile Extension (30 extension users) CA PRO (128 users) CA Supervisor (1 user) CA Operator (1 user) CA Thin Client Server Connection 3 rd party CTI Interface　 Multiple CTI Connection　 Built-in ACD Report / Announcement of waiting order in queue www. Oskuei-Store. com 31

37. Activation Key - Condition When only one CTI server except CA is connected with PBX, KX-NSF 101 activation key is required. - When other CTI server application is connected through CSTA MUX, KX-NSA 020 activation key for CSTA MUX is required. KX-NSF 101 activation key for CTI (sever) interface is NOT required in this case. CA Client AK CA Basic / CA Pro etc CA Client AK CSTA MUX AK CTI Server AK Panasonic CA (Server) Other Application (Server) CTI Server AK Not Required Panasonic CSTA MUX Panasonic CA (Server) CTI Server AK Not Required CA Server Other 1 0 1 AK CA Server Other CA Client 0 1 1 x NSF 101 1 CA Client + 1 x NSA 020 0 2 2 x NSA 020 1 2 CA Client + 2 x NSA 020 0 3 3 x NSA 020 1 3 CA Client + 3 x NSA 020 0 4 4 x NSA 020 www. Oskuei-Store. com AK Other Application (Server) 32

38. Activation Key - Condition Following activation key is only for KX-NS 1000. www. Oskuei-Store. com 33

Chapter 4 PBX Built-in Solution www. Oskuei-Store. com 34

KX-NS 700 KX-NS 1000 41 -1. Voice Mail KX-TVM version 3 based Voice Mail function is built-in. Memory card, Vo. IP DSP card and activation key are required for full KX-TVM function. Customer or other Extension KX-TVM (Built-in) Built-in VM Mailbox 101 104 102 105 103 : Max. 24 ch for KX-NS 700 Max. 30 ch for KX-NS 1000 V 4. 1 400 h recording for KX-NS 700 1, 000 h recording for KX-NS 1000 VM Group Ext No. : 500 No Answer Hello this is Tom. Please lave voice message. KX-TDA/TDE/NCP 101 Susan 102 Mike 103 Tom KX-TVM 200 Max. 24 ch 1, 000 h recording VM Group Ext No. : 500 www. Oskuei-Store. com 35

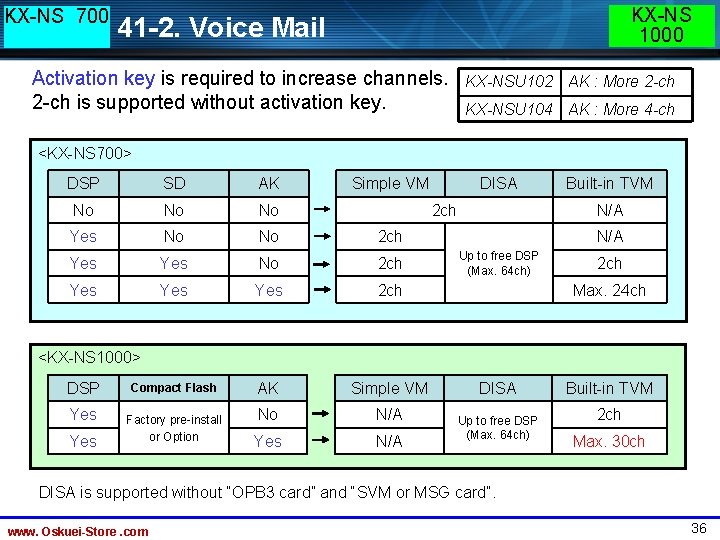

KX-NS 700 KX-NS 1000 41 -2. Voice Mail Activation key is required to increase channels. 2 -ch is supported without activation key. KX-NSU 102 AK : More 2 -ch KX-NSU 104 AK : More 4 -ch <KX-NS 700> DSP SD AK Simple VM No No No Yes No No 2 ch Yes Yes Yes 2 ch Compact Flash AK Simple VM No N/A Yes N/A DISA 2 ch Built-in TVM N/A Up to free DSP (Max. 64 ch) 2 ch Max. 24 ch <KX-NS 1000> DSP Yes Factory pre-install or Option DISA Up to free DSP (Max. 64 ch) Built-in TVM 2 ch Max. 30 ch DISA is supported without “OPB 3 card” and “SVM or MSG card”. www. Oskuei-Store. com 36

KX-NS 700 42 -1. Unified Message (VM to e-mail) You can receive voice message as e-mail by PC at your desk or by your smart-phone anywhere immediately. Missed call w/o voice message also can be e-mailed. So these messages are unified by e-mail. You do not miss any contact from your customers, if you get e-mail. Activation key : KX-NSU 2 xx is required to send e-mail. Mobile Network or Wi-Fi IP Network or Some customer sends e-mail. Telephone Company Office KX-TVM (Built-in) Some customer leaves VM or disconnects call without VM. with VM as attached file E-mail Server < E-mail example for missed call > www. Oskuei-Store. com 37

42 -2. Unified Message (VM/Fax to e-mail) KX-NS 1000 You can receive voice message and fax as e-mail by PC at your desk or by your smart-phone anywhere immediately. Missed call w/o voice message also can be e-mailed. So these messages are unified by e-mail. You do not miss any contact from your customers, if you get e-mail. Activation key : KX-NSU 2 xx is required to send e-mail. Mobile Network or Wi-Fi IP Network or Some customer sends e-mail. Telephone Company Office KX-TVM (Built-in) Some customer leaves VM or disconnects call without VM. Some customer sends fax. with VM/Fax as attached file E-mail Server Occupied memory for 1 minute voice message is same as approximately 28 pages fax. KX-NS 700 does NOT support Fax to e-mail. Optional card : KX-NS 0106 has to be installed to receive fax or send fax. One KX-NS 106 supports one ch. KX-NS 1000 one look network supports 16 KX-NS 0106. www. Oskuei-Store. com 38

KX-NS 700 KX-NS 1000 43 -1. Recording Supervisor can record call for other extension to built-in VM automatically. This is useful for call center or for reducing unnecessary call such as call to personal friend using company phone cost during working time. Activation key : KX-NSU 002 is required. (KX-NSU 3 xx is not required. ) Customer Easy programming and playing for supervisor using built-in web server KX-TVM (Built-in) Extension Supervisor (Max. 32) KX-NS 700 can record max. 24 calls at the same time. KX-NS 1000 one cabinet can record max. 30 calls at the same time. KX-NS 1000 one look network supports max. 16 built-in VM in order to expand channels and recording capacity. 30 ch Record www. Oskuei-Store. com 30 ch Record 39

KX-NS 700 KX-NS 1000 43 -2. Recording - Back-up is available for recording to server (NAS) or USB memory automatically by schedule if maximum recording capacity is not enough. KX -NS PBX has USB port. Activation key : KX-NSU 003 is required for back-up. KX-TVM (Built-in) WAV converter is provided by Panasonic. KX-TVM (Built-in) Year, date and time are included in the file name. YYMMDD : 12 08 02 HHMMSS : 12 48 10 www. Oskuei-Store. com 40

KX-NS 700 44 -1. Call Center - Voice message KX-NS 1000 Queuing order is announced using built-in VM to caller who is calling call center. Expected waiting time also can be announced using built-in VM. Caller feels that KX-NS PBX user has very professional call center. Activation key : KX-NSF 201 or KX-NSXF 021 is required. DISA Customer Hello this is Panasonic Travel. This call is recorded in order to improve our service. <Example of waiting time> Four other people are waiting. And your expected waiting time is around 16 minutes. DISA No Dial to ICD Group w/ Queuing table Idle Ext? Yes No Talking is recorded automatically. KX-TVM (Built-in) Queuing message by DISA Sorry all agents are on the phone now. KX-TVM (Built-in) Four other people are waiting. Please wait for the moment. We are connecting by queuing order. Or dial 1 to leave voice message Caller can leave voice message. KX-TVM (Built-in) One agent becomes idle. BGM for ICD Group We are providing special price for trip to Japan… www. Oskuei-Store. com 41

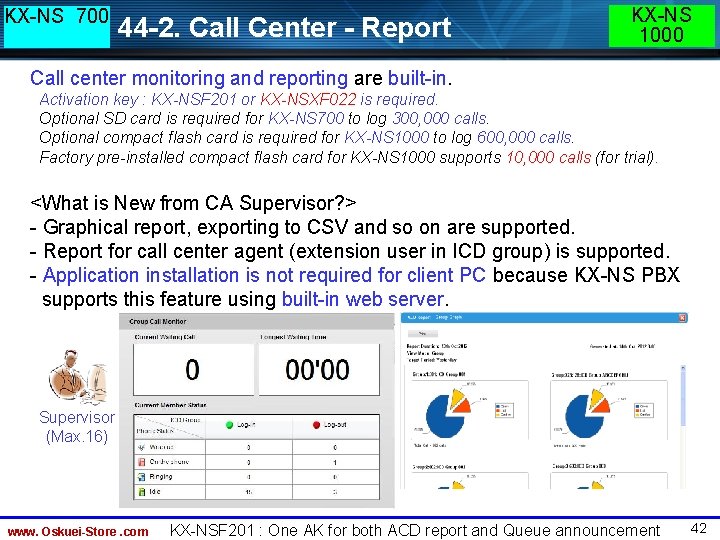

KX-NS 700 44 -2. Call Center - Report KX-NS 1000 Call center monitoring and reporting are built-in. Activation key : KX-NSF 201 or KX-NSXF 022 is required. Optional SD card is required for KX-NS 700 to log 300, 000 calls. Optional compact flash card is required for KX-NS 1000 to log 600, 000 calls. Factory pre-installed compact flash card for KX-NS 1000 supports 10, 000 calls (for trial). <What is New from CA Supervisor? > - Graphical report, exporting to CSV and so on are supported. - Report for call center agent (extension user in ICD group) is supported. - Application installation is not required for client PC because KX-NS PBX supports this feature using built-in web server. Supervisor (Max. 16) www. Oskuei-Store. com KX-NSF 201 : One AK for both ACD report and Queue announcement 42

KX-NS 700 45. UC : Unified Communication KX-NS 1000 Unified Communication server (Communication Assistant) is built-in. You can select best contact method depend on other party’ status. Call extension / Call cell phone / Call home phone Leave voice message / Send e-mail / Chat Activation key is required for CA Pro, CA Supervisor and CA Operator. On the phone PC(CA) used PC(CA) not used CA is working but PC was not operated since Day HH: MM. www. Oskuei-Store. com 43

KX-NS 700 KX-NS 1000 46 -1. Mobility - Receive a call When your customer calls your office phone number, both phone in office and your cellular phone can ring at the same time. Activation key : KX-NSE 1 xx is required for xx users. Cellular Network Telephone Network Dial 092 -123 -4322 (2) (1) Office PBX has to detect “answer” of cellular, because PBX has to stop ringing of extension phone when cellular phone answers the call. (3) (1) Any CO type including cellular phone (2) IP / ISDN / E 1 / Analog (3) IP / ISDN / E 1/ Analog with reverse 0344445555 Customer 03 -4444 -5555 EXT 101 092 -123 -4321 080 -888 -7777 EXT 102 092 -123 -4322 Extension 102 sets call forwarding no answer to cellular phone (080 -888 -7777) with “keep ringing” mode. www. Oskuei-Store. com Phone number of caller (customer) can be displayed depend on specification of telephone network. This service is available by some ISDN or SIP network in Europe. 44

KX-NS 700 KX-NS 1000 46 -2. Mobility - Make a call When you call your customer using cellular phone through PBX (DISA), the phone number of your office is informed to your customer instead of the number of your cellular phone. DID number can be informed as CLIP for SIP / H. 323 / ISDN. Phone number of the line is informed to cellular from telephone network for analog. Cellular Network Telephone Network 0921234322 (2) (3) Office (1) (3) (2)(1) Customer 03 -4444 -5555 EXT 101 092 -123 -4321 080 -888 -7777 EXT 102 092 -123 -4322 Any CO type including cellular phone SIP / H. 323 / ISDN / E 1 / Analog regardless reverse Dial PBX DISA number : 092 -123 -4321 after DISA answer + CO access number : 0 or 9 + Customer phone : 03 -4444 -5555 Cellular phone can be recognized as extension (102) automatically based on pre-assigned caller ID (080 -888 -7777). www. Oskuei-Store. com 45

KX-NS 700 KX-NS 1000 46 -3. Mobility using IP Built-in MRG feature supports remote IP extension without VPN. MRG = Media Relay Gateway Video call is also supported. Following phones support this feature. - KX-NT 543/NT 546/NT 560 (Version up of phone software is required. ) - KX-NT 511 and KX-NT 550 series / KX-UT/HDV series - 3 rd party SIP phone with Blank UDP transmit capability. - KX-NT 300 based software phone version 4 Panasonic SIP Videophone KX-HDV 430 Video SIP Software phone Other phones do not support this feature. such as Bria - KX-UDT / KX-NT 300 (hardware IP phone) / KX-NTV series http: //www. counterpath. com/bria/ Local Office WAN 11. 22. 33. 44 Internet WAN 22. 33. 44. 55 Remote Office or Mobile Internet 192. 168. 0. 101 LAN 192. 168. 0. 1 LAN P 2 P Ext 101 Ext 102 Ext 103 Ext 104 Ext 105 IP address in above picture is example. www. Oskuei-Store. com Activation key is not required for MRG but activation key for IP extension is required. 46

KX-NS 700 KX-NS 1000 47. SIP Trunk SIP trunk is useful to save the telephone cost. It is very popular to access from Panasonic IP-PBX in India to SIP carrier in USA. Telephone Company in USA SIP Carrier in USA Internet DDI 333 -1234 -33 xx 222 -1234 -5678 Office in India SIP Trunk Telephone Company in India 333 -1111 -4321 Video call is also available with customer (Not Extension). SIP Trunk IP Extension IP Network (SIP Provider) KX-NT 300 series KX-NT 543/546/560 KX-NT 511 / 550 series KX-UT / HDV series 3 rd party SIP phone P 2 P Customer www. Oskuei-Store. com < P 2 P > IP Phone Type IP Ext to IP Ext Yes Yes Yes SIP Trunk to IP Ext (*1) No Yes (*2) Yes Yes *1) Depend on specification of SIP provider, this feature does not work. *2) Software version up of NT 5 xx is required. 47

KX-NS 700 KX-NS 1000 48. Conference Any extension user including software-phone in smart-phone can make a conference group call. All 32 members can talk. (Not only listen. ) Cellular phone Smart-phone Telephone Company Cellular Company IP Network If member cannot answer the call or member is not called because not programmed as member, they can join by PIN through DISA after one or more members answer the call. Extension user can dial PIN directly without DISA. *32 - Conference group number (1 -8) - PIN # software-phone in Smart-phone Feature KX-NS 700 without DSP KX-NS 700 with DSP Conference group call : Dial *32 Max. 32 members Yes (90 ch) Yes (32 ch) Other conference such as PT [Conference] key Max. 8 members www. Oskuei-Store. com KX-NS 1000 with DSP 32 conference + other 26 conference for example KX-NS 1000 version 4. 2 supports 90 ch. It was 72 ch. 3 ch are used for recording also. 48

KX-NS 700 KX-NS 1000 49. Paging & One-look Networking Any extension user including software-phone in smart-phone can make a paging call to all PBXs connected by one-look networking. Activation key : KX-NSN 001 is required for each PBX in one-look network. 1 st KX-NS 1000 in Fukuoka Paging 2 nd KX-NS 1000 in Tokyo Remote IP Extension Paging IP Network (VPN) 16 th KX-NS 1000 in Niseko Paging *33 – Paging group number Paging Remote paging is useful for owner of PBX to control employee. www. Oskuei-Store. com 49

KX-NS 700 50. Security & Video Communication KX-NS 1000 All terminals for phone and security can be provided by Panasonic. Other major PBX makers do not have security camera. Video solution is useful for owner of PBX also to control employee during out of office. Panasonic KX-T 7765 Office SIP based Video door phone Panasonic Internet Panasonic KX-NTV 160 Panasonic KX-HDV 430 Video call <Compatible Panasonic camera for KX-HDV 430> BB-SC 384 B WV-SPN 311 A WV-SFN 631 L WV-SC 385 WV-SW 458 DG-SW 396 and so on www. Oskuei-Store. com 50

Chapter 5 Installation www. Oskuei-Store. com 51

51. Location of Installation KX-NS 700 and KX-NS 720 can be installed on wall or in 19 inch rack. Wall (KX-A 247 is required. ) 19 inch rack (Equipment is packed. ) It is required to open a cover in order to install optional cards. And it is required to remove an AC cable to open a cover. Do not turn on power when a cover is opening. www. Oskuei-Store. com 52

52. Connection with Expansion Cabinet KX-NS 700 and KX-NS 720 can be connected directly with 3 m cable. - One cable is shipped with one KX-NS 720. - Connection is RJ 45. But IP protocol is not used. Communication protocol is similar to communication for KX-TDE 600 and KX-TDE 620. - Straight LAN cable can be used technically. But LAN cable should not be used because IP protocol is not used and because avoiding trouble by thunder. KX-NS 720 KX-NS 700 Building -1 KX-NS 700 Building -2 KX-NS 720 KX-NS 700 and KX-NS 720 should not be installed in different building. www. Oskuei-Store. com 53

53. Programming using PC is available through LAN or modem. Telephone Company CO / PRI / E 1 Customer’s Office KX-NS 700 Dealer’s Office Port Fwd Internet LAN Router LAN Modem Analog modem is available with KX-TDA 0196. ISDN 64 k digital modem is available through PRI card of KX-NS 700 without KX-TDA 0196. www. Oskuei-Store. com 54

54. Programming through USB Easy Program Independent maintenance port like KX-NS 1000 is NOT supported. However KX-NS 700 USB port with external adapter works as independent maintenance port. KX-NS 700 with adapter supports DHCP server function by default like KX-NS 1000. KX-NS 700 USB Adapter LAN 192. 168. 0. 101 (default) LAN 223. 0. 0. 15 Port mirroring is not supported. Following adapters were tested with KX-NS PBX. Maker Model Name BUFFALO LUA 3 -U 2 -ATX IO DATA ETX 3 -US 2 PCI (Planet) UE-100 TX-G 3 These are using same component. AX 88772 by ASIX USB to Giga Bit LAN adapter is NOT supported. www. Oskuei-Store. com 55

55. Web Programming Easy Program Built-in web server supports PBX and VM all programming. - Programming is very easy because programming method is basically same as KX-TDA-TDE-NCP and KX-TVM. - It is not required to install Application (Programming Tool) because Web. MS Internet Explorer and so on are required. Programming for PBX features Same as TDA/TDE !! Programming for VM features Same as TVM !! www. Oskuei-Store. com 56

56. Programming Tool Application (Programming Tool) is required to connect through modem. GUI and Operation for programming are same as web programming. KX-TDA/TDE Unified PCMC converts KX-TDE old version and KX-TDA to KX-TDE version 8. www. Oskuei-Store. com 57

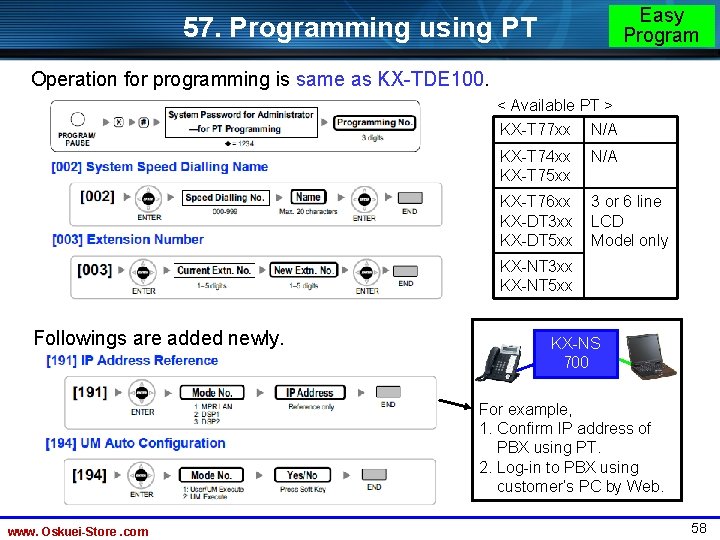

Easy Program 57. Programming using PT Operation for programming is same as KX-TDE 100. < Available PT > KX-T 77 xx N/A KX-T 74 xx KX-T 75 xx N/A KX-T 76 xx KX-DT 3 xx KX-DT 5 xx 3 or 6 line LCD Model only KX-NT 3 xx KX-NT 5 xx Followings are added newly. KX-NS 700 For example, 1. Confirm IP address of PBX using PT. 2. Log-in to PBX using customer’s PC by Web. www. Oskuei-Store. com 58

Chapter 6 IP Phone Line-up www. Oskuei-Store. com 59

61. KX-NT Phone Line-up KX-NS supports more PBX features for KX-NT than SIP phone including KX-HDV/KX-UT. Automatic call back busy, walking extension and so on are not supported for SIP phone including KX-HDV/KX-UT. KX-NT 511 KX-NT 543 KX-NT 546 KX-NT 551 KX-NT 553 KX-NT 556 KX-NT 560 Gb. E Self-Label KX-NT 505 　　　　　 KX-NT 505 is DSS Console for KX-NT 553 and KX-NT 556. - 4 KX-NT 505 can be connected to one KX-NT 553 or KX-NT 556. 8 KX-DT 590 (DSS Console for KX-DT) can be connected to one KX-DT 5 xx phone. - KX-NS 700 one system supports 8 KX-NT 505 and 8 KX-DT 590. If KX-NS 700 is slave in KX-NS 1000 one-look connection, - One KX-NS 700 supports 8 KX-DT 590. - One KX-NS 700 supports 64 KX-NT 505. - KX-NS 1000 one-look system supports total 64 DSS Console (KX-TD 590 and KX-NT 505). (Not 64 KX-DT 590 and 64 KX-NT 505) www. Oskuei-Store. com Gb. E = Giga Bit Ethernet 60

62. KX-HDV SIP Phone Line-up KX-HDV 100 KX-HDV 130 KX-HDV 230 KX-HDV 330 KX-HDV 430 HDV 100 HDV 130 HDV 230 HDV 330 HDV 430 Po. E (IEEE 802. 3 af) N/A Yes / AC adaptor is also available. 2 nd LAN N/A Yes Flexible key 2 2 12+12 8 x 3 on LCD KX-HDV 20 N/A Max. 5 Headset N/A EHS / BT KX-HDV 20 Flexible key works as only one touch dial key when PBX is KX-NS/NSX. BT = Bluetooth version 2. 1 is supported One AC adapter is required for paired phone to connect one to five KX-HDV 20. www. Oskuei-Store. com 61

63. KX-NTV 150 / 160 KX-NTV 150 : Communication SIP Camera - Po. E / Wi-Fi - Built-in Speaker and Microphone - Call button KX-NTV 160 : SIP based Video Doorphone - Po. E only - Built-in Speaker and Microphone - Call button - IP-Grade : IP 43 KX-NTV 150/160 does not support MRG. www. Oskuei-Store. com 62

Thank you ! www. Oskuei-Store. com 63

Revision Date No. May 12, 2014 All Nov 5, 2014 41 / 43 / 61 April 2, 2015 Jan 8, 2016 First release NS 1000 version 4. 1 supports 30 -ch Built-in VM (UM). 19 / 31 / 35 / 46 Version 4. 2 supports KX-HDV IP phone using KXNSM 5 xx AK. (Same AK for KX-NT/UT) 11 (Page 6) Picture of D-XDP was added. 44 -1 (Page 41) Version 4. 3 supports KX-NSXF 021. 44 -2 (Page 42) Version 4. 3 supports KX-NSXF 022. 46 (Page 46) KX-HDV 430 was added as solution example. 47 (Page 47) SIP trunk example in India was added. 49 (Page 49) 49 -1 and 49 -2 were unified. 50 (Page 50) KX-HDV 430 was added as solution example. Jan 13, 2016 Chapter 6 Mar 17, 2016 35 (Page 30) www. Oskuei-Store. com Change IP phone line-up was added. Explanation for pre-installed AK was revised. 64

Revision Date No. July 21, 2016 46 (Page 46) 63 (Page 62) KX-NTV does not support MRG. 50 (Page 50) Compatible camera for KX-HDV 430 was added. www. Oskuei-Store. com Change 65
