Visualization Strategies • • • Cluster Maps Keyword Query Relationships Reduced representation User controlled layout

Cluster Maps • Kohonen • Themescapes

Galaxy of News Cluster map with full text Zooming

Keyword Query • Tilebars

VIBE • Korfhage, http: //www. pitt. edu/~korfhage/interfaces. html • Documents located between query keywords using spring model

VR-VIBE

Keyword Query • Good: • Reduces the browsing space • Map according to user’s interests • Bad: • What keywords do I use? • What about other related documents that don’t use these keywords? • No initial overview • Mega-hit, zero-hit problem

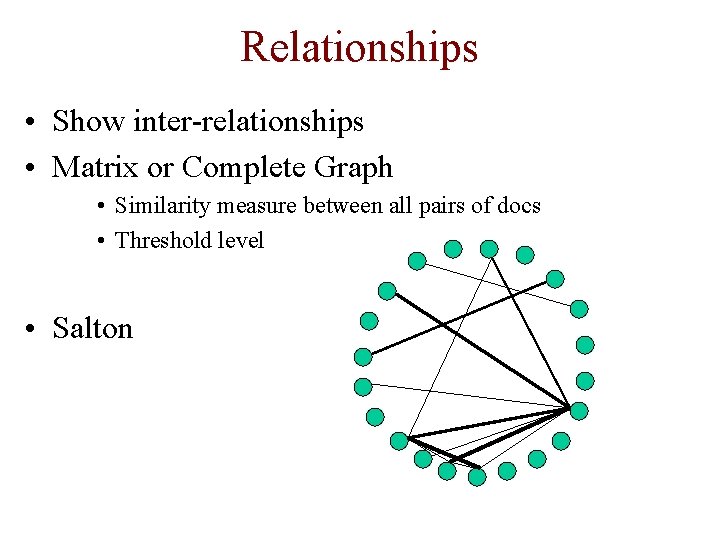

Relationships • Show inter-relationships • Matrix or Complete Graph • Similarity measure between all pairs of docs • Threshold level • Salton

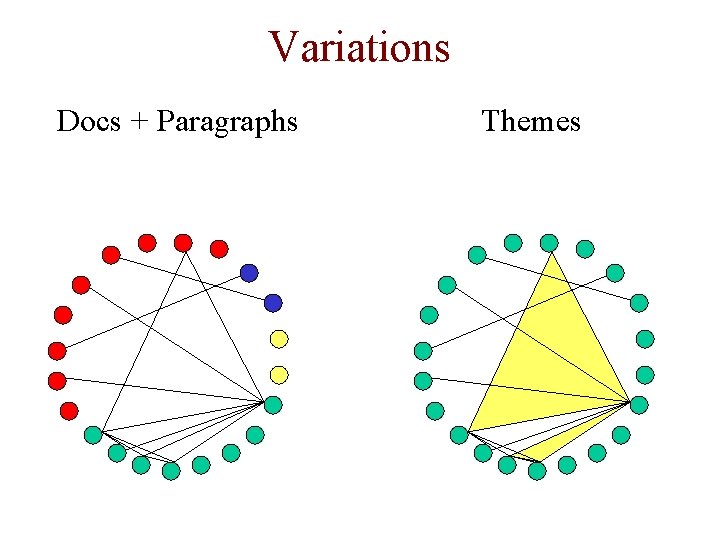

Variations Docs + Paragraphs Themes

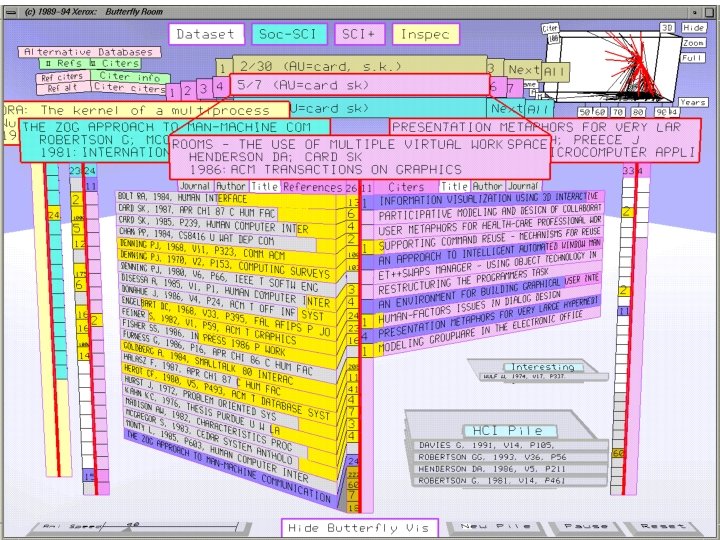

Citation Networks • Butterfly Browser • Mackinlay, … (PARC) Butterfly: Left = refs Right = citers Yellow = #citers Blue = visited 3 d plot: date, Name, # citers

Relationships • Better for smaller, more detailed map • Scale up: Network visualization • Good: • Can see more complex relationships between/within documents • Can act like hyperlinks! • Bad: • Finding specific documents • Scale up difficult

Reduced Representation • Bederson, “Image browsing” • Rui, Anusha

User controlled layout • Card, “Web. Book and Web Forager” • Mrinmayee, Ming • http: //vtopus. cs. vt. edu/~north/infoviz/webbook. mpa
