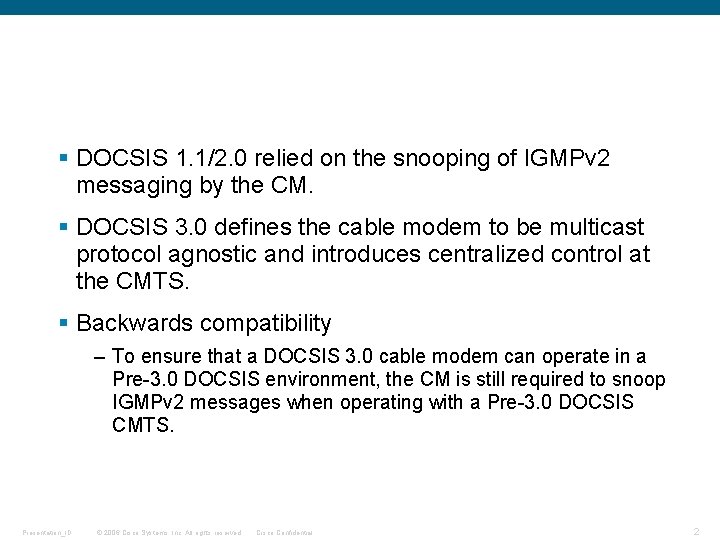

§ DOCSIS 1. 1/2. 0 relied on the snooping of IGMPv 2 messaging by the CM. § DOCSIS 3. 0 defines the cable modem to be multicast protocol agnostic and introduces centralized control at the CMTS. § Backwards compatibility – To ensure that a DOCSIS 3. 0 cable modem can operate in a Pre-3. 0 DOCSIS environment, the CM is still required to snoop IGMPv 2 messages when operating with a Pre-3. 0 DOCSIS CMTS. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 2

DOCSIS 3. 0 Multicast model Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved.

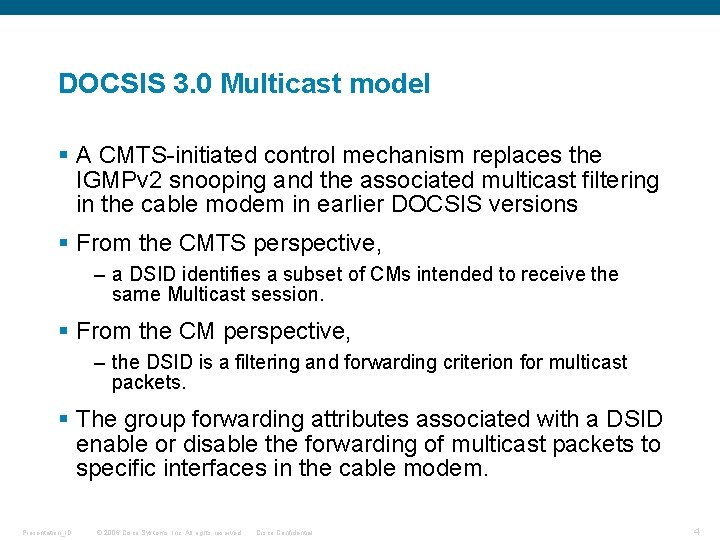

DOCSIS 3. 0 Multicast model § A CMTS-initiated control mechanism replaces the IGMPv 2 snooping and the associated multicast filtering in the cable modem in earlier DOCSIS versions § From the CMTS perspective, – a DSID identifies a subset of CMs intended to receive the same Multicast session. § From the CM perspective, – the DSID is a filtering and forwarding criterion for multicast packets. § The group forwarding attributes associated with a DSID enable or disable the forwarding of multicast packets to specific interfaces in the cable modem. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 4

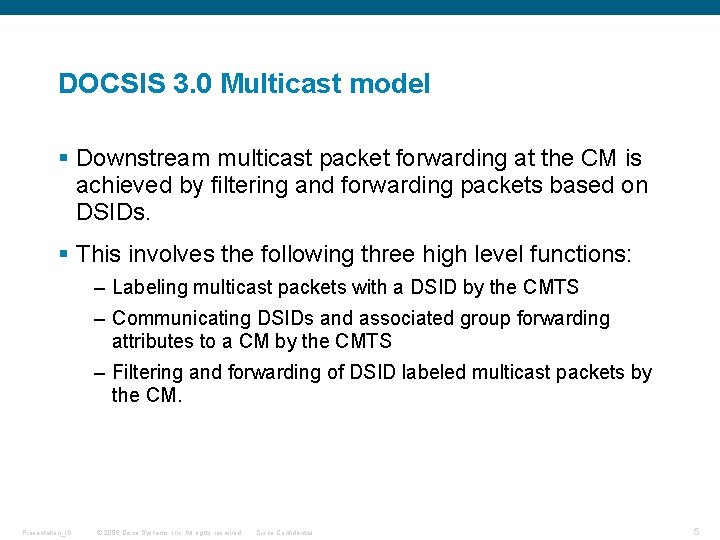

DOCSIS 3. 0 Multicast model § Downstream multicast packet forwarding at the CM is achieved by filtering and forwarding packets based on DSIDs. § This involves the following three high level functions: – Labeling multicast packets with a DSID by the CMTS – Communicating DSIDs and associated group forwarding attributes to a CM by the CMTS – Filtering and forwarding of DSID labeled multicast packets by the CM. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 5

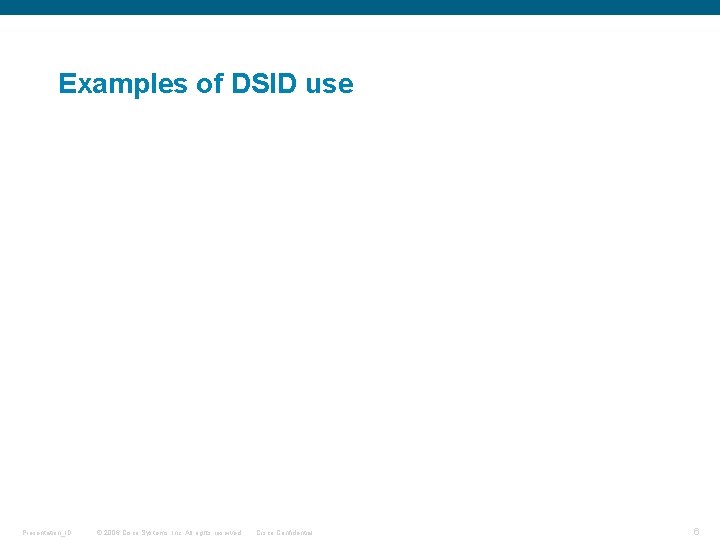

Examples of DSID use Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco

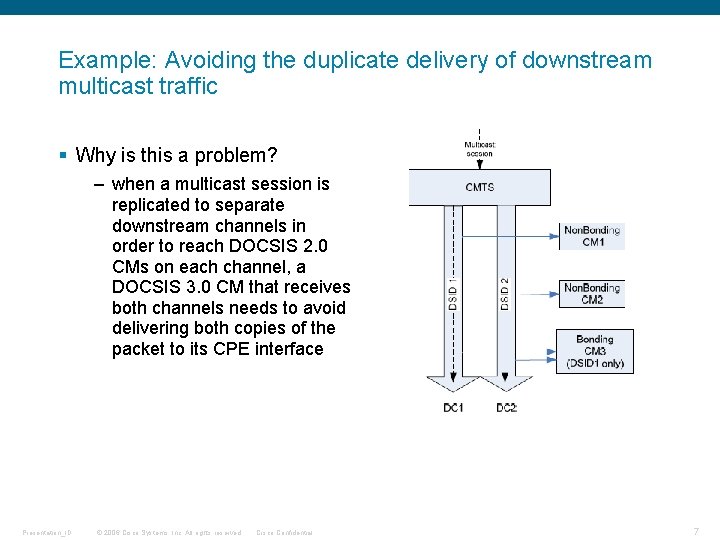

Example: Avoiding the duplicate delivery of downstream multicast traffic § Why is this a problem? – when a multicast session is replicated to separate downstream channels in order to reach DOCSIS 2. 0 CMs on each channel, a DOCSIS 3. 0 CM that receives both channels needs to avoid delivering both copies of the packet to its CPE interface Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 7

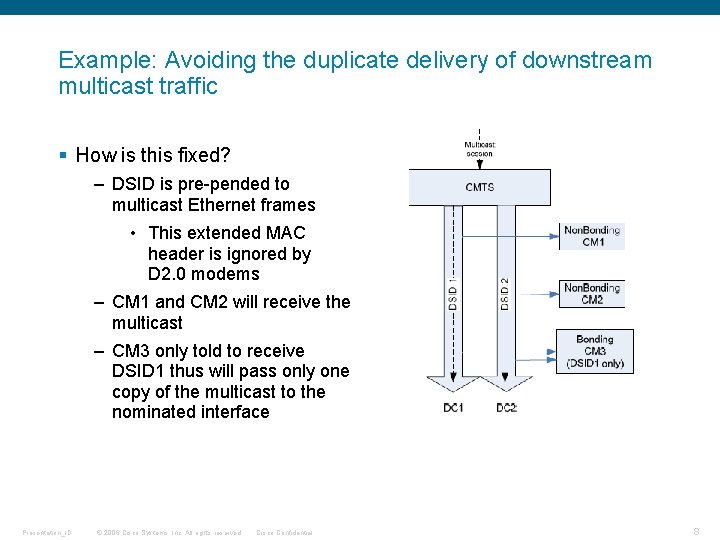

Example: Avoiding the duplicate delivery of downstream multicast traffic § How is this fixed? – DSID is pre-pended to multicast Ethernet frames • This extended MAC header is ignored by D 2. 0 modems – CM 1 and CM 2 will receive the multicast – CM 3 only told to receive DSID 1 thus will pass only one copy of the multicast to the nominated interface Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 8

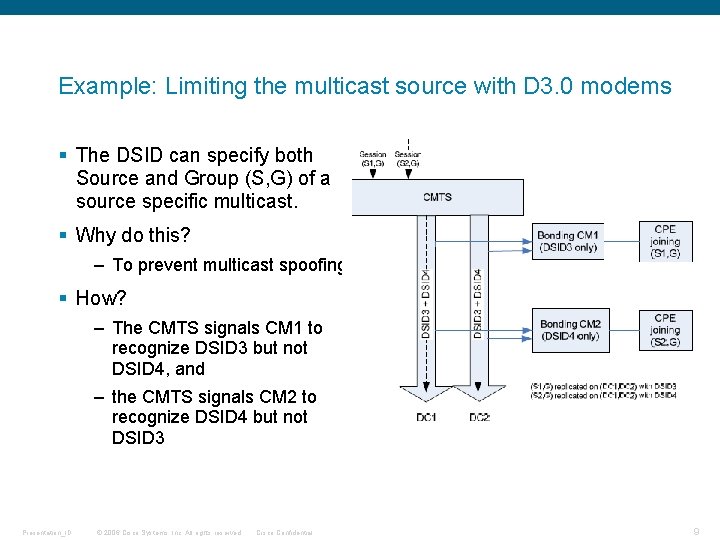

Example: Limiting the multicast source with D 3. 0 modems § The DSID can specify both Source and Group (S, G) of a source specific multicast. § Why do this? – To prevent multicast spoofing § How? – The CMTS signals CM 1 to recognize DSID 3 but not DSID 4, and – the CMTS signals CM 2 to recognize DSID 4 but not DSID 3 Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 9

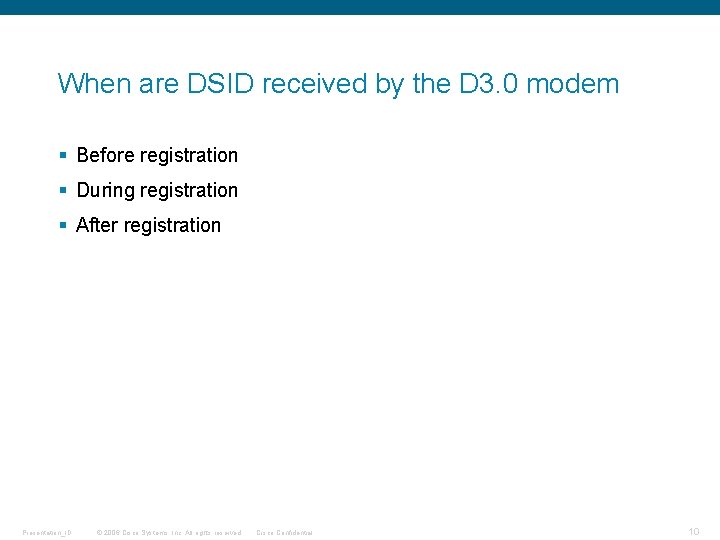

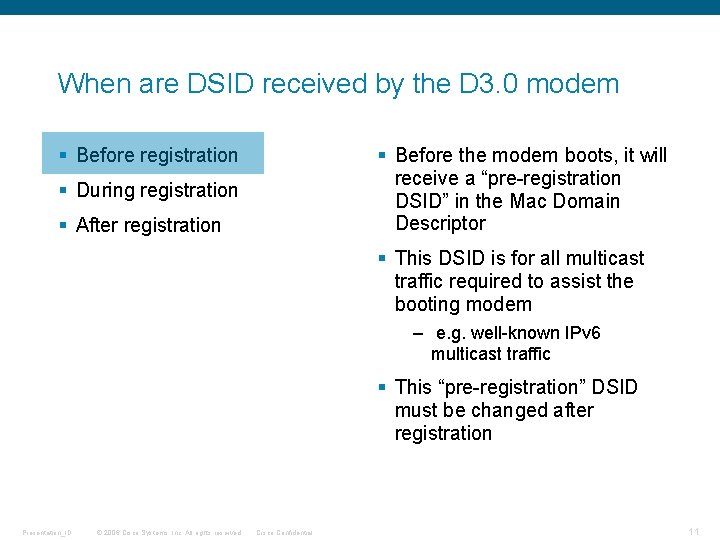

When are DSID received by the D 3. 0 modem § Before registration § Before the modem boots, it will receive a “pre-registration DSID” in the Mac Domain Descriptor § During registration § After registration § This DSID is for all multicast traffic required to assist the booting modem – e. g. well-known IPv 6 multicast traffic § This “pre-registration” DSID must be changed after registration Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 11

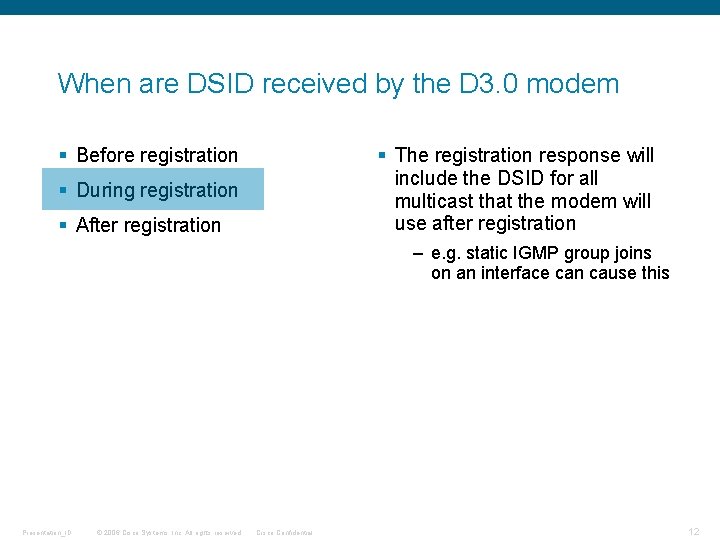

When are DSID received by the D 3. 0 modem § Before registration § The registration response will include the DSID for all multicast that the modem will use after registration § During registration § After registration – e. g. static IGMP group joins on an interface can cause this Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 12

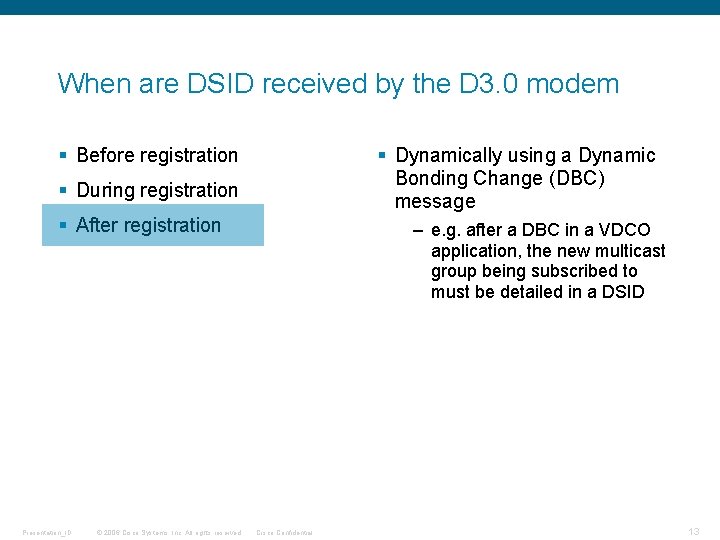

When are DSID received by the D 3. 0 modem § Before registration § Dynamically using a Dynamic Bonding Change (DBC) message § During registration § After registration Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. – e. g. after a DBC in a VDCO application, the new multicast group being subscribed to must be detailed in a DSID Cisco Confidential 13

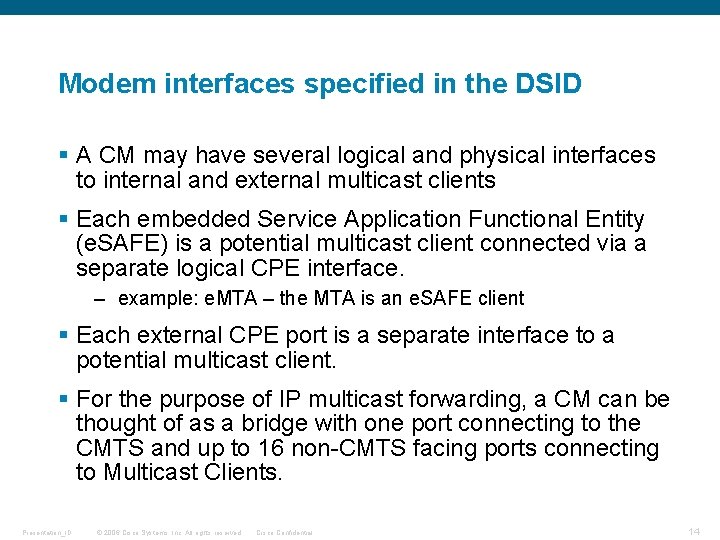

Modem interfaces specified in the DSID § A CM may have several logical and physical interfaces to internal and external multicast clients § Each embedded Service Application Functional Entity (e. SAFE) is a potential multicast client connected via a separate logical CPE interface. – example: e. MTA – the MTA is an e. SAFE client § Each external CPE port is a separate interface to a potential multicast client. § For the purpose of IP multicast forwarding, a CM can be thought of as a bridge with one port connecting to the CMTS and up to 16 non-CMTS facing ports connecting to Multicast Clients. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 14

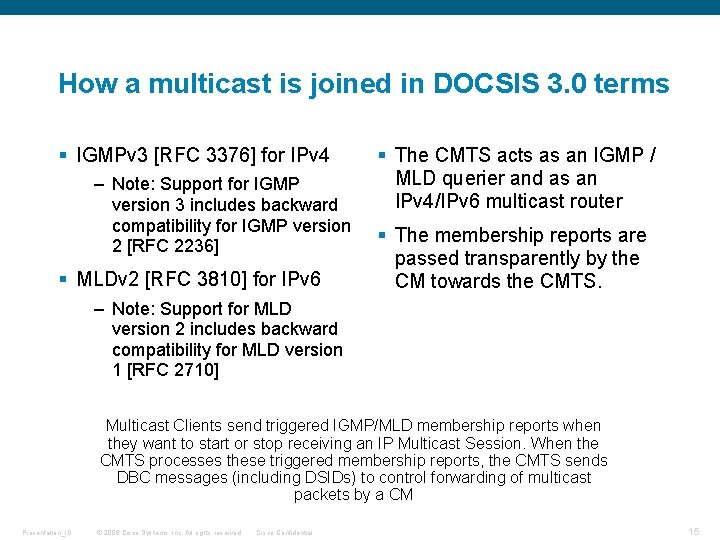

How a multicast is joined in DOCSIS 3. 0 terms § IGMPv 3 [RFC 3376] for IPv 4 – Note: Support for IGMP version 3 includes backward compatibility for IGMP version 2 [RFC 2236] § MLDv 2 [RFC 3810] for IPv 6 § The CMTS acts as an IGMP / MLD querier and as an IPv 4/IPv 6 multicast router § The membership reports are passed transparently by the CM towards the CMTS. – Note: Support for MLD version 2 includes backward compatibility for MLD version 1 [RFC 2710] Multicast Clients send triggered IGMP/MLD membership reports when they want to start or stop receiving an IP Multicast Session. When the CMTS processes these triggered membership reports, the CMTS sends DBC messages (including DSIDs) to control forwarding of multicast packets by a CM Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 15

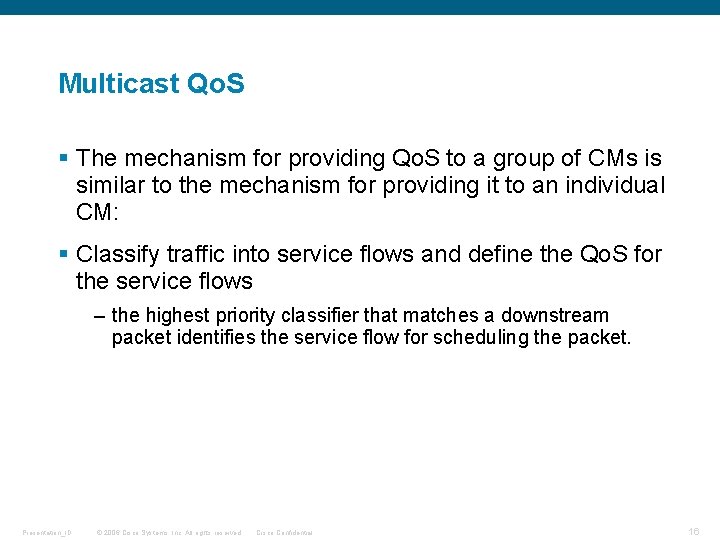

Multicast Qo. S § The mechanism for providing Qo. S to a group of CMs is similar to the mechanism for providing it to an individual CM: § Classify traffic into service flows and define the Qo. S for the service flows – the highest priority classifier that matches a downstream packet identifies the service flow for scheduling the packet. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 16

Multicast Qo. S Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential

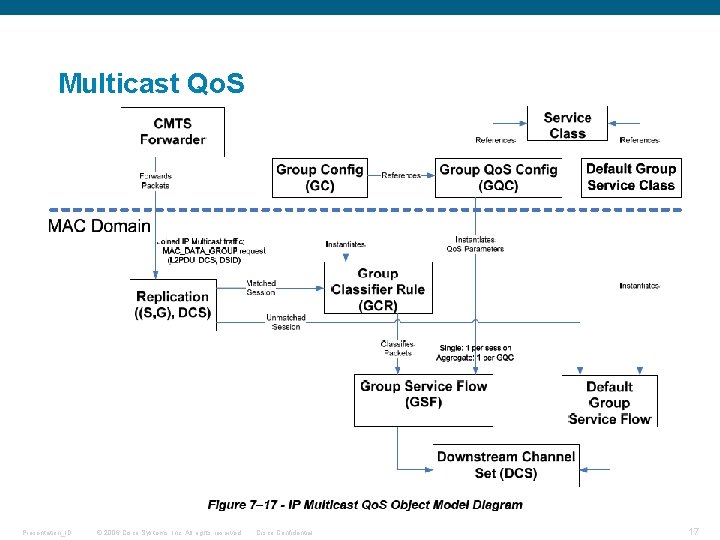

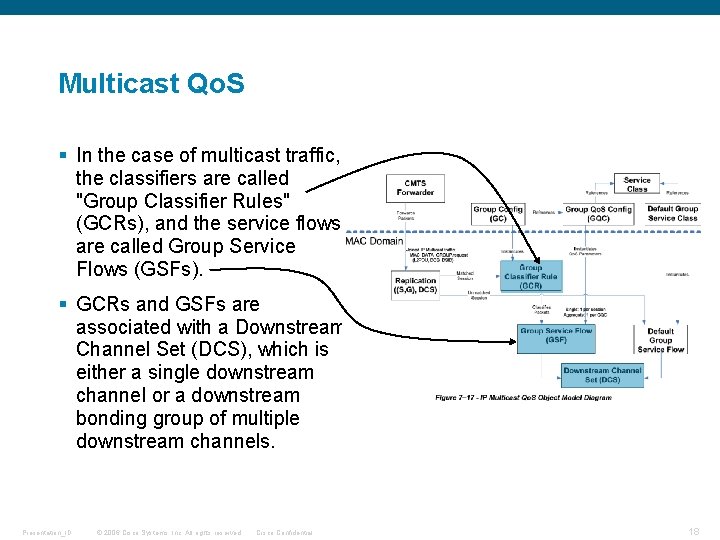

Multicast Qo. S § In the case of multicast traffic, the classifiers are called "Group Classifier Rules" (GCRs), and the service flows are called Group Service Flows (GSFs). § GCRs and GSFs are associated with a Downstream Channel Set (DCS), which is either a single downstream channel or a downstream bonding group of multiple downstream channels. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 18

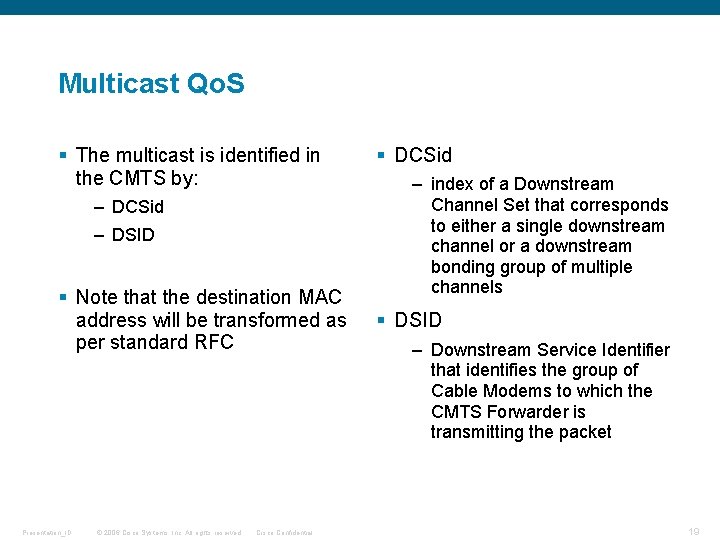

Multicast Qo. S § The multicast is identified in the CMTS by: – DCSid – DSID § Note that the destination MAC address will be transformed as per standard RFC Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential § DCSid – index of a Downstream Channel Set that corresponds to either a single downstream channel or a downstream bonding group of multiple channels § DSID – Downstream Service Identifier that identifies the group of Cable Modems to which the CMTS Forwarder is transmitting the packet 19

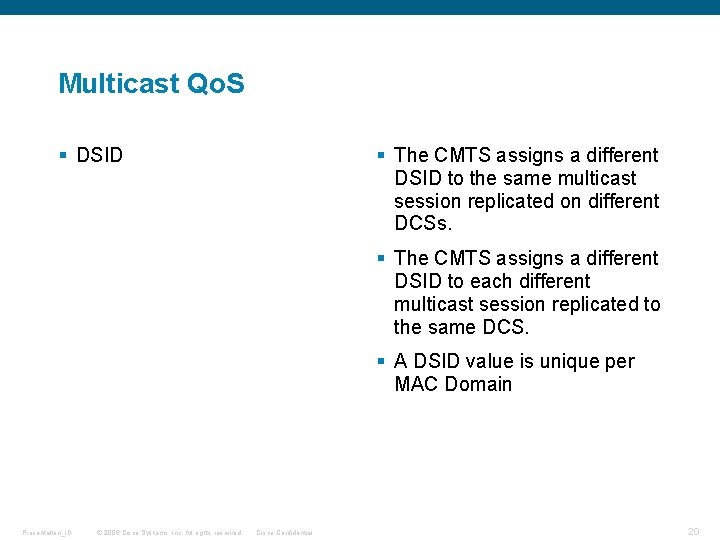

Multicast Qo. S § DSID § The CMTS assigns a different DSID to the same multicast session replicated on different DCSs. § The CMTS assigns a different DSID to each different multicast session replicated to the same DCS. § A DSID value is unique per MAC Domain Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 20

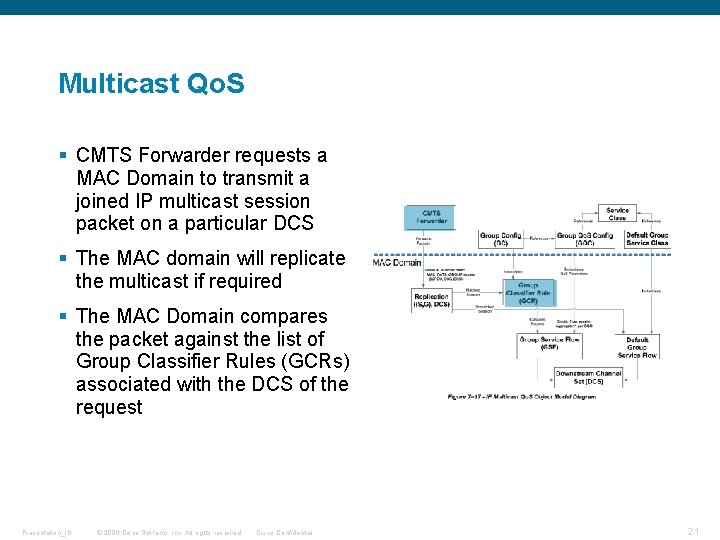

Multicast Qo. S § CMTS Forwarder requests a MAC Domain to transmit a joined IP multicast session packet on a particular DCS § The MAC domain will replicate the multicast if required § The MAC Domain compares the packet against the list of Group Classifier Rules (GCRs) associated with the DCS of the request Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 21

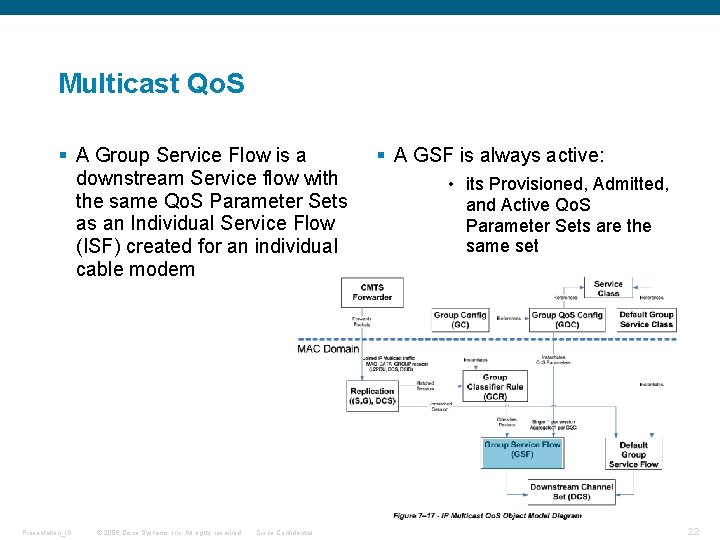

Multicast Qo. S § A Group Service Flow is a downstream Service flow with the same Qo. S Parameter Sets as an Individual Service Flow (ISF) created for an individual cable modem Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential § A GSF is always active: • its Provisioned, Admitted, and Active Qo. S Parameter Sets are the same set 22

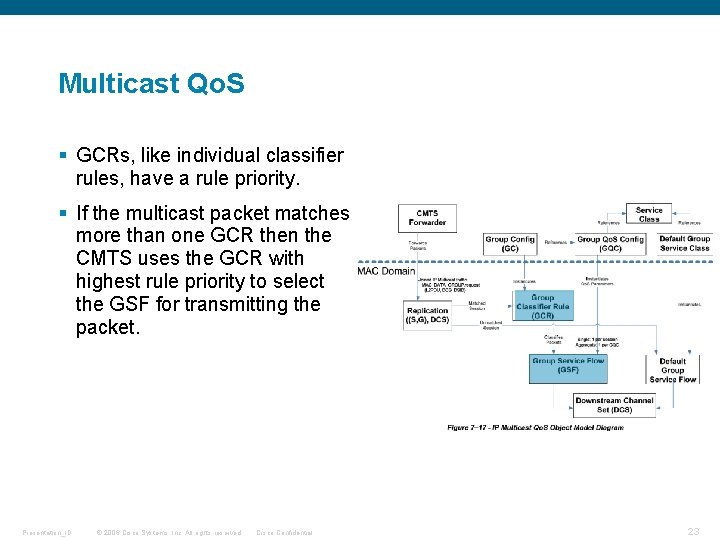

Multicast Qo. S § GCRs, like individual classifier rules, have a rule priority. § If the multicast packet matches more than one GCR then the CMTS uses the GCR with highest rule priority to select the GSF for transmitting the packet. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 23

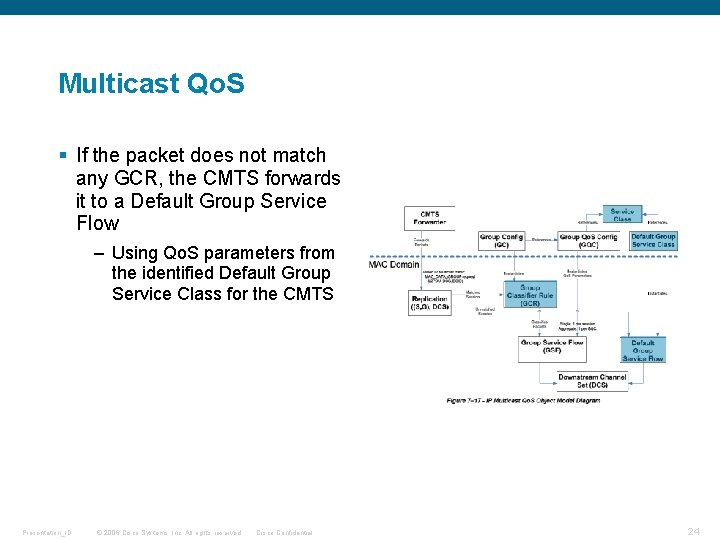

Multicast Qo. S § If the packet does not match any GCR, the CMTS forwards it to a Default Group Service Flow – Using Qo. S parameters from the identified Default Group Service Class for the CMTS Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 24

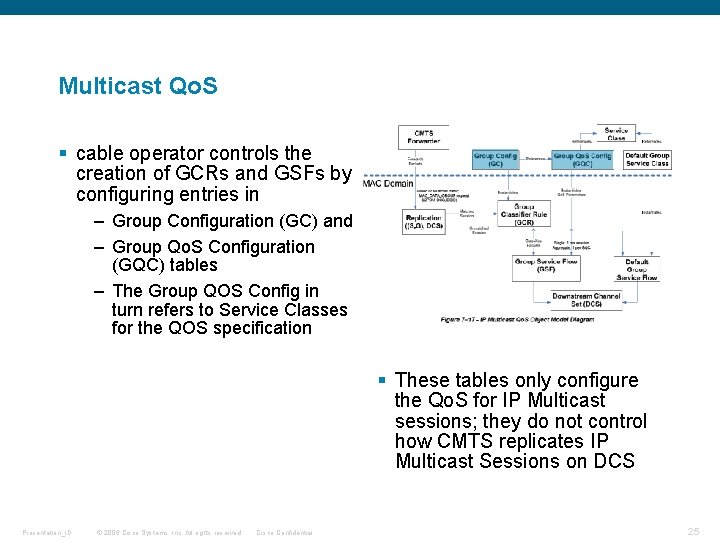

Multicast Qo. S § cable operator controls the creation of GCRs and GSFs by configuring entries in – Group Configuration (GC) and – Group Qo. S Configuration (GQC) tables – The Group QOS Config in turn refers to Service Classes for the QOS specification § These tables only configure the Qo. S for IP Multicast sessions; they do not control how CMTS replicates IP Multicast Sessions on DCS Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 25

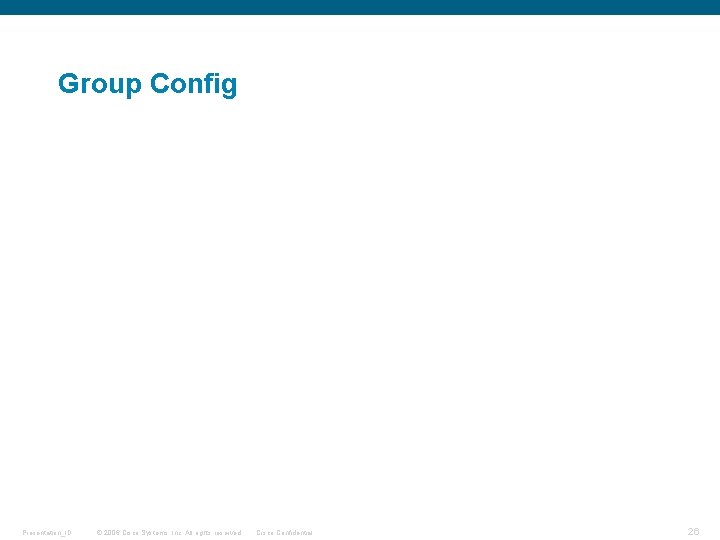

Group Config Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 26

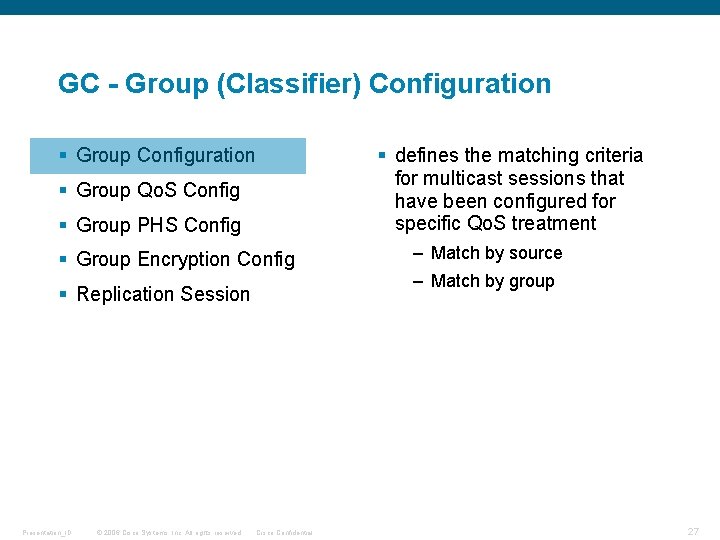

GC - Group (Classifier) Configuration § Group Configuration § defines the matching criteria for multicast sessions that have been configured for specific Qo. S treatment § Group Qo. S Config § Group PHS Config § Group Encryption Config § Replication Session Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential – Match by source – Match by group 27

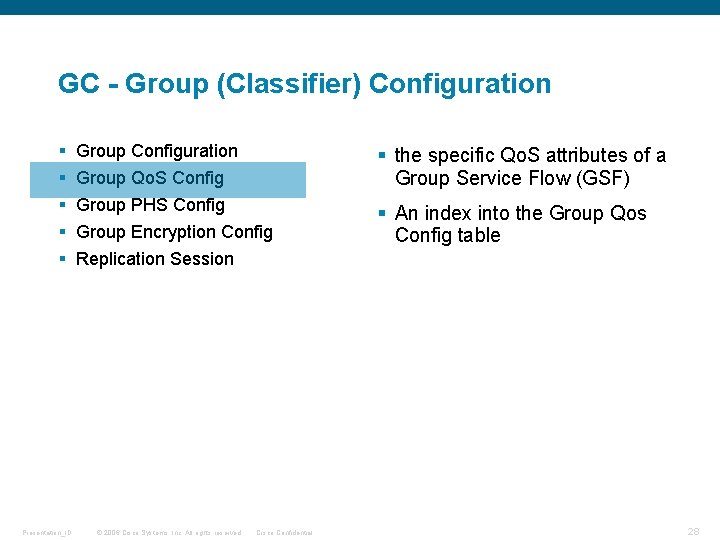

GC - Group (Classifier) Configuration § § § Presentation_ID Group Configuration Group Qo. S Config Group PHS Config Group Encryption Config Replication Session © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential § the specific Qo. S attributes of a Group Service Flow (GSF) § An index into the Group Qos Config table 28

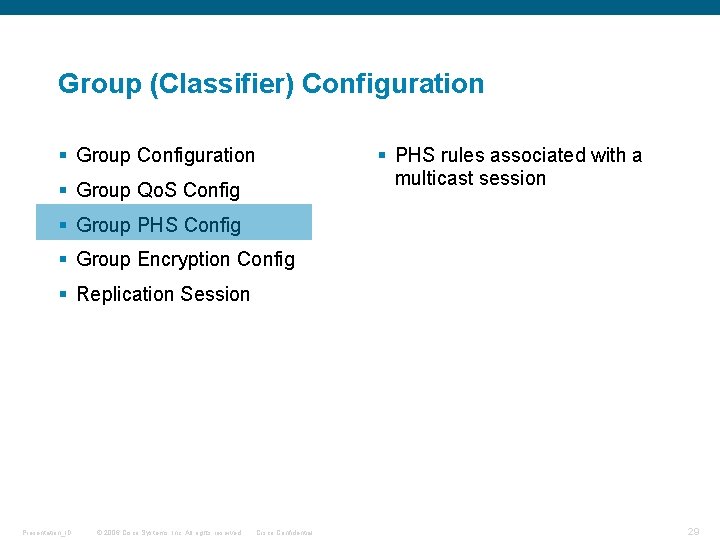

Group (Classifier) Configuration § Group Configuration § PHS rules associated with a multicast session § Group Qo. S Config § Group PHS Config § Group Encryption Config § Replication Session Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 29

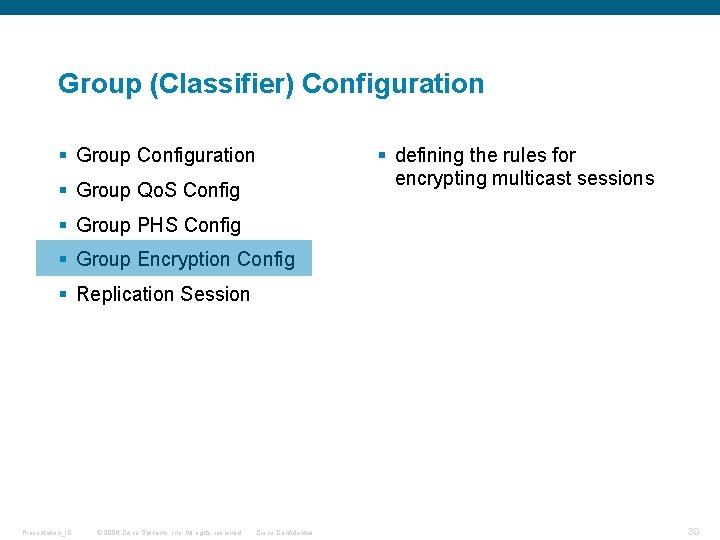

Group (Classifier) Configuration § Group Configuration § defining the rules for encrypting multicast sessions § Group Qo. S Config § Group PHS Config § Group Encryption Config § Replication Session Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 30

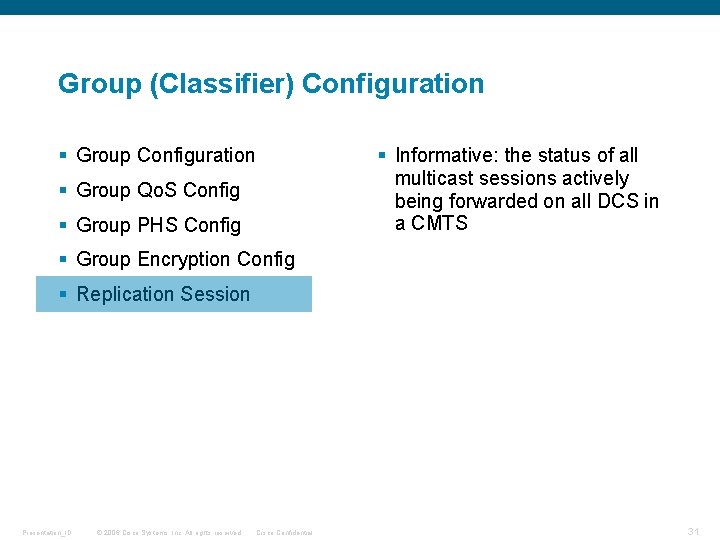

Group (Classifier) Configuration § Group Configuration § Informative: the status of all multicast sessions actively being forwarded on all DCS in a CMTS § Group Qo. S Config § Group PHS Config § Group Encryption Config § Replication Session Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 31

Group QOS Config Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential

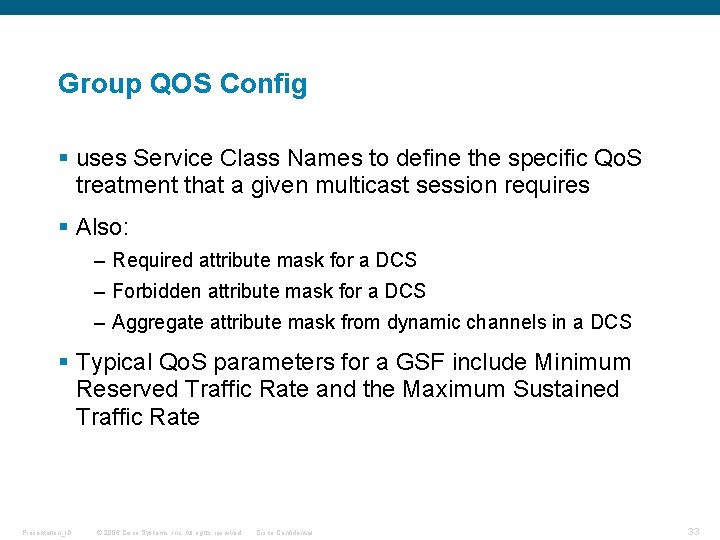

Group QOS Config § uses Service Class Names to define the specific Qo. S treatment that a given multicast session requires § Also: – Required attribute mask for a DCS – Forbidden attribute mask for a DCS – Aggregate attribute mask from dynamic channels in a DCS § Typical Qo. S parameters for a GSF include Minimum Reserved Traffic Rate and the Maximum Sustained Traffic Rate Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 33

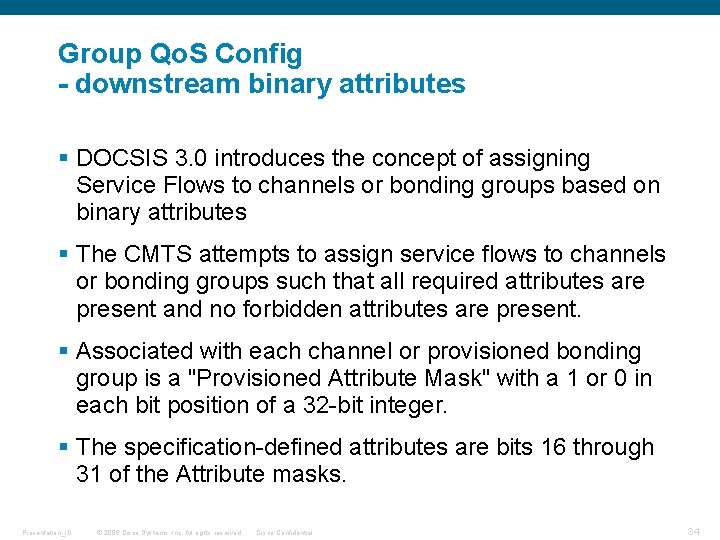

Group Qo. S Config - downstream binary attributes § DOCSIS 3. 0 introduces the concept of assigning Service Flows to channels or bonding groups based on binary attributes § The CMTS attempts to assign service flows to channels or bonding groups such that all required attributes are present and no forbidden attributes are present. § Associated with each channel or provisioned bonding group is a "Provisioned Attribute Mask" with a 1 or 0 in each bit position of a 32 -bit integer. § The specification-defined attributes are bits 16 through 31 of the Attribute masks. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 34

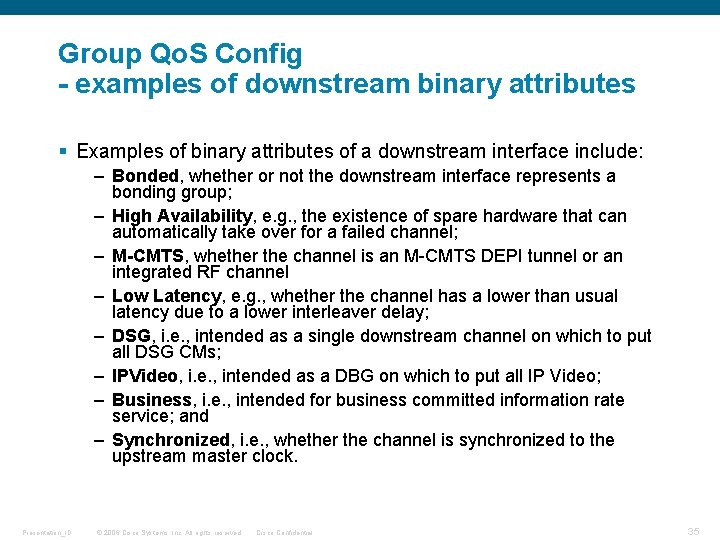

Group Qo. S Config - examples of downstream binary attributes § Examples of binary attributes of a downstream interface include: – Bonded, whether or not the downstream interface represents a bonding group; – High Availability, e. g. , the existence of spare hardware that can automatically take over for a failed channel; – M-CMTS, whether the channel is an M-CMTS DEPI tunnel or an integrated RF channel – Low Latency, e. g. , whether the channel has a lower than usual latency due to a lower interleaver delay; – DSG, i. e. , intended as a single downstream channel on which to put all DSG CMs; – IPVideo, i. e. , intended as a DBG on which to put all IP Video; – Business, i. e. , intended for business committed information rate service; and – Synchronized, i. e. , whether the channel is synchronized to the upstream master clock. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 35

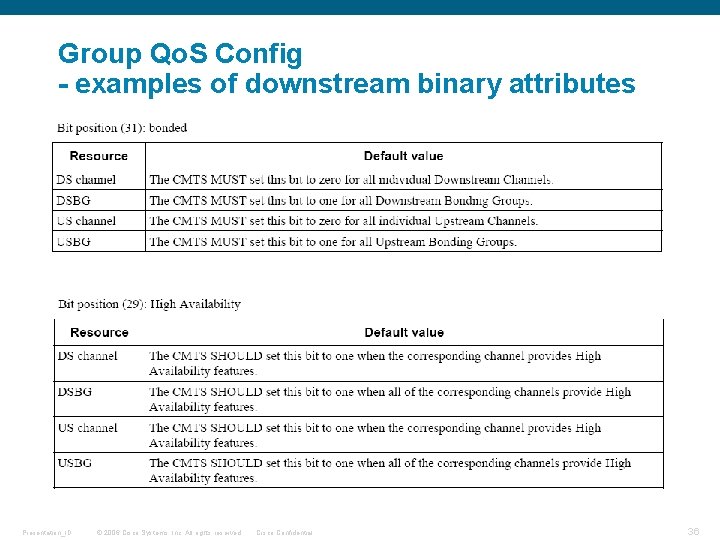

Group Qo. S Config - examples of downstream binary attributes Presentation_ID © 2006 Cisco

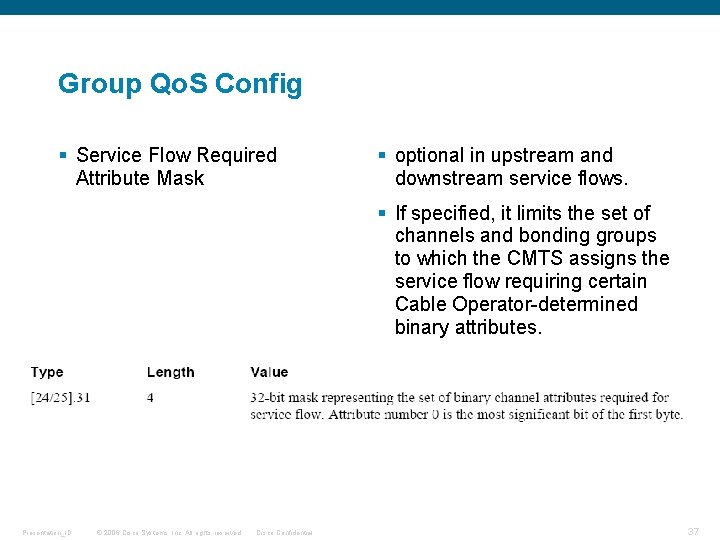

Group Qo. S Config § Service Flow Required Attribute Mask § optional in upstream and downstream service flows. § If specified, it limits the set of channels and bonding groups to which the CMTS assigns the service flow requiring certain Cable Operator-determined binary attributes. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 37

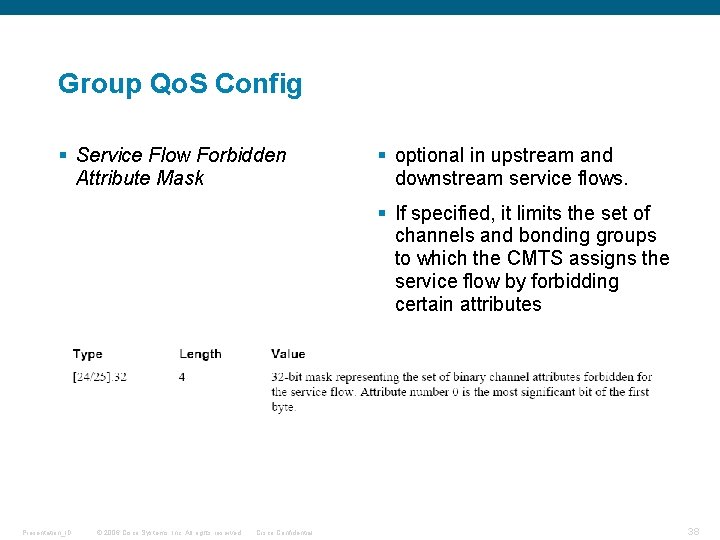

Group Qo. S Config § Service Flow Forbidden Attribute Mask § optional in upstream and downstream service flows. § If specified, it limits the set of channels and bonding groups to which the CMTS assigns the service flow by forbidding certain attributes Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 38

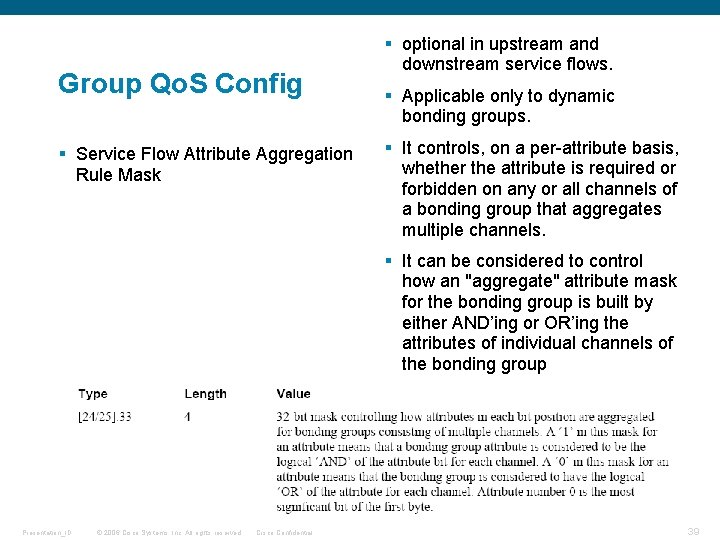

Group Qo. S Config § Service Flow Attribute Aggregation Rule Mask § optional in upstream and downstream service flows. § Applicable only to dynamic bonding groups. § It controls, on a per-attribute basis, whether the attribute is required or forbidden on any or all channels of a bonding group that aggregates multiple channels. § It can be considered to control how an "aggregate" attribute mask for the bonding group is built by either AND’ing or OR’ing the attributes of individual channels of the bonding group Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 39

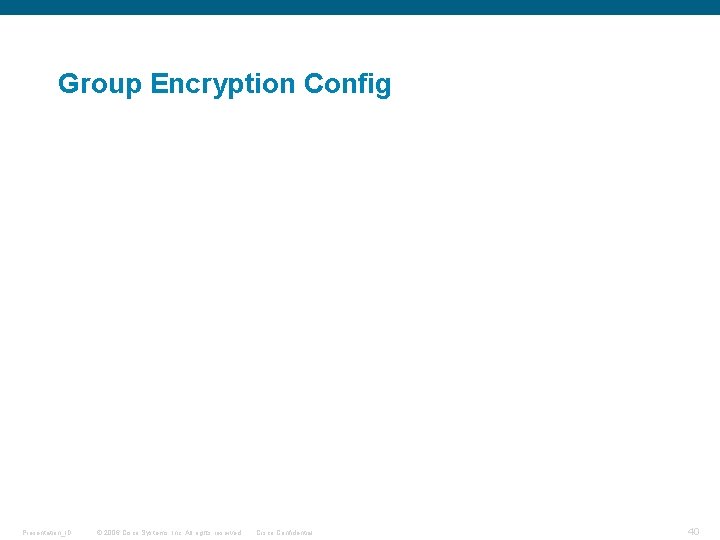

Group Encryption Config Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential

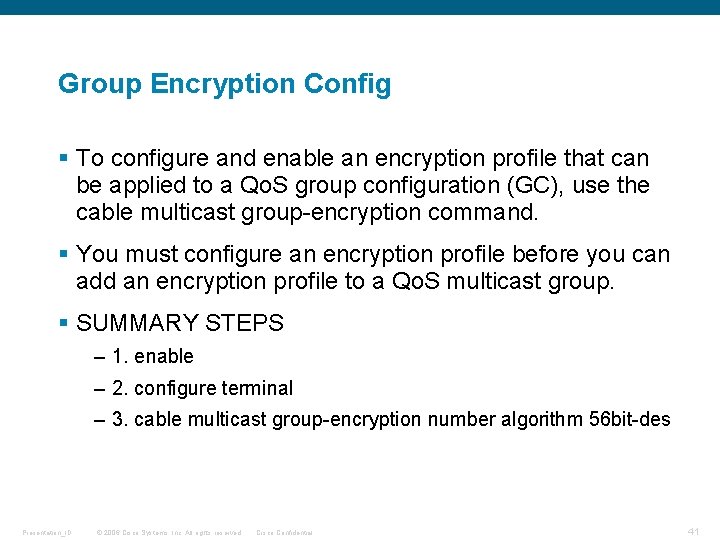

Group Encryption Config § To configure and enable an encryption profile that can be applied to a Qo. S group configuration (GC), use the cable multicast group-encryption command. § You must configure an encryption profile before you can add an encryption profile to a Qo. S multicast group. § SUMMARY STEPS – 1. enable – 2. configure terminal – 3. cable multicast group-encryption number algorithm 56 bit-des Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 41

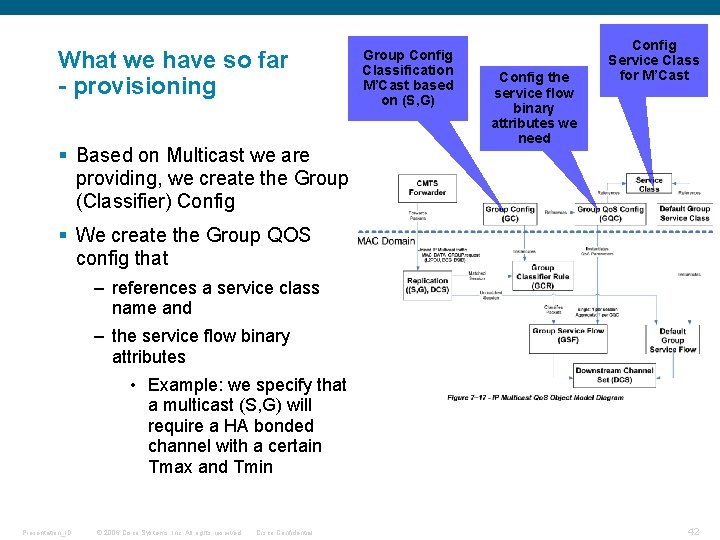

What we have so far - provisioning § Based on Multicast we are providing, we create the Group (Classifier) Config Group Config Classification M’Cast based on (S, G) Config the service flow binary attributes we need Config Service Class for M’Cast § We create the Group QOS config that – references a service class name and – the service flow binary attributes • Example: we specify that a multicast (S, G) will require a HA bonded channel with a certain Tmax and Tmin Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 42

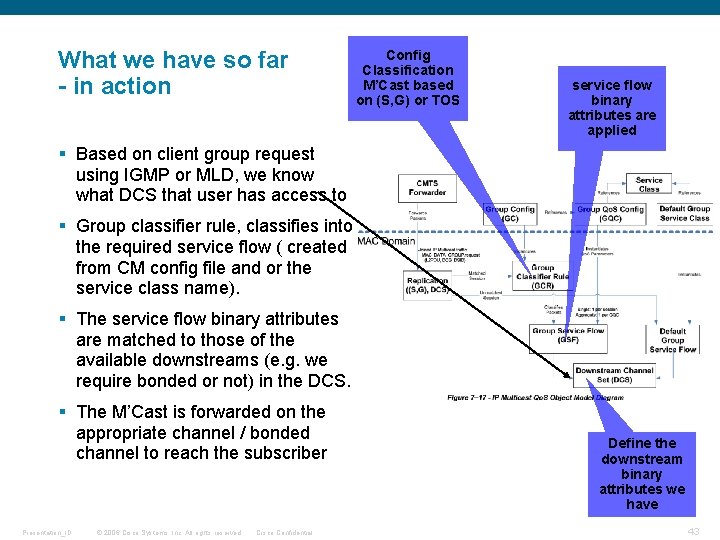

What we have so far - in action Config Classification M’Cast based on (S, G) or TOS service flow binary attributes are applied § Based on client group request using IGMP or MLD, we know what DCS that user has access to § Group classifier rule, classifies into the required service flow ( created from CM config file and or the service class name). § The service flow binary attributes are matched to those of the available downstreams (e. g. we require bonded or not) in the DCS. § The M’Cast is forwarded on the appropriate channel / bonded channel to reach the subscriber Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential Define the downstream binary attributes we have 43

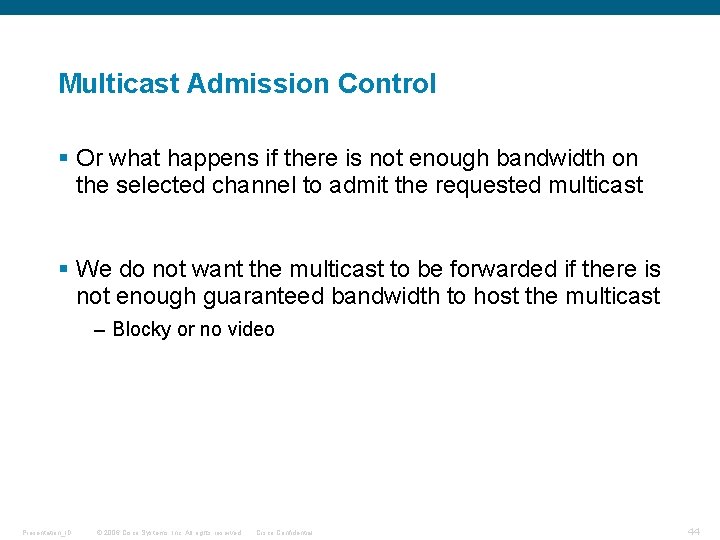

Multicast Admission Control § Or what happens if there is not enough bandwidth on the selected channel to admit the requested multicast § We do not want the multicast to be forwarded if there is not enough guaranteed bandwidth to host the multicast – Blocky or no video Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 44

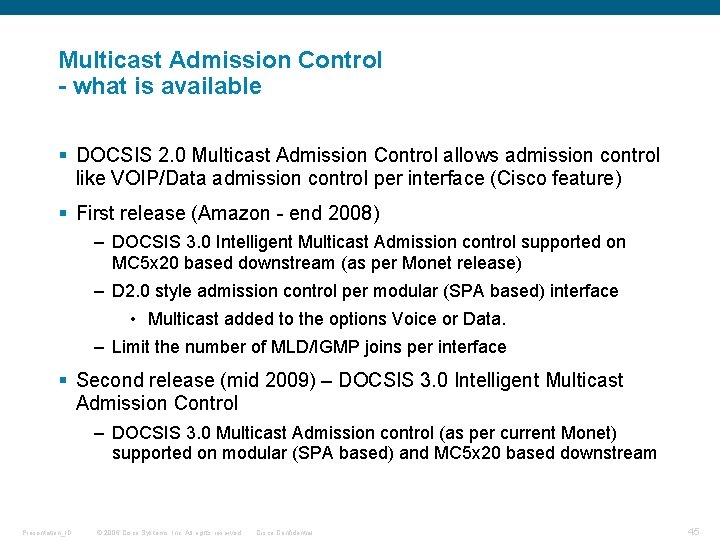

Multicast Admission Control - what is available § DOCSIS 2. 0 Multicast Admission Control allows admission control like VOIP/Data admission control per interface (Cisco feature) § First release (Amazon - end 2008) – DOCSIS 3. 0 Intelligent Multicast Admission control supported on MC 5 x 20 based downstream (as per Monet release) – D 2. 0 style admission control per modular (SPA based) interface • Multicast added to the options Voice or Data. – Limit the number of MLD/IGMP joins per interface § Second release (mid 2009) – DOCSIS 3. 0 Intelligent Multicast Admission Control – DOCSIS 3. 0 Multicast Admission control (as per current Monet) supported on modular (SPA based) and MC 5 x 20 based downstream Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 45

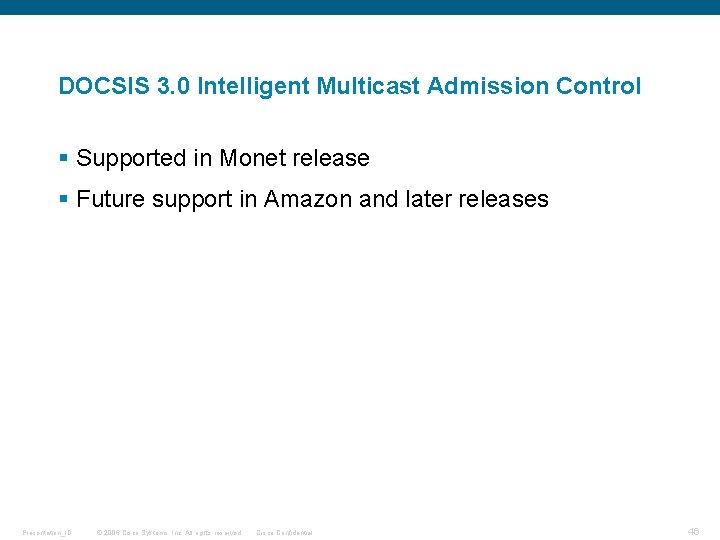

DOCSIS 3. 0 Intelligent Multicast Admission Control § Supported in Monet release § Future support in Amazon and later releases Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 46

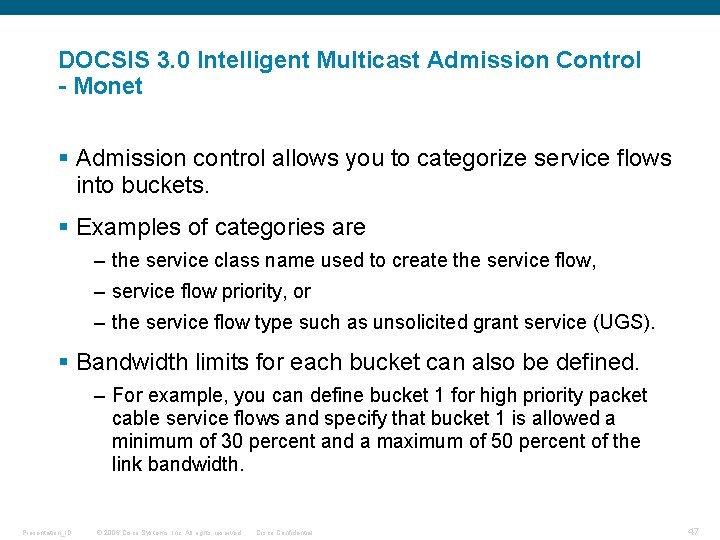

DOCSIS 3. 0 Intelligent Multicast Admission Control - Monet § Admission control allows you to categorize service flows into buckets. § Examples of categories are – the service class name used to create the service flow, – service flow priority, or – the service flow type such as unsolicited grant service (UGS). § Bandwidth limits for each bucket can also be defined. – For example, you can define bucket 1 for high priority packet cable service flows and specify that bucket 1 is allowed a minimum of 30 percent and a maximum of 50 percent of the link bandwidth. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 47

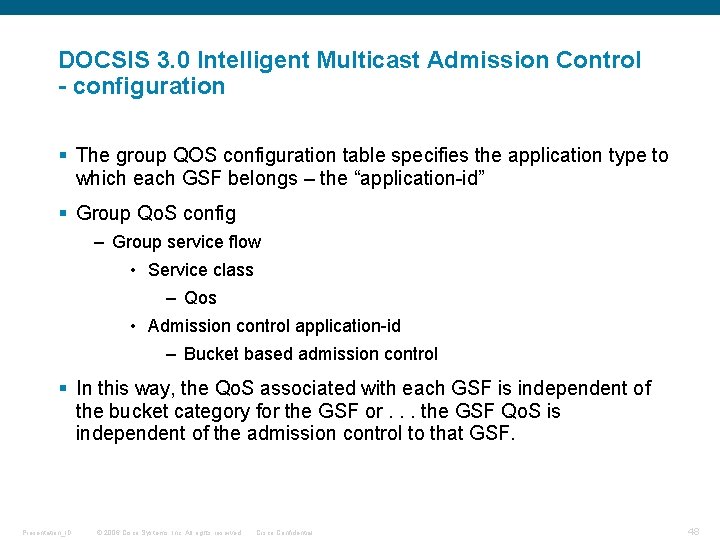

DOCSIS 3. 0 Intelligent Multicast Admission Control - configuration § The group QOS configuration table specifies the application type to which each GSF belongs – the “application-id” § Group Qo. S config – Group service flow • Service class – Qos • Admission control application-id – Bucket based admission control § In this way, the Qo. S associated with each GSF is independent of the bucket category for the GSF or. . . the GSF Qo. S is independent of the admission control to that GSF. Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Confidential 48
