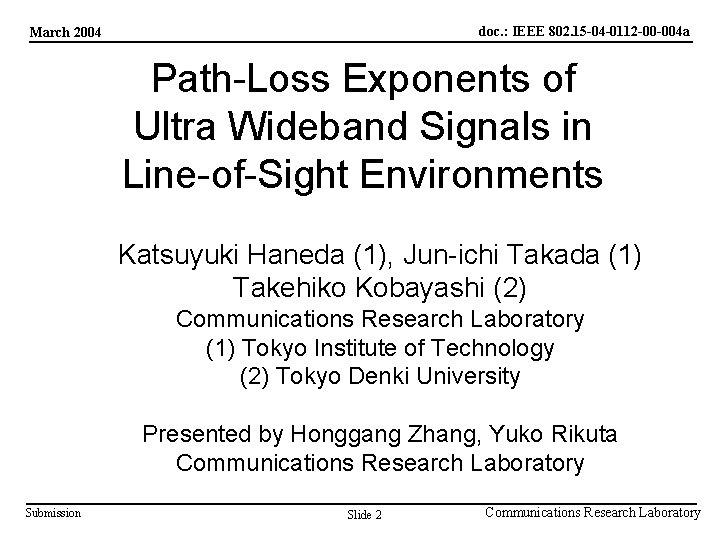

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Path-Loss Exponents of Ultra Wideband Signals in Line-of-Sight Environments Katsuyuki Haneda (1), Jun-ichi Takada (1) Takehiko Kobayashi (2) Communications Research Laboratory (1) Tokyo Institute of Technology (2) Tokyo Denki University Presented by Honggang Zhang, Yuko Rikuta Communications Research Laboratory Submission Slide 2 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Table of contents • Spatio-temporal channel measurement technique • Specifications of experiment • Measurement site • Path identification results • Clusters in spatio-temporal domain and their relation to physical structure of the environment • Diffuse scattering Submission Slide 3 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Channel measurement technique (1) • Double directional measurement • Spatial transfer function distribution measurement by VNA in conjunction with synthetic array antennas in Tx and Rx • Ray path identification by deterministic approach based on the SAGE (Ref. [1]) – Successive Interference Cancellation type implementation Submission Slide 4 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Channel measurement technique (2) • Spherical wave array mode vector was used (Ref: [2]) • Derived ray path parameters – DOD, DOA, TOA, curvature radius of the spherical wave and variation of spectra with respect to amplitude and phase Submission Slide 5 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Specifications of experiment • 3. 1 to 10. 6 GHz • Angular resolution: 10 deg in both Tx and Rx sides • Antennas: wideband monopole antennas • SNR at the receiver: about 30 d. B • Calibration: use a function of the VNA • Measurement site: LOS in a typical home environment in Japan (Ref: [3]) Submission Slide 6 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Measurement site Submission Slide 7 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Submission Slide 8 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Identification of the detected paths Submission Slide 9 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Submission Slide 10 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Spatio-temporal characteristics of identified paths (100 waves) and their clusterization Submission Slide 11 Communications Research Laboratory

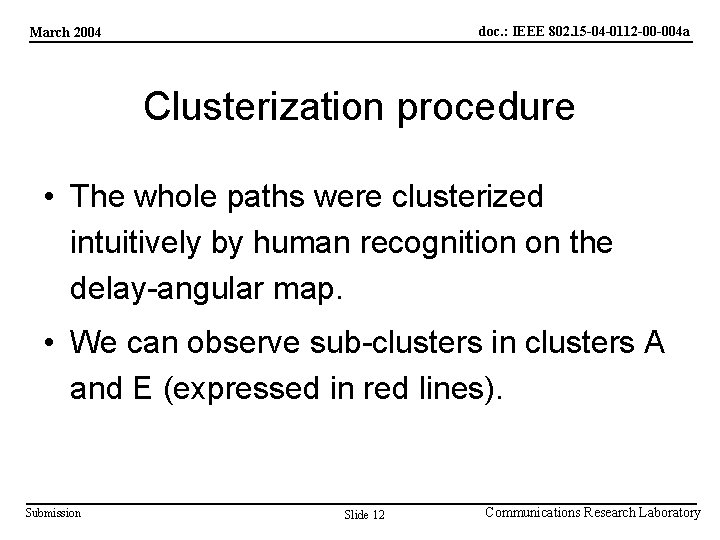

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Clusterization procedure • The whole paths were clusterized intuitively by human recognition on the delay-angular map. • We can observe sub-clusters in clusters A and E (expressed in red lines). Submission Slide 12 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Clusters A Reflection from the window (including window glass and metal frame) Submission Slide 13 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Cluster B Reflection from the displays Submission Slide 14 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Cluster C Reflection from adjacent room through wooden door Submission Slide 15 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Cluster D Ceiling, floor and door reflection (includes two bounces, ex. ceiling/door) Submission Slide 16 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Clusters E Reflection from the window (including window glass and metal frame) Submission Slide 17 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Intra-cluster properties Cluster Mean Spread (containing multipaths) Angular Delay Mean power A (18) 85. 74 27. 26 17. 77 1. 57 -100. 21 B (34) 231. 92 22. 31 8. 96 3. 22 -98. 93 C (4) 269. 63 30. 61 1. 37 1. 86 -105. 36 D (22) 270. 14 20. 00 1. 90 1. 36 -98. 76 E (18) 305. 92 22. 21 4. 50 1. 38 -100. 50 * Units are angle: deg, delay: ns, power: d. Bm. Submission Slide 18 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Findings on the clusters • Spatio-temporal clusters are determined by a physical structure of the environment. – Specular reflections or specular diffractions are the dominant mechanisms. • Spatial and temporal characteristics are highly correlated. • Delay spread of the reflected waves from one scatterer is related to the – Height of the room, if more than two bounces are considered (scatterer bounce + ceiling or floor reflection) – Size of the scatterer Submission Slide 19 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Extracted power Submission Slide 20 Communications Research Laboratory

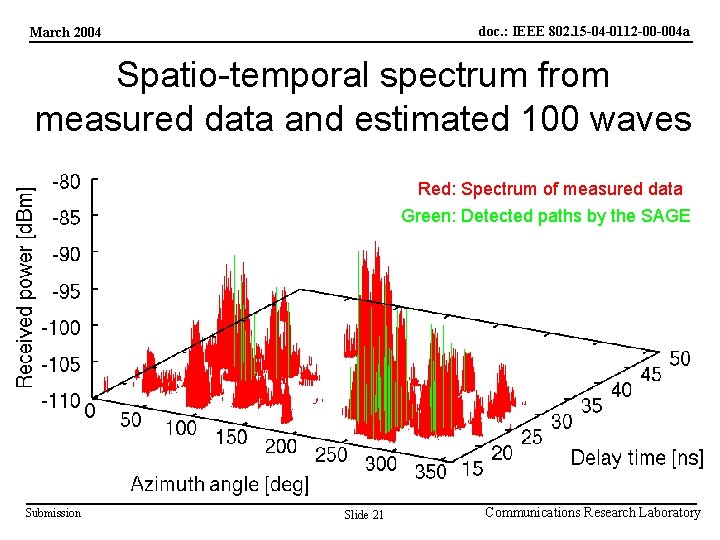

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Spatio-temporal spectrum from measured data and estimated 100 waves Red: Spectrum of measured data Green: Detected paths by the SAGE Submission Slide 21 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Residual spectrum after the extraction of 100 waves Red: Residual spectrum Submission Slide 22 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Spatio-temporal characteristics of identified paths (100 waves) and their clusterization Submission Slide 23 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Residual components after the extraction of 100 waves -110 d. Bm -115 d. Bm -120 d. Bm -125 d. Bm Submission Slide 24 Communications Research Laboratory

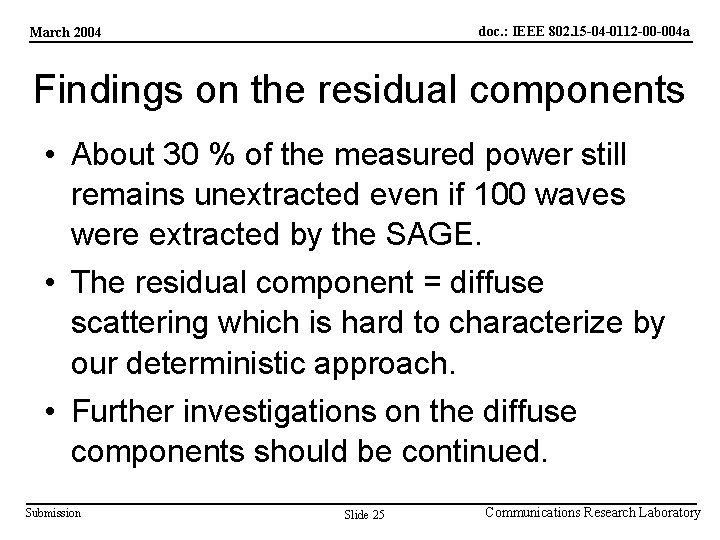

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Findings on the residual components • About 30 % of the measured power still remains unextracted even if 100 waves were extracted by the SAGE. • The residual component = diffuse scattering which is hard to characterize by our deterministic approach. • Further investigations on the diffuse components should be continued. Submission Slide 25 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 Summary • Paths and clusters identification based on the physical phenomena. • Whole received power was divided into the deterministic components (70%) and the diffuse components (30%). • Site-specific models are appropriate if the indoor UWB channels are simulated, i. e. ray tracing + diffuse scattering. Submission Slide 26 Communications Research Laboratory

doc. : IEEE 802. 15 -04 -0112 -00 -004 a March 2004 References • Channel measurement system: [1] Haneda et. al. , UWBST 2003, Reston, VA, USA, Nov. 2003. [2] Haneda et. al. , accepted for IWUWBS joint with UWBST 2004, Kyoto, Japan, May 2004. • Channel measurement result: [3] Haneda et. al. , submitted to WPMC 04, Padova, Italy, Sept. 2004. Submission Slide 27 Communications Research Laboratory
