doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Logistics (1) • Attendance recording procedures – https: //imat. ieee. org/my-site/home – Must register before logging attendance – Must log attendance during each 2 -hour session • Documentation – http: //mentor. ieee. org – Use “TGay” for submission – If you plan to make a submission be sure it does not contain company logos or advertising Submission Slide 9 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Logistics (2) • Email reflector – STDS-802 -11 -TGAY@listserv. ieee. org – If you are Aspirant, Potential Voter, Voter or Ex. Officio that do not receive any email from the above email address so far, you can request to subscribe at: • http: //grouper. ieee. org/groups/802/11/Reflector. html – Read-only email reflector for other participants: • http: //www. ieee 802. org/11/email/stds-802 -11 -tgay/ Submission Slide 10 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Logistics (3) Position(s) Officer(s) Chair Edward Au Vice Chair Sang Kim Secretary Jeorge Hurtarte Editor Carlos Cordeiro Lead of Usage Model document Rob Sun Lead of Channel Model document Alexander Maltsev Lead of Functional Requirements document Rob Sun Lead of Evaluation Methodology document Laurent Cariou Submission Slide 11 Edward Au (Huawei

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Task Group AY schedule in a glance MON AM 1 TUE WED AY AY Texas E, 4/F Bowie B, 2/F THU FRI AM 2 PM 1 PM 2 PM 3 Submission AY AY Bowie B, 2/F Texas E, 4/F AY Bowie B, 2/F Slide 12 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Agenda items for the week • • Approve prior meeting minutes Progress review Timeline revision Advance on Specification Framework Document Process and timeline for draft development Goal for January 2017 interim Teleconference call schedule Submission Slide 13 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Meeting Slot #1 Tuesday, 8: 00 am – 10: 00 am Submission Slide 14 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Agenda • • • Call meeting to order Patent policy and logistics Summary from September 2016 interim Motion: September 2016 meeting minutes Call for submission Agenda setting Timeline revision Presentation Recess Submission Slide 15 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Summary from September 2016 interim • 17 submissions were covered during the meeting and the call covering areas related to: − Channel model − Specification framework document − Timeline • Significant progress was made in the development of specification framework document • Vice chair election was conducted − Sang Kim (LG Electronics) is elected • Timeline discussion was initiated − Editor’s proposal on revised timeline (16/1278 r 1) is presented Submission Slide 16 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #110: September 2016 meeting minutes • Approve Task Group AY minutes of meetings from September 2016 interim: – https: //mentor. ieee. org/802. 11/dcn/16/11 -16 -1267 -00 -00 ay-tg-ayseptember-2016 -warsaw-meeting-minutes. docx • Move: Edward Au • Second: Alecsander Eitan • Result: Approved with unanimous consent. Submission Slide 17 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Task Group Documents Doc. No. Title of the Task Group documents Status 15/0625 r 3 IEEE 802. 11 TGay use cases Approved in November 2015 plenary as the baseline document 15/1150 r 7 Channel models for IEEE 802. 11 ay Approved in September 2016 interim as the baseline document 15/1074 r 0 TGay functional requirements Approved in May 2016 interim as the baseline document 15/0866 r 4 TGay evaluation methodology Approved in July 2016 plenary as the baseline document 15/1079 r 2 TGay selection procedure Approved in November 2015 plenary 15/1358 r 6 Specification framework for TGay Texts corresponding to motions #89 -#109 are inserted in the latest version after the September 2016 interim 16/0266 r 4 A compendium of motions related to the contents of the specification framework document for TGay Updated after September 2016 interim Submission Slide 18 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Call for submission (1) Doc. No. Presenter Title Topic & Time 16/1364 r 1 Claudio Da Silva TRN field transmission for channel bonding SFD Tue AM 1, 25 m 16/1444 r 0 Yutaka Murakami EDMG PHY headers for open loop spatial multiplexing in SU-MIMO SFD Tue AM 1, 20 m 16/1365 r 0 Carlos Cordeiro MU MIMO beamforming protocol proposal SFD Tue AM 1, 30 m 16/1447 r 1 Kome Oteri Further details on multi-stage, multiresolution beamforming training in 802. 11 ay SFD Tue AM 1, 25 m Submission Slide 19 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Call for submission (2) Doc. No. Presenter Title Topic & Time 16/1433 r 2 James Wang Antenna polarization capability format SFD TUE PM 3, 20 m 16/1483 r 0 Sanggook Kim On the implementation of dynamic load balancing for A-BFT channel SFD TUE PM 3, 15 m 16/1485 r 0 Jinmin Kim EDMG-Header-A contents SFD TUE PM 3, 15 m 16/1484 r 1 Kyungtae Jo Multi-BF procedure for 11 ay SFD TUE PM 3, 15 m 16/1482 r 1 Sung. Jin Park Carrier sense for multi-channel allocation SFD TUE PM 3, 15 m 16/1514 r 0 Dzevdan Kapetanovic Comparing DL/UL training overhead for hybrid beamforming SFD TUE PM 3, 20 m 16/1490 r 0 Tao Wu DCM SQPSK for Channel Aggregation in 11 ay SFD TUE PM 3, 20 m Submission Slide 20 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Call for submission (3) Doc. No. Presenter Title Topic & Time 16/1385 r 0 Li-Hsiang Sun GI and phase impairments impact on openloop SU-MIMO SFD Wed AM 1, 25 m 16/1446 r 0 Kome Oteri Closed loop SU-MIMO performance with quantized feedback SFD Wed AM 1, 25 m 16/1455 r 0 Rui Yang On the single carrier waveforms for 11 ay SFD Wed AM 1, 25 m 16/1394 r 1 Alecsander Eitan Packet structure for SC EDMG PPDU for each GI length SFD Wed AM 1, 30 m 16/1401 r 1 Alecsander Eitan MCS table for SC EDMG SFD Wed AM 1, 15 m Submission Slide 21 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Call for submission (4) Doc. No. Presenter Title Topic & Time 16/1432 r 1 Camillo Gentile A quasi-deterministic channel model for a server room at 60 GHz Channel Model Wed PM 2, 20 m 16/1388 r 0 Yaroslav Gagiev Implementation of channel models for IEEE 802. 11 ay Channel Model Wed PM 2, 20 m 16/1497 r 0 Robert Muller Channel measurement summary of outdoor indoor scenarios for 11 ay Channel Model Wed PM 2, 20 m 16/1488 r 1 Tao Wu DCM QPSK for channel aggregation in 11 ay SFD Wed PM 2, 20 m 16/1422 r 0 Hiroyuki Motozuka L-Header spoofing and bit reuse SFD Wed PM 2, 20 m 16/1429 r 0 Artyom Lomayev Symbol blocking and guard interval definition for SC MIMO in 11 ay SFD Wed PM 2, 20 m Submission Slide 22 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Call for submission (5) Doc. No. Presenter Title Topic & Time 16/1495 r 1 Yan Xin Rate-7/8 LDPC code for 11 ay SFD THU PM 2, 20 m 16/1395 r 0 Alecsander Eitan EDMG Header-A fields preview in L-Header SFD THU PM 2, 25 m 16/1428 r 2 Oren Kedem ACK and BA transmission in bonded channels SFD THU PM 2, 20 m 16/1502 r 3 Ou Yang Reverse direction for DL MU MIMO SFD THU PM 2, 20 m 16/1412 r 0 Carlos Cordeiro SFD assignment for 11 ay draft creation Draft THU PM 2, 10 m Submission Slide 23 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Agenda setting • – – – – – • • Tuesday, 8: 00 am – 10: 00 am Call meeting to order Patent policy and logistics Review from September 2016 interim Motion: September 2016 meeting minutes Call for submission Agenda setting Timeline revision Reminder on selection procedure Presentation – – – • • Submission Slide 24 Call meeting to order Patent policy and logistics Presentation Thursday, 4: 00 pm – 6: 00 pm – – – – Call meeting to order Patent policy and logistics Presentation Wednesday, 4: 00 pm – 6: 00 pm – – – Tuesday, 7: 30 pm – 9: 30 pm – – – Wednesday, 8: 00 am – 10: 00 am Call meeting to order Patent policy and logistics Presentation Motions Process and timeline for draft development Goals for January 2017 interim Teleconference schedule Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Timeline (1) • Timeline for the task group is approved in May 2015: We are here! Submission Slide 25 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Timeline (2) • Editor’s proposal on revised timeline: – 16/1278 r 1 Submission Slide 26 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #111: Task group timeline revision • Move to accept the proposed timeline presented in 16/1278 r 1 as the timeline for Task Group AY. • Move: Carlos Cordeiro • Second: Alecsander Eitan • Result: Approved with unanimous consent. Submission Slide 27 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Reminder on selection procedure • Editor is responsible for maintaining the document: – Contributions that describe different functional blocks with the intention to be included in the TG specification framework document are solicited. – Specification framework document shall be created by incorporating different functional blocks that the corresponding motions have been approved by at least 75% TG approval rate. • Straw polls will be conducted first to gauge the interest of the TG. • Only straw polls that achieve at least 75% approval rate will be converted to motions. – Any change in the document requires at least 75% TG approval rate. Submission Slide 28 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 List of presentation Doc. No. Presenter Title Topic & Time 16/1364 r 1 Claudio Da Silva TRN field transmission for channel bonding SFD Tue AM 1, 25 m 16/1444 r 0 Yutaka Murakami EDMG PHY headers for open loop spatial multiplexing in SU-MIMO SFD Tue AM 1, 20 m 16/1365 r 0 Carlos Cordeiro MU MIMO beamforming protocol proposal SFD Tue AM 1, 30 m 16/1447 r 1 Kome Oteri Further details on multi-stage, multiresolution beamforming training in 802. 11 ay SFD Tue AM 1, 25 m Submission Slide 29 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Meeting Slot #2 Tuesday, 7: 30 pm – 9: 30 pm Submission Slide 30 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Agenda • • Call meeting to order Patent policy and logistics Presentation Recess Submission Slide 31 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 List of presentation Doc. No. Presenter Title Topic & Time 16/1433 r 3 James Wang Antenna polarization capability format SFD TUE PM 3, 20 m 16/1483 r 0 Sanggook Kim On the implementation of dynamic load balancing for A-BFT channel SFD TUE PM 3, 15 m 16/1485 r 0 Jinmin Kim EDMG-Header-A contents SFD TUE PM 3, 15 m 16/1484 r 0 Kyungtae Jo Multi-BF procedure for 11 ay SFD TUE PM 3, 15 m 16/1482 r 1 Sung. Jin Park Carrier sense for multi-channel allocation SFD TUE PM 3, 15 m 16/1514 r 0 Dzevdan Kapetanovic Comparing DL/UL training overhead for hybrid beamforming SFD TUE PM 3, 20 m 16/1490 r 0 Tao Wu DCM SQPSK for Channel Aggregation in 11 ay SFD TUE PM 3, 20 m Submission Slide 32 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Meeting Slot #3 Wednesday, 8: 00 am – 10: 00 am Submission Slide 33 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Agenda • • Call meeting to order Patent policy and logistics Presentation Recess Submission Slide 34 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 List of presentation Doc. No. Presenter Title Topic & Time 16/1385 r 0 Li-Hsiang Sun GI and phase impairments impact on openloop SU-MIMO SFD Wed AM 1, 25 m 16/1446 r 0 Kome Oteri Closed loop SU-MIMO performance with quantized feedback SFD Wed AM 1, 25 m 16/1455 r 0 Rui Yang On the single carrier waveforms for 11 ay SFD Wed AM 1, 25 m 16/1394 r 1 Alecsander Eitan Packet structure for SC EDMG PPDU for each GI length SFD Wed AM 1, 30 m 16/1401 r 1 Alecsander Eitan MCS table for SC EDMG SFD Wed AM 1, 15 m Submission Slide 35 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Meeting Slot #4 Wednesday, 4: 00 pm – 6: 00 pm Submission Slide 36 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Agenda • • Call meeting to order Patent policy and logistics Presentation Recess Submission Slide 37 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 List of presentation Doc. No. Presenter Title Topic & Time 16/1432 r 1 Camillo Gentile A quasi-deterministic channel model for a server room at 60 GHz Channel Model Wed PM 2, 20 m 16/1388 r 0 Yaroslav Gagiev Implementation of channel models for IEEE 802. 11 ay Channel Model Wed PM 2, 20 m 16/1497 r 0 Robert Muller Channel measurement summary of outdoor indoor scenarios for 11 ay Channel Model Wed PM 2, 20 m 16/1488 r 1 Tao Wu DCM QPSK for channel aggregation in 11 ay SFD Wed PM 2, 20 m 16/1422 r 0 Hiroyuki Motozuka L-Header spoofing and bit reuse SFD Wed PM 2, 20 m 16/1429 r 0 Artyom Lomayev Symbol blocking and guard interval definition for SC MIMO in 11 ay SFD Wed PM 2, 20 m Submission Slide 38 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Meeting Slot #5 Thursday, 4: 00 pm – 6: 00 pm Submission Slide 39 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Agenda • • • Call meeting to order Patent policy and logistics Motions Goals for January 2017 interim Teleconference schedule Adjourn Submission Slide 40 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 List of presentation Doc. No. Presenter Title Topic & Time 16/1495 r 1 Yan Xin Rate-7/8 LDPC code for 11 ay SFD THU PM 2, 20 m 16/1395 r 0 Alecsander Eitan EDMG Header-A fields preview in L-Header SFD THU PM 2, 25 m 16/1428 r 2 Oren Kedem ACK and BA transmission in bonded channels SFD THU PM 2, 20 m 16/1502 r 3 Ou Yang Reverse direction for DL MU MIMO SFD THU PM 2, 20 m 16/1412 r 0 Carlos Cordeiro SFD assignment for 11 ay draft creation Draft THU PM 2, 10 m Submission Slide 41 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #112: SFD • Do you agree to insert the following in the SFD? • The BRP protocol shall be extended to support operation over channels with 4. 32 GHz, 6. 48 GHz and 8. 64 GHz of bandwidth. • If BRP is performed on such a channel, the AGC and TRN fields sent as part of the BRP shall be transmitted over the entire signal bandwidth of the channel. • Note 1: Contribution number: 16/1364 r 1 • Note 2: Straw poll results: 22 Yes, 0 No, 9 Abstain • Move: Claudio Da Silva • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 42 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #113: SFD • Do you agree to insert the following in the SFD: “Except for the AGC and TRN fields, all the fields of a control mode PPDU transmitted by an EDMG STA over a 4. 32 GHz, 6. 48 GHz or 8. 64 GHz channel shall be duplicated. ”? • Note 1: Contribution number: 16/1364 r 1 • Note 2: Straw poll results: 22 Yes, 0 No, 7 Abstain • Move: Claudio Da Silva • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 43 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #114: SFD • Do you agree to add the following fields in the EDMG-header-A of an OFDM EDMG SU PPDU to the SFD? • Phase hopping field (1 bit): Reserved if either TX or RX does not support phase hopping. • Open loop precoding field (1 bit): Reserved if phase hopping field is “ 0”. Reserved if either TX or RX does not support phase hopping. • Note 1: Contribution number: 16/1444 r 0 • Note 2: Straw poll results: xx Yes, xx No, xx Abstain • Move: Yutaka Murakami • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 44 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #115: SFD • Do you agree to insert the following in section 3. 4 of the SFD? • The 11 ay MU MIMO beamforming protocol shall comprise the following phases: • SISO phase • MIMO phase • The SISO phase is as specified in <slides 5 -9 of 16/1365 r 0>. The MIMO phase is as specified in <slides 11 -20 of 16. 1365 r 0>. • Note 1: Contribution number: 16/1365 r 0 • Note 2: Straw poll results: xx Yes, xx No, xx Abstain • Move: Carlos Cordeiro • Second: TBD • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 45 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #116: SFD • Do you agree to add the following text into the 802. 11 ay SFD? • 11 ay BRP protocol should allow negotiation of the value of a. BRPmin. SCblocks <=18. • Note 1: Contribution number: 16/1447 r 1 • Note 2: Straw poll results: 10 Yes, 0 No, 26 Abstain • Move: Kome Oteri • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 46 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #117: SFD • Do you agree to add the following text into the 802. 11 ay SFD? • 11 ay BRP protocol should allow negotiation of the value of the BRPIFS parameter for specific modes • Note 1: Contribution number: 16/1447 r 1 • Note 2: Straw poll results: 6 Yes, 4 No, many Abstain • Move: Kome Oteri • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 47 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #118: SFD • Do you agree to add the format of Antenna Polarization Capability Field as defined in slides 6 - 9 of 16/1433 r 3 into the 11 ay SFD? • Note 1: Contribution number: 16/1433 r 3 • Note 2: Straw poll results: 26 Yes, 0 No, 2 Abstain • Move: James Wang • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 48 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #119: SFD • Do you agree to add the following text into SFD? • The EDMG Operation element includes signaling of RSSBackoff and RSSRetry. Limit. • Note 1: Contribution number: 16/1483 r 0 • Note 2: Straw poll results: 22 Yes, 0 No, 8 Abstain • Move: Sang Kim • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 49 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #120: SFD • Do you agree to add the following text into SFD? • EDMG operation element shall define signaling for dynamic load balancing for A-BFT channel as shown and described in slides 4 - 5 of 16/1483 r 0. • Note 1: Contribution number: 16/1483 r 0 • Note 2: Straw poll results: 20 Yes, 0 No, 9 Abstain • Move: Sang Kim • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 50 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #121: SFD • Do you agree to insert the following text into the SFD? – If NSS <= 4, the MCS field in EDMG-Header-A for SU is defined as: • 4 MCS fields (20 bits): – Each MCS field (5 bits) is for each spatial stream – If NSS > 4, the MCS field in EDMG-Header-A for SU is defined as: • Base MCS field (5 bits): – this indicates the lowest MCS index across all spatial streams • 8 differential MCS fields (16 bits) – Each MCS field (2 bits) for each spatial stream is interpreted as follows: • ‘ 00’ indicates the same MCS with the base MCS • ‘ 01’ indicates the one-step higher order modulation than the base MCS with the same code rate • ‘ 10’ indicates the two-step higher order modulation than the base MCS with the same code rate • ‘ 11’ indicates the three-step higher order modulation than the base MCS with the same code rate Submission Slide 51 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #121: SFD (con’t) • Note 1: Contribution number: 16/1485 r 0 • Note 2: Straw poll results: 24 Yes, 0 No, 10 Abstain • Move: Jinmin Kim • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 52 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #122: SFD • Do you agree to insert the following text into the SFD? • The total number of MCS subfields in the EDMG-Header-A field shall be constant whether or not channel aggregation is used. Therefore, if channel aggregation is used, the number of MCSs assigned to each channel in the aggregate shall be N/2, where N is the total number of MCS subfields. • Note 1: Contribution number: 16/1485 r 0 • Note 2: Straw poll results: 24 Yes, 0 No, 11 Abstain • Move: Jinmin Kim • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 53 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #123: SFD • Do you agree to insert the following text into the SFD? • The maximum number of spatial stream in each aggregated channel is four in channel aggregation • The different number of spatial stream can be allocated to each aggregated channel in channel aggregation • Note 1: Contribution number: 16/1485 r 0 • Note 2: Straw poll results: 22 Yes, 0 No, 5 Abstain • Move: Jinmin Kim • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 54 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #124: SFD • Do you agree to add the following field to the EDMG-Header A for MU? • MU-MIMO / FDMA indication (1 bit) • Note 1: Contribution number: 16/1485 r 0 • Note 2: Straw poll results: 20 Yes, 0 No, 13 Abstain • Move: Jinmin Kim • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 55 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #125: SFD • Do you agree to add the following fields to the EDMG Header-A when the PPDU is for FDMA? • 4 Channel Descriptors, each of which has • AID (8 bits) • NSS (1 bits) • Beamformed (1 bit) • Note 1: Contribution number: 16/1485 r 0 • Note 2: Straw poll results: 16 Yes, 0 No, 10 Abstain • Move: Jinmin Kim • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 56 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #126: SFD • Do you agree to modify the current SFD text “The 11 ay beamforming protocol supports multi-beamforming for multiple array antennas. Multibeamforming means that a transmitter simultaneously sends SSW frames in multiple polarized directions. ” as follows? • “The 11 ay beamforming protocol supports multi-beamforming for multiple array antennas. Multi-beamforming means that a transmitter sends a SSW frame simultaneously in same sectors through polarized antennas. ” • Note 1: Contribution number: 16/1484 r 1 • Note 2: Straw poll results: 23 Yes, 0 No, 9 Abstain • Move: Kyungtae Jo • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 57 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #127: SFD • Do you agree to add the following text into SFD? • 11 ay shall define the Multi-BF capabilities using EDMG Capabilities element to perform the Multi-BF. • Note 1: Contribution number: 16/1484 r 1 • Note 2: Straw poll results: 13 Yes, 0 No, 16 Abstain • Move: Kyungtae Jo • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 58 Edward Au (Huawei Technologies)

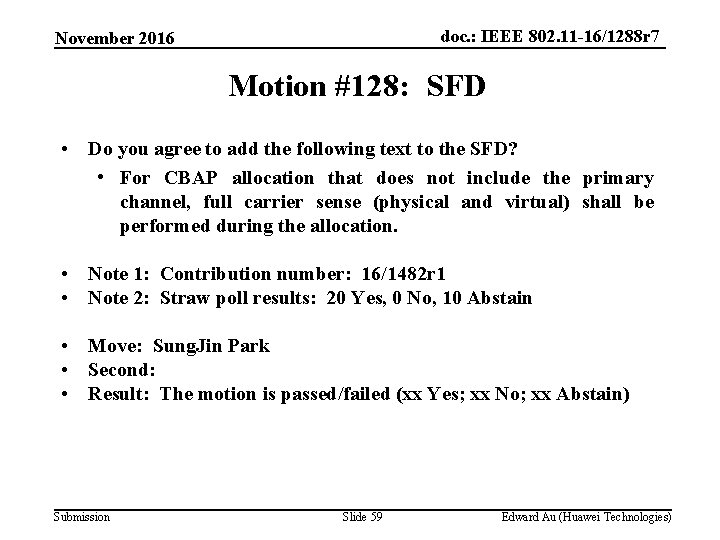

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #128: SFD • Do you agree to add the following text to the SFD? • For CBAP allocation that does not include the primary channel, full carrier sense (physical and virtual) shall be performed during the allocation. • Note 1: Contribution number: 16/1482 r 1 • Note 2: Straw poll results: 20 Yes, 0 No, 10 Abstain • Move: Sung. Jin Park • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 59 Edward Au (Huawei Technologies)

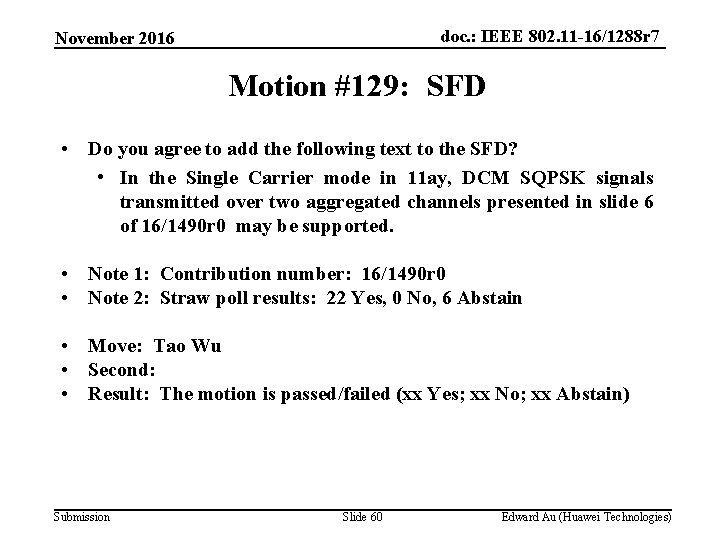

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #129: SFD • Do you agree to add the following text to the SFD? • In the Single Carrier mode in 11 ay, DCM SQPSK signals transmitted over two aggregated channels presented in slide 6 of 16/1490 r 0 may be supported. • Note 1: Contribution number: 16/1490 r 0 • Note 2: Straw poll results: 22 Yes, 0 No, 6 Abstain • Move: Tao Wu • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 60 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #130: SFD • Do you agree to add the following block format in 11 ay SFD? • (32 GI, 480 data) symbols per SC block for a 2. 16 GHz channel is an option for SC PHY in QPSK/BPSK MCS • Note 1: Contribution number: 16/1385 r 0 • Note 2: Straw poll results: 8 Yes, 0 No, 15 Abstain • Move: Li-Hsiang Sun • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 61 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #131: SFD • Do you agree to insert the following in clause 7 of the SFD? • The 11 ay specification shall support SU-MIMO with matrices derived from channel feedback. • Note 1: Contribution number: 16/1446 r 0 • Note 2: Straw poll results: 14 Yes, 0 No, 14 Abstain • Move: Kome Oteri • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 62 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #132: SFD • Do you agree to add to the SFD? • SC SISO to use 11 ad Ga 64, and derives, for CB=1 without additional EDMG STF & CEF, as in slides 7 -9, for Short and Long GI cases • SC CB>1 Frame Format to be as in slides 11 and 13 of 16/1394 r 0. • Note 1: Contribution number: 16/1394 r 1 • Note 2: Straw poll results: 29 Yes, 0 No, 5 Abstain • Move: Alecsander Eitan • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 63 Edward Au (Huawei Technologies)

November 2016 doc. : IEEE 802. 11 -16/1288 r 7 Motion #133: SFD • Do you agree to include in the SFD the MCS table for SC, as follows? Submission Data Rate (Mbps) MCS index Modulation NCBPS Repetition Code Rate CB=1 CB=2 CB=3 CB=4 1 π/2 -BPSK 1 2 1/2 385 770 1155 1540 2 π/2 -BPSK 1 1 1/2 770 1540 2310 3080 3 π/2 -BPSK 1 1 5/8 962. 5 1925 2887. 5 3850 4 π/2 -BPSK 1 1 3/4 1155 2310 3465 4620 5 π/2 -BPSK 1 1 13/16 1251. 25 2502. 5 3753. 75 5005 6 π/2 -BPSK 1 1 7/8 1347. 5 2695 4042. 5 5390 7 π/2 -QPSK 2 1 1/2 1540 3080 4620 6160 8 π/2 -QPSK 2 1 5/8 1925 3850 5775 7700 9 π/2 -QPSK 2 1 3/4 2310 4620 6930 9240 10 π/2 -QPSK 2 1 13/16 2502. 5 5005 7507. 5 10010 11 π/2 -QPSK 2 1 7/8 2695 5390 8085 10780 12 π/2 -16 QAM 4 1 1/2 3080 6160 9240 12320 13 π/2 -16 QAM 4 1 5/8 3850 7700 11550 15400 14 π/2 -16 QAM 4 1 3/4 4620 9240 13860 18480 15 π/2 -16 QAM 4 1 13/16 5005 10010 15015 20020 16 π/2 -16 QAM 4 1 7/8 5390 10780 16170 21560 17 π/2 -64 QAM 6 1 5/8 5775 11550 17325 23100 18 π/2 -64 QAM 6 1 3/4 6930 13860 20790 27720 19 π/2 -64 QAM 6 1 13/16 7507. 5 15015 22522. 5 30030 Slide 64 Edward Au (Huawei Technologies) 20 π/2 -64 QAM 6 1 7/8 8085 16170 24255 32340

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #133: SFD (con’t) • Note 1: Contribution number: 16/1401 r 1 • Note 2: Straw poll results: 30 Yes, 0 No, 5 Abstain • Move: Alecsander Eitan • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 65 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #134: SFD • Do you agree to add the following to the SFD? • The maximum PPDU duration of EDMG PPDU is 2 ms. • Note 1: Contribution number: 16/1422 r 0 • Note 2: Straw poll results: 25 Yes, 0 No, 5 Abstain • Move: Hiroyuki Motozuka • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 66 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #135: SFD • Do you agree to add the following to the SFD? • The 11 ay specification should define the symbol blocking structure and GI definition for SU-MIMO, MU-MIMO, CB = 1, 2, 3, 4 for SC PHY provided on slides 5 - 17 of 16/1429 r 0. • Note 1: Contribution number: 16/1429 r 0 • Note 2: Straw poll results: 22 Yes, 0 No, 2 Abstain • Move: Artyom Lomayev • Second: • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 67 Edward Au (Huawei Technologies)

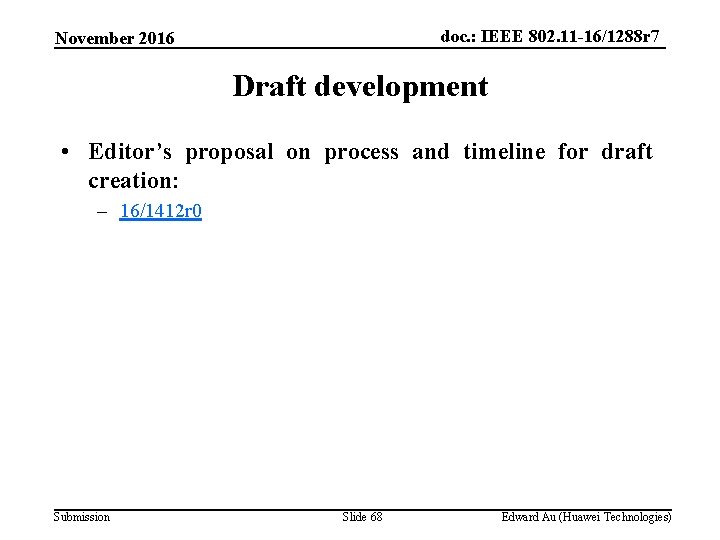

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Draft development • Editor’s proposal on process and timeline for draft creation: – 16/1412 r 0 Submission Slide 68 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Goals for January 2017 interim • Advance on Specification Framework document • Technical presentation Submission Slide 69 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Teleconference schedule • January 4 (Wednesday), 10: 00 am ET – 11: 00 am ET Submission Slide 70 Edward Au (Huawei Technologies)

doc. : IEEE 802. 11 -16/1288 r 7 November 2016 Motion #136: TBD • Note 1: Contribution number: TBD • Note 2: Straw poll results: xx Yes, xx No, xx Abstain • Move: TBD • Second: TBD • Result: The motion is passed/failed (xx Yes; xx No; xx Abstain) Submission Slide 71 Edward Au (Huawei Technologies)
