doc. : IEEE 802. 11 -16/0914 r 1 Introduction • Currently bit field ordering of HE-SIG-A in HE PPDUs is not finalized • Field reordering is required. For e. g. , • Format field should be aligned between HE SU and HE TRIG PPDU • Early occurrence of Beam change, MCS, and DCM fields helpful • PAPR performance of HE-SIG-A is improved by reordering • In these slides we present bit field finalization of HESIG-A in HE SU PPDU, HE_EXT SU PPDU, HE MU PPDU, and HE_TRIG PPDU Submission Slide 12 Lochan Verma, Qualcomm et. al
doc. : IEEE 802. 11 -16/0914 r 1 Key changes to fields of HE-SIG-A in HE PPDU formats • Reordering of fields • Beam change, MCS, DCM, LTF + CP, and Nsts moved to HE-SIG -A 1 • TXOP Duration moved to HE-SIG-A 2 • PAPR performance examples of proposed bit field ordering of HE-SIG-A in HE PPDU formats is shown in Appendix Submission Slide 13 Lochan Verma, Qualcomm et. al
doc. : IEEE 802. 11 -16/0914 r 1 Spec. Text on Bit Field Ordering of HESIG-A in HE PPDUs Please refer to 11 -16/0915 -02 -00 ax Submission Slide 14 Lochan Verma, Qualcomm et. al

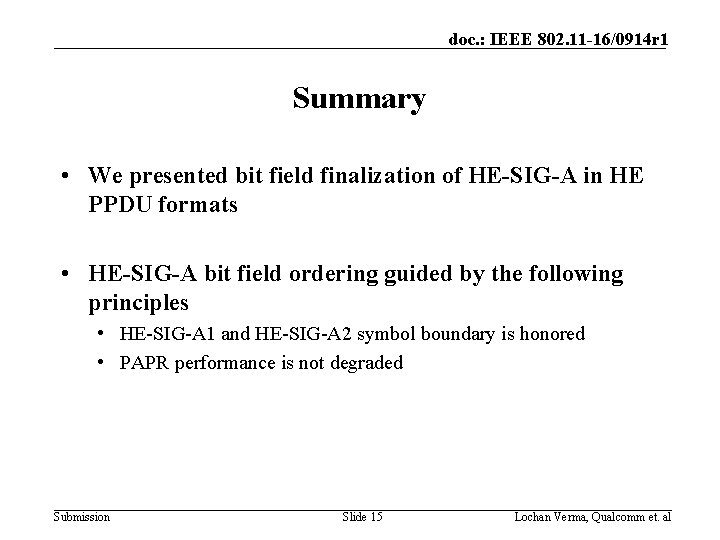

doc. : IEEE 802. 11 -16/0914 r 1 Summary • We presented bit field finalization of HE-SIG-A in HE PPDU formats • HE-SIG-A bit field ordering guided by the following principles • HE-SIG-A 1 and HE-SIG-A 2 symbol boundary is honored • PAPR performance is not degraded Submission Slide 15 Lochan Verma, Qualcomm et. al
doc. : IEEE 802. 11 -16/0914 r 1 SP#1 • Do you agree to adopt the spec. text changes proposed in “ 11 -16 -0915 -02 -00 ax”? • Yes • No • Abstain Submission Slide 16 Lochan Verma, Qualcomm et. al
doc. : IEEE 802. 11 -16/0914 r 1 APPENDIX Submission Slide 17 Lochan Verma, Qualcomm et. al
doc. : IEEE 802. 11 -16/0914 r 1 PAPR of HE-SIG-A in HE SU PPDU/HE EXT All 0's PAPR All 1's Format 1 1 Beam change 1 1 UL/DL 0 0 MCS 0 11 0 0 63 6. 4968 d. B DCM BSS Color A 1 0 6. 6448 d. B Reserved 1 1 SR 0 0 BW 0 3 LTF+CP 0 3 Nsts 0 7 Txop Duration 127 Coding 0 1 LDPC Extra Symbol Segment 1 1 STBC 0 0 Tx. Bf Submission PAPR All 0's. All 1's 0 5. 9703 d. B 1 7. 6236 d. B Packet Extension 0 3 Reserved 1 1 Doppler 0 0 CRC 12 11 Tail 0 0 A 2 Slide 18 Lochan Verma, Qualcomm et. al
doc. : IEEE 802. 11 -16/0914 r 1 PAPR of HE-SIG-A in HE MU PPDU/HE EXT All 0's PAPR All 0's. All 1's 0 0 0 1 0 6. 6005 d. B 0 1 0 UL/DL MCS DCM BSS Color SR BW A 1 SIGB Number of symbols SIGB Compression LTF+CP Doppler Txop Duration Reserved number of HE LTFs LDPC Extra Symbol Segment STBC Packet Extension CRC Tail Submission A 2 0 5. 2929 d. B 0 0 13 0 Slide 19 PAPR All 1's 0 5 0 62 0 3 6. 3474 d. B 7 1 3 0 127 1 5. 7398 d. B 0 3 2 0 Lochan Verma, Qualcomm et. al
doc. : IEEE 802. 11 -16/0914 r 1 PAPR of HE-SIG-A in HE Trigger-based PPDU HE TRIG All 0's Format BSS Color SR A 1 PAPR All 1's 0 0 1 62 0 8. 5387 d. B 14 6. 8755 d. B Reserved 1 1 BW 0 3 TXOP Duration 0 127 255 Reserved 0 6. 099 d. B 0 6. 2682 d. B CRC 8 0 Tail 0 0 Doppler Submission PAPR All 0's. All 1's A 2 Slide 20 Lochan Verma, Qualcomm et. al
