doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 A Burst Sequence Proposal for Coherent Pulse Compression Dani Raphaeli & Gidi Kaplan Sandlinks July 18, 05 Submission 2 Dani Raphaeli, Sand. Links

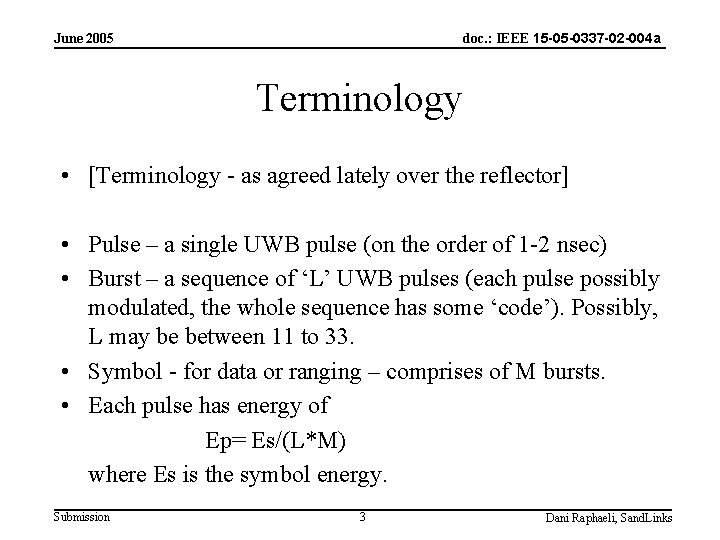

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Terminology • [Terminology - as agreed lately over the reflector] • Pulse – a single UWB pulse (on the order of 1 -2 nsec) • Burst – a sequence of ‘L’ UWB pulses (each pulse possibly modulated, the whole sequence has some ‘code’). Possibly, L may be between 11 to 33. • Symbol - for data or ranging – comprises of M bursts. • Each pulse has energy of Ep= Es/(L*M) where Es is the symbol energy. Submission 3 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Motivation to use a single short sequence for preamble and data • Simplify correlator having it fixed and short • Enable sliding correlator implementation (even analog) • Enabling CCA function of the MAC during the packet • Deterministic spectrum – for long spreading code with short packet we will have peaks in the spectrum. Need to quantify. • The shorter the sequence – the shorter the acquisition Submission 4 Dani Raphaeli, Sand. Links

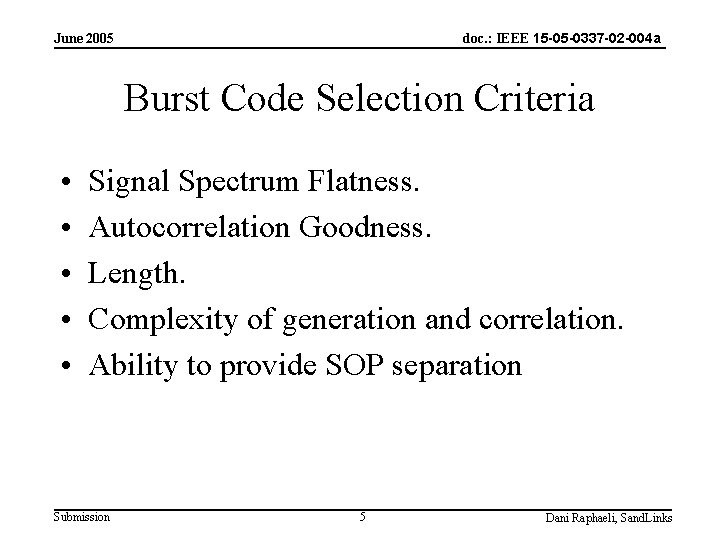

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Burst Code Selection Criteria • • • Signal Spectrum Flatness. Autocorrelation Goodness. Length. Complexity of generation and correlation. Ability to provide SOP separation Submission 5 Dani Raphaeli, Sand. Links

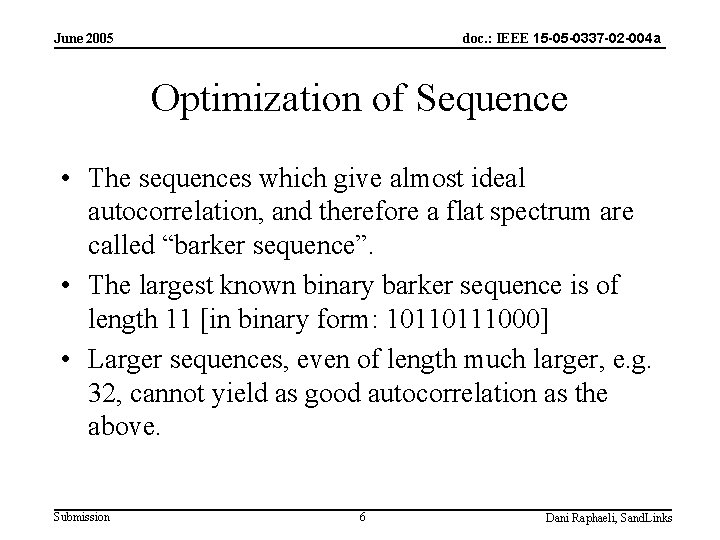

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Optimization of Sequence • The sequences which give almost ideal autocorrelation, and therefore a flat spectrum are called “barker sequence”. • The largest known binary barker sequence is of length 11 [in binary form: 10110111000] • Larger sequences, even of length much larger, e. g. 32, cannot yield as good autocorrelation as the above. Submission 6 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Consequences of not good autocorrelation • As a first result of ‘moderate’ autocorrelation, the spectrum will have peaks. • Since FCC limits measure the peak in the spectrum - the effect is a decrease in the allowed power level (at the transmitter). • Barker sequence have only 1 d. B peaks. Other sequences have larger peaks – up to 5 d. B (see 15 -05 -0240 -02 -004 a) • Note – to assure this good spectrum, care must be taken to modulate the bursts with good sequence and random like data Submission 7 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Spectrum of Barker-11 Submission 8 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Consequences of not good autocorrelation • Another consequence of ‘moderate’ autocorrelation the autocorrelation sidelobes will be high • The effect is a ghost multipath, leading to reduced performance or failures in ranging • Barker sequence have only -20 d. B sidelobes. • The above argument is irrelevant if different sequences will be used for ranging and for data (increasing the solution complexity) Submission 9 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Using sequences with perfect periodic autocorrelation • There exist some sequences with good periodic autocorrelation: PN codes, Ipatov sequences • The problems is that in order to take advantage of this property, the sequence should be sent repetitively without a gap or without modulation, limiting their usefullness • Although such periodic sequence can be used in the preamble, it will make an adverse effect on the spectrum – resulting in peaks in the repetition frequency. This makes a lower limit on the sequence length of few u. S Submission 10 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Supporting multiple Piconets • Can one practically achieve physical piconet seperation using a short code? • Codes with no crosscorrelation cannot exist if codes are non synchronized • Due to Near-far effect one cannot use CDMA type separation in 4 a application unless the code is very large (e. g. l 000 pulses) or alternatively, there is effective time hopping code with very large discrete resolution. Both approaches lead to complicated receiver • Conclusion – SOP should be differentiated logically if more than 3 needed. Not a big issue in 4 a, where traffic is low. • Nevertheless we suggest good SOP separation using time code as shown in the following slide Submission 11 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Supporting multiple piconets using time code Submission 12 Dani Raphaeli, Sand. Links

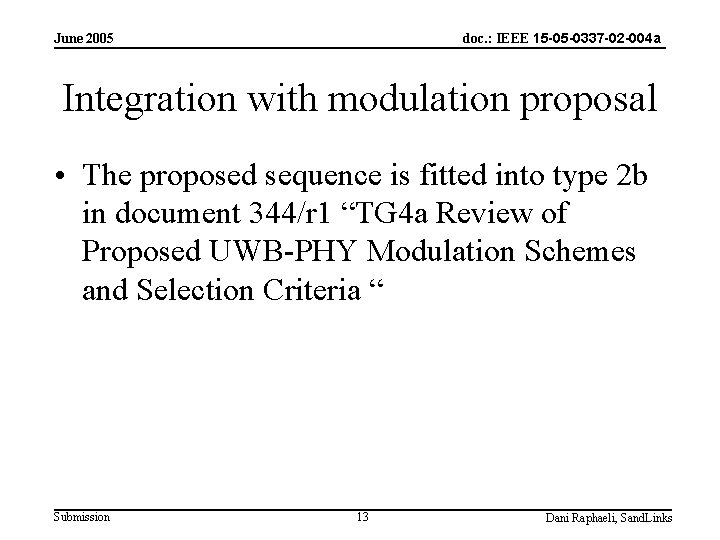

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Integration with modulation proposal • The proposed sequence is fitted into type 2 b in document 344/r 1 “TG 4 a Review of Proposed UWB-PHY Modulation Schemes and Selection Criteria “ Submission 13 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Integration with modulation proposal PPM For noncoh. BPSK Coding approach (see 15 -05 -240 -02 for example) Systematic Conv. Code BPSK PPM **Coherent receiver use both bits + viterbi decoder Submission 14 Dani Raphaeli, Sand. Links

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Example parameters • • • Data rate = 0. 935 Mbps Code rate =2/3 Average frame duration = 713 ns Chip rate = 123. 5 MHz Symbol duration= 89 n. S Effective Prf=15. 43 MHz Submission 15 Dani Raphaeli, Sand. Links

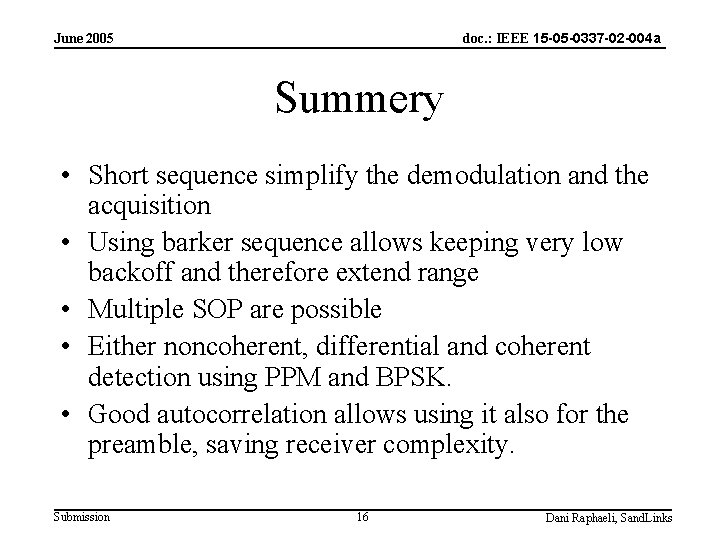

doc. : IEEE 15 -05 -0337 -02 -004 a June 2005 Summery • Short sequence simplify the demodulation and the acquisition • Using barker sequence allows keeping very low backoff and therefore extend range • Multiple SOP are possible • Either noncoherent, differential and coherent detection using PPM and BPSK. • Good autocorrelation allows using it also for the preamble, saving receiver complexity. Submission 16 Dani Raphaeli, Sand. Links
