Do Now Draw or trace the bony anatomy
Do Now • Draw or trace the bony anatomy of the elbow on page 111 (Figure 11. 1). Identify: • Humerus • Medial epicondyle • Lateral epicondyle (not labeled in figure 11. 1) • Radius • Ulna
Elbow and Forearm
Anatomy Preview • Bones • Simple: three bones • Muscles: • Complex: 7 major muscles that move the elbow; 9 muscles that move the wrist and hand. • Ligaments: • Present throughout the elbow, but the medial ligaments are the most relevant to sports medicine • Anatomy Video

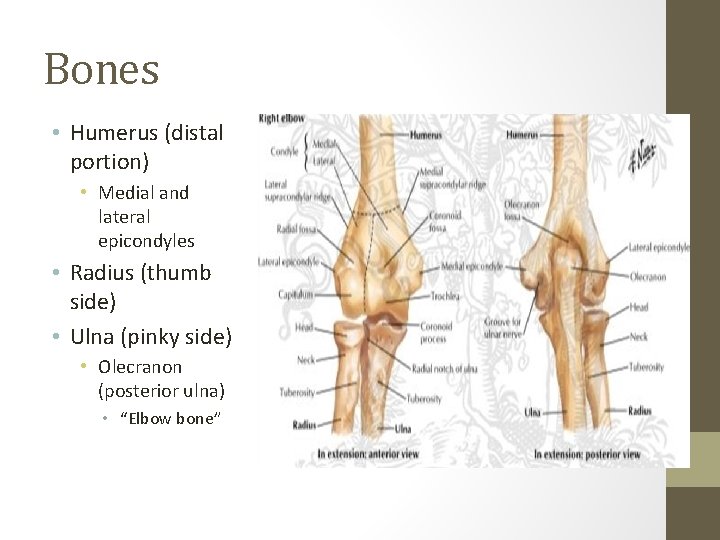

Bones • Humerus (distal portion) • Medial and lateral epicondyles • Radius (thumb side) • Ulna (pinky side) • Olecranon (posterior ulna) • “Elbow bone”

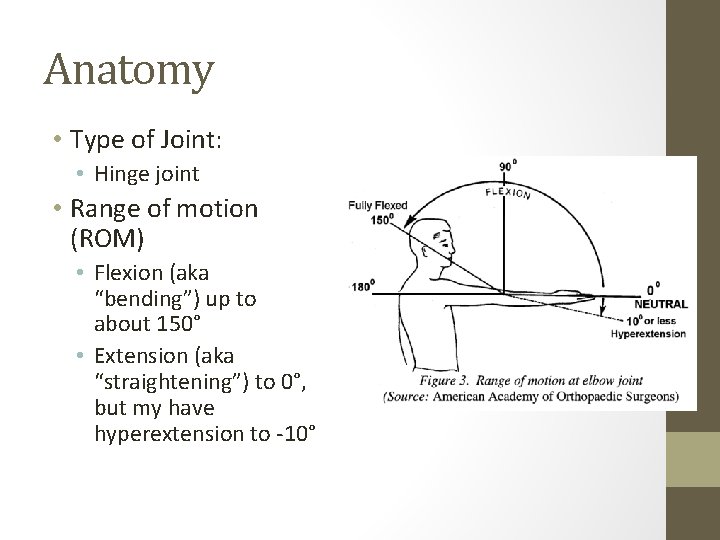

Anatomy • Type of Joint: • Hinge joint • Range of motion (ROM) • Flexion (aka “bending”) up to about 150° • Extension (aka “straightening”) to 0°, but my have hyperextension to -10°
Pronation and Supination • Pronation and supination occur at the radioulnar joint, not the elbow • Radius has to cross over the ulna to produce pronation
Muscles

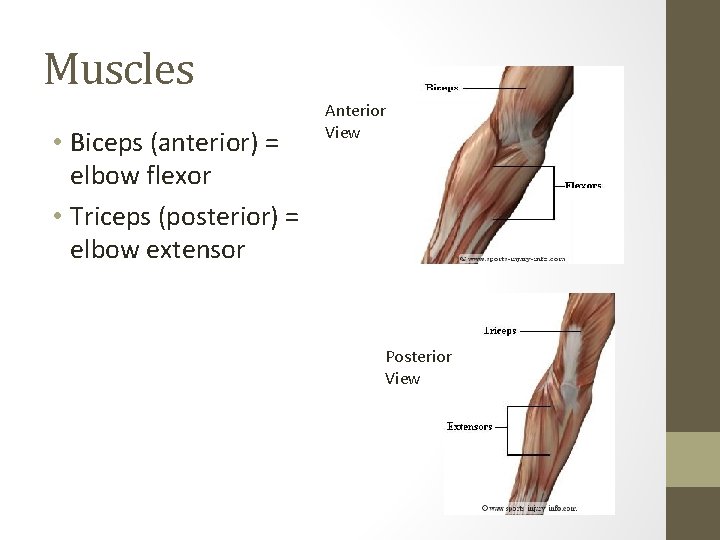

Muscles • Biceps (anterior) = elbow flexor • Triceps (posterior) = elbow extensor Anterior View Posterior View
Wrist Flexors • Originate on medial epicondyle of humerus • Insert onto anterior hand/wrist

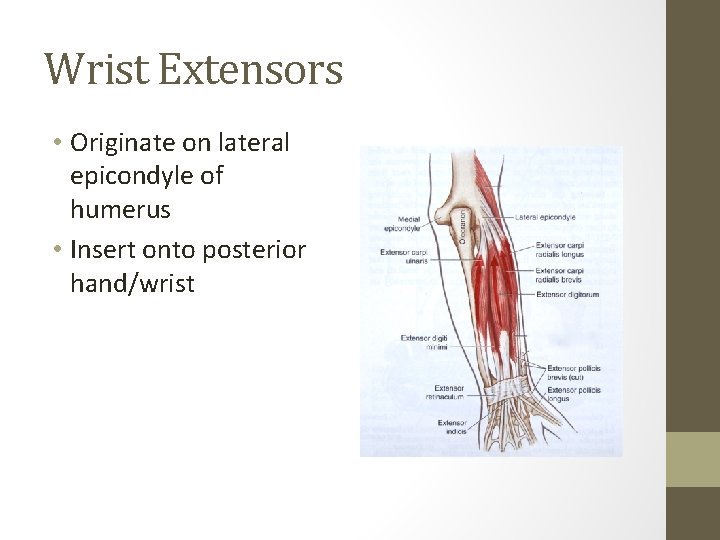

Wrist Extensors • Originate on lateral epicondyle of humerus • Insert onto posterior hand/wrist
Ligaments • Many ligaments necessary to provide stability. • Medial: • The ulnar collateral ligament (UCL) is most commonly discussed in sports medicine • UCL sprain/tear may lead to “Tommy John” surgery, especially for overhead athletes.
Ligaments • Lateral • Important for stability of radioulnar joint, especially with pronation

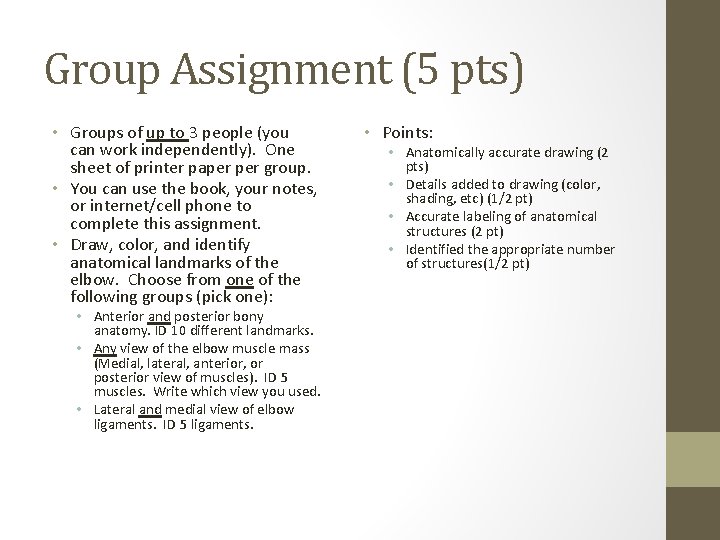

Group Assignment (5 pts) • Groups of up to 3 people (you can work independently). One sheet of printer paper group. • You can use the book, your notes, or internet/cell phone to complete this assignment. • Draw, color, and identify anatomical landmarks of the elbow. Choose from one of the following groups (pick one): • Anterior and posterior bony anatomy. ID 10 different landmarks. • Any view of the elbow muscle mass (Medial, lateral, anterior, or posterior view of muscles). ID 5 muscles. Write which view you used. • Lateral and medial view of elbow ligaments. ID 5 ligaments. • Points: • Anatomically accurate drawing (2 pts) • Details added to drawing (color, shading, etc) (1/2 pt) • Accurate labeling of anatomical structures (2 pt) • Identified the appropriate number of structures(1/2 pt)

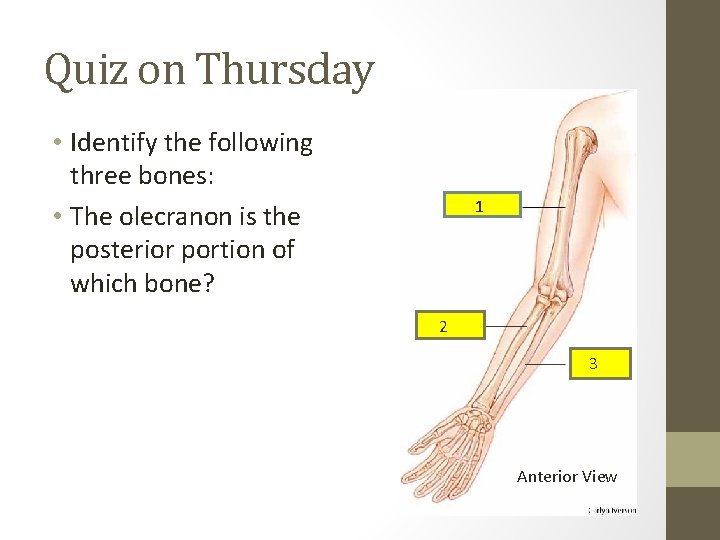

Quiz on Thursday • Identify the following three bones: • The olecranon is the posterior portion of which bone? 1 2 3 Anterior View

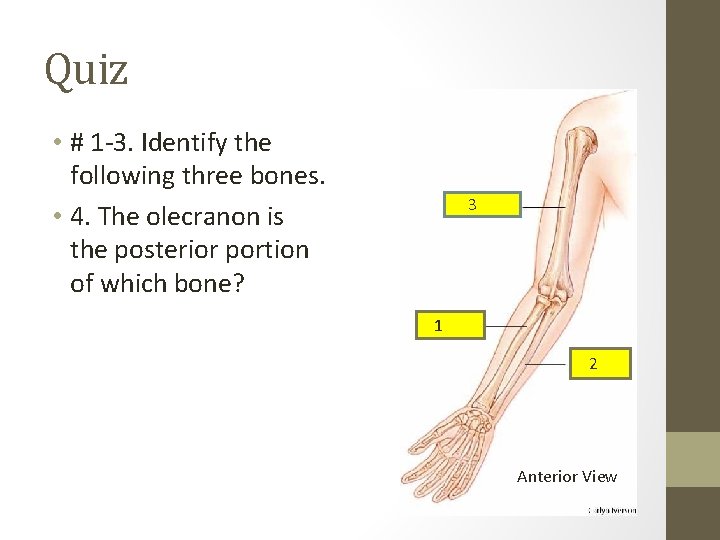

Quiz • # 1 -3. Identify the following three bones. • 4. The olecranon is the posterior portion of which bone? 3 1 2 Anterior View

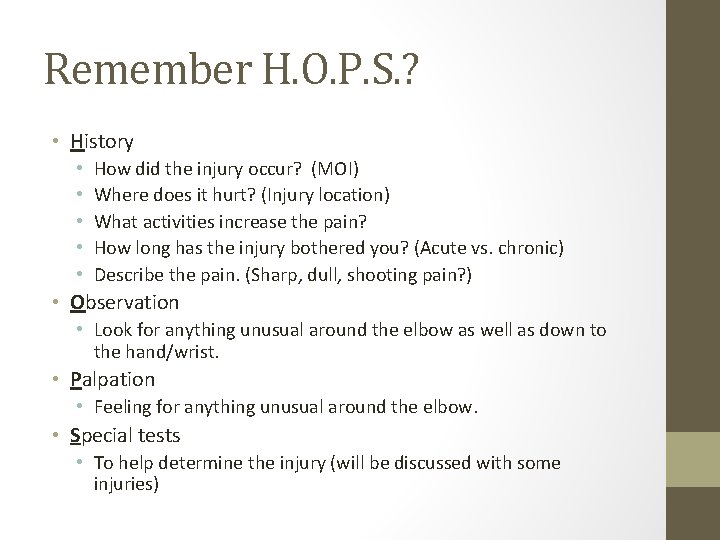

Remember H. O. P. S. ? • History • • • How did the injury occur? (MOI) Where does it hurt? (Injury location) What activities increase the pain? How long has the injury bothered you? (Acute vs. chronic) Describe the pain. (Sharp, dull, shooting pain? ) • Observation • Look for anything unusual around the elbow as well as down to the hand/wrist. • Palpation • Feeling for anything unusual around the elbow. • Special tests • To help determine the injury (will be discussed with some injuries)

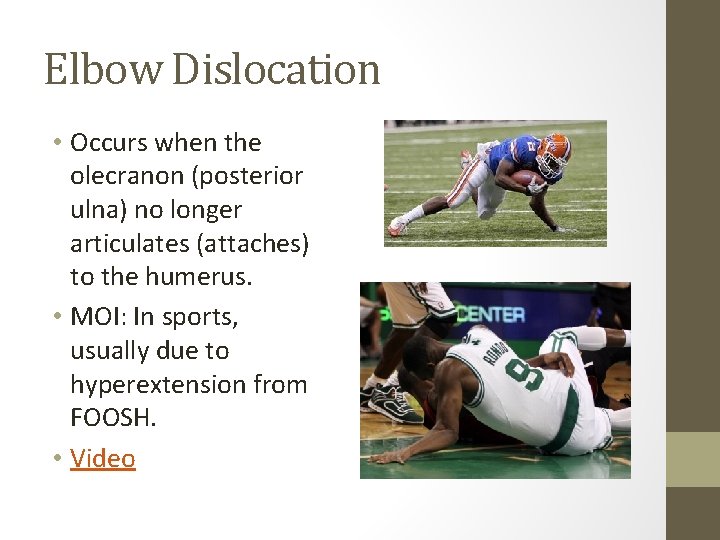

Elbow Dislocation • Occurs when the olecranon (posterior ulna) no longer articulates (attaches) to the humerus. • MOI: In sports, usually due to hyperextension from FOOSH. • Video
Elbow Dislocation • s/s: • Severe pain • Obvious deformity • Lack ROM (unable to flex/extend) • Loss of feeling into hand fingers • Possible nerve damage • Patient states that elbow is “out” and felt a “pop”
Treatment • Call 9 -1 -1 if: • No radial pulse or capillary refill (finger nail) is present • Possible injury to the artery • Numbness or tingling is present in hand • Possible nerve damage • Patient cannot get to the ER immediately • The athletic trainers is not able to safely move the patient from the site of injury • E. g. unstable fracture is also suspected or the patient is does not want to move from the site
Treatment • On-field treatment: • • Splint in the position that is most comfortable for the patient. Apply sling (if possible) Non-Steroidal Anti-inflammatory (NSAID) Immediate referral to orthopedist or hospital. • Ortho/ER: X-ray (to rule-out fracture) Reduce the dislocation Splint Surgery may be necessary to repair damaged ligaments and joint capsule • Reduction • •

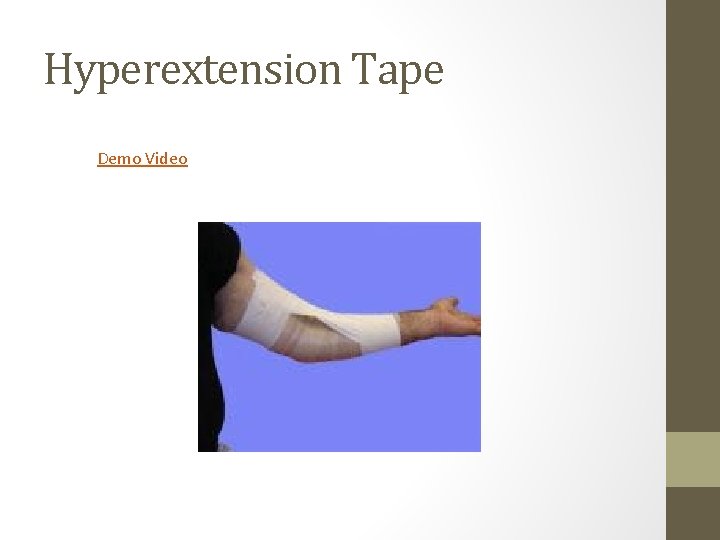

Hyperextension Tape Demo Video

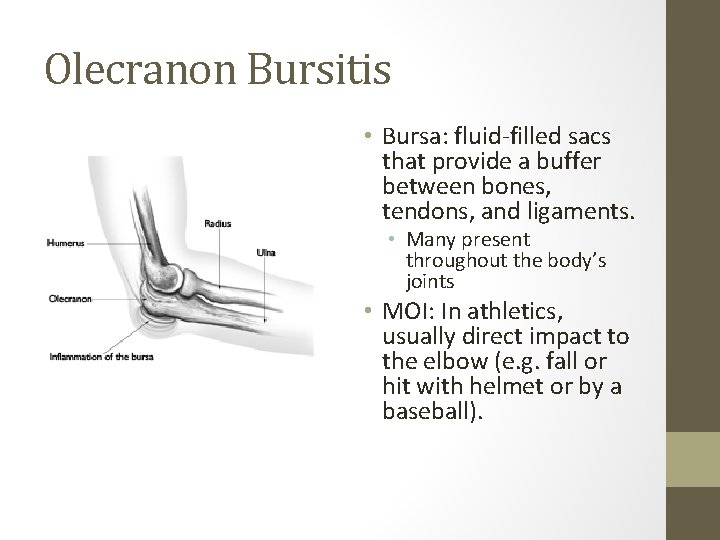

Olecranon Bursitis • Bursa: fluid-filled sacs that provide a buffer between bones, tendons, and ligaments. • Many present throughout the body’s joints • MOI: In athletics, usually direct impact to the elbow (e. g. fall or hit with helmet or by a baseball).
Olecranon Bursitis • Signs and Symptoms (s/s) • • Posterior elbow pain. Noticeable swelling Point tenderness: severe pain with palpation Warmth and redness if infection is present

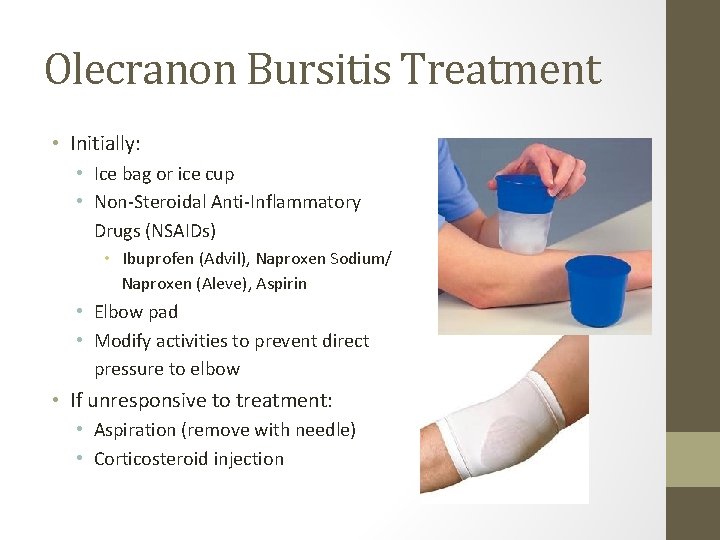

Olecranon Bursitis Treatment • Initially: • Ice bag or ice cup • Non-Steroidal Anti-Inflammatory Drugs (NSAIDs) • Ibuprofen (Advil), Naproxen Sodium/ Naproxen (Aleve), Aspirin • Elbow pad • Modify activities to prevent direct pressure to elbow • If unresponsive to treatment: • Aspiration (remove with needle) • Corticosteroid injection
Video • Aspiration and corticosteroid injection

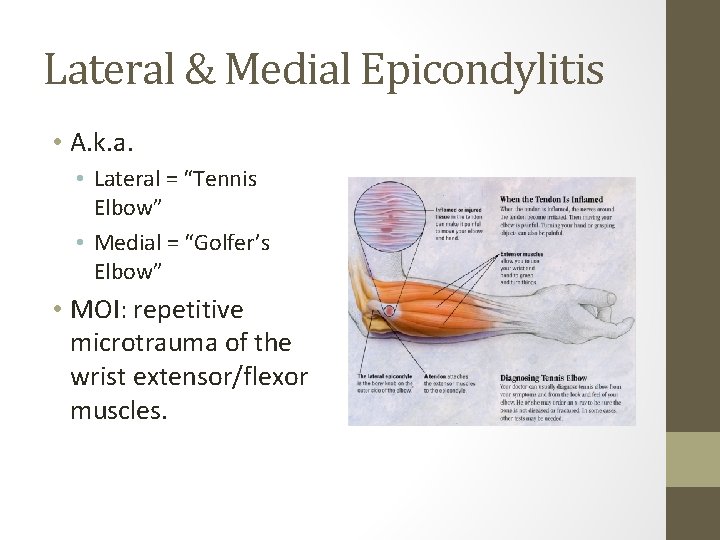

Lateral & Medial Epicondylitis • A. k. a. • Lateral = “Tennis Elbow” • Medial = “Golfer’s Elbow” • MOI: repetitive microtrauma of the wrist extensor/flexor muscles.

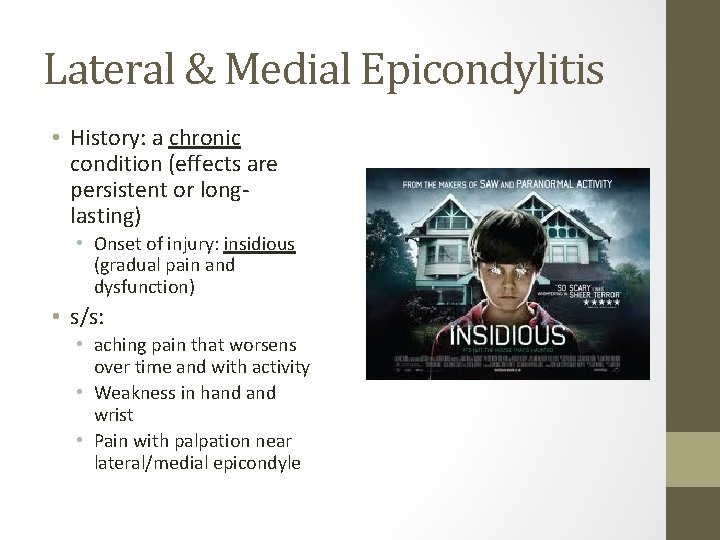

Lateral & Medial Epicondylitis • History: a chronic condition (effects are persistent or longlasting) • Onset of injury: insidious (gradual pain and dysfunction) • s/s: • aching pain that worsens over time and with activity • Weakness in hand wrist • Pain with palpation near lateral/medial epicondyle

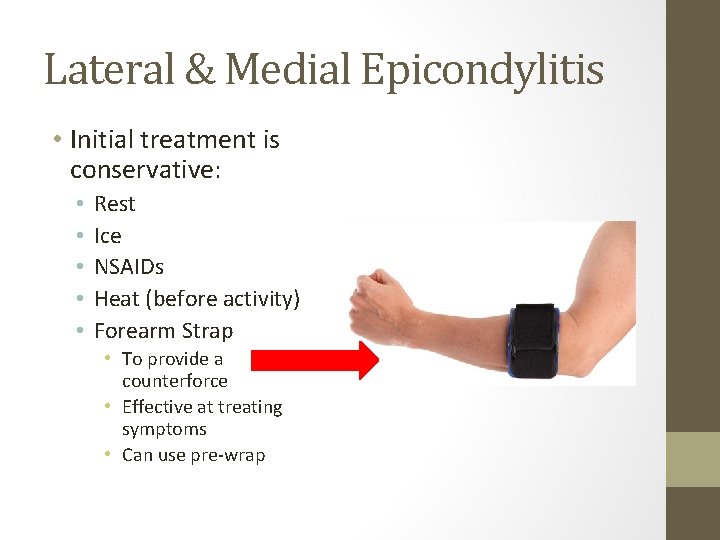

Lateral & Medial Epicondylitis • Initial treatment is conservative: • • • Rest Ice NSAIDs Heat (before activity) Forearm Strap • To provide a counterforce • Effective at treating symptoms • Can use pre-wrap

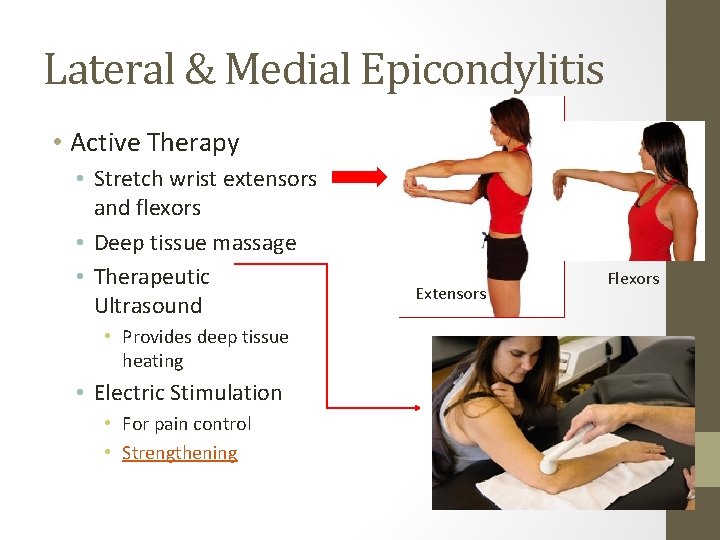

Lateral & Medial Epicondylitis • Active Therapy • Stretch wrist extensors and flexors • Deep tissue massage • Therapeutic Ultrasound • Provides deep tissue heating • Electric Stimulation • For pain control • Strengthening Extensors Flexors
Distal Biceps Tendon Tear/Rupture • Biceps tendon tears near the attachment site of the biceps tendon • MOI: Elbow is forced into extension against resistance

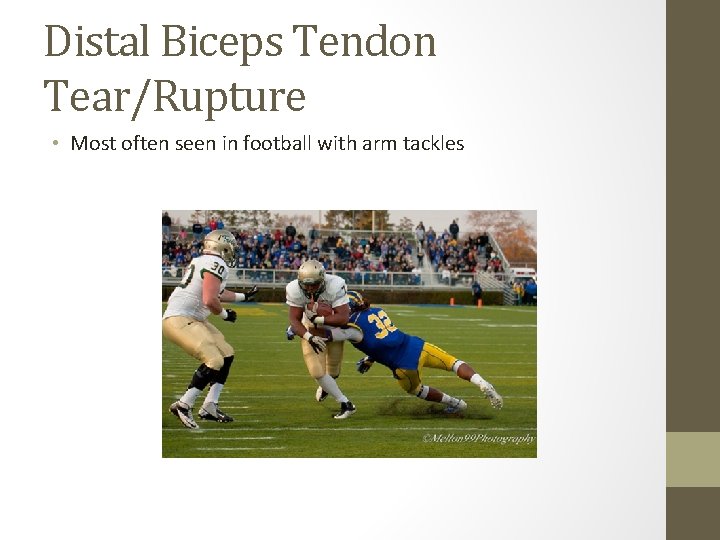

Distal Biceps Tendon Tear/Rupture • Most often seen in football with arm tackles

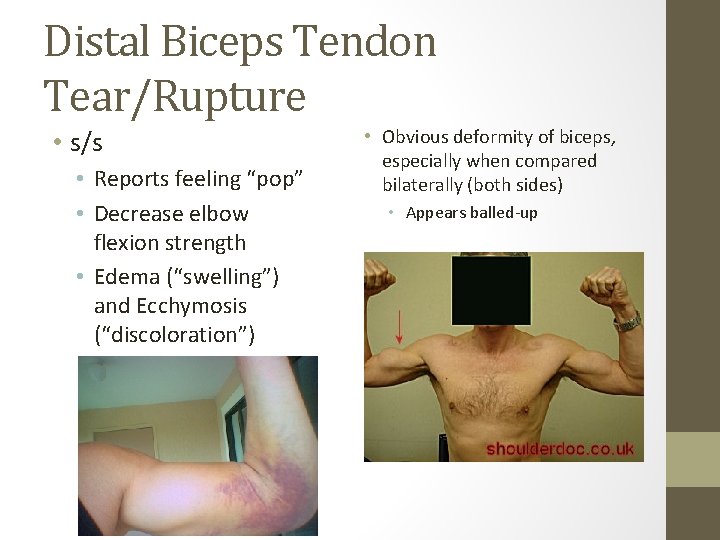

Distal Biceps Tendon Tear/Rupture • s/s • Reports feeling “pop” • Decrease elbow flexion strength • Edema (“swelling”) and Ecchymosis (“discoloration”) • Obvious deformity of biceps, especially when compared bilaterally (both sides) • Appears balled-up

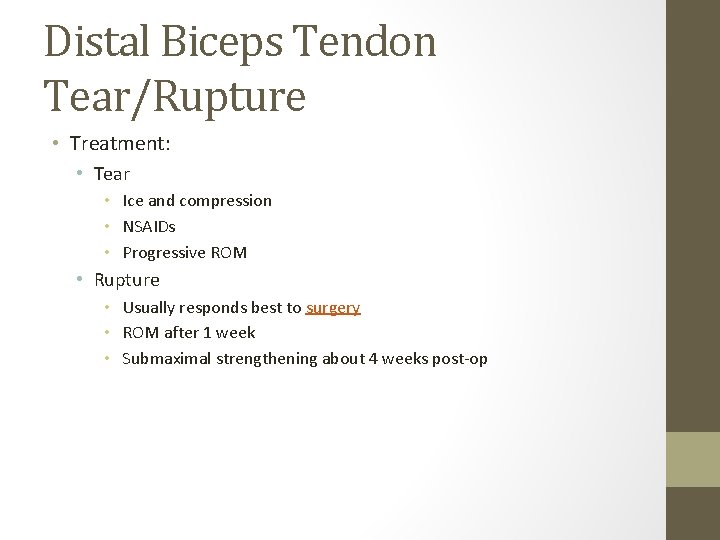

Distal Biceps Tendon Tear/Rupture • Treatment: • Tear • Ice and compression • NSAIDs • Progressive ROM • Rupture • Usually responds best to surgery • ROM after 1 week • Submaximal strengthening about 4 weeks post-op
UCL Sprain • UCL = Ulnar Collateral Ligament • A tear to at least one of the three ligaments of the UCL.

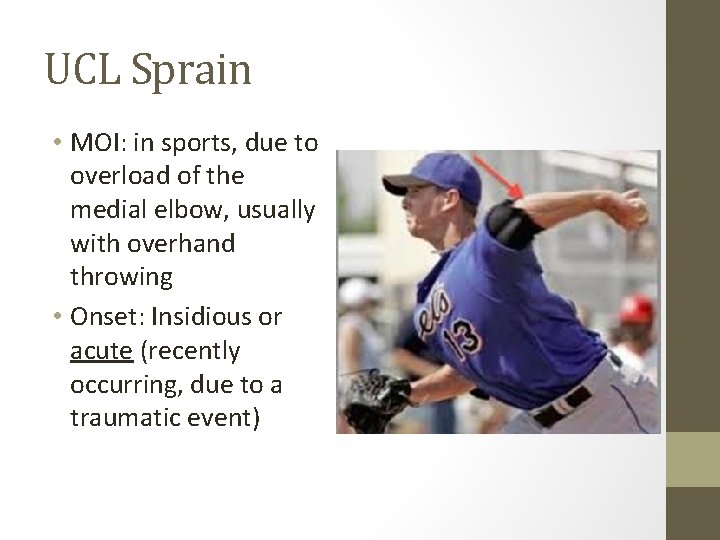

UCL Sprain • MOI: in sports, due to overload of the medial elbow, usually with overhand throwing • Onset: Insidious or acute (recently occurring, due to a traumatic event)
UCL Sprain • Palpation: Pain over UCL, but probably no deformity • s/s • Edema (swelling) may be present • Pain and weakness with throwing/ overhand motion • Diagnosis • Valgus Stress Test • MRI
UCL Sprain • Treatment: Conservative • RICE (Rest, Ice, Compression, Elevation) • NSAIDs • No overhand motion for 4 to 6 weeks for partial tears • Treatment: Aggressive • Athletes and doctors are now opting for reconstructive surgery for partial and full tears due to its high success rate. • Commonly known as “Tommy John Surgery”

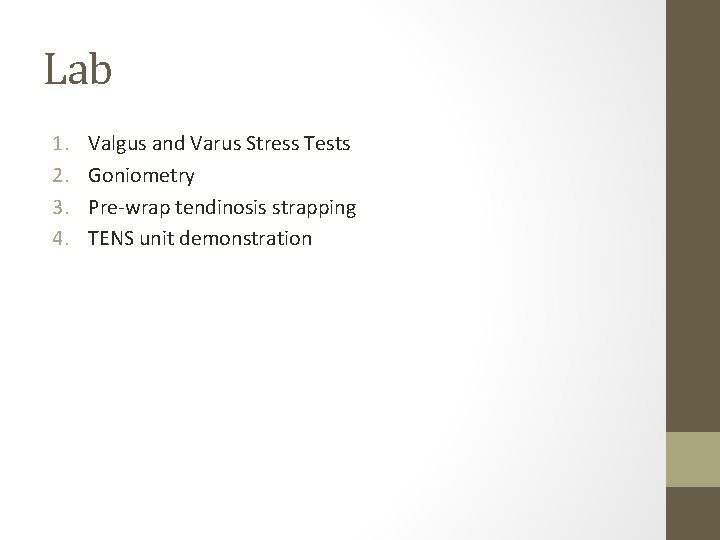

Lab 1. 2. 3. 4. Valgus and Varus Stress Tests Goniometry Pre-wrap tendinosis strapping TENS unit demonstration

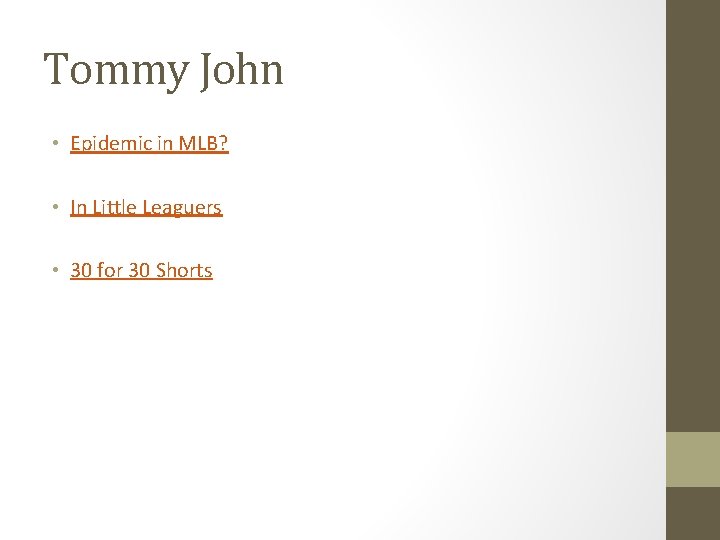

Tommy John • Epidemic in MLB? • In Little Leaguers • 30 for 30 Shorts
Quiz Review • Quiz on Friday 1/16. • 10 Questions with 15 terms listed in the word bank • Some terms will not be used. No term will be used more than once.

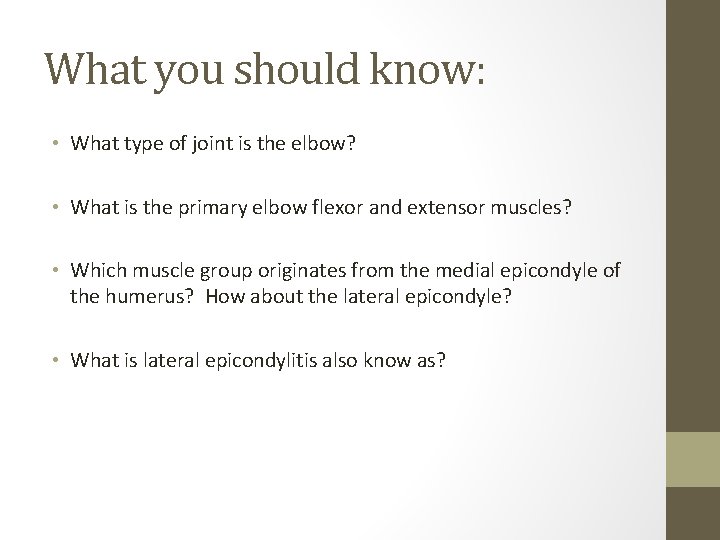

What you should know: • What type of joint is the elbow? • What is the primary elbow flexor and extensor muscles? • Which muscle group originates from the medial epicondyle of the humerus? How about the lateral epicondyle? • What is lateral epicondylitis also know as?

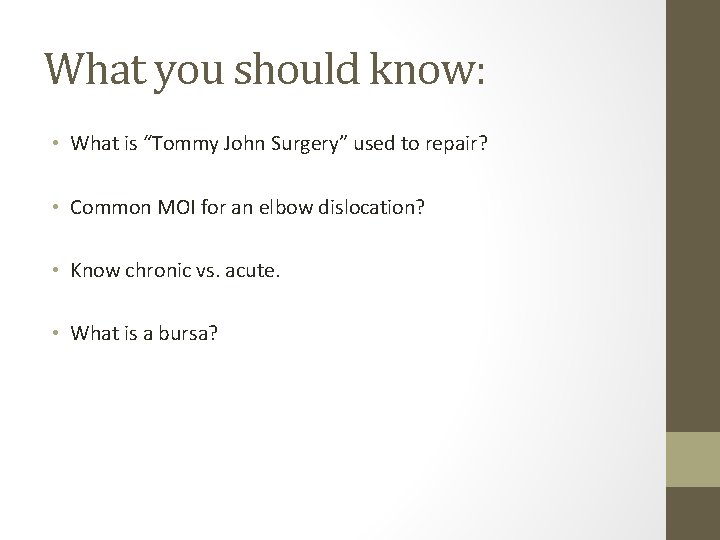

What you should know: • What is “Tommy John Surgery” used to repair? • Common MOI for an elbow dislocation? • Know chronic vs. acute. • What is a bursa?

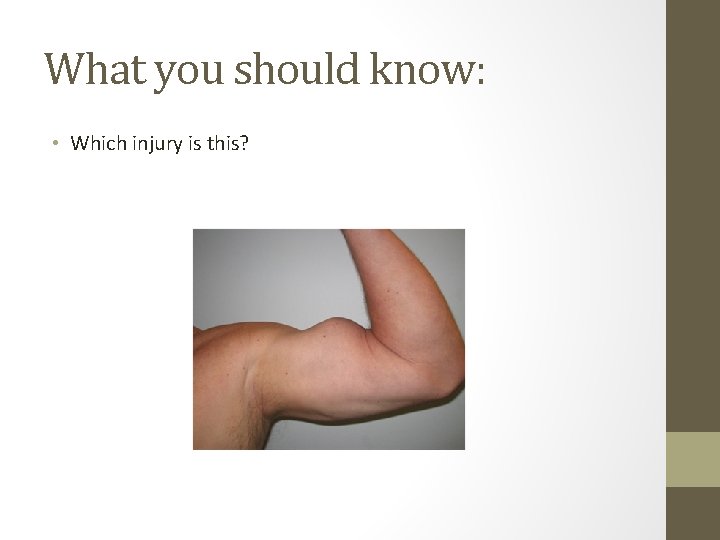

What you should know: • Which injury is this?
