DNS 200 Divers Navigation System The first versatile
- Slides: 14
DNS - 200 Divers Navigation System The first versatile , multi use underwater navigation, data collection and dive safety system
Combat Swimmer mission Reconnaissance and Surveillance Infiltration/ Exfiltration Across the Beach Feasibility Studies Water ways and rivers mapping Under water C 4 I system Mines counter

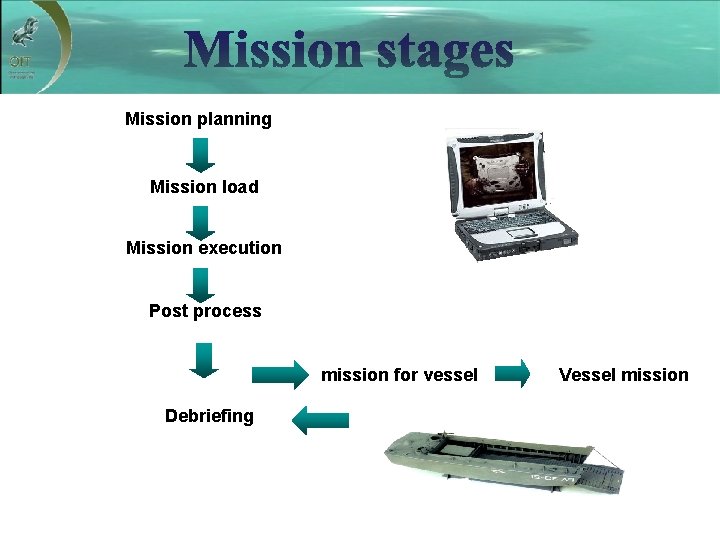

Mission planning Mission load Mission execution Post process mission for vessel Debriefing Vessel mission
Done on a standard PC Can be done in a remote location and sent via the internet Use OIT’s mission planning software Mission parameters: Maps Routes Danger areas Dive depth limitations Instructions (textual) Pictures , Photos etc. Loading the mission to the DNC 200 via DISK ON KEY , USB or Ethernet

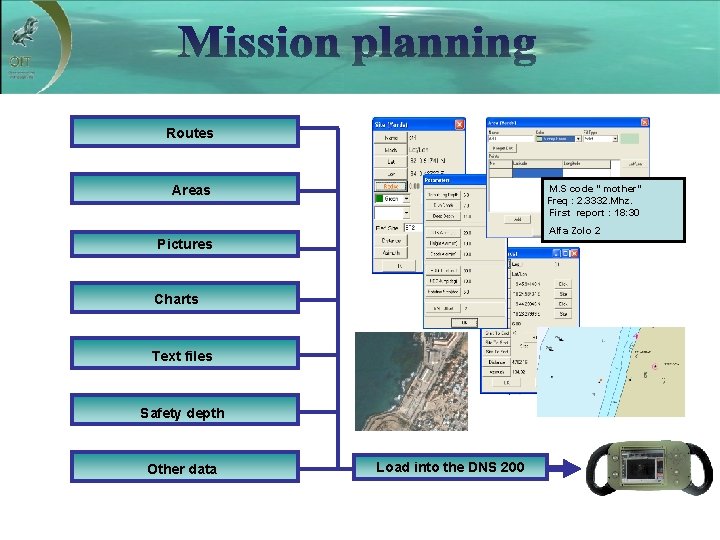

Routes Areas M. S code " mother" Freq : 2. 3332. Mhz. First report : 18: 30 Alfa Zolo 2 Pictures Charts Text files Safety depth Other data Load into the DNS 200
Insert initial parameters Follow the system instructions Pay attention to the system warnings If needed use in field mission change procedure Complete the mission Mission safely accomplished
Arriving Mission Rendezvous Transportation to the deployment rendezvous position by: Surface Vessel SDV OIT’s CRS system OIT’s AUNS system Deployment DPD Diver Propulsion Device OIT’s DNS 200 System

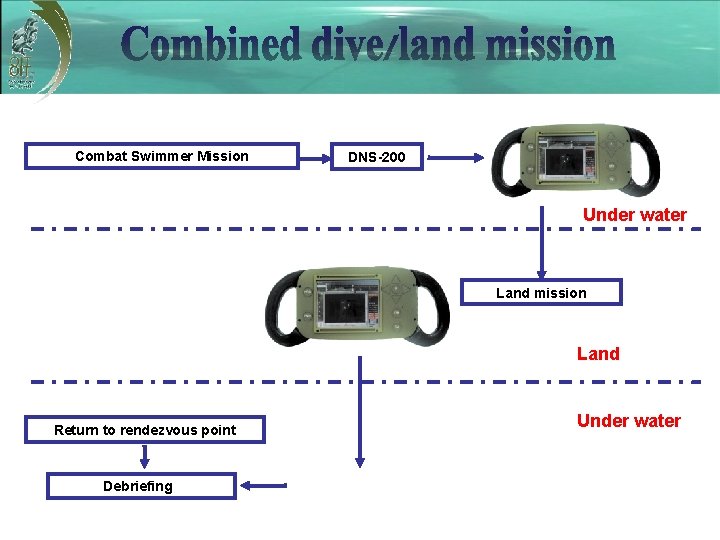

Combat Swimmer Mission DNS-200 Under water Land mission Land Return to rendezvous point Debriefing Under water
Reconnaissance and Surveillance DNS-200 -D Transfer the DNS 200 to the landing vessel Preparing landing and routes Perform the landing mission Data collection maps Data post process at site Debriefing

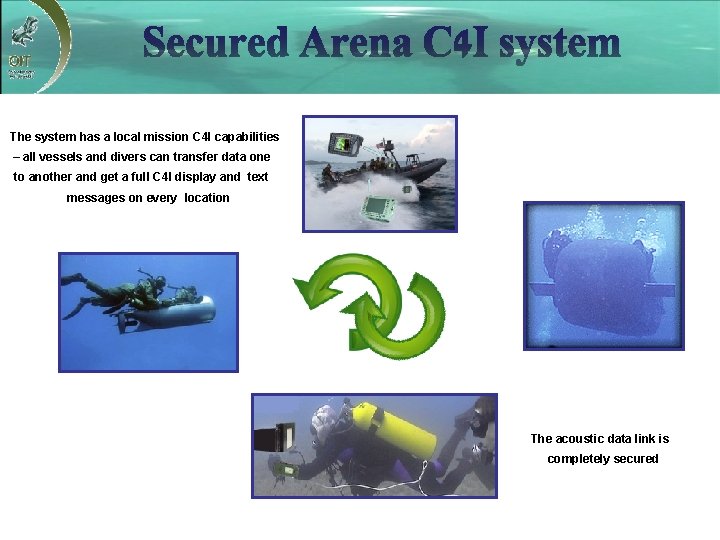

The system has a local mission C 4 I capabilities – all vessels and divers can transfer data one to another and get a full C 4 I display and text messages on every location The acoustic data link is completely secured
HQ • Full C 4 I underwater capabilities • Multi underwater and surface users • Secured communication • Full C 4 I display and information at each user system • Multi users system (web) • SMS capabilities • Emergency function
For more information please visit our website: www. oceanatec-marine. com or contact us: Tel: 972 3 9009600 Fax: 972 3 9018899 Email: info@oceana-marine. com Europe: S. J. Elektronik Ltd. , D-24837 Schleswig Email: info@S-J-Elektronik. de
