DNA REPLICATION AP Biology Ch 16 2 REMEMBER

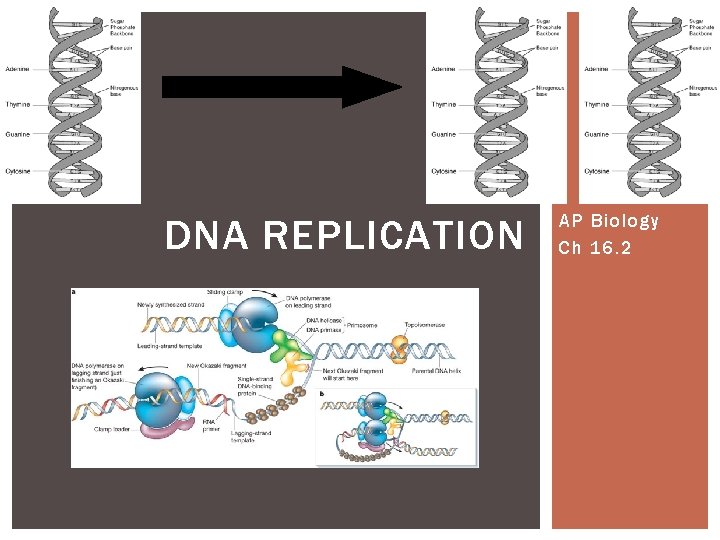

DNA REPLICATION AP Biology Ch 16. 2
REMEMBER… You started as one cell with one set of DNA Now you are trillions of cells! Each cell has the same DNA
HOW DOES EACH CELL GET DNA? DNA Replication § Process by which DNA is copied § Occurs in all living organisms § Many enzymes are used!

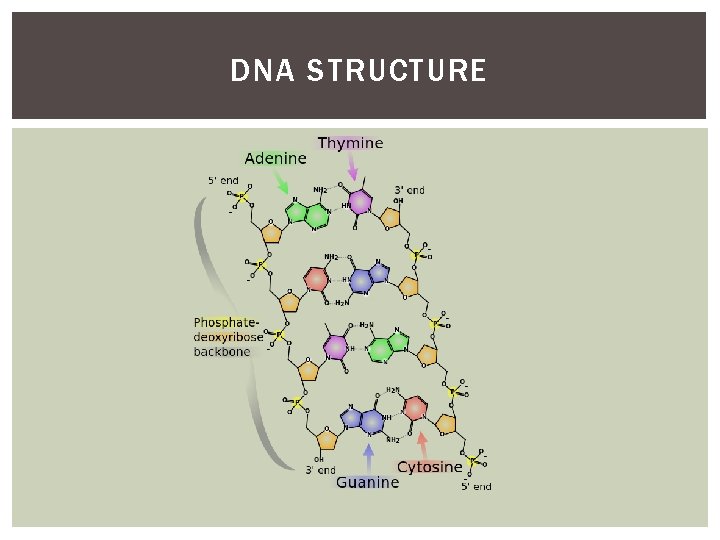

DNA STRUCTURE
DNA STRUCTURE
STEP 1: DNA REPLICATION Start with one complete strand of DNA § Template Strand § Parent Strand

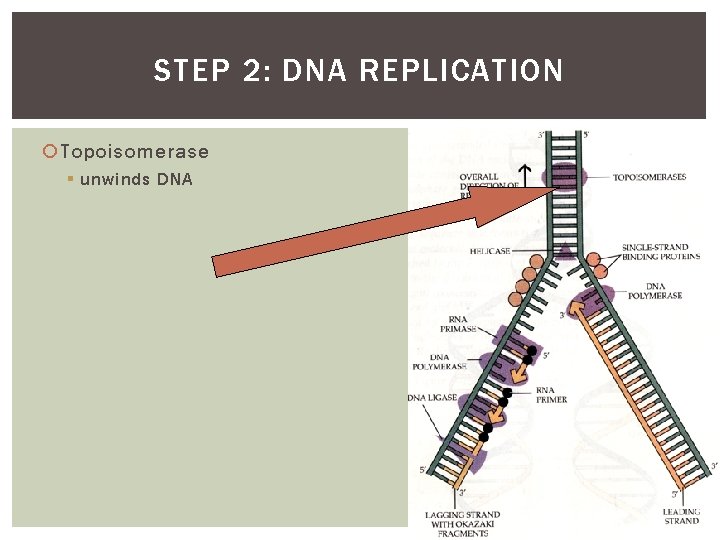

STEP 2: DNA REPLICATION Topoisomerase § unwinds DNA
STEP 3: DNA REPLICATION Helicase § Unzips template strand at H bonds

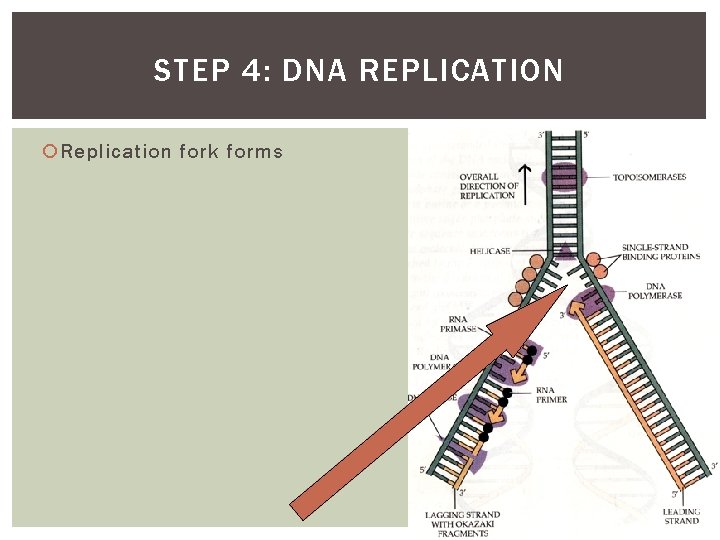

STEP 4: DNA REPLICATION Replication fork forms

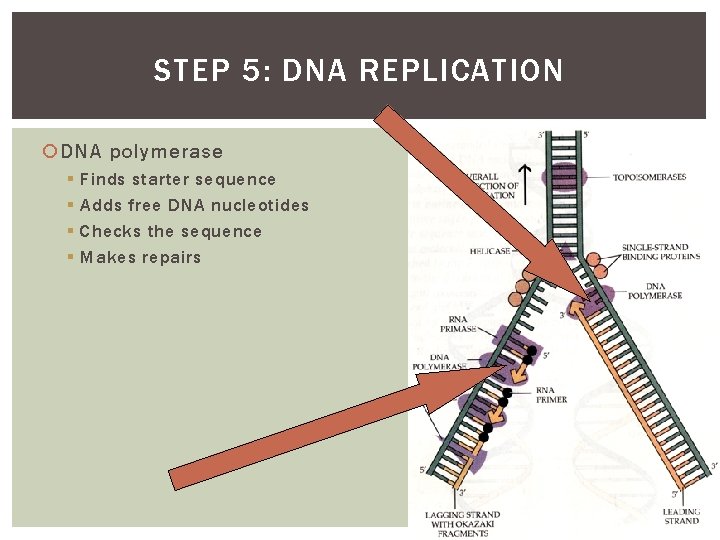

STEP 5: DNA REPLICATION DNA polymerase § § Finds starter sequence Adds free DNA nucleotides Checks the sequence Makes repairs

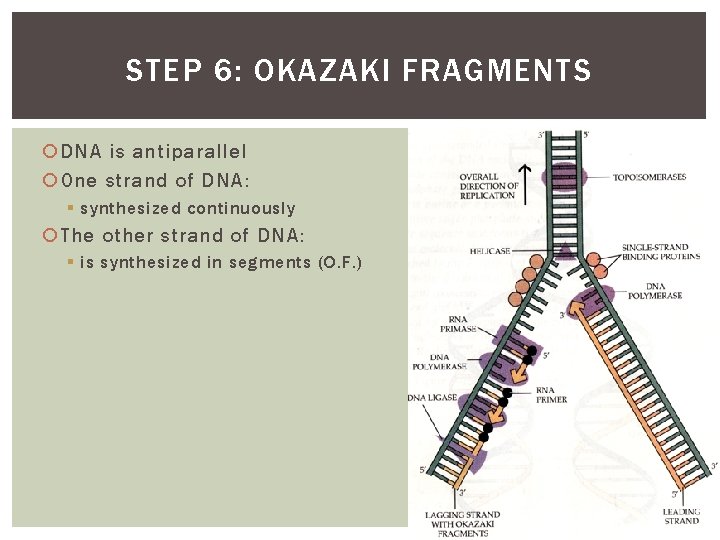

STEP 6: OKAZAKI FRAGMENTS DNA is antiparallel One strand of DNA: § synthesized continuously The other strand of DNA: § is synthesized in segments (O. F. )

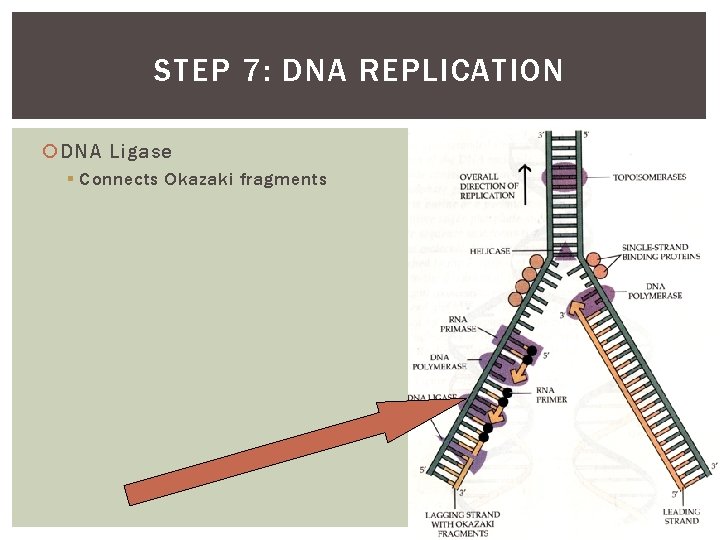

STEP 7: DNA REPLICATION DNA Ligase § Connects Okazaki fragments

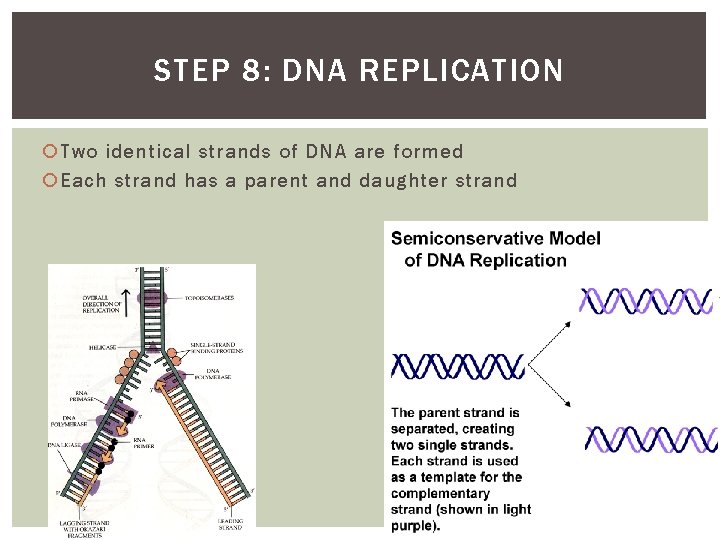

STEP 8: DNA REPLICATION Two identical strands of DNA are formed Each strand has a parent and daughter strand
THE OTHERS

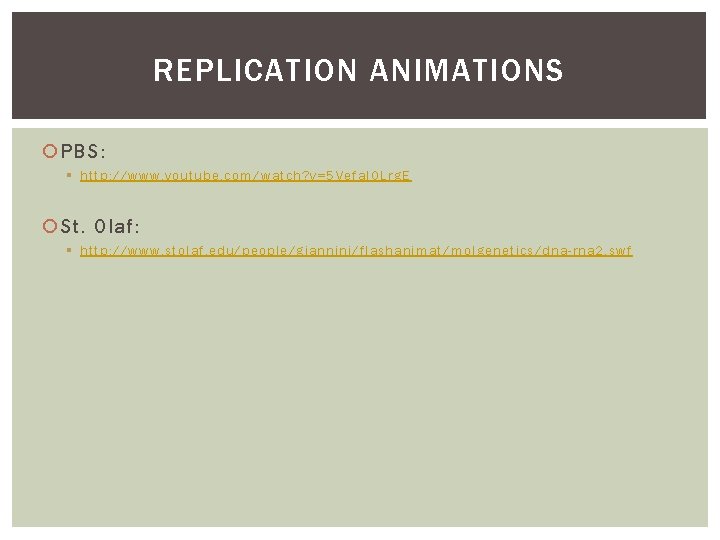

REPLICATION ANIMATIONS PBS: § http: //www. youtube. com/watch? v=5 Vefa. I 0 Lrg. E St. Olaf: § http: //www. stolaf. edu/people/giannini/flashanimat/molgenetics/dna-rna 2. swf
