DNA mediated Selfassembly of Nanoarchitectures Rakesh Voggu CPMU
DNA mediated Self-assembly of Nanoarchitectures Rakesh Voggu CPMU Seminar 17/11/2006
DNA Nanoarchitectures: Definition DNA Nanoarchitectures are… …extended assemblies made entirely of polynucleic acids whose structure is predictable and programmable in terms of well-understood interactions between nucleotides, such as basepairing and base-stacking.
Structures Constructed From DNA Nature(1991) Nature(1997) JACS(1994) Chem. Comm(2004) Nature(2004)
Outline Introduction : DNA structure Design and Assembly of DNA Motifs Three dimensional structures from DNA Applications of DNA Nanoarchitectures
DNA structure Francis Crick and James Watson pointing out features of their model for the structure of DNA.

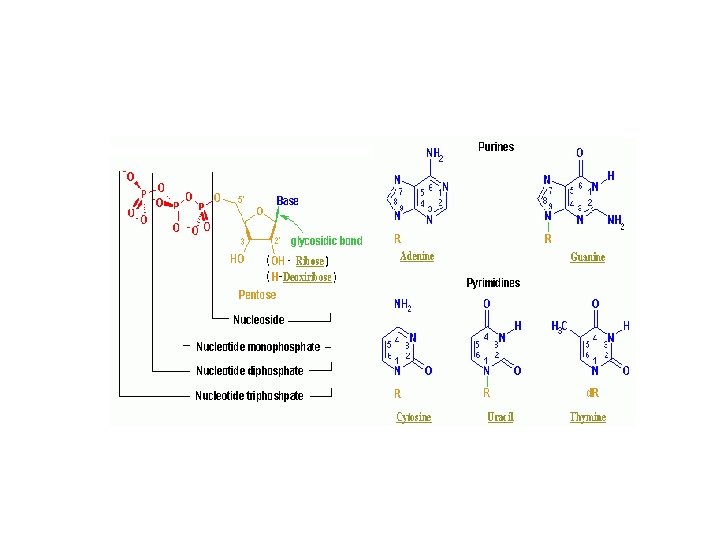

Nucleic Acids Nucleic acid contains linear polymer of nucoletides Nucleotides: N base Sugar + base + phosphate P nucleoside N 5’ C O sugar OH 3’
Sugar § DNA and RNA both have five carbon sugars called pentoses. DNA contains 2 -deoxy-D-ribose RNA contains D-ribose § In nucleotides, carbon atoms in sugar are numbered as 1', 2', 3', and so on to distinguish them from the ring atoms of the nitrogenous bases.
Nitrogenous Bases The bases of nucleotides and nucleic acids are derivatives of either pyrimidine or purine. Pyrimidines Purines
Nucleotides DAMP DGMP DCMP DTMP DUMP
Nucleic Acids Nucleic acids are linear polymers of nucleotides linked 3' to 5' by phosphodiester bridges
DNA Double Helix DNA has two polynucleotide strands wound together to form a long, slender, helical molecule, the DNA double helix. B-DNA
Stability of double helix structure § Internal and external hydrogen bonds § Negative charge of phosphate groups § Base pair stacking Major and Minor Grooves
Alternate forms A-DNA B-DNA Z-DNA
Alternate forms
Why Develop DNA Architectures ?
DNA as a Building Block for Nanotechnology § Programmable Assembly § Convenient Chemistry § Scientific Insight
Programmable Assembly § Programmable molecular recognition –Watson-Crick base-pairing. § Programmable single stranded overhangs or sticky ends as “smart glue” to associate double-helical domains § “Smart” Materials –responsive to the chemical environment
Convenient Chemistry § DNA is easy to synthesize using automated phosphoramidite chemistry § Physically and chemically stable § Well established methods for DNA purification and structural characterization § Array of enzymes commercially available for DNA manipulation, for example, for site-selective DNA cleavage, ligation, labeling etc
Scientific Insight § Templated self-assembly – – Proteins Nanoparticles § Macromolecular machinery – Molecular Motors § Assembly-based computation
DNA Motifs

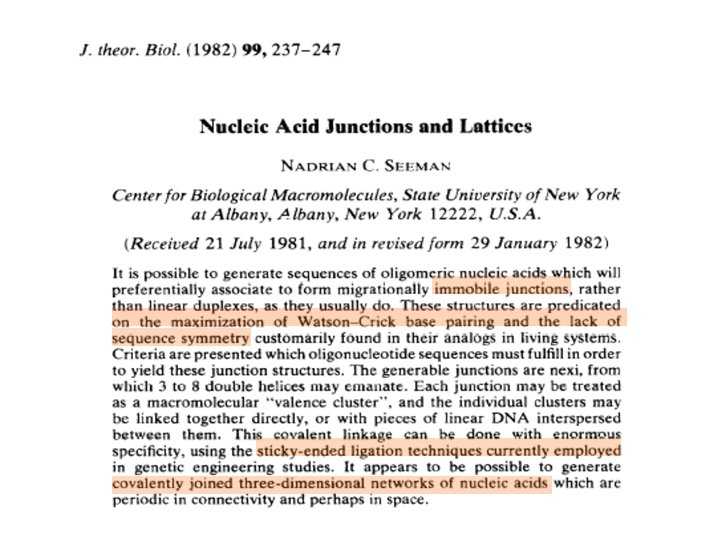

1982: Immobile Branched Junctions § § No symmetry All W • C pairs Unique tetramer Redundant trimers
1982: Immobile Branched Junctions with sticky ends Formation of a two-dimensional lattice from an immobile junction with sticky ends
1982: Protein in 3 D DNA Lattice
Suitable DNA sequences allows the generation of complex motifs a. double-helical regions b. sticky ends c. bulge loops d. hairpin loops e. junctions f. crossovers
Crossover molecules
Crossover Molecules Double crossover molecules
Crossover molecules DX DNA tile TX DNA tile 12 -helix DNA tile
Other motifs Rhombus motif Triangular other triangular motifs Four armed junctions
DNA Motifs Assembly
DNA Holliday Junction Arrays 1 -D Self Assembly AFM 2 -D Self Assembly JACS(1999) AFM
Double Crossover DNA Arrays AFM Using two different double crossover molecules Nature(1998)
Double Crossover DNA Arrays AFM Using four different double crossover molecules Nature(1998)
Nature(1998)
Triple Crossover DNA Arrays AFM JACS(2000)
Triple Crossover DNA Arrays AFM JACS(2000)
DNA Triangles and Self-Assembled Hexagonal Tilings + AFM images JACS(2004)
Three-Dimensional Structures from DNA
Covalent Cube – piecewise assembly – 3 -arm junctions – Not rigid Nature(1991)
Truncated Octahedron § Step-wise assembly on solid support § 4 -arm junctions § Not rigid JACS(1994)
Simple Tetrahedron § § Self-assembled Nicked 3 -arm junctions Rigid (w/ 2 base hinges) Chiral Chem Comm(2004)
Folded Octahedron § Expressible 1, 669 bp ss. DNA + five 40 bp oligos § Folded (no knots, PX edges, loose junctions) § Rigid Nature(2004)
Folded Octahedron three-dimensional map generated from single particle reconstruction of the DNA octahedron Visualization of the DNA octahedron structure by cryo-electron microscopy. Nature(2004)
DNA Nanotubes AFM Images Angew. Chem(2006)
Complex Patterns Using DNA Scaffolded DNA origami: folding of a 7. 3 kb single stranded viral genome into various 2 D shapes with complex patterns, and their hierarchical assembly into larger structures Nature(2006)
Applications of DNA Nanoarchitectures
DNA Self-Assemblies of Proteins 2 D Nano Lett(2005)

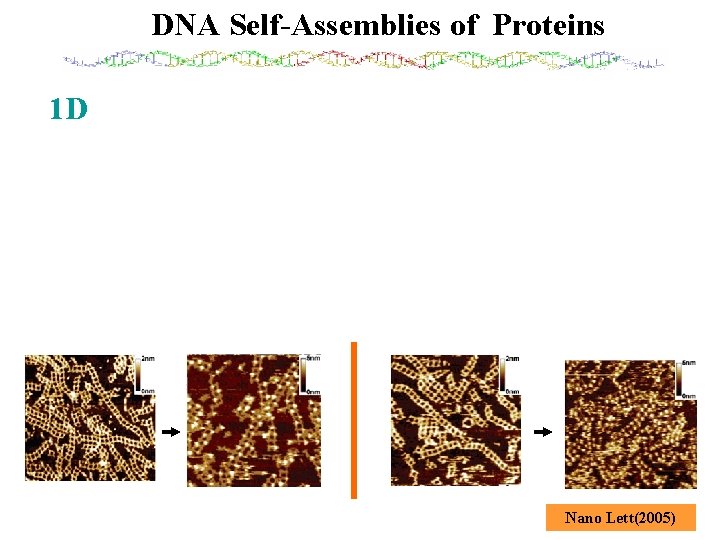

DNA Self-Assemblies of Proteins 1 D Nano Lett(2005)
Aptamer-Directed Self-Assembly of Proteins Protein( Throbin protein ) Angew. Chem(2005)
Assembly of Nanoparticles Nano Lett(2004) Nano Lett(2006)
B-Z Rotator § This is based on the transition between B and Z forms of DNA by changing the ionic strength of the medium. § The motion is monitored by FRET In B form fluoresence is quenched Nature(1999)
Hybridization Tweezer § Specific Fuel § Equilibrium Control Nature(2000)
Autonomous Walker Angew. Chem(2005)
Autonomous Walker PAGE monitoring the movement of DNAzyme Angew. Chem(2005)
Conclusions § DNA can self-assemble into nanoarchitectures § DNA structure can be used to self assemble ligands and nanoparticles § DNA can be used to prepare nanomachines
Recombination via holliday junction
Semi-imobile junctions
