Démarrage Arc. Writer

Démarrage Arc. Writer

Arc. Writer Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of

Arc. Writer Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 2

Arc. Writer • Arc. Writer est un système à tracer, marquer et poinçonner au

Arc. Writer • Arc. Writer est un système à tracer, marquer et poinçonner au plasma, avec puissance en sortie variable à double gaz conçu pour laisser des marques d’identification temporaires ou définitives sur des surfaces métalliques. • Le système comporte une alimentation, un ensemble torche et fil, une alimentation en option montée sur une commande de courant et en option un module de commande de tension. Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 3

Arc. Writer • Marquage de plaques et points de centrage de foret Sortie 4

Arc. Writer • Marquage de plaques et points de centrage de foret Sortie 4 à 19 A Profondeur : 0, 03 à 0, 25 mm Largeur : 0, 5 à 1 mm Vitesse : 3 à 7 m/mn Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 4

Arc. Writer Applications Localisation d’assemblage et de montage Lignes de pliage Identification de plaques

Arc. Writer Applications Localisation d’assemblage et de montage Lignes de pliage Identification de plaques Pointes de centrage de forets Disposition des plaques Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 5

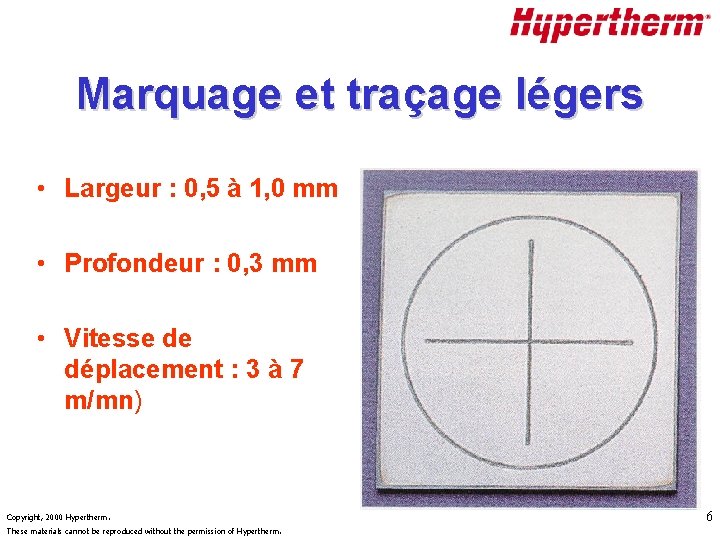

Marquage et traçage légers • Largeur : 0, 5 à 1, 0 mm •

Marquage et traçage légers • Largeur : 0, 5 à 1, 0 mm • Profondeur : 0, 3 mm • Vitesse de déplacement : 3 à 7 m/mn) Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 6

Marquage et traçage profonds • Largeur : 0, 5 à 1, 0 mm •

Marquage et traçage profonds • Largeur : 0, 5 à 1, 0 mm • Profondeur : 0, 08 à 0, 25 mm) • Vitesse de déplacement : 3 à 7 m/mn Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 7

Coup ou empreintes de pointeau • Diamètre : 1, 0 à 1, 5 mm

Coup ou empreintes de pointeau • Diamètre : 1, 0 à 1, 5 mm • Profondeur : 0, 5 à 1, 0 mm • Temps de maintien : 300 à 1000 millisecondes, en général moins de une seconde. Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 8

Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 9

Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 9

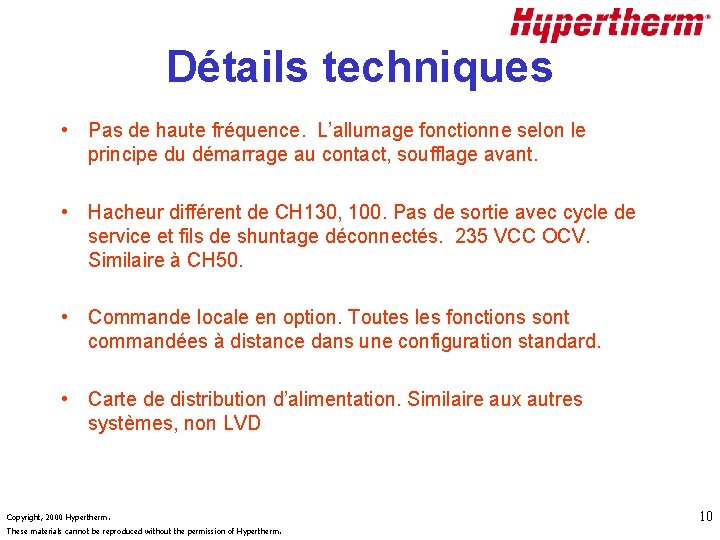

Détails techniques • Pas de haute fréquence. L’allumage fonctionne selon le principe du démarrage

Détails techniques • Pas de haute fréquence. L’allumage fonctionne selon le principe du démarrage au contact, soufflage avant. • Hacheur différent de CH 130, 100. Pas de sortie avec cycle de service et fils de shuntage déconnectés. 235 VCC OCV. Similaire à CH 50. • Commande locale en option. Toutes les fonctions sont commandées à distance dans une configuration standard. • Carte de distribution d’alimentation. Similaire aux autres systèmes, non LVD Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 10

Détection des pannes Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission

Détection des pannes Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 11

Sélection du gaz • Gaz neutre - Air seulement • Gaz plasma - Air

Sélection du gaz • Gaz neutre - Air seulement • Gaz plasma - Air ou H 5. Copyright, 2000 Hypertherm. These materials cannot be reproduced without the permission of Hypertherm. 12
