D-Link Surveillance Industry Solution Present by D-Link South Africa Date: October 10, 2003
Topics Ø Current Surveillance System v PC-Independent System v PC-Base System Ø What’s Internet Camera Ø Market Trend Ø Application Diagram
Current Surveillance System Display Camera Processor Storage Transmission BNC Monitor Camera Switcher Quad Multiplexer Matrix / DVR CRT/LCD Monitor Plasma Monitor Projector Home TV VCR BNC Coax-Cable DVR Ethernet PC HDD Wi. Fi Wireless DAS/SAN/NAS Home. PNA
BNC CCTV Camera PC-Independent System A CCTV camera including lens, optical filters, image processor and analog codec with coaxial Cable (BNC) interface. BNC ( CCD or CMOS ) Analog Codec Processor
Traditional CCTV Diagram PC-Independent System (Simplex Live View and Recording) Live View Only Live View and Recording (Multiply Cameras) BNC Coaxial Cable BNC CRT Monitor Different type Cameras Live View and Recording Switcher AV Cable BNC Coaxial Cable VHS VCR BNC CRT Monitor Different type Cameras 1. Only one camera image will record in VCR Switcher AV Cable VHS VCR 2. Only one camera image will display at BNC CRT Monitor
PC-Independent System Traditional CCTV Diagram Live View and Recording (Multiply Cameras) (Advance Live View and Recording) Live View and Recording (Multiply Devices) Multiplexer QUAD VCR CCTV 1. Display Max 16 split screen for 16 Cameras at monitor 2. One camera per record or 16 split screen image per record 3. Can set 4 / 9 / 16 Split screen at monitor 4. Can set 4 / 9 group shift rotate of cameras at split screen 5. When playback what you record what you playback at monitor CCTV VCR 1. Display Max 16 split screen for 16 Cameras at monitor 2. One camera per record or 16 split screen image per record 3. Can set 4 / 9 / 16 Split screen at monitor 4. Can set 4 / 9 group shift rotate of cameras at split screen 5. When playback what you record what you playback at monitor
Traditional CCTV Diagram PC-Independent System (Multiplex Live View and Recording) BNC CRT Monitor Camera 1 -16 Time-lapse VCR Switcher / Quad Multiplexer / Matrix Tape Storage Management Center P/T/Z Controller P/T Microphone Passive Infrared Detector Alarm
Traditional CCTV Diagram PC-Independent System ( Playback ) Home TV (AV Connector) Time-lapse VCR Switcher / Quad Multiplexer / Matrix Multiply Cameras QUAD Screen BNC CRT Monitor Tape Storage Management Center
PC-Independent System Traditional CCTV System
PC-Independent System Traditional CCTV System Strength Opportunity • Easy to installed • Easy to operated • Easy to get supply • Manufacture keep supply in market with cheaper initiate cost Weakness Threats • High maintain cost • Need Tape Library • Poor playback quality • Can’t record / playback simultaneous • VCR head, motor / belt and VHS tape damage frequently • No record during camera shifted • Lost record during tape rewind • Double invest with new technologies in future • No maintain support in future • Video record can not as evidence in court • Central administration is difficult in different location
PC-Base System Block Diagram of Storage Media
PC-Base System Digital Video Record(DVR) System Storage Management Server DVR
PC-Base System Digital Video Record(DVR) System
Digital Video Record(DVR) System PC-Base System Strength v Exterior solution with outstanding performance Ø Maximum integration for greater efficiency v Designed to outperform existing technologies v Picture Quality and Security Ø Recorded pictures with “Watermark” Ø Image authentication guarantees Ø Higher image quality, better reliability v Integrated with Back-end Network System 640 x 480, 320 x 240, 176 x 144, 160 x 120 Ø Playback without missing images v Lower the Total Cost of Recording Division Full Quad 8 -split 1 channel 24 -30 fps 4 channel 24 -30 fps 5 -7 fps 8 channel 24 -30 fps 12 -15 fps 5 -7 fps 16 channel 24 -30 fps 12 -15 fps 16 -split Ø Remote Surveillance, Download image Ø Reasonable price with excellent performance Ø Existing CCTV Peripheral utilization v Reduce Life Cycle Costs 5 -7 fps Ø Longer recording duration v Easy to operate, expand, and upgrade v Lowers total system costs and maintenance burden v Intelligent Recording Modes Ø Motion activated or Pre-event Ø Adjustable recording speeds and quality Ø Virtual maintenance-free operations Ø Remote Administration v Powerful Access Features Ø Remote access from any pc Ø Minimal (or no) staff intervention Ø Traditional multiplexer operation Ø VCR-like operation
PC-Base System Digital Video Record(DVR) System Opportunity v Internet & Multimedia Environment v Great Advantage of Networking Storage Solution Backup Weakness v Capturing / Display / Record / Remote Surveillance all in one DVR system v Difficult to loading balance of each function Threats v Analog CCTV systems still selling in many markets. v Window Base still carries wide presence in the market v Lack of customer and channel education on Digital Surveillance Systems and their advantages over CCTV and Window based systems. v Confusion between IT & Security Industry
Digital Video Server System Embedded System Digital Video Server - The user can view the live picture from web server via internet BNC Camera Internet BNC Coaxial Cable Video server: 1 port User can browse the live picture Via Internet and record / store the image into multiple PC and Network Storage Access system Surveillance Site Remote Surveillance
Digital Video Server System Embedded System Digital Video Server - The user can view the live picture from web server via internet BNC Cameras 1 ~4 BNC Coaxial Cable Video server: 4 port Internet User can browse the live picture Via Internet and record / store the image into multiple PC and Network Storage Access system Surveillance Site Remote Surveillance
Embedded System Digital Video Server System Strength Weakness u Same As Digital Video Recorder (DVR) p No Internal Storage feature support p Maximum support four (4) cameras connected Ø Please refer to “Strength” analysis at Digital Video Recorder (DVR) session u System operated focus at Imaging Capturing / and Transmission function u Multiply Display / Record location support Opportunity u Internet & Multimedia Environment u Great Advantage of Networking Storage Solution Backup Threats l Analog CCTV recording systems still selling in many markets. l Lack of customer and channel education on Internet IP implementation and their advantages over CCTV and IP based systems. l Confusion between IT & Security Industry
What’s Internet Camera v A PC-independent Camera which can Ø Capture images Ø Be accessed via LAN or Internet remotely. (replace coaxial-cable infrastructure) v With its own or assigned IP address enable users to monitor and configure it (with authorized access) at anywhere / anytime.
What’s Internet Camera A Internet Camera including lens, optical filters, image processor and server with networking interface, say LAN (Wired Ethernet or Wi. Fi Wireless). ( CCD or CMOS ) -Con’d
Why Adopt New Solution? Internet Camera ( CCD or CMOS ) BNC CCTV Camera BNC ( CCD or CMOS ) Analog Codec Processor
Why Adopt New Solution? Comparing with Traditional CCTV system: -Con’d
Why Adopt New Solution? Comparing with Digital CCTV system: • Heavy loading on PC or DVR system for data compressing Ø Internet Camera compress data inside the camera internally • BNC cable with distance limitation Ø Internet Camera not distance limitation in Internet environment • Centralized image database management Ø Multiple image database management capability • Image capturing / data compress / data storing / playback all in one system Ø Flexible arrange different PCs to managing above feature -Con’d
Why Adopt New Solution? -Con’d Comparing with Digital CCTV system: / 480 per camera • Capture Card Technology : 30 / 120 frames per card X 4 = 120 / 480 frames per system 4 ports per card : 5 / 25 frames per port
Market Trend v Market Trend Overview v Market Segment
Market Trend Overview v Broadband soars worldwide v Market growing up to USD$ 441. 32 M revenue by 2005 v Traditional CCTV system migration v Digital evolution v More requests than text and images only v Personal needs for security v Self exposure desire v Simple but complete solution v Remote facility v Easy & convenient record streaming video
Market Segment Industrial Applications Monitor remotely • Production Control • Warehouses • Fire Prevention Security • Staff Surveillance • Car Park • Casinos • Entry Control • Shops Internet Applications • Web attraction • Weather Cam • Entertainment • News/Sporting events

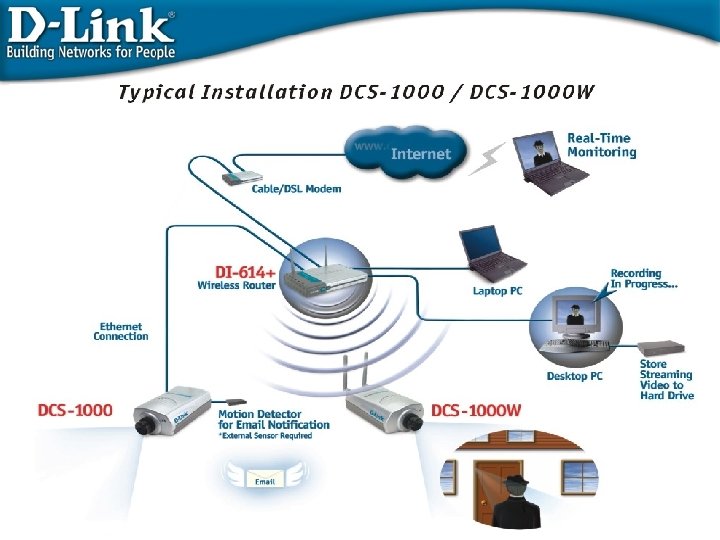

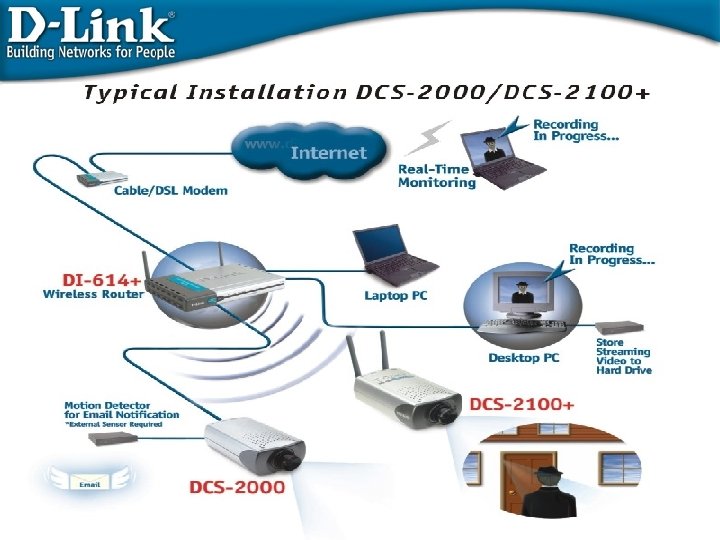

Application Diagram v Typical Installation DCS-1000/1000 W/2000/2100+ v DIY Surveillance v Real-Time Monitoring v Via VPN Tunnel v Simultaneously 16 Cameras v Internet Camera with NAS for Security Service
DIY Surveillance
View Everywhere via Internet 61. 219. 201. 69 192. 19. 3. 55 200. 25. 10. 95 (1) HTTP request to 61. 219. 201. 69 (2) HTTP request to 192. 19. 3. 55 (3) HTTP request to 200. 25. 10. 95 (4) HTTP request to 185. 57. 23. 79
Taiwan Office View Remote Office via VPN China Factory 192. 168. 0. 3 192. 168. 0. 4 VPN Tunnel (1) HTTP request to 192. 168. 0. 3 (2) HTTP request to 192. 168. 0. 4 (3) HTTP request to 192. 168. 0. 5 (4) HTTP request to 192. 168. 0. 6 (5) HTTP request to 192. 168. 0. 7 192. 168. 0. 5 192. 168. 0. 6 192. 168. 0. 7
Surveillance System 61. 219. 201. 69: 81 192. 19. 3. 55: 82 200. 25. 10. 95: 83 185. 57. 23. 79: 84 (1) HTTP request to 61. 219. 201. 69: 81 (2) HTTP request to 192. 19. 3. 55: 82 (3) HTTP request to 200. 25. 10. 95: 83 (4) HTTP request to 185. 57. 23. 79: 84 (5) HTTP request to 61. 214. 57. 79: 85 (6) HTTP request to 61. 200. 59. 48 61. 214. 57. 79: 85 61. 200. 59. 48: 80
Internet Camera with NAS for Security Control Center Head Quarter Power Facilities Thief incident
Construction Fee D-Link Solution Cost
Building Networks for People Thank You!
