DL 4 -Met Hydroclimate Data Logger Douglas Alden Scripps Institution of Oceanography University of California, San Diego Integrative Oceanography Division Hydraulics Laboratory - Technology Application Group 06 Nov 2007 dalden@ucsd. edu (858) 534 -8997 http: //sio. ucsd. edu http: //ucsd. edu
![Thanks to our Sponsors Thanks to our Sponsors](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-2.jpg)
Thanks to our Sponsors
![Santa Margarita Ecological Reserve SMER SIO Hydroclimate Stations DL 1 Met developed 2003 Additional Santa Margarita Ecological Reserve (SMER) SIO Hydroclimate Stations DL 1 -Met (developed 2003) Additional](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-3.jpg)
Santa Margarita Ecological Reserve (SMER) SIO Hydroclimate Stations DL 1 -Met (developed 2003) Additional Monitoring Sites in San Diego area UCSD – SIO Pier and UCSD Greenhouse Camp Pendleton – MCTSSA, confluence of De Luz and Santa Margarita Rivers (pending)
![Santa Margarita Ecological Reserve SMER Sites with DL 4 Met Hydroclimate Data Loggers DL Santa Margarita Ecological Reserve (SMER) Sites with DL 4 -Met Hydroclimate Data Loggers DL](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-4.jpg)
Santa Margarita Ecological Reserve (SMER) Sites with DL 4 -Met Hydroclimate Data Loggers DL 4 -Met Fuel Moisture and Temperature Soil Moisture, Temperature, and Conductivity SMER - 5 sites UCSD – 1 sites (SIO Pier)
![HUB DL 1 Met or DL 4 Met DigiMax Stream 900 MHz RF Modem HUB DL 1 -Met or DL 4 -Met Digi(Max. Stream) 900 MHz RF Modem](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-5.jpg)
HUB DL 1 -Met or DL 4 -Met Digi(Max. Stream) 900 MHz RF Modem 802. 11 Wireless LAN 1 2 5 HPWREN HUB 4 3 SIO
![DL 4 Met Hydroclimate Data Logger DL 4 GP Runs on alkaline batteries 2 DL 4 -Met Hydroclimate Data Logger DL 4 -GP Runs on alkaline batteries (2](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-6.jpg)

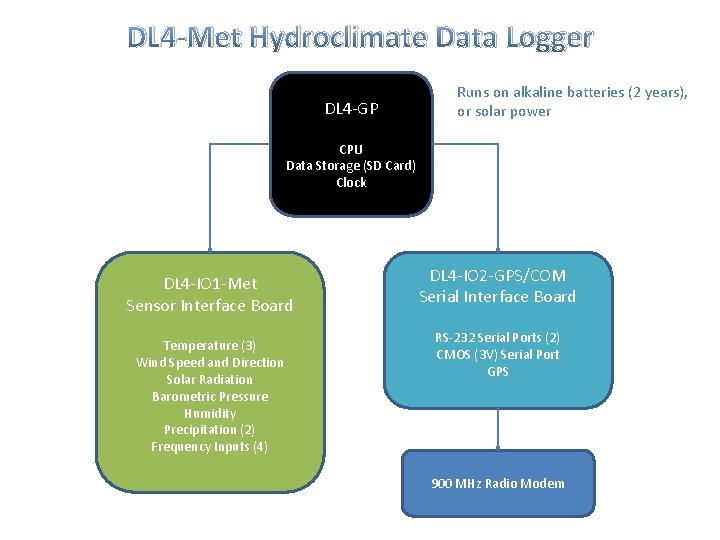

DL 4 -Met Hydroclimate Data Logger DL 4 -GP Runs on alkaline batteries (2 years), or solar power CPU Data Storage (SD Card) Clock DL 4 -IO 1 -Met Sensor Interface Board Temperature (3) Wind Speed and Direction Solar Radiation Barometric Pressure Humidity Precipitation (2) Frequency Inputs (4) DL 4 -IO 2 -GPS/COM Serial Interface Board RS-232 Serial Ports (2) CMOS (3 V) Serial Port GPS 900 MHz Radio Modem
![Mountain Climate Monitoring Network Dan Cayan and Douglas Alden Scripps Institution of Oceanography Piute Mountain Climate Monitoring Network Dan Cayan and Douglas Alden: Scripps Institution of Oceanography Piute](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-7.jpg)
Mountain Climate Monitoring Network Dan Cayan and Douglas Alden: Scripps Institution of Oceanography Piute Mountain (center). Piute Creek runs through the shaded canyon (right center) and the west ridge runs right up the center of the photo from valley floor to the peak. “Over the Hill" station located at 6100' (1860 m) DL 4 -Met installed on tower in White Mountains (site 39; Beer Can; 2743 m; 9000 ft. )
![Mountain Climate Monitoring Network Dan Cayan and Douglas Alden Scripps Institution of Oceanography Fall Mountain Climate Monitoring Network Dan Cayan and Douglas Alden: Scripps Institution of Oceanography Fall,](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-8.jpg)

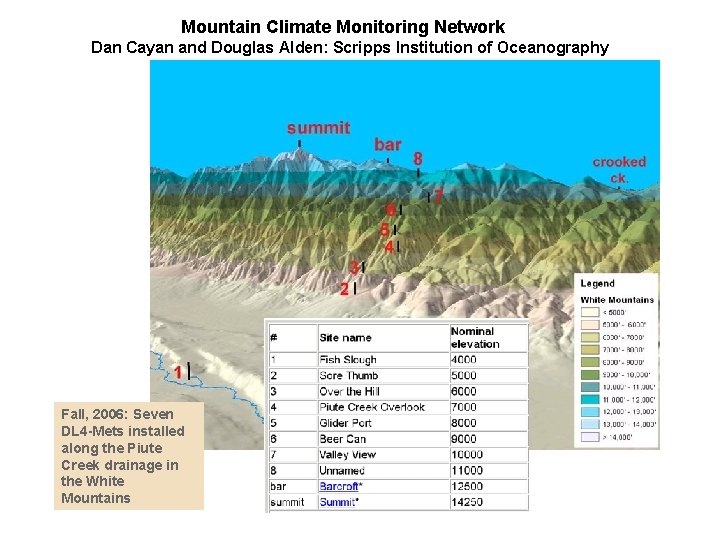

Mountain Climate Monitoring Network Dan Cayan and Douglas Alden: Scripps Institution of Oceanography Fall, 2006: Seven DL 4 -Mets installed along the Piute Creek drainage in the White Mountains
![Data on the Web Scripps Hydroclimate Weather Observation Program http hcn ucsd edu Data on the Web • Scripps Hydroclimate Weather Observation Program http: //hcn. ucsd. edu](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-9.jpg)

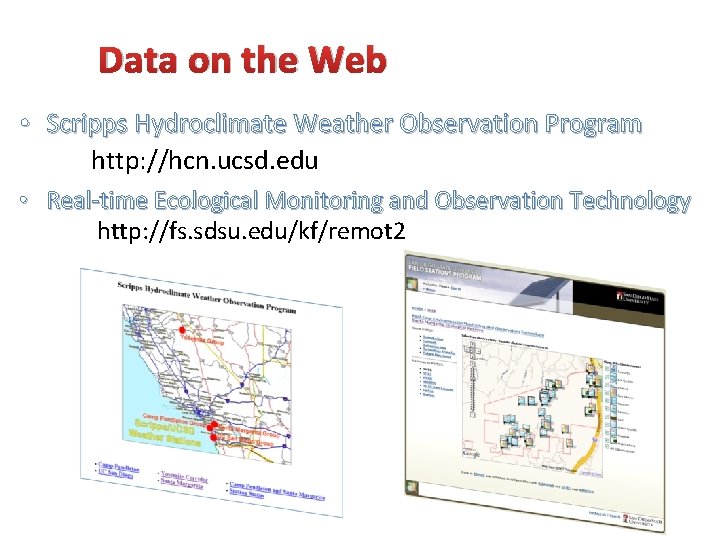

Data on the Web • Scripps Hydroclimate Weather Observation Program http: //hcn. ucsd. edu • Real-time Ecological Monitoring and Observation Technology http: //fs. sdsu. edu/kf/remot 2
![Other Uses of DL 4 TimeLapse Camera System Nikon D 2 Hs Other Uses of DL 4 • Time-Lapse Camera System – Nikon D 2 Hs](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-10.jpg)
Other Uses of DL 4 • Time-Lapse Camera System – Nikon D 2 Hs – Two images per day • Stream Gage Logger – Polls Solinst Levelogger and transmits data
![DL 4 Met Hydroclimate Data Logger Douglas Alden Scripps Institution of Oceanography University of DL 4 -Met Hydroclimate Data Logger Douglas Alden Scripps Institution of Oceanography University of](https://slidetodoc.com/presentation_image_h2/9914e82abb62c75cb2faee9e243db61c/image-11.jpg)
DL 4 -Met Hydroclimate Data Logger Douglas Alden Scripps Institution of Oceanography University of California, San Diego Integrative Oceanography Division Hydraulics Laboratory - Technology Application Group 06 Nov 2007 dalden@ucsd. edu (858) 534 -8997 http: //sio. ucsd. edu http: //ucsd. edu
