distybox 300 distybox 5000 distybase unoexant distybase duo

distybox 300 distybox 5000 distybase uno/exant distybase duo plus Internet: www. disty. de E-Mail: info@disty. de

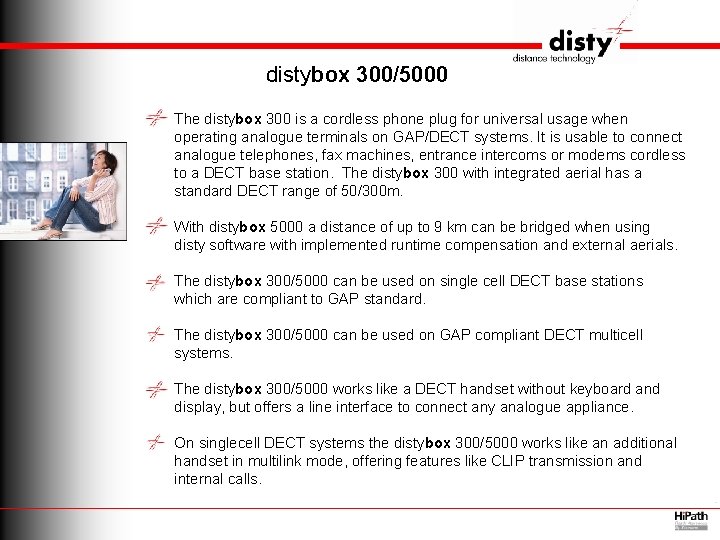

distybox 300/5000 The distybox 300 is a cordless phone plug for universal usage when operating analogue terminals on GAP/DECT systems. It is usable to connect analogue telephones, fax machines, entrance intercoms or modems cordless to a DECT base station. The distybox 300 with integrated aerial has a standard DECT range of 50/300 m. With distybox 5000 a distance of up to 9 km can be bridged when using disty software with implemented runtime compensation and external aerials. The distybox 300/5000 can be used on single cell DECT base stations which are compliant to GAP standard. The distybox 300/5000 can be used on GAP compliant DECT multicell systems. The distybox 300/5000 works like a DECT handset without keyboard and display, but offers a line interface to connect any analogue appliance. On singlecell DECT systems the distybox 300/5000 works like an additional handset in multilink mode, offering features like CLIP transmission and internal calls.

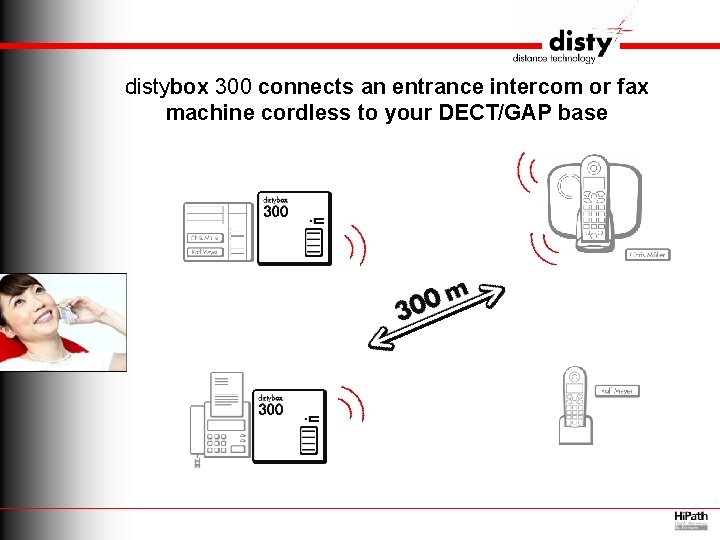

distybox 300 connects an entrance intercom or fax machine cordless to your DECT/GAP base

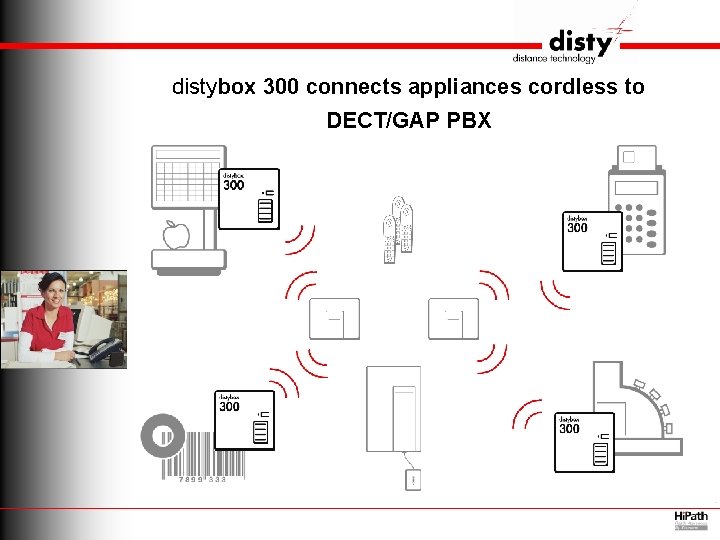

distybox 300 connects appliances cordless to DECT/GAP PBX

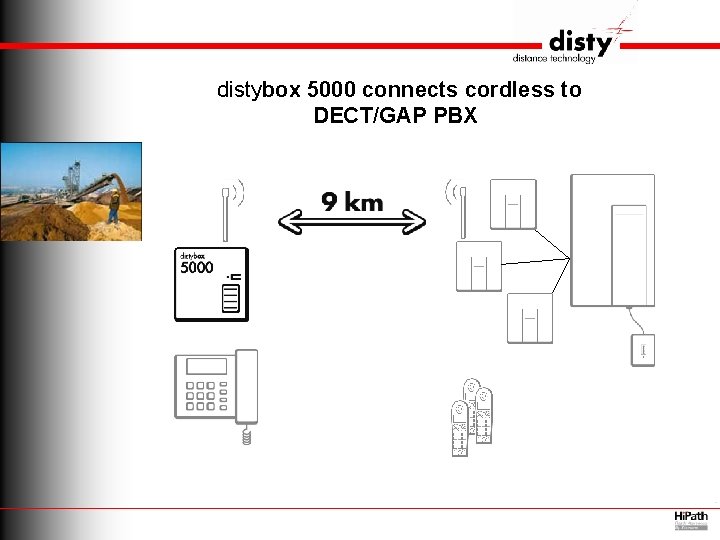

distybox 5000 connects cordless to DECT/GAP PBX

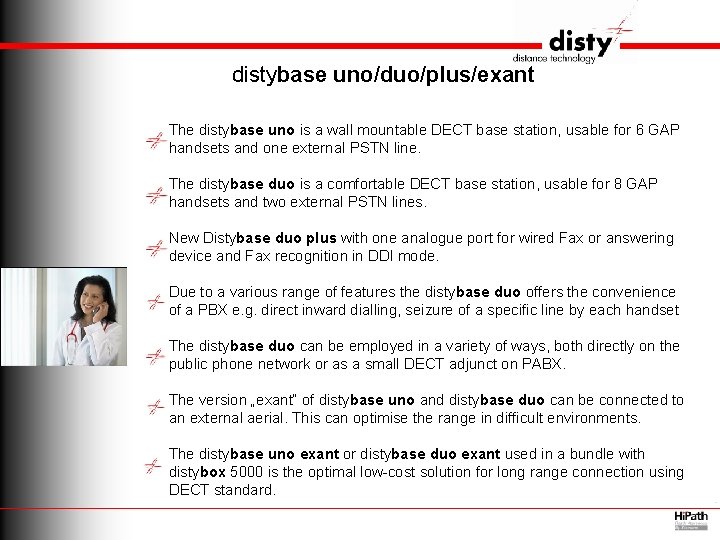

distybase uno/duo/plus/exant The distybase uno is a wall mountable DECT base station, usable for 6 GAP handsets and one external PSTN line. The distybase duo is a comfortable DECT base station, usable for 8 GAP handsets and two external PSTN lines. New Distybase duo plus with one analogue port for wired Fax or answering device and Fax recognition in DDI mode. Due to a various range of features the distybase duo offers the convenience of a PBX e. g. direct inward dialling, seizure of a specific line by each handset The distybase duo can be employed in a variety of ways, both directly on the public phone network or as a small DECT adjunct on PABX. The version „exant“ of distybase uno and distybase duo can be connected to an external aerial. This can optimise the range in difficult environments. The distybase uno exant or distybase duo exant used in a bundle with distybox 5000 is the optimal low-cost solution for long range connection using DECT standard.

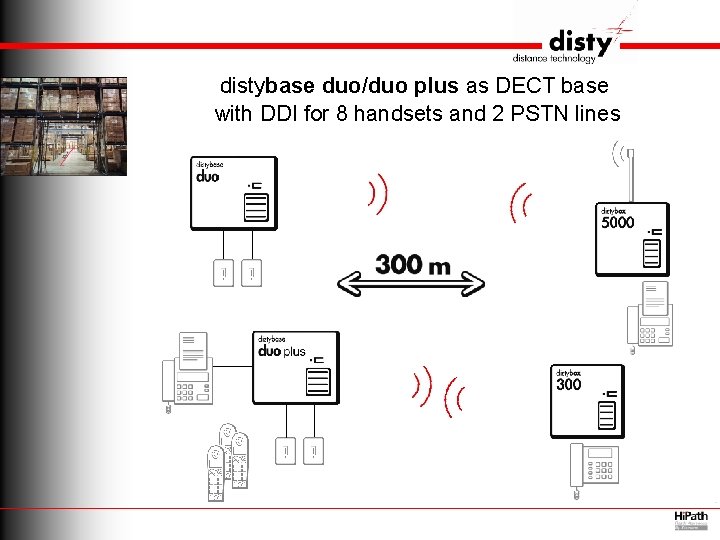

distybase duo/duo plus as DECT base with DDI for 8 handsets and 2 PSTN lines

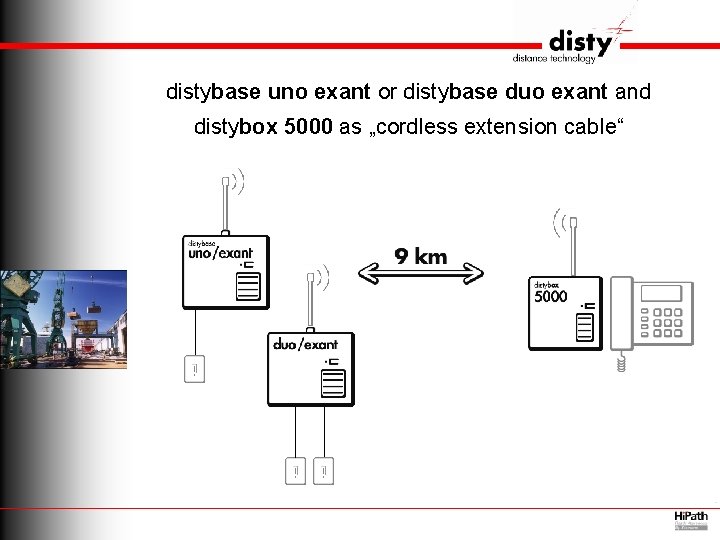

distybase uno exant or distybase duo exant and distybox 5000 as „cordless extension cable“

distybox Compatibility Distybox 300/5000 is compatible to a wide range of single cell DECT/GAP bases from various vendors. It was successfully tested in cooperation with products made by: • Siemens • Dosch & Amand • ALCATEL • Hagenuk • Swissvoice • AEG • Philips • Sun. Corp • Deutsche Telekom • Tiptel • Panasonic • Tenovis • Audioline • Sagem • TOPCOM • ELLKOR • Hagenuk • BT • AEG To be continued

distybox compatibility to multicell DECT PBX De. Te. We Open. Com Kirk BS 500 Kirk BS 1500 Ascom Ascotel Intelli. Gate 2025 Tenovis I 55 Telekom T-Comfort 930 Siemens Hi. Path 4000 Cordless 2. 3 Siemens Hi. Path 3000 V 4. 0 Siemens Hi. Com 300 E Ericsson DCT 1800 Ericsson BP 50 Philips Sopho Alcatel 4400 SW 4. 2 Auerswald COMfort DECT Flexatel Forte NEC Aspire LG Systems Panasonic TDA 30 Tadiran Coral Repeater RTX 4002 Siemens Gigaset Repeater Kirk WRFP 4

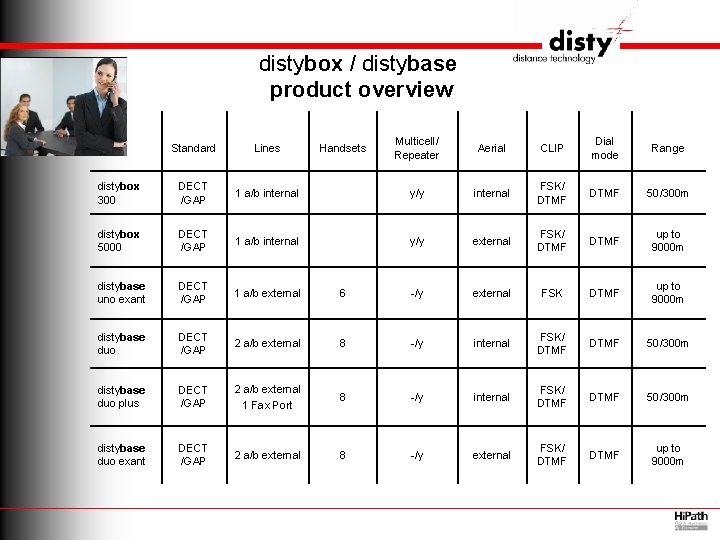

distybox / distybase product overview Multicell/ Repeater Aerial CLIP Dial mode Range 1 a/b internal y/y internal FSK/ DTMF 50/300 m DECT /GAP 1 a/b internal y/y external FSK/ DTMF up to 9000 m distybase uno exant DECT /GAP 1 a/b external 6 -/y external FSK DTMF up to 9000 m distybase duo DECT /GAP 2 a/b external 8 -/y internal FSK/ DTMF 50/300 m distybase duo plus DECT /GAP 2 a/b external 1 Fax Port 8 -/y internal FSK/ DTMF 50/300 m distybase duo exant DECT /GAP 2 a/b external 8 -/y external FSK/ DTMF up to 9000 m Standard Lines distybox 300 DECT /GAP distybox 5000 Handsets

disty Distributors
