District of Columbia Pedestrian Master Plan Pro Walk/Pro Bike September 5, 2008 George Branyan Pedestrian Coordinator DC Department of Transportation

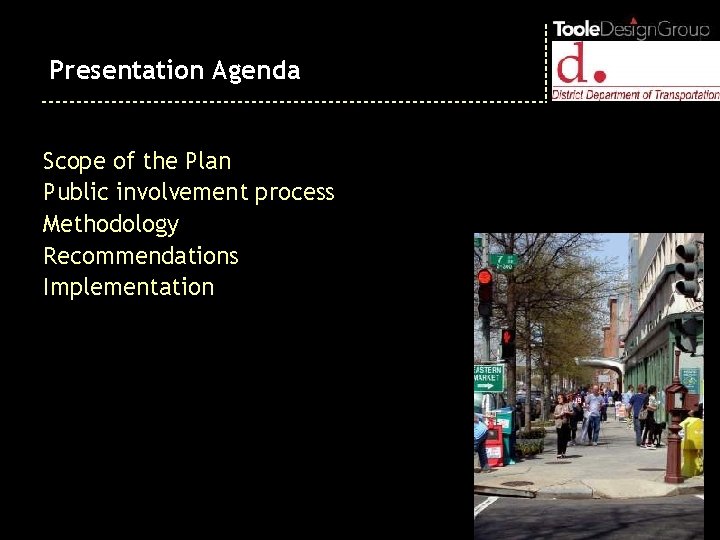

Presentation Agenda Scope of the Plan Public involvement process Methodology Recommendations Implementation

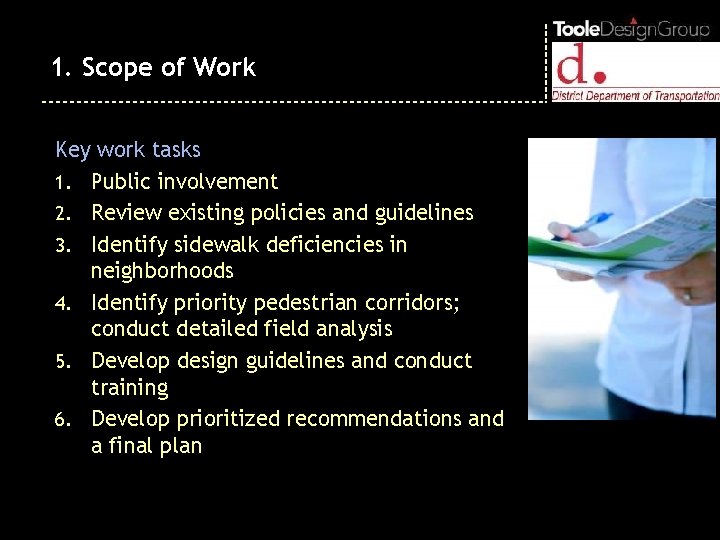

1. Scope of Work Key work tasks 1. Public involvement 2. Review existing policies and guidelines 3. Identify sidewalk deficiencies in neighborhoods 4. Identify priority pedestrian corridors; conduct detailed field analysis 5. Develop design guidelines and conduct training 6. Develop prioritized recommendations and a final plan

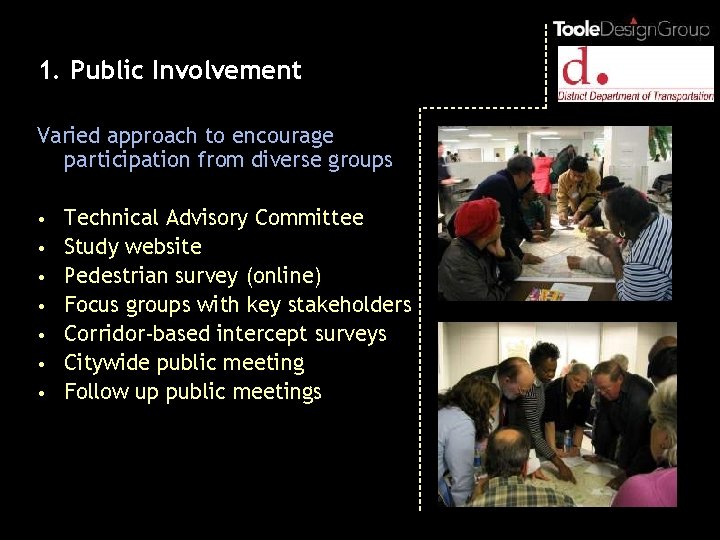

1. Public Involvement Varied approach to encourage participation from diverse groups • Technical Advisory Committee • Study website • Pedestrian survey (online) • Focus groups with key stakeholders • Corridor-based intercept surveys • Citywide public meeting • Follow up public meetings

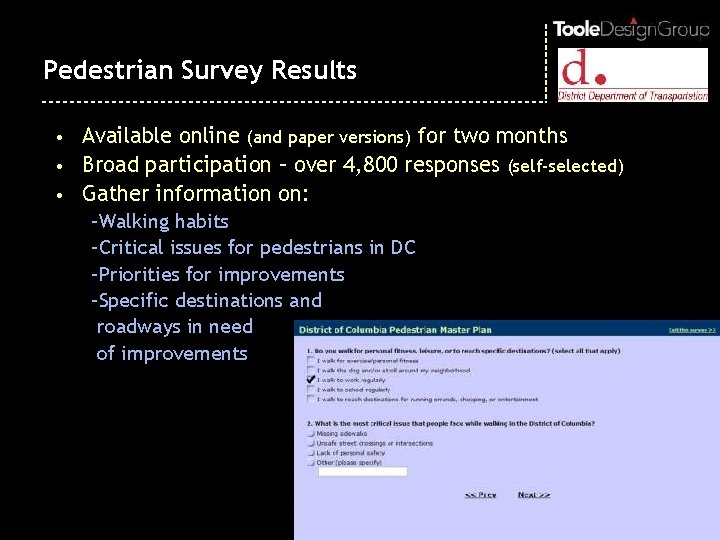

Pedestrian Survey Results • Available online (and paper versions) for two months • Broad participation – over 4, 800 responses (self-selected) • Gather information on: –Walking habits –Critical issues for pedestrians in DC –Priorities for improvements –Specific destinations and roadways in need of improvements

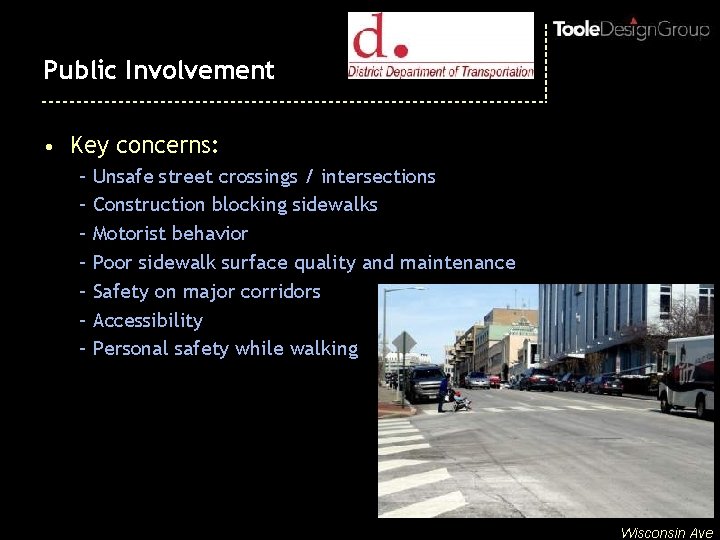

Public Involvement • Key concerns: – Unsafe street crossings / intersections – Construction blocking sidewalks – Motorist behavior – Poor sidewalk surface quality and maintenance – Safety on major corridors – Accessibility – Personal safety while walking Wisconsin Ave

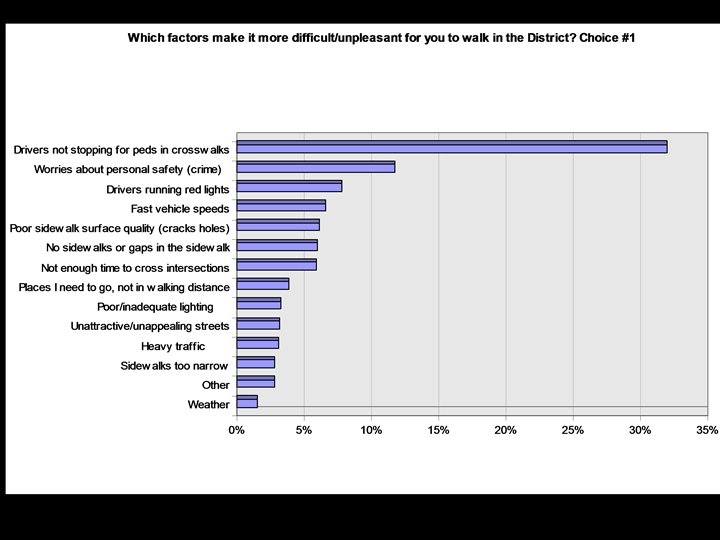

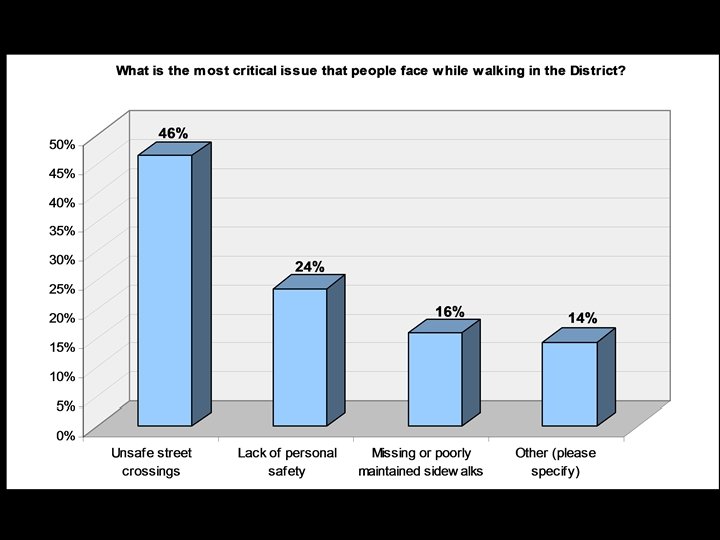

Online Survey Results

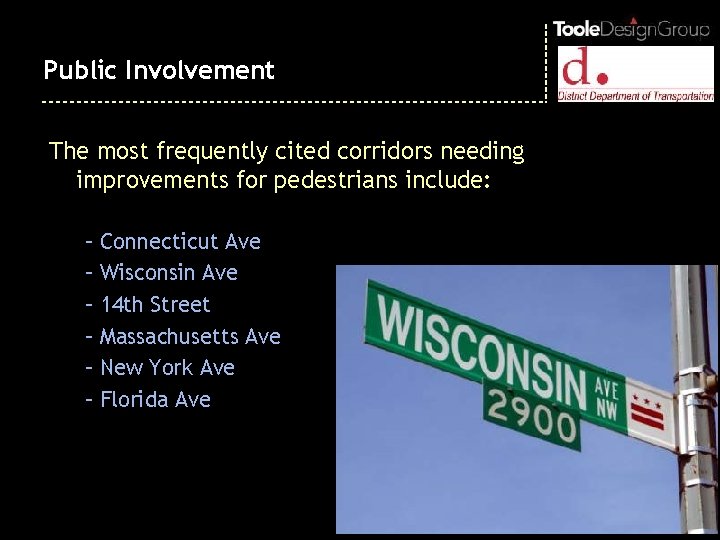

Public Involvement The most frequently cited corridors needing improvements for pedestrians include: – Connecticut Ave – Wisconsin Ave – 14 th Street – Massachusetts Ave – New York Ave – Florida Ave

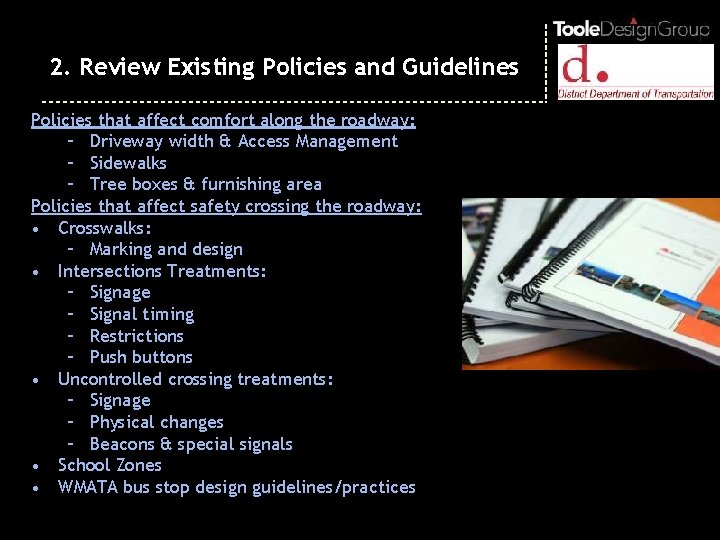

2. Review Existing Policies and Guidelines Policies that affect comfort along the roadway: – Driveway width & Access Management – Sidewalks – Tree boxes & furnishing area Policies that affect safety crossing the roadway: • Crosswalks: – Marking and design • Intersections Treatments: – Signage – Signal timing – Restrictions – Push buttons • Uncontrolled crossing treatments: – Signage – Physical changes – Beacons & special signals • School Zones • WMATA bus stop design guidelines/practices

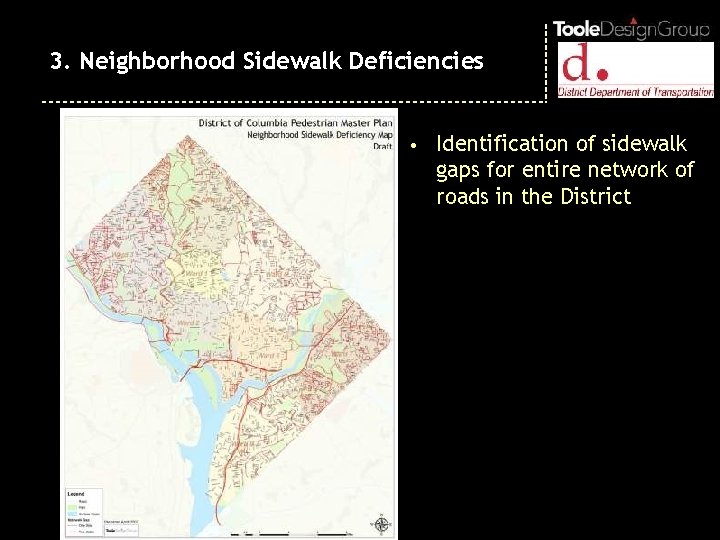

3. Neighborhood Sidewalk Deficiencies • Identification of sidewalk gaps for entire network of roads in the District

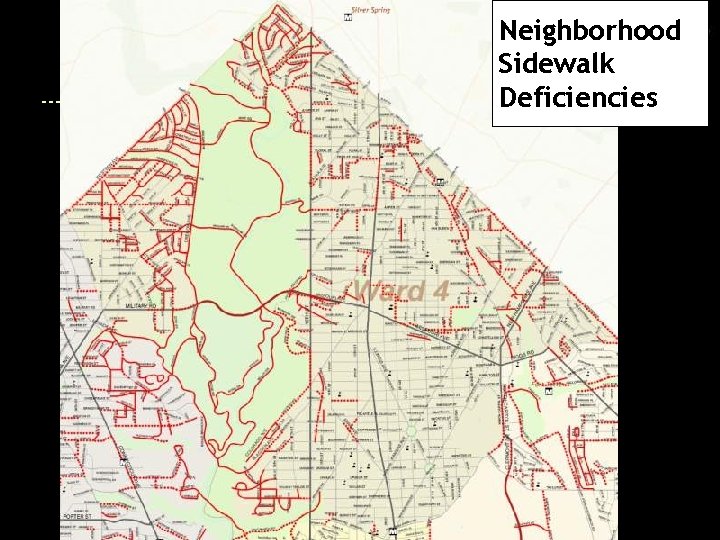

Neighborhood Sidewalk Deficiencies

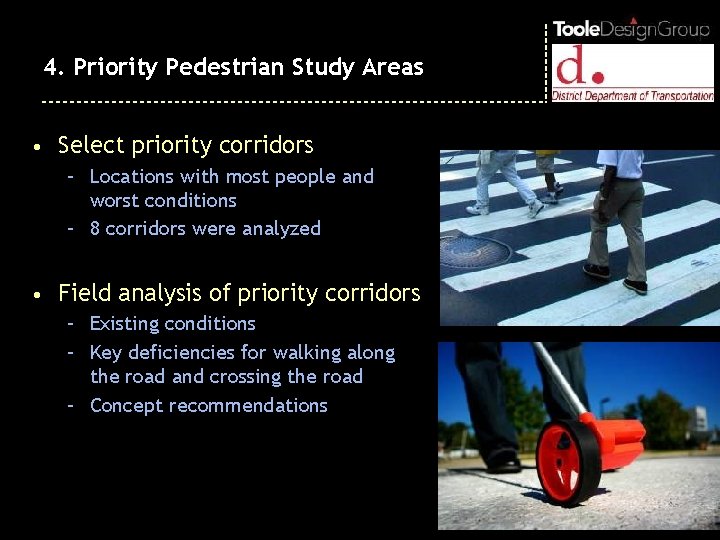

4. Priority Pedestrian Study Areas • Select priority corridors – Locations with most people and worst conditions – 8 corridors were analyzed • Field analysis of priority corridors – Existing conditions – Key deficiencies for walking along the road and crossing the road – Concept recommendations

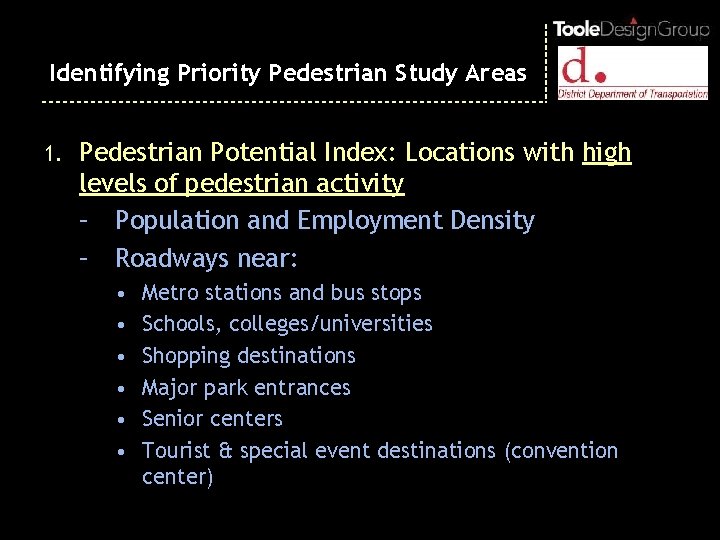

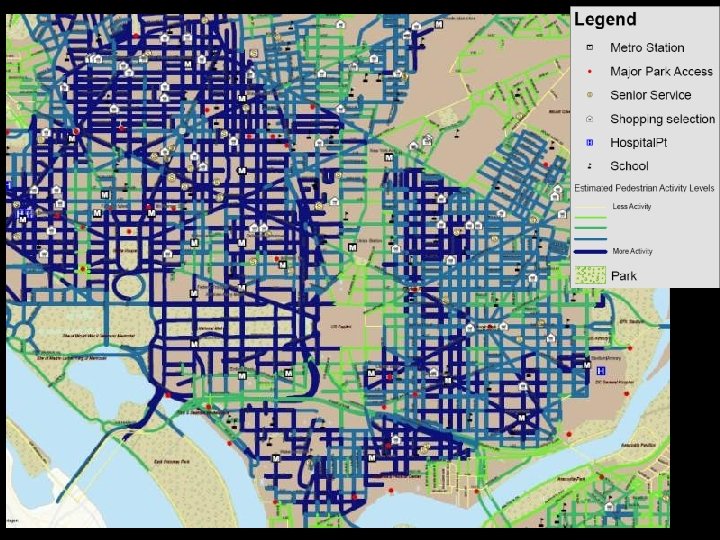

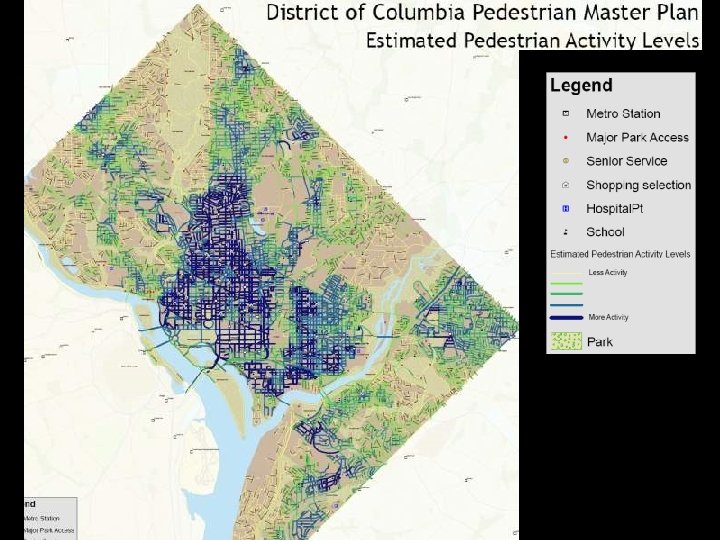

Identifying Priority Pedestrian Study Areas 1. Pedestrian Potential Index: Locations with high levels of pedestrian activity – Population and Employment Density – Roadways near: • • • Metro stations and bus stops Schools, colleges/universities Shopping destinations Major park entrances Senior centers Tourist & special event destinations (convention center)

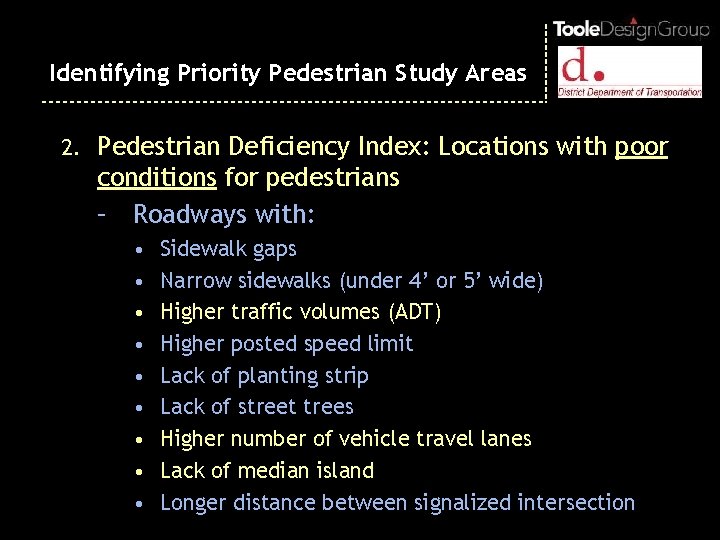

Identifying Priority Pedestrian Study Areas 2. Pedestrian Deficiency Index: Locations with poor conditions for pedestrians – Roadways with: • • • Sidewalk gaps Narrow sidewalks (under 4’ or 5’ wide) Higher traffic volumes (ADT) Higher posted speed limit Lack of planting strip Lack of street trees Higher number of vehicle travel lanes Lack of median island Longer distance between signalized intersection

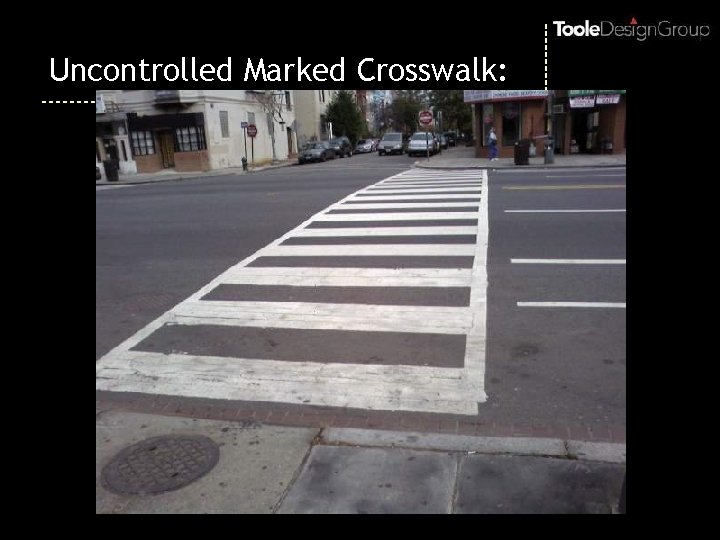

Uncontrolled Marked Crosswalk:

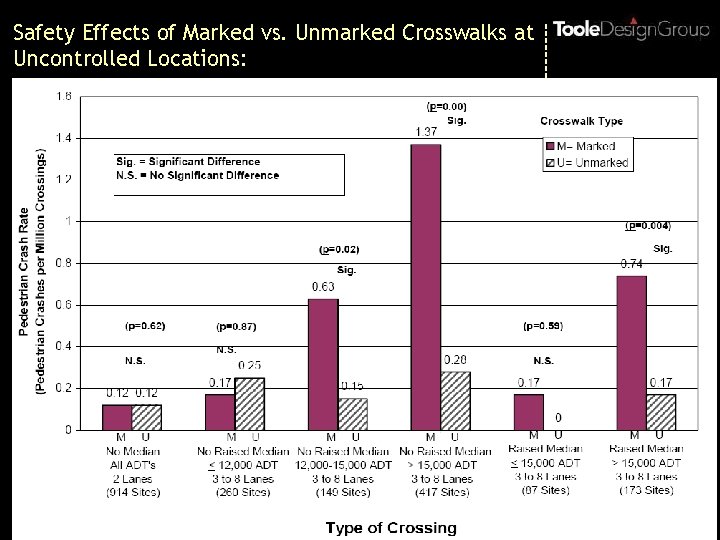

Safety Effects of Marked vs. Unmarked Crosswalks at Uncontrolled Locations:

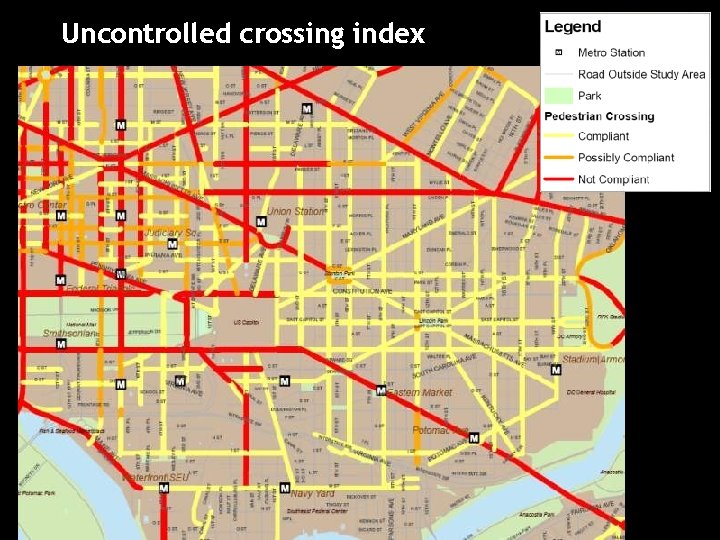

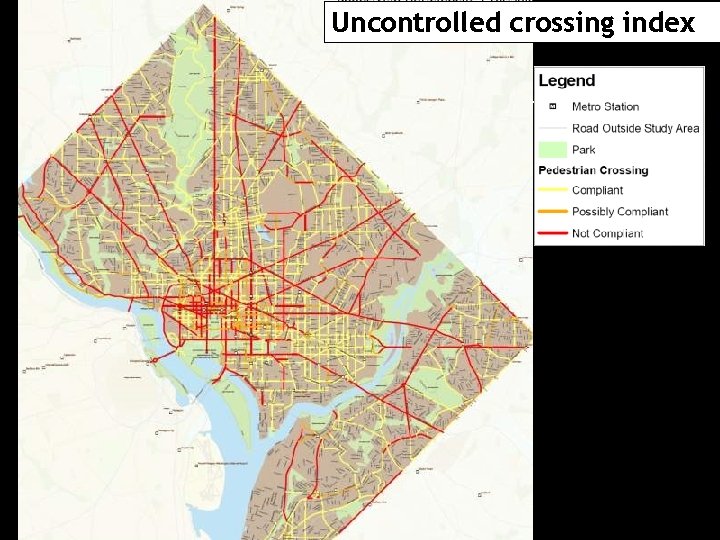

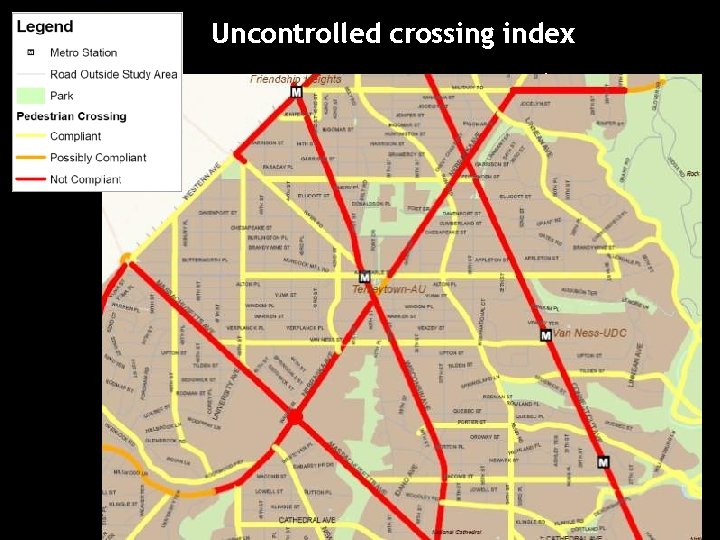

Uncontrolled crossing index

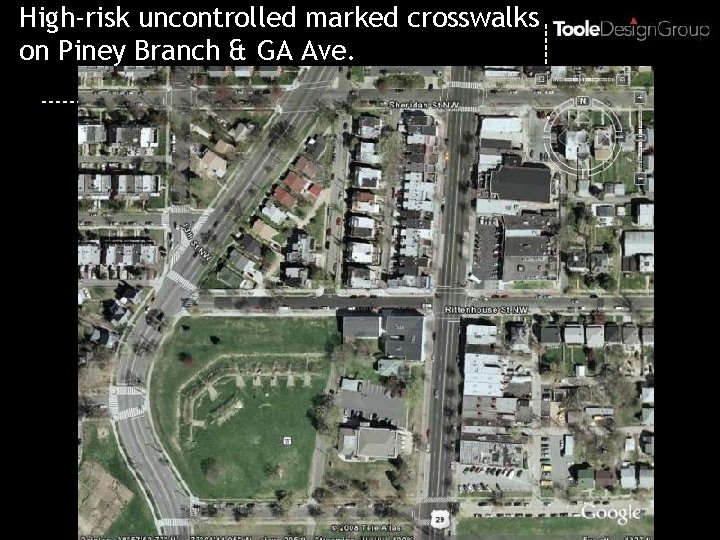

High-risk uncontrolled marked crosswalks on Piney Branch & GA Ave.

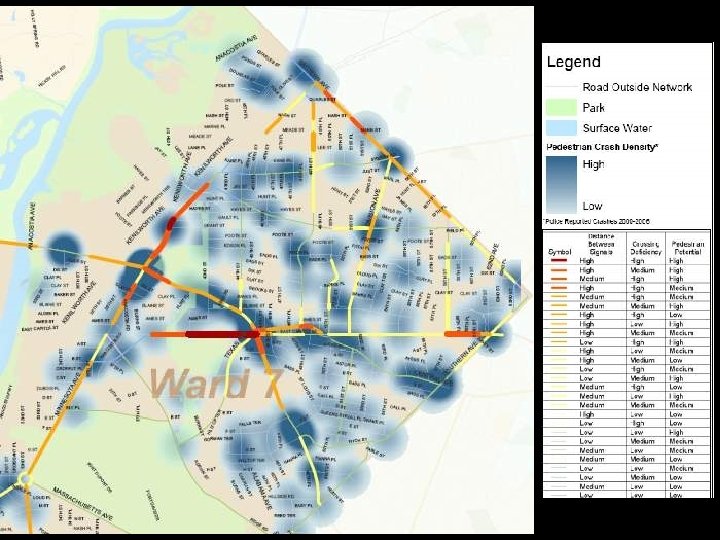

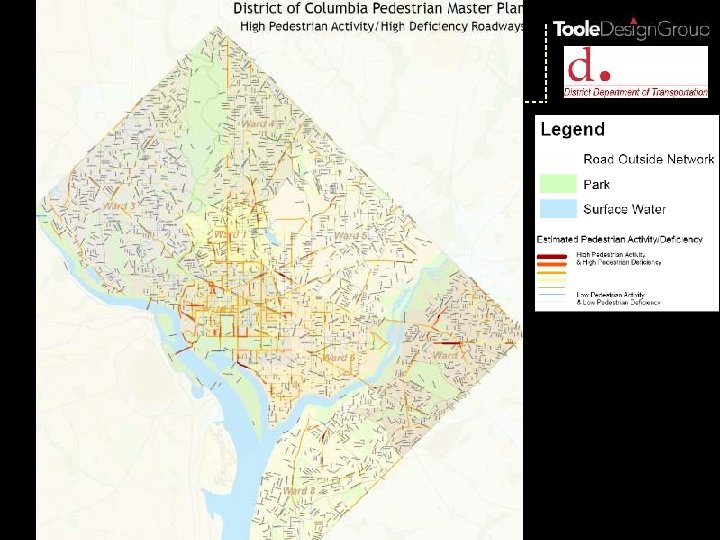

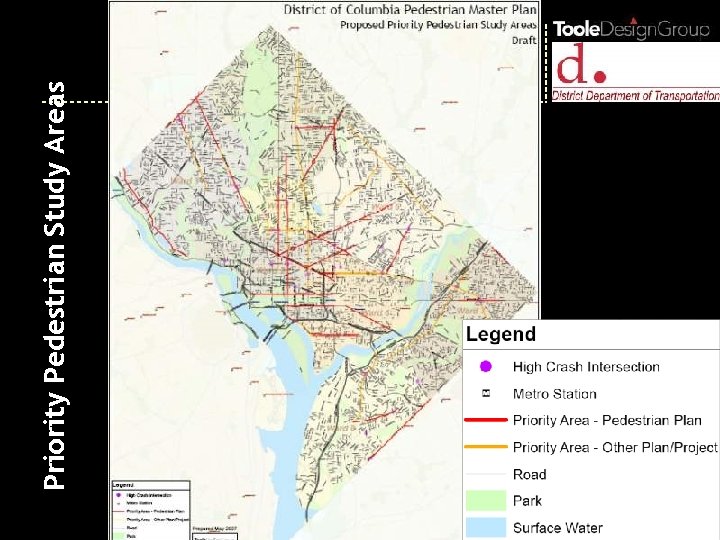

Priority Pedestrian Study Areas

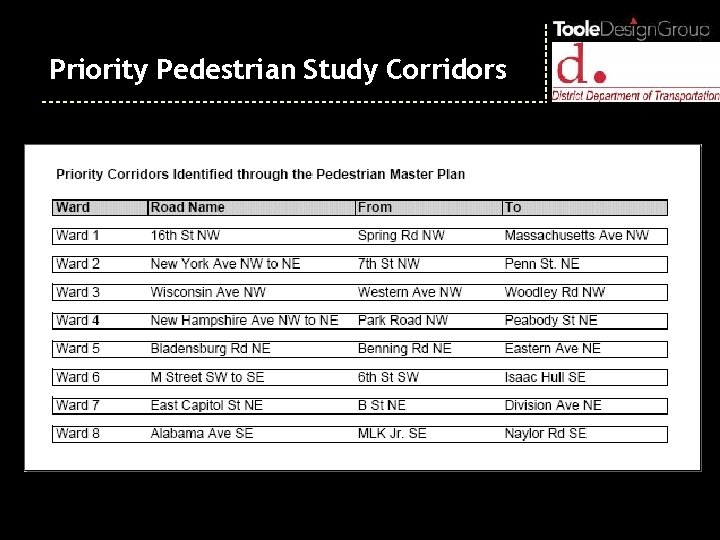

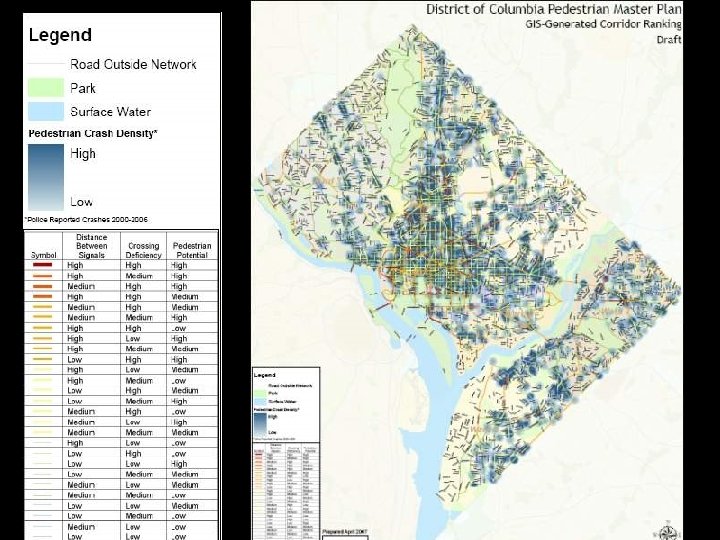

Priority Pedestrian Study Corridors

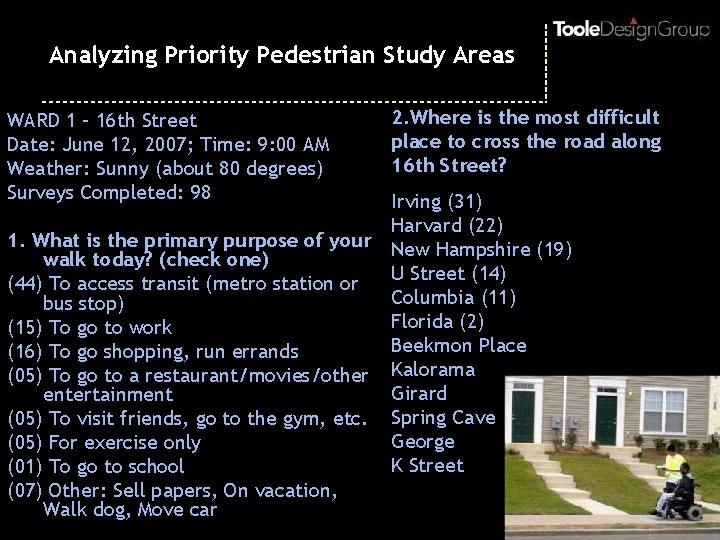

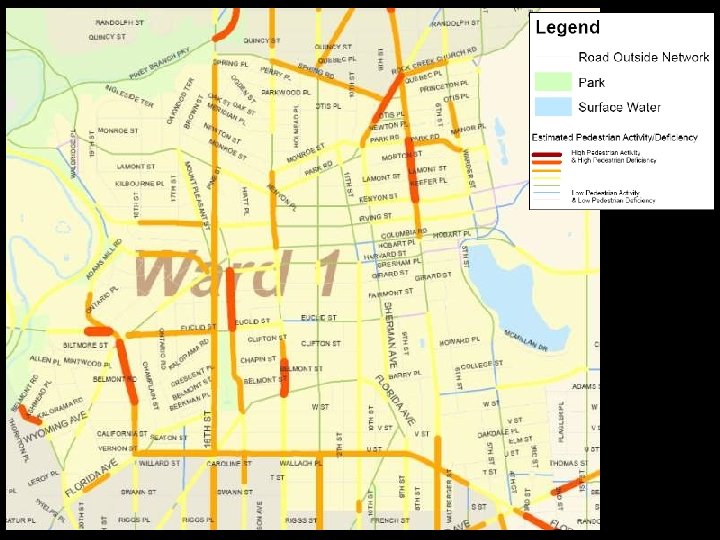

Analyzing Priority Pedestrian Study Areas WARD 1 – 16 th Street Date: June 12, 2007; Time: 9: 00 AM Weather: Sunny (about 80 degrees) Surveys Completed: 98 2. Where is the most difficult place to cross the road along 16 th Street? Irving (31) Harvard (22) 1. What is the primary purpose of your New Hampshire (19) walk today? (check one) U Street (14) (44) To access transit (metro station or Columbia (11) bus stop) Florida (2) (15) To go to work Beekmon Place (16) To go shopping, run errands (05) To go to a restaurant/movies/other Kalorama Girard entertainment (05) To visit friends, go to the gym, etc. Spring Cave George (05) For exercise only K Street (01) To go to school (07) Other: Sell papers, On vacation, Walk dog, Move car

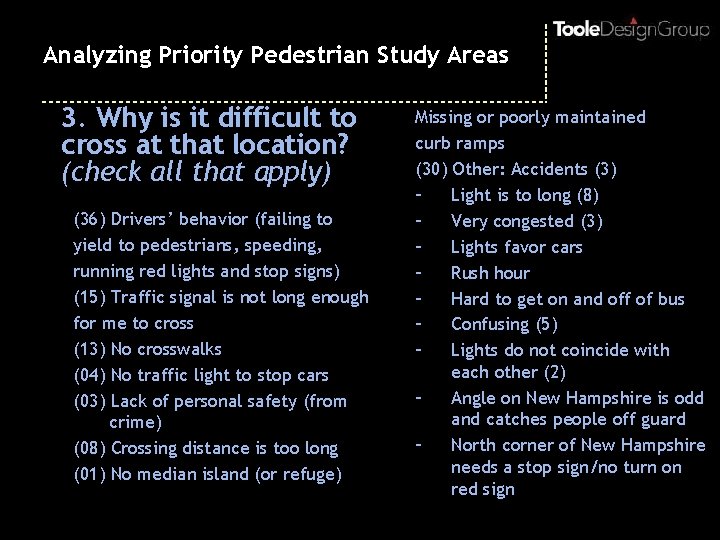

Analyzing Priority Pedestrian Study Areas 3. Why is it difficult to cross at that location? (check all that apply) (36) Drivers’ behavior (failing to yield to pedestrians, speeding, running red lights and stop signs) (15) Traffic signal is not long enough for me to cross (13) No crosswalks (04) No traffic light to stop cars (03) Lack of personal safety (from crime) (08) Crossing distance is too long (01) No median island (or refuge) Missing or poorly maintained curb ramps (30) Other: Accidents (3) – Light is to long (8) – Very congested (3) – Lights favor cars – Rush hour – Hard to get on and off of bus – Confusing (5) – Lights do not coincide with each other (2) – Angle on New Hampshire is odd and catches people off guard – North corner of New Hampshire needs a stop sign/no turn on red sign

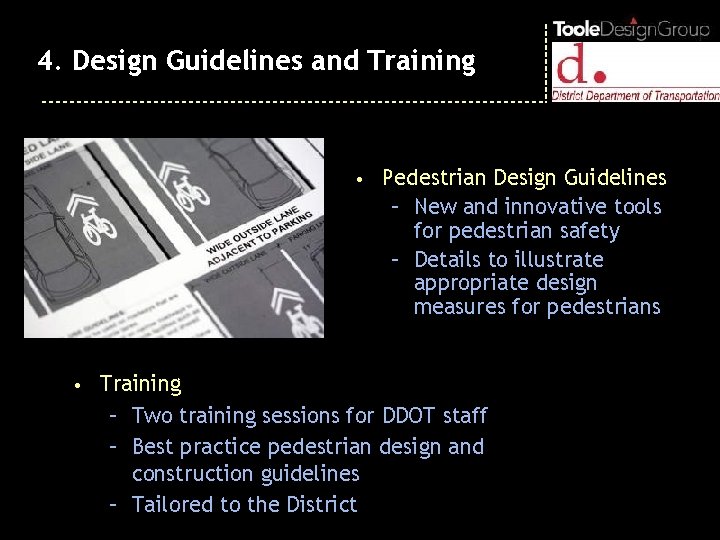

4. Design Guidelines and Training • Pedestrian Design Guidelines – New and innovative tools for pedestrian safety – Details to illustrate appropriate design measures for pedestrians • Training – Two training sessions for DDOT staff – Best practice pedestrian design and construction guidelines – Tailored to the District

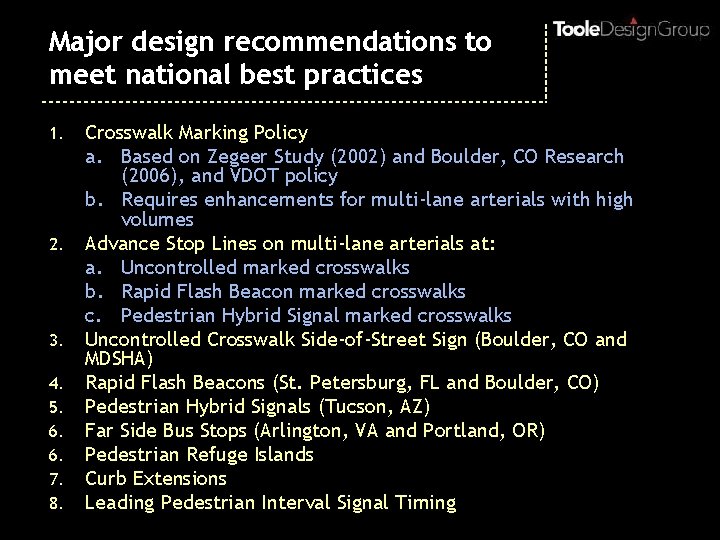

Major design recommendations to meet national best practices 1. 2. 3. 4. 5. 6. 6. 7. 8. Crosswalk Marking Policy a. Based on Zegeer Study (2002) and Boulder, CO Research (2006), and VDOT policy b. Requires enhancements for multi-lane arterials with high volumes Advance Stop Lines on multi-lane arterials at: a. Uncontrolled marked crosswalks b. Rapid Flash Beacon marked crosswalks c. Pedestrian Hybrid Signal marked crosswalks Uncontrolled Crosswalk Side-of-Street Sign (Boulder, CO and MDSHA) Rapid Flash Beacons (St. Petersburg, FL and Boulder, CO) Pedestrian Hybrid Signals (Tucson, AZ) Far Side Bus Stops (Arlington, VA and Portland, OR) Pedestrian Refuge Islands Curb Extensions Leading Pedestrian Interval Signal Timing

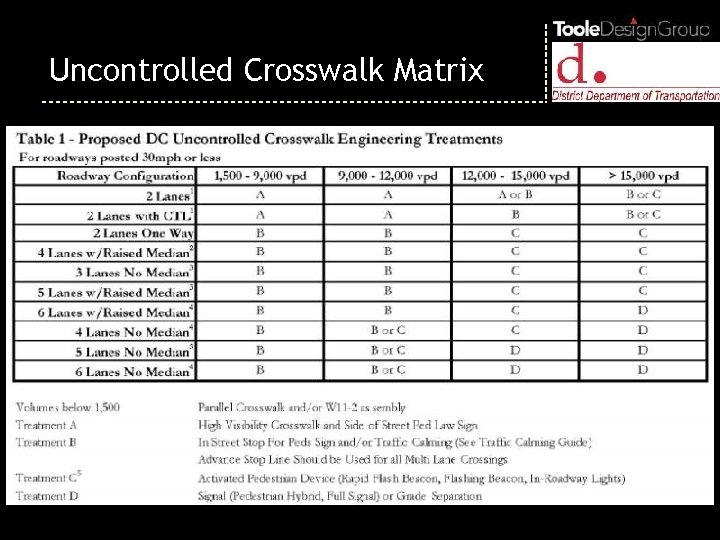

Uncontrolled Crosswalk Matrix

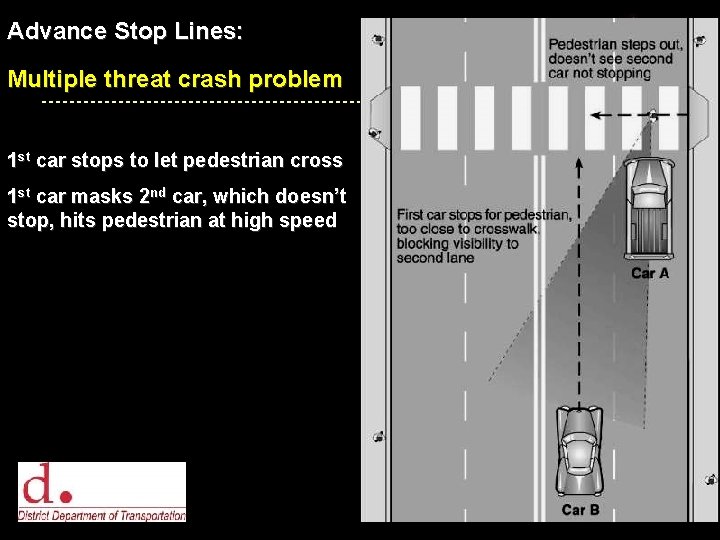

Advance Stop Lines: Multiple threat crash problem 1 st car stops to let pedestrian cross 1 st car masks 2 nd car, which doesn’t stop, hits pedestrian at high speed

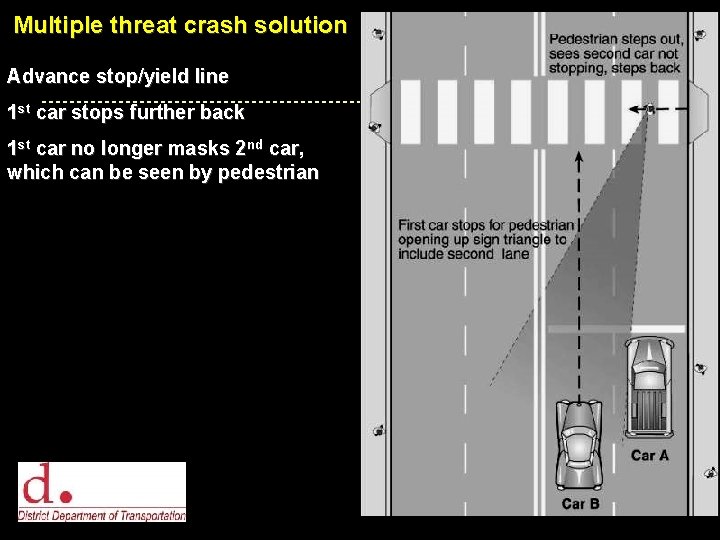

Multiple threat crash solution Advance stop/yield line 1 st car stops further back 1 st car no longer masks 2 nd car, which can be seen by pedestrian

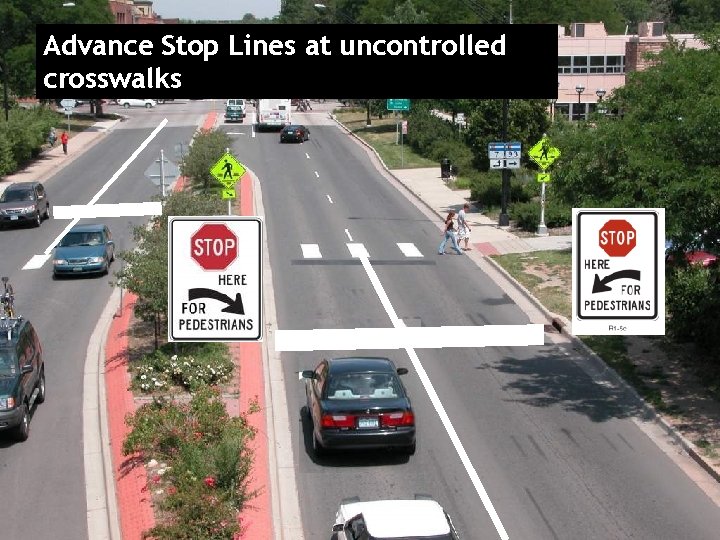

Advance Stop Lines at uncontrolled crosswalks

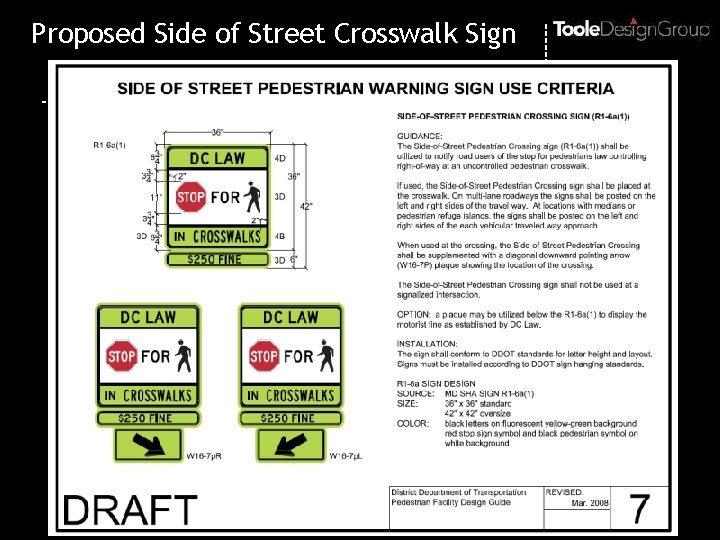

Proposed Side of Street Crosswalk Sign

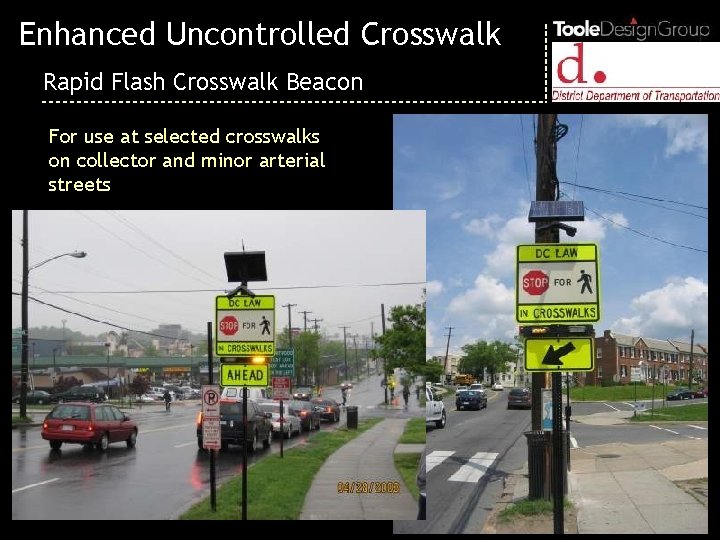

Enhanced Uncontrolled Crosswalk Rapid Flash Crosswalk Beacon For use at selected crosswalks on collector and minor arterial streets

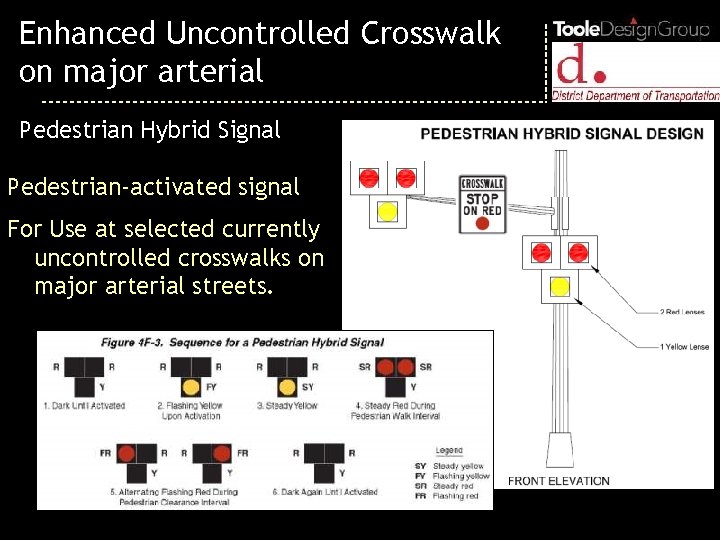

Enhanced Uncontrolled Crosswalk on major arterial Pedestrian Hybrid Signal Pedestrian-activated signal For Use at selected currently uncontrolled crosswalks on major arterial streets.

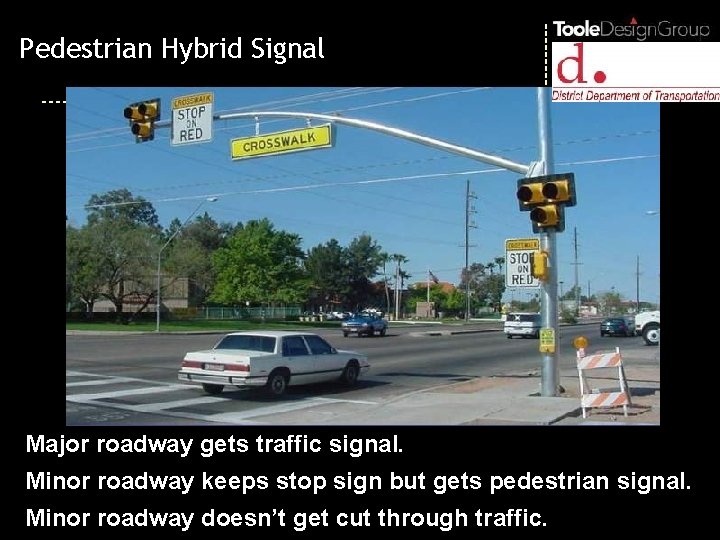

Pedestrian Hybrid Signal Major roadway gets traffic signal. Minor roadway keeps stop sign but gets pedestrian signal. Minor roadway doesn’t get cut through traffic.

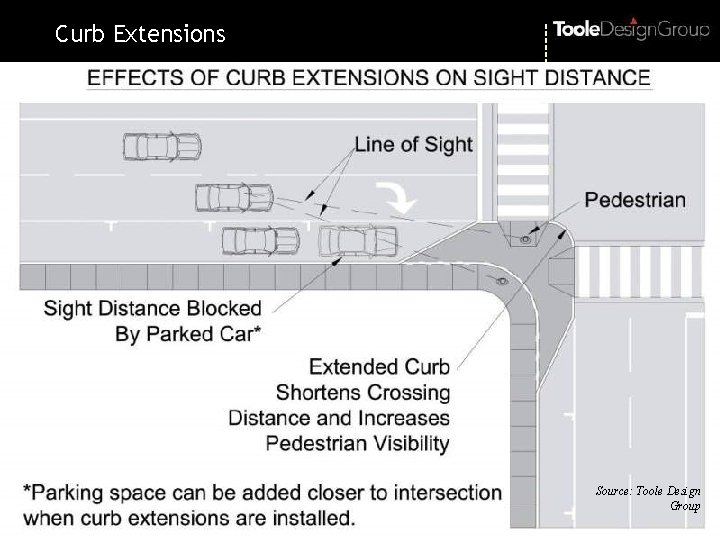

Curb Extensions Source: Toole Design Group

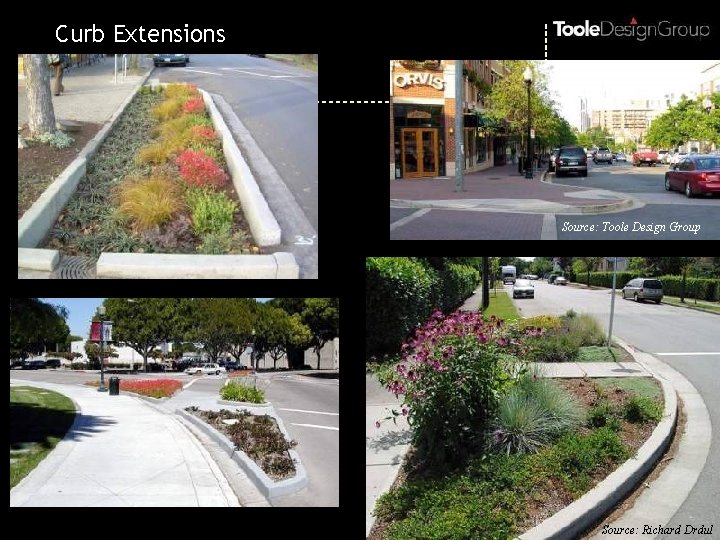

Curb Extensions Source: Toole Design Group Source: Richard Drdul

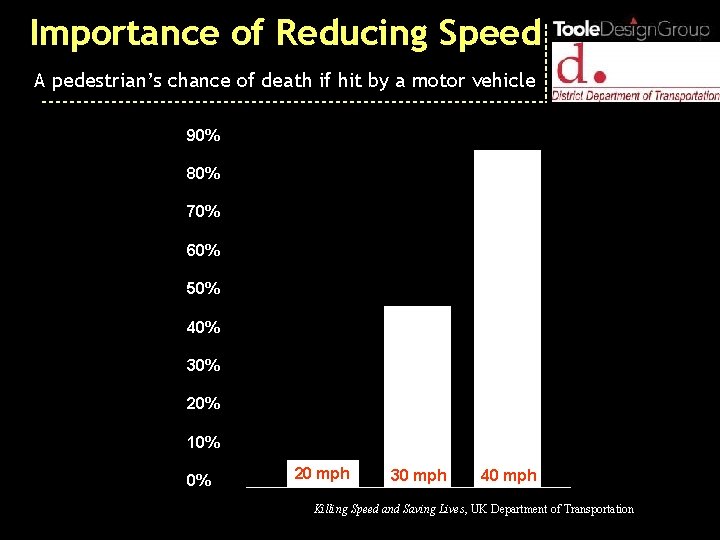

Importance of Reducing Speed A pedestrian’s chance of death if hit by a motor vehicle 90% 80% 70% 60% 50% 40% 30% 20% 10% 0% 20 mph 30 mph 40 mph Killing Speed and Saving Lives, UK Department of Transportation

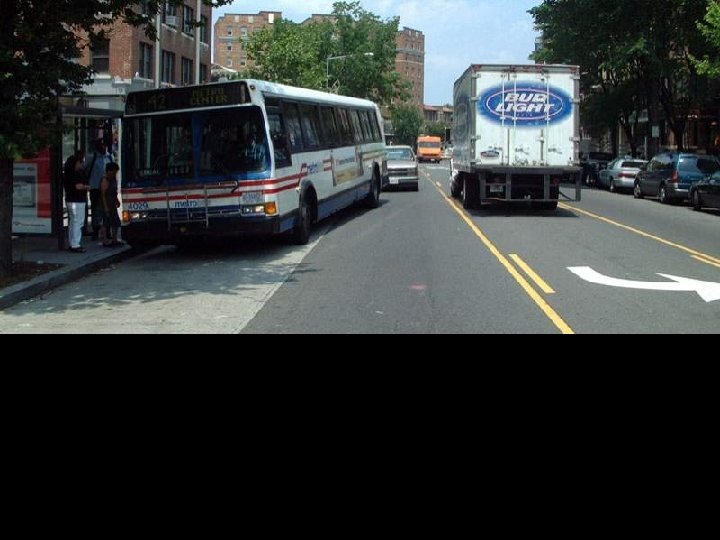

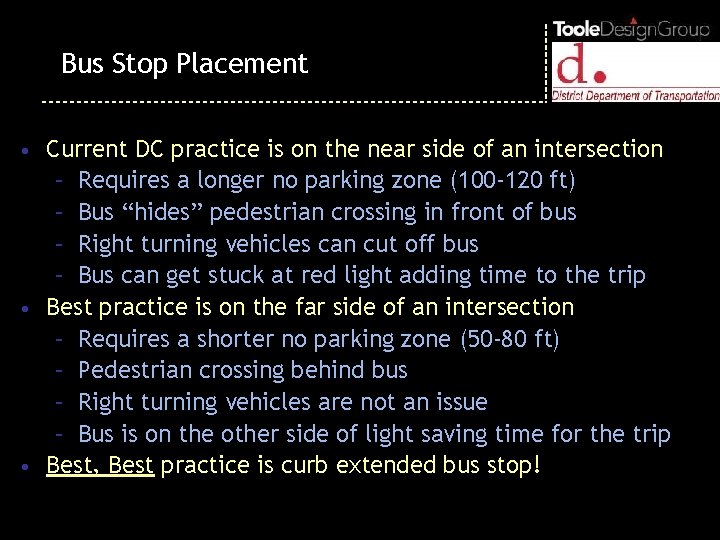

Bus Stop Placement • Current DC practice is on the near side of an intersection – Requires a longer no parking zone (100 -120 ft) – Bus “hides” pedestrian crossing in front of bus – Right turning vehicles can cut off bus – Bus can get stuck at red light adding time to the trip • Best practice is on the far side of an intersection – Requires a shorter no parking zone (50 -80 ft) – Pedestrian crossing behind bus – Right turning vehicles are not an issue – Bus is on the other side of light saving time for the trip • Best, Best practice is curb extended bus stop!

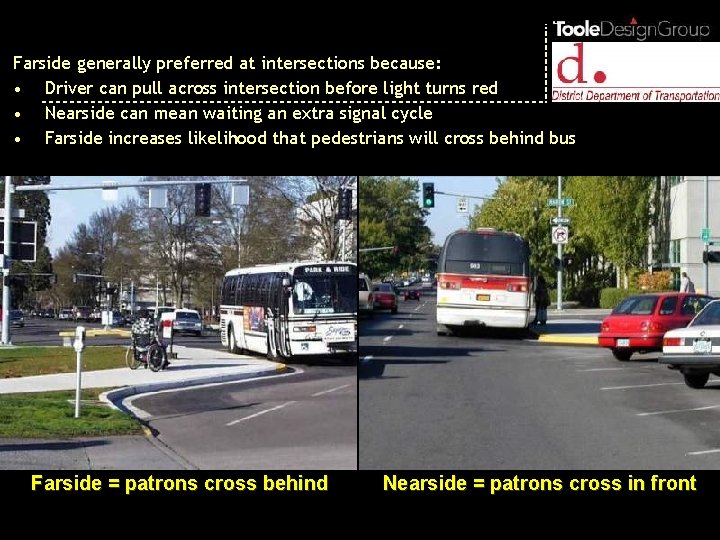

Bus driver concern: farside or nearside stops? Farside generally preferred at intersections because: • Driver can pull across intersection before light turns red • Nearside can mean waiting an extra signal cycle • Farside increases likelihood that pedestrians will cross behind bus Farside = patrons cross behind Nearside = patrons cross in front

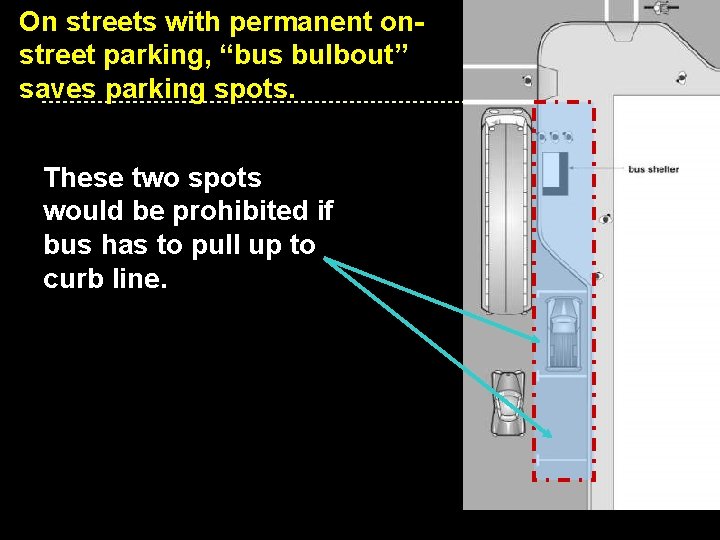

On streets with permanent onstreet parking, “bus bulbout” saves parking spots. These two spots would be prohibited if bus has to pull up to curb line.

Leading Pedestrian Interval LPI gives pedestrians a head start Looks like a regular signal to drivers Works at locations where right on red is prohibited

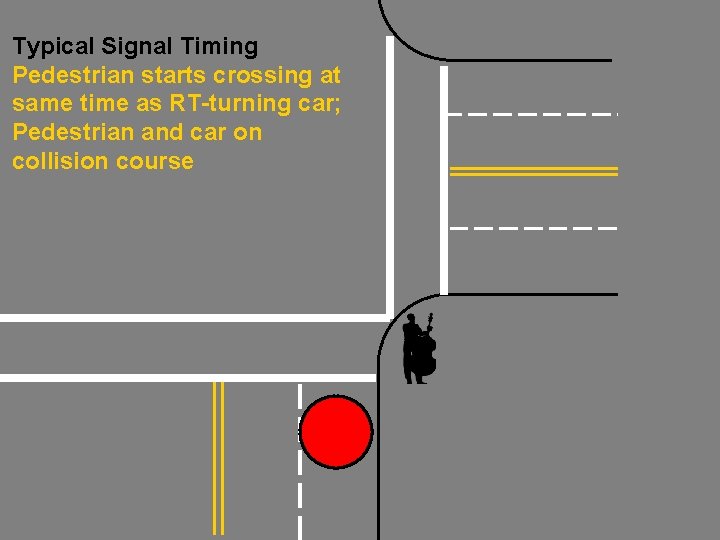

Typical Signal Timing Pedestrian starts crossing at same time as RT-turning car; Pedestrian and car on collision course

LPI Signal Timing: Pedestrian starts crossing before RT-turning car; Pedestrian gets head start and driver sees ped before entering crosswalk

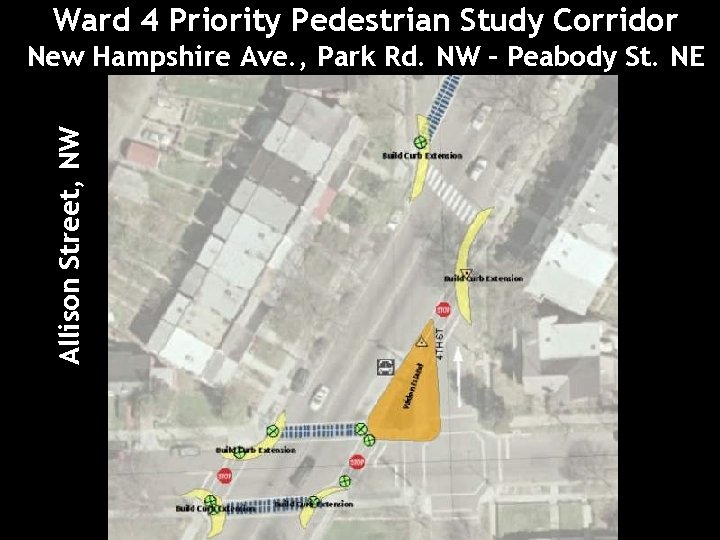

Ward 4 Priority Pedestrian Study Corridor Allison Street, NW New Hampshire Ave. , Park Rd. NW – Peabody St. NE

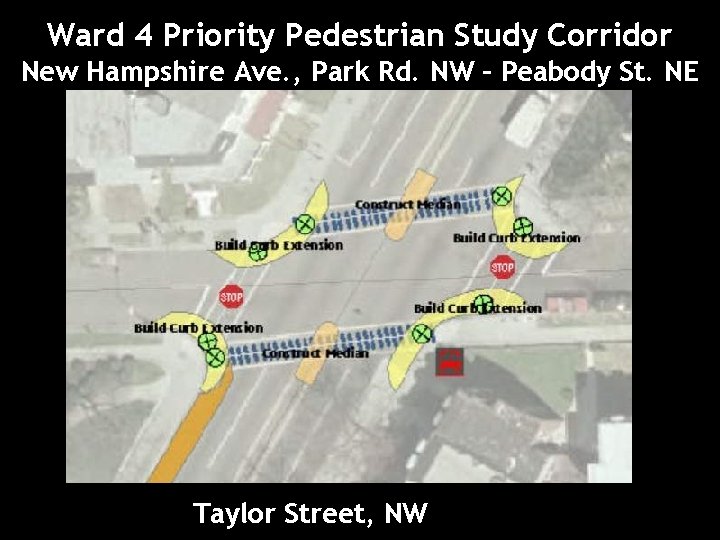

Ward 4 Priority Pedestrian Study Corridor New Hampshire Ave. , Park Rd. NW – Peabody St. NE Taylor Street, NW

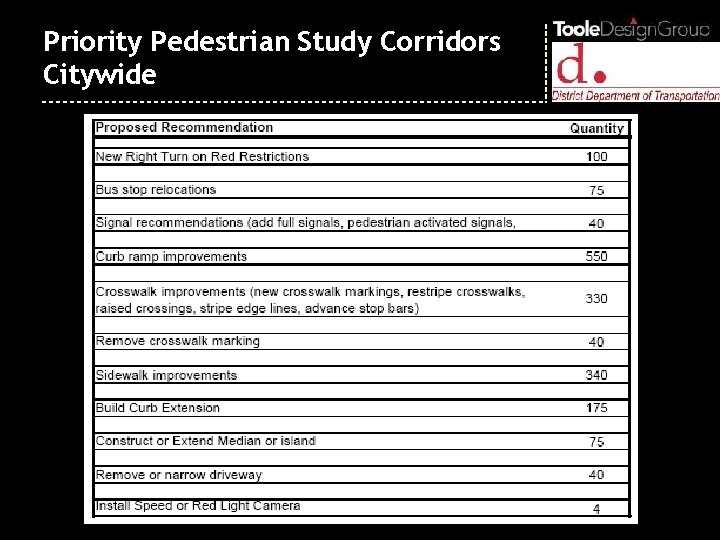

Priority Pedestrian Study Corridors Citywide

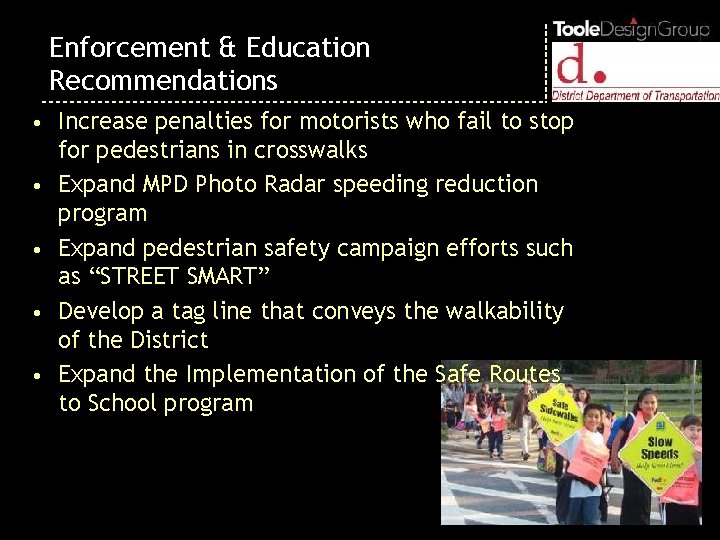

Enforcement & Education Recommendations • Increase penalties for motorists who fail to stop • • for pedestrians in crosswalks Expand MPD Photo Radar speeding reduction program Expand pedestrian safety campaign efforts such as “STREET SMART” Develop a tag line that conveys the walkability of the District Expand the Implementation of the Safe Routes to School program

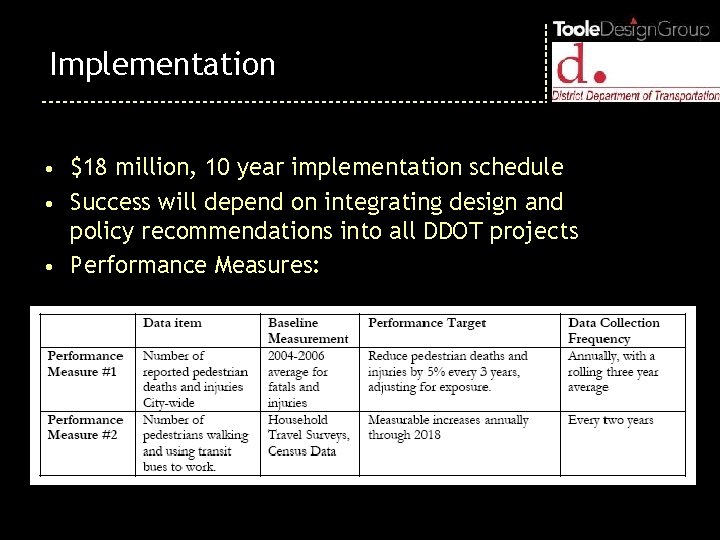

Implementation • $18 million, 10 year implementation schedule • Success will depend on integrating design and policy recommendations into all DDOT projects • Performance Measures:

Learn more at: www. ddot. dc. gov/ped Thank you! Questions?
