Distribution systems basic techniques and radial networks Distribution

Distribution systems basic techniques and radial networks

Distribution systems • analysis of the customer failure statistics of most utilities shows that the distribution system makes the greatest individual contribution to the unavailability of supply to a customer

Evaluation techniques • A radial distribution system consists of a set of series components, including lines, cables, disconnects (or isolators), busbars, etc. • A customer connected to any load point of such a system requires all components between himself and the supply point to be operating

Additional interruption indices • The reliability indices that have been evaluated using classical concepts are three primary ones of average failure rate, average outage duration and average annual unavailability or average annual outage time. These indices will be generally referred to in this book only as failure rate, outage duration and annual outage time. • Although the three primary indices are fundamentally important, they do not always give a complete representation of the system behavior and response.

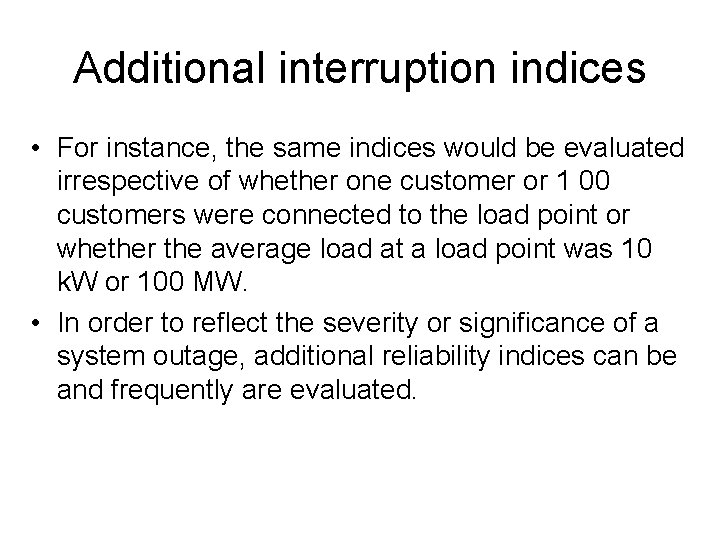

Additional interruption indices • For instance, the same indices would be evaluated irrespective of whether one customer or 1 00 customers were connected to the load point or whether the average load at a load point was 10 k. W or 100 MW. • In order to reflect the severity or significance of a system outage, additional reliability indices can be and frequently are evaluated.

Additional interruption indices • Customer-orientated indices – System average interruption frequency index, SAIFI

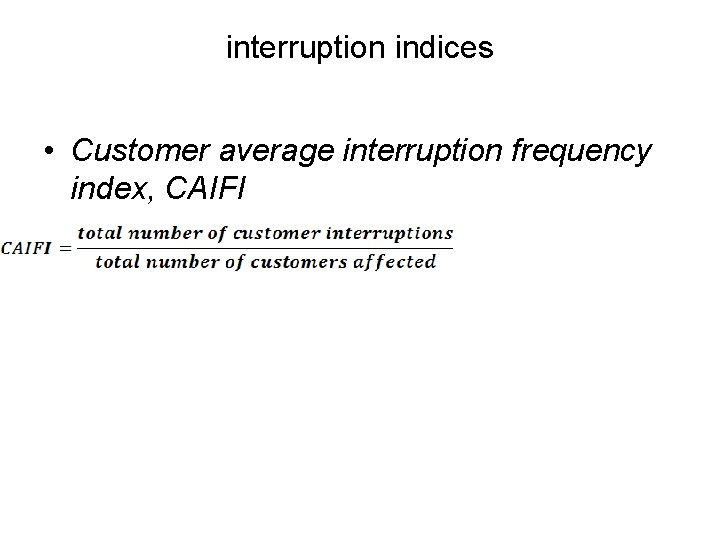

interruption indices • Customer average interruption frequency index, CAIFl

interruption indices • System average interruption duration index, SAIDI • Customer average interruption duration index, CAIDI

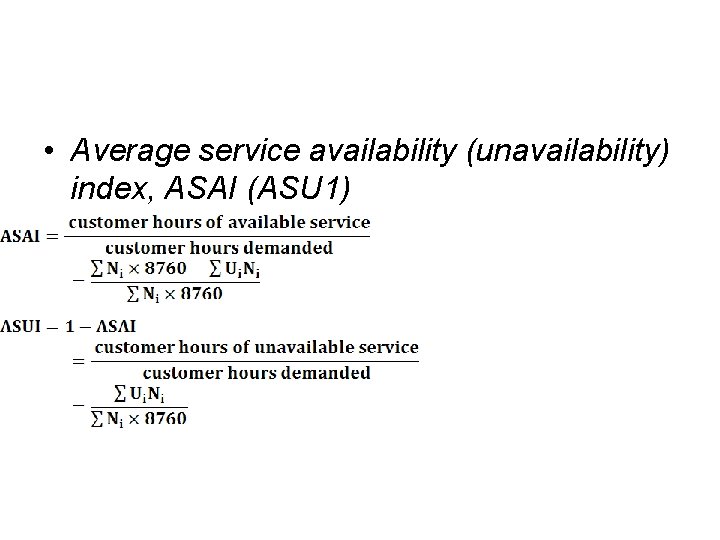

• Average service availability (unavailability) index, ASAI (ASU 1)

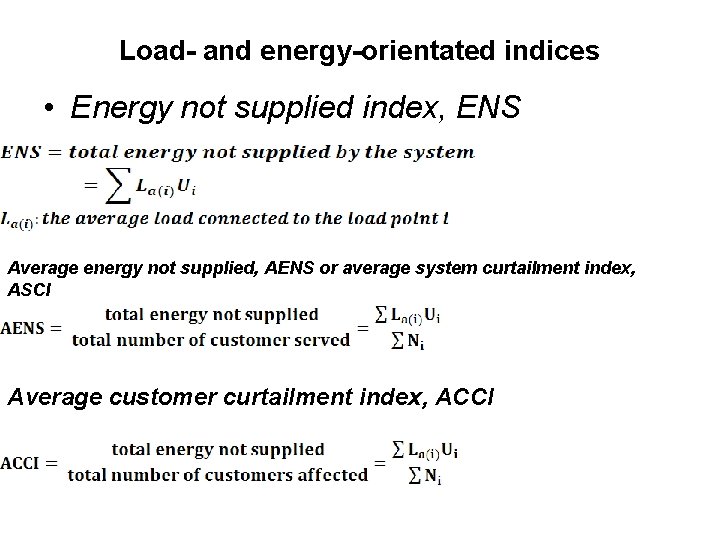

Load- and energy-orientated indices • Energy not supplied index, ENS Average energy not supplied, AENS or average system curtailment index, ASCI Average customer curtailment index, ACCI

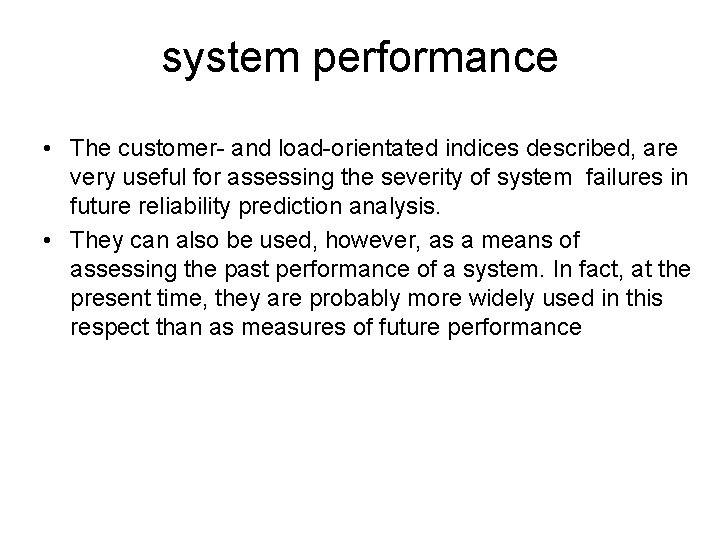

system performance • The customer- and load-orientated indices described, are very useful for assessing the severity of system failures in future reliability prediction analysis. • They can also be used, however, as a means of assessing the past performance of a system. In fact, at the present time, they are probably more widely used in this respect than as measures of future performance

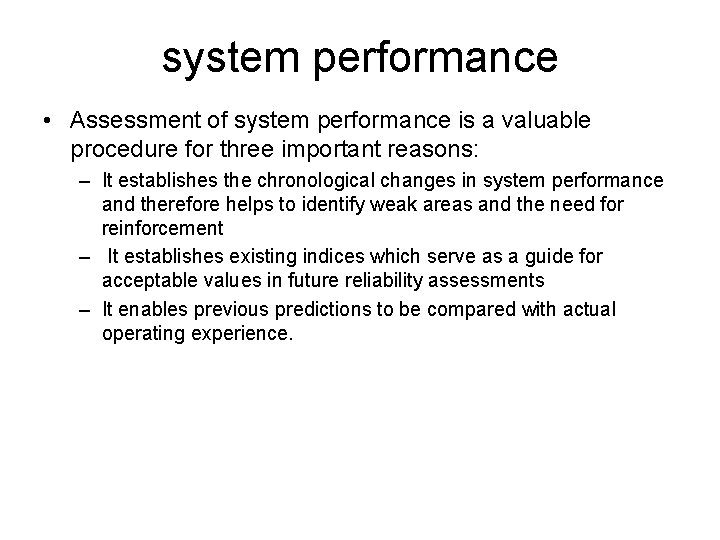

system performance • Assessment of system performance is a valuable procedure for three important reasons: – It establishes the chronological changes in system performance and therefore helps to identify weak areas and the need for reinforcement – It establishes existing indices which serve as a guide for acceptable values in future reliability assessments – It enables previous predictions to be compared with actual operating experience.

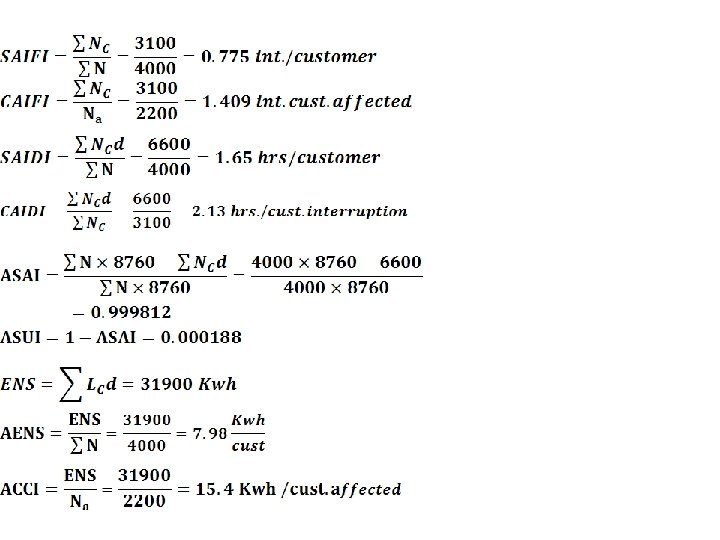

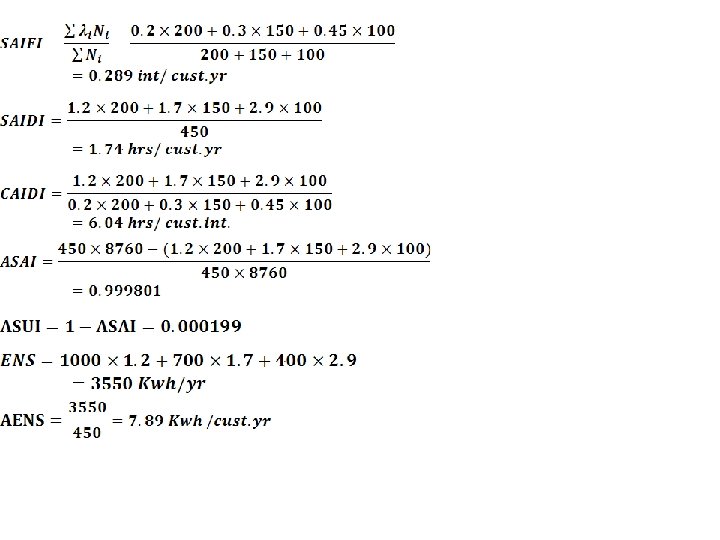

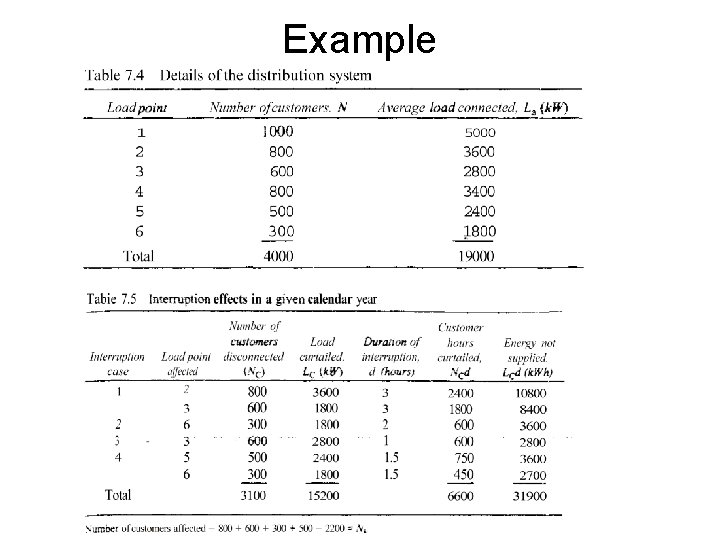

Example

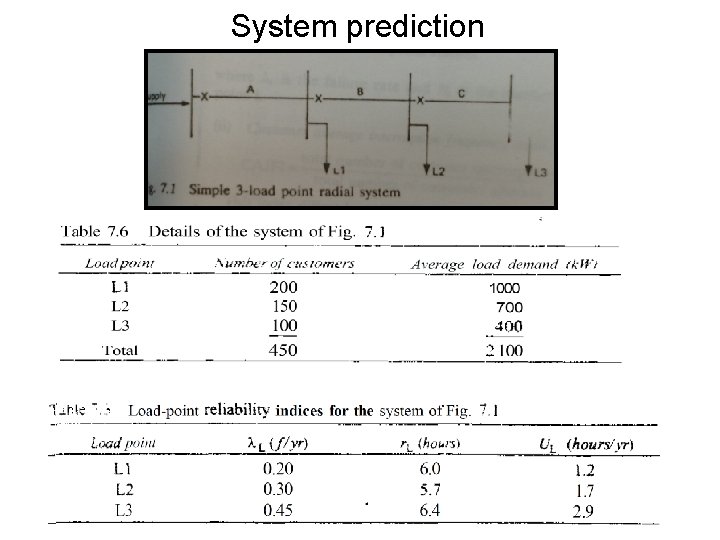

System prediction

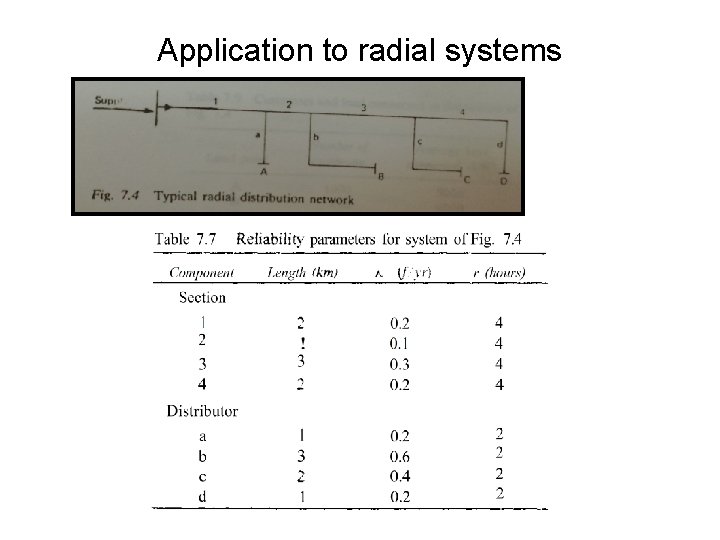

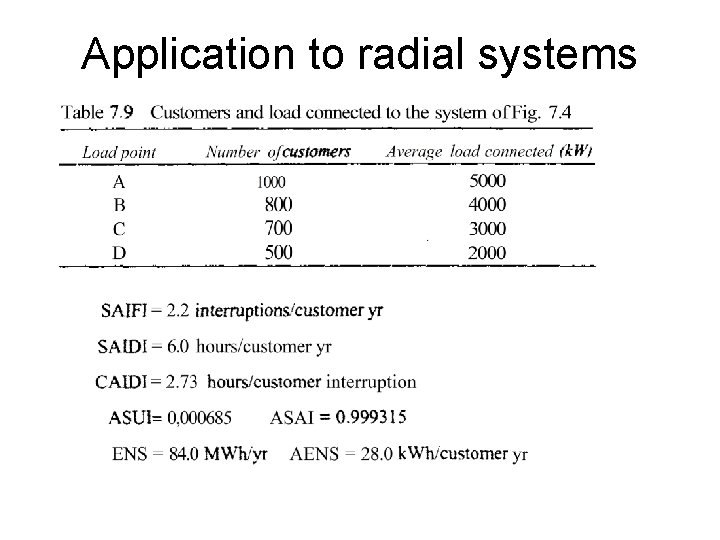

Application to radial systems

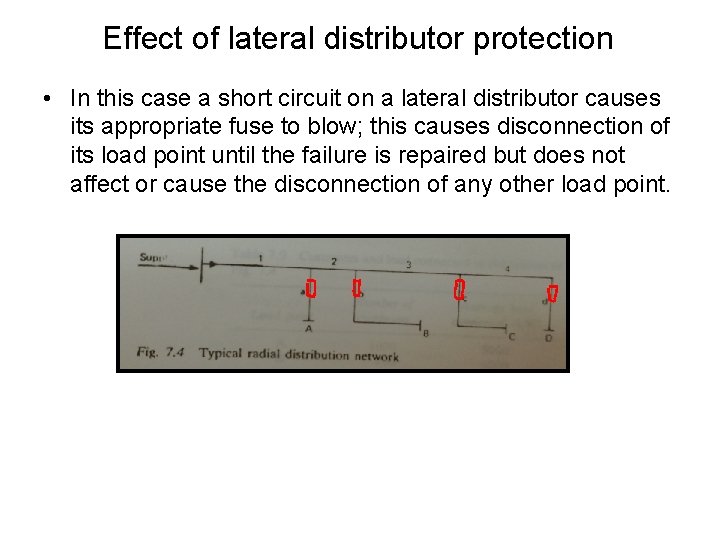

Effect of lateral distributor protection • In this case a short circuit on a lateral distributor causes its appropriate fuse to blow; this causes disconnection of its load point until the failure is repaired but does not affect or cause the disconnection of any other load point.

Effect of lateral distributor protection

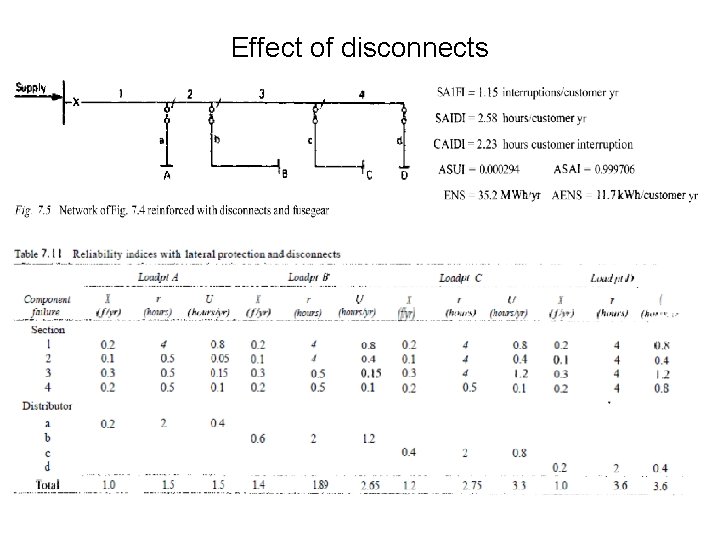

Effect of disconnects

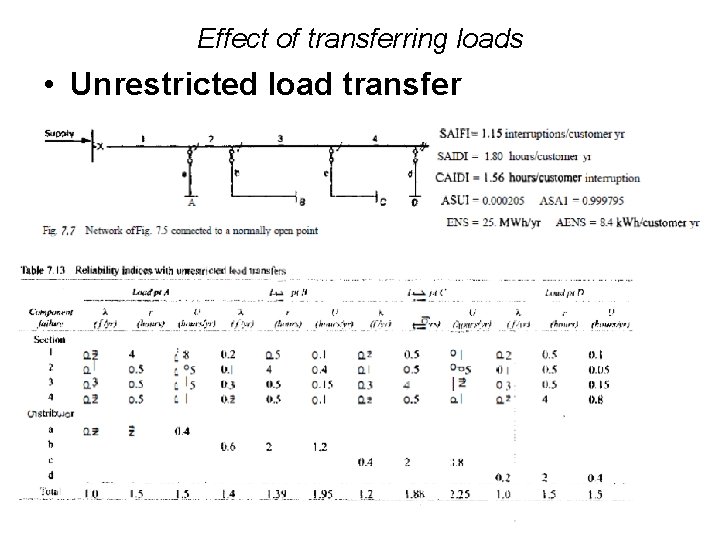

Effect of transferring loads • Unrestricted load transfer

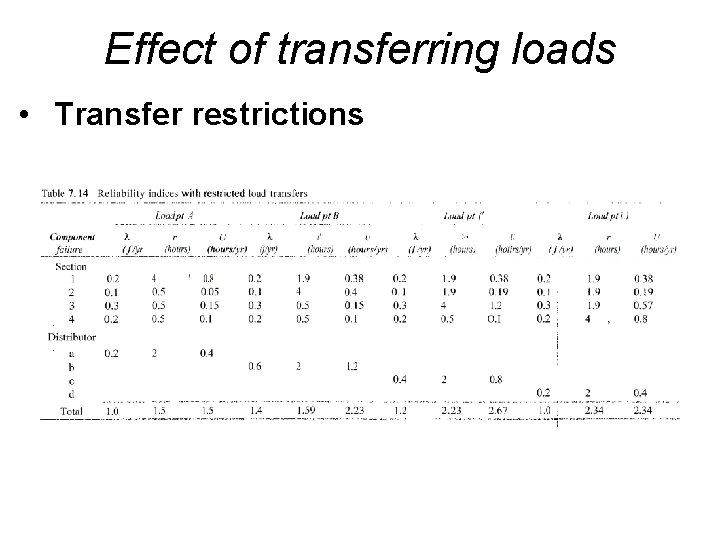

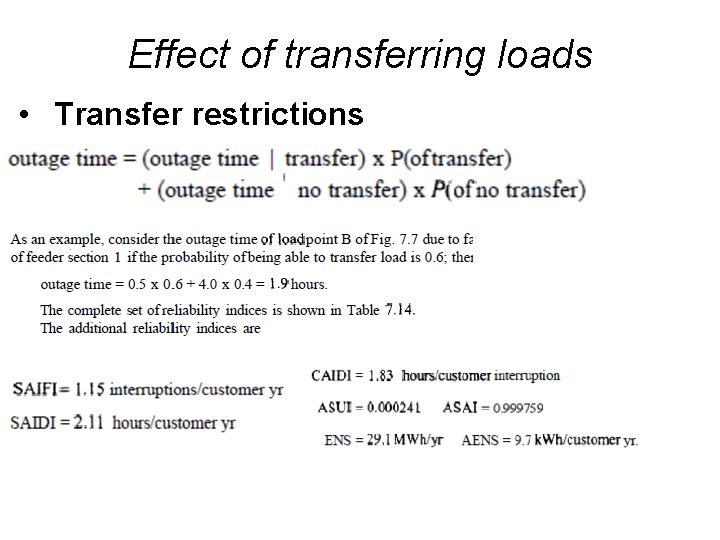

Effect of transferring loads • Transfer restrictions

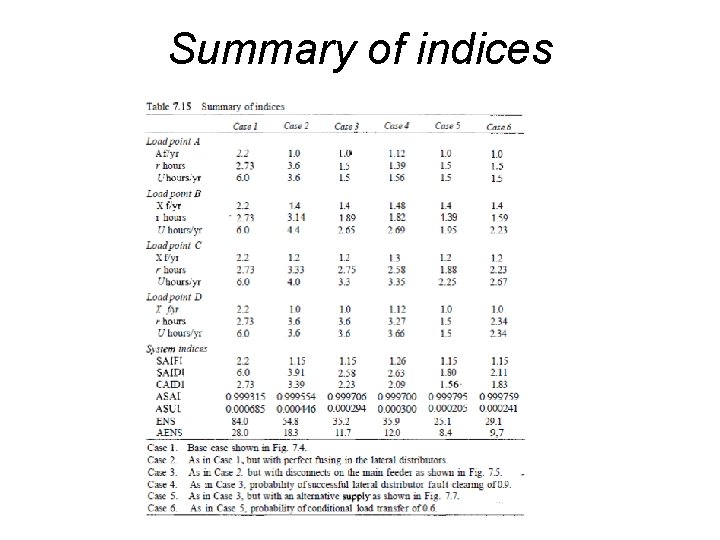

Summary of indices
