Distribution of admission serum sodium in patients hospitalized

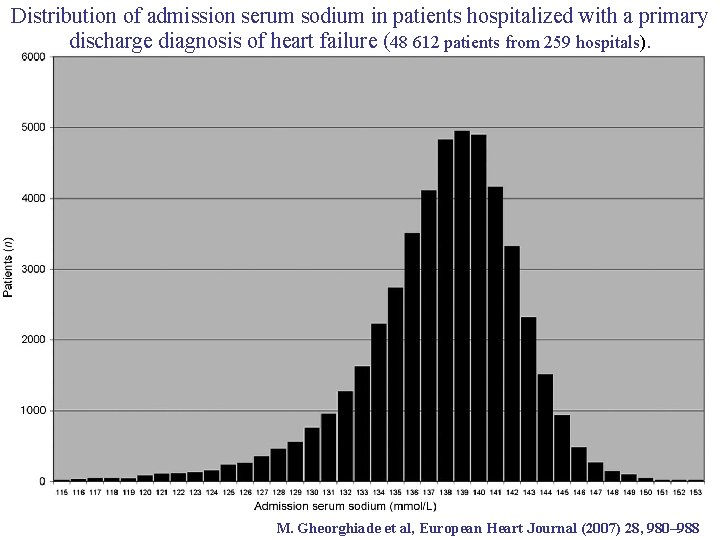

Distribution of admission serum sodium in patients hospitalized with a primary discharge diagnosis of heart failure (48 612 patients from 259 hospitals). M. Gheorghiade et al, European Heart Journal (2007) 28, 980– 988

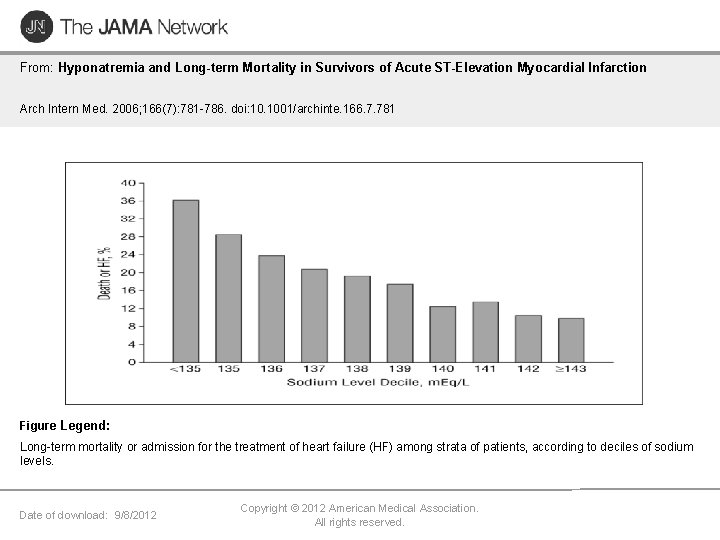

From: Hyponatremia and Long-term Mortality in Survivors of Acute ST-Elevation Myocardial Infarction Arch Intern Med. 2006; 166(7): 781 -786. doi: 10. 1001/archinte. 166. 7. 781 Figure Legend: Long-term mortality or admission for the treatment of heart failure (HF) among strata of patients, according to deciles of sodium levels. Date of download: 9/8/2012 Copyright © 2012 American Medical Association. All rights reserved.

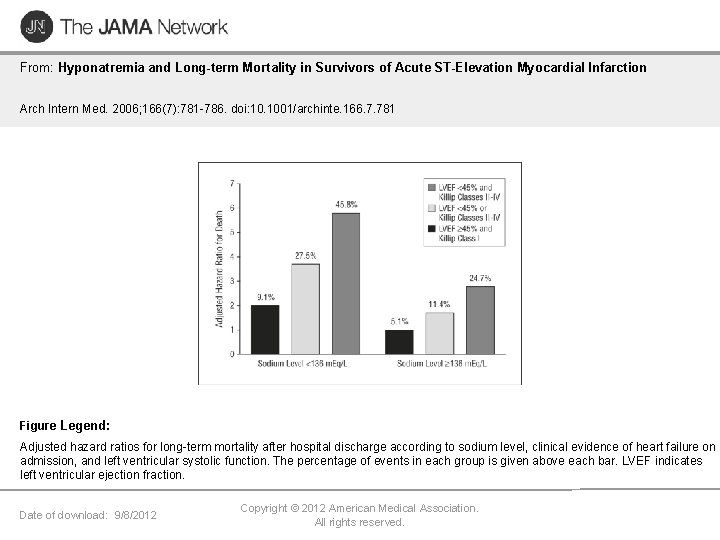

From: Hyponatremia and Long-term Mortality in Survivors of Acute ST-Elevation Myocardial Infarction Arch Intern Med. 2006; 166(7): 781 -786. doi: 10. 1001/archinte. 166. 7. 781 Figure Legend: Adjusted hazard ratios for long-term mortality after hospital discharge according to sodium level, clinical evidence of heart failure on admission, and left ventricular systolic function. The percentage of events in each group is given above each bar. LVEF indicates left ventricular ejection fraction. Date of download: 9/8/2012 Copyright © 2012 American Medical Association. All rights reserved.

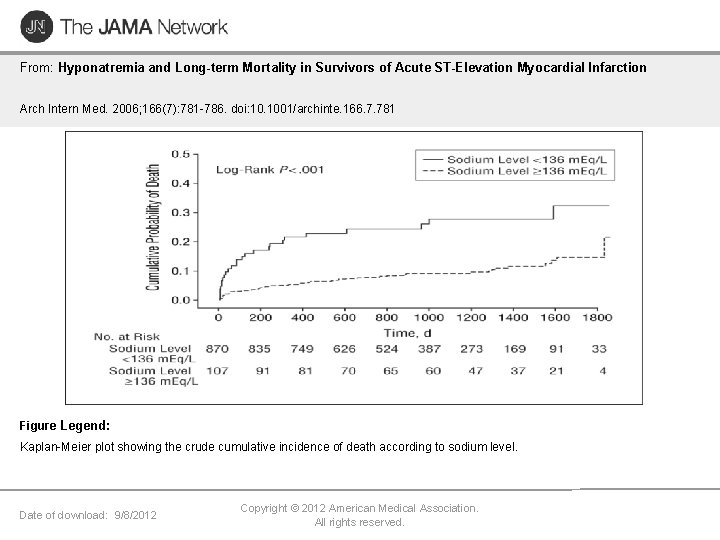

From: Hyponatremia and Long-term Mortality in Survivors of Acute ST-Elevation Myocardial Infarction Arch Intern Med. 2006; 166(7): 781 -786. doi: 10. 1001/archinte. 166. 7. 781 Figure Legend: Kaplan-Meier plot showing the crude cumulative incidence of death according to sodium level. Date of download: 9/8/2012 Copyright © 2012 American Medical Association. All rights reserved.

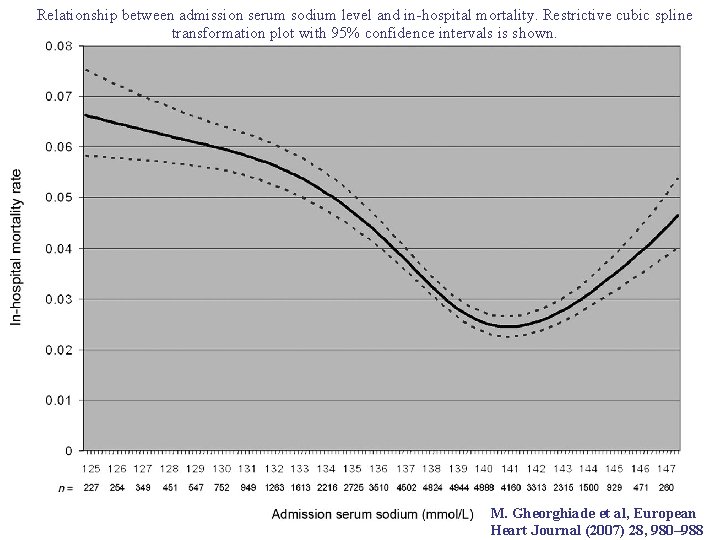

Relationship between admission serum sodium level and in-hospital mortality. Restrictive cubic spline transformation plot with 95% confidence intervals is shown. M. Gheorghiade et al, European Heart Journal (2007) 28, 980– 988

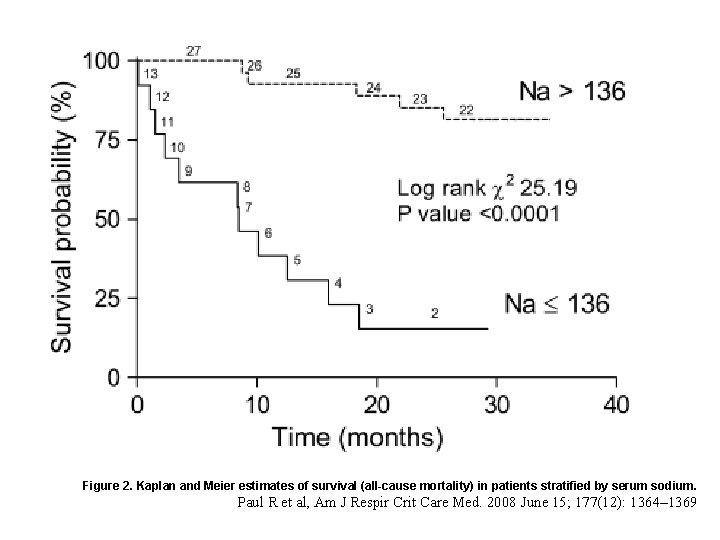

Figure 2. Kaplan and Meier estimates of survival (all-cause mortality) in patients stratified by serum sodium. Paul R et al, Am J Respir Crit Care Med. 2008 June 15; 177(12): 1364– 1369

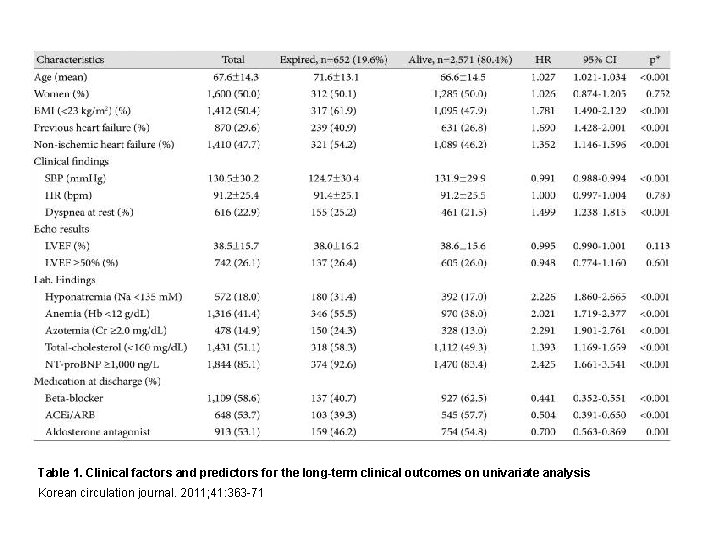

Table 1. Clinical factors and predictors for the long-term clinical outcomes on univariate analysis Korean circulation journal. 2011; 41: 363 -71

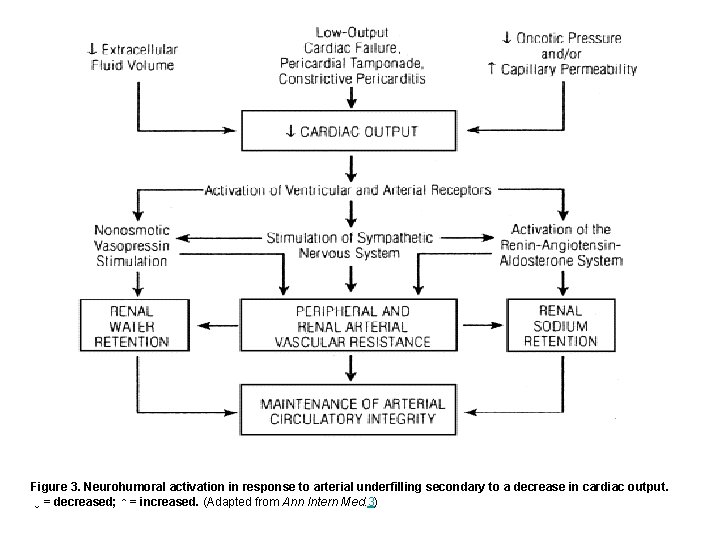

Figure 3. Neurohumoral activation in response to arterial underfilling secondary to a decrease in cardiac output. ↓ = decreased; ↑ = increased. (Adapted from Ann Intern Med. 3)

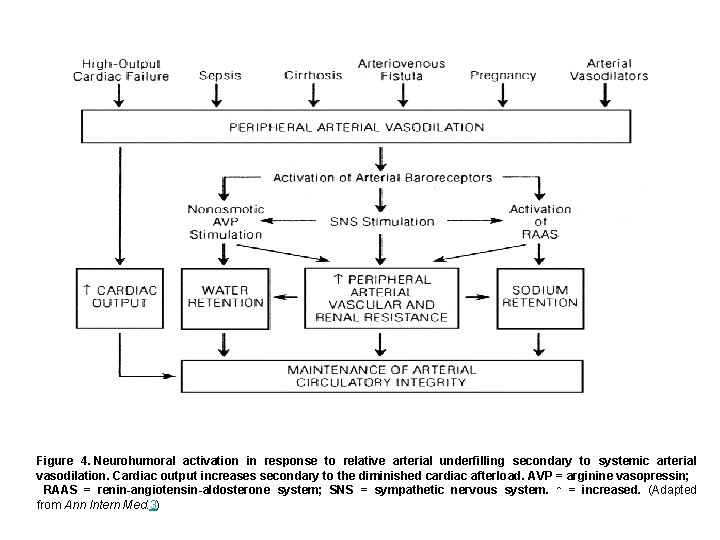

Figure 4. Neurohumoral activation in response to relative arterial underfilling secondary to systemic arterial vasodilation. Cardiac output increases secondary to the diminished cardiac afterload. AVP = arginine vasopressin; RAAS = renin-angiotensin-aldosterone system; SNS = sympathetic nervous system. ↑ = increased. (Adapted from Ann Intern Med. 3)

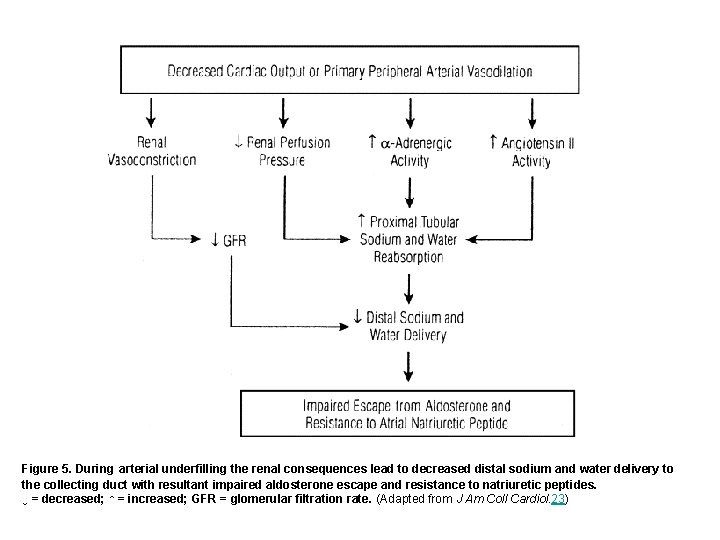

Figure 5. During arterial underfilling the renal consequences lead to decreased distal sodium and water delivery to the collecting duct with resultant impaired aldosterone escape and resistance to natriuretic peptides. ↓ = decreased; ↑ = increased; GFR = glomerular filtration rate. (Adapted from J Am Coll Cardiol. 23)

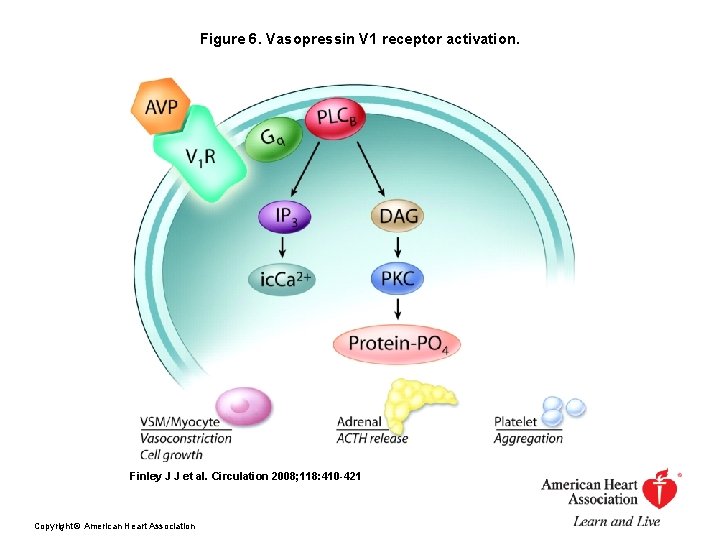

Figure 6. Vasopressin V 1 receptor activation. Finley J J et al. Circulation 2008;

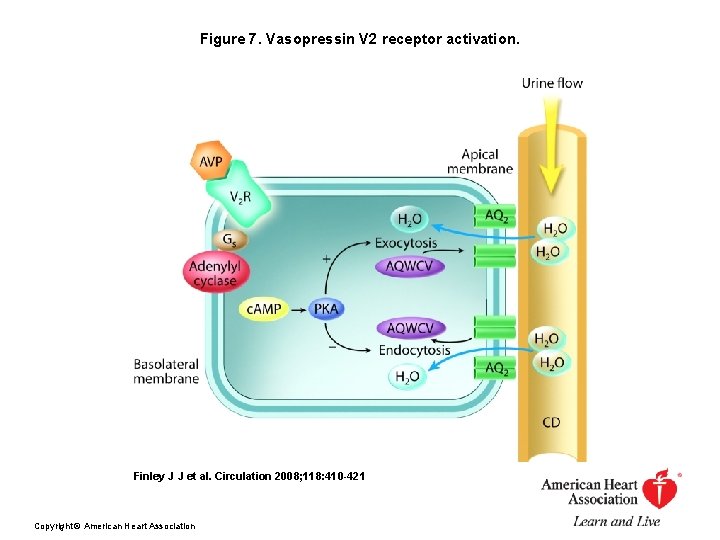

Figure 7. Vasopressin V 2 receptor activation. Finley J J et al. Circulation 2008;

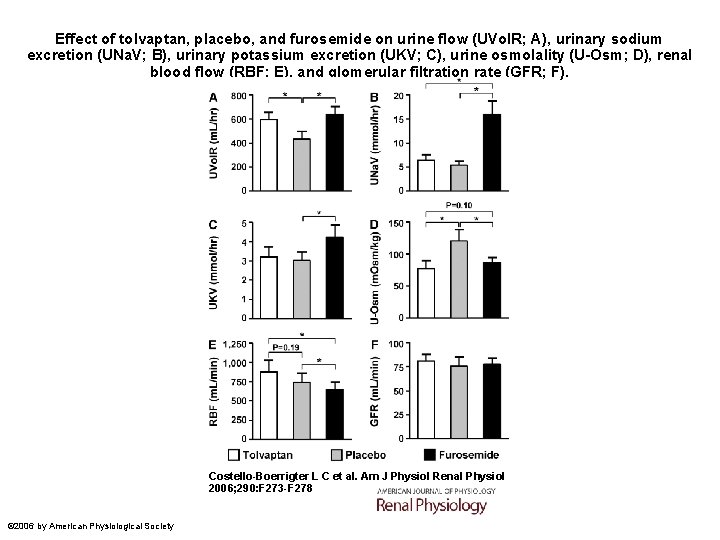

Effect of tolvaptan, placebo, and furosemide on urine flow (UVol. R; A), urinary sodium excretion (UNa. V; B), urinary potassium excretion (UKV; C), urine osmolality (U-Osm; D), renal blood flow (RBF; E), and glomerular filtration rate (GFR; F). Costello-Boerrigter L C et al. Am J Physiol Renal Physiol 2006; 290: F 273 -F 278 © 2006 by American Physiological Society

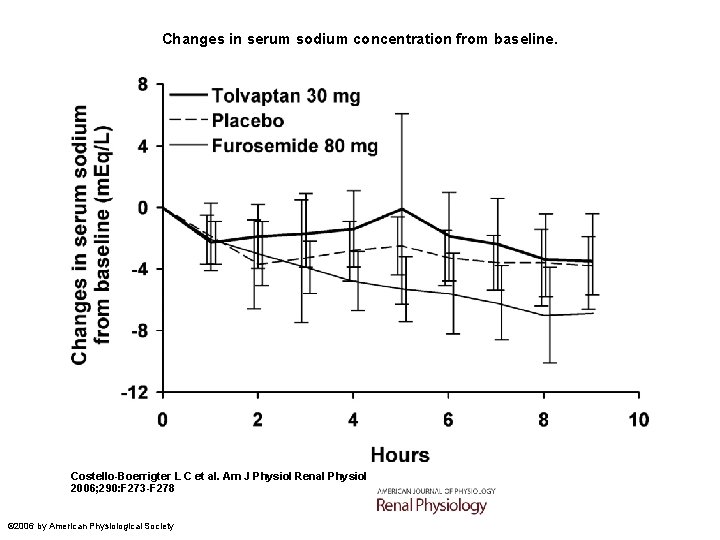

Changes in serum sodium concentration from baseline. Costello-Boerrigter L C et al. Am J

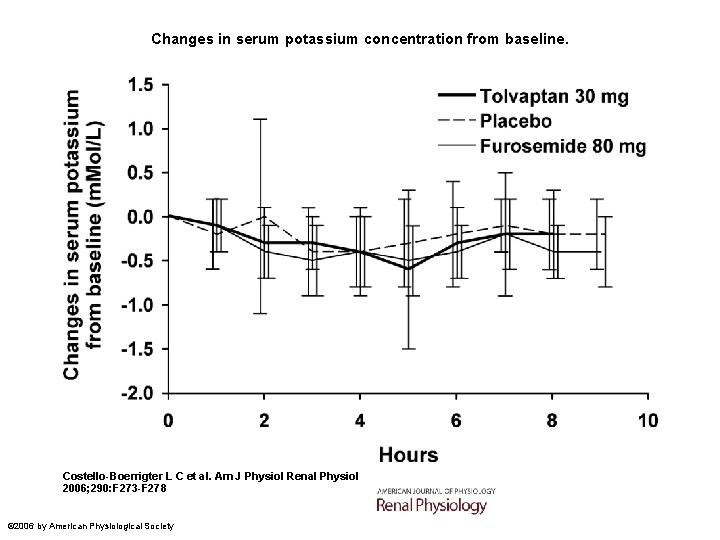

Changes in serum potassium concentration from baseline. Costello-Boerrigter L C et al. Am J

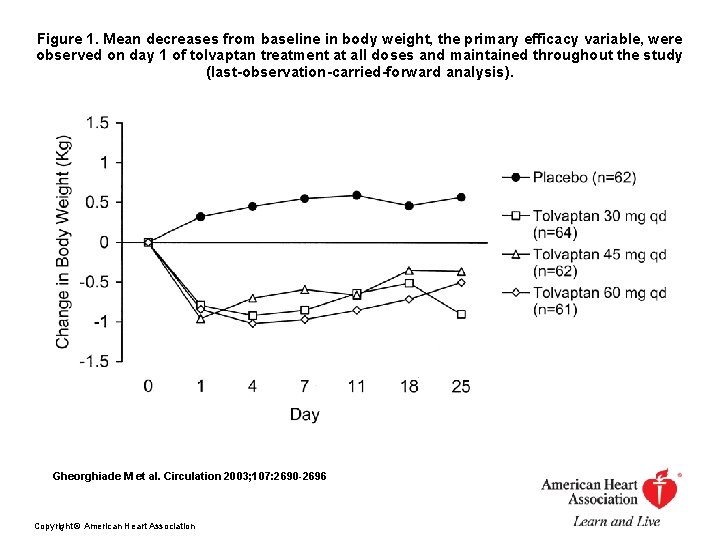

Figure 1. Mean decreases from baseline in body weight, the primary efficacy variable, were observed on day 1 of tolvaptan treatment at all doses and maintained throughout the study (last-observation-carried-forward analysis). Gheorghiade M et al. Circulation 2003; 107: 2690 -2696 Copyright © American Heart Association

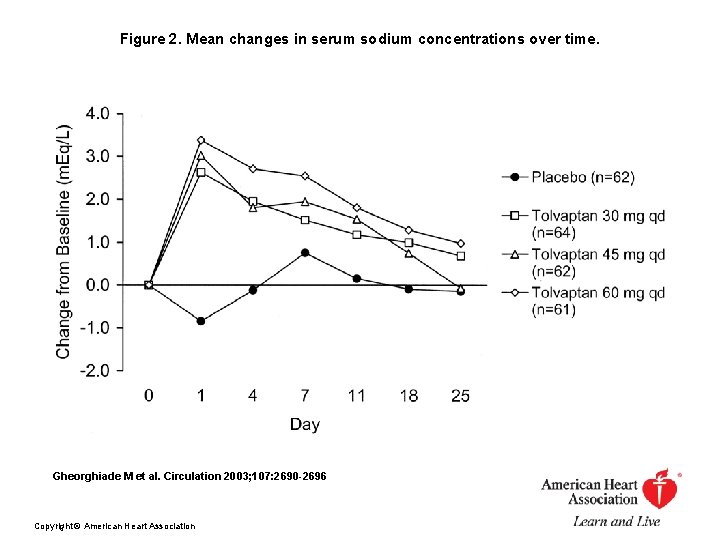

Figure 2. Mean changes in serum sodium concentrations over time. Gheorghiade M et al.

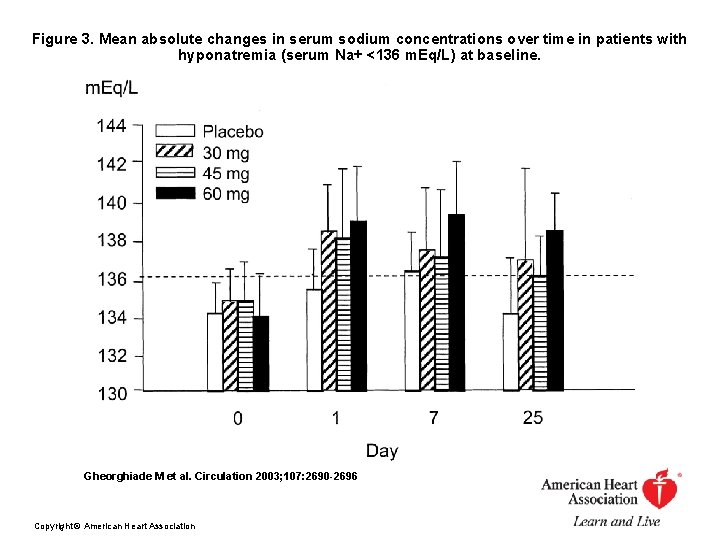

Figure 3. Mean absolute changes in serum sodium concentrations over time in patients with hyponatremia (serum Na+ <136 m. Eq/L) at baseline. Gheorghiade M et al. Circulation 2003; 107: 2690 -2696 Copyright © American Heart Association

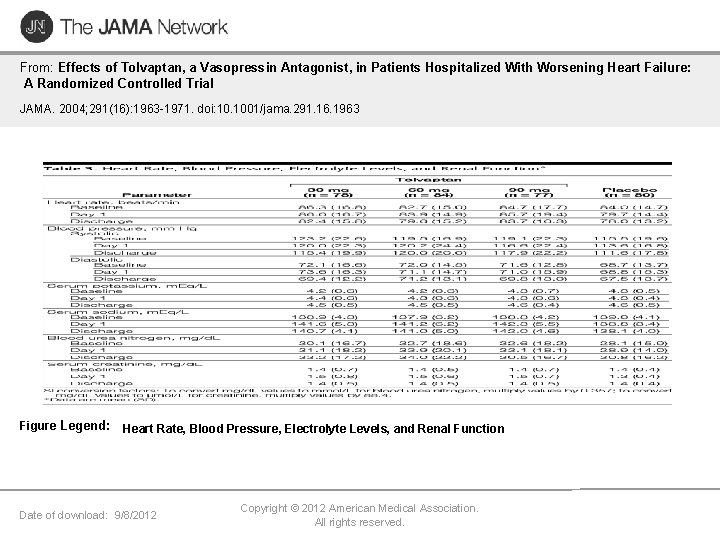

From: Effects of Tolvaptan, a Vasopressin Antagonist, in Patients Hospitalized With Worsening Heart Failure: A Randomized Controlled Trial JAMA. 2004; 291(16): 1963 -1971. doi: 10. 1001/jama. 291. 16. 1963 Figure Legend: Heart Rate, Blood Pressure, Electrolyte Levels, and Renal Function Date of download: 9/8/2012 Copyright © 2012 American Medical Association. All rights reserved.

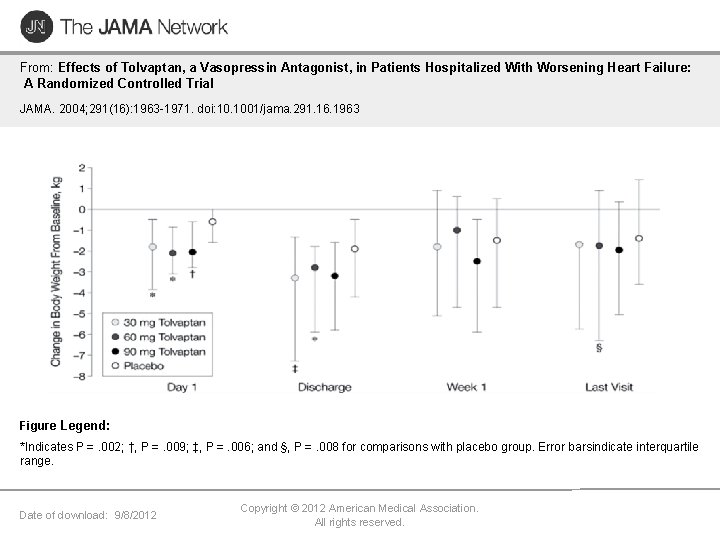

From: Effects of Tolvaptan, a Vasopressin Antagonist, in Patients Hospitalized With Worsening Heart Failure: A Randomized Controlled Trial JAMA. 2004; 291(16): 1963 -1971. doi: 10. 1001/jama. 291. 16. 1963 Figure Legend: *Indicates P =. 002; †, P =. 009; ‡, P =. 006; and §, P =. 008 for comparisons with placebo group. Error barsindicate interquartile range. Date of download: 9/8/2012 Copyright © 2012 American Medical Association. All rights reserved.

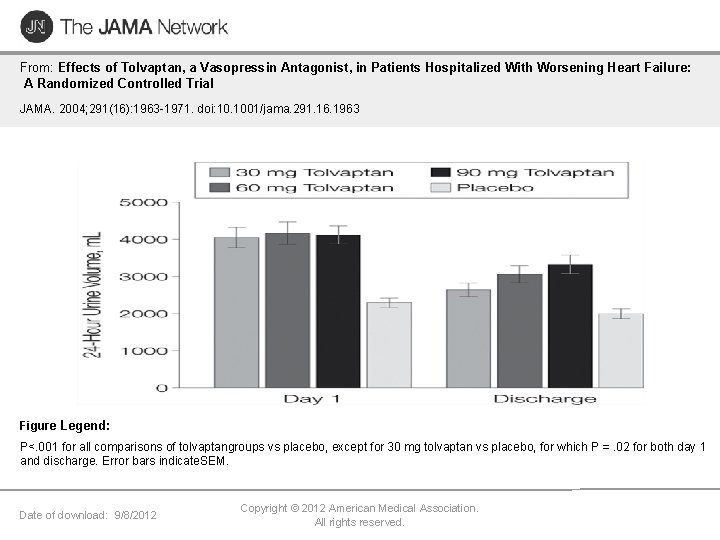

From: Effects of Tolvaptan, a Vasopressin Antagonist, in Patients Hospitalized With Worsening Heart Failure: A Randomized Controlled Trial JAMA. 2004; 291(16): 1963 -1971. doi: 10. 1001/jama. 291. 16. 1963 Figure Legend: P<. 001 for all comparisons of tolvaptangroups vs placebo, except for 30 mg tolvaptan vs placebo, for which P =. 02 for both day 1 and discharge. Error bars indicate. SEM. Date of download: 9/8/2012 Copyright © 2012 American Medical Association. All rights reserved.

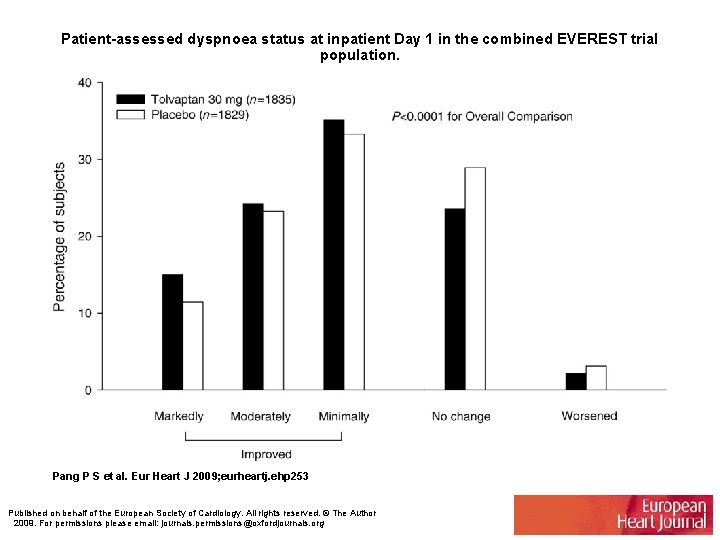

Patient-assessed dyspnoea status at inpatient Day 1 in the combined EVEREST trial population. Pang P S et al. Eur Heart J 2009; eurheartj. ehp 253 Published on behalf of the European Society of Cardiology. All rights reserved. © The Author 2009. For permissions please email: journals. permissions@oxfordjournals. org

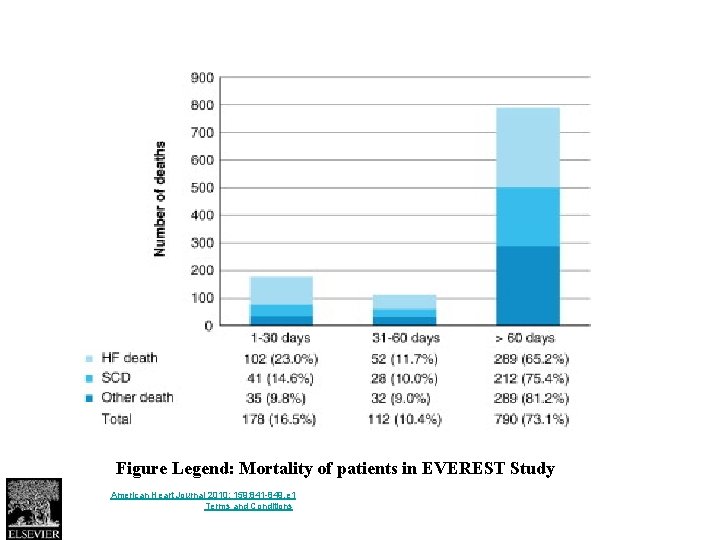

Figure 1 Figure Legend: Mortality of patients in EVEREST Study Source: American Heart Journal 2010; 159: 841 -849. e 1 (DOI: 10. 1016/j. ahj. 2010. 023 ) Copyright © 2010 Mosby, Inc. Terms and Conditions

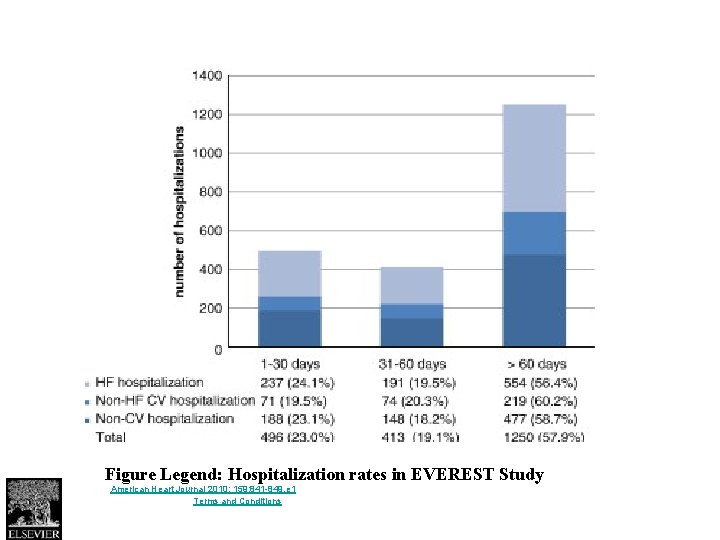

Figure 2 Figure Legend: Hospitalization rates in EVEREST Study Source: American Heart Journal 2010; 159: 841 -849. e 1 (DOI: 10. 1016/j. ahj. 2010. 023 ) Copyright © 2010 Mosby, Inc. Terms and Conditions

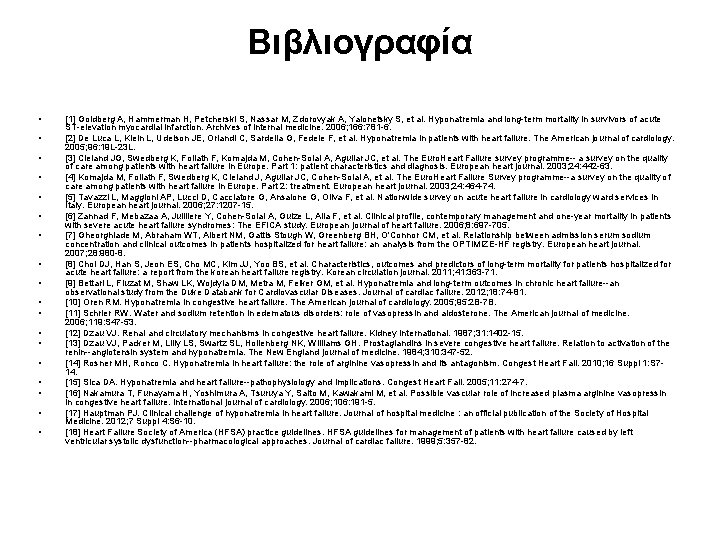

Βιβλιογραφία • • • • • [1] Goldberg A, Hammerman H, Petcherski S, Nassar M, Zdorovyak A, Yalonetsky S, et al. Hyponatremia and long-term mortality in survivors of acute ST-elevation myocardial infarction. Archives of internal medicine. 2006; 166: 781 -6. [2] De Luca L, Klein L, Udelson JE, Orlandi C, Sardella G, Fedele F, et al. Hyponatremia in patients with heart failure. The American journal of cardiology. 2005; 96: 19 L-23 L. [3] Cleland JG, Swedberg K, Follath F, Komajda M, Cohen-Solal A, Aguilar JC, et al. The Euro. Heart Failure survey programme-- a survey on the quality of care among patients with heart failure in Europe. Part 1: patient characteristics and diagnosis. European heart journal. 2003; 24: 442 -63. [4] Komajda M, Follath F, Swedberg K, Cleland J, Aguilar JC, Cohen-Solal A, et al. The Euro. Heart Failure Survey programme--a survey on the quality of care among patients with heart failure in Europe. Part 2: treatment. European heart journal. 2003; 24: 464 -74. [5] Tavazzi L, Maggioni AP, Lucci D, Cacciatore G, Ansalone G, Oliva F, et al. Nationwide survey on acute heart failure in cardiology ward services in Italy. European heart journal. 2006; 27: 1207 -15. [6] Zannad F, Mebazaa A, Juilliere Y, Cohen-Solal A, Guize L, Alla F, et al. Clinical profile, contemporary management and one-year mortality in patients with severe acute heart failure syndromes: The EFICA study. European journal of heart failure. 2006; 8: 697 -705. [7] Gheorghiade M, Abraham WT, Albert NM, Gattis Stough W, Greenberg BH, O'Connor CM, et al. Relationship between admission serum sodium concentration and clinical outcomes in patients hospitalized for heart failure: an analysis from the OPTIMIZE-HF registry. European heart journal. 2007; 28: 980 -8. [8] Choi DJ, Han S, Jeon ES, Cho MC, Kim JJ, Yoo BS, et al. Characteristics, outcomes and predictors of long-term mortality for patients hospitalized for acute heart failure: a report from the korean heart failure registry. Korean circulation journal. 2011; 41: 363 -71. [9] Bettari L, Fiuzat M, Shaw LK, Wojdyla DM, Metra M, Felker GM, et al. Hyponatremia and long-term outcomes in chronic heart failure--an observational study from the Duke Databank for Cardiovascular Diseases. Journal of cardiac failure. 2012; 18: 74 -81. [10] Oren RM. Hyponatremia in congestive heart failure. The American journal of cardiology. 2005; 95: 2 B-7 B. [11] Schrier RW. Water and sodium retention in edematous disorders: role of vasopressin and aldosterone. The American journal of medicine. 2006; 119: S 47 -53. [12] Dzau VJ. Renal and circulatory mechanisms in congestive heart failure. Kidney international. 1987; 31: 1402 -15. [13] Dzau VJ, Packer M, Lilly LS, Swartz SL, Hollenberg NK, Williams GH. Prostaglandins in severe congestive heart failure. Relation to activation of the renin--angiotensin system and hyponatremia. The New England journal of medicine. 1984; 310: 347 -52. [14] Rosner MH, Ronco C. Hyponatremia in heart failure: the role of arginine vasopressin and its antagonism. Congest Heart Fail. 2010; 16 Suppl 1: S 714. [15] Sica DA. Hyponatremia and heart failure--pathophysiology and implications. Congest Heart Fail. 2005; 11: 274 -7. [16] Nakamura T, Funayama H, Yoshimura A, Tsuruya Y, Saito M, Kawakami M, et al. Possible vascular role of increased plasma arginine vasopressin in congestive heart failure. International journal of cardiology. 2006; 106: 191 -5. [17] Hauptman PJ. Clinical challenge of hyponatremia in heart failure. Journal of hospital medicine : an official publication of the Society of Hospital Medicine. 2012; 7 Suppl 4: S 6 -10. [18] Heart Failure Society of America (HFSA) practice guidelines. HFSA guidelines for management of patients with heart failure caused by left ventricular systolic dysfunction--pharmacological approaches. Journal of cardiac failure. 1999; 5: 357 -82.

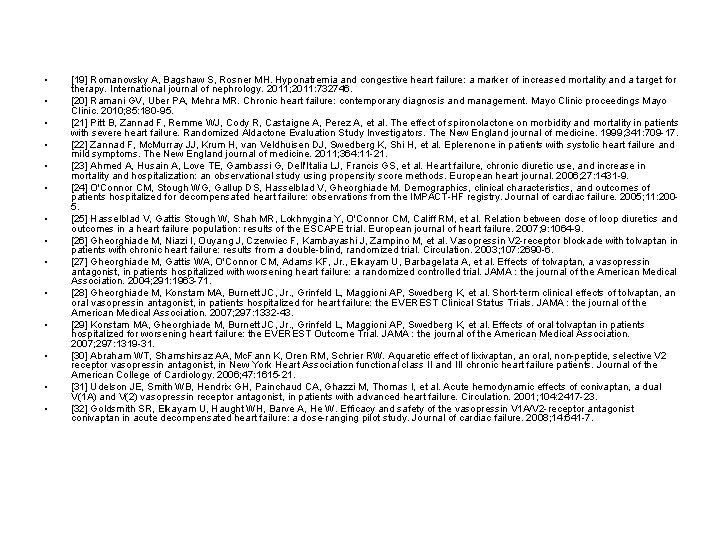

• • • • [19] Romanovsky A, Bagshaw S, Rosner MH. Hyponatremia and congestive heart failure: a marker of increased mortality and a target for therapy. International journal of nephrology. 2011; 2011: 732746. [20] Ramani GV, Uber PA, Mehra MR. Chronic heart failure: contemporary diagnosis and management. Mayo Clinic proceedings Mayo Clinic. 2010; 85: 180 -95. [21] Pitt B, Zannad F, Remme WJ, Cody R, Castaigne A, Perez A, et al. The effect of spironolactone on morbidity and mortality in patients with severe heart failure. Randomized Aldactone Evaluation Study Investigators. The New England journal of medicine. 1999; 341: 709 -17. [22] Zannad F, Mc. Murray JJ, Krum H, van Veldhuisen DJ, Swedberg K, Shi H, et al. Eplerenone in patients with systolic heart failure and mild symptoms. The New England journal of medicine. 2011; 364: 11 -21. [23] Ahmed A, Husain A, Love TE, Gambassi G, Dell'Italia LJ, Francis GS, et al. Heart failure, chronic diuretic use, and increase in mortality and hospitalization: an observational study using propensity score methods. European heart journal. 2006; 27: 1431 -9. [24] O'Connor CM, Stough WG, Gallup DS, Hasselblad V, Gheorghiade M. Demographics, clinical characteristics, and outcomes of patients hospitalized for decompensated heart failure: observations from the IMPACT-HF registry. Journal of cardiac failure. 2005; 11: 2005. [25] Hasselblad V, Gattis Stough W, Shah MR, Lokhnygina Y, O'Connor CM, Califf RM, et al. Relation between dose of loop diuretics and outcomes in a heart failure population: results of the ESCAPE trial. European journal of heart failure. 2007; 9: 1064 -9. [26] Gheorghiade M, Niazi I, Ouyang J, Czerwiec F, Kambayashi J, Zampino M, et al. Vasopressin V 2 -receptor blockade with tolvaptan in patients with chronic heart failure: results from a double-blind, randomized trial. Circulation. 2003; 107: 2690 -6. [27] Gheorghiade M, Gattis WA, O'Connor CM, Adams KF, Jr. , Elkayam U, Barbagelata A, et al. Effects of tolvaptan, a vasopressin antagonist, in patients hospitalized with worsening heart failure: a randomized controlled trial. JAMA : the journal of the American Medical Association. 2004; 291: 1963 -71. [28] Gheorghiade M, Konstam MA, Burnett JC, Jr. , Grinfeld L, Maggioni AP, Swedberg K, et al. Short-term clinical effects of tolvaptan, an oral vasopressin antagonist, in patients hospitalized for heart failure: the EVEREST Clinical Status Trials. JAMA : the journal of the American Medical Association. 2007; 297: 1332 -43. [29] Konstam MA, Gheorghiade M, Burnett JC, Jr. , Grinfeld L, Maggioni AP, Swedberg K, et al. Effects of oral tolvaptan in patients hospitalized for worsening heart failure: the EVEREST Outcome Trial. JAMA : the journal of the American Medical Association. 2007; 297: 1319 -31. [30] Abraham WT, Shamshirsaz AA, Mc. Fann K, Oren RM, Schrier RW. Aquaretic effect of lixivaptan, an oral, non-peptide, selective V 2 receptor vasopressin antagonist, in New York Heart Association functional class II and III chronic heart failure patients. Journal of the American College of Cardiology. 2006; 47: 1615 -21. [31] Udelson JE, Smith WB, Hendrix GH, Painchaud CA, Ghazzi M, Thomas I, et al. Acute hemodynamic effects of conivaptan, a dual V(1 A) and V(2) vasopressin receptor antagonist, in patients with advanced heart failure. Circulation. 2001; 104: 2417 -23. [32] Goldsmith SR, Elkayam U, Haught WH, Barve A, He W. Efficacy and safety of the vasopressin V 1 A/V 2 -receptor antagonist conivaptan in acute decompensated heart failure: a dose-ranging pilot study. Journal of cardiac failure. 2008; 14: 641 -7.
