Distributed Transactions What is a transaction A sequence
Distributed Transactions What is a transaction? (A sequence of server operations that must be carried out atomically) ACID properties - what are these (Atomicity, Consistency, Isolation, Durability) What is a distributed transaction? -Involves objects managed by communicating with one another. multiple servers
Transactions Permanent Record Commit / Abort Shared variables Server operation

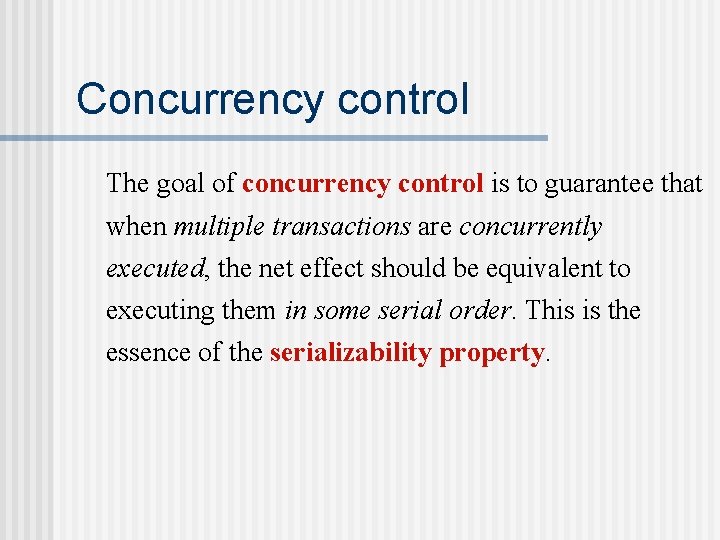

Concurrency control The goal of concurrency control is to guarantee that when multiple transactions are concurrently executed, the net effect should be equivalent to executing them in some serial order. This is the essence of the serializability property.
Example 1 T 1 starts (20) W(x: =1) [OK] T 2 starts(30) T 3 starts (40) R(x) [OK] W(x: =2) [OK] T 1 commits T 2 commits W(x: =3) [OK] R(x) T 3 commits This is serializable. Think of other examples too.
Example 2 T 1 starts (20) W(x: =1) [OK] T 2 starts(30) T 3 starts (40) This is not serializable. R(x) [NO] W(x: =2) [OK] T 1 aborts R(x) T 2 commits W(x: =3) [OK] T 3 commits

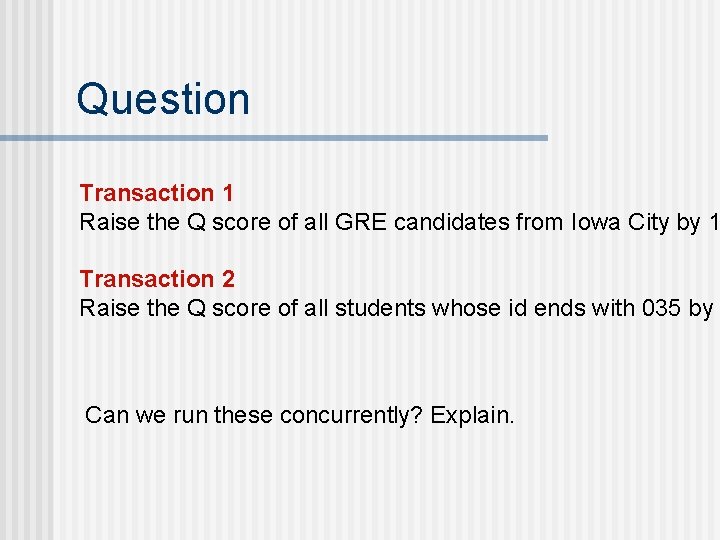

Question Transaction 1 Raise the Q score of all GRE candidates from Iowa City by 1 Transaction 2 Raise the Q score of all students whose id ends with 035 by Can we run these concurrently? Explain.

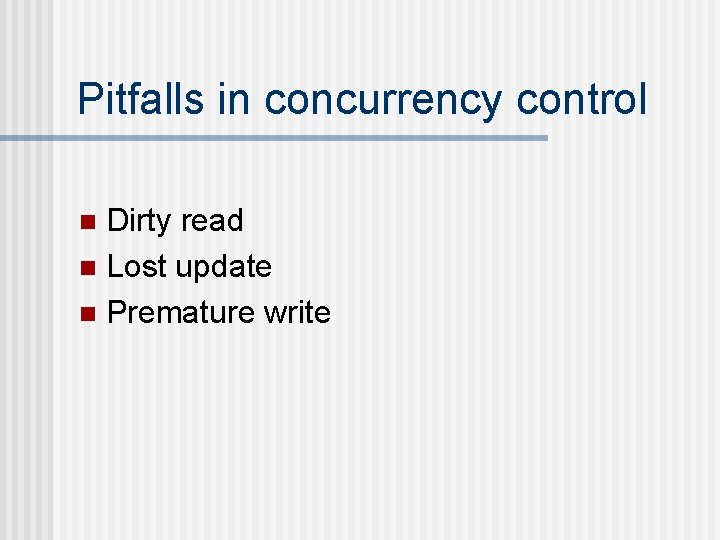

Pitfalls in concurrency control Dirty read n Lost update n Premature write n
Lost update Initially, B= $1000 Amy’s transaction 1 Load B into local 4 2 Add $250 to local 3 Store local to B 3 Bob’s transaction Load B into local 5 Add $250 to local 6 Store local to B What if the interleaving is 1 4 2 5 3 6 ? The final value of B is $1250, although it should have been $1500
Dirty read Initially B= $1000 Amy’s transaction 1 Load B into local 4 2 Add $250 to local 3 Store local to B ABORT 3 Bob’s transaction Load B into local 5 Add $250 to local 6 Store local to B COMMIT Execute the actions in the sequence 1 2 3 4 5 6. The final result is still $1500, although it should have been $1250
Premature write {Initially B = 0} Amy’s transaction 1 B: = $500 Bob’s transaction 2 B : = $1000 3 4 COMMIT ABORT B changes to 0. This could have been avoided if the second transaction postponed its commit UNTIL the first transaction commits or aborts.
Locks are commonly used to implement serrializability of concurrent transactions. Operations on shared objects are in conflict when one of them is a write operation. Each transaction must acquire the corresponding exclusive lock before executing an action. Locks can be fine grained. Note that there is no conflict between two reads.

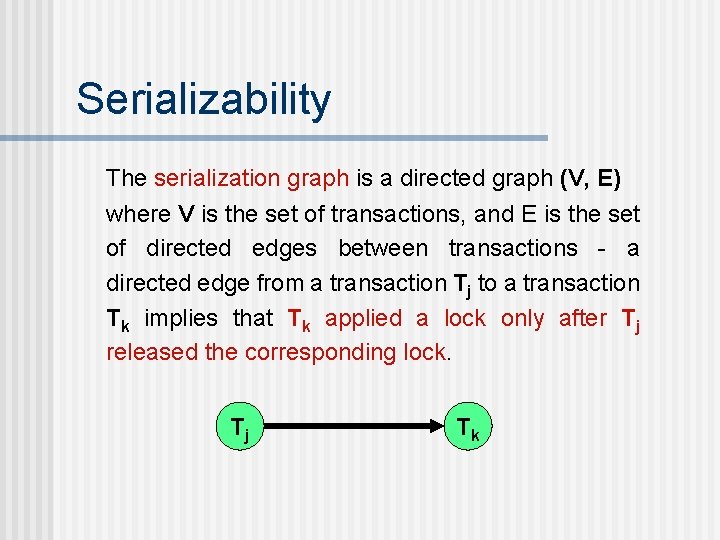

Serializability The serialization graph is a directed graph (V, E) where V is the set of transactions, and E is the set of directed edges between transactions - a directed edge from a transaction Tj to a transaction Tk implies that Tk applied a lock only after Tj released the corresponding lock. Tj Tk
Serializability theorem For a set of concurrent transaction, the serializability property holds if and only if the corresponding serialization graph is acyclic

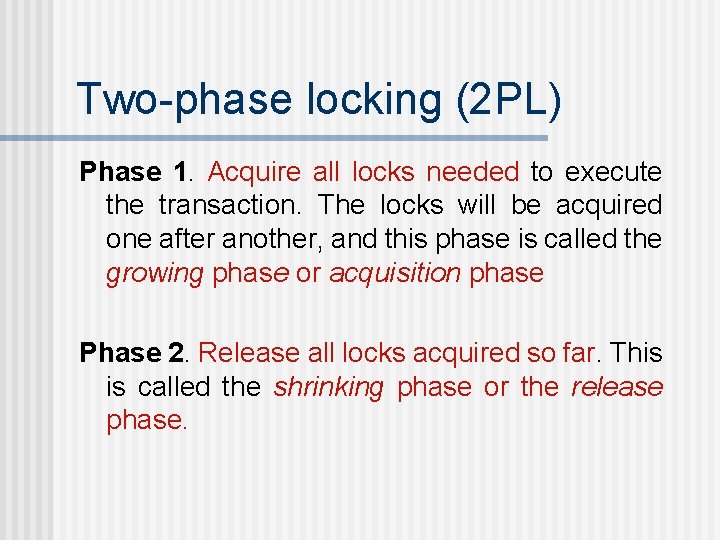

Two-phase locking (2 PL) Phase 1. Acquire all locks needed to execute the transaction. The locks will be acquired one after another, and this phase is called the growing phase or acquisition phase Phase 2. Release all locks acquired so far. This is called the shrinking phase or the release phase.
Two-phase locking (2 PL) acquire Growing phase release Shrinking phase

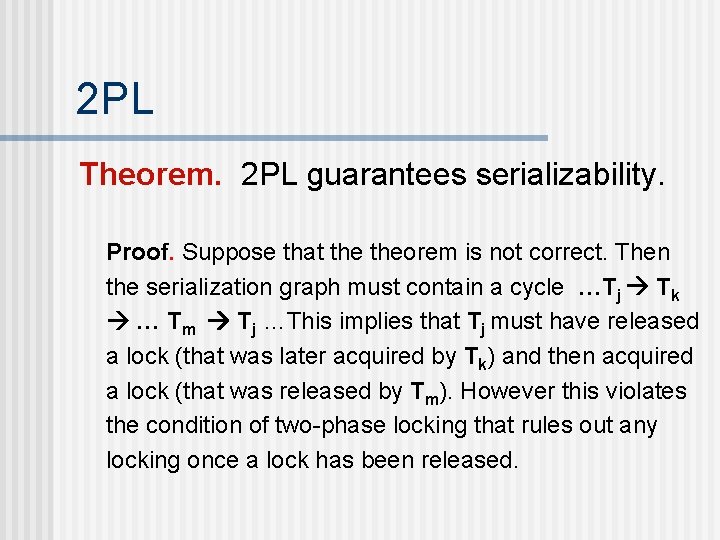

2 PL Theorem. 2 PL guarantees serializability. Proof. Suppose that theorem is not correct. Then the serialization graph must contain a cycle …Tj Tk … Tm Tj …This implies that Tj must have released a lock (that was later acquired by Tk) and then acquired a lock (that was released by Tm). However this violates the condition of two-phase locking that rules out any locking once a lock has been released.

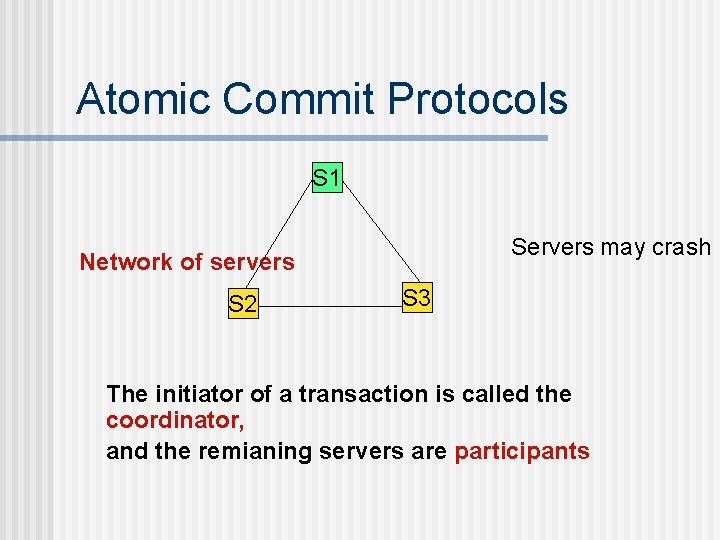

Atomic Commit Protocols S 1 Servers may crash Network of servers S 2 S 3 The initiator of a transaction is called the coordinator, and the remianing servers are participants

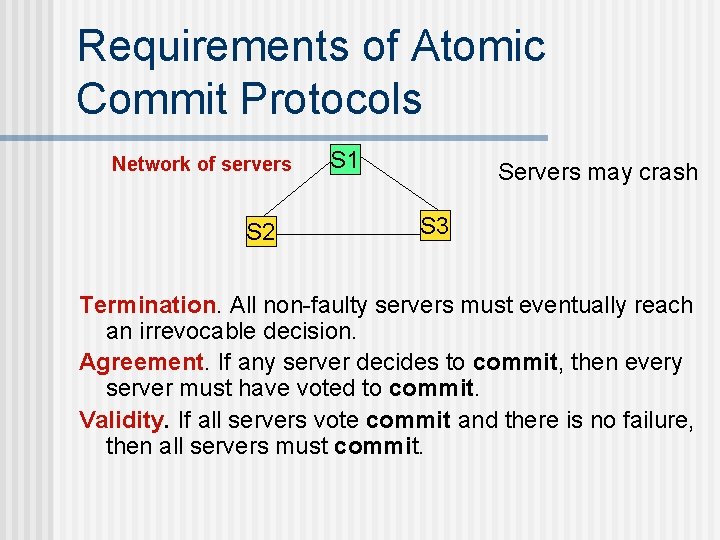

Requirements of Atomic Commit Protocols Network of servers S 2 S 1 Servers may crash S 3 Termination. All non-faulty servers must eventually reach an irrevocable decision. Agreement. If any server decides to commit, then every server must have voted to commit. Validity. If all servers vote commit and there is no failure, then all servers must commit.

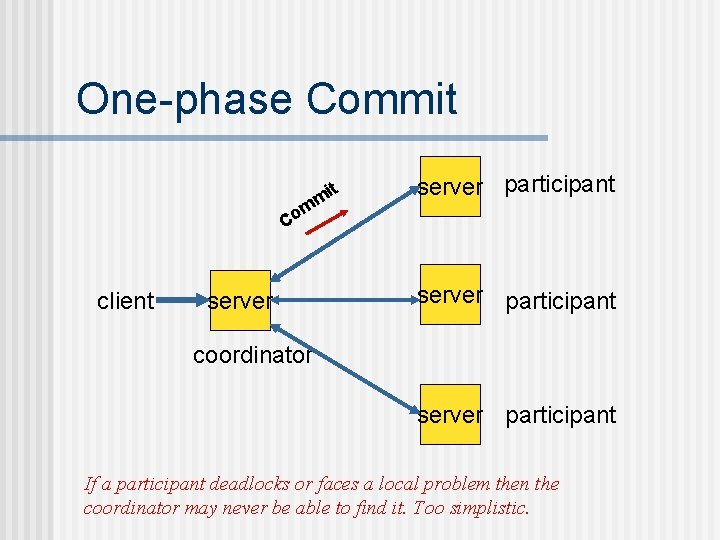

One-phase Commit t mi m o C client server participant coordinator server participant If a participant deadlocks or faces a local problem then the coordinator may never be able to find it. Too simplistic.
