Distributed Transaction Management Fall 2003 Background reading Jyrki

Distributed Transaction Management, Fall 2003 Background reading Jyrki Nummenmaa http: //www. cs. uta. fi/~dtm/ jyrki@cs. uta. fi Background reading

Distributed Transaction Management, Fall 2003 Background reading Purpose of these slides n These slides contain concepts, that are

Distributed Transaction Management, Fall 2003 Background reading Transaction n n A txn consists of the execution of a sequence of client requests that access or update one or more of the data items. A txn may commit (complete successfully), or be rolled back to the beginning & re-started, or may be killed off without any of its requested changes becoming permanent. In a txn, individual modifications to the database are aggregated into a single large modification that appears to occur either entirely in a single moment or not at all.

Distributed Transaction Management, Fall 2003 Background reading Transaction Processing system n n n Transaction processing systems (TP systems) provide tools to help software development for applications that involve querying and updating databases. The term ”TP system” is generally taken to mean a complete system, including application generators, one or more database systems, utilities and networking software. Within a TP system, there is a core collection of services, called the TP monitor, that coordinates the flow of txns through the system.

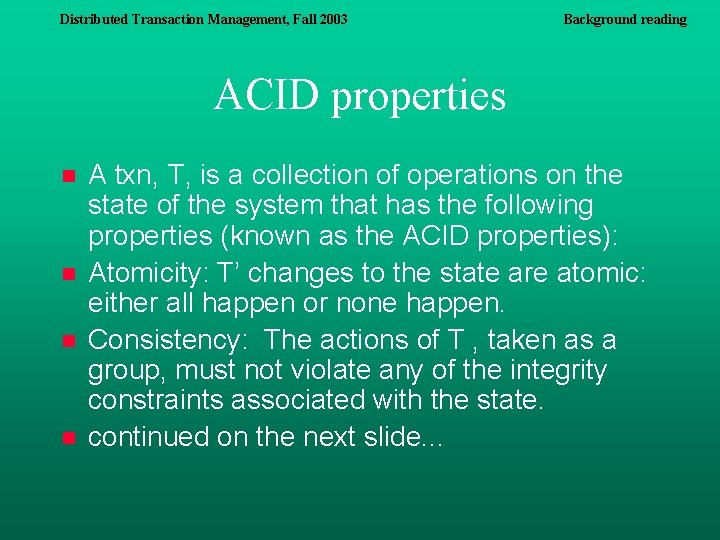

Distributed Transaction Management, Fall 2003 Background reading ACID properties n n A txn, T, is a collection of operations on the state of the system that has the following properties (known as the ACID properties): Atomicity: T’ changes to the state are atomic: either all happen or none happen. Consistency: The actions of T , taken as a group, must not violate any of the integrity constraints associated with the state. continued on the next slide. . .

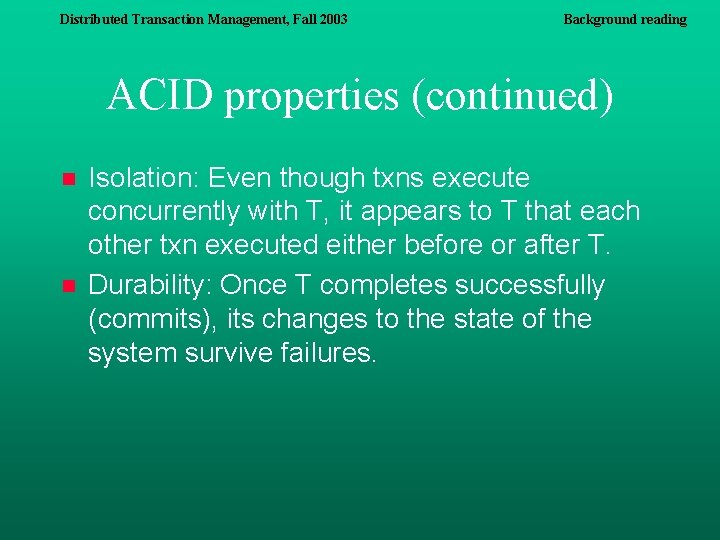

Distributed Transaction Management, Fall 2003 Background reading ACID properties (continued) n n Isolation: Even though txns execute concurrently with T, it appears to T that each other txn executed either before or after T. Durability: Once T completes successfully (commits), its changes to the state of the system survive failures.

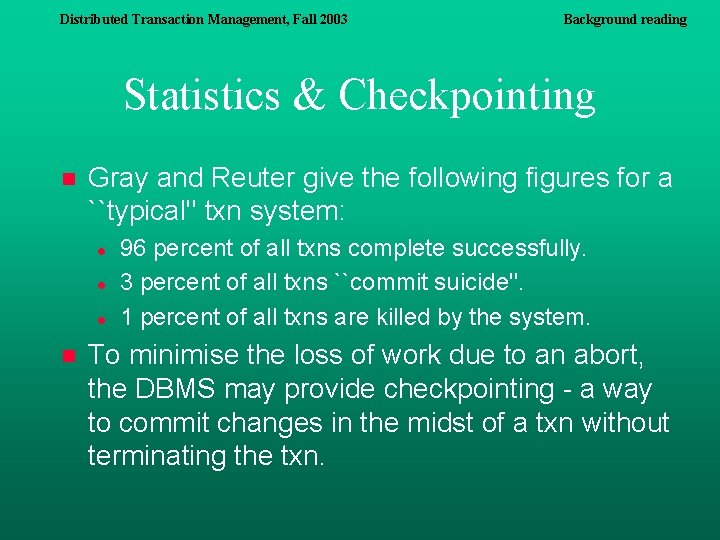

Distributed Transaction Management, Fall 2003 Background reading Statistics & Checkpointing n Gray and Reuter give the following figures for a ``typical'' txn system: l l l n 96 percent of all txns complete successfully. 3 percent of all txns ``commit suicide''. 1 percent of all txns are killed by the system. To minimise the loss of work due to an abort, the DBMS may provide checkpointing - a way to commit changes in the midst of a txn without terminating the txn.

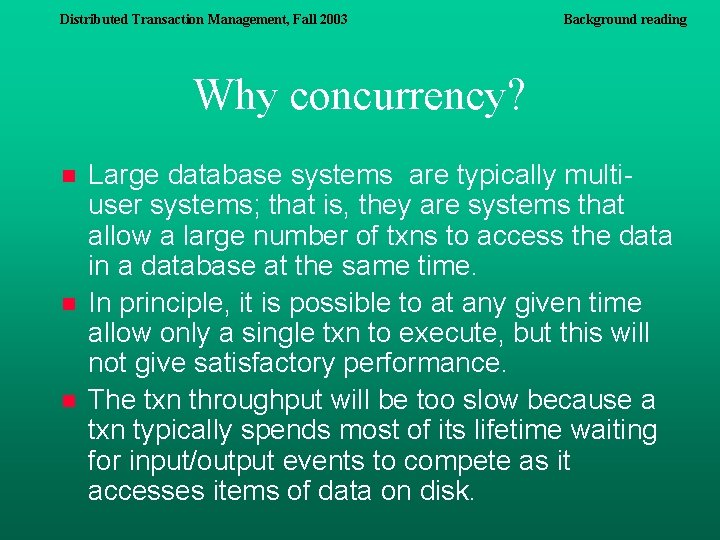

Distributed Transaction Management, Fall 2003 Background reading Why concurrency? n n n Large database systems are typically multiuser systems; that is, they are systems that allow a large number of txns to access the data in a database at the same time. In principle, it is possible to at any given time allow only a single txn to execute, but this will not give satisfactory performance. The txn throughput will be too slow because a txn typically spends most of its lifetime waiting for input/output events to compete as it accesses items of data on disk.

Distributed Transaction Management, Fall 2003 Background reading Total Order Implementation By interleaving txns, we can get better utilization of the computer hardware. n The price we pay is more complexity in managing the activity in the database management system. n

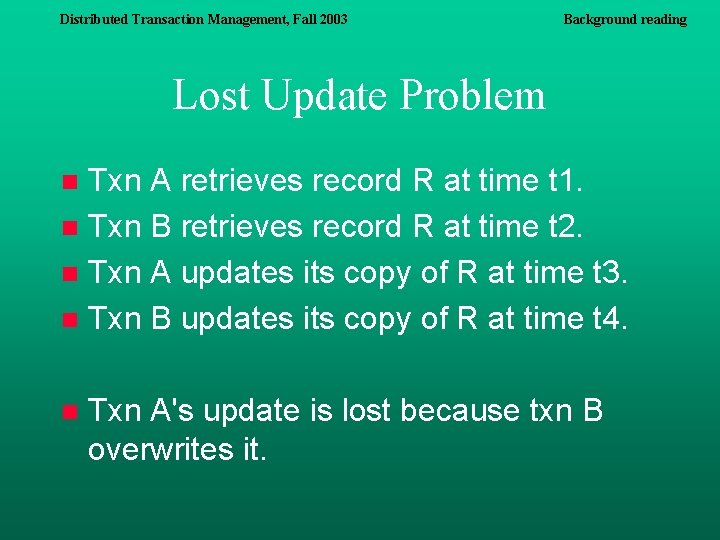

Distributed Transaction Management, Fall 2003 Background reading Lost Update Problem Txn A retrieves record R at time t 1. n Txn B retrieves record R at time t 2. n Txn A updates its copy of R at time t 3. n Txn B updates its copy of R at time t 4. n n Txn A's update is lost because txn B overwrites it.

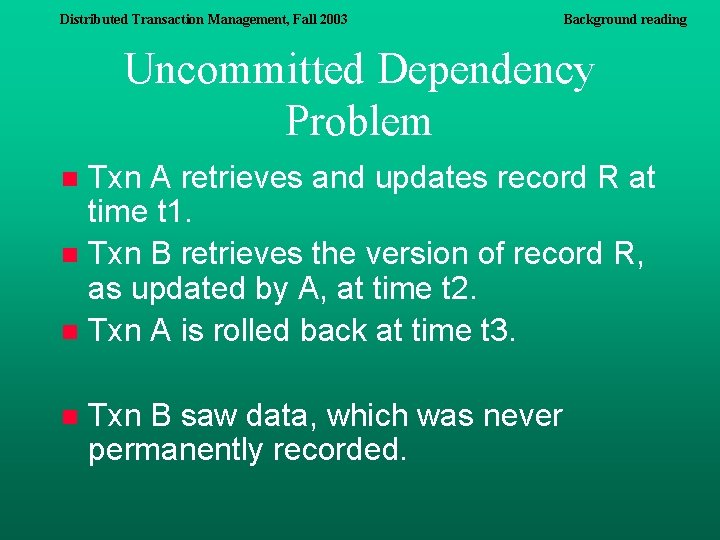

Distributed Transaction Management, Fall 2003 Background reading Uncommitted Dependency Problem Txn A retrieves and updates record R at time t 1. n Txn B retrieves the version of record R, as updated by A, at time t 2. n Txn A is rolled back at time t 3. n n Txn B saw data, which was never permanently recorded.

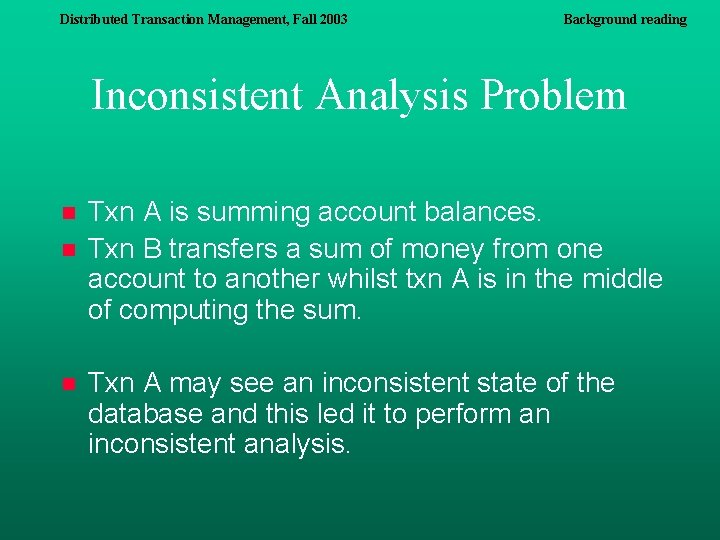

Distributed Transaction Management, Fall 2003 Background reading Inconsistent Analysis Problem n n n Txn A is summing account balances. Txn B transfers a sum of money from one account to another whilst txn A is in the middle of computing the sum. Txn A may see an inconsistent state of the database and this led it to perform an inconsistent analysis.

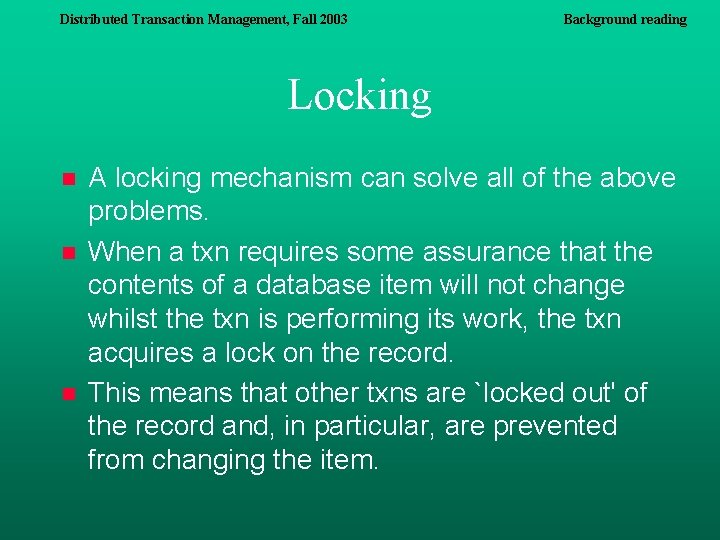

Distributed Transaction Management, Fall 2003 Background reading Locking n n n A locking mechanism can solve all of the above problems. When a txn requires some assurance that the contents of a database item will not change whilst the txn is performing its work, the txn acquires a lock on the record. This means that other txns are `locked out' of the record and, in particular, are prevented from changing the item.

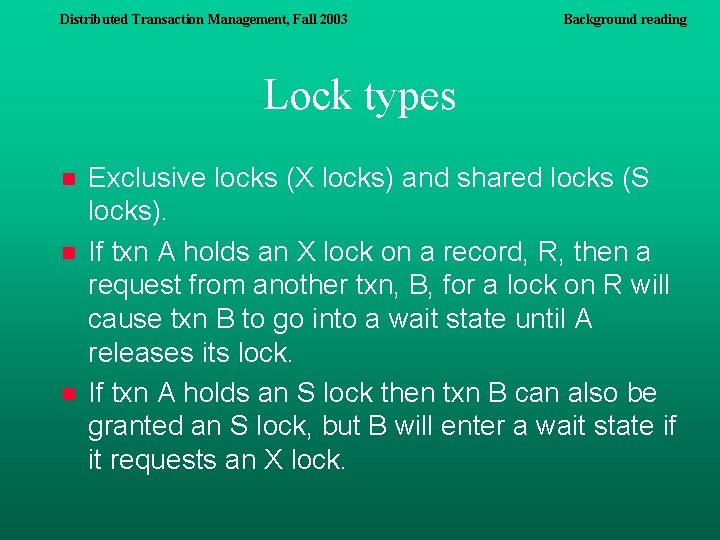

Distributed Transaction Management, Fall 2003 Background reading Lock types n n n Exclusive locks (X locks) and shared locks (S locks). If txn A holds an X lock on a record, R, then a request from another txn, B, for a lock on R will cause txn B to go into a wait state until A releases its lock. If txn A holds an S lock then txn B can also be granted an S lock, but B will enter a wait state if it requests an X lock.

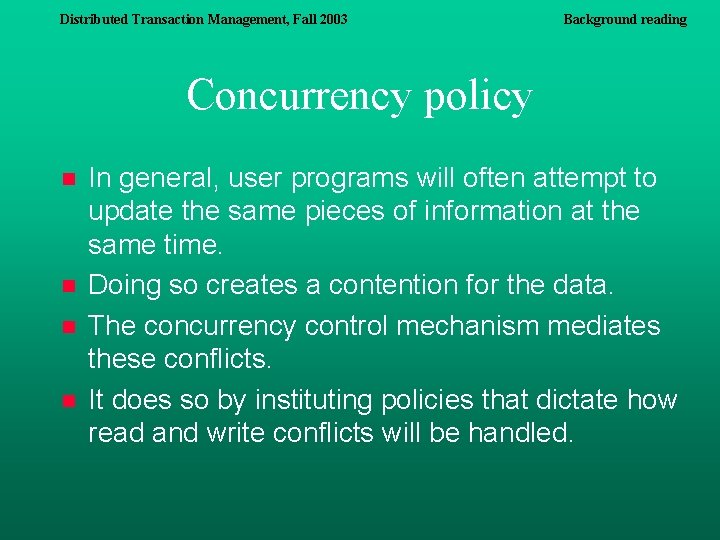

Distributed Transaction Management, Fall 2003 Background reading Concurrency policy n n In general, user programs will often attempt to update the same pieces of information at the same time. Doing so creates a contention for the data. The concurrency control mechanism mediates these conflicts. It does so by instituting policies that dictate how read and write conflicts will be handled.

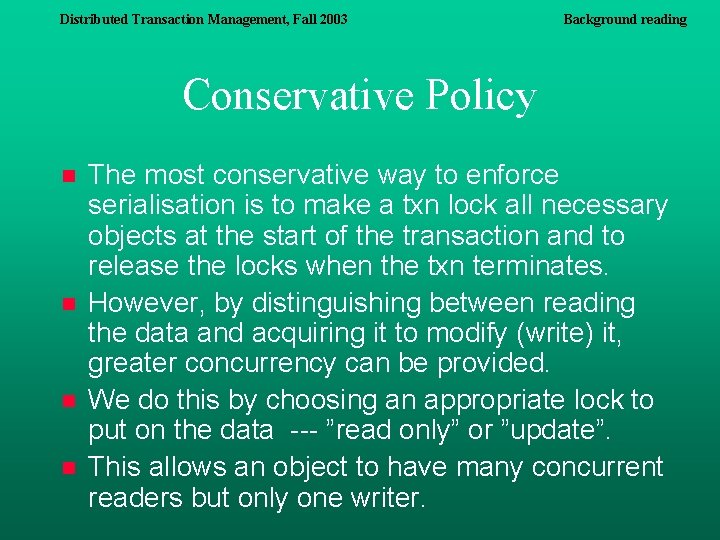

Distributed Transaction Management, Fall 2003 Background reading Conservative Policy n n The most conservative way to enforce serialisation is to make a txn lock all necessary objects at the start of the transaction and to release the locks when the txn terminates. However, by distinguishing between reading the data and acquiring it to modify (write) it, greater concurrency can be provided. We do this by choosing an appropriate lock to put on the data --- ”read only” or ”update”. This allows an object to have many concurrent readers but only one writer.

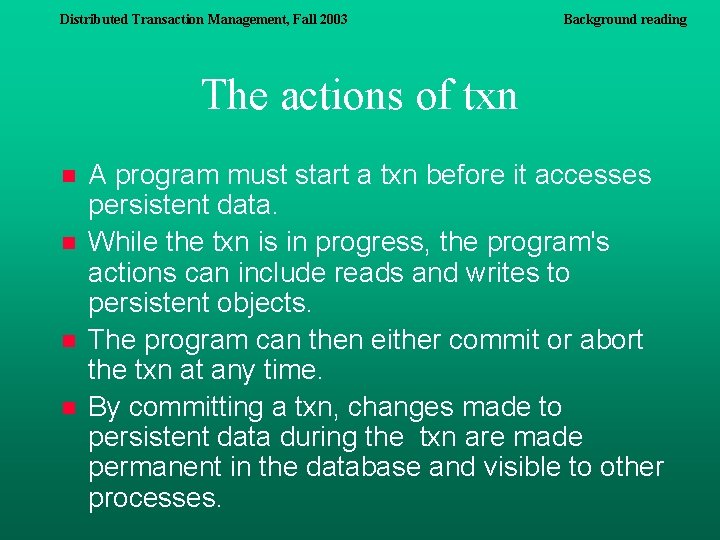

Distributed Transaction Management, Fall 2003 Background reading The actions of txn n n A program must start a txn before it accesses persistent data. While the txn is in progress, the program's actions can include reads and writes to persistent objects. The program can then either commit or abort the txn at any time. By committing a txn, changes made to persistent data during the txn are made permanent in the database and visible to other processes.

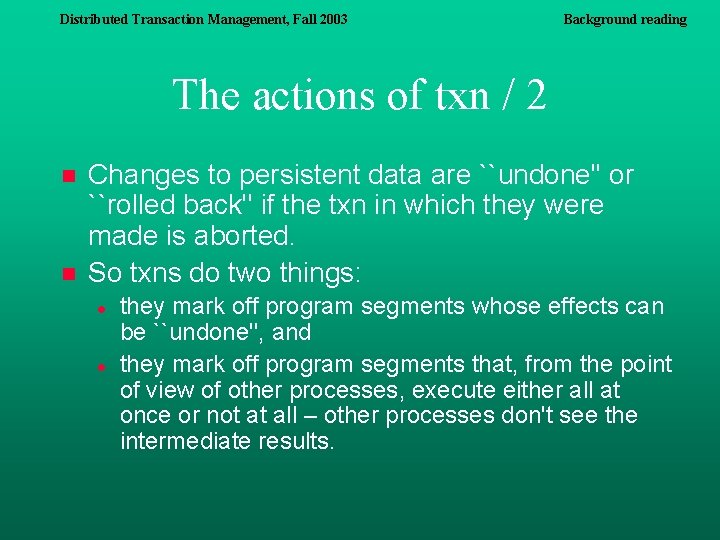

Distributed Transaction Management, Fall 2003 Background reading The actions of txn / 2 n n Changes to persistent data are ``undone'' or ``rolled back'' if the txn in which they were made is aborted. So txns do two things: l l they mark off program segments whose effects can be ``undone'', and they mark off program segments that, from the point of view of other processes, execute either all at once or not at all – other processes don't see the intermediate results.

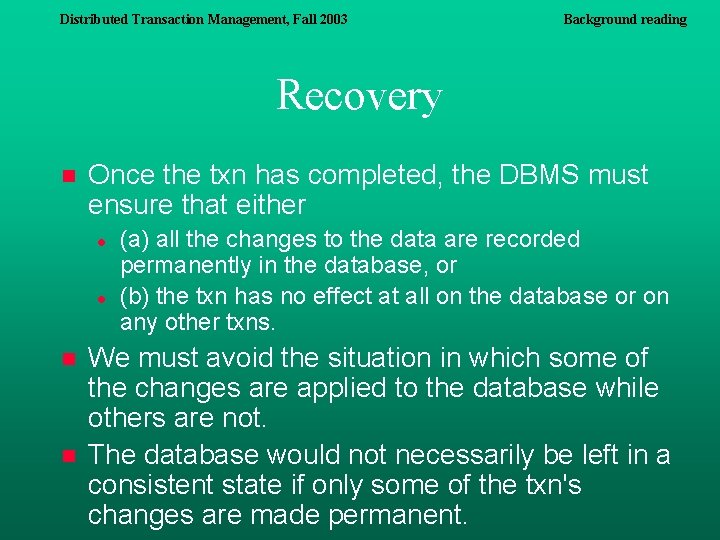

Distributed Transaction Management, Fall 2003 Background reading Recovery n Once the txn has completed, the DBMS must ensure that either l l n n (a) all the changes to the data are recorded permanently in the database, or (b) the txn has no effect at all on the database or on any other txns. We must avoid the situation in which some of the changes are applied to the database while others are not. The database would not necessarily be left in a consistent state if only some of the txn's changes are made permanent.

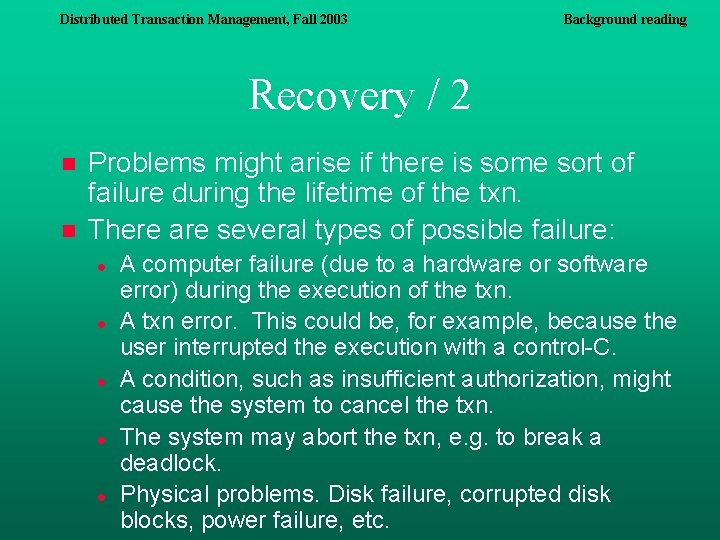

Distributed Transaction Management, Fall 2003 Background reading Recovery / 2 n n Problems might arise if there is some sort of failure during the lifetime of the txn. There are several types of possible failure: l l l A computer failure (due to a hardware or software error) during the execution of the txn. A txn error. This could be, for example, because the user interrupted the execution with a control-C. A condition, such as insufficient authorization, might cause the system to cancel the txn. The system may abort the txn, e. g. to break a deadlock. Physical problems. Disk failure, corrupted disk blocks, power failure, etc.

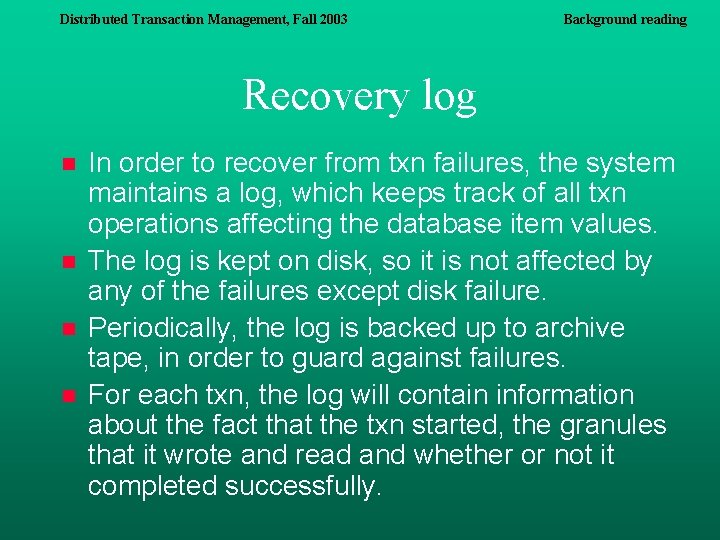

Distributed Transaction Management, Fall 2003 Background reading Recovery log n n In order to recover from txn failures, the system maintains a log, which keeps track of all txn operations affecting the database item values. The log is kept on disk, so it is not affected by any of the failures except disk failure. Periodically, the log is backed up to archive tape, in order to guard against failures. For each txn, the log will contain information about the fact that the txn started, the granules that it wrote and read and whether or not it completed successfully.

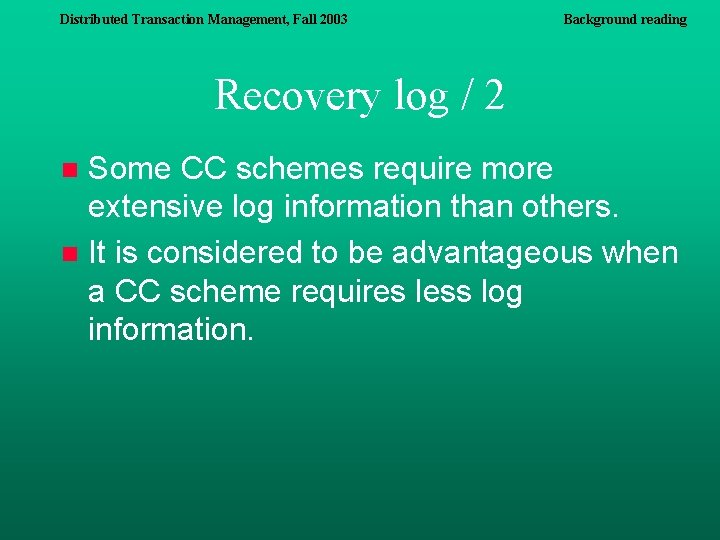

Distributed Transaction Management, Fall 2003 Background reading Recovery log / 2 Some CC schemes require more extensive log information than others. n It is considered to be advantageous when a CC scheme requires less log information. n

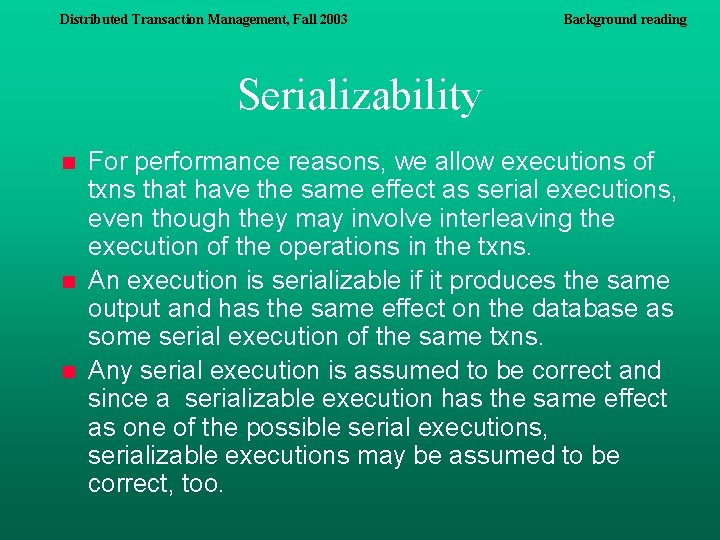

Distributed Transaction Management, Fall 2003 Background reading Serializability n n n For performance reasons, we allow executions of txns that have the same effect as serial executions, even though they may involve interleaving the execution of the operations in the txns. An execution is serializable if it produces the same output and has the same effect on the database as some serial execution of the same txns. Any serial execution is assumed to be correct and since a serializable execution has the same effect as one of the possible serial executions, serializable executions may be assumed to be correct, too.

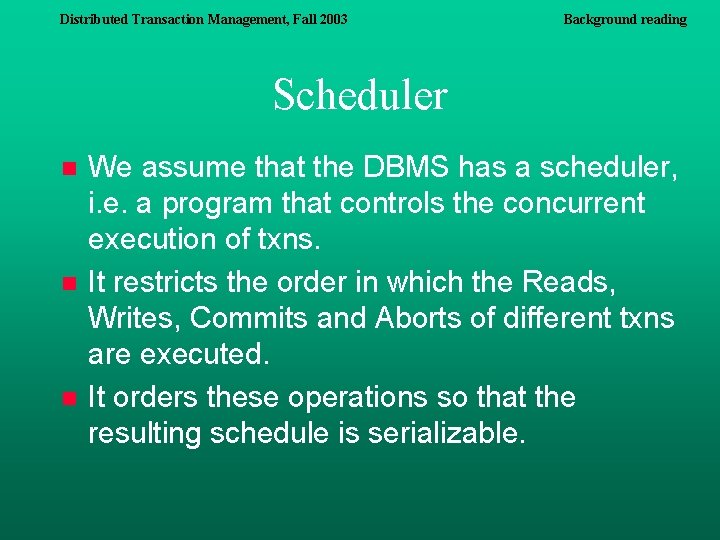

Distributed Transaction Management, Fall 2003 Background reading Scheduler n n n We assume that the DBMS has a scheduler, i. e. a program that controls the concurrent execution of txns. It restricts the order in which the Reads, Writes, Commits and Aborts of different txns are executed. It orders these operations so that the resulting schedule is serializable.

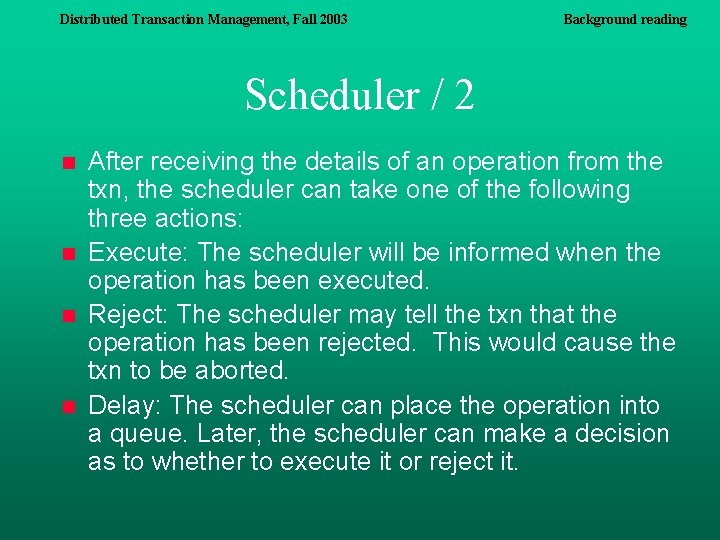

Distributed Transaction Management, Fall 2003 Background reading Scheduler / 2 n n After receiving the details of an operation from the txn, the scheduler can take one of the following three actions: Execute: The scheduler will be informed when the operation has been executed. Reject: The scheduler may tell the txn that the operation has been rejected. This would cause the txn to be aborted. Delay: The scheduler can place the operation into a queue. Later, the scheduler can make a decision as to whether to execute it or reject it.

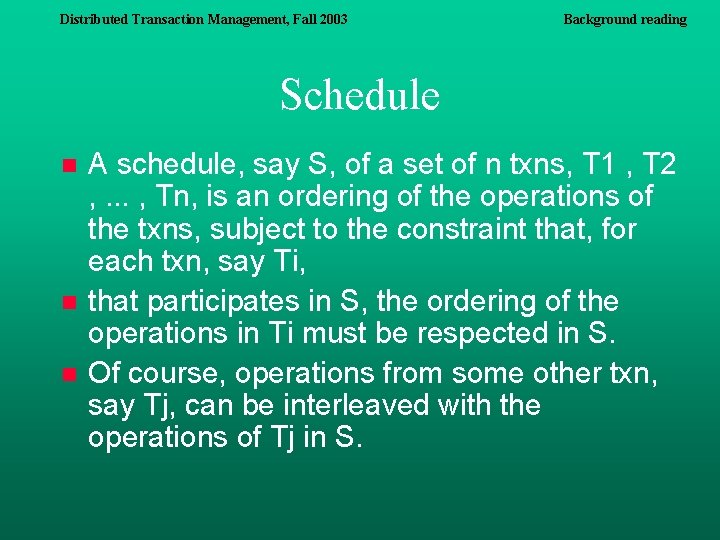

Distributed Transaction Management, Fall 2003 Background reading Schedule n n n A schedule, say S, of a set of n txns, T 1 , T 2 , . . . , Tn, is an ordering of the operations of the txns, subject to the constraint that, for each txn, say Ti, that participates in S, the ordering of the operations in Ti must be respected in S. Of course, operations from some other txn, say Tj, can be interleaved with the operations of Tj in S.

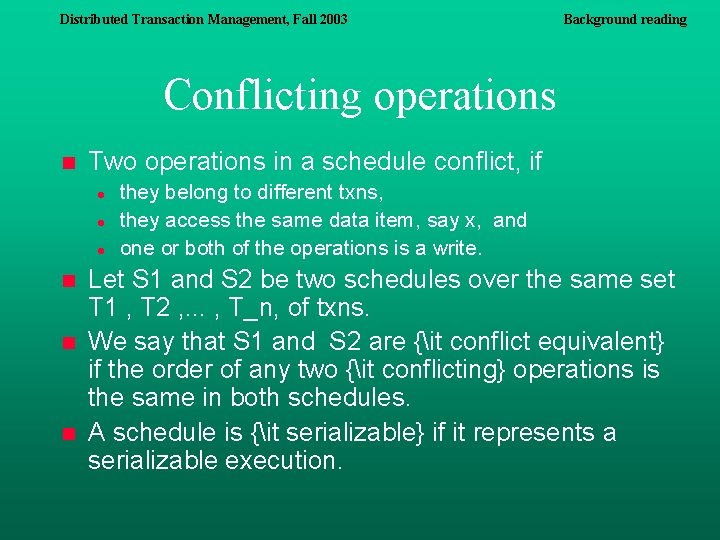

Distributed Transaction Management, Fall 2003 Background reading Conflicting operations n Two operations in a schedule conflict, if l l l n n n they belong to different txns, they access the same data item, say x, and one or both of the operations is a write. Let S 1 and S 2 be two schedules over the same set T 1 , T 2 , . . . , T_n, of txns. We say that S 1 and S 2 are {it conflict equivalent} if the order of any two {it conflicting} operations is the same in both schedules. A schedule is {it serializable} if it represents a serializable execution.

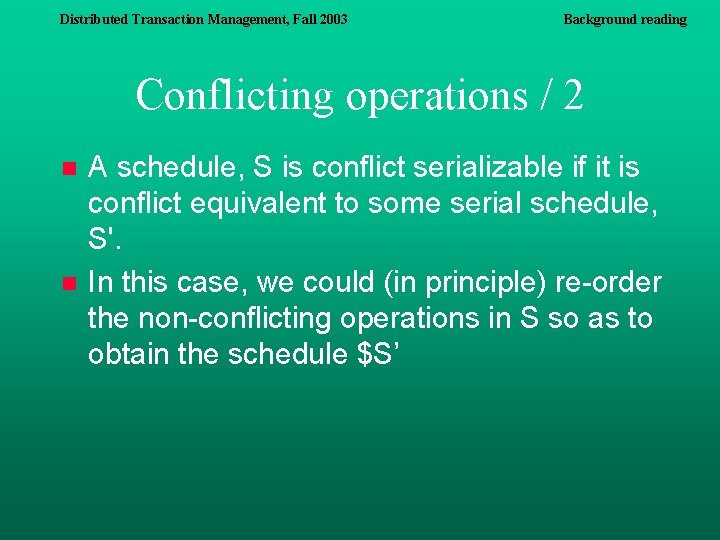

Distributed Transaction Management, Fall 2003 Background reading Conflicting operations / 2 n n A schedule, S is conflict serializable if it is conflict equivalent to some serial schedule, S'. In this case, we could (in principle) re-order the non-conflicting operations in S so as to obtain the schedule $S’

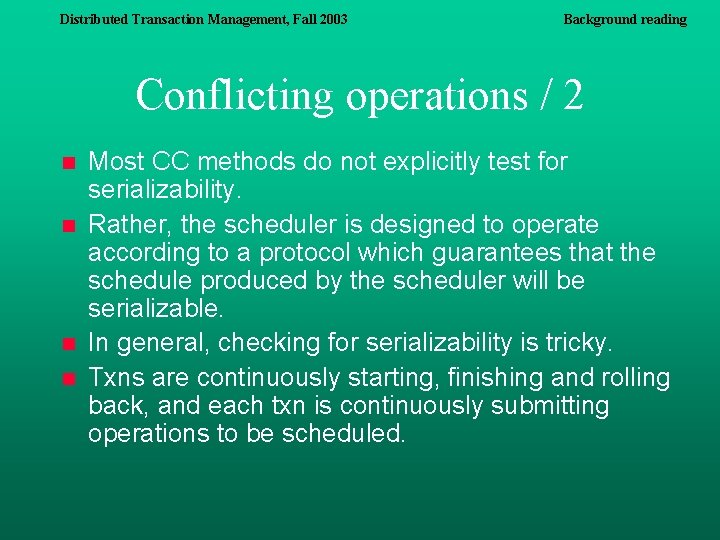

Distributed Transaction Management, Fall 2003 Background reading Conflicting operations / 2 n n Most CC methods do not explicitly test for serializability. Rather, the scheduler is designed to operate according to a protocol which guarantees that the schedule produced by the scheduler will be serializable. In general, checking for serializability is tricky. Txns are continuously starting, finishing and rolling back, and each txn is continuously submitting operations to be scheduled.

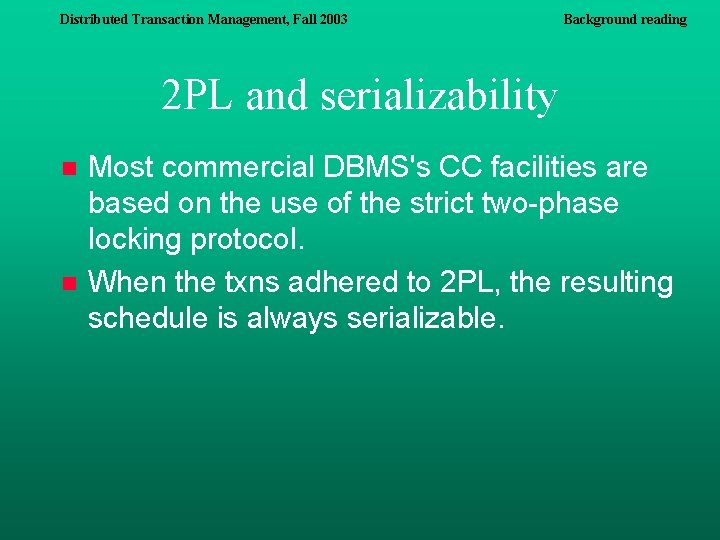

Distributed Transaction Management, Fall 2003 Background reading 2 PL and serializability n n Most commercial DBMS's CC facilities are based on the use of the strict two-phase locking protocol. When the txns adhered to 2 PL, the resulting schedule is always serializable.

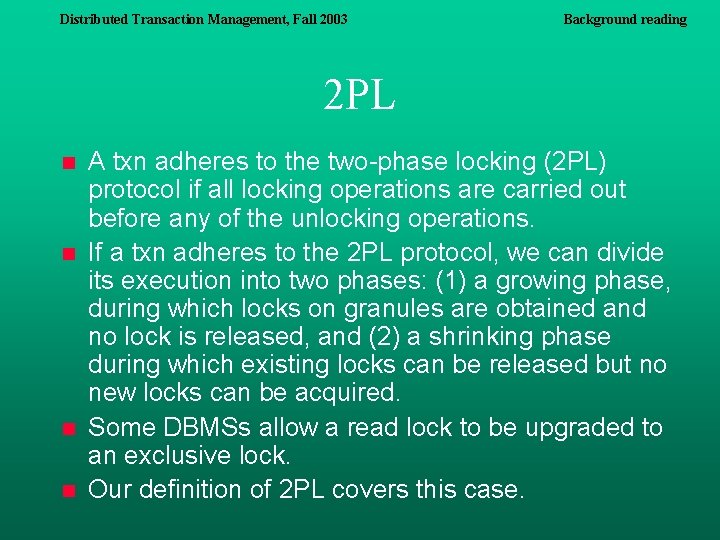

Distributed Transaction Management, Fall 2003 Background reading 2 PL n n A txn adheres to the two-phase locking (2 PL) protocol if all locking operations are carried out before any of the unlocking operations. If a txn adheres to the 2 PL protocol, we can divide its execution into two phases: (1) a growing phase, during which locks on granules are obtained and no lock is released, and (2) a shrinking phase during which existing locks can be released but no new locks can be acquired. Some DBMSs allow a read lock to be upgraded to an exclusive lock. Our definition of 2 PL covers this case.

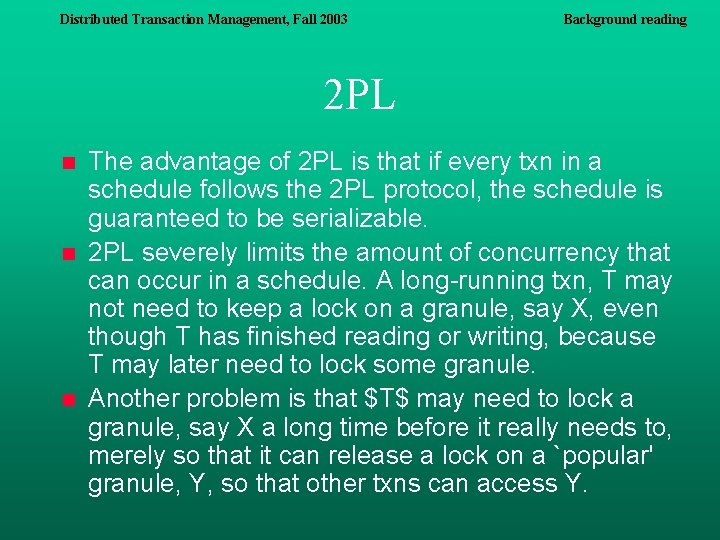

Distributed Transaction Management, Fall 2003 Background reading 2 PL n n n The advantage of 2 PL is that if every txn in a schedule follows the 2 PL protocol, the schedule is guaranteed to be serializable. 2 PL severely limits the amount of concurrency that can occur in a schedule. A long-running txn, T may not need to keep a lock on a granule, say X, even though T has finished reading or writing, because T may later need to lock some granule. Another problem is that $T$ may need to lock a granule, say X a long time before it really needs to, merely so that it can release a lock on a `popular' granule, Y, so that other txns can access Y.

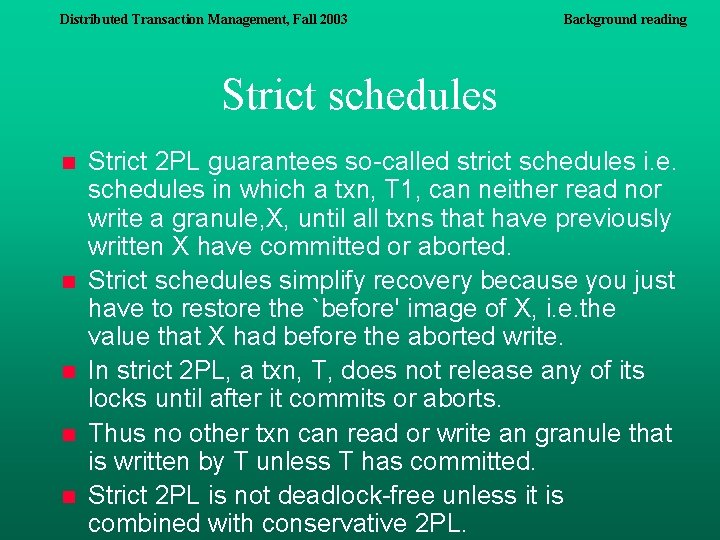

Distributed Transaction Management, Fall 2003 Background reading Strict schedules n n n Strict 2 PL guarantees so-called strict schedules i. e. schedules in which a txn, T 1, can neither read nor write a granule, X, until all txns that have previously written X have committed or aborted. Strict schedules simplify recovery because you just have to restore the `before' image of X, i. e. the value that X had before the aborted write. In strict 2 PL, a txn, T, does not release any of its locks until after it commits or aborts. Thus no other txn can read or write an granule that is written by T unless T has committed. Strict 2 PL is not deadlock-free unless it is combined with conservative 2 PL.

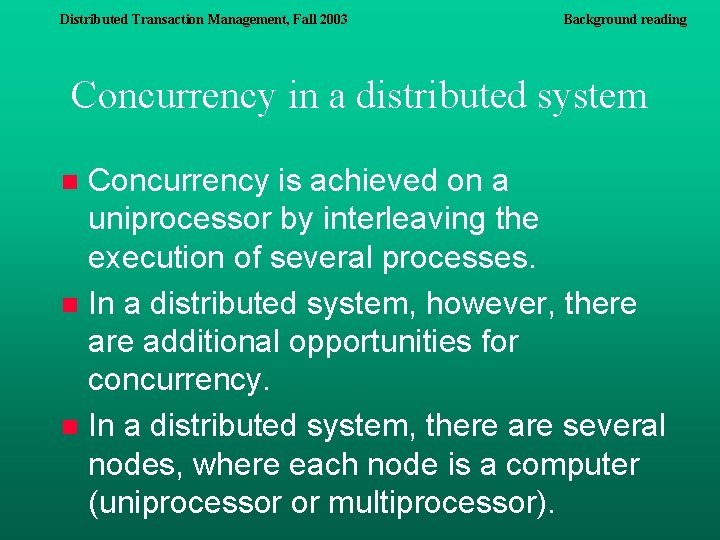

Distributed Transaction Management, Fall 2003 Background reading Concurrency in a distributed system Concurrency is achieved on a uniprocessor by interleaving the execution of several processes. n In a distributed system, however, there additional opportunities for concurrency. n In a distributed system, there are several nodes, where each node is a computer (uniprocessor or multiprocessor). n

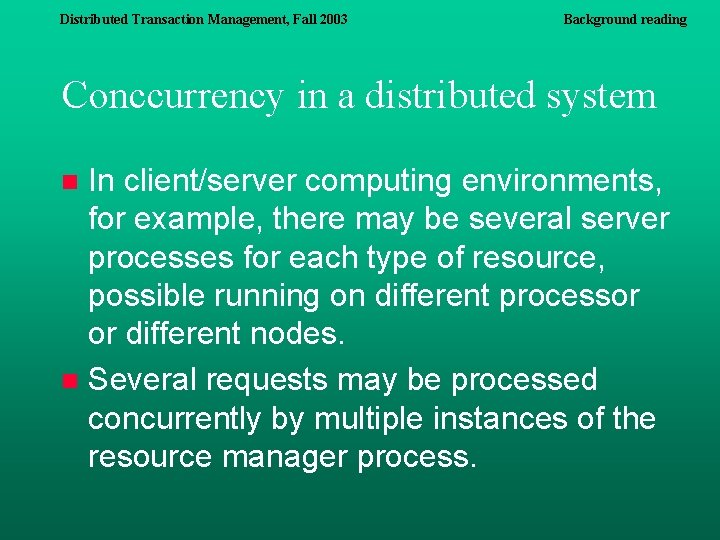

Distributed Transaction Management, Fall 2003 Background reading Conccurrency in a distributed system In client/server computing environments, for example, there may be several server processes for each type of resource, possible running on different processor or different nodes. n Several requests may be processed concurrently by multiple instances of the resource manager process. n

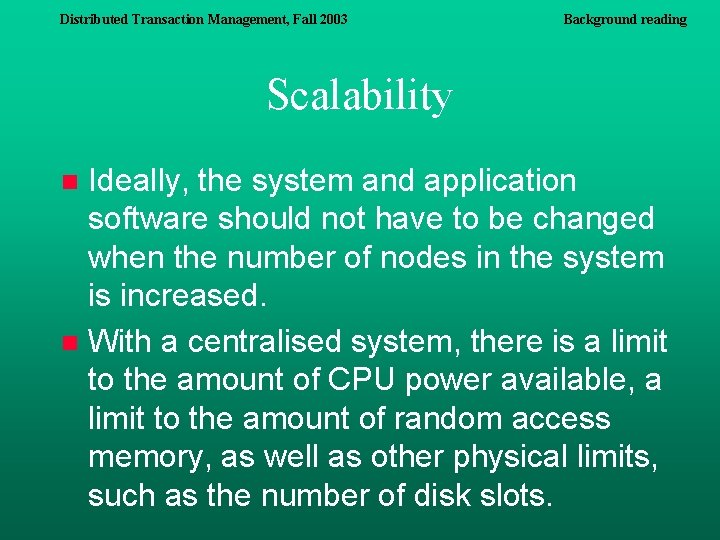

Distributed Transaction Management, Fall 2003 Background reading Scalability Ideally, the system and application software should not have to be changed when the number of nodes in the system is increased. n With a centralised system, there is a limit to the amount of CPU power available, a limit to the amount of random access memory, as well as other physical limits, such as the number of disk slots. n

Distributed Transaction Management, Fall 2003 Background reading Scalability In a distributed system, it is possible in principle to get around some of these limits by adding more nodes. n As demand for a resource grows, it should be possible to extend the system to meet that demand. n

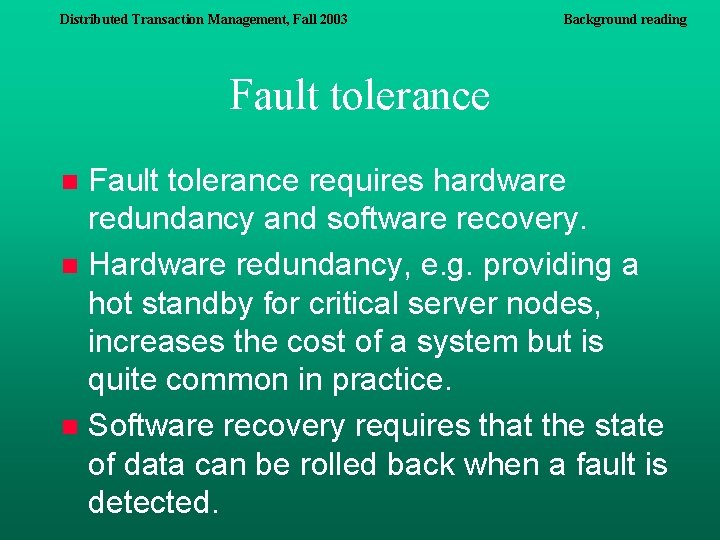

Distributed Transaction Management, Fall 2003 Background reading Fault tolerance requires hardware redundancy and software recovery. n Hardware redundancy, e. g. providing a hot standby for critical server nodes, increases the cost of a system but is quite common in practice. n Software recovery requires that the state of data can be rolled back when a fault is detected. n

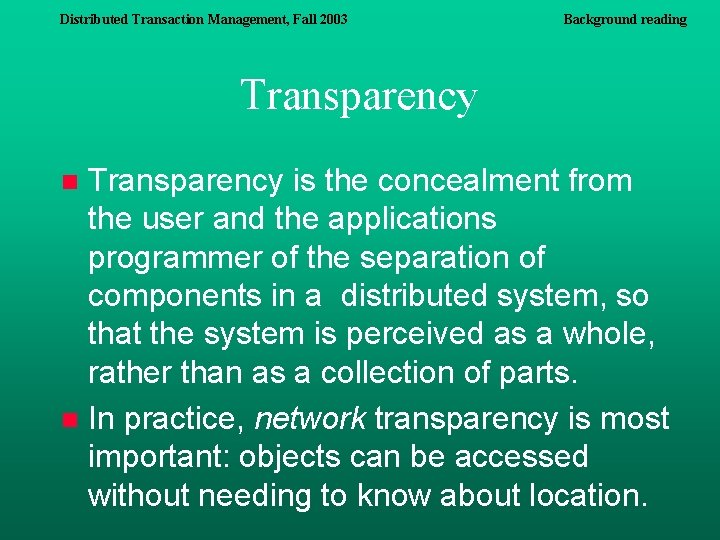

Distributed Transaction Management, Fall 2003 Background reading Transparency is the concealment from the user and the applications programmer of the separation of components in a distributed system, so that the system is perceived as a whole, rather than as a collection of parts. n In practice, network transparency is most important: objects can be accessed without needing to know about location. n

Distributed Transaction Management, Fall 2003 Background reading Models for distributed systems A model for a distributed system is simply a collection of attributes and a set of rules that purport to describe how the attributes interact. n There is no single correct model for a system. n Different models emphasise and suppress different aspects of the target system. n

Distributed Transaction Management, Fall 2003 Background reading Models for distribute systems The models might be used for different answering different kinds of questions about the system. n A model is accurate to the extent that analysing it yields truths about the system. n A model is tractable if such an analysis is actually possible. n

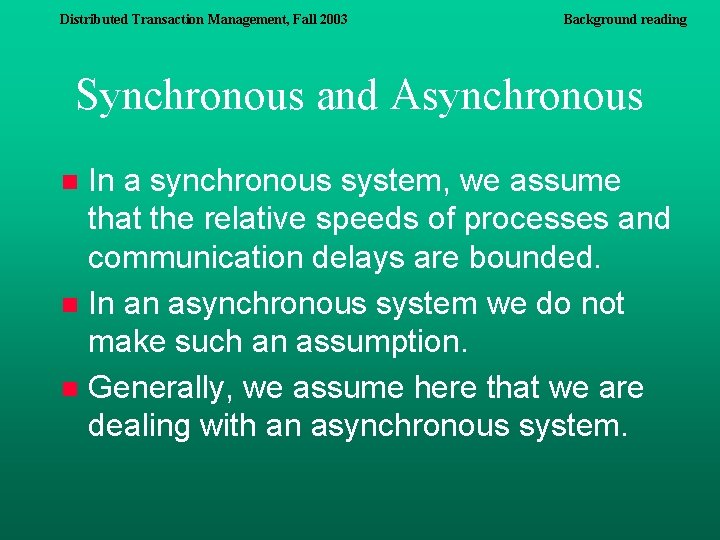

Distributed Transaction Management, Fall 2003 Background reading Synchronous and Asynchronous In a synchronous system, we assume that the relative speeds of processes and communication delays are bounded. n In an asynchronous system we do not make such an assumption. n Generally, we assume here that we are dealing with an asynchronous system. n

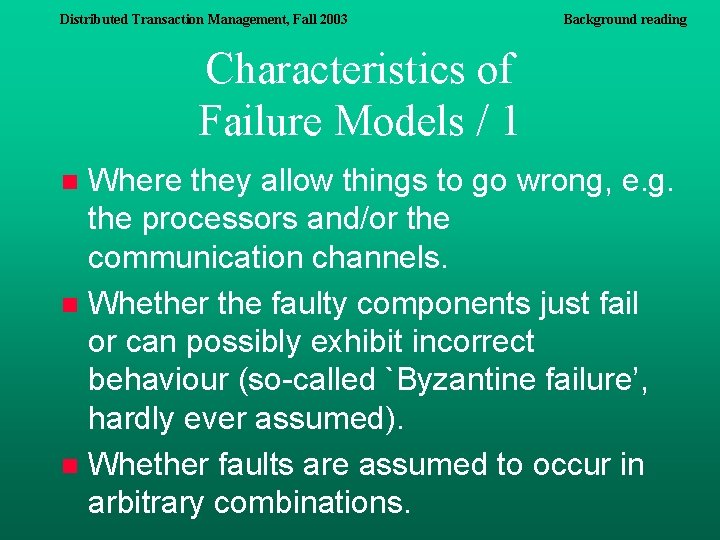

Distributed Transaction Management, Fall 2003 Background reading Characteristics of Failure Models / 1 Where they allow things to go wrong, e. g. the processors and/or the communication channels. n Whether the faulty components just fail or can possibly exhibit incorrect behaviour (so-called `Byzantine failure’, hardly ever assumed). n Whether faults are assumed to occur in arbitrary combinations. n

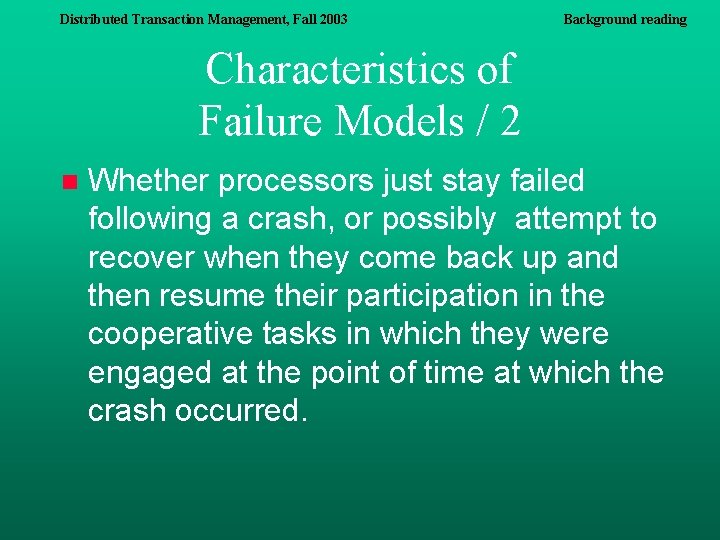

Distributed Transaction Management, Fall 2003 Background reading Characteristics of Failure Models / 2 n Whether processors just stay failed following a crash, or possibly attempt to recover when they come back up and then resume their participation in the cooperative tasks in which they were engaged at the point of time at which the crash occurred.
