Distributed Systems Jeff Chase Duke University Challenge Coordination

Distributed Systems Jeff Chase Duke University

Challenge: Coordination • The solution to availability and scalability is to decentralize and replicate functions and data…but how do we coordinate the nodes? – – – – – data consistency update propagation mutual exclusion consistent global states group membership group communication event ordering distributed consensus quorum consensus

Overview • The problem of failures • The fundamental challenge of consensus • General impossibility of consensus – in asynchronous networks (e. g. , the Internet) – safety vs. liveness: “CAP theorem” • Manifestations – NFS cache consistency – Transaction commit – Master election in Google File System

Properties of nodes • Essential properties typically assumed by model: – Private state • Distributed memory: model sharing as messages – Executes a sequence of state transitions • Some transitions are reactions to messages • May have internal concurrency, but hide that – Unique identity – Local clocks with bounded drift

Node failures • Fail-stop. Nodes/actors may fail by stopping. • Byzantine. Nodes/actors may fail without stopping. – Arbitrary, erratic, unexpected behavior – May be malicious and disruptive • Unfaithful behavior – Actors may behave unfaithfully from self-interest. – If it is rational, is it Byzantine? – If it is rational, then it is expected. – If it is expected, then we can control it. – Design in incentives for faithful behavior, or disincentives for unfaithful behavior.

Example: DNS com gov org generic TLDs net firm top-level shop arts domains web (TLDs) us fr country-code TLDs DNS roots . edu duke washington unc cs mc vmm 01 cs env cs www (prophet) What can go wrong if a DNS server fails? How much damage can result from a server failure? Can it compromise the availability or integrity of the entire DNS system?

DNS Service 101 WWW server for nhc. noaa. gov (IP 140. 90. 176. 22) “www. nhc. noaa. gov is 140. 90. 176. 22” DNS server for nhc. noaa. gov “lookup www. nhc. noaa. gov” local DNS server – client-side resolvers • typically in a library • gethostbyname, gethostbyaddr – cooperating servers • query-answer-referral model • forward queries among servers • server-to-server may use TCP (“zone transfers”)

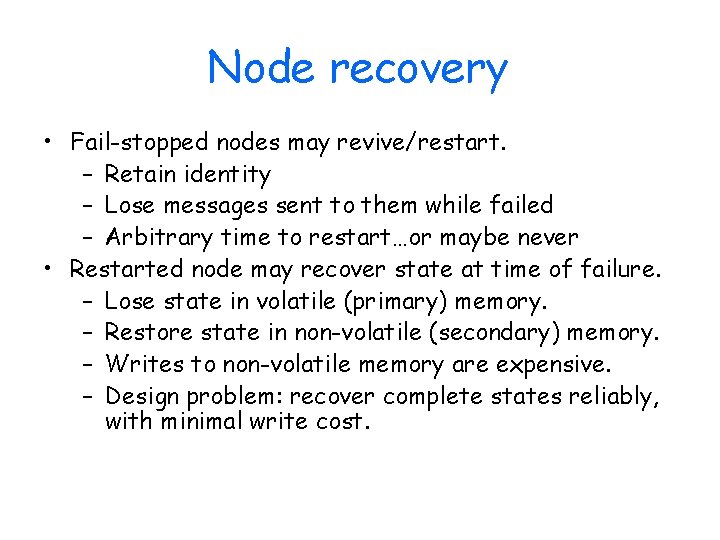

Node recovery • Fail-stopped nodes may revive/restart. – Retain identity – Lose messages sent to them while failed – Arbitrary time to restart…or maybe never • Restarted node may recover state at time of failure. – Lose state in volatile (primary) memory. – Restore state in non-volatile (secondary) memory. – Writes to non-volatile memory are expensive. – Design problem: recover complete states reliably, with minimal write cost.

Distributed System Models • Synchronous model – Message delay is bounded and the bound is known. – E. g. , delivery before next tick of a global clock. – Simplifies distributed algorithms • “learn just by watching the clock” • absence of a message conveys information. • Asynchronous model – Message delays are finite, but unbounded/unknown – More realistic/general than synchronous model. • “Beware of any model with stronger assumptions. ” - Burrows – Strictly harder/weaker than synchronous model. • Consensus is not always possible

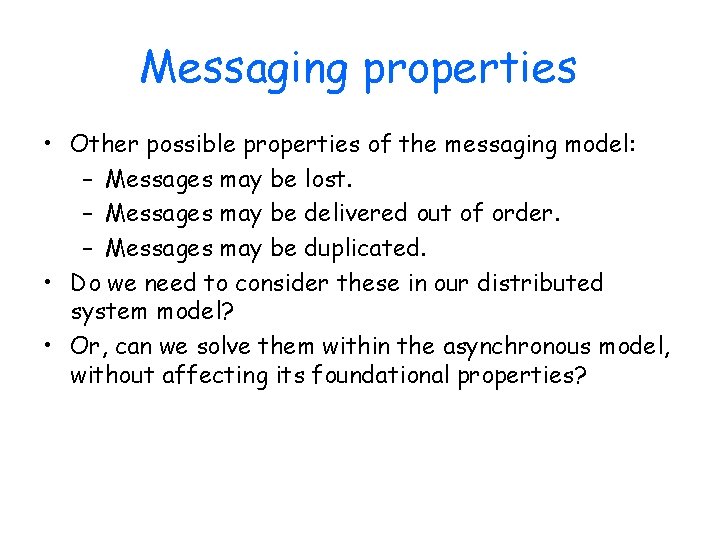

Messaging properties • Other possible properties of the messaging model: – Messages may be lost. – Messages may be delivered out of order. – Messages may be duplicated. • Do we need to consider these in our distributed system model? • Or, can we solve them within the asynchronous model, without affecting its foundational properties?

Network File System (NFS) server client syscall layer user programs VFS syscall layer NFS server VFS UFS NFS client network

NFS Protocol • NFS is a network protocol layered above TCP/IP. – Original implementations (and some today) use UDP datagram transport. • Maximum IP datagram size was increased to match FS block size, to allow send/receive of entire file blocks. • Newer implementations use TCP as a transport. – The NFS protocol is a set of message formats and types for request/response (RPC) messaging.

NFS: From Concept to Implementation • Now that we understand the basics, how do we make it work in a real system? – How do we make it fast? • Answer: caching, read-ahead, and write-behind. – How do we make it reliable? What if a message is dropped? What if the server crashes? • Answer: client retransmits request until it receives a response. – How do we preserve the failure/atomicity model? • Answer: well. . .

NFS as a “Stateless” Service • The NFS server maintains no transient information about its clients. – The only “hard state” is the FS data on disk. – Hard state: must be preserved for correctness. – Soft state: an optimization, can discard safely. • “Statelessness makes failure recovery simple and efficient. ” – If the server fails client retransmits pending requests until it gets a response (or gives up). – “Failed server is indistinguishable from a slow server or a slow network. ”

Drawbacks of a Stateless Service • Classical NFS has some key drawbacks: – ONC RPC has execute-mostly-once semantics (“send and pray”). – So operations must be designed to be idempotent. • Executing it again does not change the effect. • Does not support file appends, exclusive name creation, etc. – Server writes updates to disk synchronously. • Slowww… – Does not preserve local single-copy semantics. • Open files may be removed. • Server cannot help in client cache consistency.

File Cache Consistency • Caching is a key technique in distributed systems. – The cache consistency problem: cached data may become stale if cached data is updated elsewhere in the network. • Solutions: – Timestamp invalidation (NFS-Classic). • Timestamp each cache entry, and periodically query the server: “has this file changed since time t? ”; invalidate cache if stale. – Callback invalidation (AFS). • Request notification (callback) from the server if the file changes; invalidate cache on callback. – Delegation “leases” [Gray&Cheriton 89, NQ-NFS, NFSv 4]

Timestamp Validation in NFS [1985] • NFSv 2/v 3 uses a form of timestamp validation. – Timestamp cached data at file grain. – Maintain per-file expiration time (TTL) – Refresh/revalidate if TTL expires. • NFS Get Attributes (getattr) • Similar approach used in HTTP – Piggyback file attributes on each response. • What happens on server failure? Client failure? • What TTL to use?

Delegations or “Leases” • In NQ-NFS, a client obtains a lease on the file that permits the client’s desired read/write activity. • “A lease is a ticket permitting an activity; the lease is valid until some expiration time. ” – A read-caching lease allows the client to cache clean data. • Guarantee: no other client is modifying the file. – A write-caching lease allows the client to buffer modified data for the file. • Guarantee: no other client has the file cached. • Allows delayed writes: client may delay issuing writes to improve write performance (i. e. , client has a writeback cache).

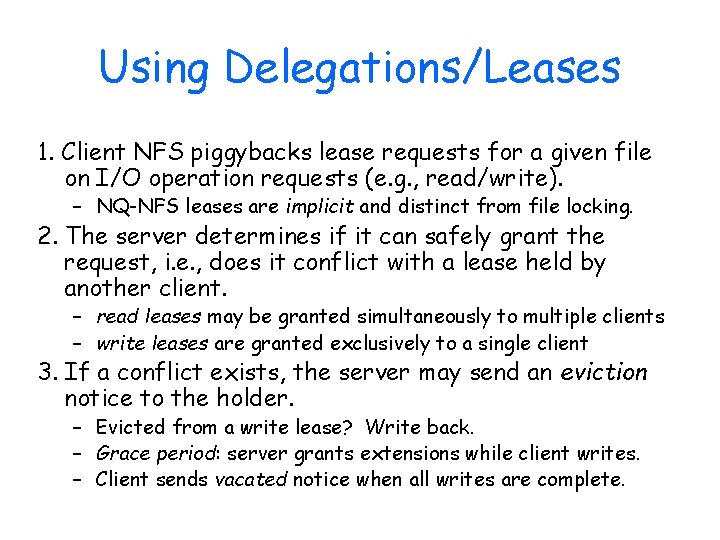

Using Delegations/Leases 1. Client NFS piggybacks lease requests for a given file on I/O operation requests (e. g. , read/write). – NQ-NFS leases are implicit and distinct from file locking. 2. The server determines if it can safely grant the request, i. e. , does it conflict with a lease held by another client. – read leases may be granted simultaneously to multiple clients – write leases are granted exclusively to a single client 3. If a conflict exists, the server may send an eviction notice to the holder. – Evicted from a write lease? Write back. – Grace period: server grants extensions while client writes. – Client sends vacated notice when all writes are complete.

Failures • Challenge: – File accesses complete if the server is up. – All clients “agree” on “current” file contents. – Leases are not broken (mutual exclusion) • What if a client fails while holding a lease? • What if the server fails? • How can any node know that any other node has failed?

Consensus P 1 v 1 d 1 Unreliable multicast P 2 v 2 P 3 Step 1 Propose. v 3 Consensus algorithm P 2 P 3 d 2 Step 2 Decide. Generalizes to N nodes/processes. d 3

Properties for Correct Consensus • Termination: All correct processes eventually decide. • Agreement: All correct processes select the same di. • Or…(stronger) all processes that do decide select the same di, even if they later fail. • Called uniform consensus: “Uniform consensus is harder then consensus. ” • Integrity: All deciding processes select the “right” value. – As specified for the variants of the consensus problem.

Properties of Distributed Algorithms • Agreement is a safety property. – Every possible state of the system has this property in all possible executions. – I. e. , either they have not agreed yet, or they all agreed on the same value. • Termination is a liveness property. – Some state of the system has this property in all possible executions. – The property is stable: once some state of an execution has the property, all subsequent states also have it.

Variant I: Consensus (C) di = vk Pi selects di from {v 0, …, v. N-1}. All Pi select di as the same vk. If all Pi propose the same v, then di = v, else di is arbitrary. Coulouris and Dollimore

Variant II: Command Consensus (BG) leader or commander vleader subordinate or lieutenant di = vleader Pi selects di = vleader proposed by designated leader node Pleader if the leader is correct, else the selected value is arbitrary. As used in the Byzantine generals problem. Also called attacking armies. Coulouris and Dollimore

Variant III: Interactive Consistency (IC) di = [v 0 , …, v. N-1] Pi selects di = [v 0 , …, v. N-1] vector reflecting the values proposed by all correct participants. Coulouris and Dollimore

Equivalence of Consensus Variants • If any of the consensus variants has a solution, then all of them have a solution. • Proof is by reduction. – IC from BG. Run BG N times, one with each Pi as leader. – C from IC. Run IC, then select from the vector. – BG from C. • Step 1: leader proposes to all subordinates. • Step 2: subordinates run C to agree on the proposed value. – IC from C? BG from IC? Etc.

Fischer-Lynch-Patterson (1985) • No consensus can be guaranteed in an asynchronous communication system in the presence of any failures. • Intuition: a “failed” process may just be slow, and can rise from the dead at exactly the wrong time. • Consensus may occur recognizably, rarely or often. • e. g. , if no inconveniently delayed messages • FLP implies that no agreement can be guaranteed in an asynchronous system with Byzantine failures either. (More on that later. )

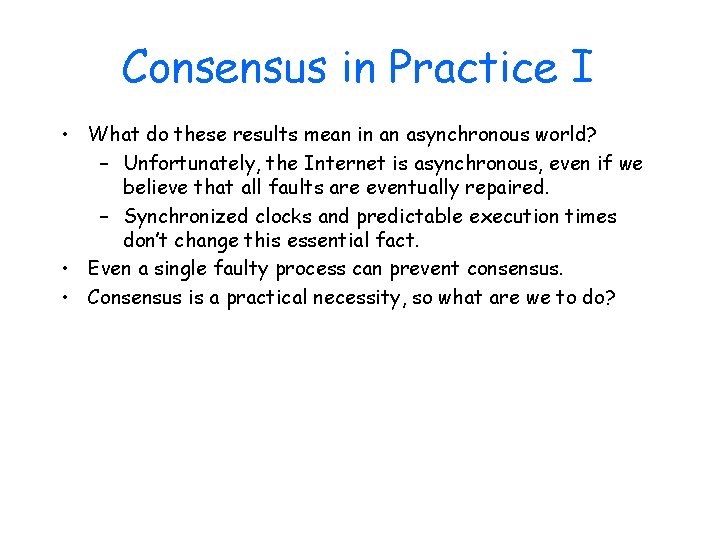

Consensus in Practice I • What do these results mean in an asynchronous world? – Unfortunately, the Internet is asynchronous, even if we believe that all faults are eventually repaired. – Synchronized clocks and predictable execution times don’t change this essential fact. • Even a single faulty process can prevent consensus. • Consensus is a practical necessity, so what are we to do?

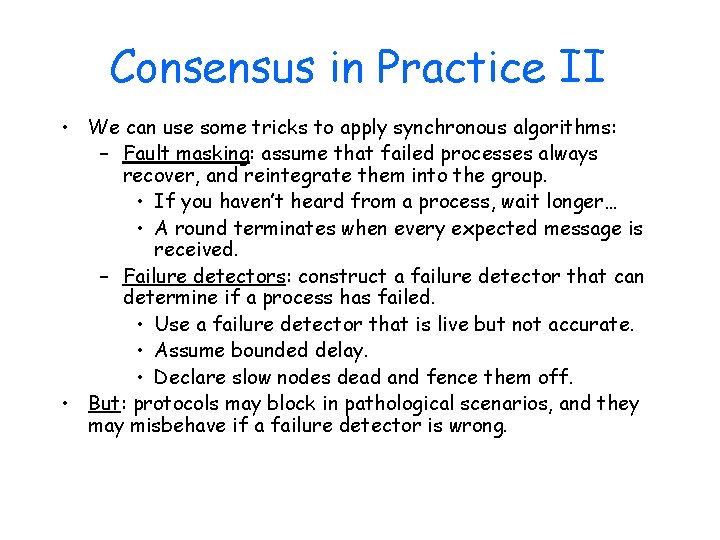

Consensus in Practice II • We can use some tricks to apply synchronous algorithms: – Fault masking: assume that failed processes always recover, and reintegrate them into the group. • If you haven’t heard from a process, wait longer… • A round terminates when every expected message is received. – Failure detectors: construct a failure detector that can determine if a process has failed. • Use a failure detector that is live but not accurate. • Assume bounded delay. • Declare slow nodes dead and fence them off. • But: protocols may block in pathological scenarios, and they may misbehave if a failure detector is wrong.

Fault Masking with a Session Verifier “Do A for me. ” “OK, my verifier is x. ” S, x “B” “x” “C” oops. . . “OK, my verifier is y. ” “A and B” S´, y “y” What if y == x? How to guarantee that y != x? What is the implication of re-executing A and B, and after C? Some uses: NFS V 3 write commitment, RPC sessions, NFS V 4 and DAFS (client).

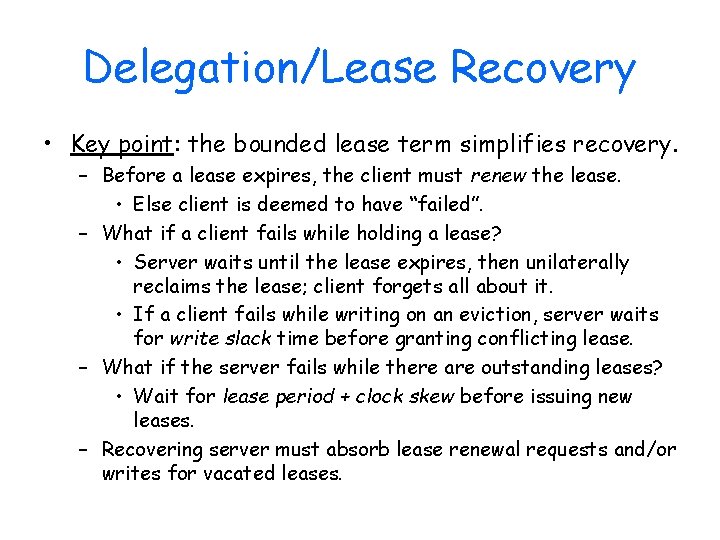

Delegation/Lease Recovery • Key point: the bounded lease term simplifies recovery. – Before a lease expires, the client must renew the lease. • Else client is deemed to have “failed”. – What if a client fails while holding a lease? • Server waits until the lease expires, then unilaterally reclaims the lease; client forgets all about it. • If a client fails while writing on an eviction, server waits for write slack time before granting conflicting lease. – What if the server fails while there are outstanding leases? • Wait for lease period + clock skew before issuing new leases. – Recovering server must absorb lease renewal requests and/or writes for vacated leases.

Failure Detectors • How to detect that a member has failed? – pings, timeouts, beacons, heartbeats – recovery notifications • “I was gone for awhile, but now I’m back. ” • Is the failure detector accurate? • Is the failure detector live (complete)? • In an asynchronous system, it is possible for a failure detector to be accurate or live, but not both. – FLP tells us that it is impossible for an asynchronous system to agree on anything with accuracy and liveness!

Failure Detectors in Real Systems • Use a detector that is live but not accurate. – Assume bounded processing delays and delivery times. – Timeout with multiple retries detects failure accurately with high probability. Tune it to observed latencies. – If a “failed” site turns out to be alive, then restore it or kill it (fencing, fail-silent). – Example: leases and leased locks • What do we assume about communication failures? How much pinging is enough? What about network partitions?

Variant II: Command Consensus (BG) leader or commander vleader subordinate or lieutenant di = vleader Pi selects di = vleader proposed by designated leader node Pleader if the leader is correct, else the selected value is arbitrary. As used in the Byzantine generals problem. Also called attacking armies. Coulouris and Dollimore

A network partition

consistency C Fox&Brewer “CAP Theorem”: C-A-P: choose two. CA: available, and consistent, unless there is a partition. A Availability 37 Claim: every distributed system is on one side of the triangle. CP: always consistent, even in a partition, but a reachable replica may deny service without agreement of the others (e. g. , quorum). AP: a reachable replica provides service even in a partition, but may be inconsistent if there is a failure. P Partition-resilience

Two Generals in practice Deduct $300 Issue $300 How do banks solve this problem? Keith Marzullo

Careful ordering is limited ê Transfer $100 from Melissa’s account to mine 1. Deduct $100 from Melissa’s account 2. Add $100 to my account ê Crash between 1 and 2, we lose $100 ê Could reverse the ordering 1. Add $100 to my account 2. Deduct $100 from Melissa’s account ê Crash between 1 and 2, we gain $100 ê What does this remind you of?

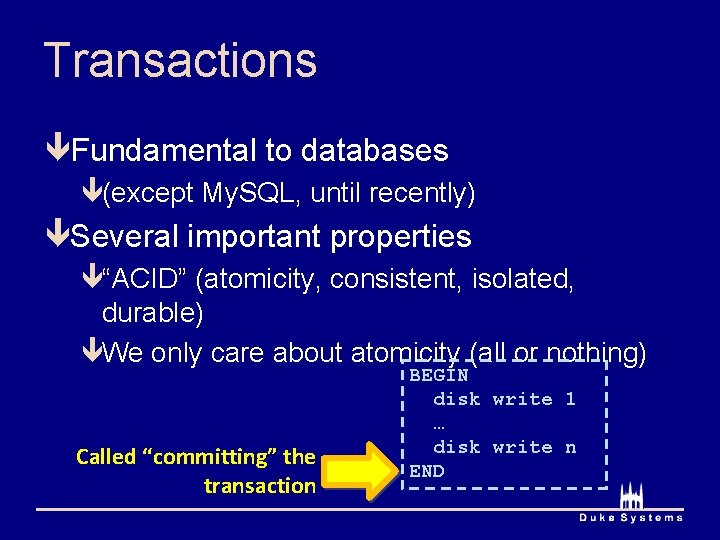

Transactions êFundamental to databases ê(except My. SQL, until recently) êSeveral important properties ê“ACID” (atomicity, consistent, isolated, durable) êWe only care about atomicity (all or nothing) Called “committing” the transaction BEGIN disk write 1 … disk write n END

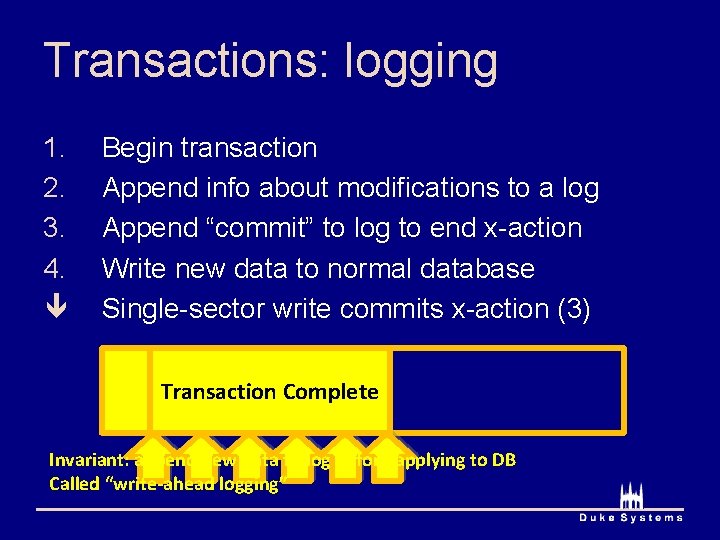

Transactions: logging Commit Write. N Write 1 Begin transaction Append info about modifications to a log Append “commit” to log to end x-action Write new data to normal database Single-sector write commits x-action (3) Begin 1. 2. 3. 4. ê … Transaction Complete Invariant: append new data to log before applying to DB Called “write-ahead logging”

Transactions: logging Commit Write. N … Write 1 Begin transaction Append info about modifications to a log Append “commit” to log to end x-action Write new data to normal database Single-sector write commits x-action (3) Begin 1. 2. 3. 4. ê What if we crash here (between 3, 4)? On reboot, reapply committed updates in log order.

Transactions: logging Write. N … Write 1 Begin transaction Append info about modifications to a log Append “commit” to log to end x-action Write new data to normal database Single-sector write commits x-action (3) Begin 1. 2. 3. 4. ê What if we crash here? On reboot, discard uncommitted updates.

Committing Distributed Transactions • Transactions may touch data at more than one site. • Problem: any site may fail or disconnect while a commit for transaction T is in progress. – Atomicity says that T does not “partly commit”, i. e. , commit at some site and abort at another. – Individual sites cannot unilaterally choose to abort T without the agreement of the other sites. – If T holds locks at a site S, then S cannot release them until it knows if T committed or aborted. – If T has pending updates to data at a site S, then S cannot expose the data until T commits/aborts.

Commit is a Consensus Problem • If there is more than one site, then the sites must agree to commit or abort. • Sites (Resource Managers or RMs) manage their own data, but coordinate commit/abort with other sites. – “Log locally, commit globally. ” • We need a protocol for distributed commit. – It must be safe, even if FLP tells us it might not terminate. • Each transaction commit is led by a coordinator (Transaction Manager or TM).

Two-Phase Commit (2 PC) If unanimous to commit decide to commit else decide to abort “commit or abort? ” “here’s my vote” “commit/abort!” TM/C RM/P precommit or prepare vote RMs validate Tx and prepare by logging their local updates and decisions decide notify TM logs commit/abort (commit point)

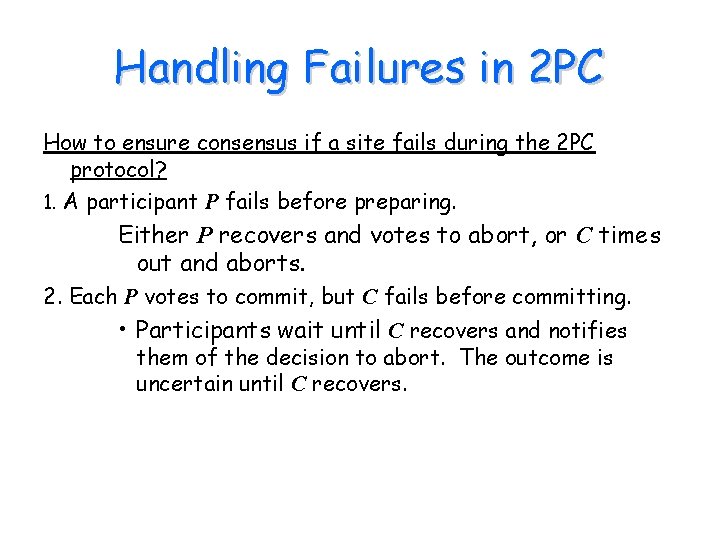

Handling Failures in 2 PC How to ensure consensus if a site fails during the 2 PC protocol? 1. A participant P fails before preparing. Either P recovers and votes to abort, or C times out and aborts. 2. Each P votes to commit, but C fails before committing. • Participants wait until C recovers and notifies them of the decision to abort. The outcome is uncertain until C recovers.

Handling Failures in 2 PC, continued or C fails during phase 2, after the outcome is determined. 3. P • Carry out the decision by reinitiating the protocol on recovery. • Again, if C fails, the outcome is uncertain until C recovers.

consistency C Fox&Brewer “CAP Theorem”: C-A-P: choose two. CA: available, and consistent, unless there is a partition. A Availability Claim: every distributed system is on one side of the triangle. CP: always consistent, even in a partition, but a reachable replica may deny service without agreement of the others (e. g. , quorum). AP: a reachable replica provides service even in a partition, but may be inconsistent. P Partition-resilience

Parallel File Systems 101 § Manage data sharing in large data stores Asymmetric • E. g. , PVFS 2, Lustre, High Road Symmetric • E. g. , GPFS, Polyserve [Renu Tewari, IBM]

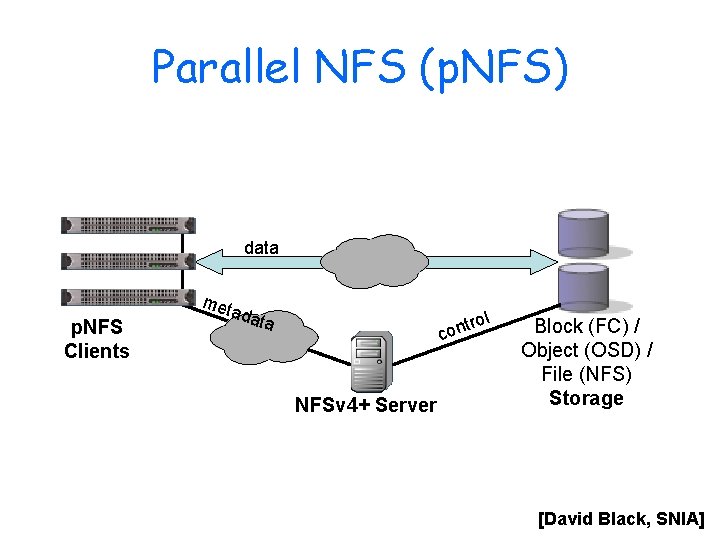

Parallel NFS (p. NFS) data p. NFS Clients met ada ta l tro n o c NFSv 4+ Server Block (FC) / Object (OSD) / File (NFS) Storage [David Black, SNIA]

p. NFS architecture data p. NFS Clients • • met ada ta ol tr con NFSv 4+ Server Block (FC) / Object (OSD) / File (NFS) Storage Only this is covered by the p. NFS protocol Client-to-storage data path and server-to-storage control path are specified elsewhere, e. g. – SCSI Block Commands (SBC) over Fibre Channel (FC) – SCSI Object-based Storage Device (OSD) over i. SCSI – Network File System (NFS) [David Black, SNIA]

p. NFS basic operation • • • Client gets a layout from the NFS Server The layout maps the file onto storage devices and addresses The client uses the layout to perform direct I/O to storage At any time the server can recall the layout (leases/delegations) Client commits changes and returns the layout when it’s done p. NFS is optional, the client can always use regular NFSv 4 I/O layout Storage Clients NFSv 4+ Server [David Black, SNIA]

Google GFS: Assumptions • Design a Google FS for Google’s distinct needs • High component failure rates – Inexpensive commodity components fail often • “Modest” number of HUGE files – Just a few million – Each is 100 MB or larger; multi-GB files typical • Files are write-once, mostly appended to – Perhaps concurrently • Large streaming reads • High sustained throughput favored over low latency [Alex Moschuk]

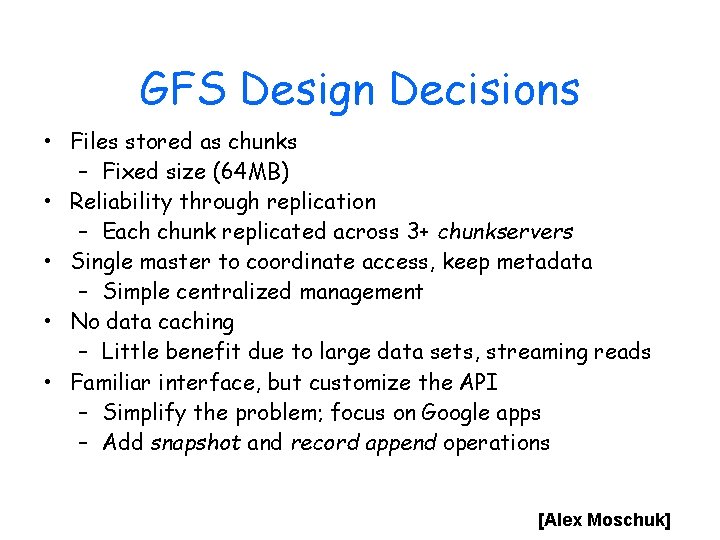

GFS Design Decisions • Files stored as chunks – Fixed size (64 MB) • Reliability through replication – Each chunk replicated across 3+ chunkservers • Single master to coordinate access, keep metadata – Simple centralized management • No data caching – Little benefit due to large data sets, streaming reads • Familiar interface, but customize the API – Simplify the problem; focus on Google apps – Add snapshot and record append operations [Alex Moschuk]

GFS Architecture • Single master • Mutiple chunkservers …Can anyone see a potential weakness in this design? [Alex Moschuk]

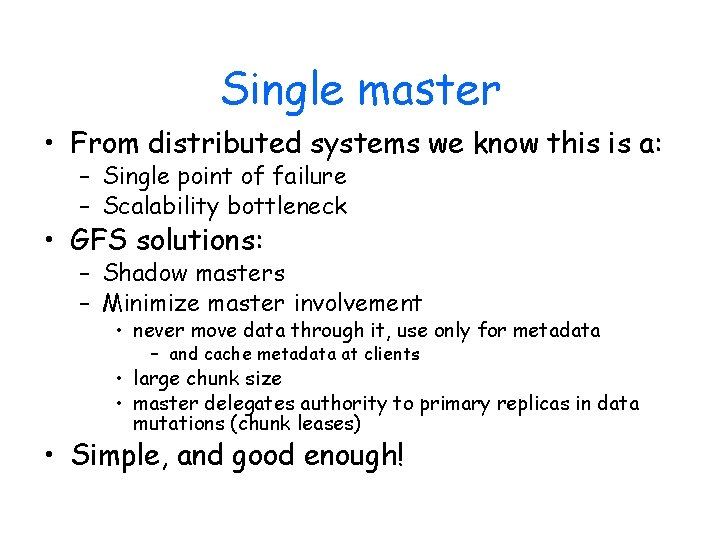

Single master • From distributed systems we know this is a: – Single point of failure – Scalability bottleneck • GFS solutions: – Shadow masters – Minimize master involvement • never move data through it, use only for metadata – and cache metadata at clients • large chunk size • master delegates authority to primary replicas in data mutations (chunk leases) • Simple, and good enough!

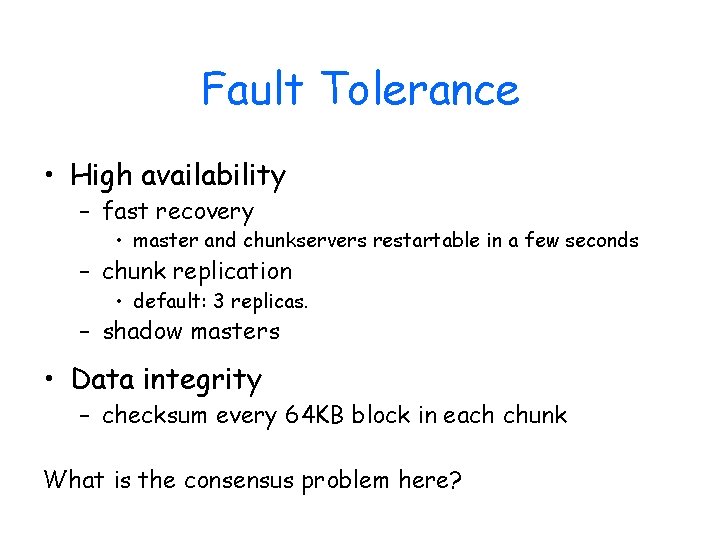

Fault Tolerance • High availability – fast recovery • master and chunkservers restartable in a few seconds – chunk replication • default: 3 replicas. – shadow masters • Data integrity – checksum every 64 KB block in each chunk What is the consensus problem here?

Google Ecosystem • Google builds and runs services at massive scale. – More than half a million servers • Services at massive scale must be robust and adaptive. – To complement a robust, adaptive infrastructure • Writing robust, adaptive distributed services is hard. • Google Labs works on tools, methodologies, and infrastructures to make it easier. – Conceive, design, build – Promote and transition to practice – Evaluate under real use

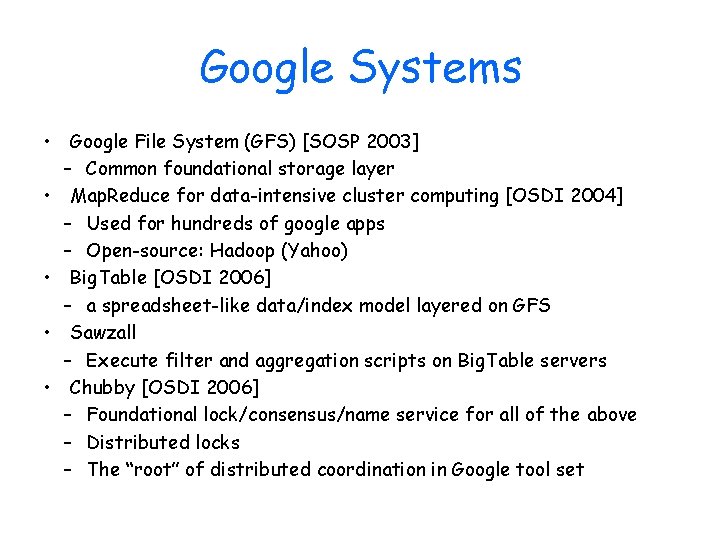

Google Systems • Google File System (GFS) [SOSP 2003] – Common foundational storage layer • Map. Reduce for data-intensive cluster computing [OSDI 2004] – Used for hundreds of google apps – Open-source: Hadoop (Yahoo) • Big. Table [OSDI 2006] – a spreadsheet-like data/index model layered on GFS • Sawzall – Execute filter and aggregation scripts on Big. Table servers • Chubby [OSDI 2006] – Foundational lock/consensus/name service for all of the above – Distributed locks – The “root” of distributed coordination in Google tool set

What Good is “Chubby”? • Claim: with a good lock service, lots of distributed system problems become “easy”. – Where have we seen this before? • Chubby encapsulates the algorithms for consensus. – Where does consensus appear in Chubby? • Consensus in the real world is imperfect and messy. – How much of the mess can Chubby hide? – How is “the rest of the mess” exposed? • What new problems does such a service create?

Chubby Structure • Cell with multiple participants (replicas and master) – replicated membership list – common DNS name (e. g. , DNS-RR) • Replicas elect one participant to serve as Master – master renews its Master Lease periodically – elect a new master if the master fails – all writes propagate to secondary replicas • Clients send “master location requests” to any replica – returns identity of master • Replace replica after long-term failure (hours)

Master Election/Fail-over

consistency C Fox&Brewer “CAP Theorem”: C-A-P: choose two. CA: available, and consistent, unless there is a partition. A Availability Claim: every distributed system is on one side of the triangle. CP: always consistent, even in a partition, but a reachable replica may deny service without agreement of the others (e. g. , quorum). AP: a reachable replica provides service even in a partition, but may be inconsistent. P Partition-resilience
