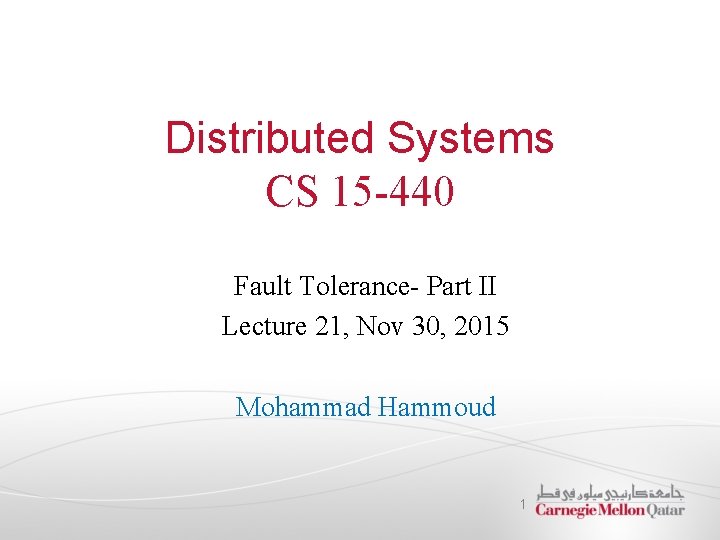

Distributed Systems CS 15 -440 Fault Tolerance- Part II Lecture 21, Nov 30, 2015 Mohammad Hammoud 1

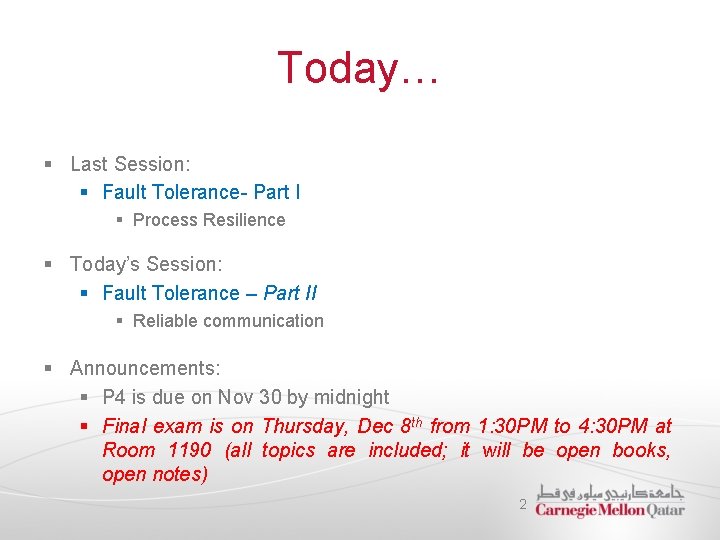

Today… § Last Session: § Fault Tolerance- Part I § Process Resilience § Today’s Session: § Fault Tolerance – Part II § Reliable communication § Announcements: § P 4 is due on Nov 30 by midnight § Final exam is on Thursday, Dec 8 th from 1: 30 PM to 4: 30 PM at Room 1190 (all topics are included; it will be open books, open notes) 2

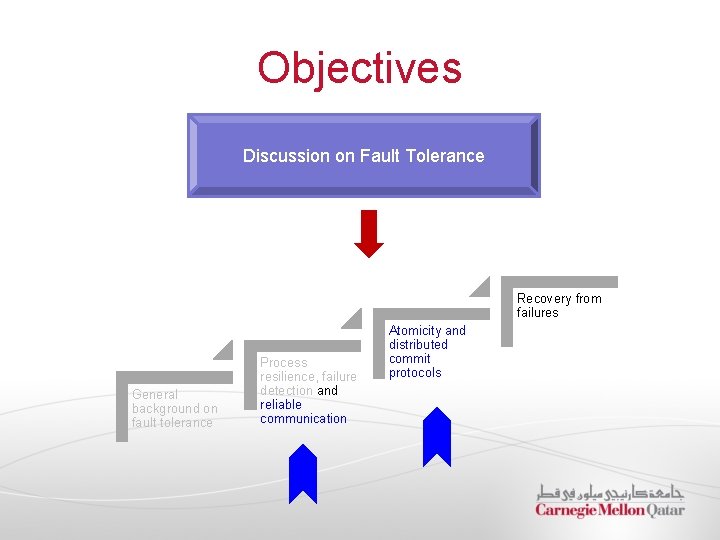

Objectives Discussion on Fault Tolerance Recovery from failures General background on fault tolerance Process resilience, failure detection and reliable communication Atomicity and distributed commit protocols

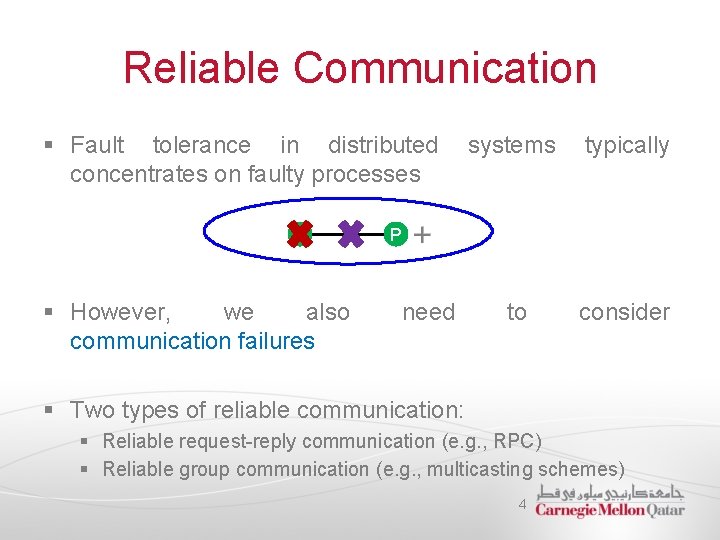

Reliable Communication § Fault tolerance in distributed concentrates on faulty processes P § However, we also communication failures systems typically to consider P need § Two types of reliable communication: § Reliable request-reply communication (e. g. , RPC) § Reliable group communication (e. g. , multicasting schemes) 4

Reliable Communication Reliable Request-Reply Communication Reliable Group Communication 5

Request-Reply Communication § The request-reply (RR) communication is designed to support the roles and message exchanges in typical client-server interactions Client do. Operation • • (wait) • • (continuation) Server Request Message get. Request select operation execute operation Reply Message send. Reply § This sort of communication is mainly based on a trio of communication primitives, do. Operation, get. Request and send. Reply 6

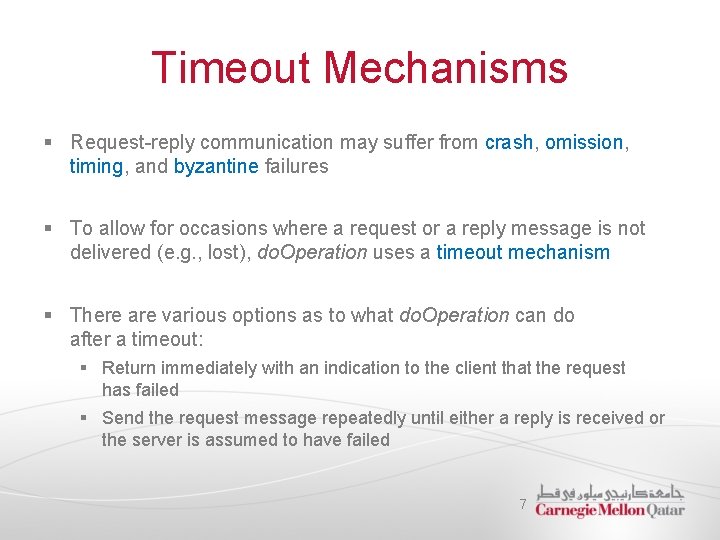

Timeout Mechanisms § Request-reply communication may suffer from crash, omission, timing, and byzantine failures § To allow for occasions where a request or a reply message is not delivered (e. g. , lost), do. Operation uses a timeout mechanism § There are various options as to what do. Operation can do after a timeout: § Return immediately with an indication to the client that the request has failed § Send the request message repeatedly until either a reply is received or the server is assumed to have failed 7

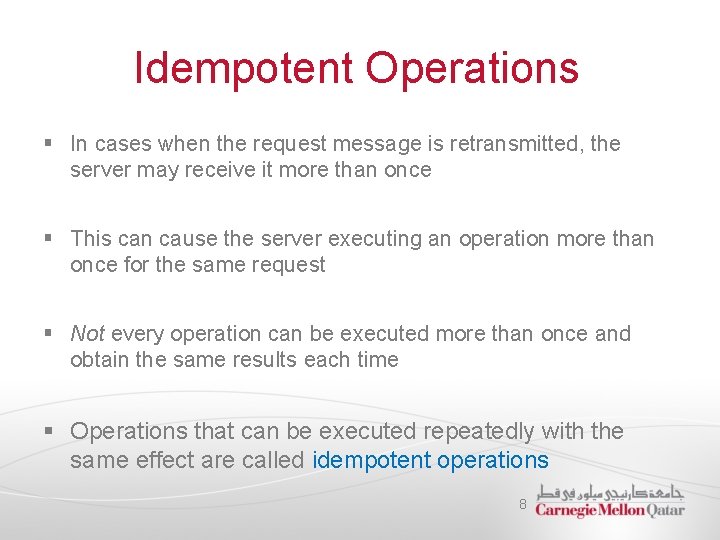

Idempotent Operations § In cases when the request message is retransmitted, the server may receive it more than once § This can cause the server executing an operation more than once for the same request § Not every operation can be executed more than once and obtain the same results each time § Operations that can be executed repeatedly with the same effect are called idempotent operations 8

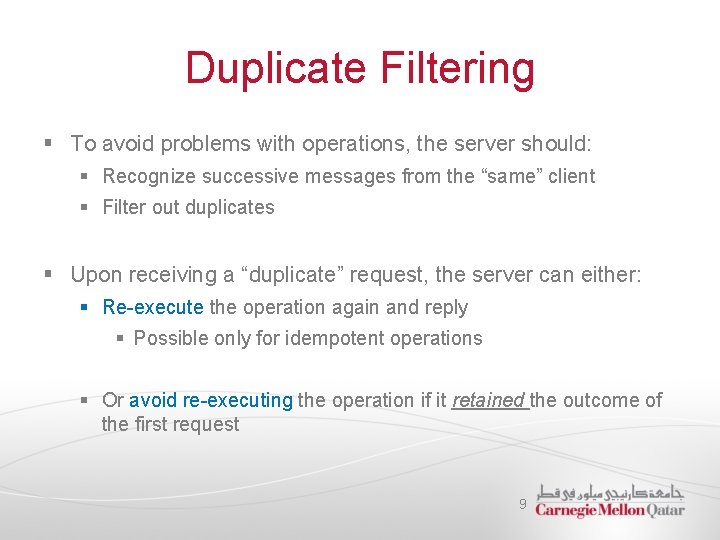

Duplicate Filtering § To avoid problems with operations, the server should: § Recognize successive messages from the “same” client § Filter out duplicates § Upon receiving a “duplicate” request, the server can either: § Re-execute the operation again and reply § Possible only for idempotent operations § Or avoid re-executing the operation if it retained the outcome of the first request 9

Implementation Choices § RR protocol can be implemented in different ways to provide different delivery guarantees. The main choices are: 1. Retry request message (client side): Controls whether to retransmit the request message until either a reply is received or the server is assumed to have failed 2. Duplicate filtering (server side): Controls when retransmissions are used and whether to filter out duplicate requests at the server 3. Retransmission of results (server side): Controls whether to keep a history of result messages so as to enable lost replies to be retransmitted without re-executing the operations at the server 10

Request-Reply Call Semantics § Combinations of RR protocols lead to a variety of possible semantics for the reliability of remote invocations Fault Tolerance Measure Retransmit Request Message Duplicate Filtering Re-execute Procedure or Retransmit Reply Call Semantics (Pertaining to Call Semantics Remote Procedures) No N/A Maybe Yes No Re-execute Procedure At-least-once Yes Retransmit Reply At-most-once 11

Reliable Communication Reliable Request-Reply Communication Reliable Group Communication 12

Reliable Group Communication § As we considered reliable request-reply communication, we need also to consider reliable multicasting services 1 2 7 3 6 4 5 § E. g. , Election algorithms use multicasting schemes 13

Reliable Group Communication § A Basic Reliable-Multicasting Scheme § Atomic Multicasting 14

Reliable Group Communication § A Basic Reliable-Multicasting Scheme § Atomic Multicasting 15

Reliable Multicasting § Reliable multicasting indicates that a message that is sent to a group of processes should be delivered to each member of that group § A distinction should be made between: § Reliable communication faulty processes § Reliable communication non-faulty processes in the presence of § How can we achieve reliable multicasting? 16

Reliable Multicasting with Feedback Messages § Consider the case when a single sender, S, wants to multicast a message to multiple receivers § S’s message may be lost part way and delivered to some, but not to all, of the intended receivers § As of now, let us assume that messages are received in the same order as they were sent 17

Reliable Multicasting with Feedback Messages Sender History Buffer Receiver M 25 Last = 24 Last = 23 Last = 24 Network Sender Receiver Last = 24 M 25 ACK 25 Receiver Last = 23 M 25 ACK 25 Receiver Last = 24 M 25 Missed 24 M 25 ACK 25 An extensive and detailed survey of total-order broadcasts can be found 18 in Defago et al. (2004)

Reliable Group Communication § A Basic Reliable-Multicasting Scheme § Atomic Multicasting 19

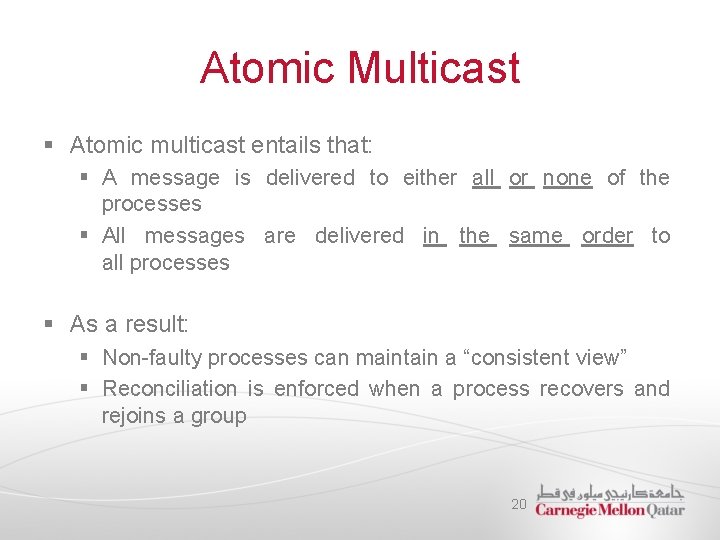

Atomic Multicast § Atomic multicast entails that: § A message is delivered to either all or none of the processes § All messages are delivered in the same order to all processes § As a result: § Non-faulty processes can maintain a “consistent view” § Reconciliation is enforced when a process recovers and rejoins a group 20

Virtual Synchrony § A multicast message, m, is uniquely associated with a list of processes to which it should be delivered § This delivery list corresponds to what is called a group view § In principle, the delivery of m is allowed to fail: 1. When a change in group-membership is the result of the sender of m crashing § Accordingly, m may either be delivered to all remaining processes, or ignored by each of them 2. When a change in group-membership is the result of a receiver of m crashing § Accordingly, m may be ignored by every other receiver A reliable multicast with these properties is said to be “virtually synchronous” 21

The Principle of Virtual Synchrony Reliable multicast by multiple point-to-point messages P 3 crashes P 3 rejoins P 1 P 2 P 3 P 4 G = {P 1, P 2, P 3, P 4} Partial multicast from P 3 is discarded 22 Time

Message Ordering § Four different virtually synchronous multicast orderings are distinguished: 1. Unordered multicasts 2. FIFO-ordered multicasts 3. Causally-ordered multicasts 4. Totally-ordered multicasts 23

1. Unordered multicasts § A reliable, unordered multicast is a virtually synchronous multicast in which no guarantees are given concerning the order in which received messages are delivered by different processes Process P 1 Process P 2 Process P 3 Sends m 1 Receives m 2 Sends m 2 Receives m 1 Three communicating processes in the same group 24

2. FIFO-Ordered Multicasts § With FIFO-Ordered multicasts, the communication layer is forced to deliver incoming messages from the same process in the same order as they have been sent Process P 1 Process P 2 Process P 3 Process P 4 Sends m 1 Receives m 3 Sends m 2 Receives m 3 Receives m 1 Sends m 4 Receives m 2 Receives m 4 Four processes in the same group with two different senders. 25

3 -4. Causally-Ordered and Total -Ordered Multicasts § Causally-ordered multicasts preserve potential causality between different messages § If message m 1 causally precedes another message m 2, the communication layer at each receiver will always deliver m 1 before m 2 § Total-ordered multicasts require that when messages are delivered, they are delivered in the same order to all group members § This is regardless of whether message delivery is unordered, FIFO-ordered, or causally-ordered 26

Virtually Synchronous Reliable Multicasting § A virtually synchronous reliable multicasting that offers total-ordered delivery of messages is what we refer to as atomic multicasting Multicast Basic Message Ordering Total-Ordered Delivery? Reliable multicast None No FIFO multicast FIFO-ordered delivery No Causal multicast Causal-ordered delivery No Atomic multicast None Yes FIFO atomic multicast FIFO-ordered delivery Yes Causal atomic multicast Causal-ordered delivery Yes Six different versions of virtually synchronous reliable multicasting 27

Distributed Commit § Atomic multicasting problem is an example of a more general problem, known as distributed commit § The distributed commit problem involves having an operation being performed by each member of a process group, or none at all § With reliable multicasting, the operation is the delivery of a message § With distributed transactions, the operation may be the commit of a transaction at a single site that takes part in the transaction § Distributed commit is often established by means of a 28 coordinator and participants

One-Phase Commit Protocol § In a simple scheme, a coordinator can tell all participants whether or not to (locally) perform the operation in question § This scheme is referred to as a one-phase commit protocol § The one-phase commit protocol has a main drawback that if one of the participants cannot actually perform the operation, there is no way to tell the coordinator § In practice, more sophisticated schemes are needed § The most common utilized one is the two-phase commit protocol 29

Two-Phase Commit Protocol § Assuming that no failures occur, the two-phase commit protocol (2 PC) consists of the following two phases, each consisting of two steps: Phase I: Voting Phase Step 1 Step 2 • The coordinator sends a VOTE_REQUEST message to all participants. • When a participant receives a VOTE_REQUEST message, it returns either a VOTE_COMMIT message to the coordinator telling the that indicating coordinator it is prepared that it to is prepared locally commit to locally its part commit of theits part of the transaction, or otherwise or aotherwise VOTE_ABORT a VOTE_ABORT message 30

Two-Phase Commit Protocol Phase II: Decision Phase • The coordinator collects all votes from the participants. • If all participants have voted to commit the transaction, then so will the coordinator. In that case, it sends a GLOBAL_COMMIT message to all participants. • However, if one participant had voted to abort the transaction, the coordinator will also decide to abort the transaction and multicast a GLOBAL_ABORT message. • Each participant that voted for a commit waits for the final reaction by the coordinator. • If a participant receives a GLOBAL_COMMIT message, it locally commits the transaction. • Otherwise, when receiving a GLOBAL_ABORT message, the transaction is locally aborted as well. Step 1 Step 2 31

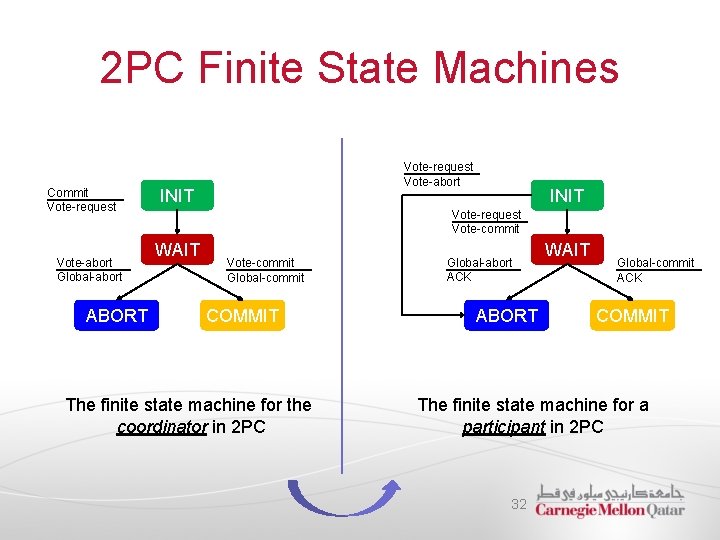

2 PC Finite State Machines Commit Vote-request Vote-abort Global-abort ABORT Vote-request Vote-abort INIT Vote-request Vote-commit WAIT Vote-commit Global-commit COMMIT The finite state machine for the coordinator in 2 PC Global-abort ACK ABORT WAIT Global-commit ACK COMMIT The finite state machine for a participant in 2 PC 32

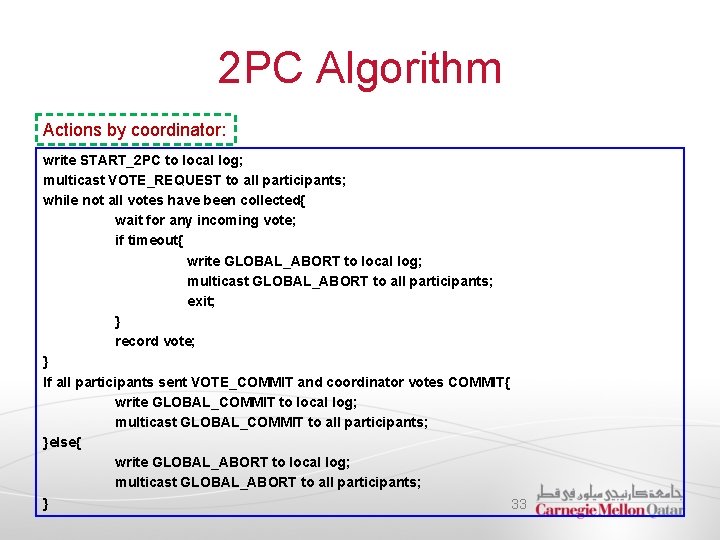

2 PC Algorithm Actions by coordinator: write START_2 PC to local log; multicast VOTE_REQUEST to all participants; while not all votes have been collected{ wait for any incoming vote; if timeout{ write GLOBAL_ABORT to local log; multicast GLOBAL_ABORT to all participants; exit; } record vote; } If all participants sent VOTE_COMMIT and coordinator votes COMMIT{ write GLOBAL_COMMIT to local log; multicast GLOBAL_COMMIT to all participants; }else{ write GLOBAL_ABORT to local log; multicast GLOBAL_ABORT to all participants; } 33

Two-Phase Commit Protocol Actions by participants: write INIT to local log; Wait for VOTE_REQUEST from coordinator; If timeout{ write VOTE_ABORT to local log; exit; } If participant votes COMMIT{ write VOTE_COMMIT to local log; send VOTE_COMMIT to coordinator; wait for DECISION from coordinator; if timeout{ multicast DECISION_RQUEST to other participants; wait until DECISION is received; /*remain blocked*/ write DECISION to local log; } if DECISION == GLOBAL_COMMIT { write GLOBAL_COMMIT to local log; } else if DECISION == GLOBAL_ABORT {write GLOBAL_ABORT to local log}; }else{ write VOTE_ABORT to local log; send VOTE_ABORT to coordinator; } 34

Two-Phase Commit Protocol Actions for handling decision requests: /*executed by separate thread*/ while true{ wait until any incoming DECISION_REQUEST is received; /*remain blocked*/ read most recently recorded STATE from the local log; if STATE == GLOBAL_COMMIT send GLOBAL_COMMIT to requesting participant; else if STATE == INIT or STATE == GLOBAL_ABORT send GLOBAL_ABORT to requesting participant; else skip; /*participant remains blocked*/ } 35

Objectives Discussion on Fault Tolerance Recovery from failures General background on fault tolerance Process resilience, failure detection and reliable communication Atomicity and distributed commit protocols

Recovery § Thus far, we have focused on algorithms that allow us to tolerate faults § However, once a process fails, it is essential that it can recover to a correct state § Two common recovery mechanisms: § Checkpointing § Message Logging 37

Why Checkpointing? § In fault-tolerant distributed systems, processes “regularly” save their states onto a stable storage § This mechanism is referred to as checkpointing § Checkpointing consists of storing a “distributed snapshot” of the current application state § After a failure, the distributed snapshot is used to restart the system (or part of it) from a correct state 38

Recovery Line § In capturing a distributed snapshot, if a process P has recorded the receipt of a message, m, then there should be also a process Q that has recorded the sending of m We are able to identify both, senders and receivers. Initial state A local snapshot A recovery line Not a recovery line P m Q Message sent from Q to P They jointly form a distributed 39 snapshot A failure

Checkpointing § Checkpointing can be classified into two types: 1. Independent Checkpointing, wherein each process simply records its local state from time to time in an uncoordinated fashion 2. Coordinated Checkpointing, wherein all processes synchronize to jointly write their states to a stable storage § Which algorithm among the ones we’ve studied can be used to implement coordinated checkpointing? § 2 PC 40

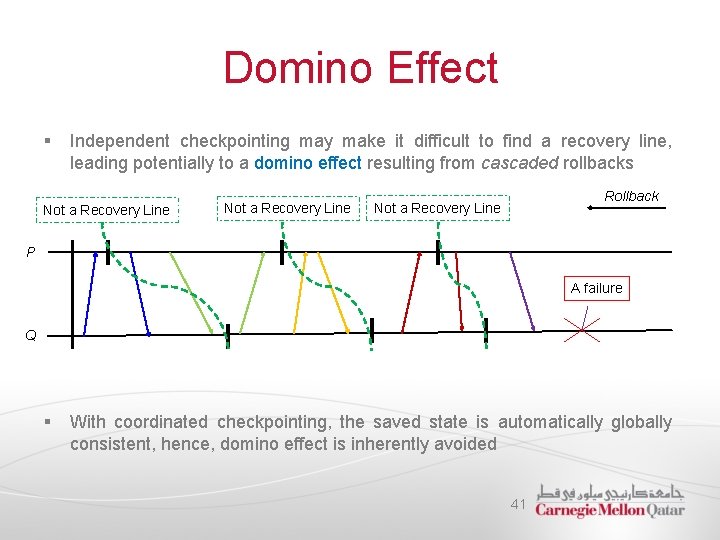

Domino Effect § Independent checkpointing may make it difficult to find a recovery line, leading potentially to a domino effect resulting from cascaded rollbacks Not a Recovery Line Rollback Not a Recovery Line P A failure Q § With coordinated checkpointing, the saved state is automatically globally consistent, hence, domino effect is inherently avoided 41

Why Message Logging? § Considering that checkpointing is an expensive operation, techniques have been sought to reduce the number of checkpoints, but still enable recovery § An important technique in distributed systems is message logging § The basic idea is that if transmission of messages can be replayed, we can still reach a globally consistent state, yet without having to restore all the state from a distributed checkpoint § In practice, the combination of having fewer checkpoints alongside message logging is more efficient than having to take many checkpoints 42

Message Logging § Message logging can be classified into two types: 1. Sender-based logging: A process can log its messages before sending them off 2. Receiver-based logging: A receiving process can first log an incoming message before delivering it to the application § When a sending or a receiving process crashes, it can restore the most recently checkpointed state, and from there on “replay” the logged messages § Will this work for non-deterministic applications? 43

Replaying of Messages and Orphan Processes § Caveat: Incorrect logging/replaying of messages after recovery can lead to orphan processes Q crashes Q recovers M 1 is replayed M 3 becomes an orphan P M 1 Q M 2 M 3 R M 2 can never be replayed Logged Message Unlogged Message 44

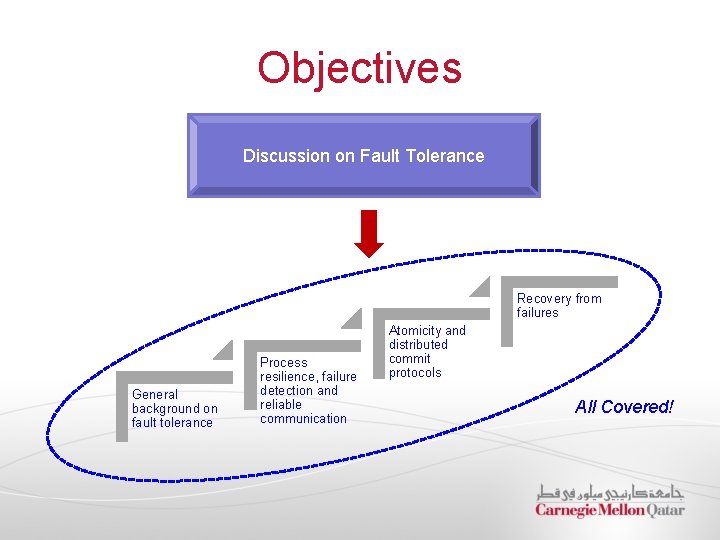

Objectives Discussion on Fault Tolerance Recovery from failures General background on fault tolerance Process resilience, failure detection and reliable communication Atomicity and distributed commit protocols All Covered!
