Distributed Shared Memory Using The. NET Framework Thomas Seidmann Department of Computer Science and Engineering Faculty of Electrical Engineering and Information Technology Slovak University of Technology seidmann@dcs. elf. stuba. sk http: //www. cdot. ch/thomas/

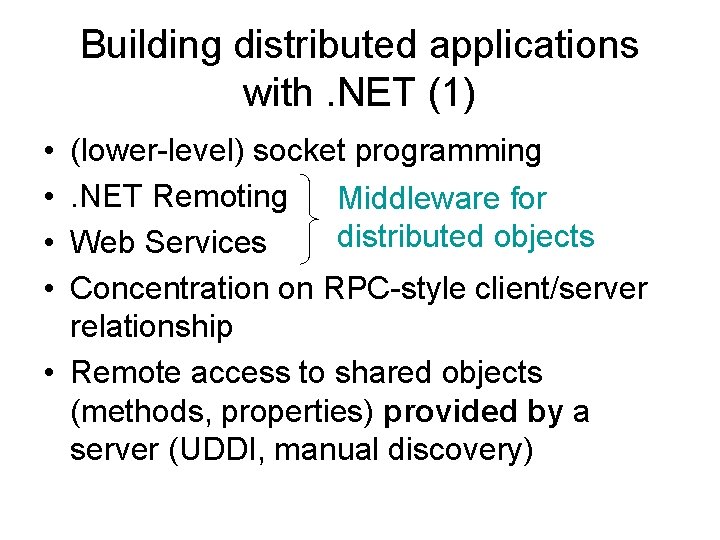

Building distributed applications with. NET (1) • • (lower-level) socket programming. NET Remoting Middleware for distributed objects Web Services Concentration on RPC-style client/server relationship • Remote access to shared objects (methods, properties) provided by a server (UDDI, manual discovery)

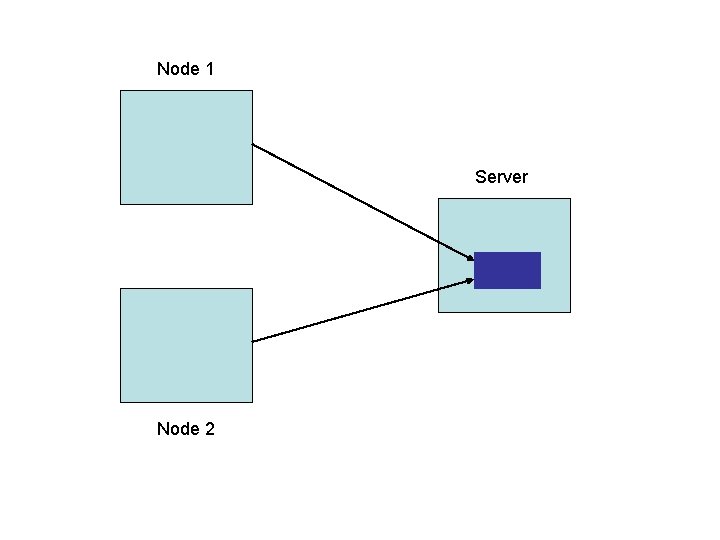

Node 1 Server Node 2

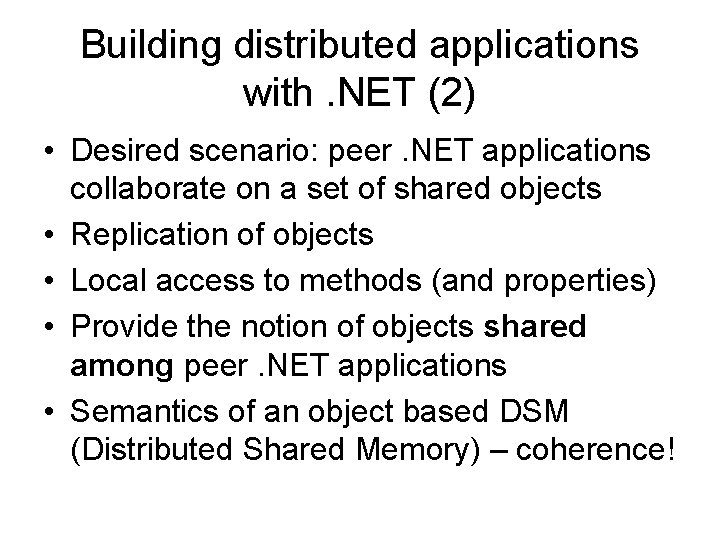

Building distributed applications with. NET (2) • Desired scenario: peer. NET applications collaborate on a set of shared objects • Replication of objects • Local access to methods (and properties) • Provide the notion of objects shared among peer. NET applications • Semantics of an object based DSM (Distributed Shared Memory) – coherence!

Node 1 Node 3 coherence protocol Node 2 Node 4

Consistency model and coherence protocol • • • Causal consistency model Multiple Reader Multiple Writer (MRMW) Write-update protocol Multicast transfer of diffs between nodes Causality relationship achieved by vector logical clocks - Associative array of pairs (PID, value) • Shared object identification with a GUID

DSM Implementation Outline • Mechanism for obtaining the state of a shared object • Registration of every change of a shared object in a local storage • Listening to changes made by remote nodes and to object state queries

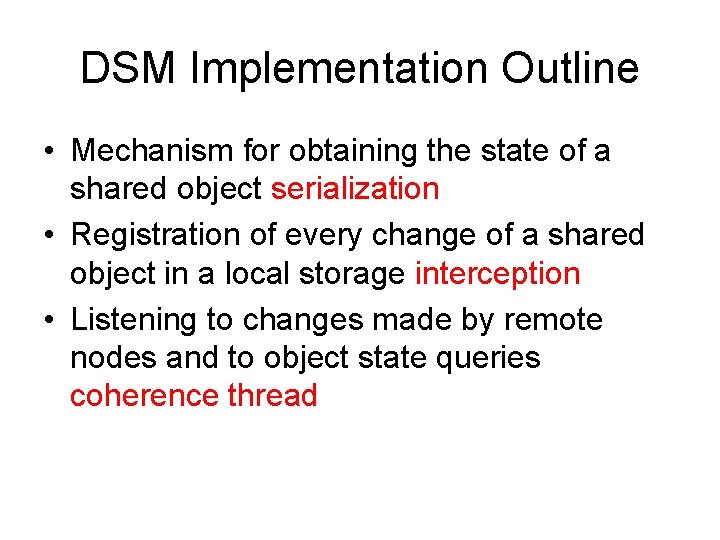

DSM Implementation Outline • Mechanism for obtaining the state of a shared object serialization • Registration of every change of a shared object in a local storage interception • Listening to changes made by remote nodes and to object state queries coherence thread

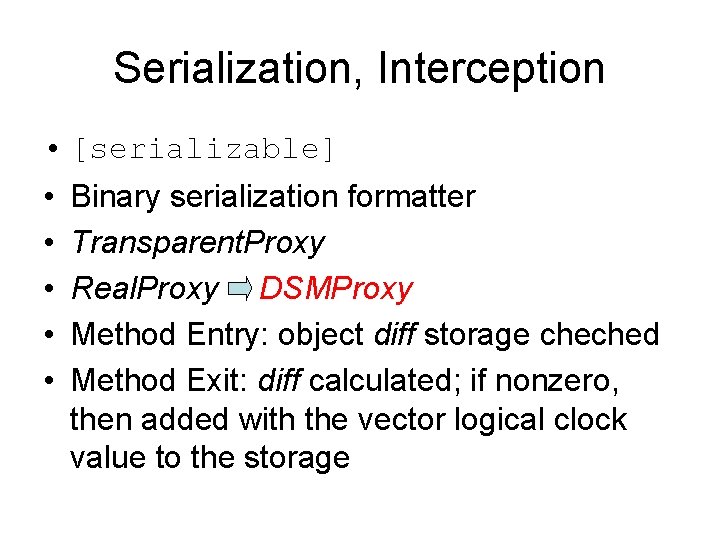

Serialization, Interception • [serializable] • • • Binary serialization formatter Transparent. Proxy Real. Proxy DSMProxy Method Entry: object diff storage cheched Method Exit: diff calculated; if nonzero, then added with the vector logical clock value to the storage

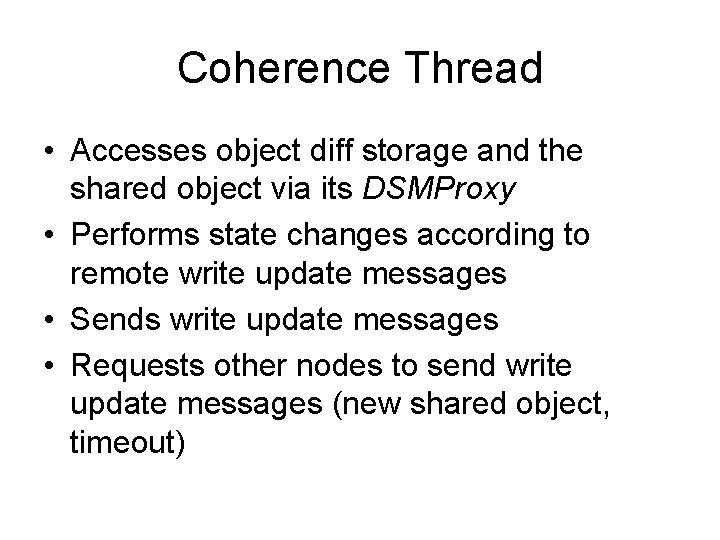

Coherence Thread • Accesses object diff storage and the shared object via its DSMProxy • Performs state changes according to remote write update messages • Sends write update messages • Requests other nodes to send write update messages (new shared object, timeout)

DSM Implementation Overview

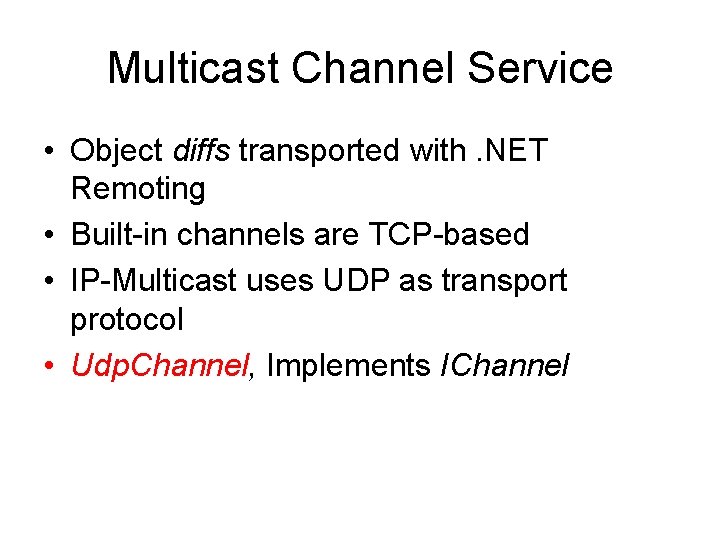

Multicast Channel Service • Object diffs transported with. NET Remoting • Built-in channels are TCP-based • IP-Multicast uses UDP as transport protocol • Udp. Channel, Implements IChannel

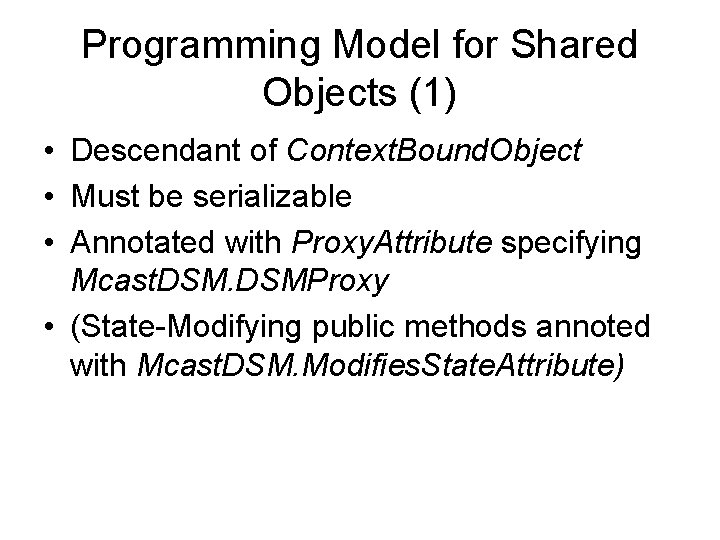

Programming Model for Shared Objects (1) • Descendant of Context. Bound. Object • Must be serializable • Annotated with Proxy. Attribute specifying Mcast. DSMProxy • (State-Modifying public methods annoted with Mcast. DSM. Modifies. State. Attribute)

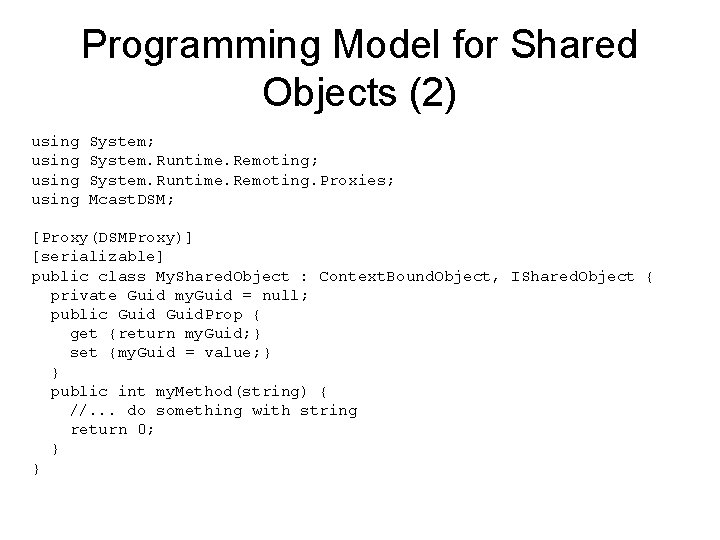

Programming Model for Shared Objects (2) using System; System. Runtime. Remoting. Proxies; Mcast. DSM; [Proxy(DSMProxy)] [serializable] public class My. Shared. Object : Context. Bound. Object, IShared. Object { private Guid my. Guid = null; public Guid. Prop { get {return my. Guid; } set {my. Guid = value; } } public int my. Method(string) { //. . . do something with string return 0; } }

Programming Model for Shared Objects (3) using using System; System. Runtime. Remoting. Channels; Mcast. DSM. Channels; public class App { public static int Main(string[] args) { Channel. Services. Register. Channel ( new Udp. Channel()); // Create an instance of a // My. Shared. Object class My. Shared. Object my. Obj = new My. Shared. Object; my. Obj. Guid. Prop = "478280 B 9 -874 E-4795 -B 3 C 7 -05 CFDD 96 CD 2 C"; my. Obj. my. Method("Hello World"); return 0; } }

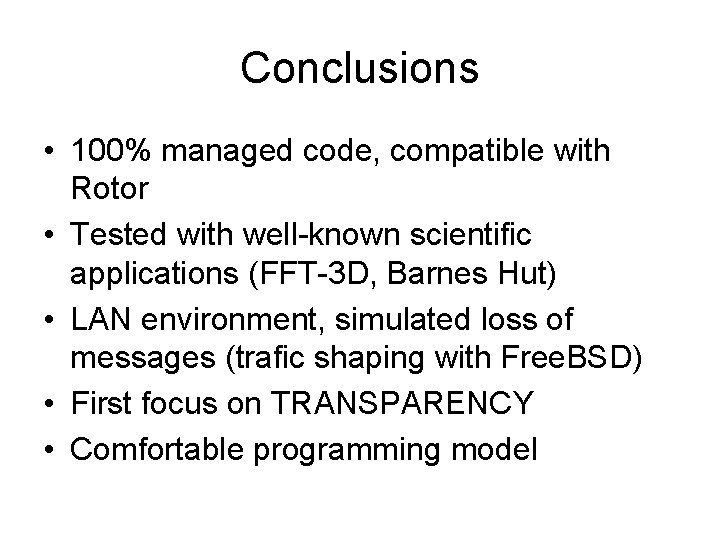

Conclusions • 100% managed code, compatible with Rotor • Tested with well-known scientific applications (FFT-3 D, Barnes Hut) • LAN environment, simulated loss of messages (trafic shaping with Free. BSD) • First focus on TRANSPARENCY • Comfortable programming model

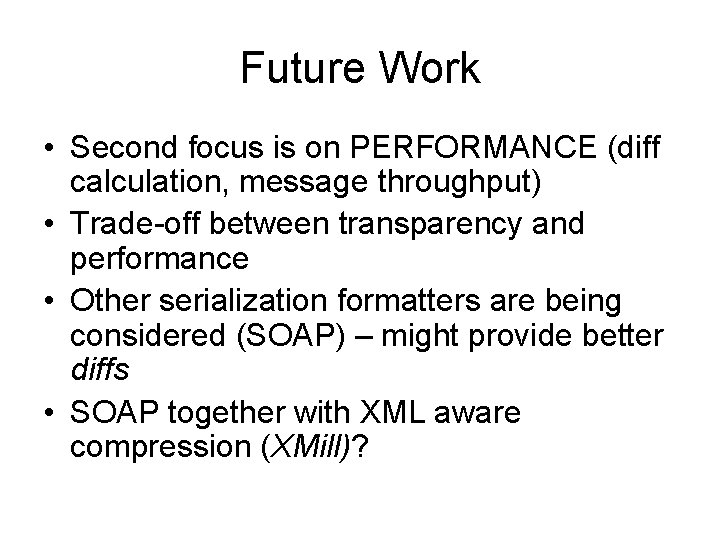

Future Work • Second focus is on PERFORMANCE (diff calculation, message throughput) • Trade-off between transparency and performance • Other serialization formatters are being considered (SOAP) – might provide better diffs • SOAP together with XML aware compression (XMill)?

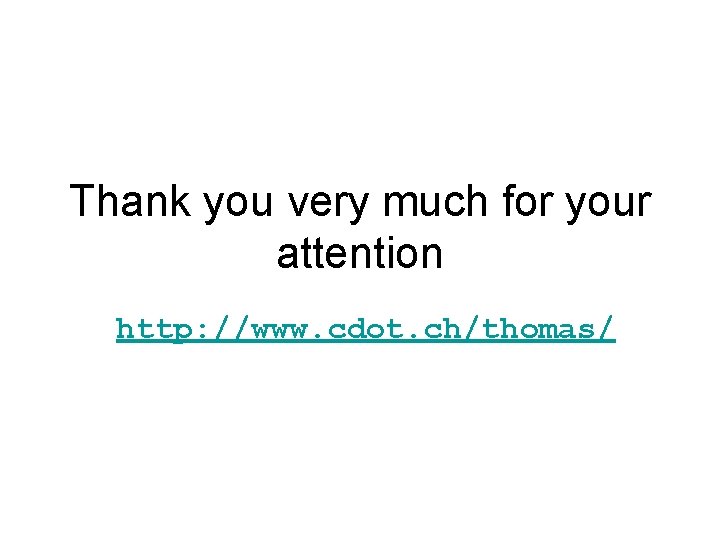

Thank you very much for your attention http: //www. cdot. ch/thomas/
