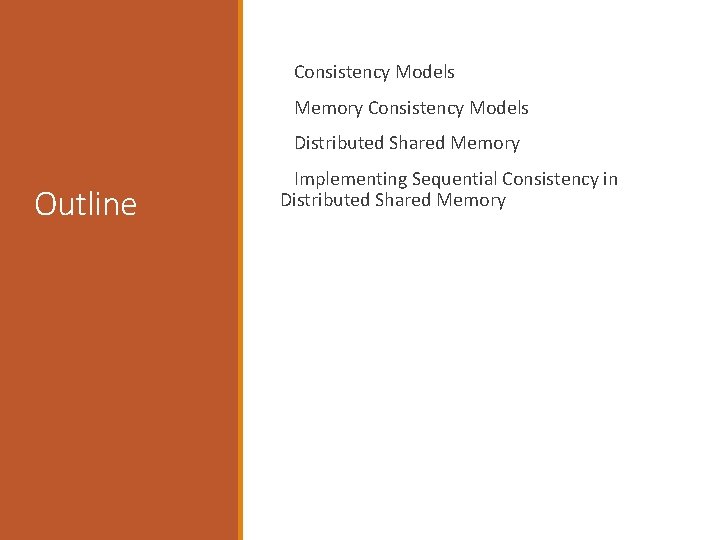

Consistency Models Memory Consistency Models Distributed Shared Memory Outline Implementing Sequential Consistency in Distributed Shared Memory

Consistency There are many aspects for consistency. But remember that the consistency is the way for the people to reason about the systems. (What behavior should be considered as “correct” or “suitable”. ) Consistency model is considered to be the constrains of a system that can be observed by the outside of the system. Consistency problems raised in many applications in distributed system including DSM(distributed shared memory), multiprocessors with shared memory(called as memory model), and replicas stored on multiple servers.

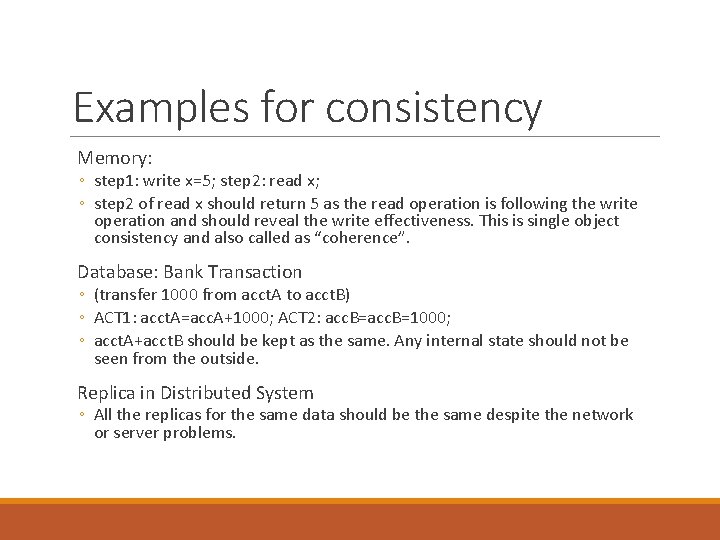

Examples for consistency Memory: ◦ step 1: write x=5; step 2: read x; ◦ step 2 of read x should return 5 as the read operation is following the write operation and should reveal the write effectiveness. This is single object consistency and also called as “coherence”. Database: Bank Transaction ◦ (transfer 1000 from acct. A to acct. B) ◦ ACT 1: acct. A=acc. A+1000; ACT 2: acc. B=1000; ◦ acct. A+acct. B should be kept as the same. Any internal state should not be seen from the outside. Replica in Distributed System ◦ All the replicas for the same data should be the same despite the network or server problems.

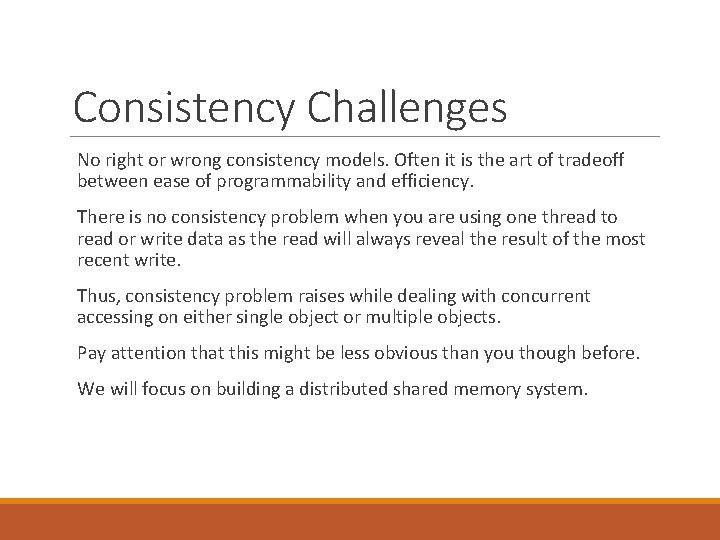

Consistency Challenges No right or wrong consistency models. Often it is the art of tradeoff between ease of programmability and efficiency. There is no consistency problem when you are using one thread to read or write data as the read will always reveal the result of the most recent write. Thus, consistency problem raises while dealing with concurrent accessing on either single object or multiple objects. Pay attention that this might be less obvious than you though before. We will focus on building a distributed shared memory system.

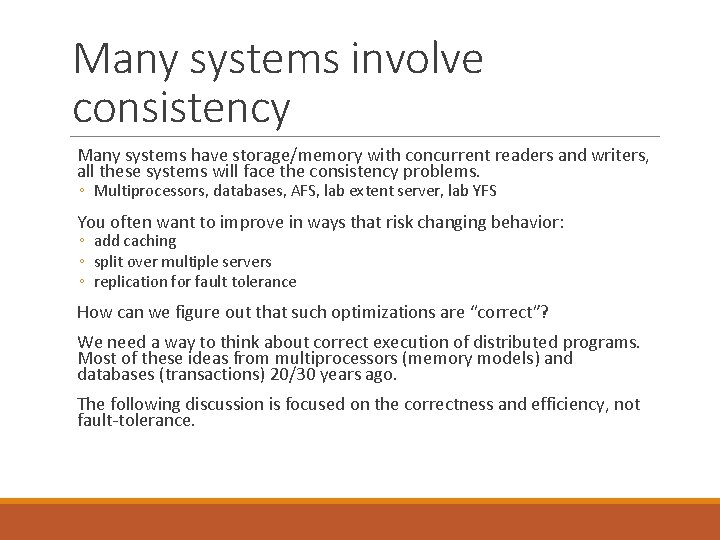

Many systems involve consistency Many systems have storage/memory with concurrent readers and writers, all these systems will face the consistency problems. ◦ Multiprocessors, databases, AFS, lab extent server, lab YFS You often want to improve in ways that risk changing behavior: ◦ add caching ◦ split over multiple servers ◦ replication for fault tolerance How can we figure out that such optimizations are “correct”? We need a way to think about correct execution of distributed programs. Most of these ideas from multiprocessors (memory models) and databases (transactions) 20/30 years ago. The following discussion is focused on the correctness and efficiency, not fault-tolerance.

Distributed Shared Memory Multiple processes connect to the virtually shared memory. The virtual shared memory might be physcially located in distributed hosts connected by a network. So, how to implement a distributed shared memory system?

Naive Distributed Shared Memory Each machine has a local copy of all memory (mem 0, mem 1, mem 2 should be kept as the same) Read: from local memory Write: send update message to each other host (but don’t wait) This is fast because the processes never waits for communication Does this memory work well?

Example 1: M 0: M 2: v 0=f 0(); while(done 1==0); done 0=1; v 2=f 2(v 0, v 1); M 1: while(done 0==0) ; v 1=f 1(v 0); done 1=1; Intuitive intent: M 2 should execute f 2() with results from M 0 and M 1, waiting for M 1 implies waiting for M 0.

Will the naive distributed memory work for example 1? Problem A M 0’s writes of v 0 and done 0 may be interchanged by network leaving v 0 unset but done 0=1 how to fix?

Will naive distributed memory work for example 1? Problem B M 2 sees M 1’s writes before M 0’s writes i. e. M 2 and M 1 disagree on order of M 0 and M 1 writes. How to fix?

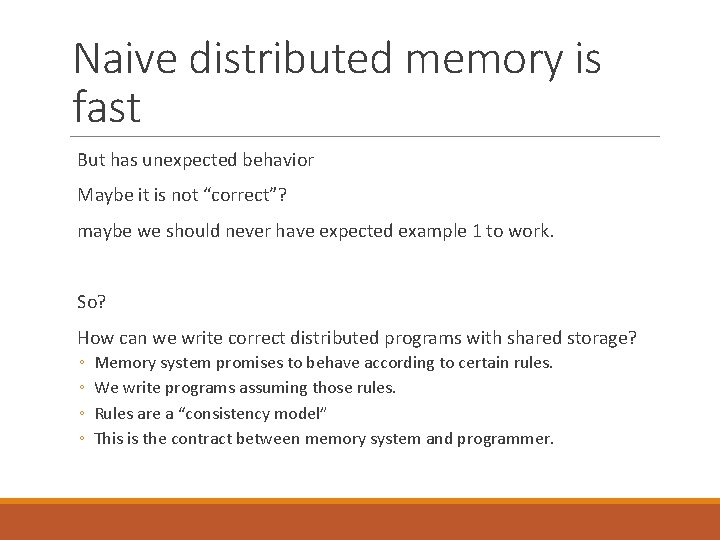

Naive distributed memory is fast But has unexpected behavior Maybe it is not “correct”? maybe we should never have expected example 1 to work. So? How can we write correct distributed programs with shared storage? ◦ ◦ Memory system promises to behave according to certain rules. We write programs assuming those rules. Rules are a “consistency model” This is the contract between memory system and programmer.

What makes a good consistency model? There is no “right” or “wrong” consistency models. A model may make it harder to program but with good efficiency. A model may make it easier to program but with bad performance. Some consistency model may output astonishing results. Applications might use different kinds of memory models such as Web pages or shared memory according the types of applications.

Strict Consistency Define the strict consistency? ◦ Suppose we can tag each operation with a timestamp (global time). ◦ Suppose each operation can complete instantaneous. Thus: ◦ A read returns the results of the most recently written value. ◦ This is what uniprocessors support.

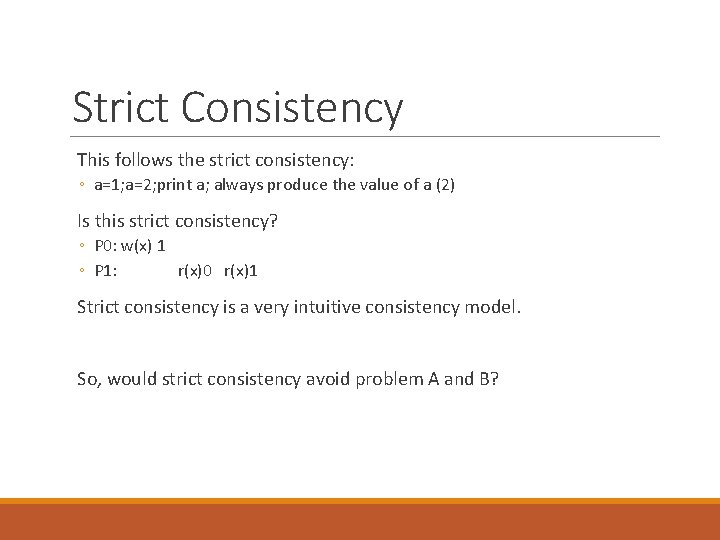

Strict Consistency This follows the strict consistency: ◦ a=1; a=2; print a; always produce the value of a (2) Is this strict consistency? ◦ P 0: w(x) 1 ◦ P 1: r(x)0 r(x)1 Strict consistency is a very intuitive consistency model. So, would strict consistency avoid problem A and B?

Implementation of Strict Consistency Model How is R@2 aware of W@1? How does W@4 know to pause until R@3 has finished? How long to wait? This is too hard to implement.

Sequential Consistency Sequential consistency (serializability): the results are the same as if operations from different processors are interleaved, but operations of a single processor appear in the order specified by the program Example of sequentially consistent execution (Not strictly consistency as it violate the physical time effectiveness) : P 1: W(x)1 P 2: R(x)0 R(x)1 Sequential consistency is inefficient: we want to weaken the model further

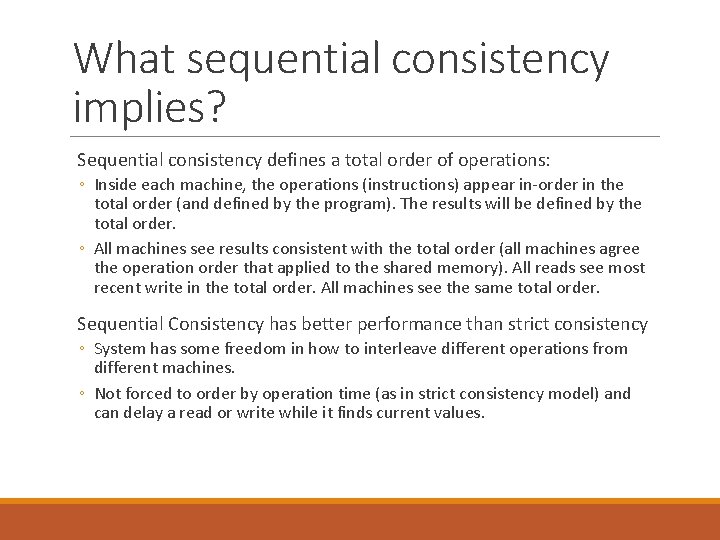

What sequential consistency implies? Sequential consistency defines a total order of operations: ◦ Inside each machine, the operations (instructions) appear in-order in the total order (and defined by the program). The results will be defined by the total order. ◦ All machines see results consistent with the total order (all machines agree the operation order that applied to the shared memory). All reads see most recent write in the total order. All machines see the same total order. Sequential Consistency has better performance than strict consistency ◦ System has some freedom in how to interleave different operations from different machines. ◦ Not forced to order by operation time (as in strict consistency model) and can delay a read or write while it finds current values.

Problem A and B in sequential consistency Problem A ◦ M 0's execution order was v 0= done 0= ◦ M 1 saw done 0= v 0= Each machine's operations must appear in execution order, so this cannot happen with sequential consistency. Problem B ◦ M 1 saw v 0= done 1= ◦ M 2 saw done 1= v 0= This cannot occur given a single total order, so this cannot happen with sequential consistency.

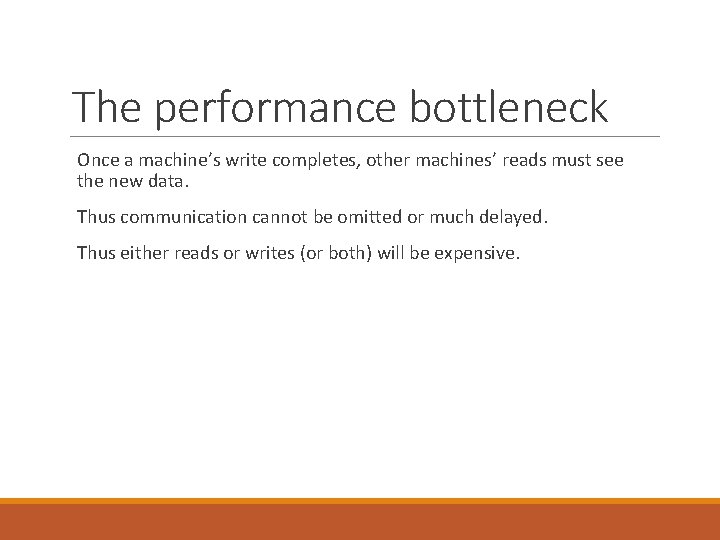

The performance bottleneck Once a machine’s write completes, other machines’ reads must see the new data. Thus communication cannot be omitted or much delayed. Thus either reads or writes (or both) will be expensive.

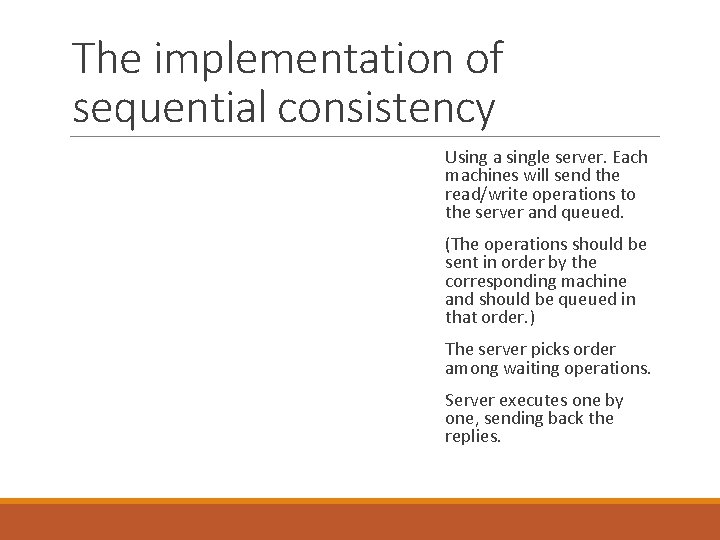

The implementation of sequential consistency Using a single server. Each machines will send the read/write operations to the server and queued. (The operations should be sent in order by the corresponding machine and should be queued in that order. ) The server picks order among waiting operations. Server executes one by one, sending back the replies.

Performance problem of the simplementation Single server will soon get overloaded. No local cache! all operations will wait replies from the server. (This is severe performance killer for multicore processors) So: ◦ Partition memory across multiple servers to eliminate single-sever bottleneck. ◦ Can serve many machines in parallel if they don’t use same memory Lamport paper from 1979 shows that a system is sequential consistent if: ◦ 1. each machine executes on operation at a time, waiting for it to complete. ◦ 2. executes operations on each memory location at a time i. e. you can have lots of independent machines and memory systems.

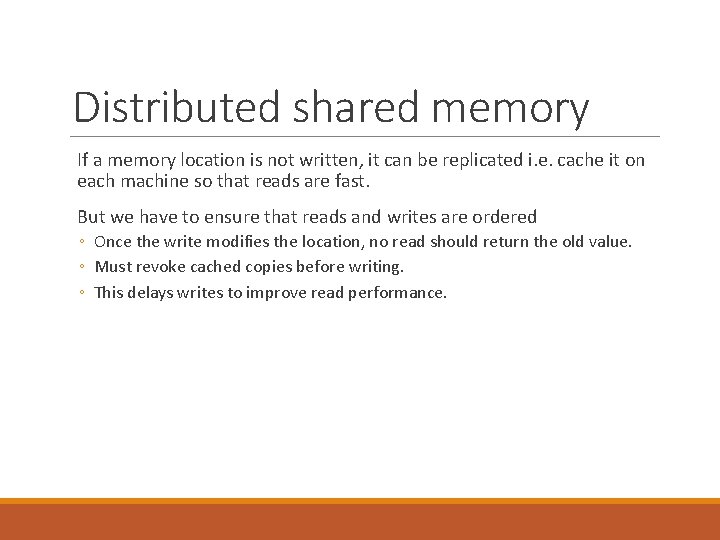

Distributed shared memory If a memory location is not written, it can be replicated i. e. cache it on each machine so that reads are fast. But we have to ensure that reads and writes are ordered ◦ Once the write modifies the location, no read should return the old value. ◦ Must revoke cached copies before writing. ◦ This delays writes to improve read performance.

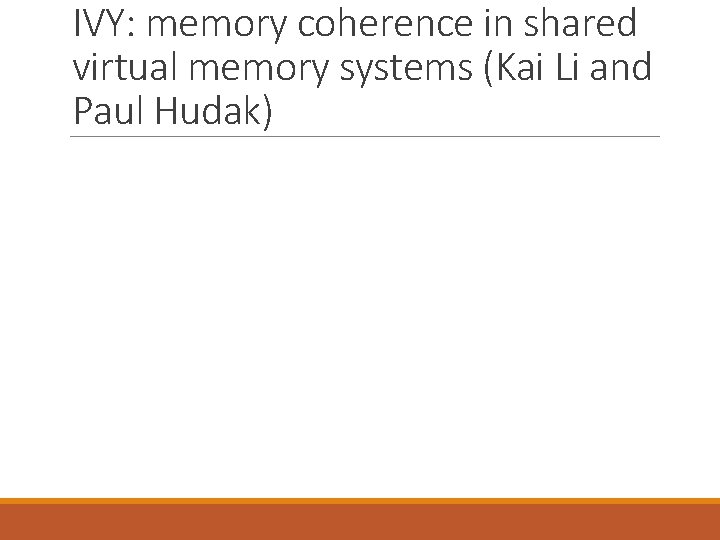

IVY: memory coherence in shared virtual memory systems (Kai Li and Paul Hudak)

IVY: Distributed Shared Memory IVY: connect multiple desktop / server together through LAN and provide the illusion of super power machine. A single power machine: single machine with shared memory and all CPUs are visible to the applications. Applications can use the concepts of multi-thread programming and harnessing the power of many machines! Applications do not need make explicit communication. (different from MPI)

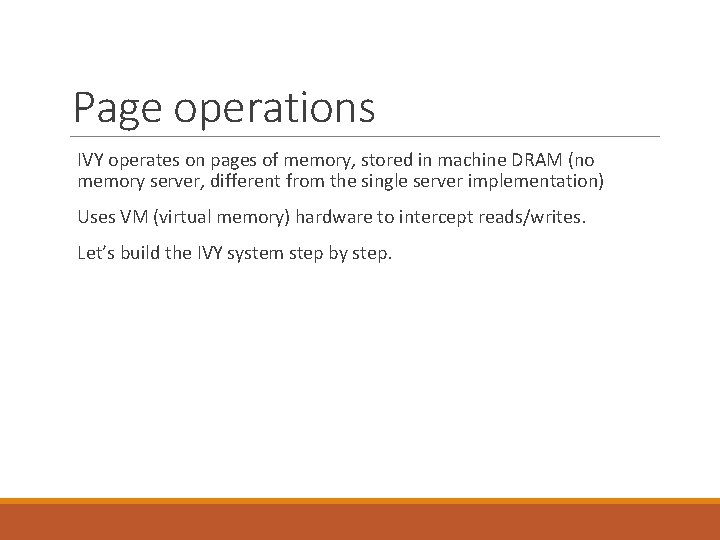

Page operations IVY operates on pages of memory, stored in machine DRAM (no memory server, different from the single server implementation) Uses VM (virtual memory) hardware to intercept reads/writes. Let’s build the IVY system step by step.

Simplified IVY Only one copy of a page at a time (on only one machine) All other copies marked invalid in VM tables If M 0 faults Page. X (either read or write) Fine the one copy e. g. in M 1 Invalidate Page. X in M 1 Move Page. X to M 0 marks the page R/W in VM tables Provide sequential consistency: order of reads/writes can be set by order in which page moves. Slow: think about the applications perform many reads without any write, the mechanism require many faults and page move

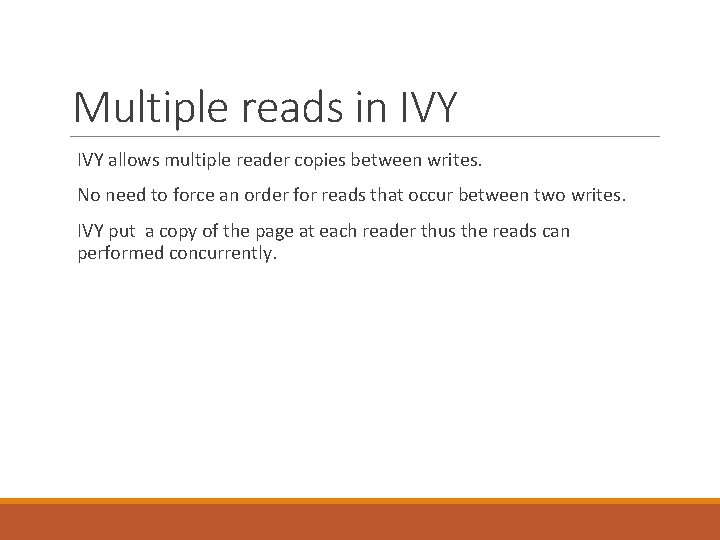

Multiple reads in IVY allows multiple reader copies between writes. No need to force an order for reads that occur between two writes. IVY put a copy of the page at each reader thus the reads can performed concurrently.

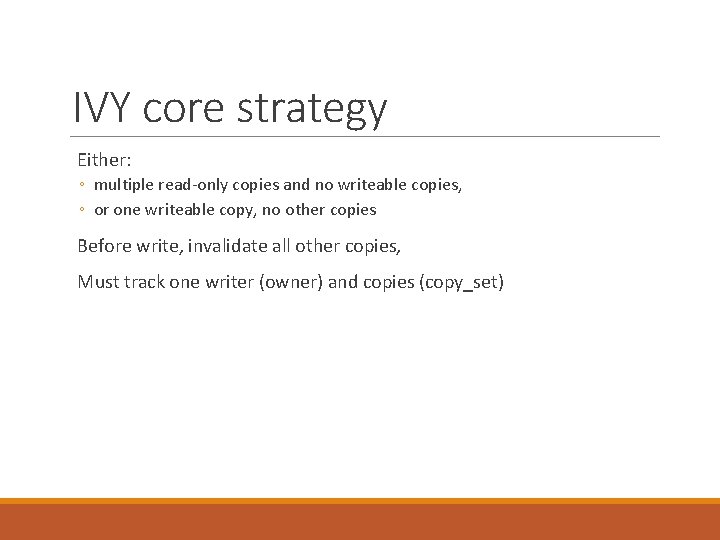

IVY core strategy Either: ◦ multiple read-only copies and no writeable copies, ◦ or one writeable copy, no other copies Before write, invalidate all other copies, Must track one writer (owner) and copies (copy_set)

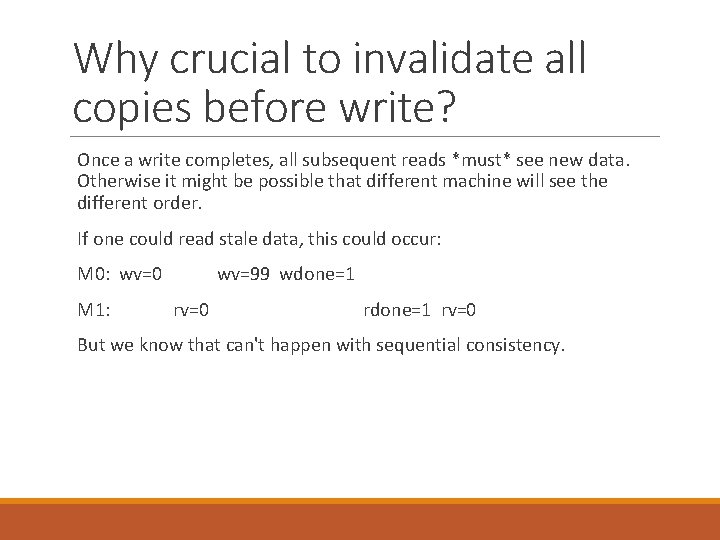

Why crucial to invalidate all copies before write? Once a write completes, all subsequent reads *must* see new data. Otherwise it might be possible that different machine will see the different order. If one could read stale data, this could occur: M 0: wv=0 M 1: wv=99 wdone=1 rv=0 rdone=1 rv=0 But we know that can't happen with sequential consistency.

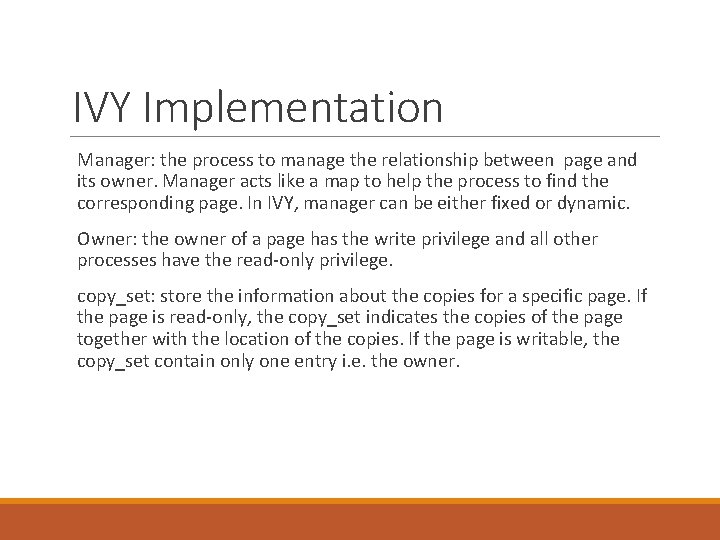

IVY Implementation Manager: the process to manage the relationship between page and its owner. Manager acts like a map to help the process to find the corresponding page. In IVY, manager can be either fixed or dynamic. Owner: the owner of a page has the write privilege and all other processes have the read-only privilege. copy_set: store the information about the copies for a specific page. If the page is read-only, the copy_set indicates the copies of the page together with the location of the copies. If the page is writable, the copy_set contain only one entry i. e. the owner.

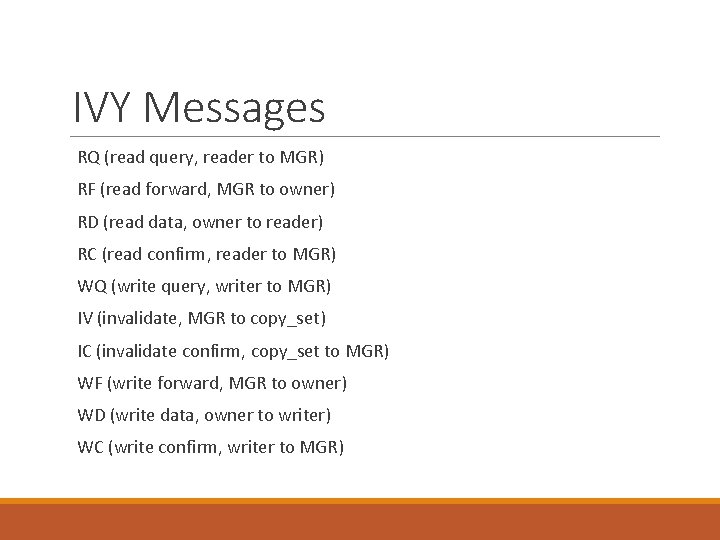

IVY Messages RQ (read query, reader to MGR) RF (read forward, MGR to owner) RD (read data, owner to reader) RC (read confirm, reader to MGR) WQ (write query, writer to MGR) IV (invalidate, MGR to copy_set) IC (invalidate confirm, copy_set to MGR) WF (write forward, MGR to owner) WD (write data, owner to writer) WC (write confirm, writer to MGR)

Scenarios scenario 1: M 0 has writeable copy, M 1 wants to read ◦ ◦ ◦ 0. page fault on M 1, since page must have been marked invalid 1. M 1 sends RQ to MGR 2. MGR sends RF to M 0, MGR adds M 1 to copy_set 3. M 0 marks page as access=read, sends RD to M 1 4. M 1 marks access=read, sends RC to MGR scenario 2: now M 2 wants to write ◦ ◦ ◦ ◦ 0. page fault on M 2 1. M 2 sends WQ to MGR 2. MGR sends IV to copy_set (i. e. M 1) 3. M 1 sends IC msg to MGR 4. MGR sends WF to M 0, sets owner=M 2, copy_set={} 5. M 0 sends WD to M 2, access=none 6. M 2 marks r/w, sends WC to MGR

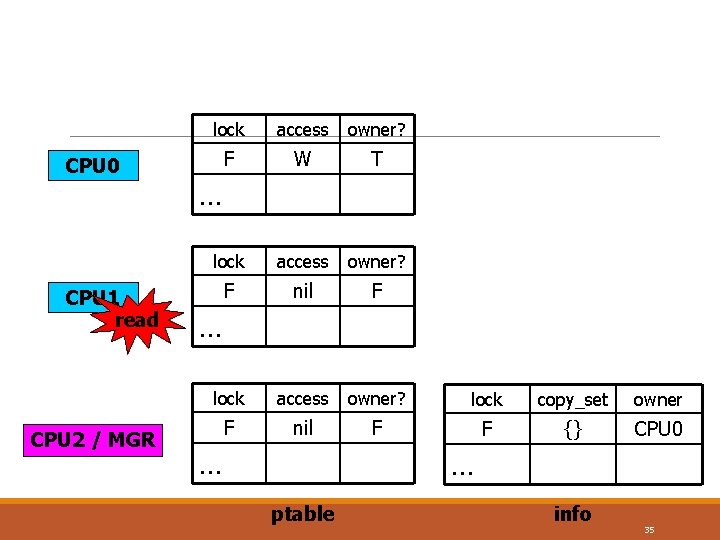

lock access owner? ptable (all CPUs) access: R, W, or nil owner: T or F CPU 0 info (MGR only) lock access owner? copy_set: list of CPUs with read-only copies owner: CPU that can write page lock access owner? lock CPU 1 copy_set owner CPU 2 / MGR ptable info 34

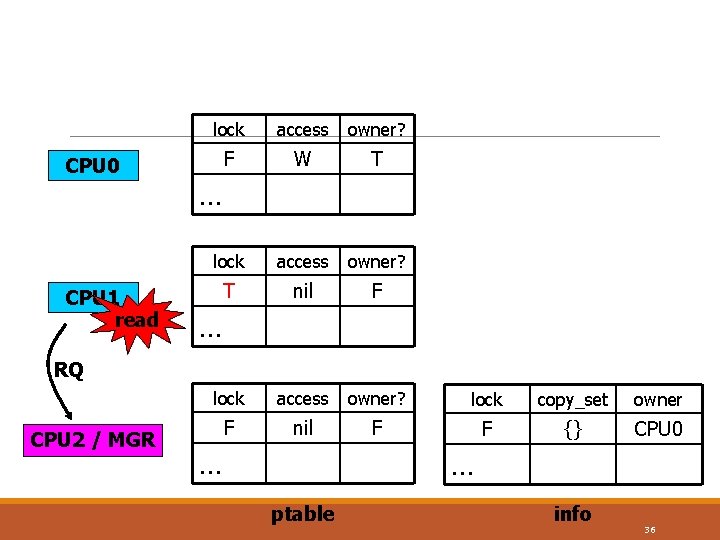

CPU 0 CPU 1 read CPU 2 / MGR lock access owner? F W T lock access owner? F nil F lock access owner? lock copy_set owner F nil F F {} CPU 0 … … ptable info 35

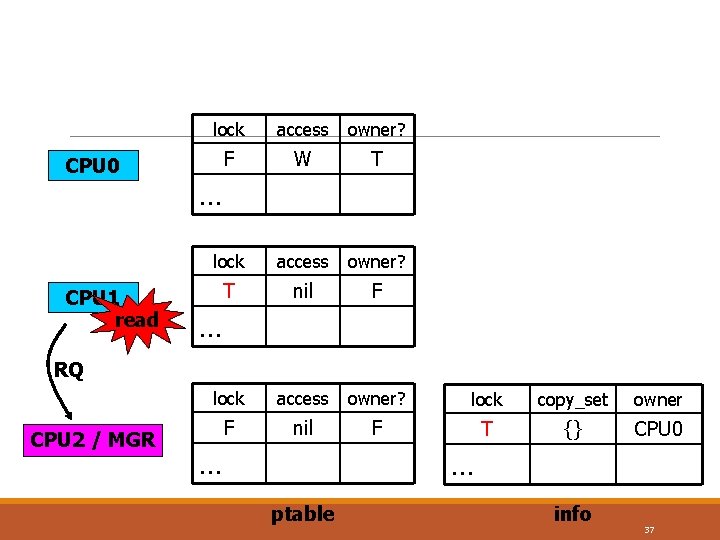

CPU 0 CPU 1 read lock access owner? F W T lock access owner? T nil F lock access owner? lock copy_set owner F nil F F {} CPU 0 … … RQ CPU 2 / MGR … … ptable info 36

CPU 0 CPU 1 read lock access owner? F W T lock access owner? T nil F lock access owner? lock copy_set owner F nil F T {} CPU 0 … … RQ CPU 2 / MGR … … ptable info 37

CPU 0 RF CPU 1 read lock access owner? F W T lock access owner? T nil F lock access owner? lock copy_set owner F nil F T {CPU 1} CPU 0 … … RQ CPU 2 / MGR … … ptable info 38

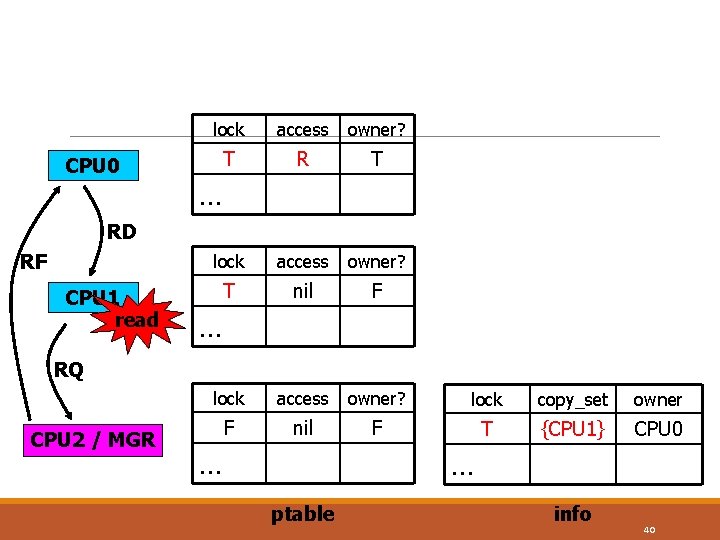

CPU 0 RF CPU 1 read lock access owner? T W T lock access owner? T nil F lock access owner? lock copy_set owner F nil F T {CPU 1} CPU 0 … … RQ CPU 2 / MGR … … ptable info 39

CPU 0 lock access owner? T R T lock access owner? T nil F lock access owner? lock copy_set owner F nil F T {CPU 1} CPU 0 … RD RF CPU 1 read … RQ CPU 2 / MGR … … ptable info 40

CPU 0 lock access owner? F R T lock access owner? T nil F lock access owner? lock copy_set owner F nil F T {CPU 1} CPU 0 … RD RF CPU 1 read … RQ RC CPU 2 / MGR … … ptable info 41

CPU 0 lock access owner? F R T lock access owner? T R F lock access owner? lock copy_set owner F nil F T {CPU 1} CPU 0 … RD RF CPU 1 read … RQ RC CPU 2 / MGR … … ptable info 42

CPU 0 lock access owner? F R T lock access owner? F R F lock access owner? lock copy_set owner F nil F T {CPU 1} CPU 0 … RD RF CPU 1 read … RQ RC CPU 2 / MGR … … ptable info 43

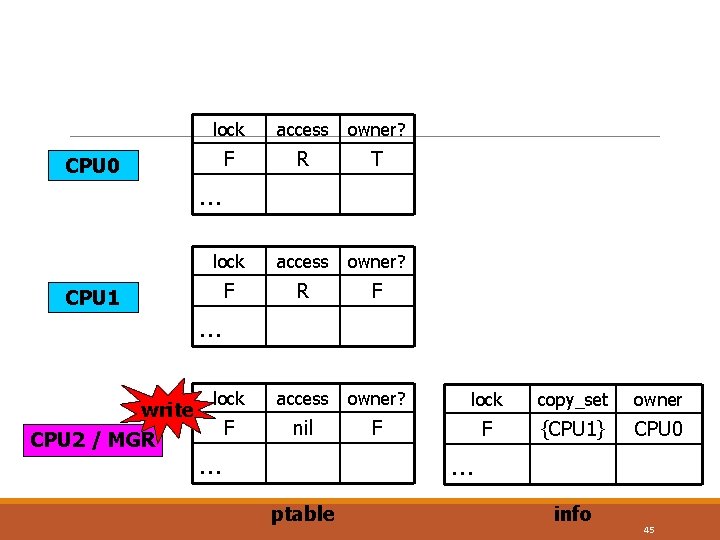

CPU 0 lock access owner? F R T lock access owner? F R F lock access owner? lock copy_set owner F nil F F {CPU 1} CPU 0 … RD RF CPU 1 read … RQ RC CPU 2 / MGR … … ptable info 44

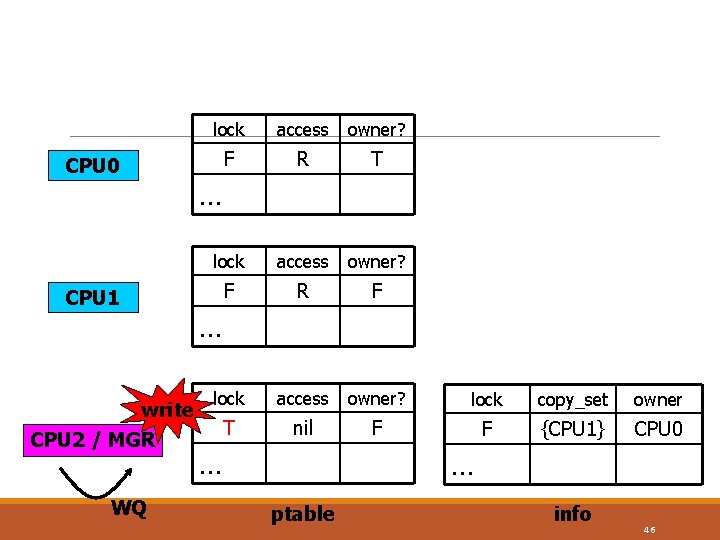

CPU 0 lock access owner? F R T lock access owner? F R F lock access owner? lock copy_set owner F nil F F {CPU 1} CPU 0 … CPU 1 … write CPU 2 / MGR … … ptable info 45

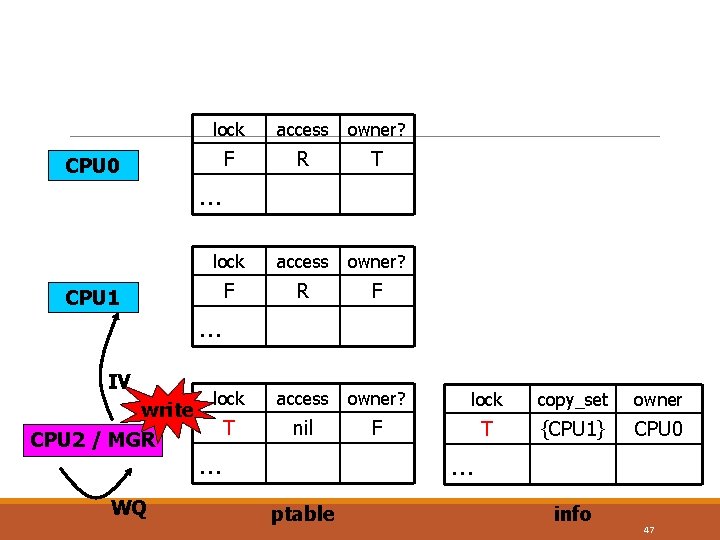

CPU 0 lock access owner? F R T lock access owner? F R F lock access owner? lock copy_set owner T nil F F {CPU 1} CPU 0 … CPU 1 … write CPU 2 / MGR WQ … … ptable info 46

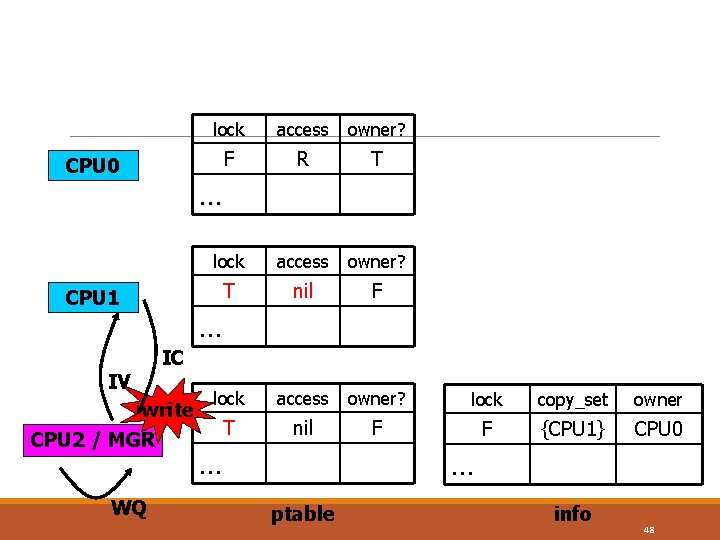

CPU 0 lock access owner? F R T lock access owner? F R F lock access owner? lock copy_set owner T nil F T {CPU 1} CPU 0 … CPU 1 … IV write CPU 2 / MGR WQ … … ptable info 47

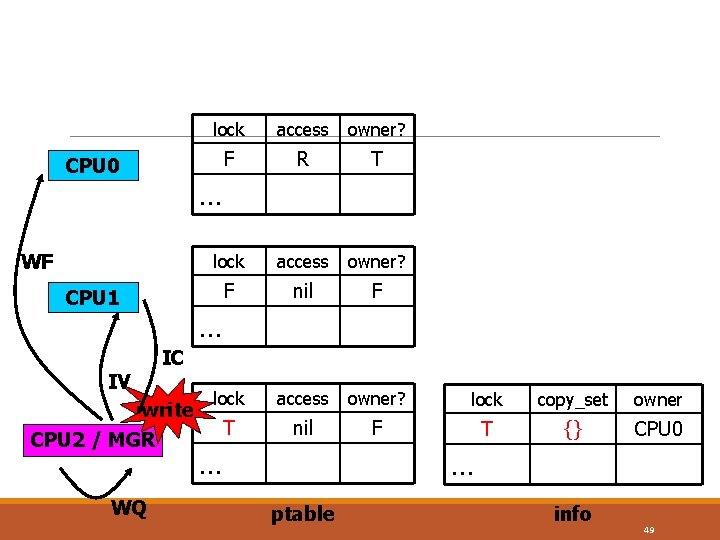

CPU 0 lock access owner? F R T lock access owner? T nil F lock access owner? lock copy_set owner T nil F F {CPU 1} CPU 0 … CPU 1 … IC IV write CPU 2 / MGR WQ … … ptable info 48

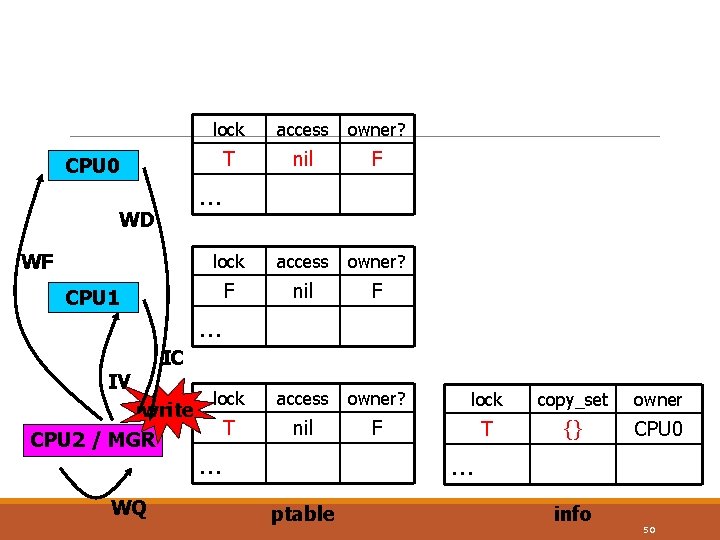

CPU 0 lock access owner? F R T lock access owner? F nil F lock access owner? lock copy_set owner T nil F T {} CPU 0 … WF CPU 1 … IC IV write CPU 2 / MGR WQ … … ptable info 49

CPU 0 lock access owner? T nil F lock access owner? F nil F lock access owner? lock copy_set owner T nil F T {} CPU 0 … WD WF CPU 1 … IC IV write CPU 2 / MGR WQ … … ptable info 50

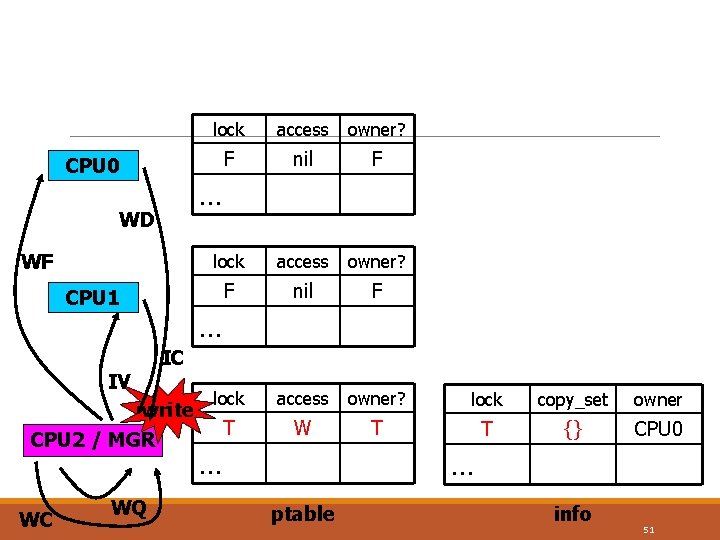

CPU 0 access owner? F nil F lock access owner? lock copy_set owner T W T T {} CPU 0 … WD WF CPU 1 … IC IV write CPU 2 / MGR WC lock WQ … … ptable info 51

CPU 0 access owner? F nil F lock access owner? lock copy_set owner F W T T {} CPU 2 … WD WF CPU 1 … IC IV write CPU 2 / MGR WC lock WQ … … ptable info 52

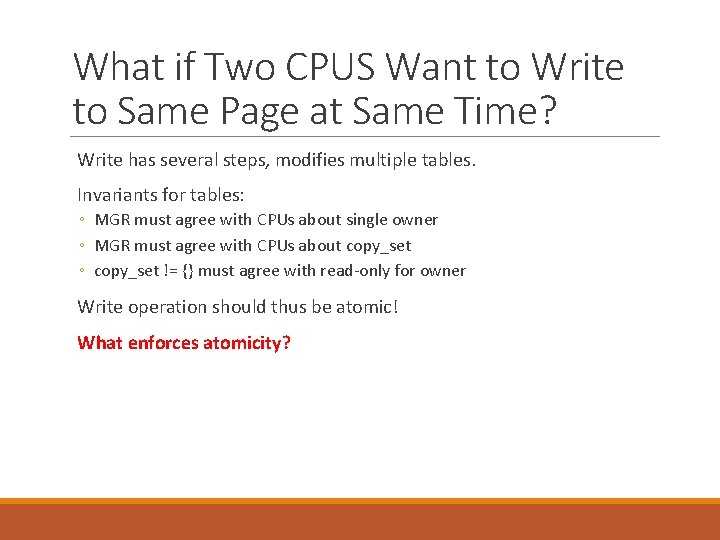

What if Two CPUS Want to Write to Same Page at Same Time? Write has several steps, modifies multiple tables. Invariants for tables: ◦ MGR must agree with CPUs about single owner ◦ MGR must agree with CPUs about copy_set ◦ copy_set != {} must agree with read-only for owner Write operation should thus be atomic! What enforces atomicity?

What if there were no RC message? MGR unlocked after sending RF? ◦ could RF be overtaken by subsequent WF? ◦ or does IV/IC+ptable[p]. lock hold up any subsequent RF? but invalidate can't acquire ptable lock -- deadlock? no IC? ◦ i. e. MGR didn't wait for holders of copies to ack? no WC? ◦ e. g. MGR unlocked after sending WF to M 0? MGR would send subsequent RF, WF to M 2 (new owner) What if such a WF/RF arrived at M 2 before WD? No problem! M 2 has ptable[p]. locked until it gets WD RC + info[p]. lock prevents RF from being overtaken by a WF so it's not clear why WC is needed! but I am not confident in this conclusion.

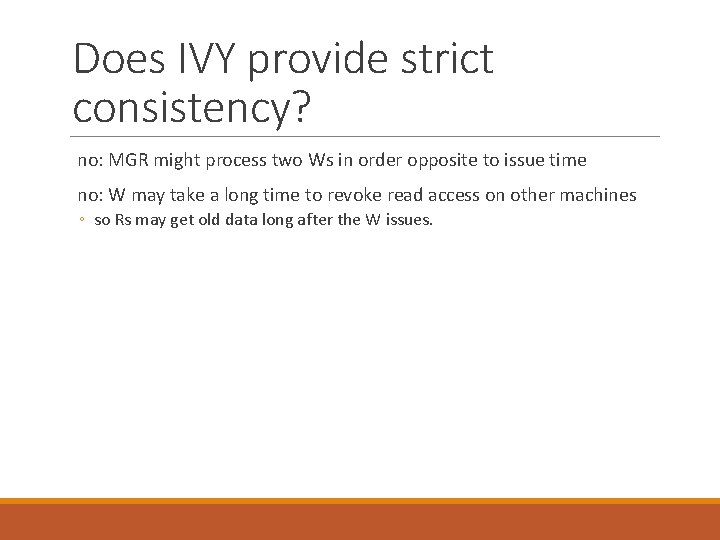

Does IVY provide strict consistency? no: MGR might process two Ws in order opposite to issue time no: W may take a long time to revoke read access on other machines ◦ so Rs may get old data long after the W issues.

Performance In what situations will IVY perform well? 1. Page read by many machines, written by none 2. Page written by just one machine at a time, not used at all by others Cool that IVY moves pages around in response to changing use patterns

What about the page size? Will page size of e. g. 4096 bytes be good or bad? good if spatial locality, i. e. program looks at large blocks of data bad if program writes just a few bytes in a page ◦ subsequent readers copy whole page just to get a few new bytes bad if false sharing ◦ i. e. two unrelated variables on the same page and at least one is frequently written page will bounce between different machines ◦ even read-only users of a non-changing variable will get invalidations ◦ even though those computers never use the same location

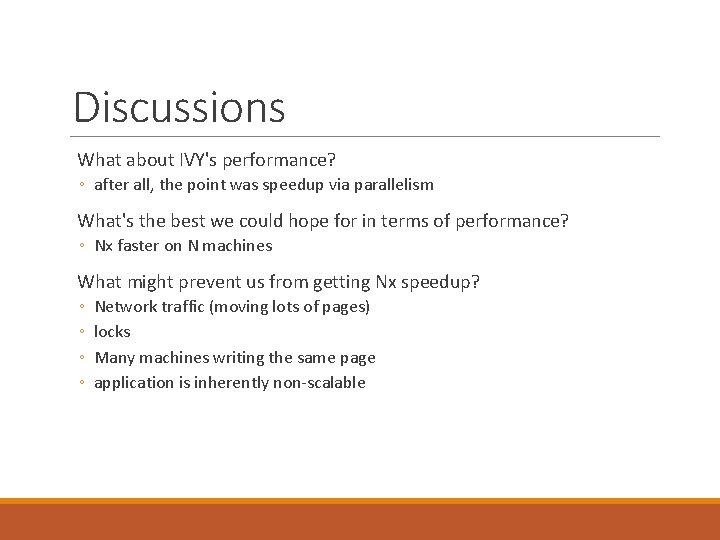

Discussions What about IVY's performance? ◦ after all, the point was speedup via parallelism What's the best we could hope for in terms of performance? ◦ Nx faster on N machines What might prevent us from getting Nx speedup? ◦ ◦ Network traffic (moving lots of pages) locks Many machines writing the same page application is inherently non-scalable

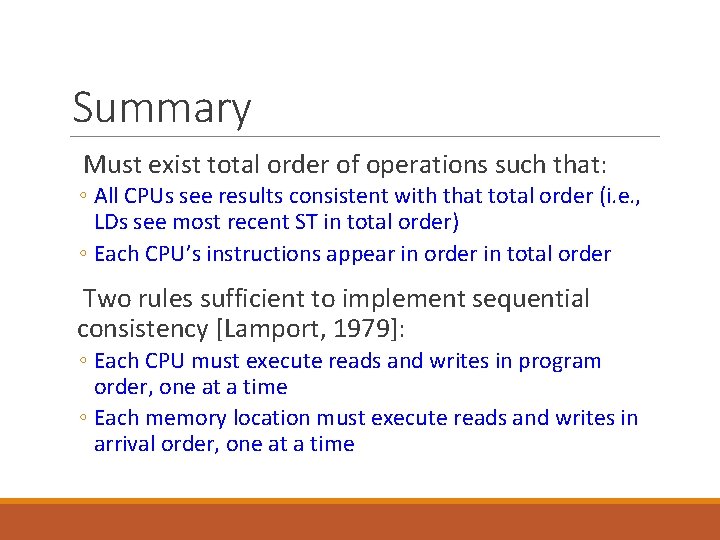

Summary Must exist total order of operations such that: ◦ All CPUs see results consistent with that total order (i. e. , LDs see most recent ST in total order) ◦ Each CPU’s instructions appear in order in total order Two rules sufficient to implement sequential consistency [Lamport, 1979]: ◦ Each CPU must execute reads and writes in program order, one at a time ◦ Each memory location must execute reads and writes in arrival order, one at a time
