Distributed Power System Introduction Distributed Power System DPS

Distributed Power System Introduction Distributed Power System (DPS) is a new generation power solution that specialized for compact site. It consists of DC module, AC module & battery module. It supports pole-mounted and wallmounted. DPS can be widely used for macro site, small cell and remote RRU. DPU 40 D: DC module, converts AC/HVDC to -48 V DC, supplies 3 branches of DC output and 1 branch for battery DBU 20 B & DBU 50 B: battery module, provides reliable backup energy Features l Simple Deployment • Fast installation, 1 hour by 1 person • Multiple input modes: AC/HVDC (DPU 30 D & DPU 40 D) l Easy O&M • Mobile APP (based on Bluetooth), Net. Eco • Fan-free design, 4 -6 years routine maintenance-free l Reliable Power Supply • Lithium iron battery, IP 65, working temperature -40ºC to +55ºC Scenarios l RRU/AAU remote site l Easy Macro Site l Lamp. Site l Atom. Cell (hot-spot / blind-spot coverage) l Enterprise telecom scenario DC Load Scenario

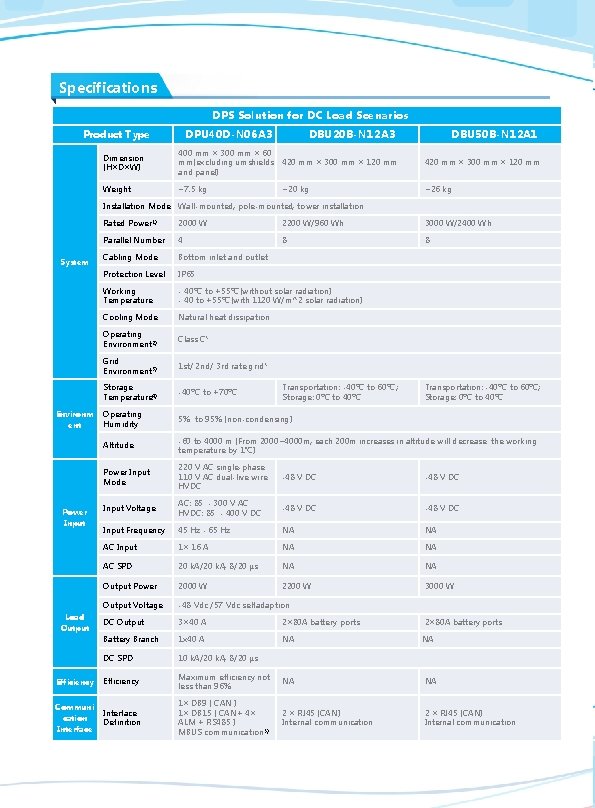

Specifications DPS Solution for DC Load Scenarios DPU 40 D-N 06 A 3 Product Type DBU 20 B-N 12 A 3 DBU 50 B-N 12 A 1 Dimension (H×D×W) 400 mm × 300 mm × 60 mm(excluding umshields 420 mm × 300 mm × 120 mm and panel) 420 mm × 300 mm × 120 mm Weight ~7. 5 kg ~26 kg ~20 kg Installation Mode Wall-mounted, pole-mounted, tower installation Rated Power 1) 2000 W 2200 W/960 Wh 3000 W/2400 Wh Parallel Number 4 8 8 Cabling Mode Bottom inlet and outlet Protection Level IP 65 Working Temperature - 40ºC to +55ºC(without solar radiation) - 40 to +55ºC(with 1120 W/m^2 solar radiation) Cooling Mode Natural heat dissipation Operating Environment 2) Class C* Grid Environment 3) 1 st/ 2 nd/ 3 rd rate grid* Storage Temperature 4) -40ºC to +70ºC Operating Humidity 5% to 95% (non-condensing) Altitude -60 to 4000 m (From 2000~4000 m, each 200 m increases in altitude will decrease the working temperature by 1℃) Power Input Mode 220 V AC single-phase 110 V AC dual-live wire HVDC -48 V DC Input Voltage AC: 85 - 300 V AC HVDC: 85 - 400 V DC -48 V DC Input Frequency 45 Hz - 65 Hz NA NA AC Input 1× 16 A NA NA AC SPD 20 k. A/20 k. A, 8/20 µs NA NA Output Power 2000 W 2200 W 3000 W Output Voltage -48 Vdc /57 Vdc selfadaption DC Output 3× 40 A 2× 80 A battery ports Battery Branch 1 x 40 A NA DC SPD 10 k. A/20 k. A, 8/20 µs Efficiency Maximum efficiency not less than 96% NA NA Communi cation Interface Definition 1× DB 9 ( CAN ) 1× DB 15 ( CAN+ 4× ALM + RS 485 ) MBUS communication 5) 2 × RJ 45 (CAN) Internal communication System Environm ent Power Input Load Output Transportation: -40ºC to 60ºC; Storage: 0ºC to 40ºC 2× 80 A battery ports NA

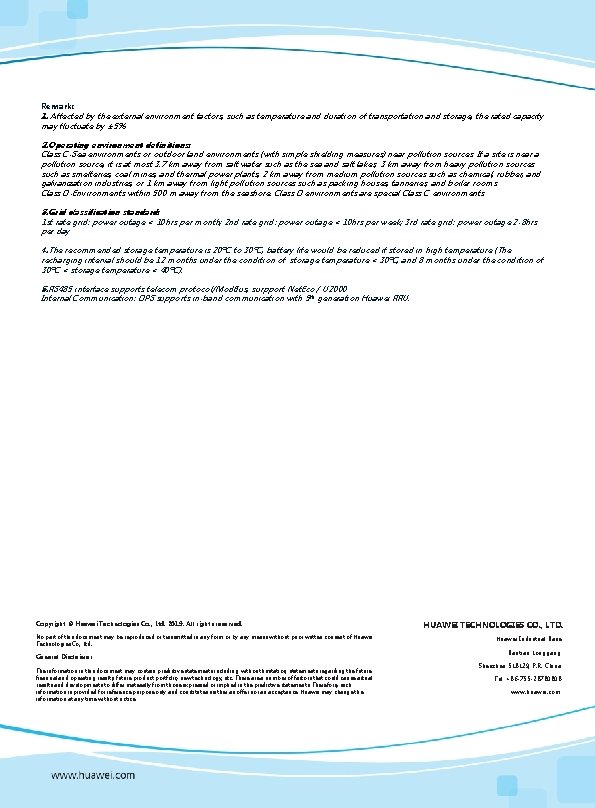

Remark: 1. Affected by the external environment factors, such as temperature and duration of transportation and storage, the rated capacity may fluctuate by ± 5% 2. Operating environment definitions: Class C-Sea environments or outdoor land environments (with simple shielding measures) near pollution sources. If a site is near a pollution source, it is at most 3. 7 km away from salt water such as the sea and salt lakes, 3 km away from heavy pollution sources. such as smelteries, coal mines, and thermal power plants, 2 km away from medium pollution sources such as chemical, rubber, and galvanization industries, or 1 km away from light pollution sources such as packing houses, tanneries, and boiler rooms. Class D-Environments within 500 m away from the seashore. Class D environments are special Class C environments 3. Grid classification standard: 1 st rate grid: power outage < 10 hrs per month; 2 nd rate grid: power outage < 10 hrs per week; 3 rd rate grid: power outage 2 -8 hrs per day 4. The recommended storage temperature is 20ºC to 30ºC, battery life would be reduced if stored in high temperature (The recharging interval should be 12 months under the condition of storage temperature < 30ºC, and 8 months under the condition of 30ºC < storage temperature < 40ºC). 5. RS 485 interface supports telecom protocol/Mod. Bus, surpport Net. Eco / U 2000 Internal Communication: DPS supports in-band communication with 5 th generation Huawei RRU. Copyright © Huawei Technologies Co. , Ltd. 2019. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co. , Ltd. General Disclaimer The information in this document may contain predictive statements including, without limitation, statements regarding the future financial and operating results, future product portfolio, new technology, etc. There a number of factors that could cause actual results and developments to differ materially from those expressed or implied in the predictive statements. Therefore, such information is provided for reference purpose only and constitutes neither an offer nor an acceptance. Huawei may change the information at any time without notice. HUAWEI TECHNOLOGIES CO. , LTD. Huawei Industrial Base Bantian Longgang Shenzhen 518129, P. R. China Tel: +86 -755 -28780808 www. huawei. com
