Distributed Generation Energy Storage in Indonesia Chayun Budiono

Distributed Generation & Energy Storage in Indonesia Chayun Budiono PT Gerbang Multindo Nusantara Jakarta, Indonesia

Indonesia in Profile*) Currency : Indonesian Rupiah (IDR) 1 USD 8500 IDR All figures are approximation only *) Central Bureau of Statistics 2003 • Sea area : 7 900 000 km 2 • Land area : 1 900 000 km 2 • Population : 212 Million • Provinces : 31 • District : 302 • Sub-district : 4 918 • Village : 70 460 • Islands : 17 000

Energy Reserve in Indonesia Fossil • Fuel Oil*) • Gas *) • Coal *) : : : 5. 00 2. 05 5. 22 Renewable • Hydro • Biomass • Solar Energy • Wind & Wave : : 75. 0 GW 470 Million GJ/year 5. 0 k. Wh/m 2. day Potential along South Coast of Java *) Billion Barrels (0. 5%) Trillion m 3 (1. 4%) Billion Ton (0. 5%) Proven Reserve as of 2000; percentage to the world reserve.

Needs for Energy Storage • Supply of most RE systems as well as energy demand are time dependent. • Both RE supply and energy demand generally follow a statistical phenomena • Availability of RE supply does not necessarily coincide with the energy demand

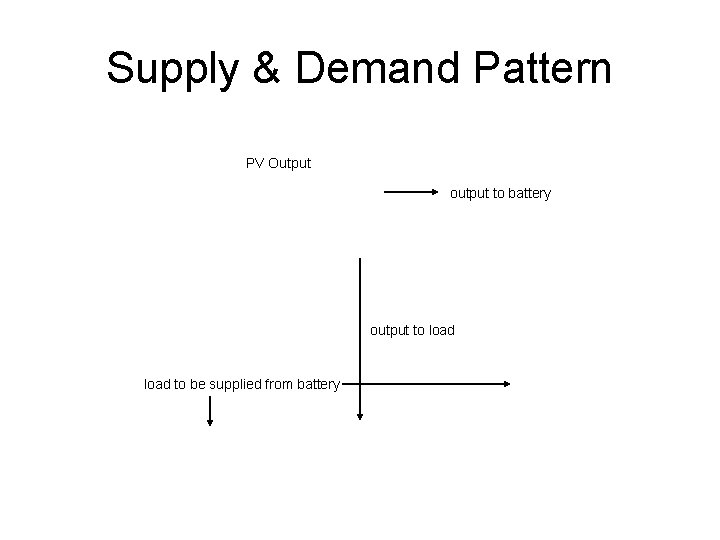

Supply & Demand Pattern PV Output output to battery output to load to be supplied from battery

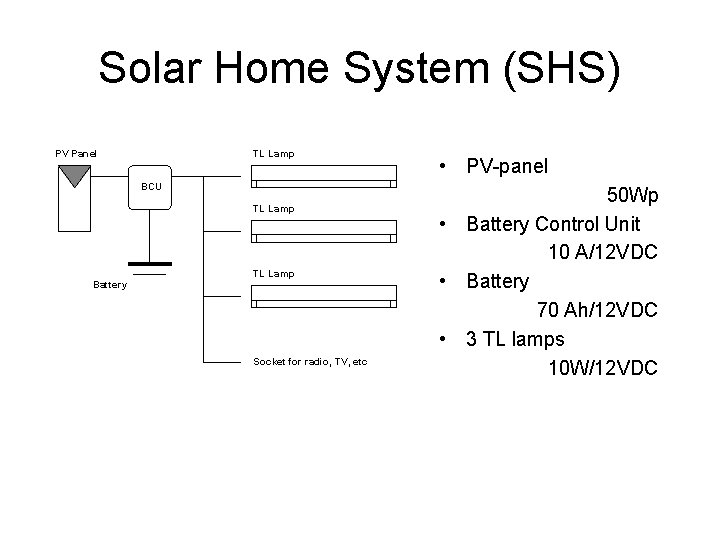

Solar Home System (SHS) PV Panel TL Lamp BCU TL Lamp Battery TL Lamp Socket for radio, TV, etc • PV-panel 50 Wp • Battery Control Unit 10 A/12 VDC • Battery 70 Ah/12 VDC • 3 TL lamps 10 W/12 VDC

Solar Home System (SHS) 50 ~ 300 Wp

PV-SHS Costs Unit Cost USD 300 -350

PV-D Hybrid System

Stand-alone PV System PV Size = 30 k. Wp ; Battery = 400 Ah(220 VDC)

PV-Diesel Hybrid System PV Size=12. 5 k. Wp ; Diesel=15 k. W ; Battery = 120 Ah(220 VDC)

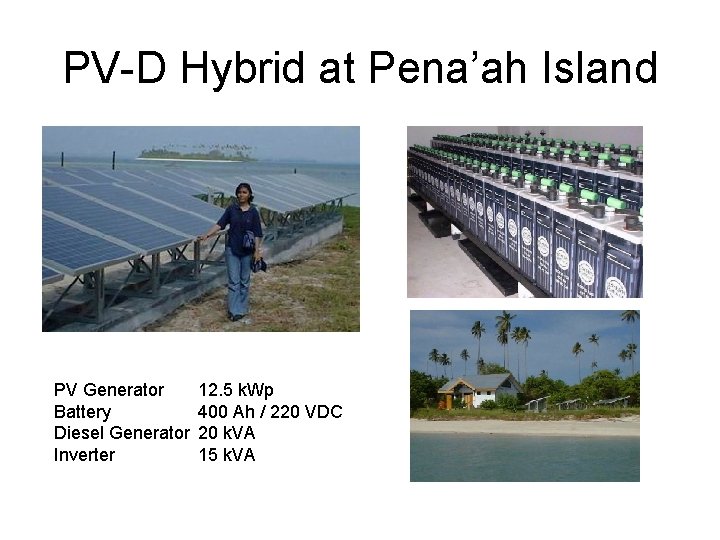

PV-D Hybrid at Pena’ah Island PV Generator Battery Diesel Generator Inverter 12. 5 k. Wp 400 Ah / 220 VDC 20 k. VA 15 k. VA

PV-D Hybrid System Capacity 12. 5 – 15 k. Wp Cost ± USD 150, 000

Micro-hydro Plant LEGEND 1. Weir 6. Storage Tank 2. Sand Trap 7. Penstock 3. Pipe Bridge 8. Spillway 4. Head Race Channel 9. Power House 5. Siphon 10. Tailrace Channel

Hydraulic Storage The 2275 m 3 capacity storage tank provides back-up capacity allowing the scheme to supply peak load demands for limited periods (min 2 hours) even when streamflow is below design flow. Power Output Design flow Net Headrace Storage 2 x 125 k. W 600 l/s 64 m 572 m 2, 275 m 3

Pumped Sea water 1. 1 MW Tapered Channel Wave Concept at Baron, Yogyakarta

Conclusion • Storage system remains an important component or plays an important role in distributed generation, particularly for the renewable energy system applications. • Cost of RE distributed generation, particularly a stand-alone PV system, is significantly influenced by the cost of battery. Hence, there is a need to reduce the battery cost and increase the battery lifetime to enable bring both the investment- and lifecycle costs of renewable energy systems down. • Hydraulic storage (pumped water) can be one of alternative energy storage system for RE application. • Utilization of pumped sea water as a storage has an economic potential to be developed along the south-coast of Java island. It can be used to fill the valley during low demand of Java-Bali grid or in combination with the utilization of distributed renewable energy sources (wave, wind and solar-energy).
