Distributed File System CHAPTER 12 SLIDES BASED ON

Distributed File System CHAPTER 12 SLIDES BASED ON COULOURIS INSTRUCTOR MATERIAL, BINA’S NOTES; CLIENT/SERVER MATERIAL BASED ON K. BIRMAN’S OF CORNELL, DUSSEU’S OF WISCONSIN

Storage Models 2 Manual file system – paper ledgers CSE 4/587 B. Ramamurthy Centralized file system Distributed file system Decentralized file system 10/3/2020

Computing Evolution 3 Data size: small Singlecore Pipelined Instruction level • Single-core, single processor • Single-core, multi-processor Multi- Concurrent Thread level core Service Object level Indexed File level Cluster • Cluster of processors (single or multi-core) with shared memory • Cluster of processors with distributed memory Grid of clusters Embarrassingly parallel processing Mega Block level Virtual System Level • Multi-core, single processor • Multi-core, multi-processor Map. Reduce, distributed file system Data size: large Cloud computing: google, box, aws S 3 CSE 4/587 B. Ramamurthy 10/3/2020

Traditional Storage Solutions 4 cse 4/587 Off system/online storage/ secondary memory File system abstraction/ Databases Offline/ tertiary memory/ DFS RAID: Redundant Array of Inexpensive Disks NAS: Network Accessible Storage SAN: Storage area networks 10/3/2020

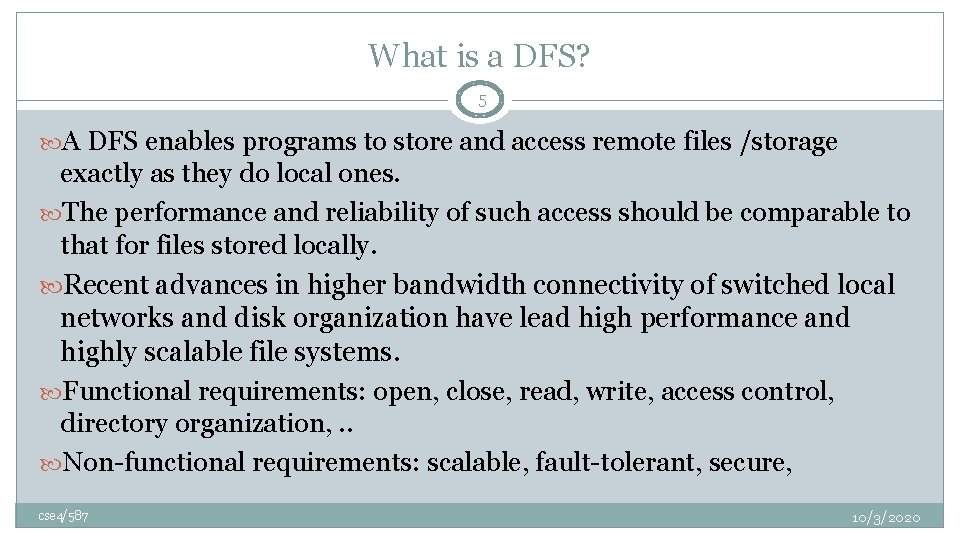

What is a DFS? 5 A DFS enables programs to store and access remote files /storage exactly as they do local ones. The performance and reliability of such access should be comparable to that for files stored locally. Recent advances in higher bandwidth connectivity of switched local networks and disk organization have lead high performance and highly scalable file systems. Functional requirements: open, close, read, write, access control, directory organization, . . Non-functional requirements: scalable, fault-tolerant, secure, cse 4/587 10/3/2020

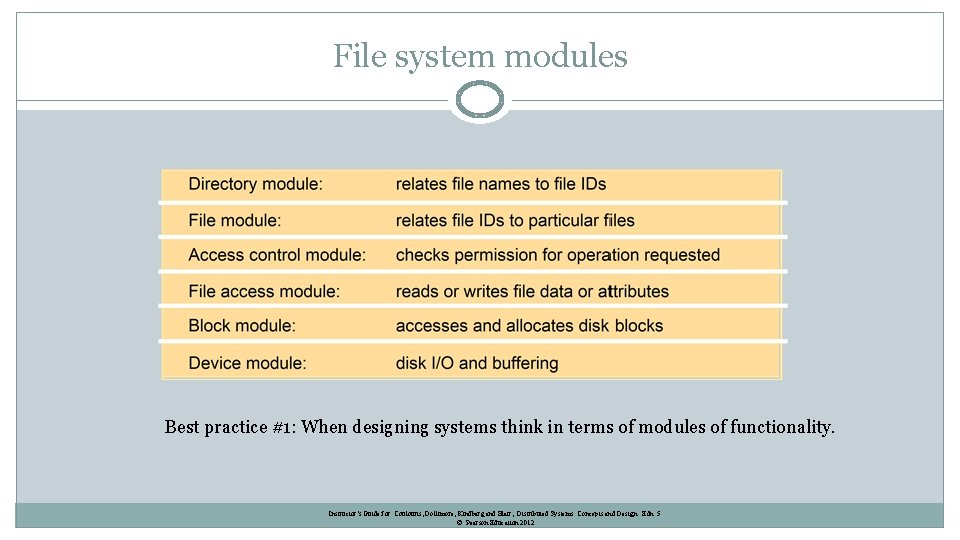

File system modules Best practice #1: When designing systems think in terms of modules of functionality. Instructor’s Guide for Coulouris, Dollimore, Kindberg and Blair, Distributed Systems: Concepts and Design Edn. 5 © Pearson Education 2012

File attribute record structure File length Creation timestamp Read timestamp Write timestamp Attribute timestamp Reference count Owner File type Access control list Instructor’s Guide for Coulouris, Dollimore, Kindberg and Blair, Distributed Systems: Concepts and Design Edn. 5 © Pearson Education 2012

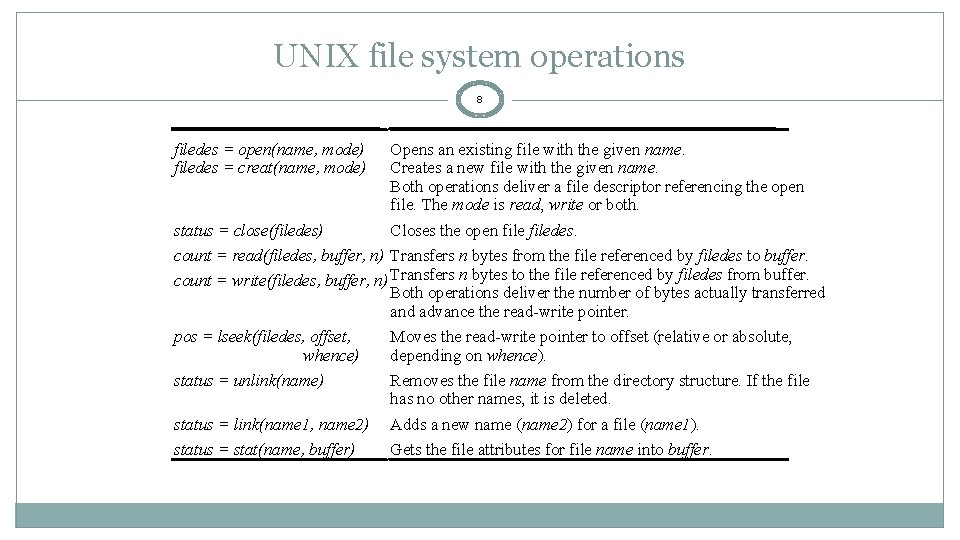

UNIX file system operations 8 filedes = open(name, mode) filedes = creat(name, mode) Opens an existing file with the given name. Creates a new file with the given name. Both operations deliver a file descriptor referencing the open file. The mode is read, write or both. status = close(filedes) Closes the open filedes. count = read(filedes, buffer, n) Transfers n bytes from the file referenced by filedes to buffer. count = write(filedes, buffer, n) Transfers n bytes to the file referenced by filedes from buffer. Both operations deliver the number of bytes actually transferred and advance the read-write pointer. pos = lseek(filedes, offset, Moves the read-write pointer to offset (relative or absolute, whence) depending on whence). status = unlink(name) Removes the file name from the directory structure. If the file has no other names, it is deleted. status = link(name 1, name 2) Adds a new name (name 2) for a file (name 1). status = stat(name, buffer) Gets the file attributes for file name into buffer.

Distributed File System Requirements 9 Many of the requirements of distributed services were lessons learned from distributed file service. First needs were: access transparency and location transparency. Later on, performance, scalability, concurrency control, fault tolerance and security requirements emerged and were met in the later phases of DFS development. Distributed file system is implemented using client/server model.

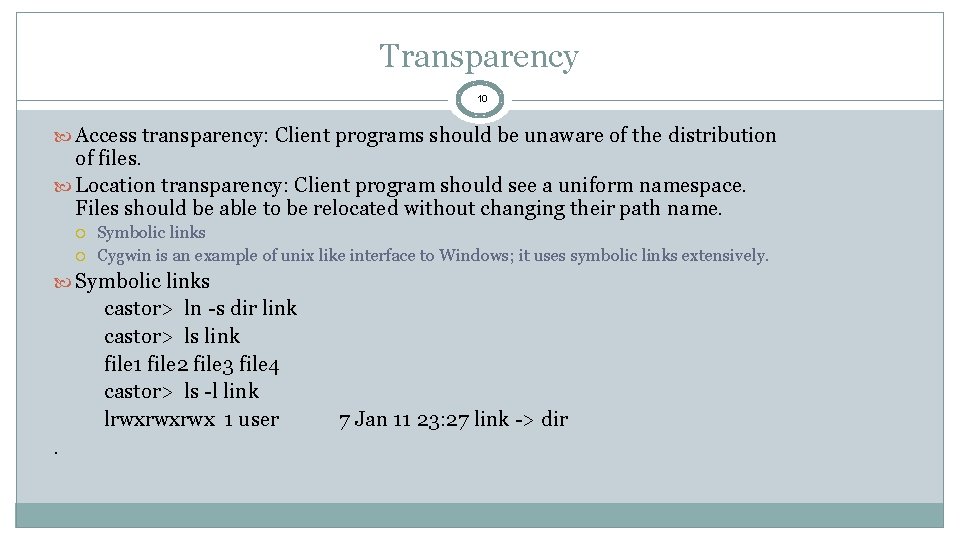

Transparency 10 Access transparency: Client programs should be unaware of the distribution of files. Location transparency: Client program should see a uniform namespace. Files should be able to be relocated without changing their path name. Symbolic links Cygwin is an example of unix like interface to Windows; it uses symbolic links extensively. Symbolic links castor> ln -s dir link castor> ls link file 1 file 2 file 3 file 4 castor> ls -l link lrwxrwxrwx 1 user. 7 Jan 11 23: 27 link -> dir

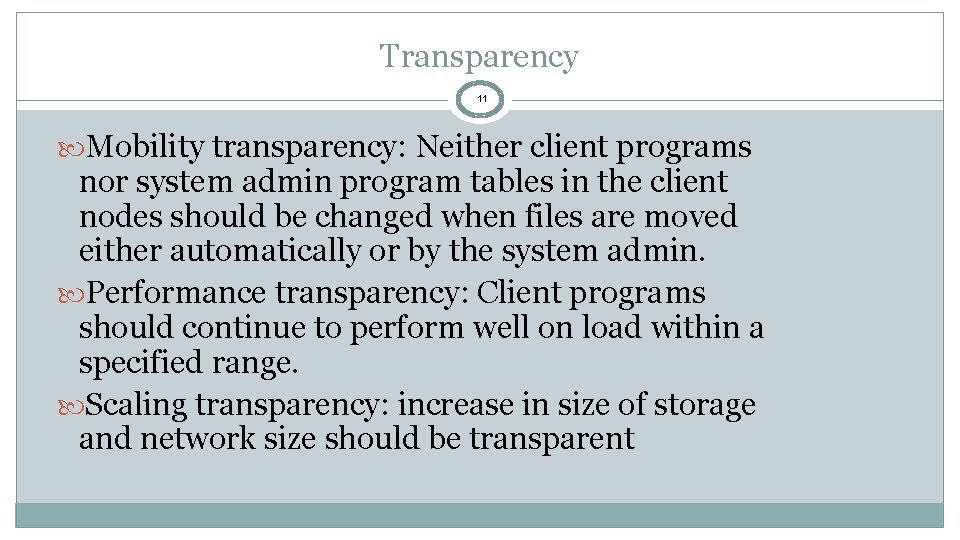

Transparency 11 Mobility transparency: Neither client programs nor system admin program tables in the client nodes should be changed when files are moved either automatically or by the system admin. Performance transparency: Client programs should continue to perform well on load within a specified range. Scaling transparency: increase in size of storage and network size should be transparent

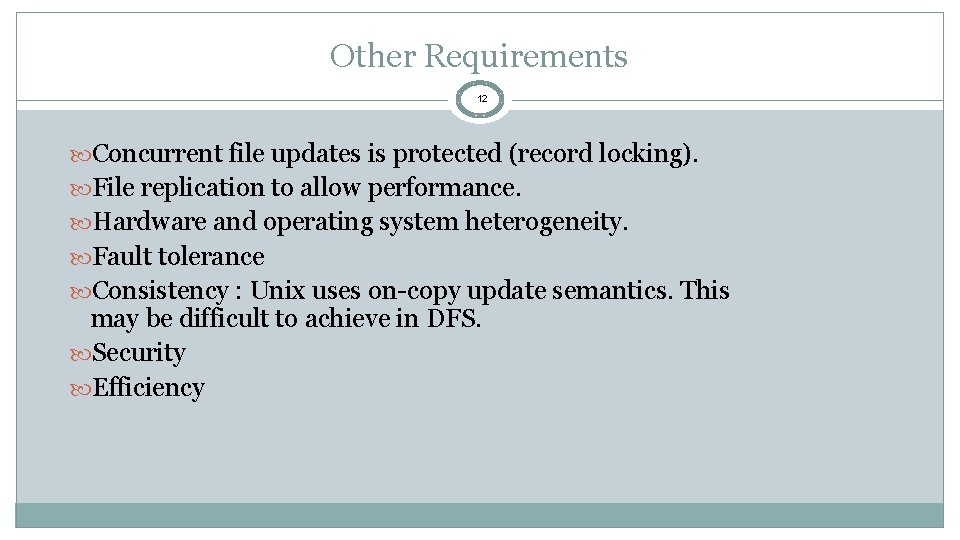

Other Requirements 12 Concurrent file updates is protected (record locking). File replication to allow performance. Hardware and operating system heterogeneity. Fault tolerance Consistency : Unix uses on-copy update semantics. This may be difficult to achieve in DFS. Security Efficiency

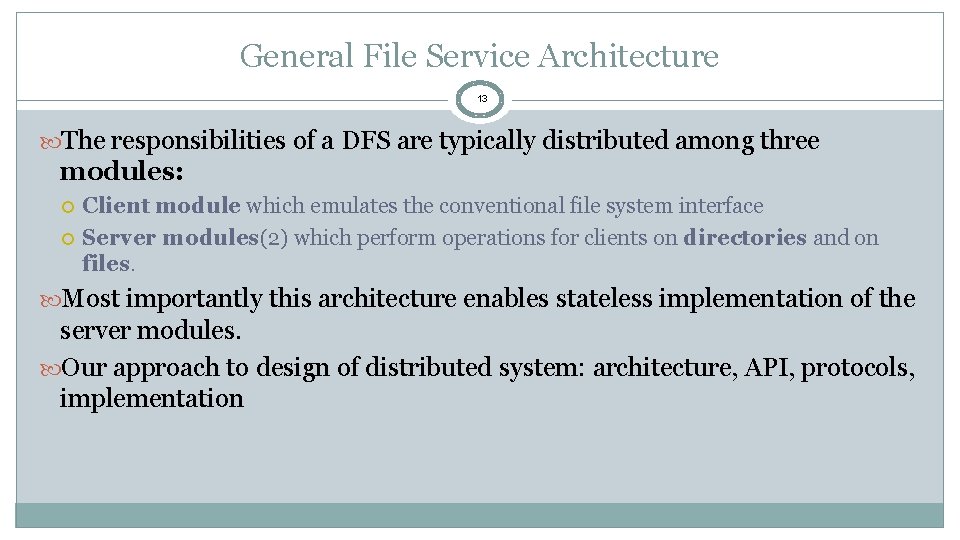

General File Service Architecture 13 The responsibilities of a DFS are typically distributed among three modules: Client module which emulates the conventional file system interface Server modules(2) which perform operations for clients on directories and on files. Most importantly this architecture enables stateless implementation of the server modules. Our approach to design of distributed system: architecture, API, protocols, implementation

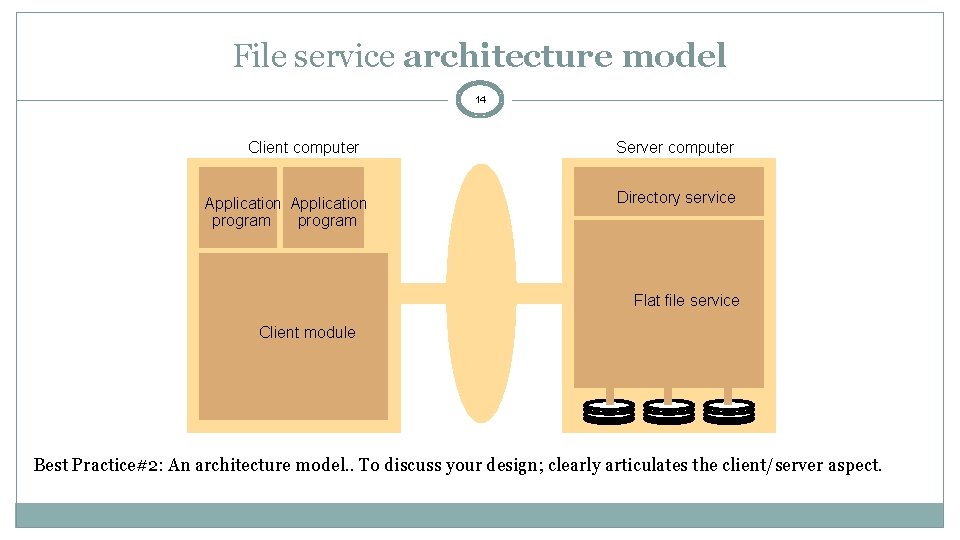

File service architecture model 14 Client computer Application program Server computer Directory service Flat file service Client module Best Practice#2: An architecture model. . To discuss your design; clearly articulates the client/server aspect.

Flat file service Interface 15 Read(File. Id, i, n) -> Data If 1 ≤ i ≤ Length(File): Reads a sequence of up to n items — throws. Bad. Position from a file starting at item i and returns it in Data. Write(File. Id, i, Data) If 1 ≤ i ≤ Length(File)+1: Writes a sequence of Data to a — throws. Bad. Position file, starting at item i, extending the file if necessary. Create() -> File. Id Creates a new file of length 0 and delivers a UFID for it. Delete(File. Id) Removes the file from the file store. Get. Attributes(File. Id) -> Attr. Returns the file attributes for the file. Set. Attributes(File. Id, Attr) Sets the file attributes (only those attributes that are not shaded in ). Primary operations are reading and writing. What’s missing? How about Open and Close?

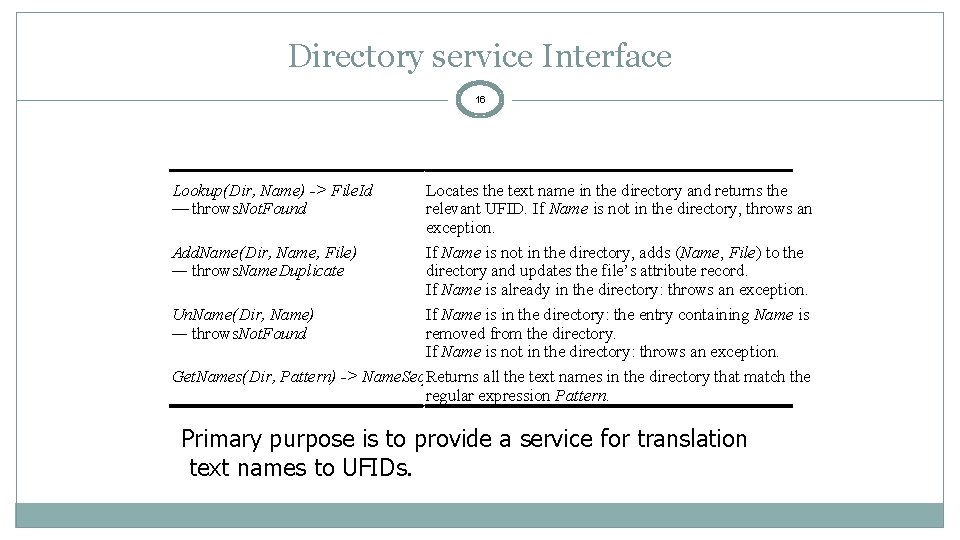

Directory service Interface 16 Lookup(Dir, Name) -> File. Id — throws. Not. Found Locates the text name in the directory and returns the relevant UFID. If Name is not in the directory, throws an exception. Add. Name(Dir, Name, File) If Name is not in the directory, adds (Name, File) to the — throws. Name. Duplicate directory and updates the file’s attribute record. If Name is already in the directory: throws an exception. Un. Name(Dir, Name) If Name is in the directory: the entry containing Name is — throws. Not. Found removed from the directory. If Name is not in the directory: throws an exception. Get. Names(Dir, Pattern) -> Name. Seq. Returns all the text names in the directory that match the regular expression Pattern. Primary purpose is to provide a service for translation text names to UFIDs.

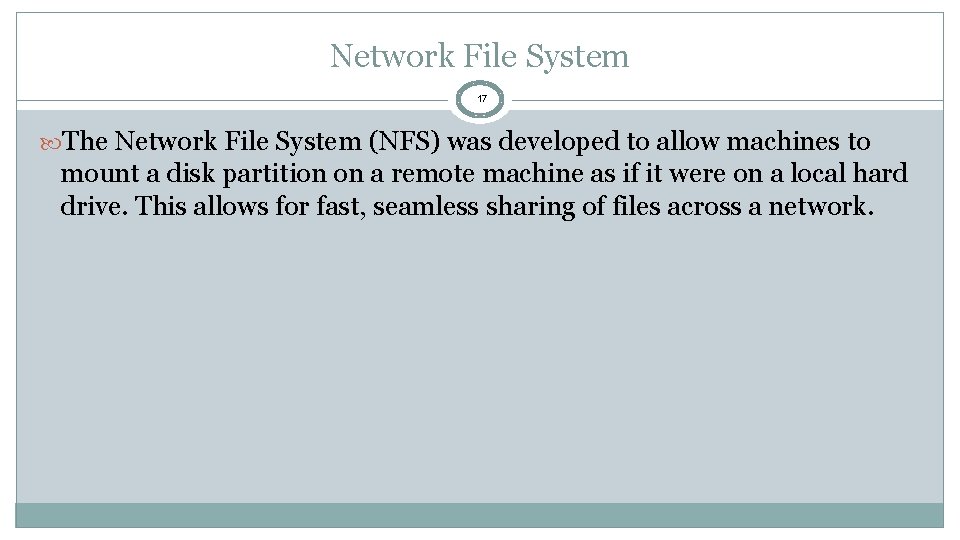

Network File System 17 The Network File System (NFS) was developed to allow machines to mount a disk partition on a remote machine as if it were on a local hard drive. This allows for fast, seamless sharing of files across a network.

NFS architecture 18 Client computer Server computer Application program UNIX system calls UNIX kernel Virtual file system UNIX file system Other file system Local Virtual file system Remote NFS client NFS server NFS protocol UNIX file system Best Practice #3: Symmetry in design; you have a client as well as a server module for the VFS/DFS.

NFS server operations (simplified) – 1 19 lookup(dirfh, name) -> fh, attr Returns file handle and attributes for the file name in the directory dirfh. create(dirfh, name, attr) -> newfh, attr Creates a new file name in directory dirfh with attributes attr and returns the new file handle and attributes. remove(dirfh, name) status Removes file name from directory dirfh. getattr(fh) -> attr Returns file attributes of file fh. (Similar to the UNIX stat system call. ) Sets the attributes (mode, user id, group id, size, access time modify time of a file). Setting the size to 0 truncates the file. and read(fh, offset, count) -> attr, data Returns up to count bytes of data from a file starting at offset. Also returns the latest attributes of the file. setattr(fh, attr) -> attr write(fh, offset, count, data) -> attr Writes count bytes of data to a file starting at offset. Returns the attributes of the file after the write has taken place. rename(dirfh, name, todirfh, toname)Changes the name of file name in directory dirfh to toname in -> status directory to todirfh. link(newdirfh, newname, dirfh, name)Creates an entry newname in the directory newdirfh which refers to -> status file name in the directory dirfh. Continues on next slide. . .

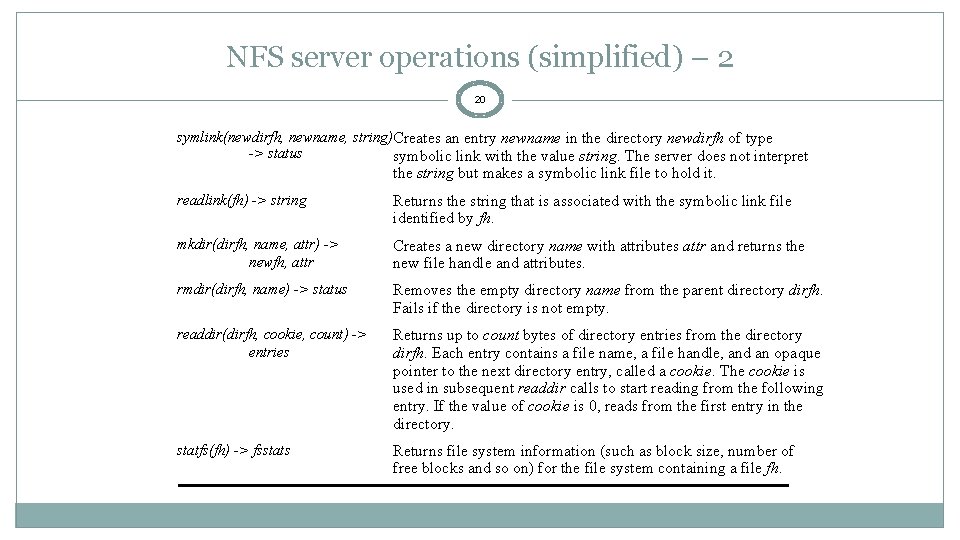

NFS server operations (simplified) – 2 20 symlink(newdirfh, newname, string) Creates an entry newname in the directory newdirfh of type -> status symbolic link with the value string. The server does not interpret the string but makes a symbolic link file to hold it. readlink(fh) -> string Returns the string that is associated with the symbolic link file identified by fh. mkdir(dirfh, name, attr) -> newfh, attr Creates a new directory name with attributes attr and returns the new file handle and attributes. rmdir(dirfh, name) -> status Removes the empty directory name from the parent directory dirfh. Fails if the directory is not empty. readdir(dirfh, cookie, count) -> entries Returns up to count bytes of directory entries from the directory dirfh. Each entry contains a file name, a file handle, and an opaque pointer to the next directory entry, called a cookie. The cookie is used in subsequent readdir calls to start reading from the following entry. If the value of cookie is 0, reads from the first entry in the directory. statfs(fh) -> fsstats Returns file system information (such as block size, number of free blocks and so on) for the file system containing a file fh.

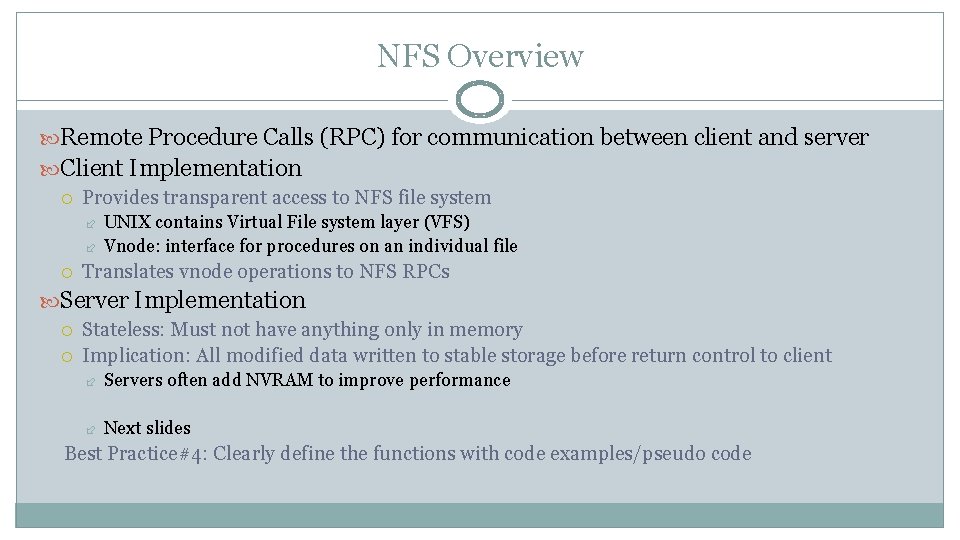

NFS Overview Remote Procedure Calls (RPC) for communication between client and server Client Implementation Provides transparent access to NFS file system UNIX contains Virtual File system layer (VFS) Vnode: interface for procedures on an individual file Translates vnode operations to NFS RPCs Server Implementation Stateless: Must not have anything only in memory Implication: All modified data written to stable storage before return control to client Servers often add NVRAM to improve performance Next slides Best Practice#4: Clearly define the functions with code examples/pseudo code

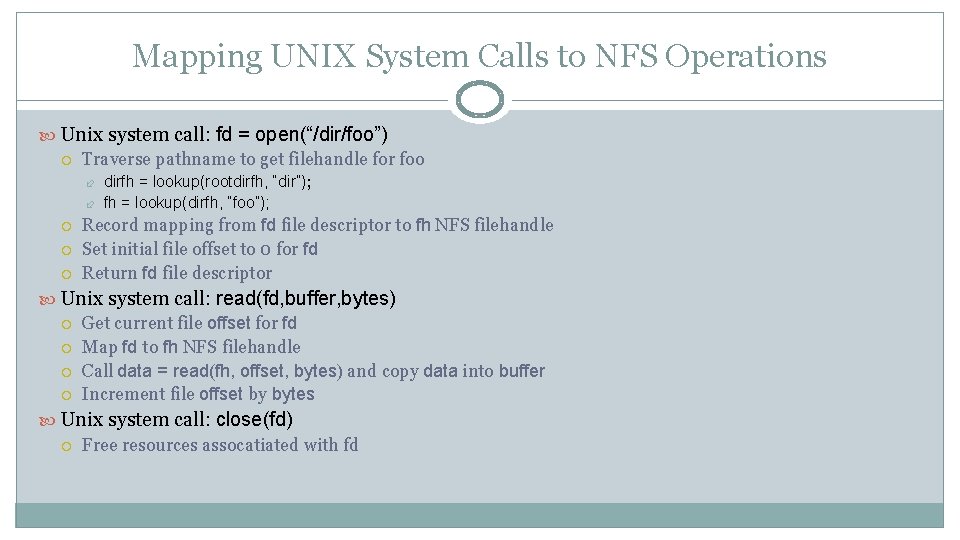

Mapping UNIX System Calls to NFS Operations Unix system call: fd = open(“/dir/foo”) Traverse pathname to get filehandle for foo dirfh = lookup(rootdirfh, “dir”); fh = lookup(dirfh, “foo”); Record mapping from fd file descriptor to fh NFS filehandle Set initial file offset to 0 for fd Return fd file descriptor Unix system call: read(fd, buffer, bytes) Get current file offset for fd Map fd to fh NFS filehandle Call data = read(fh, offset, bytes) and copy data into buffer Increment file offset by bytes Unix system call: close(fd) Free resources assocatiated with fd

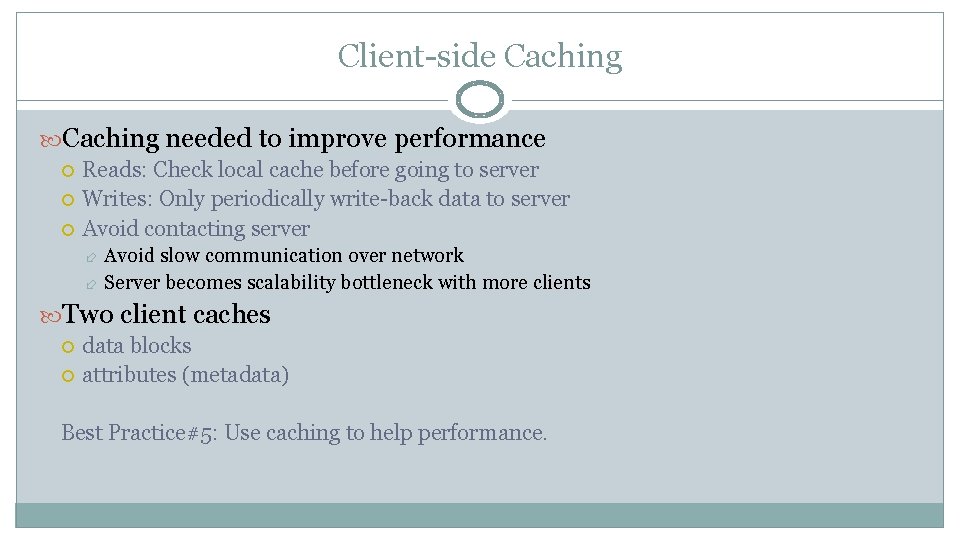

Client-side Caching needed to improve performance Reads: Check local cache before going to server Writes: Only periodically write-back data to server Avoid contacting server Avoid slow communication over network Server becomes scalability bottleneck with more clients Two client caches data blocks attributes (metadata) Best Practice#5: Use caching to help performance.

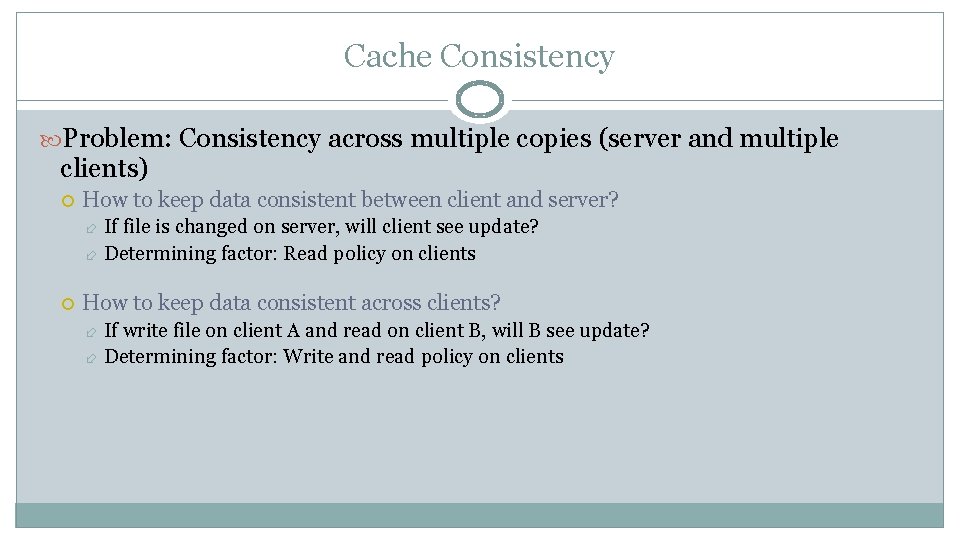

Cache Consistency Problem: Consistency across multiple copies (server and multiple clients) How to keep data consistent between client and server? If file is changed on server, will client see update? Determining factor: Read policy on clients How to keep data consistent across clients? If write file on client A and read on client B, will B see update? Determining factor: Write and read policy on clients

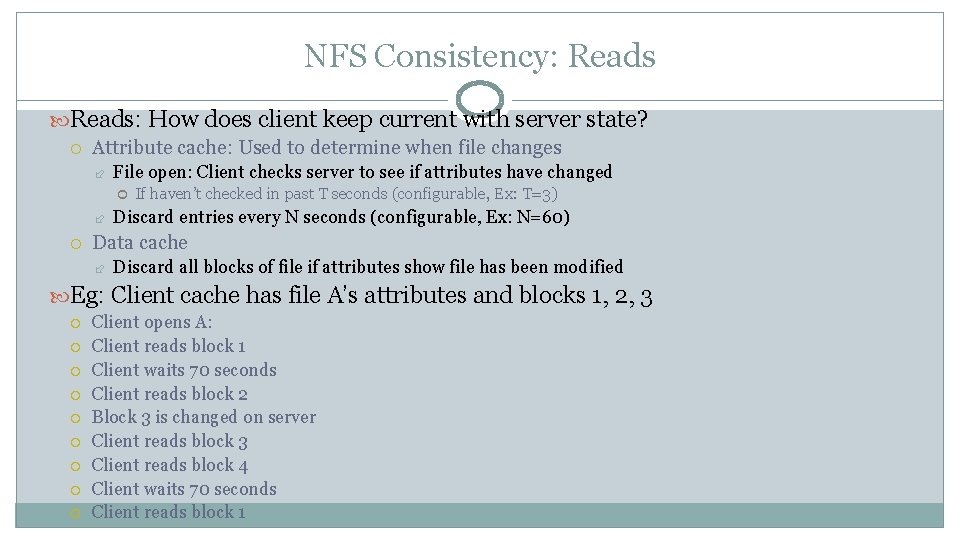

NFS Consistency: Reads: How does client keep current with server state? Attribute cache: Used to determine when file changes File open: Client checks server to see if attributes have changed If haven’t checked in past T seconds (configurable, Ex: T=3) Discard entries every N seconds (configurable, Ex: N=60) Data cache Discard all blocks of file if attributes show file has been modified Eg: Client cache has file A’s attributes and blocks 1, 2, 3 Client opens A: Client reads block 1 Client waits 70 seconds Client reads block 2 Block 3 is changed on server Client reads block 3 Client reads block 4 Client waits 70 seconds Client reads block 1

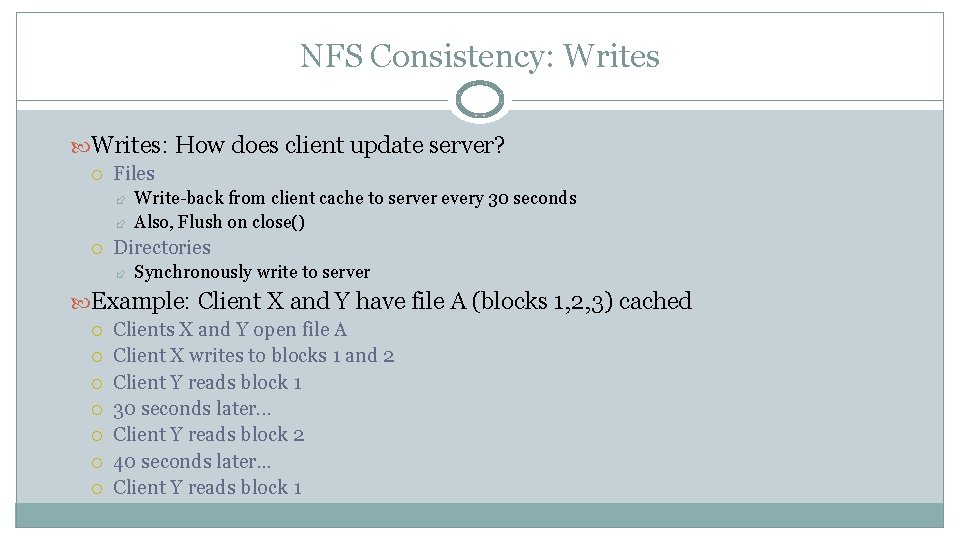

NFS Consistency: Writes: How does client update server? Files Write-back from client cache to server every 30 seconds Also, Flush on close() Directories Synchronously write to server Example: Client X and Y have file A (blocks 1, 2, 3) cached Clients X and Y open file A Client X writes to blocks 1 and 2 Client Y reads block 1 30 seconds later. . . Client Y reads block 2 40 seconds later. . . Client Y reads block 1

NFS Architecture 27 Allows an arbitrary collection of clients and servers to share a common file system. In many cases all servers and clients are on the same LAN but this is not required. NFS allows every machine to be a client and server at the same time. Each NFS server exports one or more directories for access by remote clients.

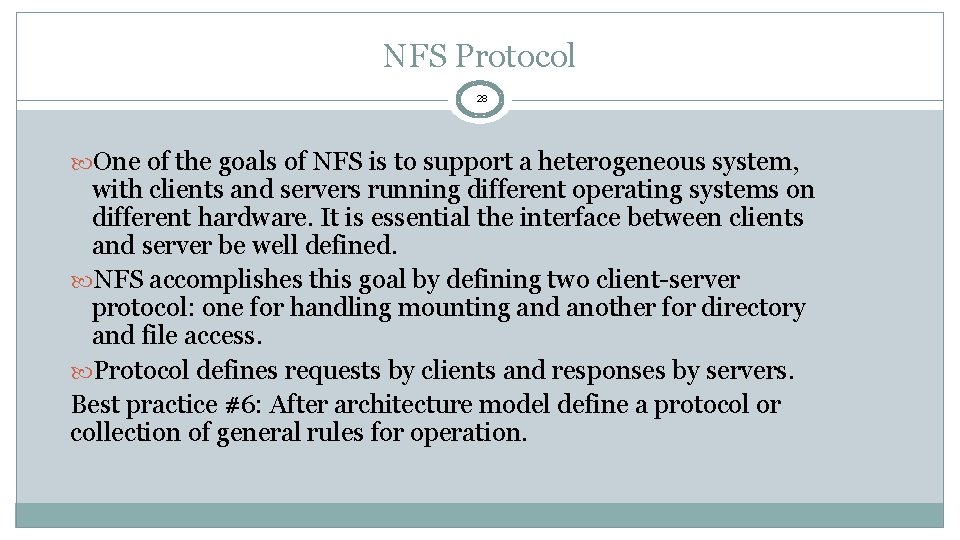

NFS Protocol 28 One of the goals of NFS is to support a heterogeneous system, with clients and servers running different operating systems on different hardware. It is essential the interface between clients and server be well defined. NFS accomplishes this goal by defining two client-server protocol: one for handling mounting and another for directory and file access. Protocol defines requests by clients and responses by servers. Best practice #6: After architecture model define a protocol or collection of general rules for operation.

Local and remote file systems accessible on an NFS client Note: The file system mounted at /usr/students in the client is actually the sub-tree located at /export/people in Server 1; the file system mounted at /usr/staff in the client is actually the sub-tree located at /nfs/users in Server 2. Instructor’s Guide for Coulouris, Dollimore, Kindberg and Blair, Distributed Systems: Concepts and Design Edn. 5 © Pearson Education 2012

Mounting 30 Client requests a directory structure to be mounted, if the path is legal the server returns file handle to the client. Or the mounting can be automatic by placing the directories to mounted in the /etc/rc: automounting.

File Access 31 NFS supports most unix operations except open and close. This is to satisfy the “statelessness” on the server end. Server need not keep a list of open connections. (On the other hand consider your database connection… you create an object, connection is opened etc. )

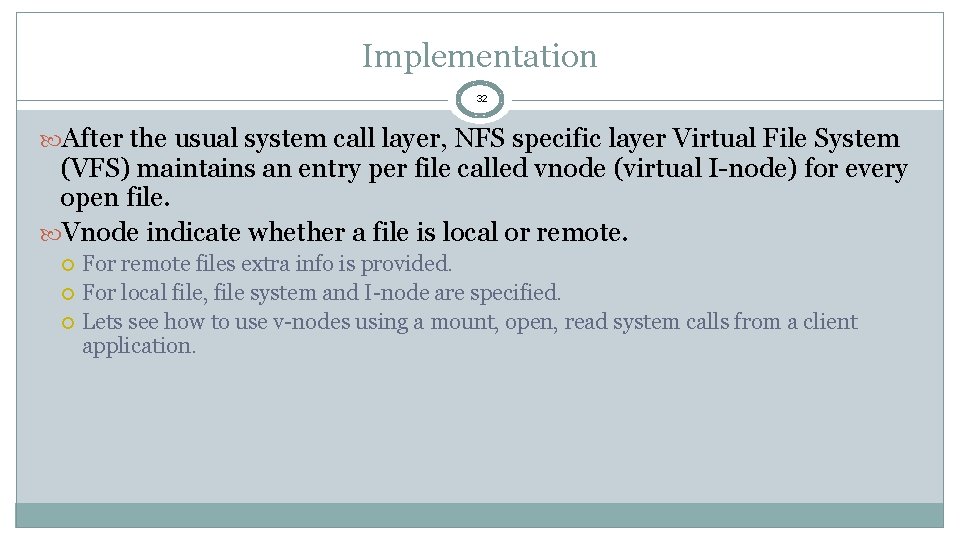

Implementation 32 After the usual system call layer, NFS specific layer Virtual File System (VFS) maintains an entry per file called vnode (virtual I-node) for every open file. Vnode indicate whether a file is local or remote. For remote files extra info is provided. For local file, file system and I-node are specified. Lets see how to use v-nodes using a mount, open, read system calls from a client application.

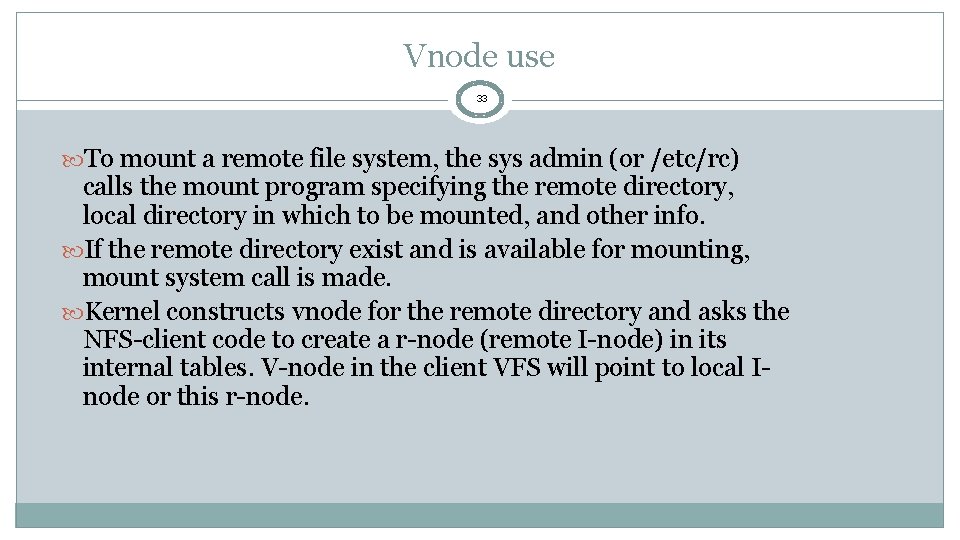

Vnode use 33 To mount a remote file system, the sys admin (or /etc/rc) calls the mount program specifying the remote directory, local directory in which to be mounted, and other info. If the remote directory exist and is available for mounting, mount system call is made. Kernel constructs vnode for the remote directory and asks the NFS-client code to create a r-node (remote I-node) in its internal tables. V-node in the client VFS will point to local Inode or this r-node.

Remote File Access 34 When a remote file is opened by the client, it locates the r- node. It then asks NFS Client to open the file. NFS file looks up the path in the remote file system and return the file handle to VFS tables. The caller (application) is given a file descriptor for the remote file. No table entries are made on the server side. Subsequent reads will invoke the remote file, and for efficiency sake the transfers are usually in large chunks (8 K).

Server Side of File Access 35 When the request message arrives at the NFS server, it is passed to the VFS layer where the file is probably identified to be a local or remote file. Usually a 8 K chunk is returned. Read ahead and caching are used to improve efficiency. Cache: server side for disk accesses, client side for I-nodes and another for file data. Of course this leads to cache consistency and security problem which ties us into other topics we are discussing.

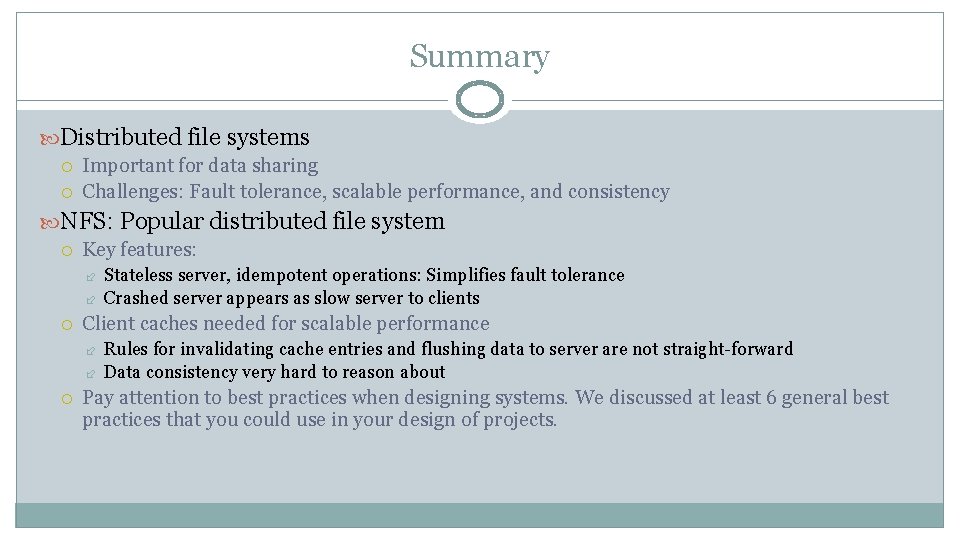

Summary Distributed file systems Important for data sharing Challenges: Fault tolerance, scalable performance, and consistency NFS: Popular distributed file system Key features: Client caches needed for scalable performance Stateless server, idempotent operations: Simplifies fault tolerance Crashed server appears as slow server to clients Rules for invalidating cache entries and flushing data to server are not straight-forward Data consistency very hard to reason about Pay attention to best practices when designing systems. We discussed at least 6 general best practices that you could use in your design of projects.
