Distributed and Reconfigurable Architecture for Flight Control System

Distributed and Reconfigurable Architecture for Flight Control System EEL 6935 - Embedded Systems Dept. of Electrical and Computer Engineering University of Florida Liza Rodriguez Aurelio Morales

Outline • Introduction • State of the Art: Airbus FCS • Massive Voting Architecture • Modeling and Simulation • Conclusions 2 of 23

Outline • Introduction • State of the Art: Airbus FCS • Massive Voting Architecture • Modeling and Simulation • Conclusions 3 of 23

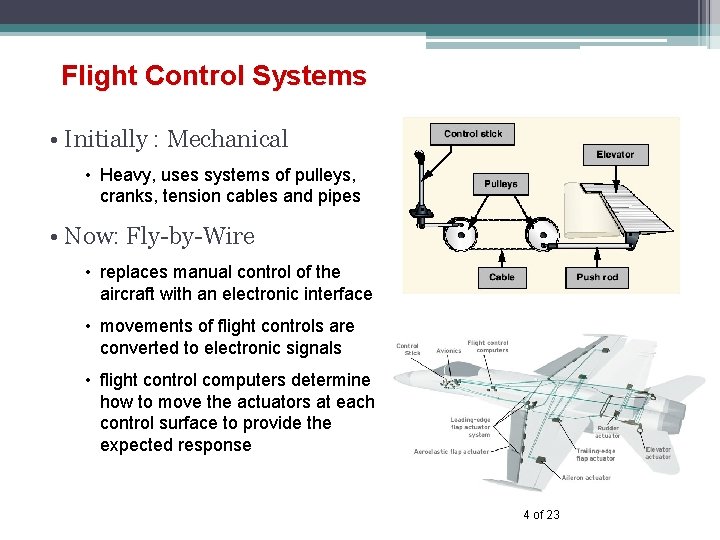

Flight Control Systems • Initially : Mechanical • Heavy, uses systems of pulleys, cranks, tension cables and pipes • Now: Fly-by-Wire • replaces manual control of the aircraft with an electronic interface • movements of flight controls are converted to electronic signals • flight control computers determine how to move the actuators at each control surface to provide the expected response 4 of 23

System Requirements • General Aviation Safety • Operational reliability, high performance, energy efficiency, low cost • Dependability • Integrity – must not output erroneous signals, should not send incorrect information to actuators • Availability – system must always be available to process requests • Radiation • Can cause over voltages and under voltages • Electromagnetic radiation should not affect data communication • Indirect effects of lightning is a possible source 5 of 23

Outline • Introduction • State of the Art: Airbus FCS • Massive Voting Architecture • Modeling and Simulation • Conclusions 6 of 23

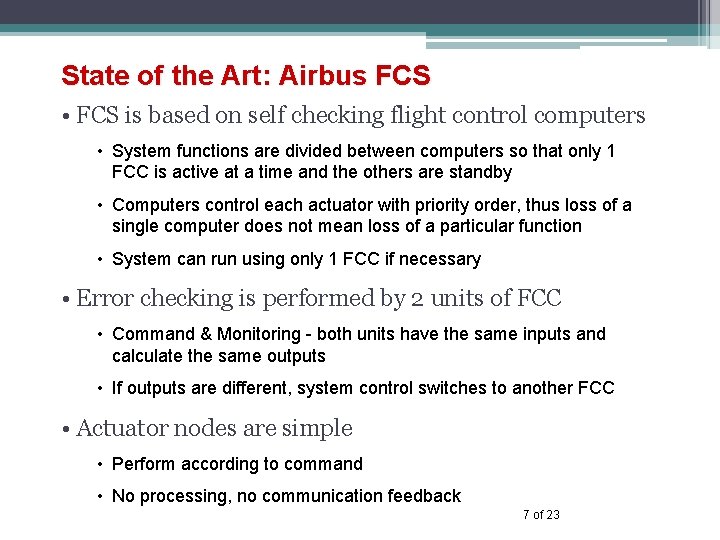

State of the Art: Airbus FCS • FCS is based on self checking flight control computers • System functions are divided between computers so that only 1 FCC is active at a time and the others are standby • Computers control each actuator with priority order, thus loss of a single computer does not mean loss of a particular function • System can run using only 1 FCC if necessary • Error checking is performed by 2 units of FCC • Command & Monitoring - both units have the same inputs and calculate the same outputs • If outputs are different, system control switches to another FCC • Actuator nodes are simple • Perform according to command • No processing, no communication feedback 7 of 23

State of the Art: Airbus FCS Architecture • Initially : Mechanical 8 of 23

State of the Art: Airbus FCCs • System functions are divided between computers so that only 1 FCC is active at a time and the others are standby • Computers control each actuator with priority order, thus loss of a single computer does not mean loss of a function TE FLAP LE FLAP AE FLAP RUDDER ELEVTR Pilot Control FCC 1 FCC 2 FCC 3 FCC 4 FCC 5 9 of 23

Pilot Control State of the Art: Airbus FCCs • Control and monitoring units can be thought of as two identical computers placed side by side Processor Memory Input / Output Power Supply Watchdog • Same – control order is sent to actuator • Different – computer cuts connection to actuator, prevents error from propagating Comparator • Comparator detects errors and performs the final action: Control Input / Output Processor Memory Monitoring 10 of 23

Redundancy • Multiple flight control computers • FCCs are often the only control path between the pilot and the actuators. • If FCCs fail, the pilot will not be able to control the aircraft. • Duplex flight control computers • Error checking is handled by control and monitoring units of FCCs • Result: A lot of extra hardware 11 of 23

Outline • Introduction • State of the Art: Airbus FCS • Massive Voting Architecture • Modeling and Simulation • Conclusions 12 of 23

Massive Voting Architecture • Enabled by “Smart” actuators • Includes processing elements implemented on ASIC or FPGA • Data processing and control functionality is distributed into subsystems making them more and more intelligent • Redundancy management is allocated to actuators • FCCs still maintain system authority • Overall critical function and control remains in the primary computers • Simplex FCCs generate commands but are not excluded if erroneous • Error checking is performed by flight control remote modules (FCRM) • Each FCRM contains 1 voter • Voters compare received commands and select the most reliable one 13 of 23

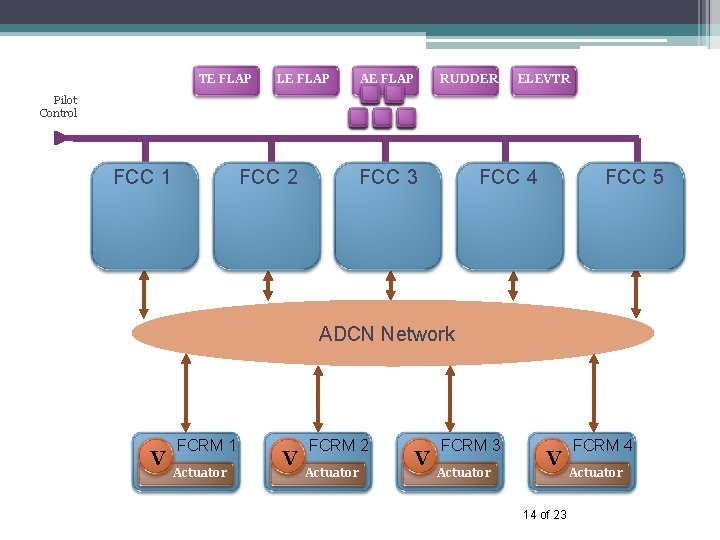

TE FLAP LE FLAP AE FLAP RUDDER ELEVTR Pilot Control FCC 1 FCC 2 FCC 3 FCC 4 FCC 5 ADCN Network V FCRM 1 Actuator V FCRM 2 Actuator V FCRM 3 Actuator V 14 of 23 FCRM 4 Actuator

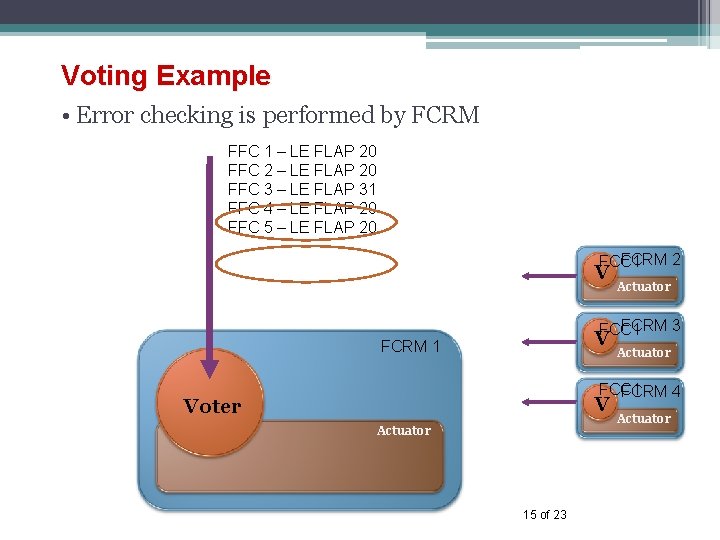

Voting Example • Error checking is performed by FCRM FFC 1 – LE FLAP 20 FFC 2 – LE FLAP 20 FFC 3 – LE FLAP 31 FFC 4 – LE FLAP 20 FFC 5 – LE FLAP 20 FCRM 2 FCC 1 V Actuator FCRM 3 FCC 1 V FCRM 1 Actuator FCC 1 FCRM 4 V Voter Actuator 15 of 23 Actuator

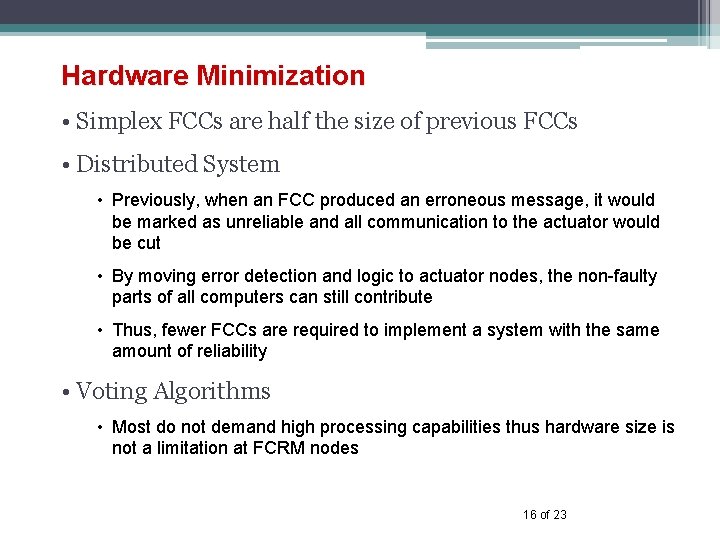

Hardware Minimization • Simplex FCCs are half the size of previous FCCs • Distributed System • Previously, when an FCC produced an erroneous message, it would be marked as unreliable and all communication to the actuator would be cut • By moving error detection and logic to actuator nodes, the non-faulty parts of all computers can still contribute • Thus, fewer FCCs are required to implement a system with the same amount of reliability • Voting Algorithms • Most do not demand high processing capabilities thus hardware size is not a limitation at FCRM nodes 16 of 23

Outline • Introduction • State of the Art: Airbus FCS • Massive Voting Architecture • Modeling and Simulation • Conclusions 17 of 23

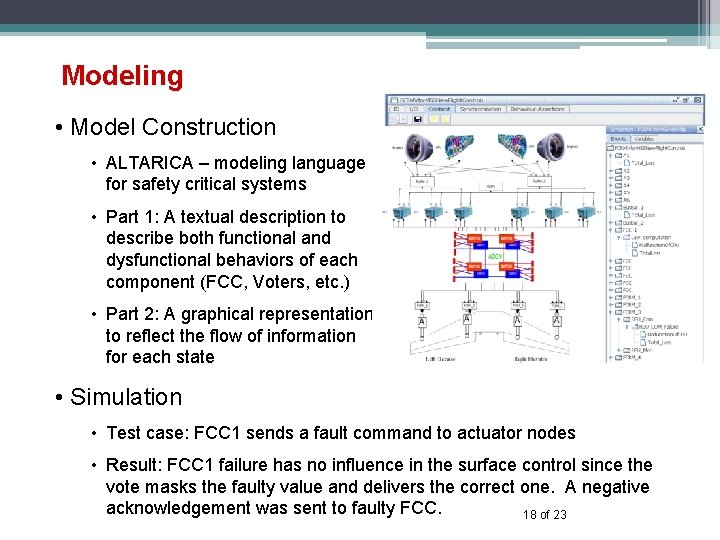

Modeling • Model Construction • ALTARICA – modeling language for safety critical systems • Part 1: A textual description to describe both functional and dysfunctional behaviors of each component (FCC, Voters, etc. ) • Part 2: A graphical representation to reflect the flow of information for each state • Simulation • Test case: FCC 1 sends a fault command to actuator nodes • Result: FCC 1 failure has no influence in the surface control since the vote masks the faulty value and delivers the correct one. A negative acknowledgement was sent to faulty FCC. 18 of 23

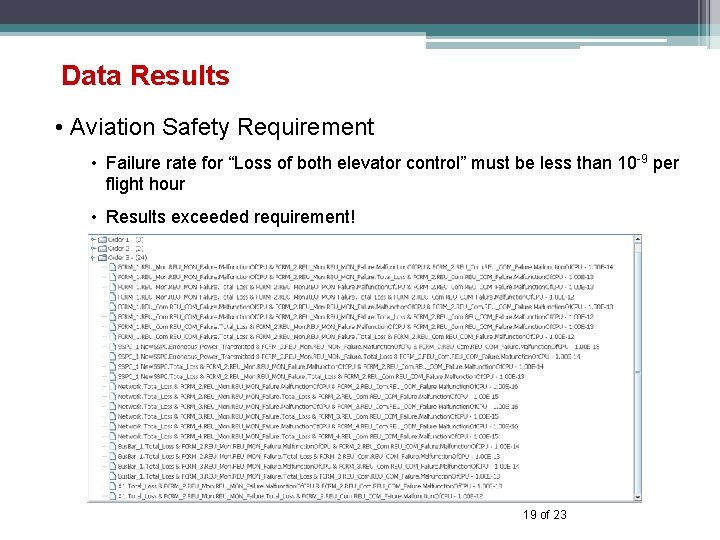

Data Results • Aviation Safety Requirement • Failure rate for “Loss of both elevator control” must be less than 10 -9 per flight hour • Results exceeded requirement! 19 of 23

Outline • Introduction • State of the Art: Airbus FCS • Massive Voting Architecture • Modeling and Simulation • Conclusions 20 of 23

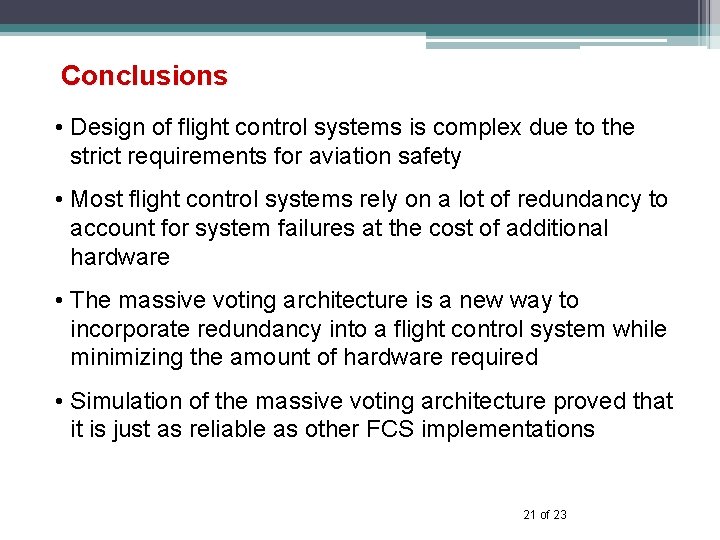

Conclusions • Design of flight control systems is complex due to the strict requirements for aviation safety • Most flight control systems rely on a lot of redundancy to account for system failures at the cost of additional hardware • The massive voting architecture is a new way to incorporate redundancy into a flight control system while minimizing the amount of hardware required • Simulation of the massive voting architecture proved that it is just as reliable as other FCS implementations 21 of 23
