Distance Measurement Chapter 3 – Mc. Cormac’s 5 th

Distance Measurement Chapter 3 – Mc. Cormac’s 5 th

Historical Measurement n Early Survey Crews n n n Crew Chief Crew of 2

Historical Measurement n Early Survey Crews n n n Crew Chief Crew of 2 or 3 Brush Hogs Support Equipment n n Compass Chain – see page 42

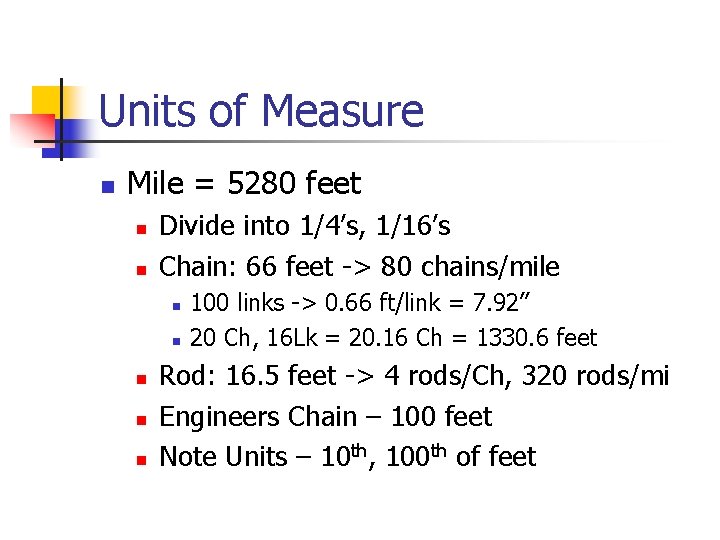

Units of Measure n Mile = 5280 feet n n Divide into 1/4’s, 1/16’s

Units of Measure n Mile = 5280 feet n n Divide into 1/4’s, 1/16’s Chain: 66 feet -> 80 chains/mile n n n 100 links -> 0. 66 ft/link = 7. 92” 20 Ch, 16 Lk = 20. 16 Ch = 1330. 6 feet Rod: 16. 5 feet -> 4 rods/Ch, 320 rods/mi Engineers Chain – 100 feet Note Units – 10 th, 100 th of feet

Methods of Measurement n Indirect n n Subtense Bars – pages 39 -40 Stadia

Methods of Measurement n Indirect n n Subtense Bars – pages 39 -40 Stadia – Chapter 14 EDM – Chapter 5 Direct n n n Pacing Odometers/Wheels Taping or Chaining

Pacing (1/50) n n Try for natural pace Measure a known distance Pace a

Pacing (1/50) n n Try for natural pace Measure a known distance Pace a number of times, Average Determine: n n Length of Pace – nearest 0. 1’ Number of Paces in 100’

Pacing Example n n n Measured length = 215. 0’ Pace 4 times –

Pacing Example n n n Measured length = 215. 0’ Pace 4 times – 74, 75, 74 paces Average no. of paces = 74. 25 Length of pace = 215’/74. 25 paces = 2. 9’/pace Paces per 100’ = 100’/2. 9’/pace = 34. 5 paces

Taping or Chaining n Equipment Needed n Tape n n n n Steel Fiberglass

Taping or Chaining n Equipment Needed n Tape n n n n Steel Fiberglass Cloth Tensiometer Plumb bob Hand level Range Poles

Chaining Process n Slope Chaining n n n Plumb Chaining n n n Measure

Chaining Process n Slope Chaining n n n Plumb Chaining n n n Measure along slope Convert to horizontal Measure with chain horizontal Downhill, when possible “Breaking” chain Forward Chainer (FC) reads 1/100 ths Rear Chainer (RC) reads feet

Add vs. Cut Chains Add Chain – 1/100 th’s forward from 0 RC at

Add vs. Cut Chains Add Chain – 1/100 th’s forward from 0 RC at 71, FC at 0. 54, record 71 + 0. 54 = 71. 54’ Cut Chain – 1/100 th’s back from 0 RC at 72, FC at 0. 46, record 72 - 0. 46 = 71. 54’

Chaining Process n n n n Establish Line Level chain Tension RC – sets

Chaining Process n n n n Establish Line Level chain Tension RC – sets full foot, calls “Mark” FC – sets 1/100 ths, calls “Mark” RC calls feet – “ 86” FC – calls portion – “Point 23” RC repeats – “ 86. 23”
