Dispatch Software for MOTOTRBO Smart PTT Integrated Solution

Dispatch Software for MOTOTRBO

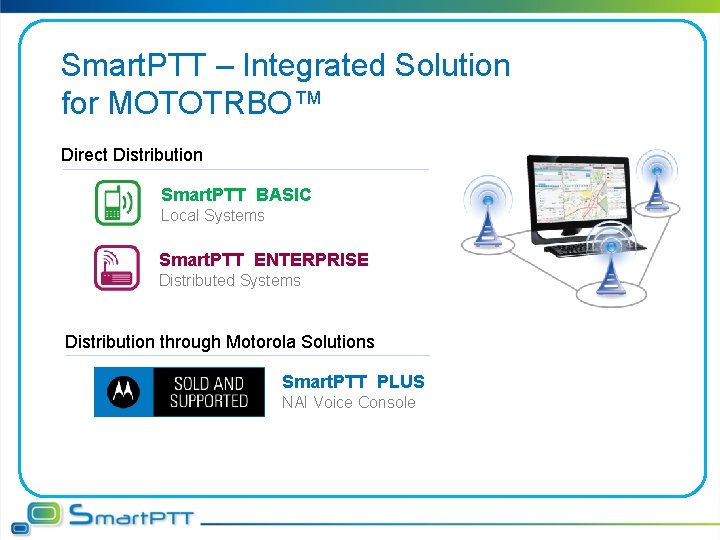

Smart. PTT – Integrated Solution for MOTOTRBO™ Direct Distribution Smart. PTT BASIC Local Systems Smart. PTT ENTERPRISE Distributed Systems Distribution through Motorola Solutions Smart. PTT PLUS NAI Voice Console

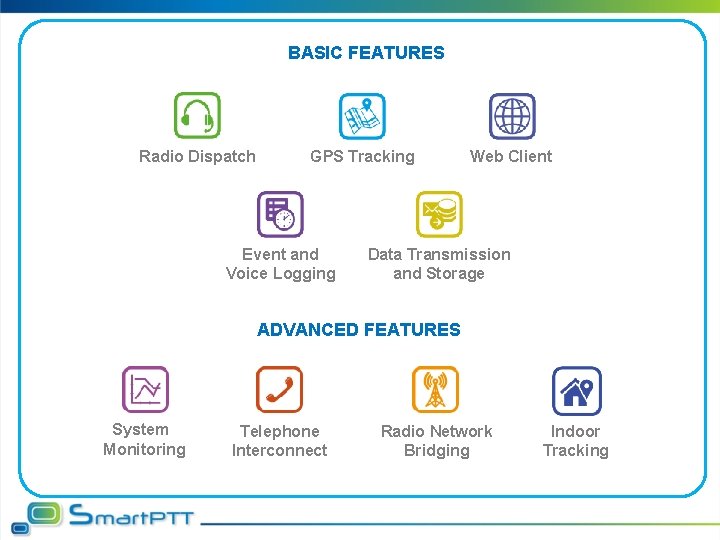

BASIC FEATURES Radio Dispatch GPS Tracking Event and Voice Logging Web Client Data Transmission and Storage ADVANCED FEATURES System Monitoring Telephone Interconnect Radio Network Bridging Indoor Tracking

Configurations & Smart. PTT Solutions Configuration Data Voice Simplex Digital or Analog channels Basic or Enterprise IP Site Connect Enterprise or PLUS Capacity Plus Enterprise PLUS Linked Capacity Plus Enterprise PLUS Connect Plus Enterprise PLUS

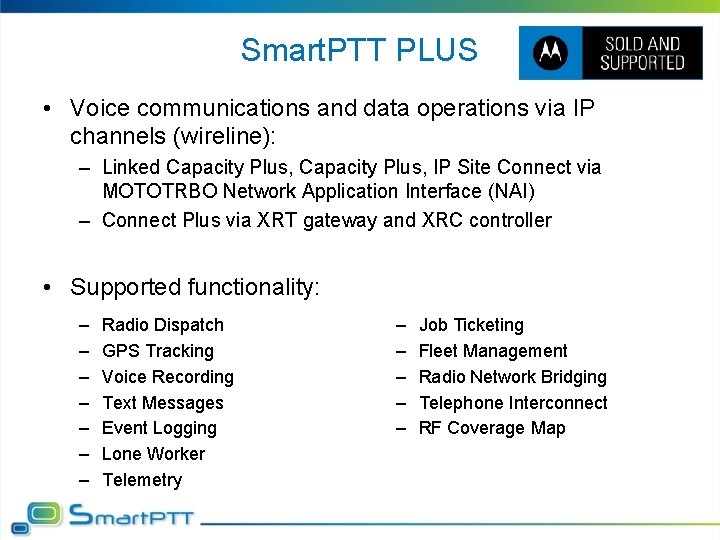

Smart. PTT PLUS • Voice communications and data operations via IP channels (wireline): – Linked Capacity Plus, IP Site Connect via MOTOTRBO Network Application Interface (NAI) – Connect Plus via XRT gateway and XRC controller • Supported functionality: – – – – Radio Dispatch GPS Tracking Voice Recording Text Messages Event Logging Lone Worker Telemetry – – – Job Ticketing Fleet Management Radio Network Bridging Telephone Interconnect RF Coverage Map

Smart. PTT PLUS in Linked Capacity Plus

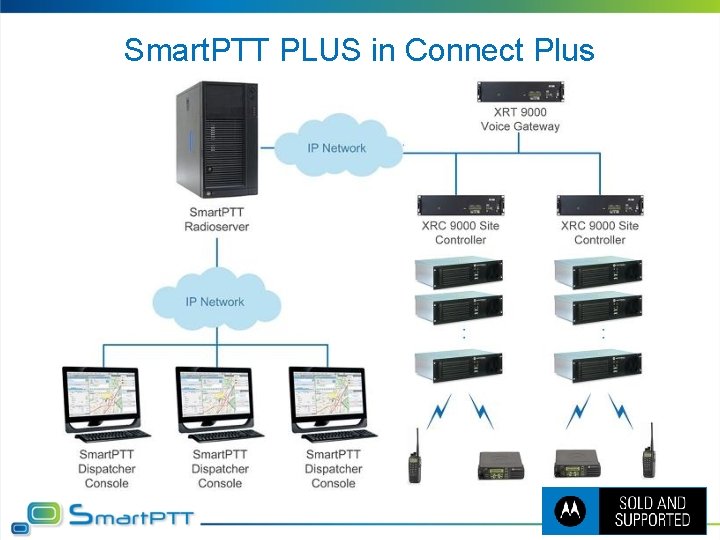

Smart. PTT PLUS in Connect Plus

Smart. PTT PLUS vs Enterprise Feature Control over MOTOTRBO via IP Control over LCP PLUS Enterprise IPSC, CP, LCP, Connect Plus IPSC, CP (limited) Two-way IP Control Stations only For all sites and groups Control over CP Two-way IP One-way IP + Control Stations IPSC local slots Two-way IP control One-way IP control IP based Telephone Patch IPSC, CP, LCP IPSC System Monitoring and Coverage Map IPSC, CP, LCP IPSC, CP

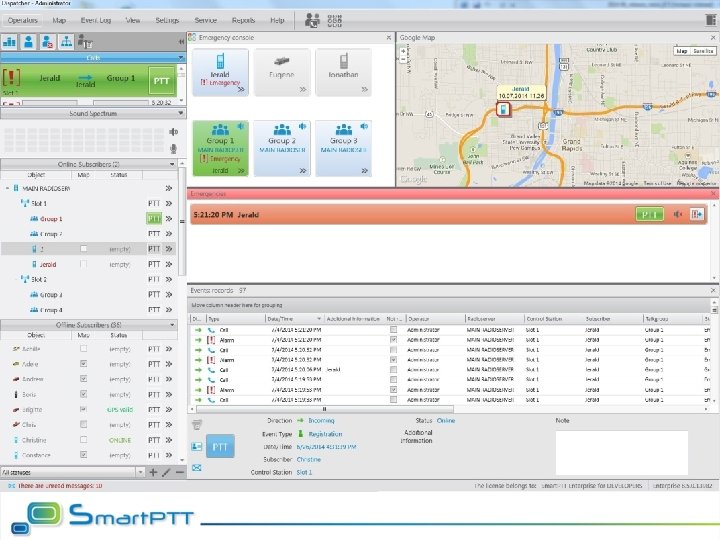

Dispatcher User Interface

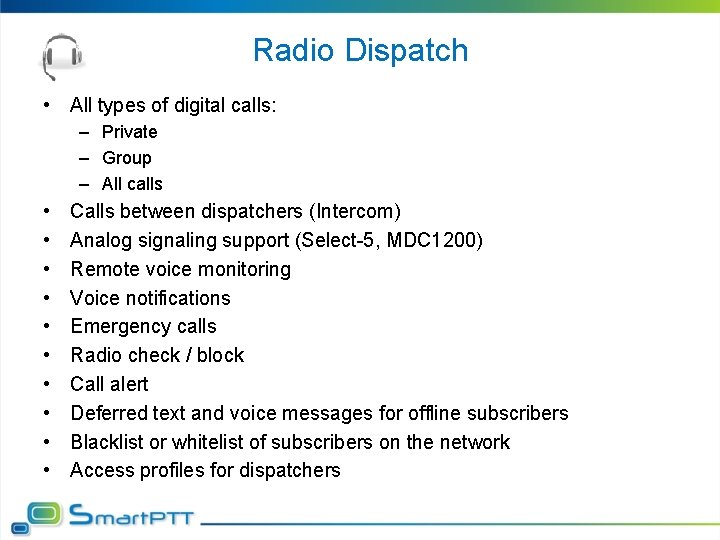

Radio Dispatch • All types of digital calls: – Private – Group – All calls • • • Calls between dispatchers (Intercom) Analog signaling support (Select-5, MDC 1200) Remote voice monitoring Voice notifications Emergency calls Radio check / block Call alert Deferred text and voice messages for offline subscribers Blacklist or whitelist of subscribers on the network Access profiles for dispatchers

Mature Voice Console • • • Voice Level for each channel Mute specific Channels or Groups Dedicated speakers for Channels or Groups Noise cancelation at the dispatch console Support for professional accessories: – – Adapter for Motorola desktop microphone IMTRADEX microphones TIPRO consoles External PTT buttons (USB and Serial Ports)

Voice Notification (Blast Alarm) Automatic sound file playback on selected voice channels

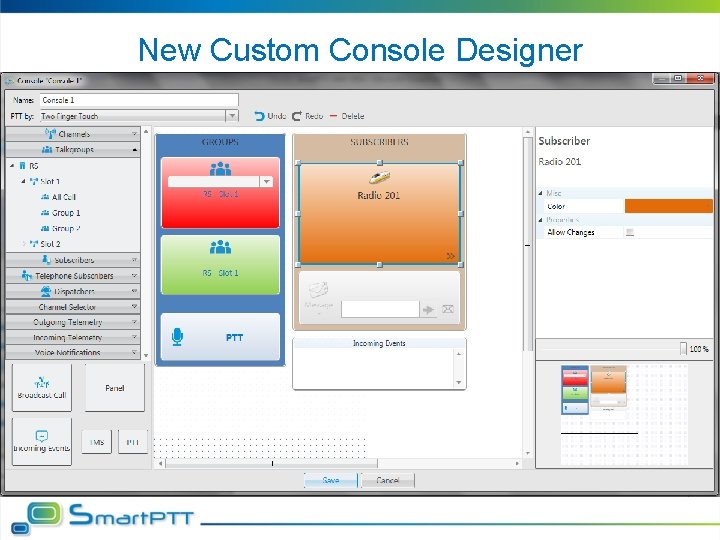

New Custom Console Designer

Emergency Features • • Two level Lone Worker Man. Down Emergency panel Automatic Location Request to Emergency Initiator • Rescue team Location Request • • • Alert on Custom Console E-Mail and SMS Notifications Dedicated speaker for Emergency Group on dispatch console

GPS Tracking and Geofencing • • • Real time GPS Tracking Subscriber location history Track animation Track details and reporting Track replay for specific time frame Geofencing Speeding and stops control Predefined routes Automatic and manual location request Different map formats supported (vector, raster, online) Integration with Google Earth (export locations to KML)

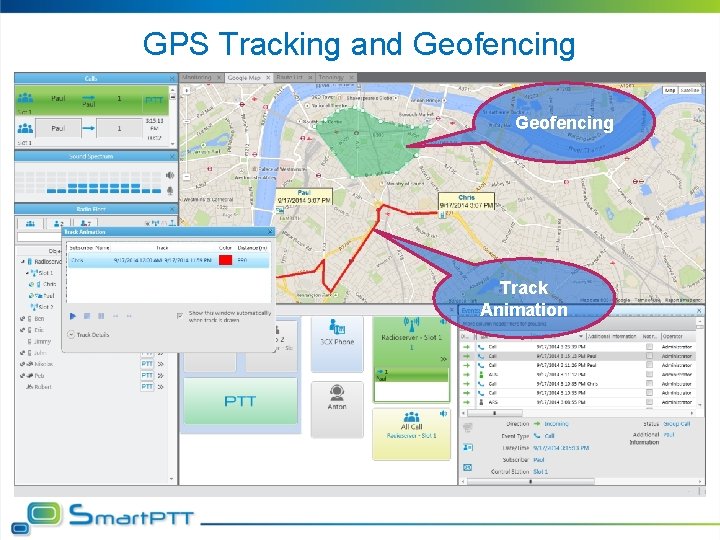

GPS Tracking and Geofencing Track Animation

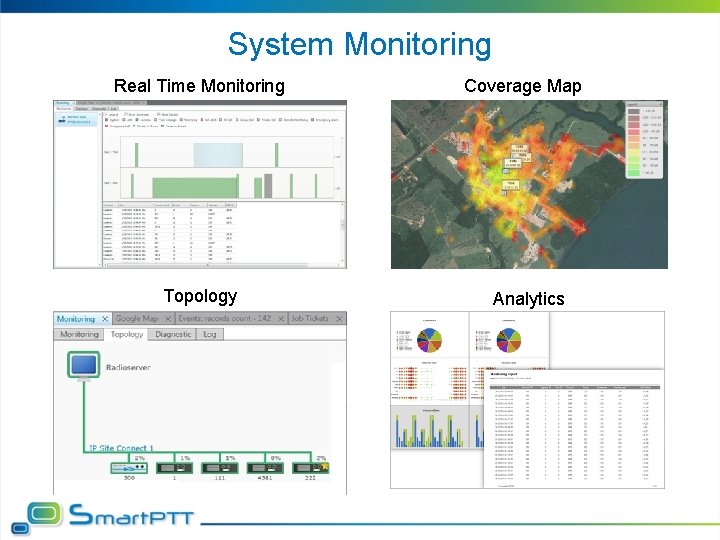

System Monitoring Real Time Monitoring Topology Coverage Map Analytics

Hardware Diagnostics and Control SNMP Server

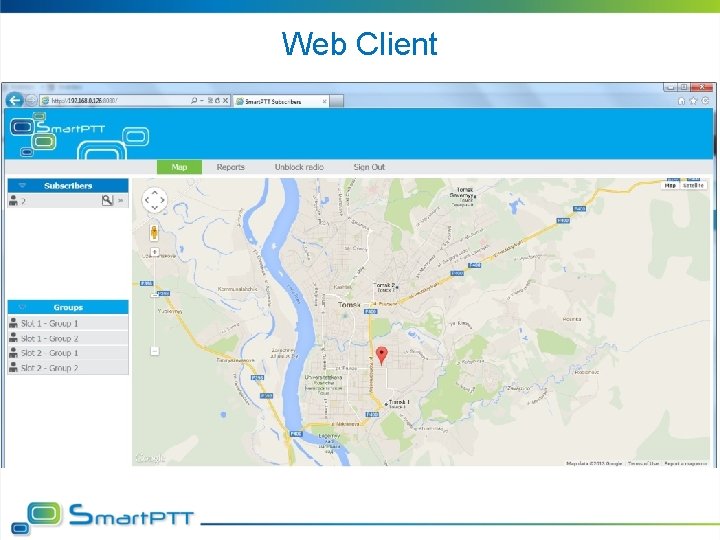

Web Client

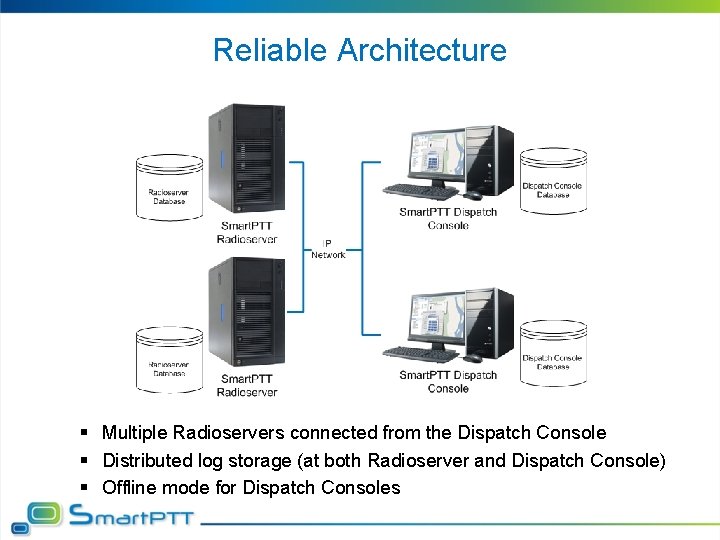

Reliable Architecture § Multiple Radioservers connected from the Dispatch Console § Distributed log storage (at both Radioserver and Dispatch Console) § Offline mode for Dispatch Consoles

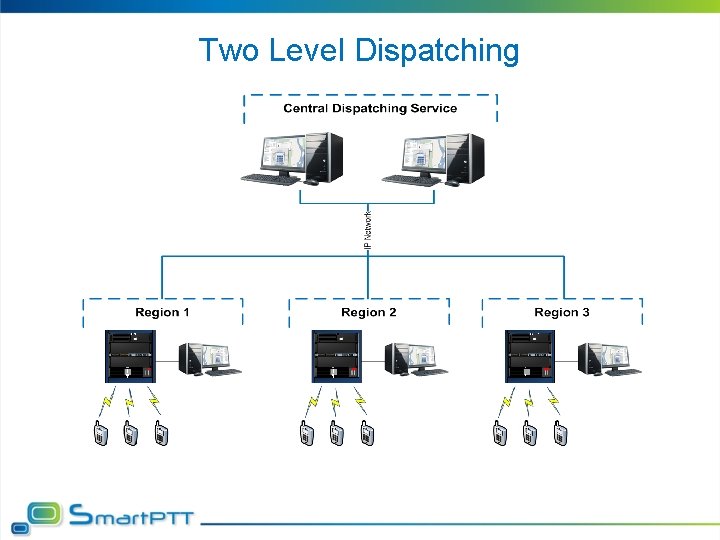

Two Level Dispatching

Redundant Radioservers

Telephone Interconnect can be initiated by: • Telephone subscriber • Radio subscriber • Dispatcher Console

Intelligent Bridging Service

Smart. PTT PLUS Benefits Recap • Ultimate Voice Solution for IPSC, CP, LCP, Connect Plus • Central Dispatch Room. Adjusted to control multiple voice channels • Customizable Voice Consoles • Professional Voice Accessories • Redundancy & Reliability • Emergency Control • Tested and certified by Motorola Solutions

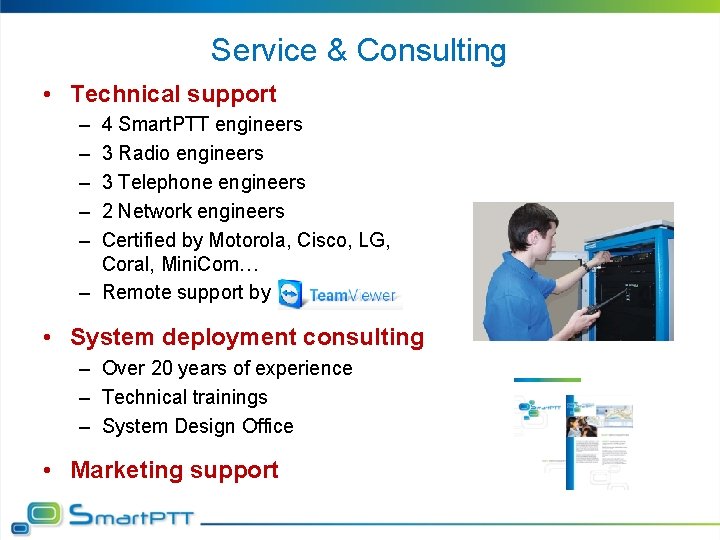

Service & Consulting • Technical support – – – 4 Smart. PTT engineers 3 Radio engineers 3 Telephone engineers 2 Network engineers Certified by Motorola, Cisco, LG, Coral, Mini. Com… – Remote support by • System deployment consulting – Over 20 years of experience – Technical trainings – System Design Office • Marketing support

CASE STUDIES

Implemented in more than 50 countries around the world

Case Study: Curragh Mine, Australia • • Smart. PTT Plus LCP 5 sites, 16 repeaters 910 subscribers System Monitoring

Case Study: UN World Food Programme in Pakistan • • • Smart. PTT Plus LCP 5 sites, 32 repeaters 5 Dispatchers 600 Subscribers Telephone Interconnect

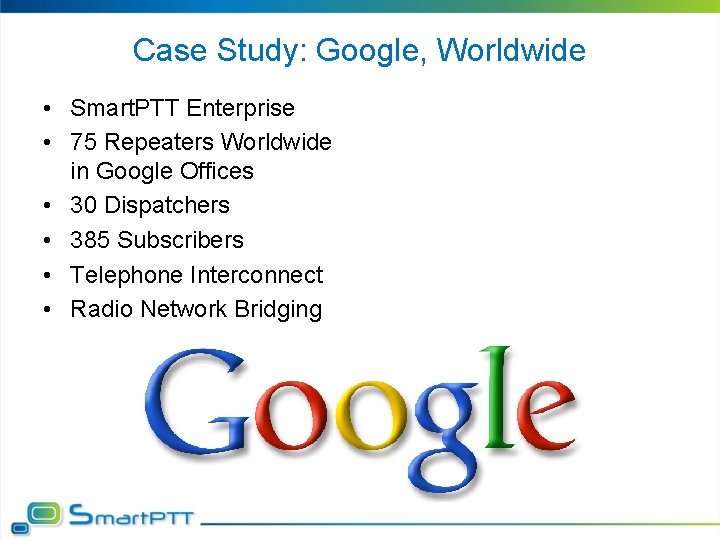

Case Study: Google, Worldwide • Smart. PTT Enterprise • 75 Repeaters Worldwide in Google Offices • 30 Dispatchers • 385 Subscribers • Telephone Interconnect • Radio Network Bridging

THANK YOU!
