Dispatch Software for MOTOTRBO Integrated Dispatch Solution Radio

Dispatch Software for MOTOTRBO

Integrated Dispatch Solution

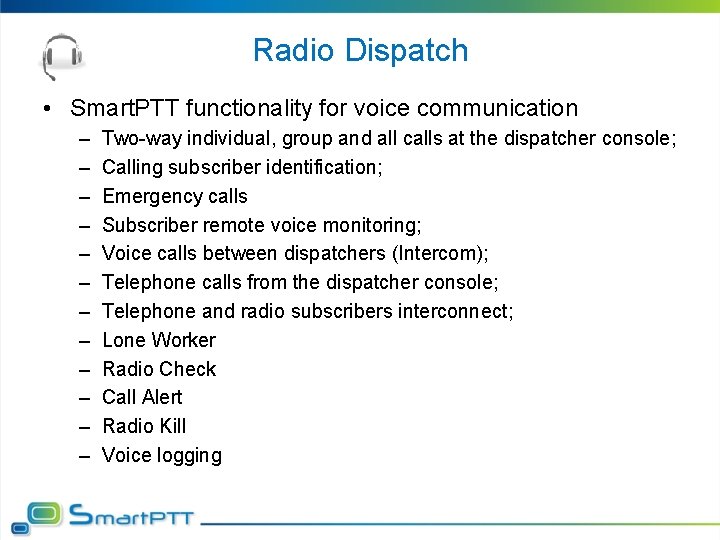

Radio Dispatch • Smart. PTT functionality for voice communication – – – Two-way individual, group and all calls at the dispatcher console; Calling subscriber identification; Emergency calls Subscriber remote voice monitoring; Voice calls between dispatchers (Intercom); Telephone calls from the dispatcher console; Telephone and radio subscribers interconnect; Lone Worker Radio Check Call Alert Radio Kill Voice logging

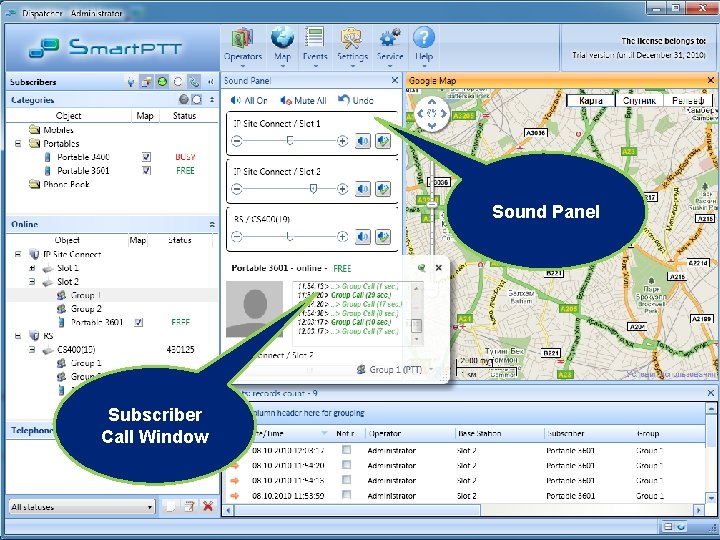

Sound Panel Subscriber Call Window

GPS Monitoring – – – Real-time subscriber location tracking Many map formats supported Subscriber location logging Track drawing for specified period of time Subscriber movement animation in scope of the track Subscriber track details Geofencing Predefined routes Automatic location request Location request by event Manual location request Export locations to KML

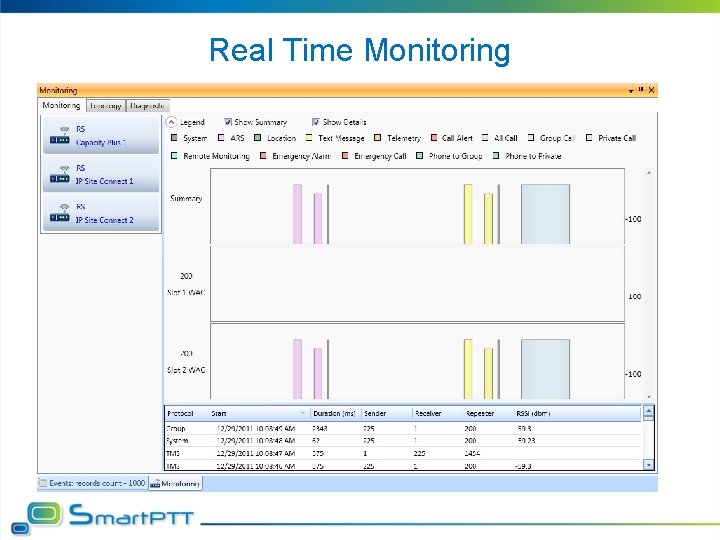

Real-Time Monitoring

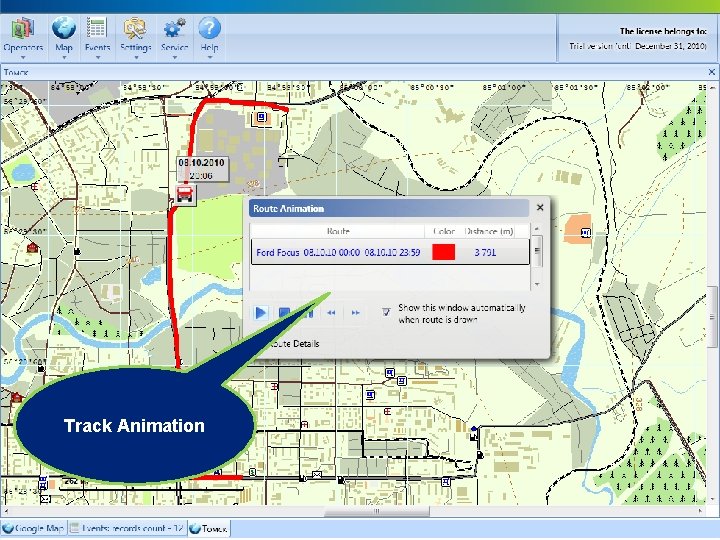

Track Animation

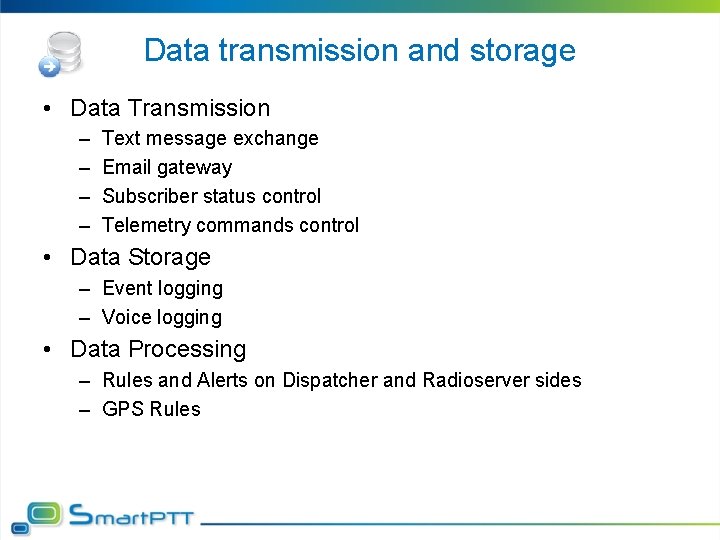

Data transmission and storage • Data Transmission – – Text message exchange Email gateway Subscriber status control Telemetry commands control • Data Storage – Event logging – Voice logging • Data Processing – Rules and Alerts on Dispatcher and Radioserver sides – GPS Rules

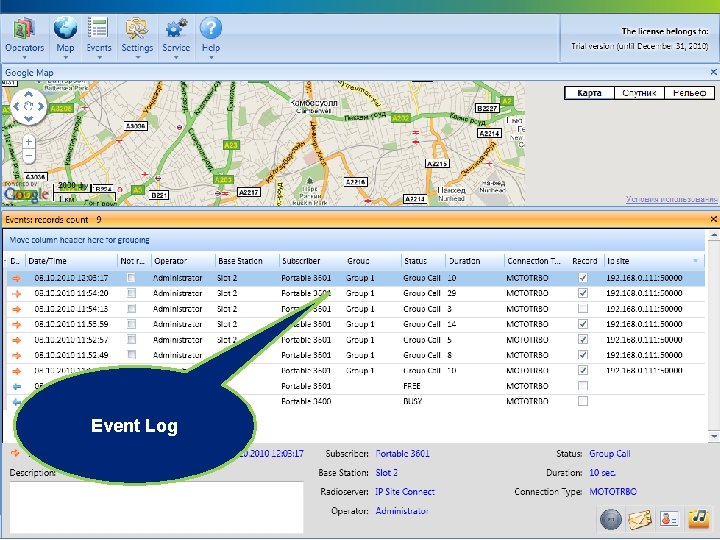

Event Log

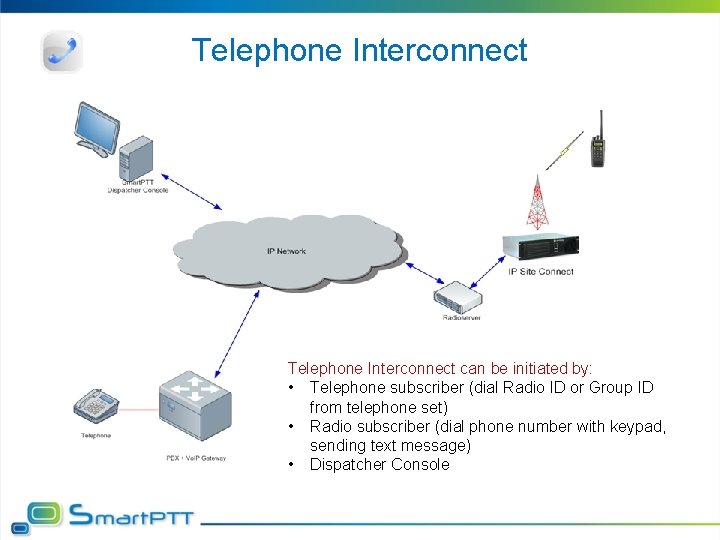

Telephone Interconnect can be initiated by: • Telephone subscriber (dial Radio ID or Group ID from telephone set) • Radio subscriber (dial phone number with keypad, sending text message) • Dispatcher Console

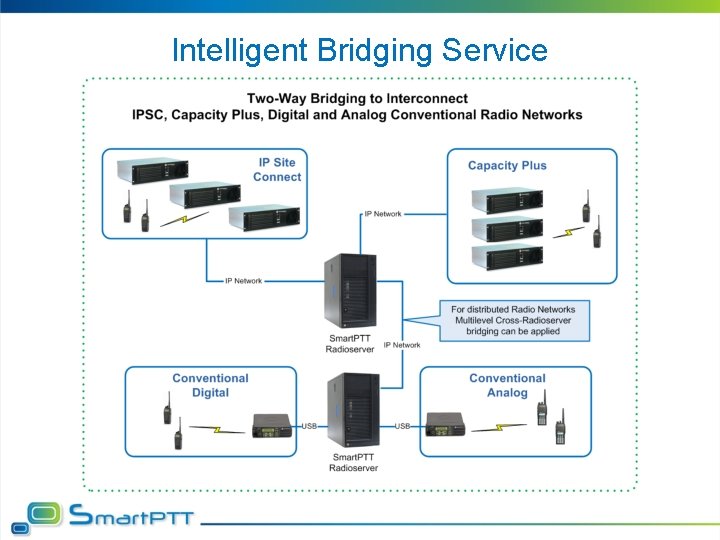

Intelligent Bridging Service

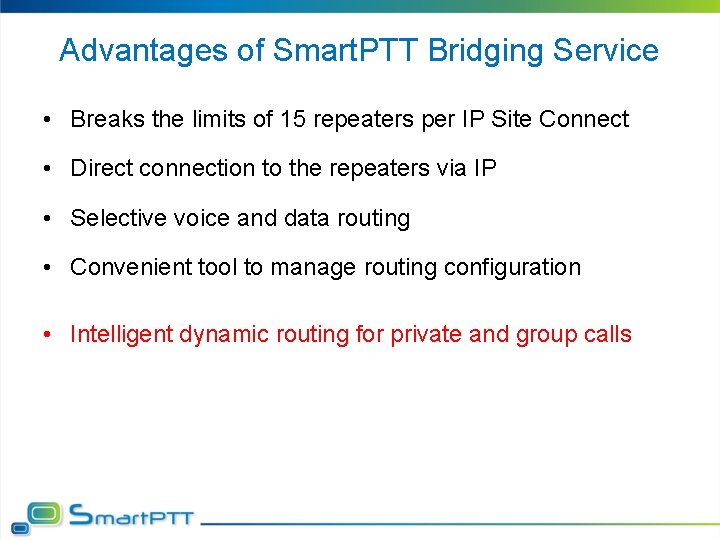

Advantages of Smart. PTT Bridging Service • Breaks the limits of 15 repeaters per IP Site Connect • Direct connection to the repeaters via IP • Selective voice and data routing • Convenient tool to manage routing configuration • Intelligent dynamic routing for private and group calls

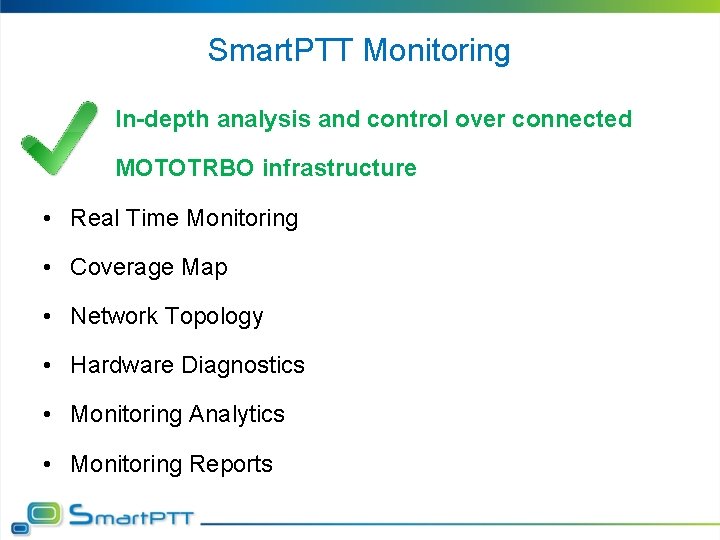

Smart. PTT Monitoring In-depth analysis and control over connected MOTOTRBO infrastructure • Real Time Monitoring • Coverage Map • Network Topology • Hardware Diagnostics • Monitoring Analytics • Monitoring Reports

Real Time Monitoring

Hardware Diagnostics

Coverage Map

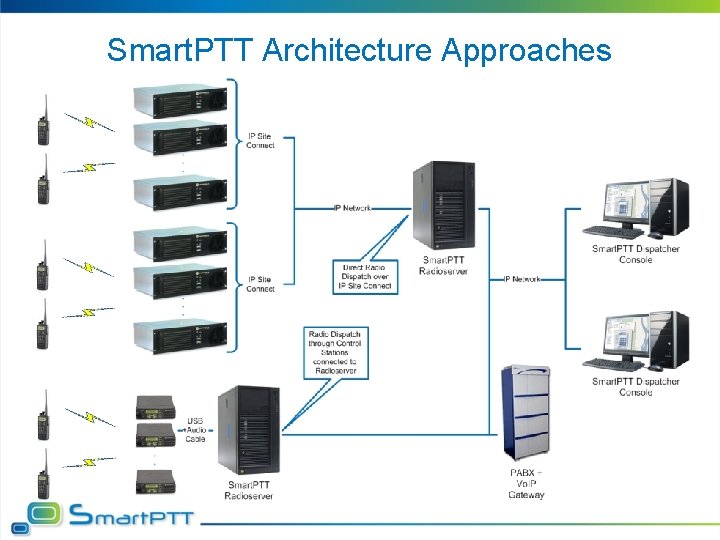

Smart. PTT Architecture Approaches

Benefits of direct connection to repeaters • Enhanced Functionality – Event and voice logging of ALL activity in the radio network. – Information about the repeater used for the subscriber activity (for IPSC). • Scalability – Various amount of dispatcher consoles and controlled radio networks – Remote dispatcher control through IP • Reliability – Less amount of functional units for dispatcher control implementation in comparison with other systems. • Cost Effectiveness – Considerable savings on server infrastructure – Control stations are not required

Reliable Architecture § Multiple Radioservers connected from the Dispatch Console § Distributed log storage (at both Radioserver and Dispatch Console) § Offline mode for Dispatch Consoles

Smart. PTT Target Areas ü ü ü ü ü Heat and power industry Oil and gas transportation Oil refactoring Mining Chemical industry Power distribution Emergency services Transportation Airports Safeguarding

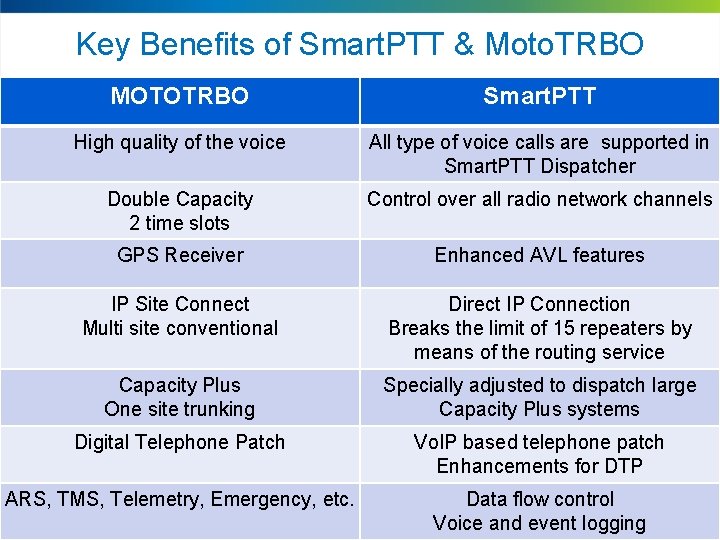

Key Benefits of Smart. PTT & Moto. TRBO MOTOTRBO Smart. PTT High quality of the voice All type of voice calls are supported in Smart. PTT Dispatcher Double Capacity 2 time slots Control over all radio network channels GPS Receiver Enhanced AVL features IP Site Connect Multi site conventional Direct IP Connection Breaks the limit of 15 repeaters by means of the routing service Capacity Plus One site trunking Specially adjusted to dispatch large Capacity Plus systems Digital Telephone Patch Vo. IP based telephone patch Enhancements for DTP ARS, TMS, Telemetry, Emergency, etc. Data flow control Voice and event logging

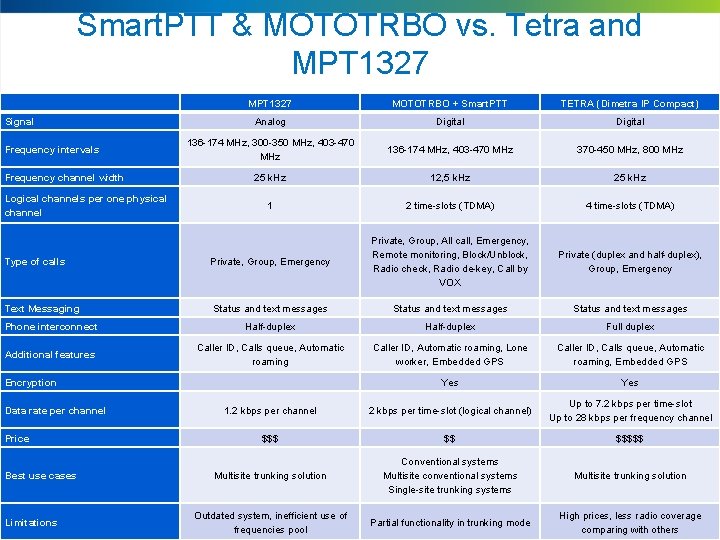

Smart. PTT & MOTOTRBO vs. Tetra and MPT 1327 MOTOTRBO + Smart. PTT TETRA (Dimetra IP Compact) Analog Digital 136 -174 MHz, 300 -350 MHz, 403 -470 MHz 136 -174 MHz, 403 -470 MHz 370 -450 MHz, 800 MHz 25 k. Hz 12, 5 k. Hz 25 k. Hz 1 2 time-slots (TDMA) 4 time-slots (TDMA) Type of calls Private, Group, Emergency Private, Group, All call, Emergency, Remote monitoring, Block/Unblock, Radio check, Radio de-key, Call by VOX Private (duplex and half-duplex), Group, Emergency Text Messaging Status and text messages Phone interconnect Half-duplex Full duplex Additional features Caller ID, Calls queue, Automatic roaming Caller ID, Automatic roaming, Lone worker, Embedded GPS Caller ID, Calls queue, Automatic roaming, Embedded GPS Yes 1. 2 kbps per channel 2 kbps per time-slot (logical channel) Up to 7. 2 kbps per time-slot Up to 28 kbps per frequency channel $$$ $$ $$$$$ Multisite trunking solution Conventional systems Multisite conventional systems Single-site trunking systems Multisite trunking solution Outdated system, inefficient use of frequencies pool Partial functionality in trunking mode High prices, less radio coverage comparing with others Signal Frequency intervals Frequency channel width Logical channels per one physical channel Encryption Data rate per channel Price Best use cases Limitations

Service & Consulting • Technical support – – – 3 Smart. PTT engineers 3 Radio engineers 3 Telephone engineers 2 Network engineers Certified by Motorola, Cisco, LG, Coral, Mini. Com… – Remote support by • System deployment consulting – Over 17 years of experience – Technical trainings – System Design Office • Marketing support

CASE STUDIES

Shell Refinery, Malaysia • GPS monitoring • Voice and event logging • Capacity Plus – 2 voice + 2 data revert channels – 250 subscribers

SAMU – Ambulance, Brazil • • • GPS monitoring Voice and events logging IP Site Connect for 2 sites 70 subscribers 7 dispatchers

EMDEC – Public Transportation Authority, Brazil • GPS Monitoring • Voice and events logging • Voice calls from dispatch consoles • 4 sites • 5 dispatchers • 250 subscribers

Centrovias – Autobahn, Brazil • GPS Monitoring • Voice calls from dispatch consoles • Voice and events logging • 120 subscribers • 18 sites • 6 dispatchers

FCA – Railways, Brazil • GPS Monitoring • Voice calls from dispatch consoles • Voice and events logging • 500 subscribers • 20 sites • 3 dispatchers

PDI – Investigations Police, Chile • Voice and events logging • Voice calls from dispatch consoles • 4 sites • 90 subscribers • 2 dispatchers

Advanced Elastomers – Chemical plant, UK • Telephone interconnect • Voice and events logging • Voice calls from dispatch consoles • 50 subscribers • 2 dispatchers

Rapid. KL – Public Transportation, Malaysia • GPS monitoring • Events and voice logging • 1600 subscribers at final stage

Russ. Neft – 2 oilfields, Russia • GPS monitoring • Voice and events logging • Voice calls from dispatch consoles • 1 voice channel + 1 data revert channel

Emergency Service, Komi Republic, Russia • Voice calls and logging • Telephone interconnect • Over 50 regional fire brigades • Central Dispatch Console at HQ
