Diskless Cluster Computing Security Benefit of one SIS

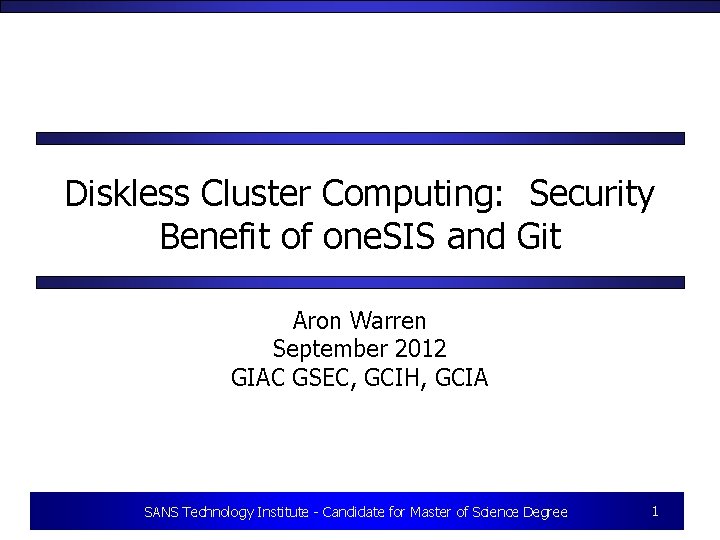

Diskless Cluster Computing: Security Benefit of one. SIS and Git Aron Warren September 2012 GIAC GSEC, GCIH, GCIA SANS Technology Institute - Candidate for Master of Science Degree 1 1

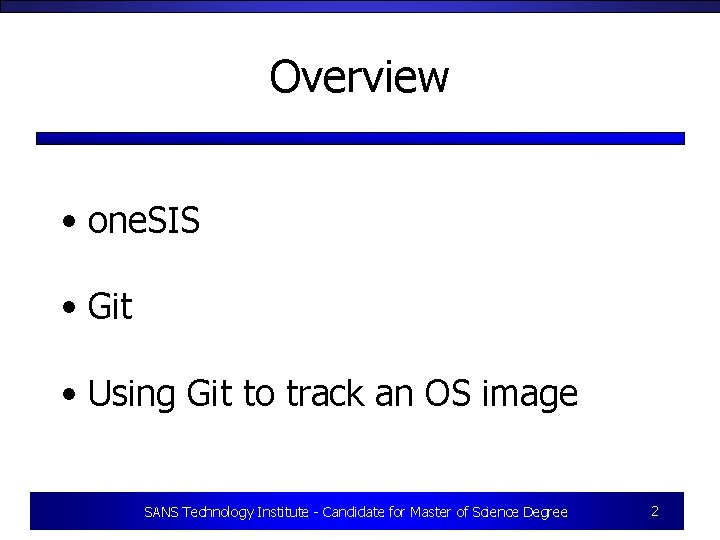

Overview • one. SIS • Git • Using Git to track an OS image SANS Technology Institute - Candidate for Master of Science Degree 2

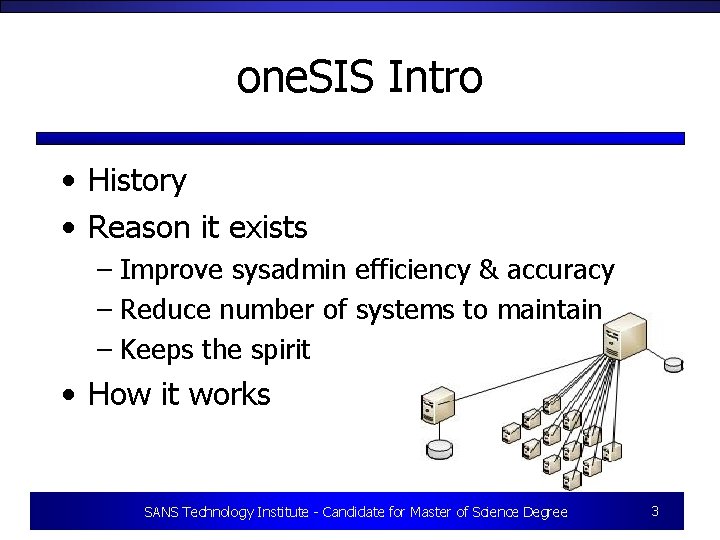

one. SIS Intro • History • Reason it exists – Improve sysadmin efficiency & accuracy – Reduce number of systems to maintain – Keeps the spirit • How it works SANS Technology Institute - Candidate for Master of Science Degree 3

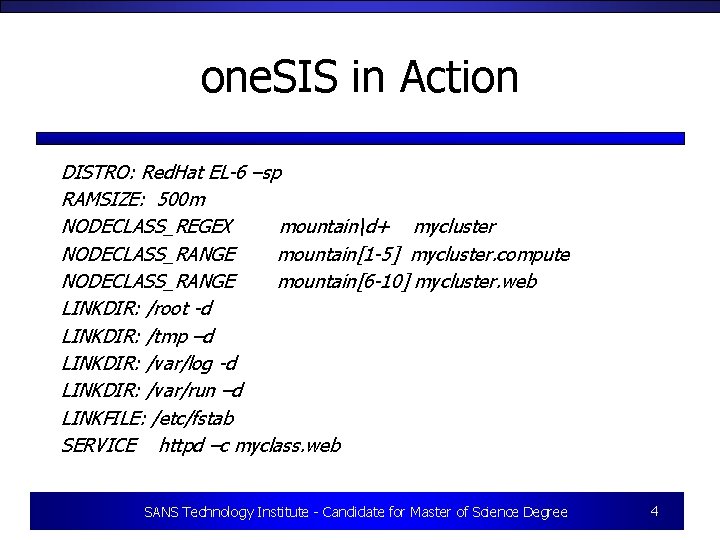

one. SIS in Action DISTRO: Red. Hat EL-6 –sp RAMSIZE: 500 m NODECLASS_REGEX mountaind+ mycluster NODECLASS_RANGE mountain[1 -5] mycluster. compute NODECLASS_RANGE mountain[6 -10] mycluster. web LINKDIR: /root -d LINKDIR: /tmp –d LINKDIR: /var/log -d LINKDIR: /var/run –d LINKFILE: /etc/fstab SERVICE httpd –c myclass. web SANS Technology Institute - Candidate for Master of Science Degree 4

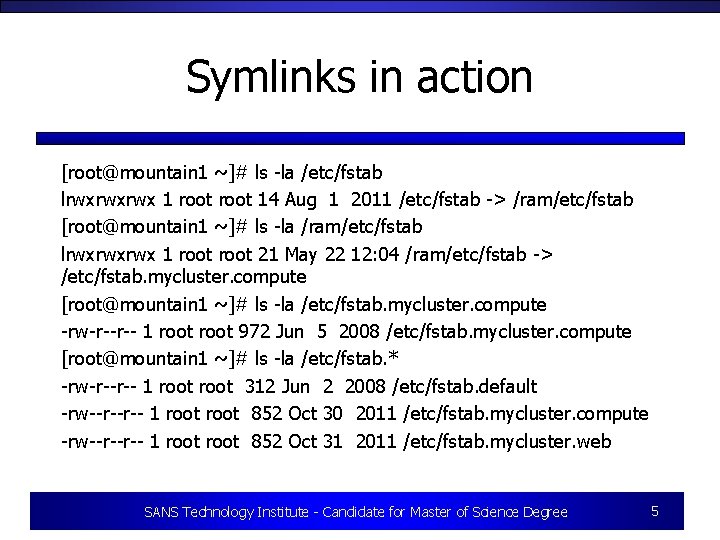

Symlinks in action [root@mountain 1 ~]# ls -la /etc/fstab lrwxrwxrwx 1 root 14 Aug 1 2011 /etc/fstab -> /ram/etc/fstab [root@mountain 1 ~]# ls -la /ram/etc/fstab lrwxrwxrwx 1 root 21 May 22 12: 04 /ram/etc/fstab -> /etc/fstab. mycluster. compute [root@mountain 1 ~]# ls -la /etc/fstab. mycluster. compute -rw-r--r-- 1 root 972 Jun 5 2008 /etc/fstab. mycluster. compute [root@mountain 1 ~]# ls -la /etc/fstab. * -rw-r--r-- 1 root 312 Jun 2 2008 /etc/fstab. default -rw--r--r-- 1 root 852 Oct 30 2011 /etc/fstab. mycluster. compute -rw--r--r-- 1 root 852 Oct 31 2011 /etc/fstab. mycluster. web SANS Technology Institute - Candidate for Master of Science Degree 5

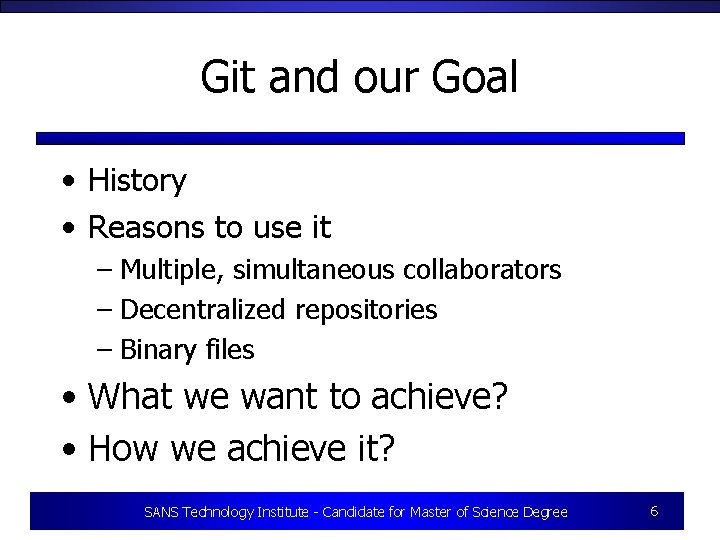

Git and our Goal • History • Reasons to use it – Multiple, simultaneous collaborators – Decentralized repositories – Binary files • What we want to achieve? • How we achieve it? SANS Technology Institute - Candidate for Master of Science Degree 6

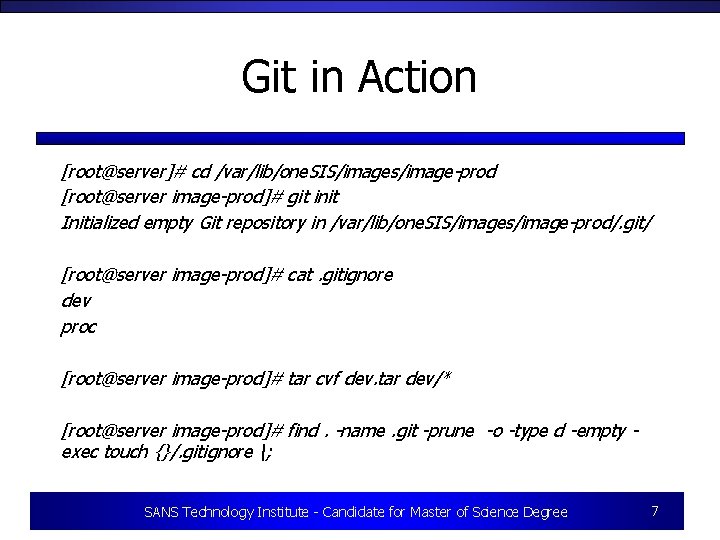

Git in Action [root@server]# cd /var/lib/one. SIS/images/image-prod [root@server image-prod]# git init Initialized empty Git repository in /var/lib/one. SIS/images/image-prod/. git/ [root@server image-prod]# cat. gitignore dev proc [root@server image-prod]# tar cvf dev. tar dev/* [root@server image-prod]# find. -name. git -prune -o -type d -empty exec touch {}/. gitignore ; SANS Technology Institute - Candidate for Master of Science Degree 7

Git in Action Part 2 [root@localhost image-prod]# cd. git/hooks/ [root@localhost hooks]# cp /usr/share/git-core /contrib/hooks/*. setgitperms. perl : [root@localhost image-prod]# cd. git/hooks/ [root@localhost hooks]# cp /usr/share/git-core /contrib/hooks/*. [root@server image-prod]# git add -f * SANS Technology Institute - Candidate for Master of Science Degree 8

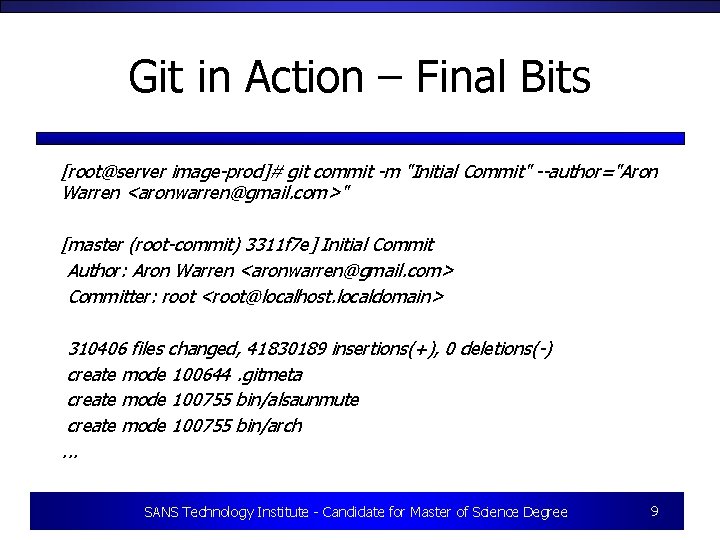

Git in Action – Final Bits [root@server image-prod]# git commit -m "Initial Commit" --author="Aron Warren <aronwarren@gmail. com>" [master (root-commit) 3311 f 7 e] Initial Commit Author: Aron Warren <aronwarren@gmail. com> Committer: root <root@localhost. localdomain> 310406 files changed, 41830189 insertions(+), 0 deletions(-) create mode 100644. gitmeta create mode 100755 bin/alsaunmute create mode 100755 bin/arch. . . SANS Technology Institute - Candidate for Master of Science Degree 9

Pros • Integrity • Rollback of Changes • Immediate Rollout of Changes (single pull) – Leads to Staged Rollouts SANS Technology Institute - Candidate for Master of Science Degree 10

Cons • RPMs • Image size grows over time • File permissions SANS Technology Institute - Candidate for Master of Science Degree 11

Some commands that help • diff –u. gitmeta <(. git/hooks/setgitperms. perl –r –s) • git update-index --really-refresh • git clean -d -f • git reset --hard commit-id SANS Technology Institute - Candidate for Master of Science Degree 12

Sneak Peek • Version 3 • Fixes the above mentioned issues • Much more flexibility SANS Technology Institute - Candidate for Master of Science Degree 13

Reference Materials • Google. (2007, May 14). Tech Talk: Linus Torvalds on git. Retrieved February 25, 2012, from You. Tube: http: //www. youtube. com/watch? v=4 Xpn. KHJAok 8 • Schroeder, B. , Gibson, G. A. (2007). Understanding disk failure rates: What does an MTTF of 1, 000 hours mean to you? . Trans. Storage, 3(3), 8: 1 -8: 31. DOI=10. 1145/1288783. 1288785 SANS Technology Institute - Candidate for Master of Science Degree 14

Summary • one. SIS + Git = easy way to manage a diskless image • Provides image integrity • Provides easy upgrade and rollback paths SANS Technology Institute - Candidate for Master of Science Degree 15
