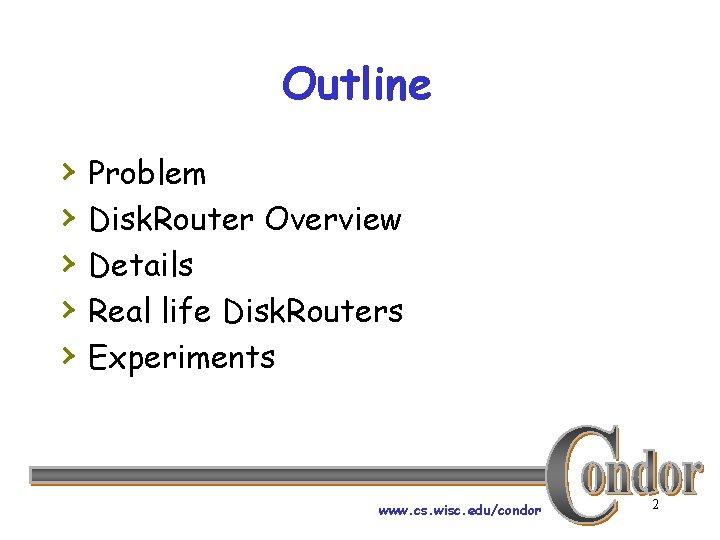

Outline › › › Problem Disk. Router Overview Details Real life Disk. Routers Experiments www. cs. wisc. edu/condor 2

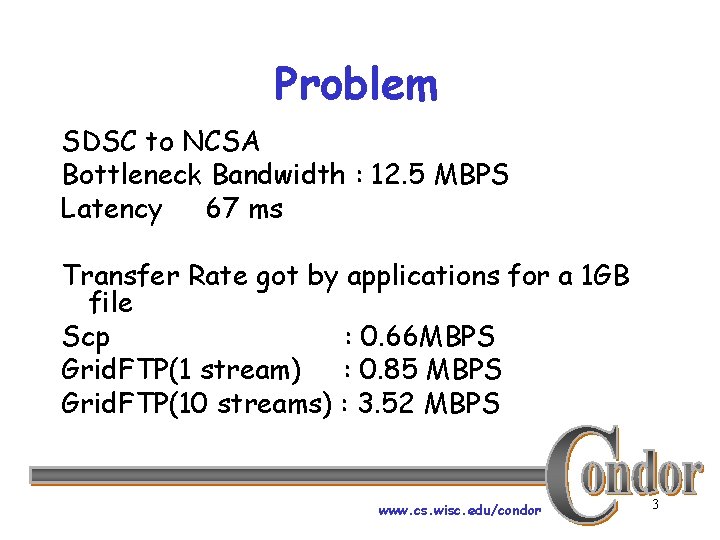

Problem SDSC to NCSA Bottleneck Bandwidth : 12. 5 MBPS Latency 67 ms Transfer Rate got by applications for a 1 GB file Scp : 0. 66 MBPS Grid. FTP(1 stream) : 0. 85 MBPS Grid. FTP(10 streams) : 3. 52 MBPS www. cs. wisc. edu/condor 3

Disk. Router Overview › Mechanism to efficiently move large › › › amounts of data (order of terabytes) Uses disk as a buffer to aid in large scale data transfers Application-level overlay network used for routing Ability to use higher level knowledge for data movement www. cs. wisc. edu/condor 4

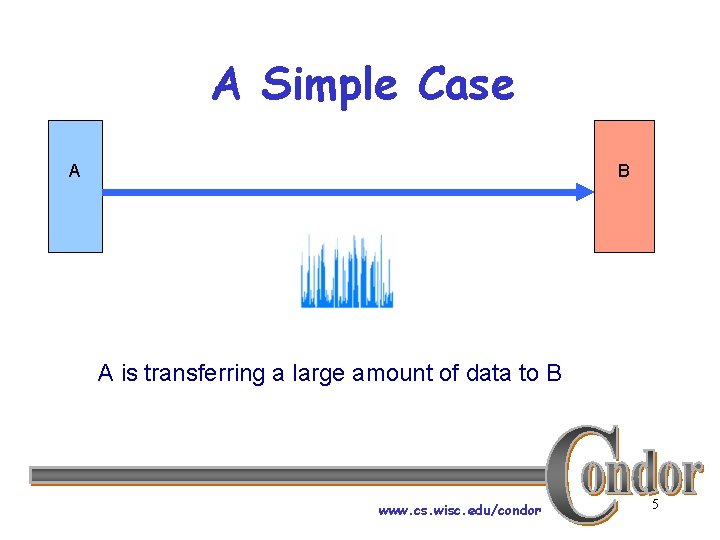

A Simple Case A B A is transferring a large amount of data to B www. cs. wisc. edu/condor 5

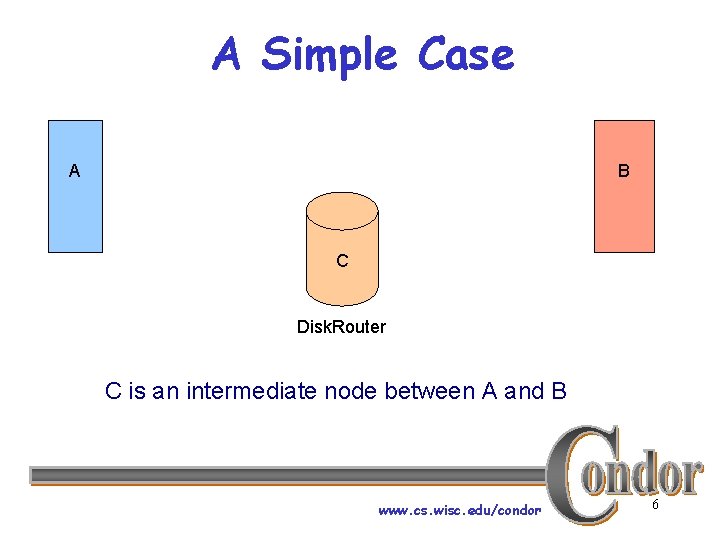

A Simple Case A B C Disk. Router C is an intermediate node between A and B www. cs. wisc. edu/condor 6

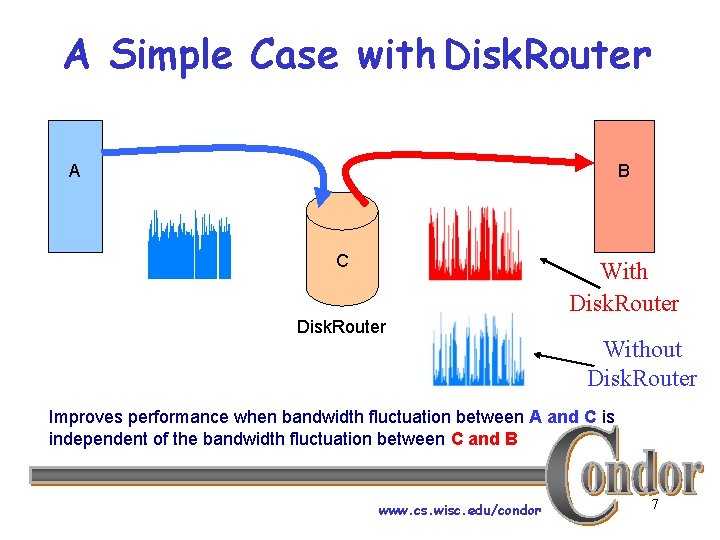

A Simple Case with Disk. Router A B C With Disk. Router Without Disk. Router Improves performance when bandwidth fluctuation between A and C is independent of the bandwidth fluctuation between C and B www. cs. wisc. edu/condor 7

Data Mover/Distributed Cache Source Disk. Router Cloud Destination Source writes to the closest Disk. Router and Destination receives it up from its closest Disk. Router www. cs. wisc. edu/condor 8

Outline › › › Problem Disk. Router Overview Details Real life Disk. Routers Experiments www. cs. wisc. edu/condor 9

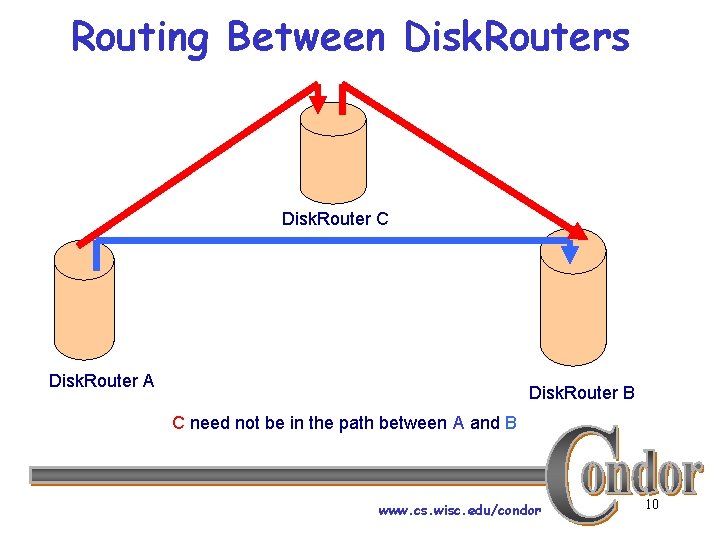

Routing Between Disk. Routers Disk. Router C Disk. Router A Disk. Router B C need not be in the path between A and B www. cs. wisc. edu/condor 10

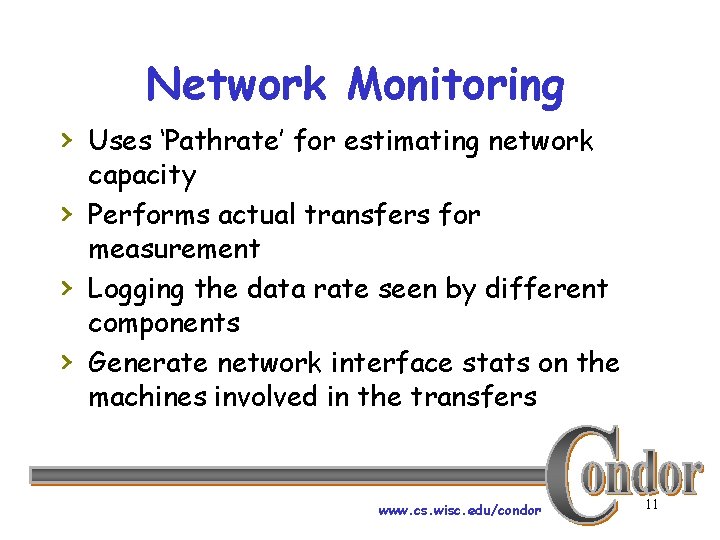

Network Monitoring › Uses ‘Pathrate’ for estimating network › › › capacity Performs actual transfers for measurement Logging the data rate seen by different components Generate network interface stats on the machines involved in the transfers www. cs. wisc. edu/condor 11

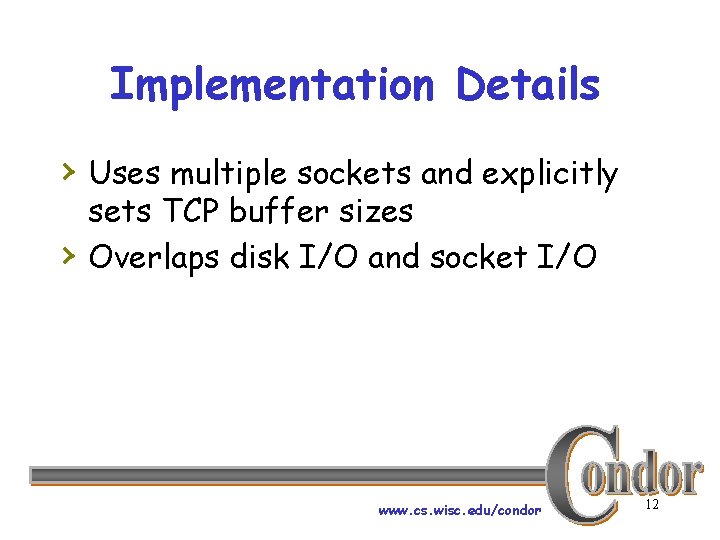

Implementation Details › Uses multiple sockets and explicitly › sets TCP buffer sizes Overlaps disk I/O and socket I/O www. cs. wisc. edu/condor 12

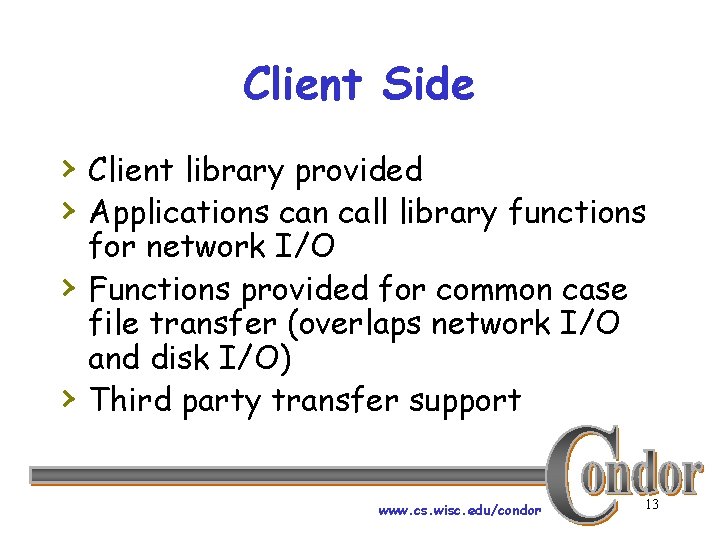

Client Side › Client library provided › Applications can call library functions › › for network I/O Functions provided for common case file transfer (overlaps network I/O and disk I/O) Third party transfer support www. cs. wisc. edu/condor 13

Outline › › › Problem Disk. Router Overview Details Real life Disk. Routers Experiments www. cs. wisc. edu/condor 14

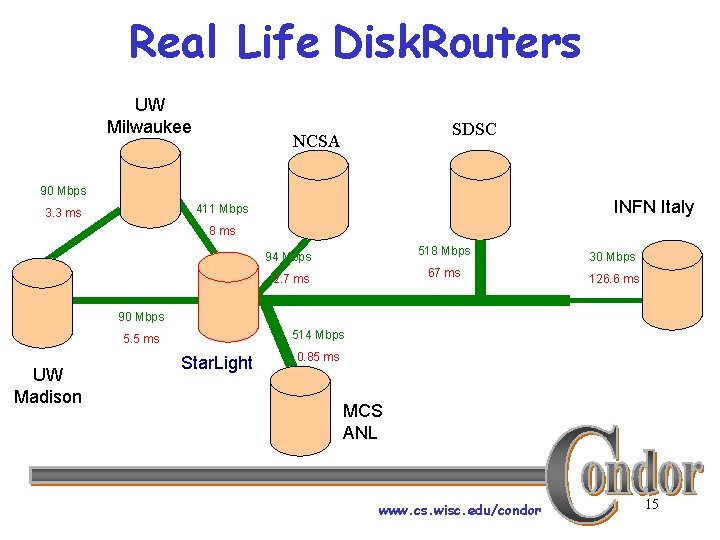

Real Life Disk. Routers UW Milwaukee SDSC NCSA 90 Mbps INFN Italy 411 Mbps 3. 3 ms 8 ms 94 Mbps 518 Mbps 30 Mbps 2. 7 ms 67 ms 126. 6 ms 90 Mbps 514 Mbps 5. 5 ms UW Madison Star. Light 0. 85 ms MCS ANL www. cs. wisc. edu/condor 15

Outline › › Overview Details Real Life Disk. Routers Experiments www. cs. wisc. edu/condor 16

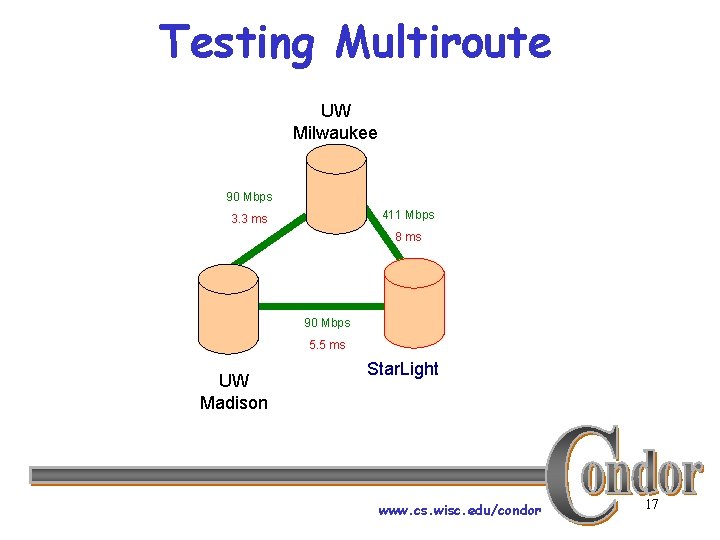

Testing Multiroute UW Milwaukee 90 Mbps 411 Mbps 3. 3 ms 8 ms 90 Mbps 5. 5 ms UW Madison Star. Light www. cs. wisc. edu/condor 17

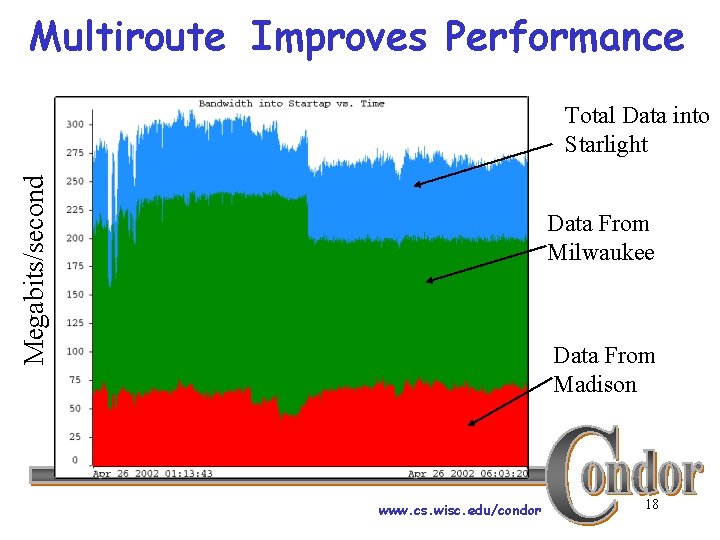

Multiroute Improves Performance Megabits/second Total Data into Starlight Data From Milwaukee Data From Madison www. cs. wisc. edu/condor 18

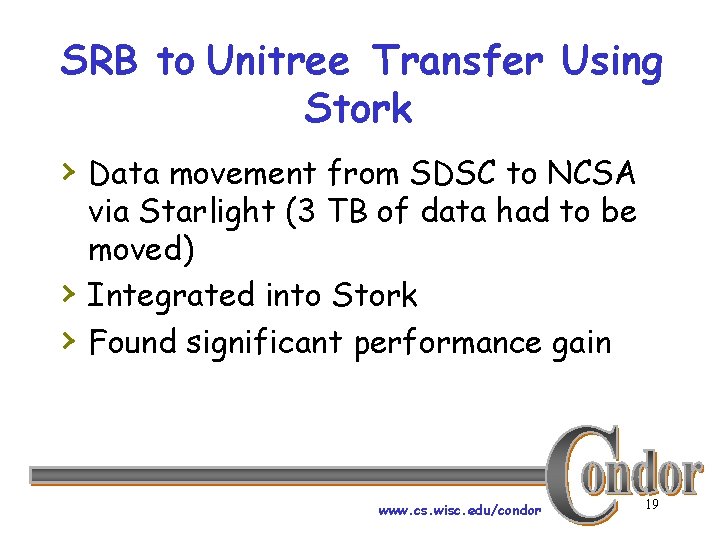

SRB to Unitree Transfer Using Stork › Data movement from SDSC to NCSA › › via Starlight (3 TB of data had to be moved) Integrated into Stork Found significant performance gain www. cs. wisc. edu/condor 19

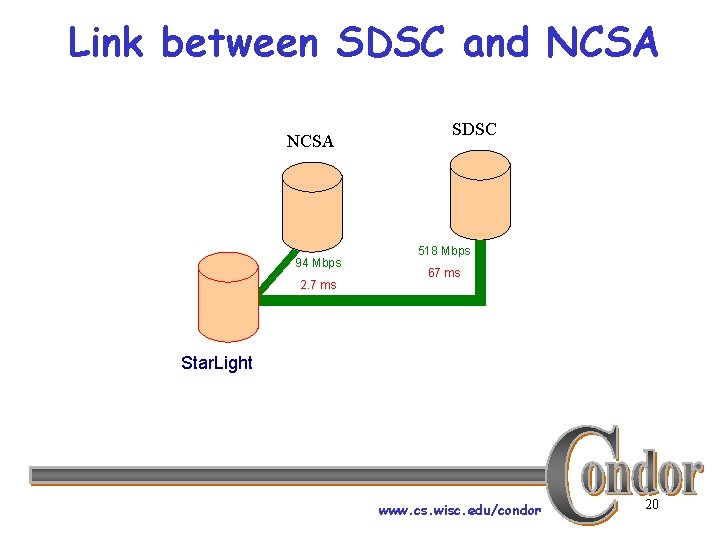

Link between SDSC and NCSA 94 Mbps 2. 7 ms SDSC 518 Mbps 67 ms Star. Light www. cs. wisc. edu/condor 20

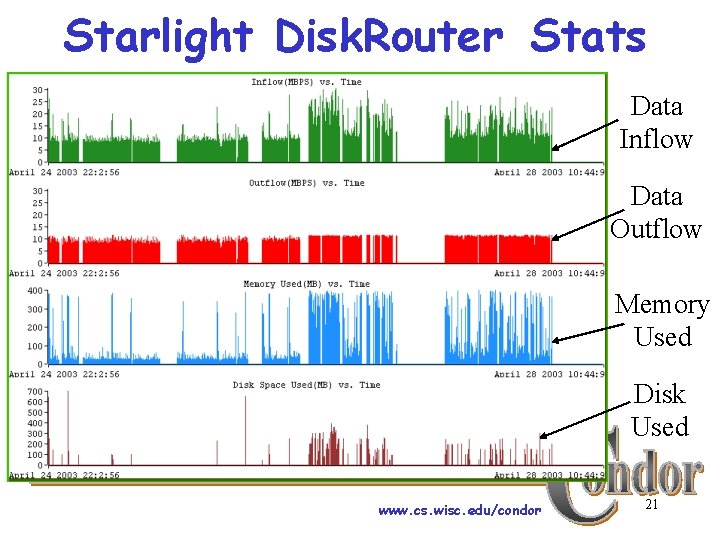

Starlight Disk. Router Stats Data Inflow Data Outflow Memory Used Disk Used www. cs. wisc. edu/condor 21

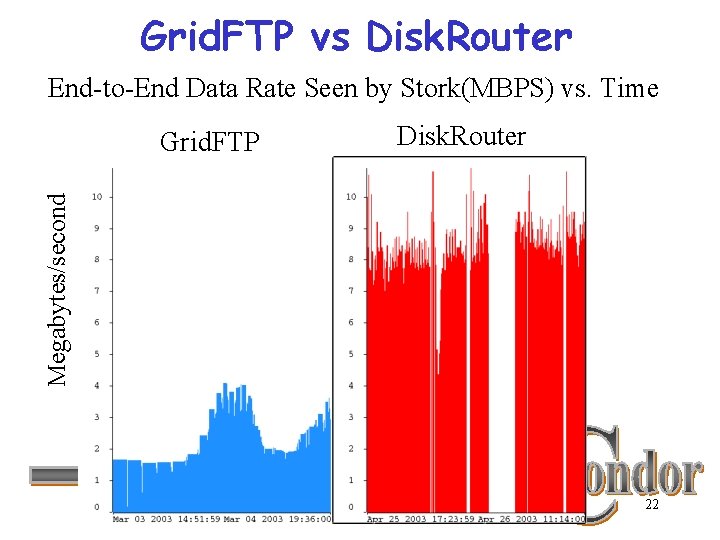

Grid. FTP vs Disk. Router End-to-End Data Rate Seen by Stork(MBPS) vs. Time Disk. Router Megabytes/second Grid. FTP www. cs. wisc. edu/condor 22

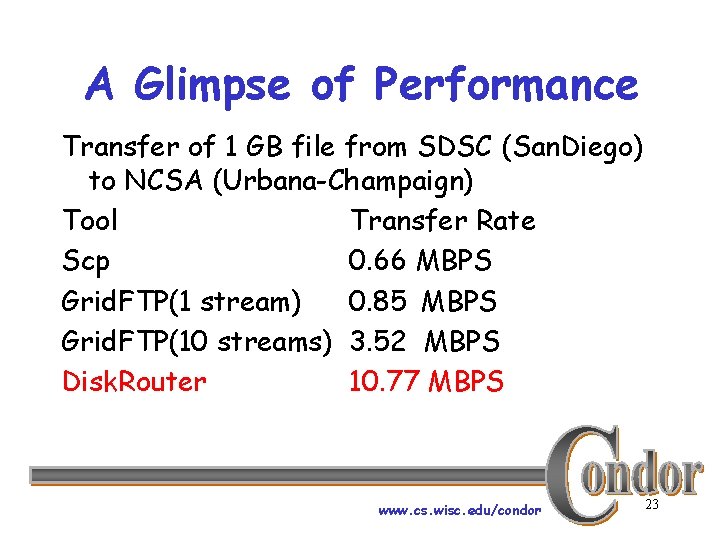

A Glimpse of Performance Transfer of 1 GB file from SDSC (San. Diego) to NCSA (Urbana-Champaign) Tool Transfer Rate Scp 0. 66 MBPS Grid. FTP(1 stream) 0. 85 MBPS Grid. FTP(10 streams) 3. 52 MBPS Disk. Router 10. 77 MBPS www. cs. wisc. edu/condor 23

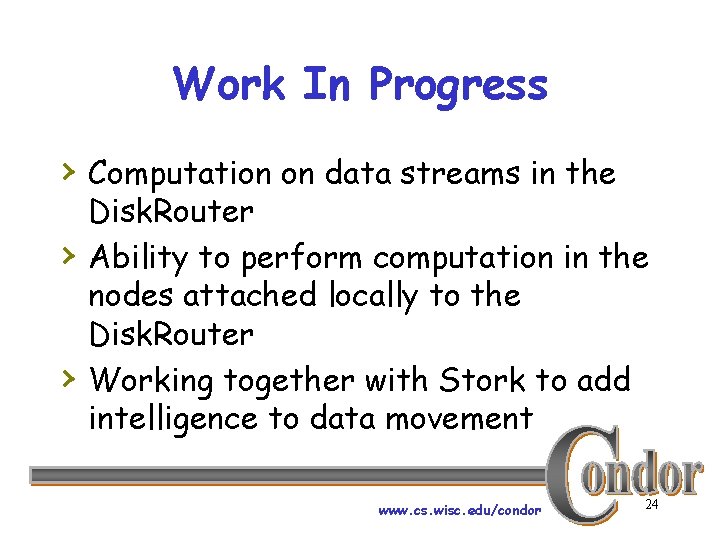

Work In Progress › Computation on data streams in the › › Disk. Router Ability to perform computation in the nodes attached locally to the Disk. Router Working together with Stork to add intelligence to data movement www. cs. wisc. edu/condor 24
