DISEÑO SÍSMICO POR DESPLAZAMIENTO CONCEPTOS BÁSICOS Santiago Pujol Universidad del Valle Julio 2008
"The primary function of the calculation for drift is not a prediction. The low probability of estimating actual drifts closely should follow readily from the uncertainty associated with the prediction of the ground motion. The primary function of the drift computation is to make the right decision about the ratio of mass to lateral stiffness. “ Mete A. Sozen
Lo que se presenta aquí se refiere a estructuras bajas y de mediana altura con distribuciones de masa y rigidez relativamente uniformes.

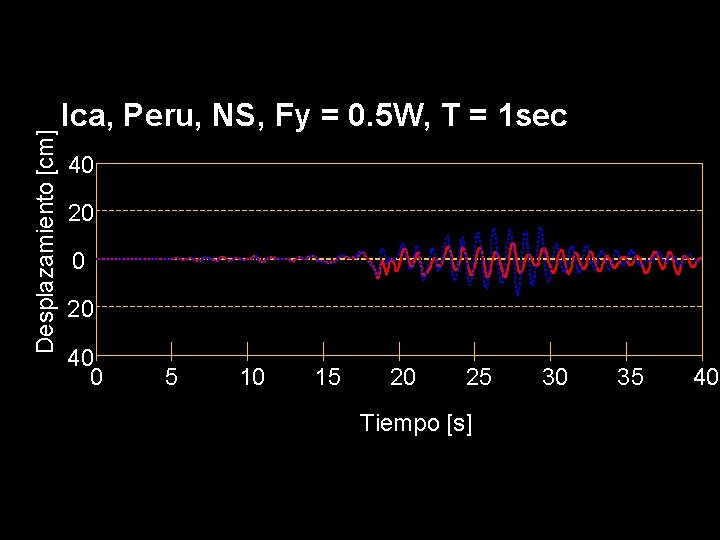

Desplazamiento [cm] Ica, Peru, NS, Fy = 0. 5 W, T = 1 sec 40 20 40 0 5 10 15 20 25 Tiempo [s] 30 35 40

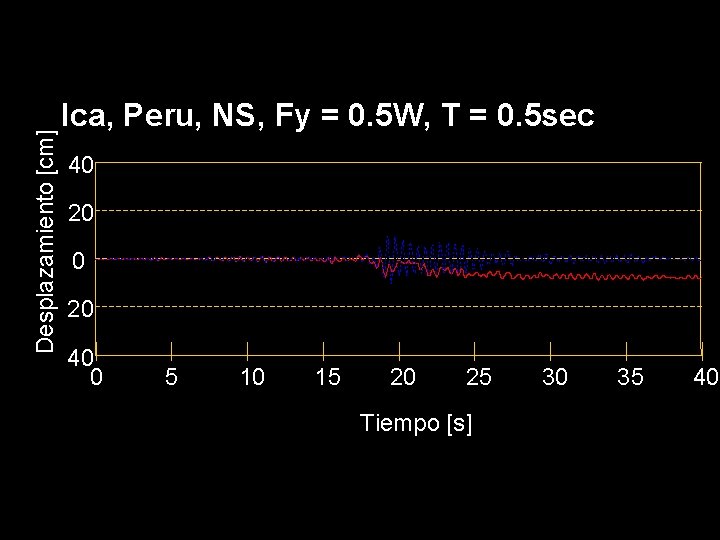

Desplazamiento [cm] Ica, Peru, NS, Fy = 0. 5 W, T = 0. 5 sec 40 20 40 0 5 10 15 20 25 Tiempo [s] 30 35 40
Desplazamiento [cm] Ica, Peru, NS, Fy = 0. 2 W, T = 1 sec 40 20 40 0 5 10 15 20 25 Tiempo [s] 30 35 40
Desplazamiento [cm] Ica, Peru, NS, Fy = 0. 2 W, T = 0. 5 sec 40 20 40 0 5 10 15 20 25 Tiempo [s] 30 35 40
Desplazamiento [cm] Ica, Peru, NS, Fy = 0. 5 W 60 40 20 0 0 0. 5 1 T 1. 5 2

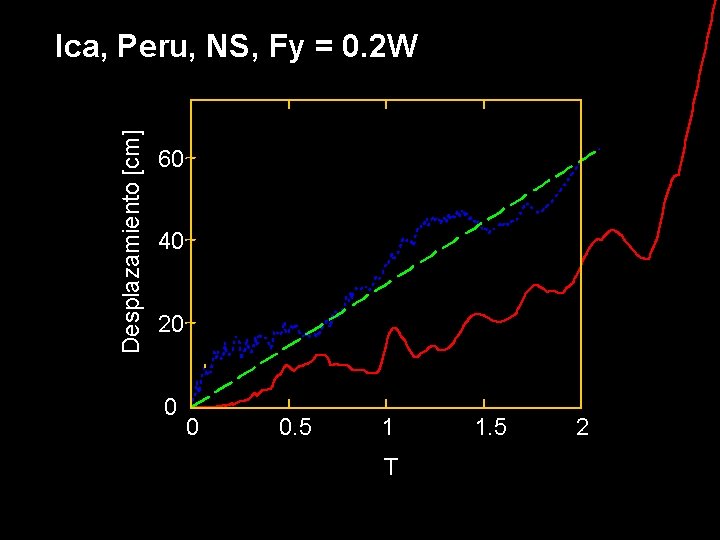

Desplazamiento [cm] Ica, Peru, NS, Fy = 0. 2 W 6060 4040 2020 00 00 0. 5 11 Tcount T 1. 5 22
Armenia, Col. , EW, Fy = 0. 5 W Desplazamiento [cm] 40 30 count 20 count 10 0 00 0. 5 11 Tcount T 1. 5 22
Armenia, Col. , EW, Fy = 0. 2 W Desplazamiento [cm] 4040 3030 count 2020 1010 0 00 0. 5 11 Tcount T 1. 5 22
RESISTENCIA: Se requiere un mínimo Ese mínimo es mayor para sismos con alto PGV (>50 cm/s) Resistencia en exceso de ese mínimo es de poca o ninguna utilidad.
Lepage
0. 5 g
Coeficiente de Corte Basal = 0. 12
Tg Período Aceleración [g]
Teff = T x √ 2
eff
MDOF’s
Dmax x G x [fi+1 -fi ] hpiso
33 Estructuras 87 Simulaciones
