discri clock TDC discri funout ADC div Geiger

  • Slides: 28
Download presentation

セットアップ discri clock TDC discri funout ADC div レーザー　　　 Geiger mode APD AMP ＮＤフィルター　　　

セットアップ discri clock TDC discri funout ADC div レーザー　　　 Geiger mode APD AMP ＮＤフィルター　　　 Black box　　　 n n n Vsource clock ・・・ 1 k. Hz ＡＭＰ・・・HPK speed amp (C 5594) (36 d. B) laser ・・・ λ=636 nm TDC ・・・ resolution 25 ps ADC ・・・ resolution 0. 25 pc 0. 5ｐｅでＴｈｒｅｓｈｏｌｄ Ｓａｍｐｌｅ レーザー ＮＤフィルター 6

①　Gain 測定 Vbias=49. 5 V, 21℃, noise~1. 4 MHz Vbias=71. 5 V, 23℃, noise~1.

①　Gain 測定 Vbias=49. 5 V, 21℃, noise~1. 4 MHz Vbias=71. 5 V, 23℃, noise~1. 0 MHz MPPC MRS-APD 1 peσ=2. 0 pedestal n n Gain S/N 1 peσ=3. 6 2 pe 6. 6× 105 7. 7 n n Gain 1. 8× 106 S/N 12. 4 Ｇａｍｐ＝ＡＭＰのＧａｉｎ エネルギー分解能が非常によい 　　　　　Ｇａｉｎも高い １光子検出可能 7

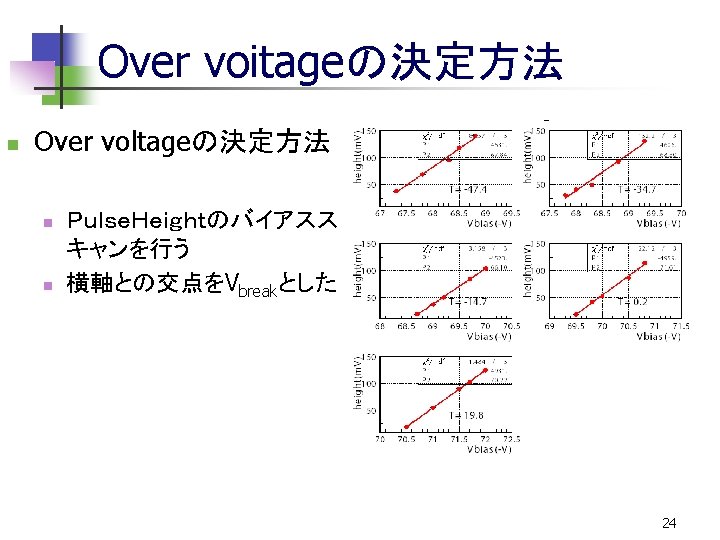

①　ＭＰＰＣのNoise rateとＧａｉｎのバイアススキャン Ｇａｉｎ n Gain=c×(Vbias-Vbreak )/e 　　 MPPC Vbreak ＝-70. 3(V) Ｃ＝ 251 (f.

①　ＭＰＰＣのNoise rateとＧａｉｎのバイアススキャン Ｇａｉｎ n Gain=c×(Vbias-Vbreak )/e 　　 MPPC Vbreak ＝-70. 3(V) Ｃ＝ 251 (f. F) n Noise rate 1 MHzのバイアス-71. 5 V Gain＝ 1. 8× 106 n Over voltage (Vbias-Vbreak )=-1. 2 V 8

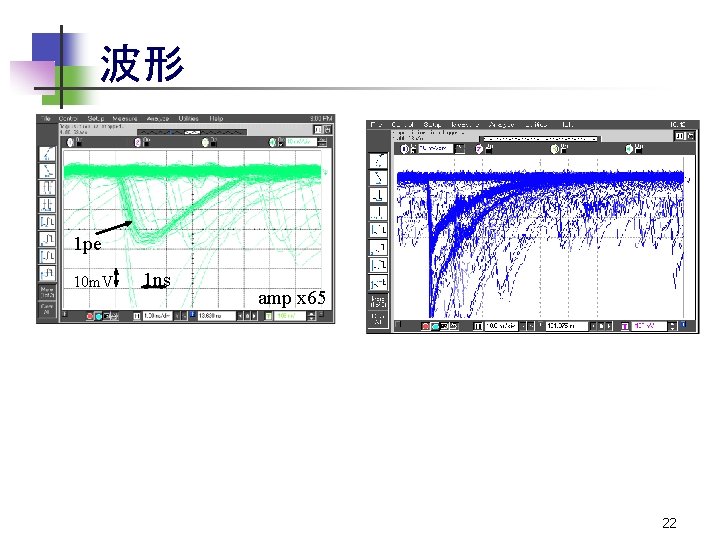

波形 1 pe 10 m. V 1 ns amp x 65 22

波形 1 pe 10 m. V 1 ns amp x 65 22
