Discrete Mathematics Part IIIb CSE 2353 Fall 2007
Discrete Mathematics, Part IIIb CSE 2353 Fall 2007 Margaret H. Dunham Department of Computer Science and Engineering Southern Methodist University • Some slides provided by Dr. Eric Gossett; Bethel University; St. Paul, Minnesota • Some slides are companion slides for Discrete Mathematical Structures: Theory and Applications by D. S. Malik and M. K. Sen
Outline ¡ ¡ ¡ ¡ ¡ Introduction Sets Logic & Boolean Algebra Proof Techniques Counting Principles Combinatorics Relations, Functions Graphs/Trees Boolean Functions, Circuits 2
Functions 3
Functions ¡ ¡ Let A = {1, 2, 3, 4} and B = {a, b, c , d} be sets The arrow diagram in Figure 5. 6 represents the relation f from A into B Every element of A has some image in B An element of A is related to only one element of B; i. e. , for each a ∈ A there exists a unique element b ∈ B such that f (a) = b 4
Functions ¡ ¡ ¡ Therefore, f is a function from A into B The image of f is the set Im(f) = {a, b, d} There is an arrow originating from each element of A to an element of B § ¡ D(f) = A There is only one arrow from each element of A to an element of B § f is well defined 5
Functions 6
Functions ¡ ¡ ¡ Let A = {1, 2, 3, 4} and B = {a, b, c , d}. Let f : A → B be a function such that the arrow diagram of f is as shown in Figure 5. 10 The arrows from a distinct element of A go to a distinct element of B. That is, every element of B has at most one arrow coming to it. § If a 1, a 2 ∈ A and a 1 = a 2, then f(a 1) = f(a 2). Hence, f is one-one. Each element of B has an arrow coming to it. That is, each element of B has a preimage. § Im(f) = B. Hence, f is onto B. It also follows that f is a one-to-one correspondence. 7
Functions ¡ ¡ Let A = {1, 2, 3, 4} and B = {a, b, c , d, e} f : 1 → a, 2 → a, 3 → a, 4 →a For this function the images of distinct elements of the domain are not distinct. For example 1 2, but f(1) = a = f(2). Im(f) = {a} B. Hence, f is neither one-one nor onto B. 8
Functions 9
Functions ¡ ¡ Let A = {1, 2, 3, 4}, B = {a, b, c , d, e}, and C = {7, 8, 9}. Consider the functions f : A → B, g : B → C as defined by the arrow diagrams in Figure 5. 14. The arrow diagram in Figure 5. 15 describes the function h = g ◦ f : A → C. 10
Functions 11
Outline ¡ ¡ ¡ ¡ ¡ Introduction Sets Logic & Boolean Algebra Proof Techniques Counting Principles Combinatorics Relations, Functions Graphs/Trees Boolean Functions, Circuits 12
Outline ¡ ¡ ¡ ¡ ¡ Introduction Sets Logic & Boolean Algebra Proof Techniques Counting Principles Combinatorics Relations, Functions Graphs/Trees Boolean Functions, Circuits 13
Mathematical System 14
Two-Element Boolean Algebra Let B = {0, 1}. 15
16

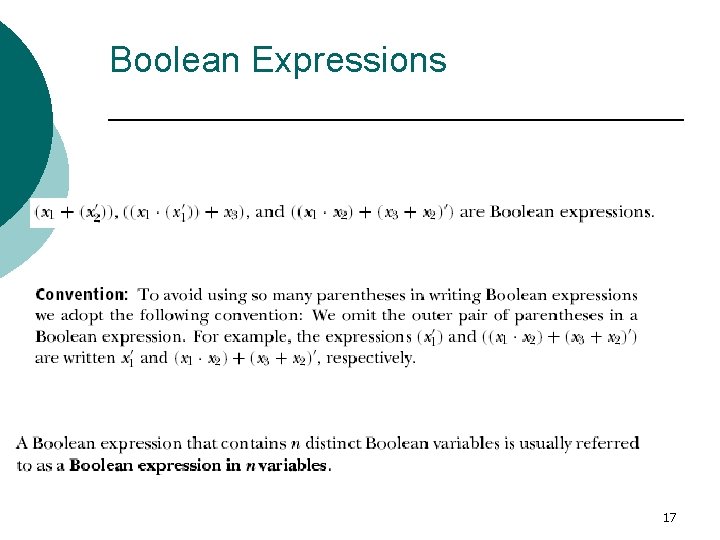

Boolean Expressions 17
18

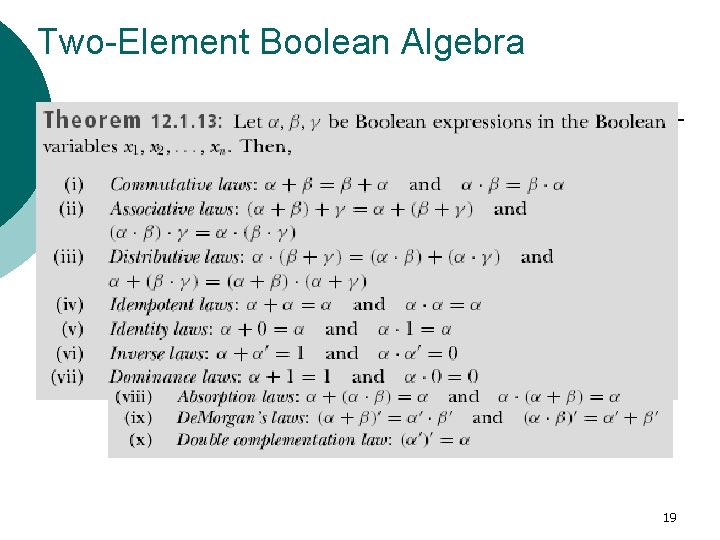

Two-Element Boolean Algebra 19
Minterm 20
Disjunctive Normal Form 21
Maxterm 22
Conjunctive Normal Form 23

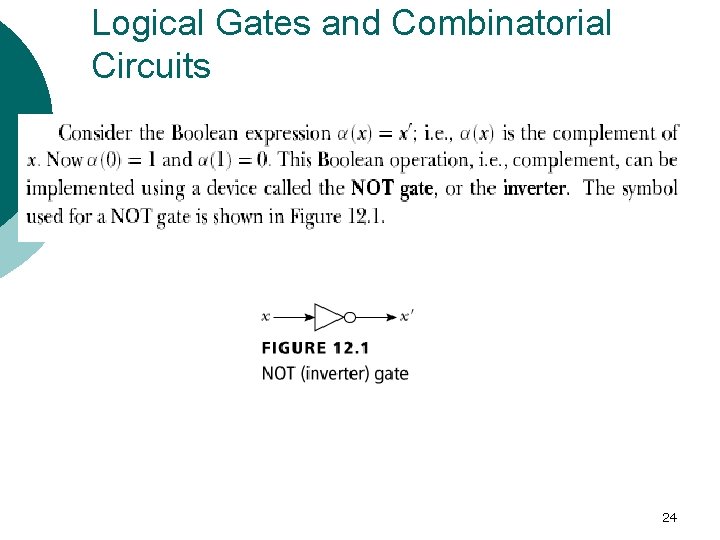

Logical Gates and Combinatorial Circuits 24
Logical Gates and Combinatorial Circuits 25
Logical Gates and Combinatorial Circuits 26
Logical Gates and Combinatorial Circuits 27
28
29
30
31
32
33
