DIRECTIONAL CONTROL VALVES Pneumatics Module 3 Objectives Differentiate

DIRECTIONAL CONTROL VALVES Pneumatics – Module 3

Objectives � � � Differentiate between the main types of directional control valves. Explain the function of each type of directional control valves. Demonstrate the function and uses of 3/2 way valve, (N/C) push button actuated. Demonstrate the function and uses of 3/2 way valve, (N/O) push button actuated. Demonstrate the function and uses of 3/2 way valve, (N/C) roller lever actuated. Explain the function and uses of 5/2 way valve, selector valve. Explain the function and uses of 5/2 way valve, single pilot valve. Explain the function and uses of 5/2 way valve, double pilot valve. Use the Fluid. SIM software to build and simulate a pneumatic circuits that contain DCV Build a pneumatic circuit using DCV on the Festo trainer and check its operation Design simple pneumatic circuits for a given application.

Introduction Directional control valves are devices which influence the path taken by an air stream. � The directional control valve is represented by two numbers. The first number represents the number of ports, and the second number represents the number of positions. � � Note: These symbols do not provide any information about the constructional design, but just indicate the function of the valve.

Directional Control Valves (DCV) 3/2 WAY 3/2 way DCV (N/C) 5/2 WAY 5/2 way DCV 3/2 way DCV (N/O) 5/2 way Selector Valve 3/2 way Roller Valve 5/2 way Single Pilot 3/2 way Selector Valve 5/2 way Double Pilot

3/2 way DCV (Directional Control Valve) – NC (Normally closed) �A 3/2 -way valve has 3 ports (1, 2 and 3) and 2 switching positions (before operating and after operating). � It is represented by the normal position. � Normally closed means that compressed air cannot flow through the valve

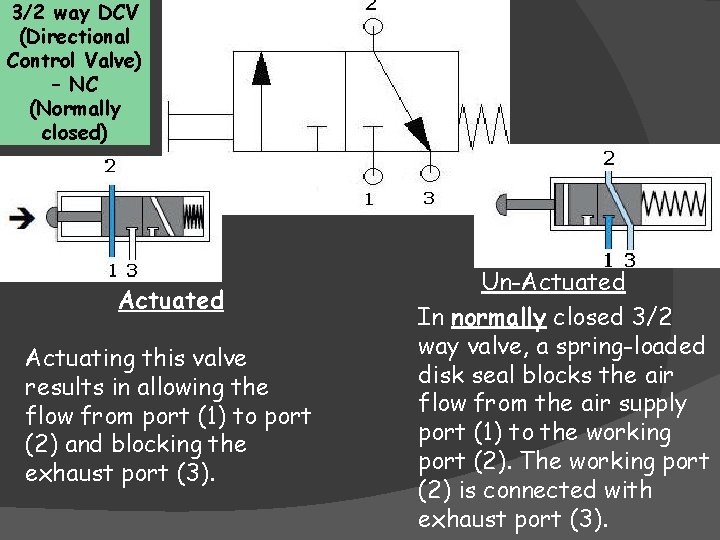

3/2 way DCV (Directional Control Valve) – NC (Normally closed) Actuated Actuating this valve results in allowing the flow from port (1) to port (2) and blocking the exhaust port (3). Un-Actuated In normally closed 3/2 way valve, a spring-loaded disk seal blocks the air flow from the air supply port (1) to the working port (2). The working port (2) is connected with exhaust port (3).

3/2 way DCV (Directional Control Valve) – NO (Normally Open) � Normally open means that compressed air flows through the valve. � When the pushbutton is actuated the valve is closed, thus stopping the air to flow from port (1) to port (2).

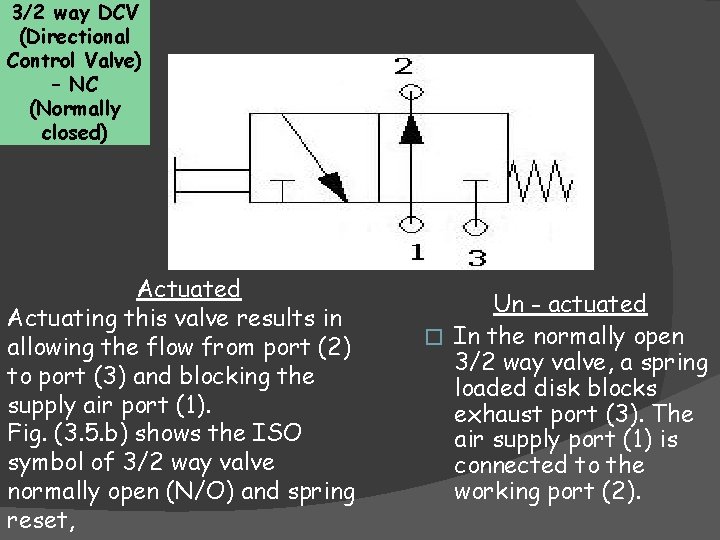

3/2 way DCV (Directional Control Valve) – NC (Normally closed) Actuated Actuating this valve results in allowing the flow from port (2) to port (3) and blocking the supply air port (1). Fig. (3. 5. b) shows the ISO symbol of 3/2 way valve normally open (N/O) and spring reset, Un - actuated � In the normally open 3/2 way valve, a spring loaded disk blocks exhaust port (3). The air supply port (1) is connected to the working port (2).

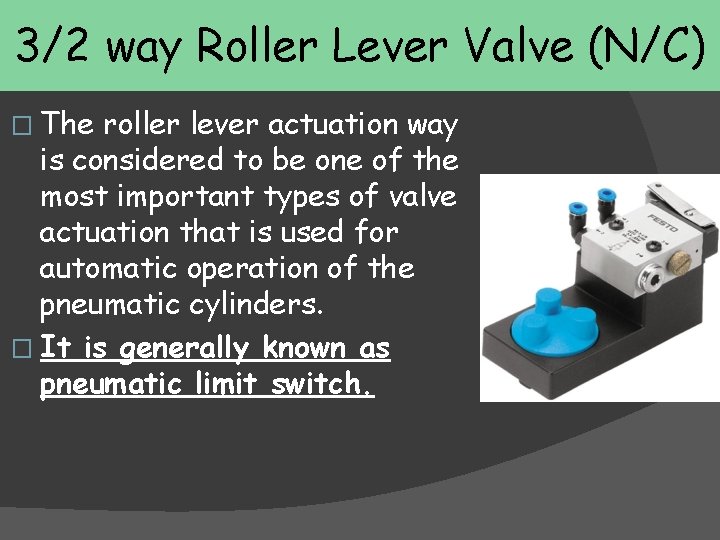

3/2 way Roller Lever Valve (N/C) � The roller lever actuation way is considered to be one of the most important types of valve actuation that is used for automatic operation of the pneumatic cylinders. � It is generally known as pneumatic limit switch.

� This valve is actuated by pressing the roller lever e. g. by means of cylinder trip cam. The valve is returned to the normal position via return spring after releasing the roller lever. 3/2 way Roller Lever Valve (N/C)

3/2 way Selector Valve

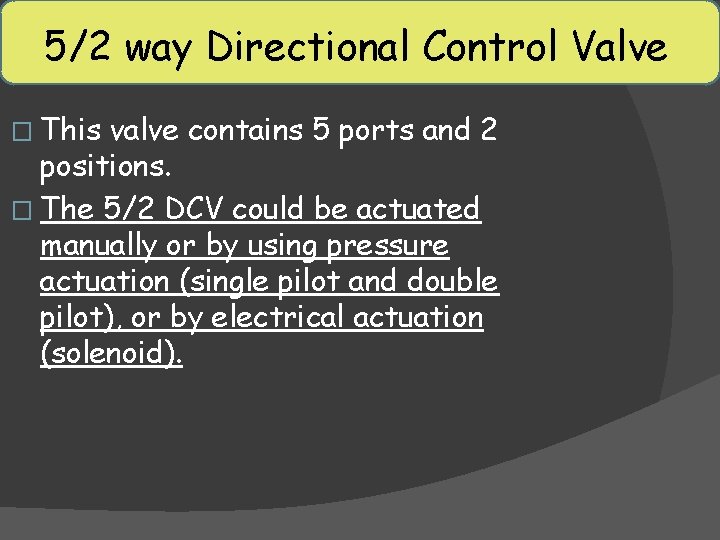

5/2 way Directional Control Valve � This valve contains 5 ports and 2 positions. � The 5/2 DCV could be actuated manually or by using pressure actuation (single pilot and double pilot), or by electrical actuation (solenoid).

5/2 way Directional Control Valve Actuated After operating the valve by any method, the valve will be shifted to the other position and in this case, the flow will be from port (1) to port (4) while the exhaust will be from port (2) to port (3) Before Actuation � When the 5/2 -way valve is not actuated, the flow will be from port (1) to port (2) while the exhaust will be from port (4) to port (5)

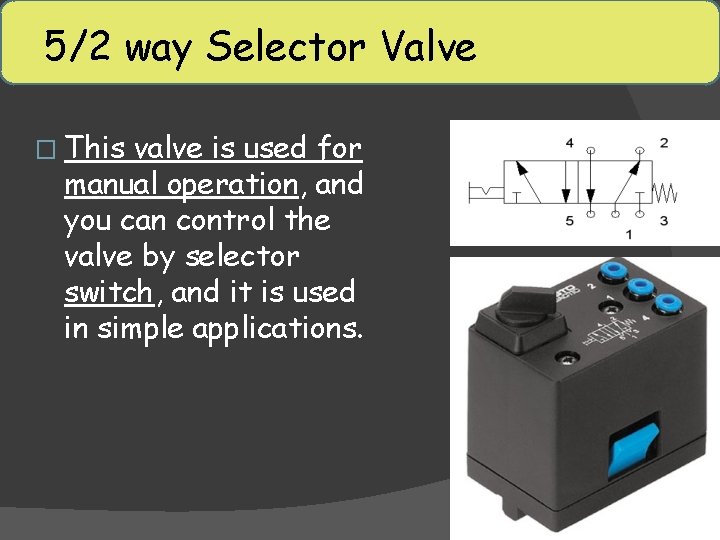

5/2 way Selector Valve � This valve is used for manual operation, and you can control the valve by selector switch, and it is used in simple applications.

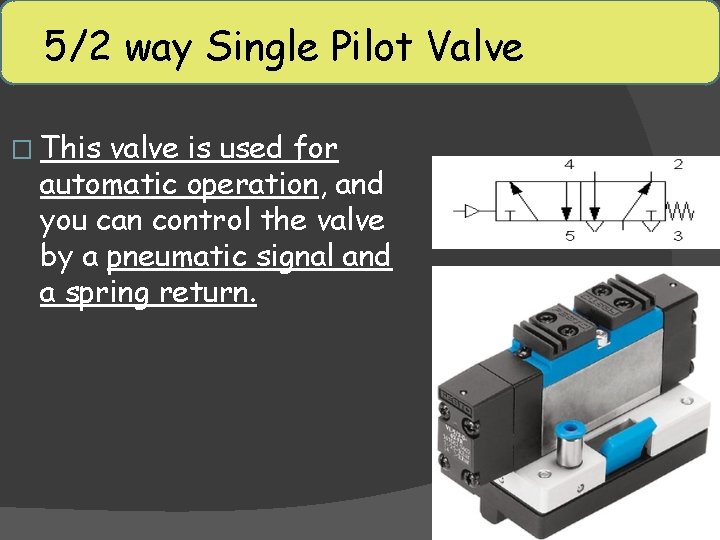

5/2 way Single Pilot Valve � This valve is used for automatic operation, and you can control the valve by a pneumatic signal and a spring return.

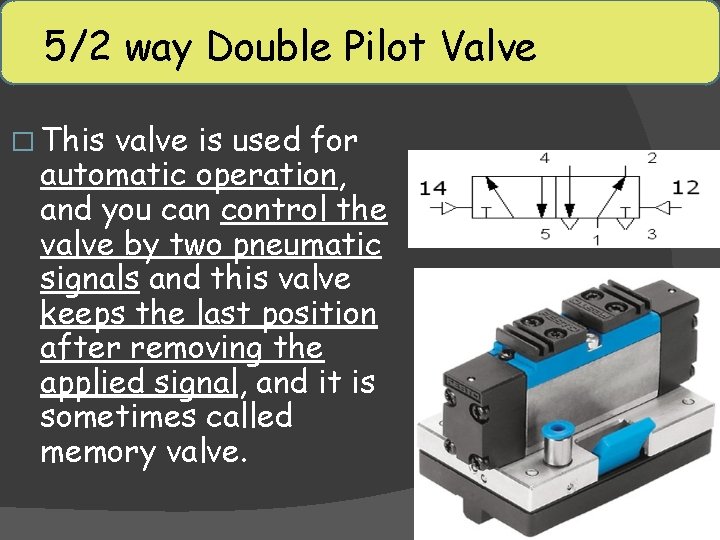

5/2 way Double Pilot Valve � This valve is used for automatic operation, and you can control the valve by two pneumatic signals and this valve keeps the last position after removing the applied signal, and it is sometimes called memory valve.

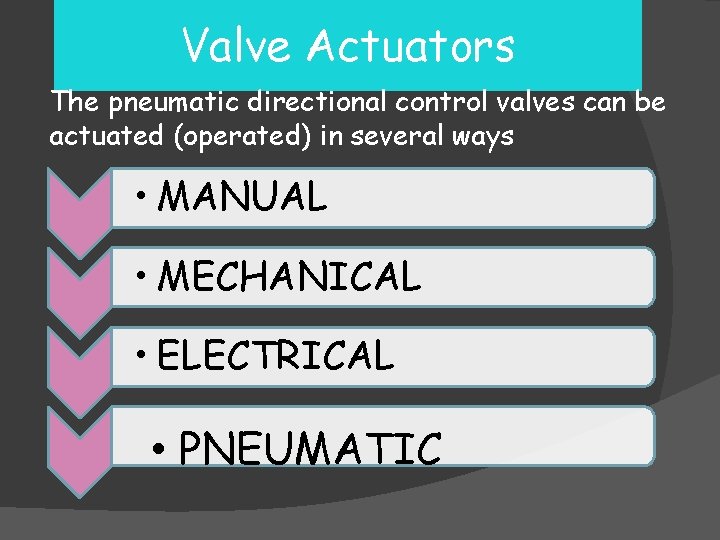

Valve Actuators The pneumatic directional control valves can be actuated (operated) in several ways • MANUAL • MECHANICAL • ELECTRICAL • PNEUMATIC

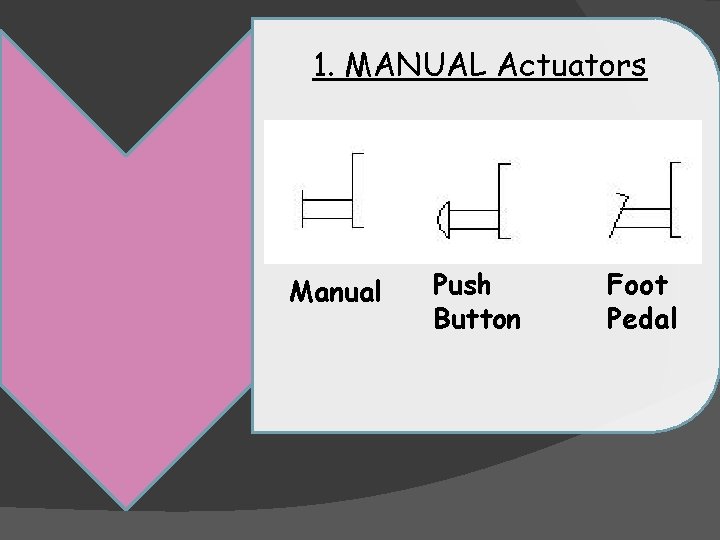

1. MANUAL Actuators Manual Push Button Foot Pedal

2. MECHANICAL Actuators Roller Idle Return Roller

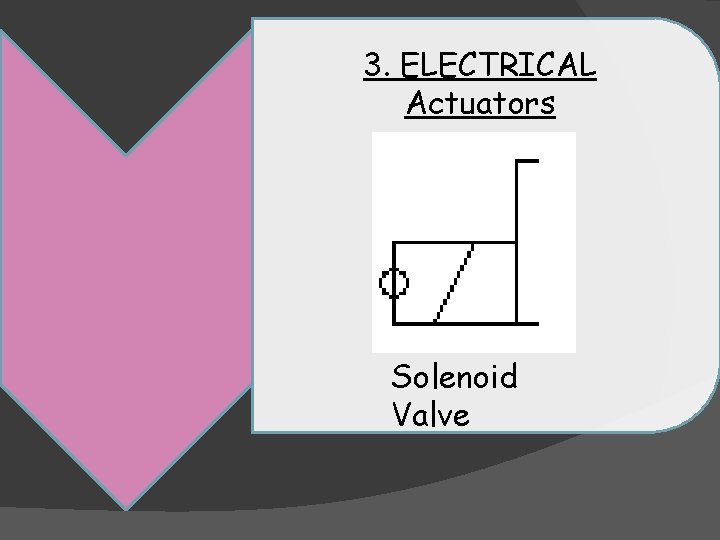

3. ELECTRICAL Actuators Solenoid Valve

4. PNEUMATIC Actuators Pneumatic Pressure Actuation

Pneumatic Actuators They are used to produce the required forces in the pneumatic systems. Single Double

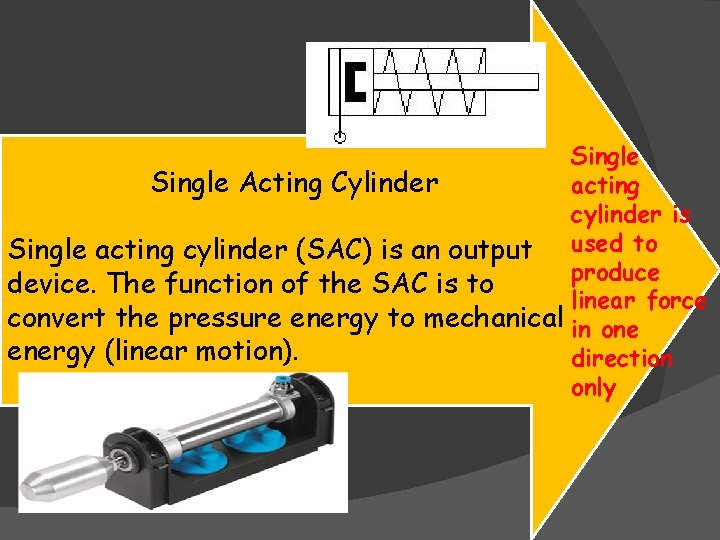

Single Acting Cylinder acting cylinder is Single acting cylinder (SAC) is an output used to produce device. The function of the SAC is to linear force convert the pressure energy to mechanical in one energy (linear motion). direction only

Double Acting Cylinder double acting Double acting cylinder (DAC) is an output cylinder is used to device. The function of the DAC is to produce convert the pressure energy to mechanical linear energy (linear motion). force in two directions.

PRACTICAL TASKS 1 & 2

Review Exercise s

H. W.
