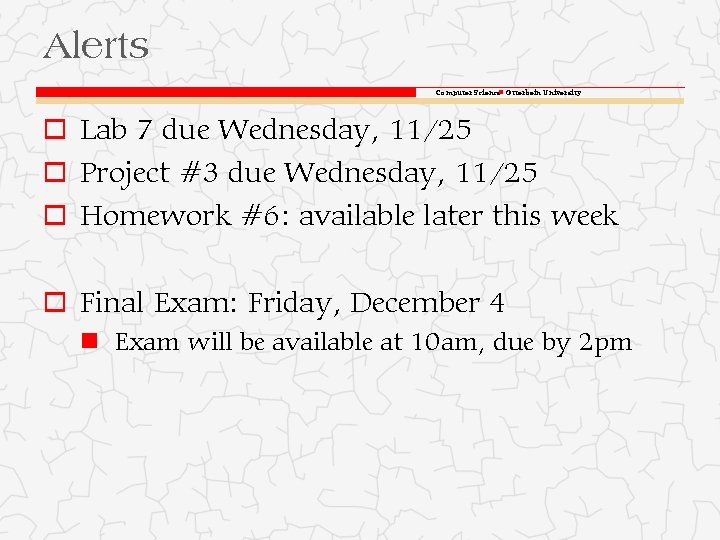

Alerts Computer Science Otterbein University o Lab 7 due Wednesday, 11/25 o Project #3 due Wednesday, 11/25 o Homework #6: available later this week o Final Exam: Friday, December 4 Exam will be available at 10 am, due by 2 pm

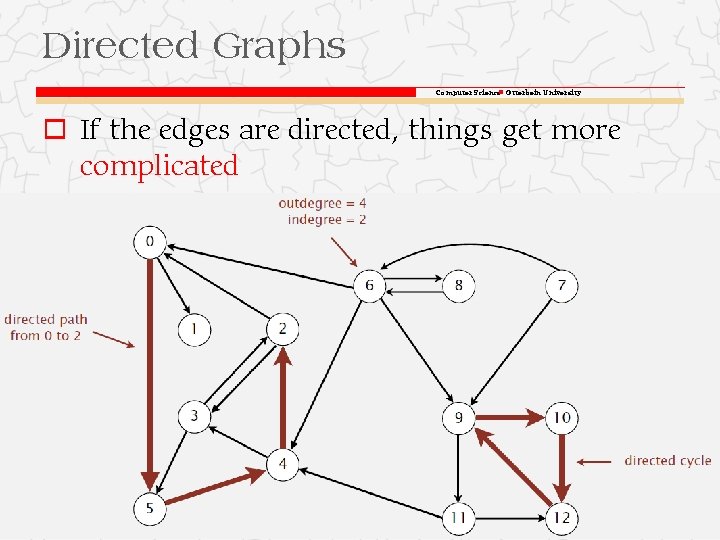

Directed Graphs Computer Science Otterbein University o If the edges are directed, things get more complicated

Applications Computer Science Otterbein University

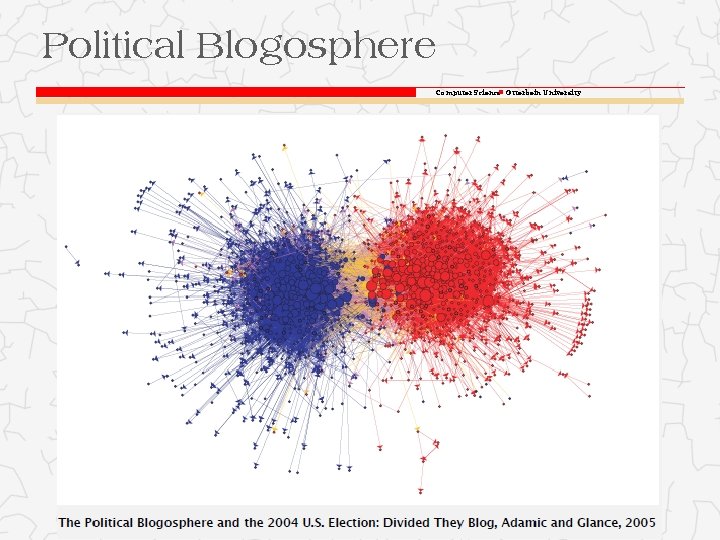

Political Blogosphere Computer Science Otterbein University

Applications Computer Science Otterbein University

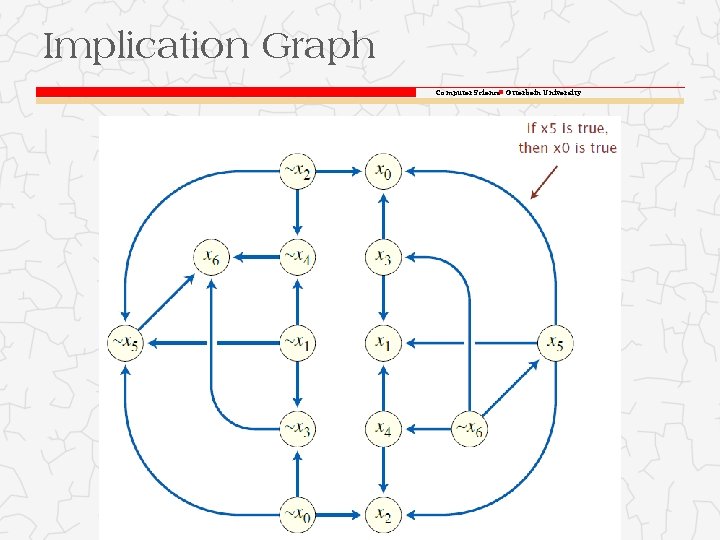

Implication Graph Computer Science Otterbein University

Combinatorial Circuit Computer Science Otterbein University

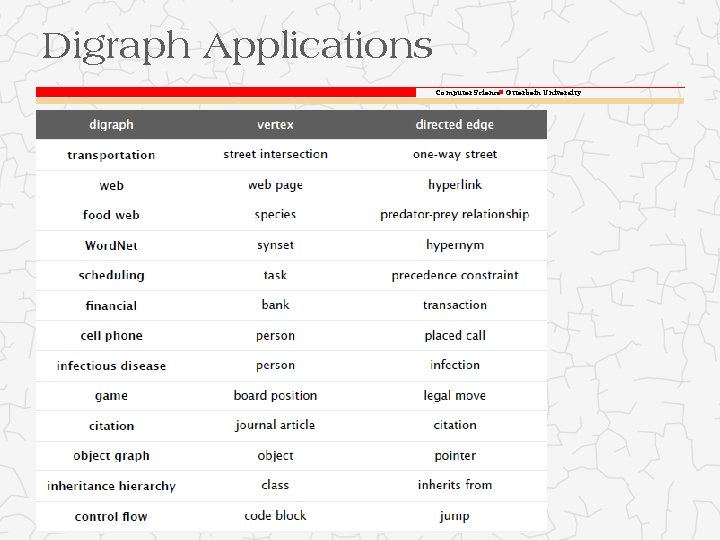

Digraph Applications Computer Science Otterbein University

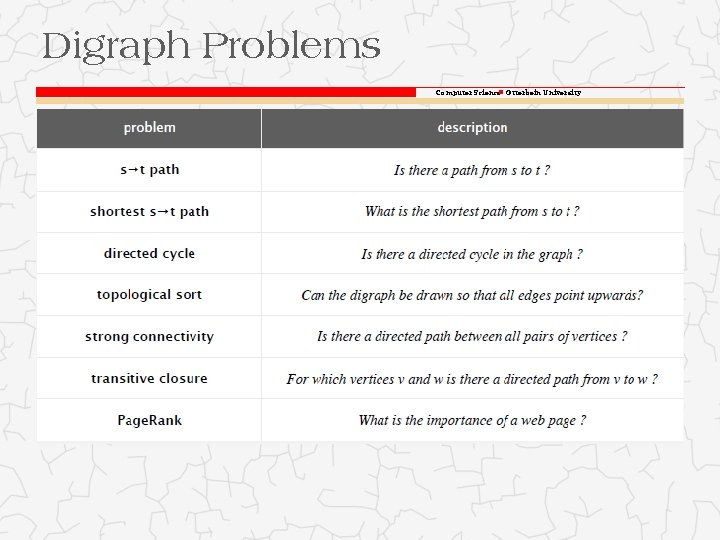

Digraph Problems Computer Science Otterbein University

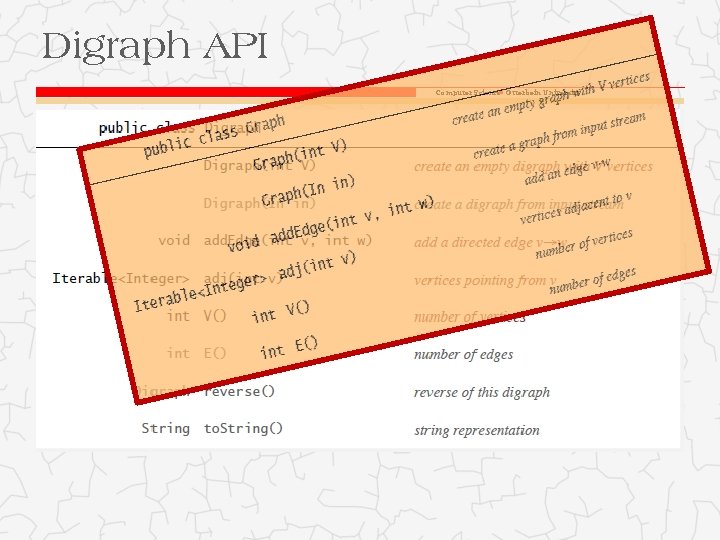

Digraph API Computer Science Otterbein University

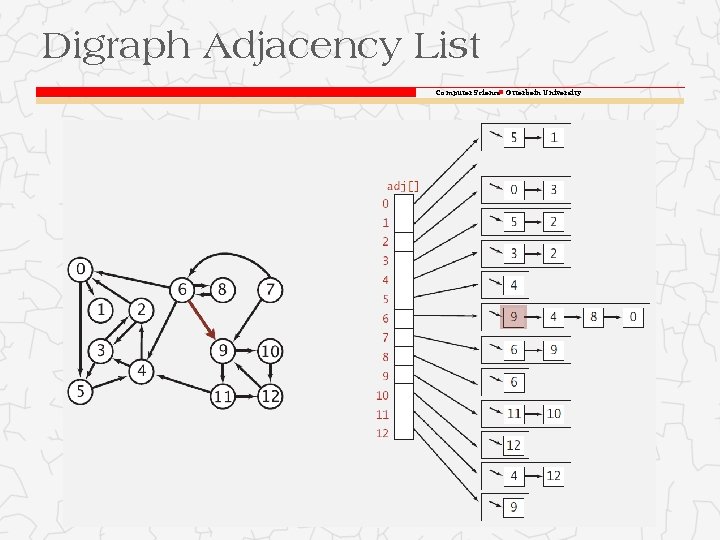

Digraph Adjacency List Computer Science Otterbein University

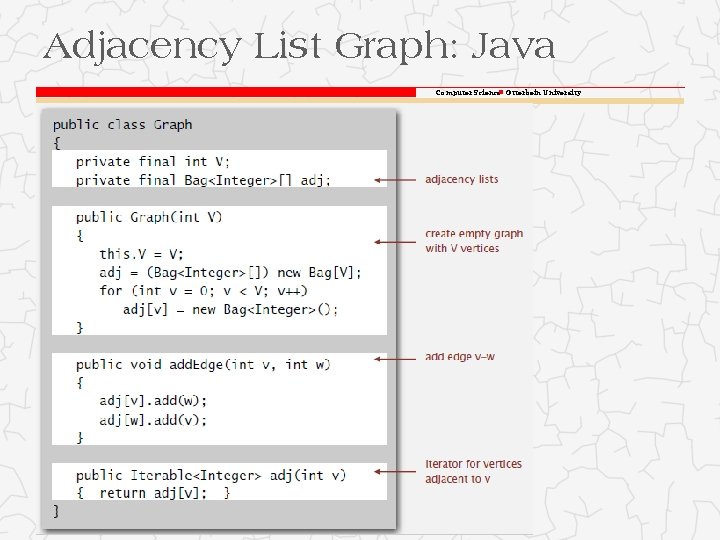

Adjacency List Graph: Java Computer Science Otterbein University

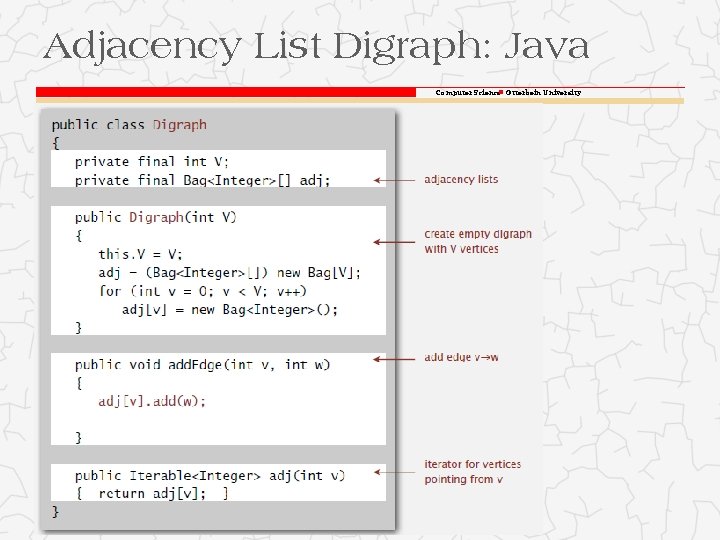

Adjacency List Digraph: Java Computer Science Otterbein University

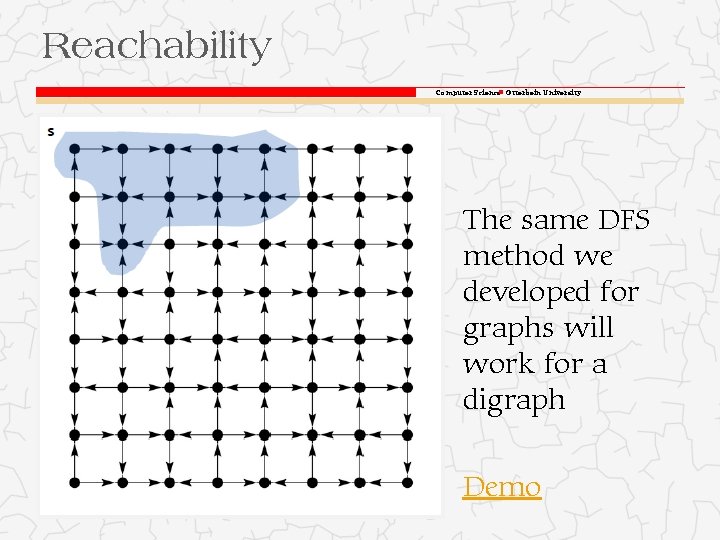

Reachability Computer Science Otterbein University The same DFS method we developed for graphs will work for a digraph Demo

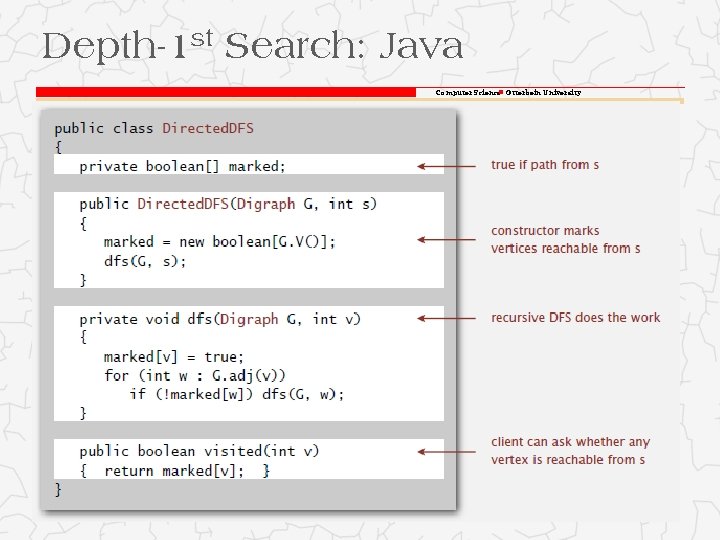

Depth-1 st Search: Java Computer Science Otterbein University

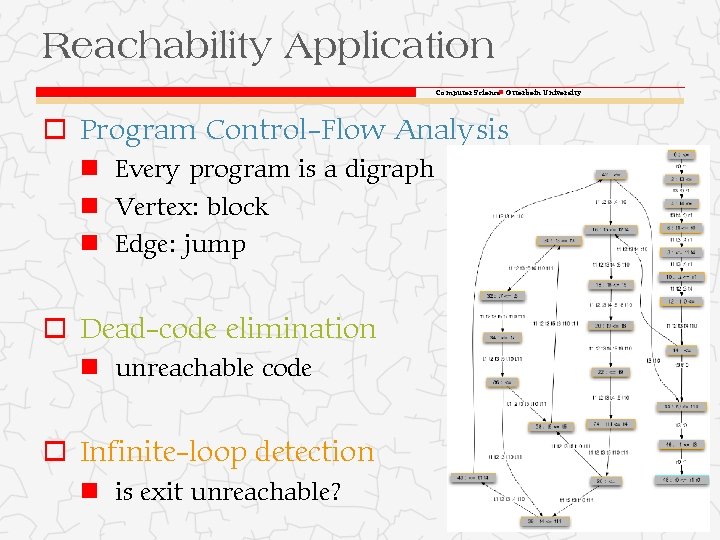

Reachability Application Computer Science Otterbein University o Program Control-Flow Analysis Every program is a digraph Vertex: block Edge: jump o Dead-code elimination unreachable code o Infinite-loop detection is exit unreachable?

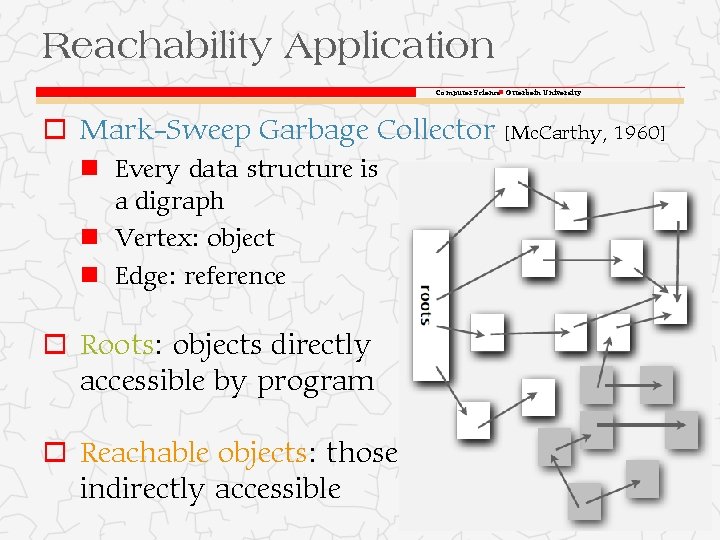

Reachability Application Computer Science Otterbein University o Mark-Sweep Garbage Collector Every data structure is a digraph Vertex: object Edge: reference o Roots: objects directly accessible by program o Reachable objects: those indirectly accessible [Mc. Carthy, 1960]

Breadth-1 st Search Computer Science Otterbein University o Again, the same BFS algorithm for graphs works for digraphs It computes the shortest directed path from a starting vertex s to every other vertex in time O(E+V) Demo o Multiple-source shortest path: Given a set of starting vertices rather than a single vertex Can be implemented using BFS where we initialize the queue to contain all the vertices in the set

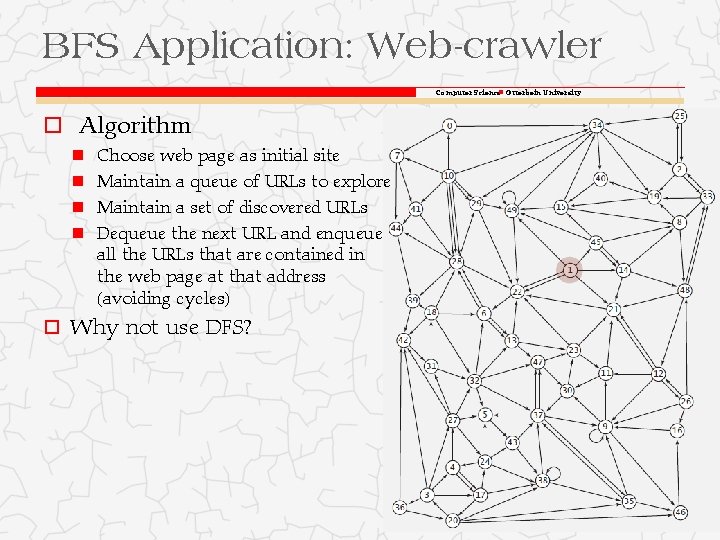

BFS Application: Web-crawler Computer Science Otterbein University o Algorithm Choose web page as initial site Maintain a queue of URLs to explore Maintain a set of discovered URLs Dequeue the next URL and enqueue all the URLs that are contained in the web page at that address (avoiding cycles) o Why not use DFS?

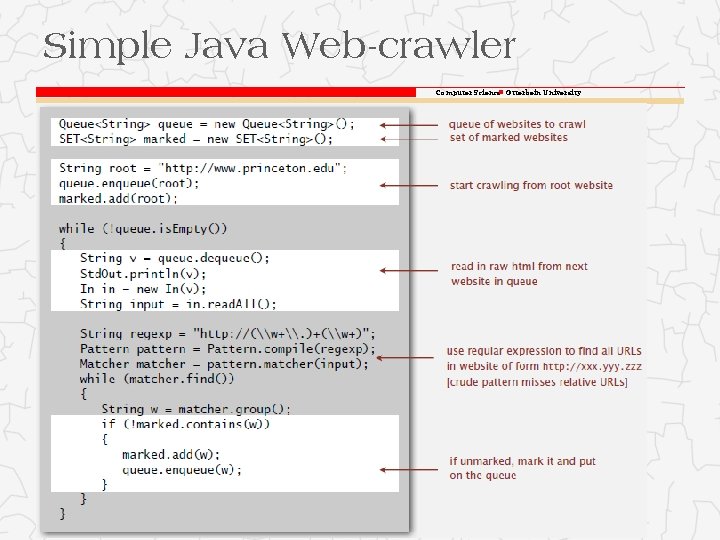

Simple Java Web-crawler Computer Science Otterbein University

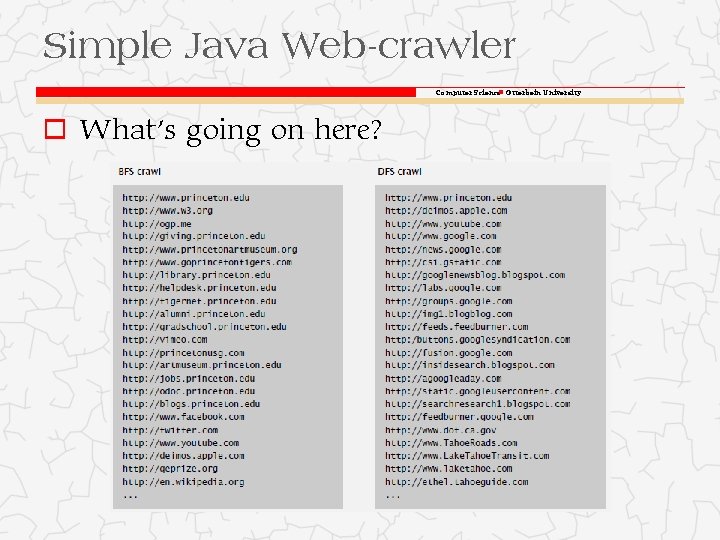

Simple Java Web-crawler Computer Science Otterbein University o What’s going on here?
