Direct ophthalmoscopy OP 1201 Basic Clinical Techniques Anterior

Direct ophthalmoscopy OP 1201 – Basic Clinical Techniques Anterior eye Dr Kirsten Hamilton-Maxwell

Today’s goals By the end of today’s lecture, you should be able to explain Why examining the anterior eye is important Basic construction and optical principles of the direct ophthalmoscope How to use it to examine the anterior eye and how to record results Have some awareness of normal and abnormal anterior eye conditions Limitations of direct ophthalmoscopy for the anterior eye By the end of the related practical, you should be able to Assess and record the health of the anterior eye using direct ophthalmoscopy efficiently and accurately

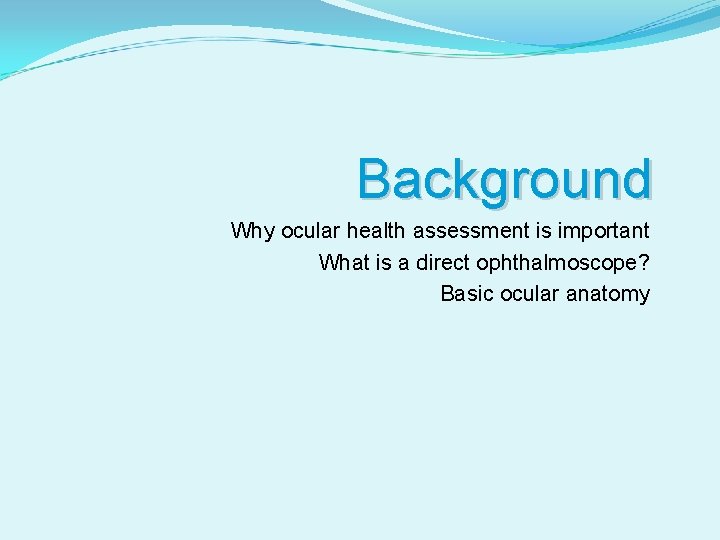

Background Why ocular health assessment is important What is a direct ophthalmoscope? Basic ocular anatomy

Ocular health Good ocular health is vital to good vision Optometrists are primary care practitioners Required to identify ocular health problems Manage or refer appropriately for treatment Ocular health examination is one of our primary functions Today we will look at one of the techniques used to examine the eye – ophthalmoscopy!

Ophthalmoscopy An instrument used for assessment of ocular health Posterior eye Can also be used for the anterior eye

The direct ophthalmoscope Most contain… Light source Eyepiece Lens rack and power dial Usually between -15 D and +15 D in 1 D steps Jump change of ± 10/15 D Total range of -30 D to +30 D Aperture selector Filter selector On/off and brightness control Power handle (We will talk more about how it all goes together in the next lecture)

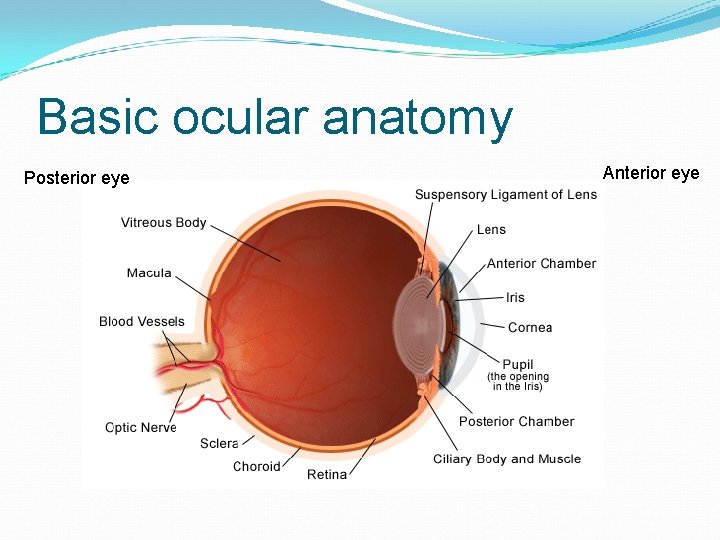

Basic ocular anatomy Posterior eye Anterior eye

Anterior eye anatomy Pupillary margin Eyelashes Lateral canthus Medial canthus Cornea Conjunctiva Episclera Lid margin Lens

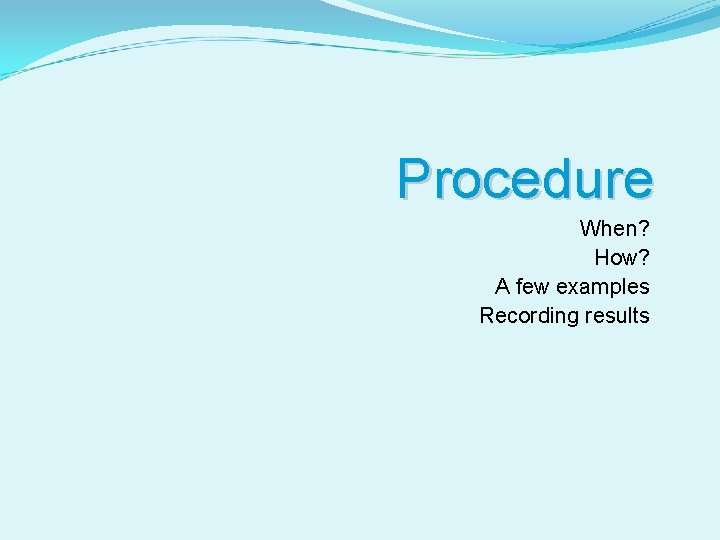

Procedure When? How? A few examples Recording results

When should I do direct ophthalmoscopy? This is probably the most important test that you will do Every patient Legal requirement! Just to clarify… the eye health of every patient MUST be assessed, however, direct ophthalmoscopy is not the only method that we can use. There are no contraindications i. e. No reason that you should not attempt it on every patient

How to do ophthalmoscopy Set up Remove spectacles (yours and the patient’s) Explain what you are doing Raise the examination chair so you are bending slightly Dim the room lighting Hold the ophthalmoscope in your right hand in front of your RE for patient’s RE, swap all to the left side for LE Hold as close to your eye as possible Tilt ophthalmoscope to about 20 deg to avoid bumping into the patient’s nose

How to do ophthalmoscopy Ask the patient to look at a spot about 15 deg temporal, and up slightly Keep BOTH eyes open (you and the patient) and look through the eyepiece Using both eyes will help control your accommodation and it will be more comfortable This will take practice

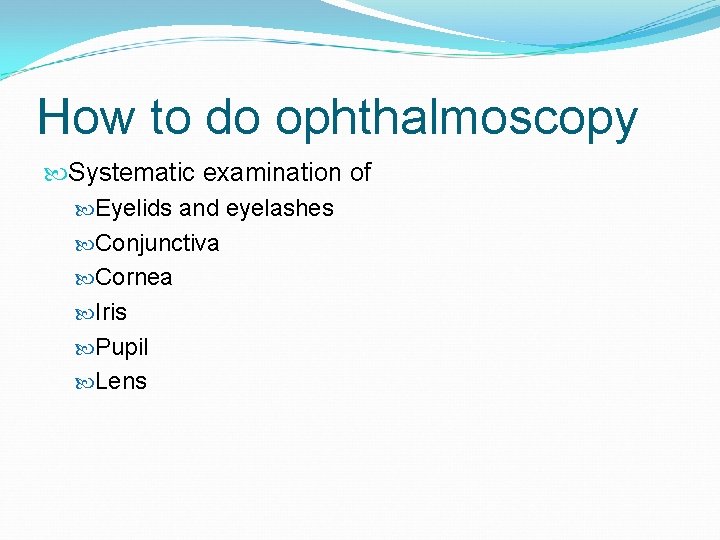

How to do ophthalmoscopy Systematic examination of Eyelids and eyelashes Conjunctiva Cornea Iris Pupil Lens

Eyelids Set the ophthalmoscope lens to +10 D The patient’s eye will be in focus at 10 cm away if you are emmetropic At 10 cm away, the magnification is 2. 5 x Adjust for your refractive error Use a lower power if you are a myope (short-sighted) Use a higher power if you are a hypermetrope (long-sighted) Wear your spectacles if you have high astigmatism The patient’s refractive error is not important for the anterior eye exam Use widest and brightest beam Look for changes in colour (especially red or brown), lumps, rough areas, ulcerations, loss or irregularity of eyelashes

Stye (external hordeolum)

Basal cell carcinoma

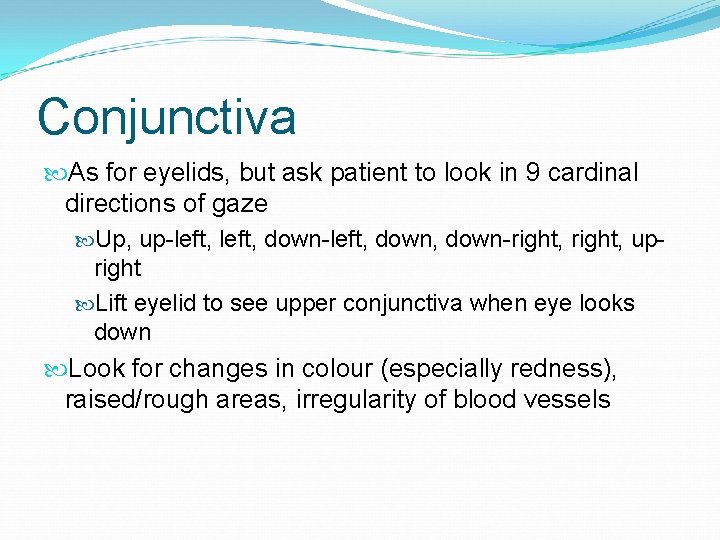

Conjunctiva As for eyelids, but ask patient to look in 9 cardinal directions of gaze Up, up-left, down-left, down-right, upright Lift eyelid to see upper conjunctiva when eye looks down Look for changes in colour (especially redness), raised/rough areas, irregularity of blood vessels

Allergic conjunctivitis

Subconjunctival haemorrhage

Pinguecula

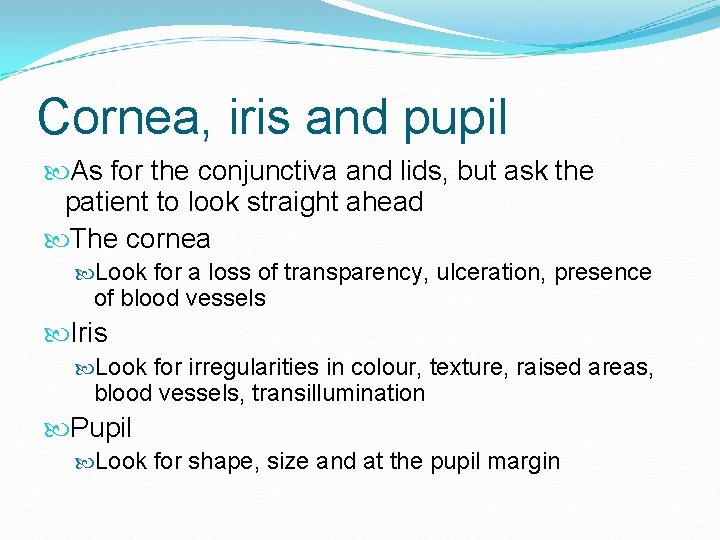

Cornea, iris and pupil As for the conjunctiva and lids, but ask the patient to look straight ahead The cornea Look for a loss of transparency, ulceration, presence of blood vessels Iris Look for irregularities in colour, texture, raised areas, blood vessels, transillumination Pupil Look for shape, size and at the pupil margin

Corneal arcus

Corneal ulcer

Iris nevus

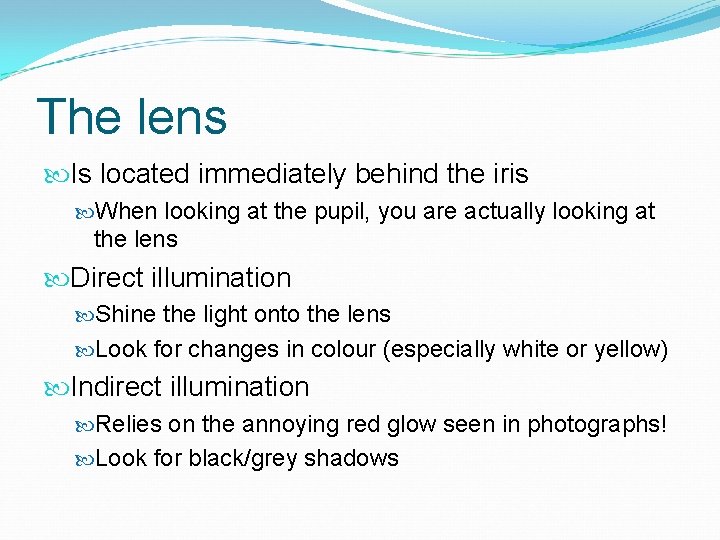

The lens Is located immediately behind the iris When looking at the pupil, you are actually looking at the lens Direct illumination Shine the light onto the lens Look for changes in colour (especially white or yellow) Indirect illumination Relies on the annoying red glow seen in photographs! Look for black/grey shadows

How to view the lens Retro-illumination

Cataract

Lens - retroillumination This technique is also good for observing corneal lesions and iris transillumination

Iris transillumination

Recording your findings Draw abnormalities Never EVER write NAD or WNL Written description here or Be. Legally descriptive, = Not Actually Done Be descriptive, even when normal We Never Looked! Colour, size, shape Record cards always show the RE on the left side of the page – the way you see the patient!

Example of lens recording Mittendorf dot Post Ant Front view Side view This diagram shows the position and the depth

Example

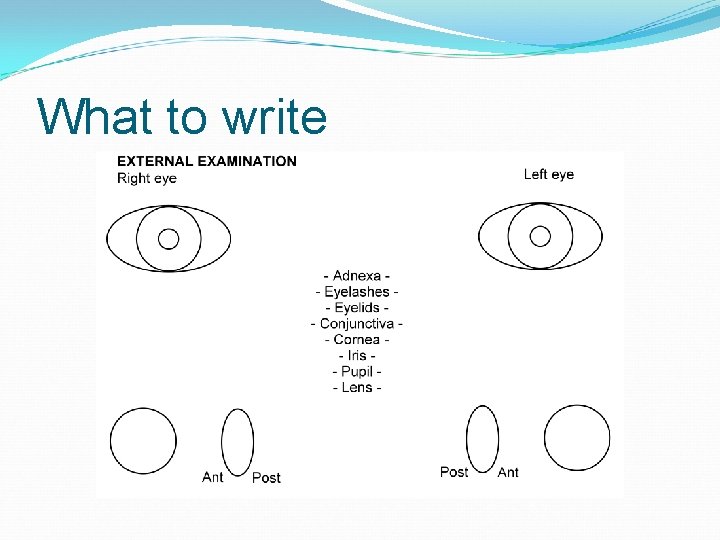

What to write

Limitations

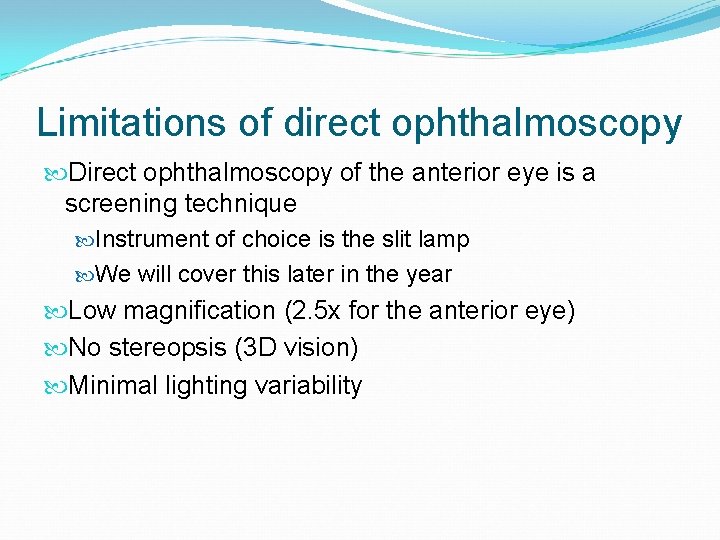

Limitations of direct ophthalmoscopy Direct ophthalmoscopy of the anterior eye is a screening technique Instrument of choice is the slit lamp We will cover this later in the year Low magnification (2. 5 x for the anterior eye) No stereopsis (3 D vision) Minimal lighting variability

Further reading Elliott, Sections 6. 4 to 6. 5, 6. 20 Become familiar with the procedural steps Memorise anatomical structures
