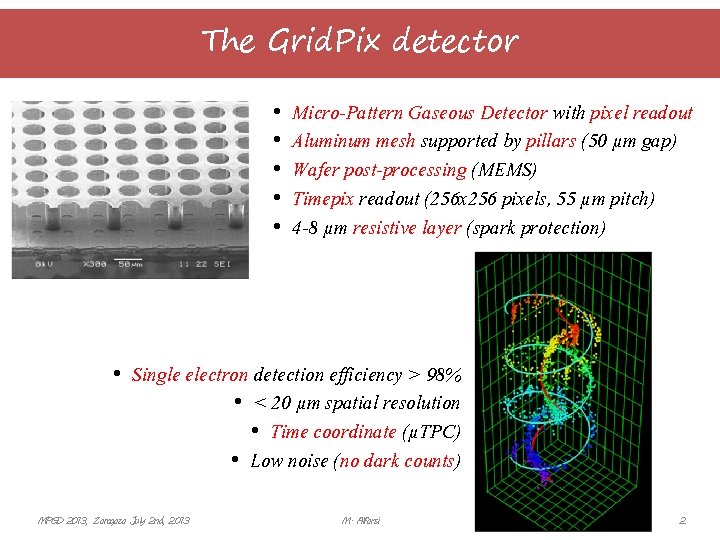

The Grid. Pix detector • • • MPGD 2013, Zaragoza July 2 nd, 2013 Micro-Pattern Gaseous Detector with pixel readout Aluminum mesh supported by pillars (50 µm gap) Wafer post-processing (MEMS) Timepix readout (256 x 256 pixels, 55 µm pitch) 4 -8 µm resistive layer (spark protection) M. Alfonsi 2

The Grid. Pix detector • • • Micro-Pattern Gaseous Detector with pixel readout Aluminum mesh supported by pillars (50 µm gap) Wafer post-processing (MEMS) Timepix readout (256 x 256 pixels, 55 µm pitch) 4 -8 µm resistive layer (spark protection) • Single electron detection efficiency > 98% • < 20 µm spatial resolution • Time coordinate (µTPC) • Low noise (no dark counts) MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 2

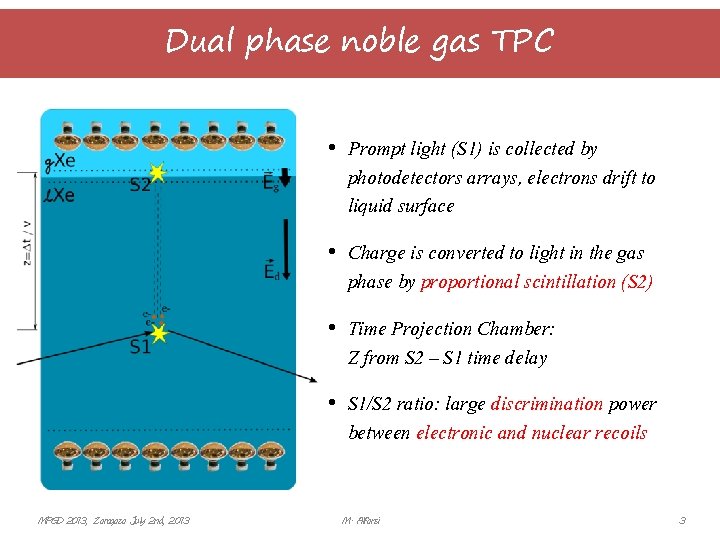

Dual phase noble gas TPC • Prompt light (S 1) is collected by photodetectors arrays, electrons drift to liquid surface • Charge is converted to light in the gas phase by proportional scintillation (S 2) • Time Projection Chamber: Z from S 2 – S 1 time delay • S 1/S 2 ratio: large discrimination power between electronic and nuclear recoils MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 3

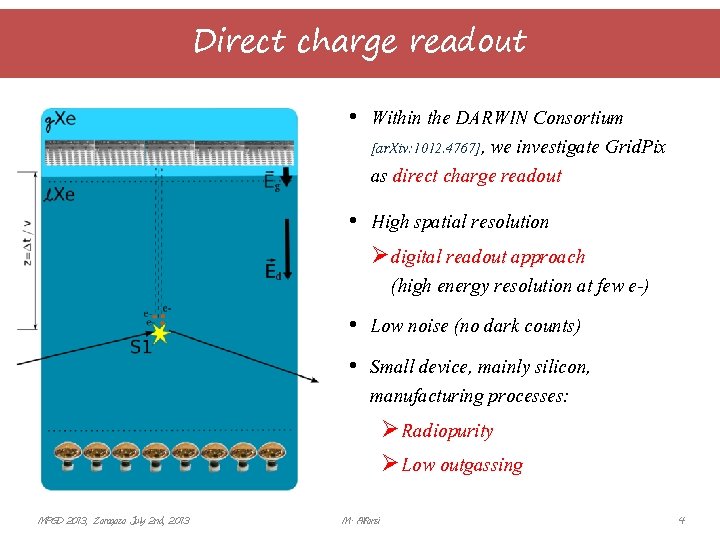

Direct charge readout • Within the DARWIN Consortium [ar. Xiv: 1012. 4767], we investigate Grid. Pix as direct charge readout • High spatial resolution Ø digital readout approach (high energy resolution at few e-) • Low noise (no dark counts) • Small device, mainly silicon, manufacturing processes: Ø Radiopurity Ø Low outgassing MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 4

Digital readout approach MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 5

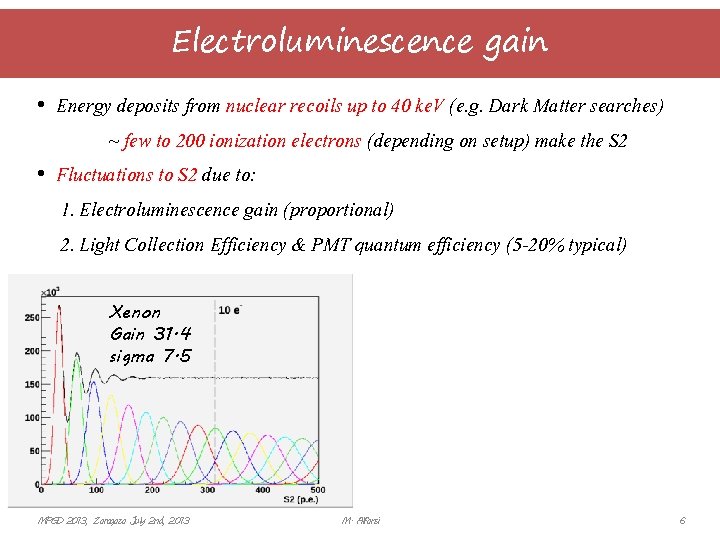

Electroluminescence gain • Energy deposits from nuclear recoils up to 40 ke. V (e. g. Dark Matter searches) ~ few to 200 ionization electrons (depending on setup) make the S 2 MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 6

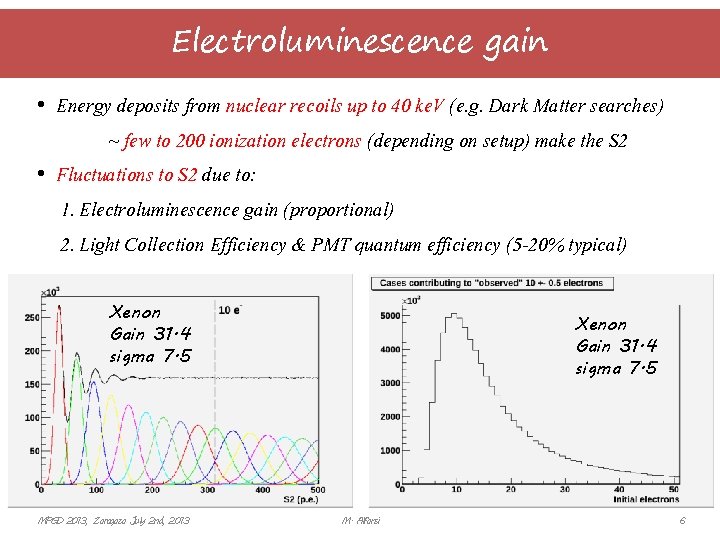

Electroluminescence gain • Energy deposits from nuclear recoils up to 40 ke. V (e. g. Dark Matter searches) ~ few to 200 ionization electrons (depending on setup) make the S 2 • Fluctuations to S 2 due to: 1. Electroluminescence gain (proportional) 2. Light Collection Efficiency & PMT quantum efficiency (5 -20% typical) Xenon Gain 31. 4 sigma 7. 5 MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 6

Electroluminescence gain • Energy deposits from nuclear recoils up to 40 ke. V (e. g. Dark Matter searches) ~ few to 200 ionization electrons (depending on setup) make the S 2 • Fluctuations to S 2 due to: 1. Electroluminescence gain (proportional) 2. Light Collection Efficiency & PMT quantum efficiency (5 -20% typical) Xenon Gain 31. 4 sigma 7. 5 MPGD 2013, Zaragoza July 2 nd, 2013 Xenon Gain 31. 4 sigma 7. 5 M. Alfonsi 6

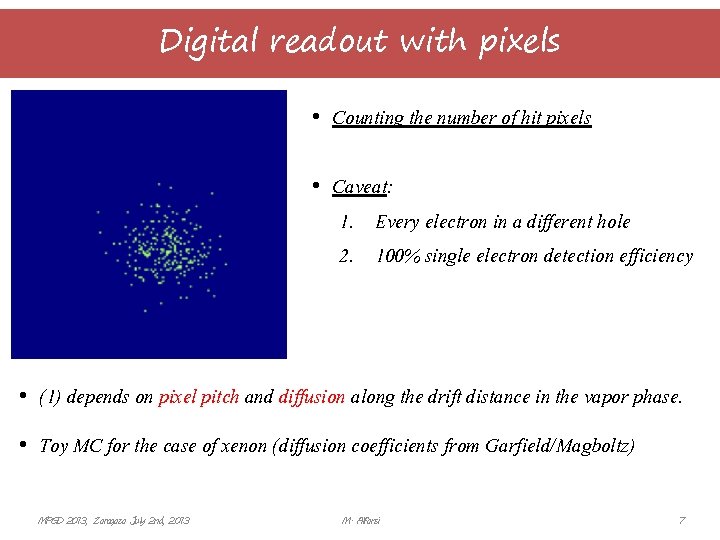

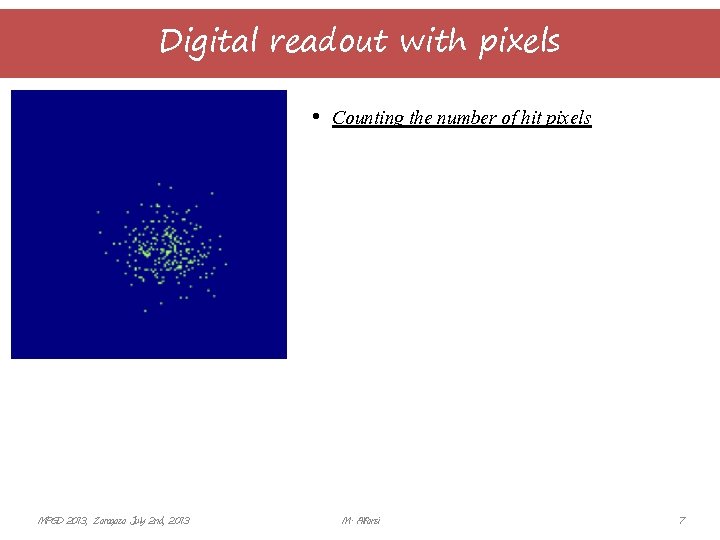

Digital readout with pixels • Counting the number of hit pixels MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 7

Digital readout with pixels • Counting the number of hit pixels • Caveat: 1. Every electron in a different hole 2. 100% single electron detection efficiency • (1) depends on pixel pitch and diffusion along the drift distance in the vapor phase. • Toy MC for the case of xenon (diffusion coefficients from Garfield/Magboltz) MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 7

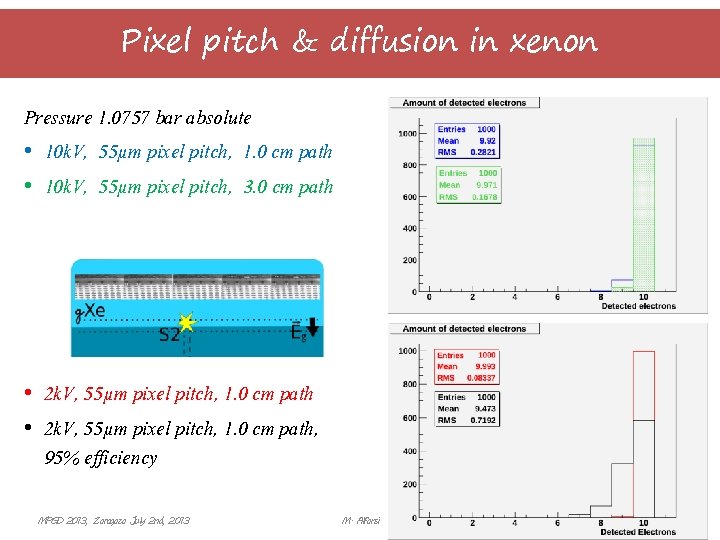

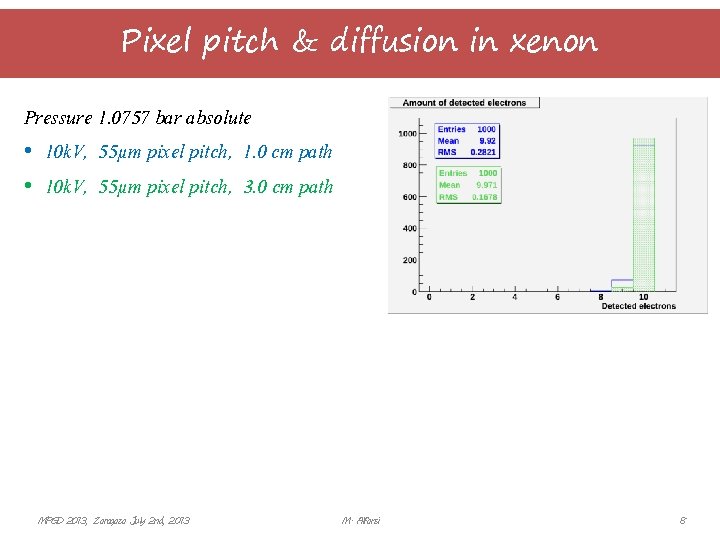

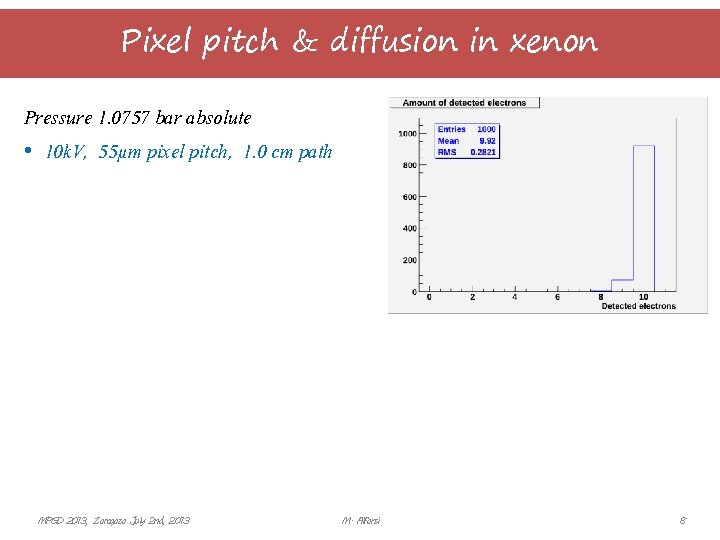

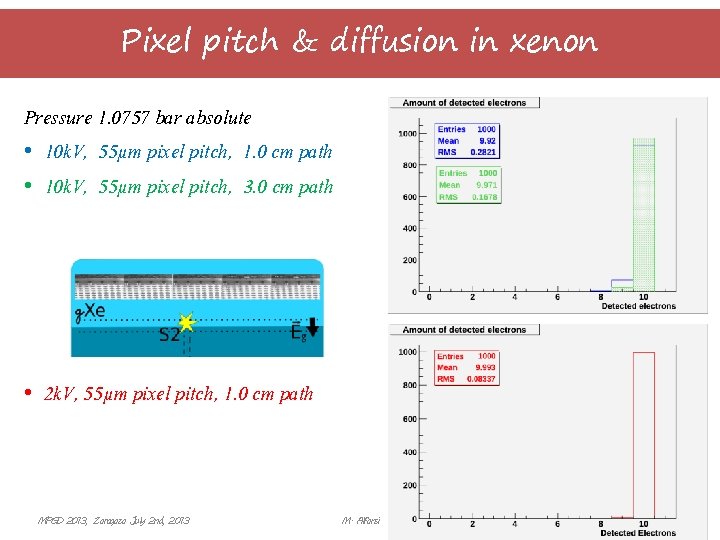

Pixel pitch & diffusion in xenon Pressure 1. 0757 bar absolute • 10 k. V, 55µm pixel pitch, 1. 0 cm path MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 8

Pixel pitch & diffusion in xenon Pressure 1. 0757 bar absolute • 10 k. V, 55µm pixel pitch, 1. 0 cm path • 10 k. V, 55µm pixel pitch, 3. 0 cm path MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 8

Pixel pitch & diffusion in xenon Pressure 1. 0757 bar absolute • 10 k. V, 55µm pixel pitch, 1. 0 cm path • 10 k. V, 55µm pixel pitch, 3. 0 cm path • 2 k. V, 55µm pixel pitch, 1. 0 cm path MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 7

Pixel pitch & diffusion in xenon Pressure 1. 0757 bar absolute • 10 k. V, 55µm pixel pitch, 1. 0 cm path • 10 k. V, 55µm pixel pitch, 3. 0 cm path • 2 k. V, 55µm pixel pitch, 1. 0 cm path, 95% efficiency MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 7

Application to large area dual phase TPC ? MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 9

Large Area dual phase TPC? MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 10

Large Area dual phase TPC? • Maybe! • Recent production on 8” wafers prospects industrialization and large volume at reduced cost. MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 10

A small-size high-impact application MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 11

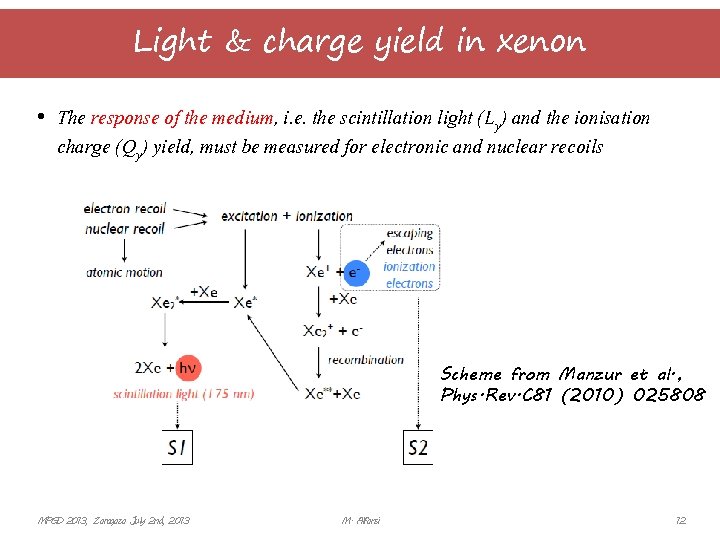

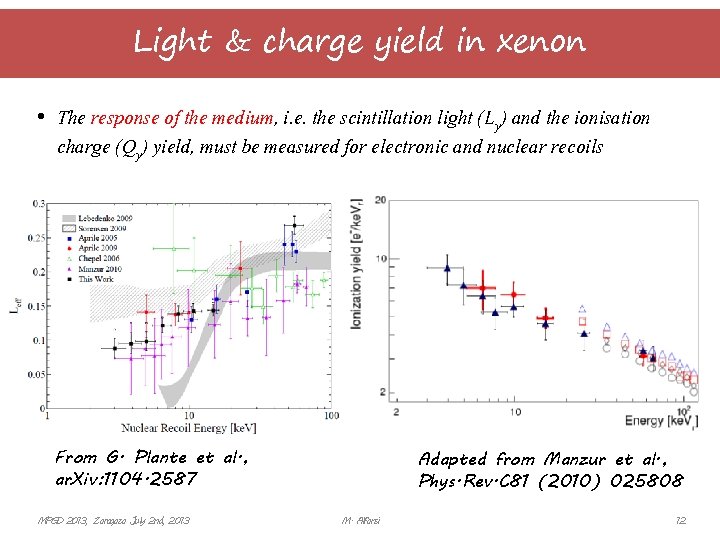

Light & charge yield in xenon • The response of the medium, i. e. the scintillation light (Ly) and the ionisation charge (Qy) yield, must be measured for electronic and nuclear recoils Scheme from Manzur et al. , Phys. Rev. C 81 (2010) 025808 MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 12

Light & charge yield in xenon • The response of the medium, i. e. the scintillation light (Ly) and the ionisation charge (Qy) yield, must be measured for electronic and nuclear recoils From G. Plante et al. , ar. Xiv: 1104. 2587 MPGD 2013, Zaragoza July 2 nd, 2013 Adapted from Manzur et al. , Phys. Rev. C 81 (2010) 025808 M. Alfonsi 12

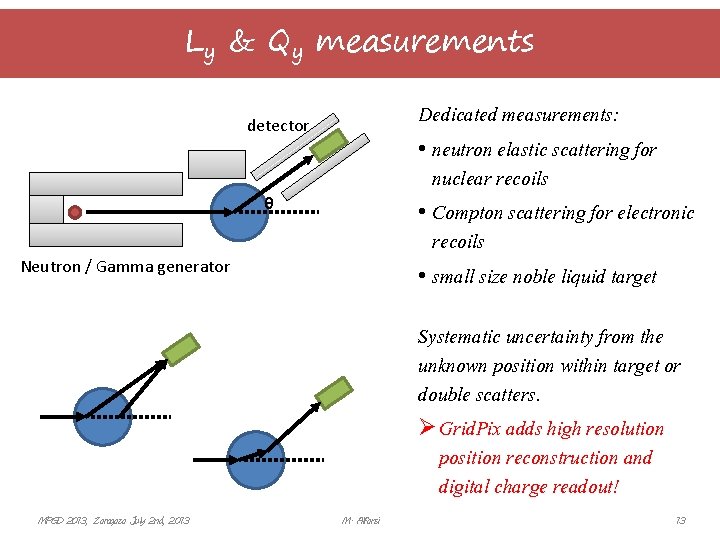

Ly & Qy measurements Dedicated measurements: • neutron elastic scattering for nuclear recoils • Compton scattering for electronic recoils • small size noble liquid target detector θ Neutron / Gamma generator MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 13

Ly & Qy measurements Dedicated measurements: • neutron elastic scattering for nuclear recoils • Compton scattering for electronic recoils • small size noble liquid target detector θ Neutron / Gamma generator Systematic uncertainty from the unknown position within target or double scatters. Ø Grid. Pix adds high resolution position reconstruction and digital charge readout! MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 13

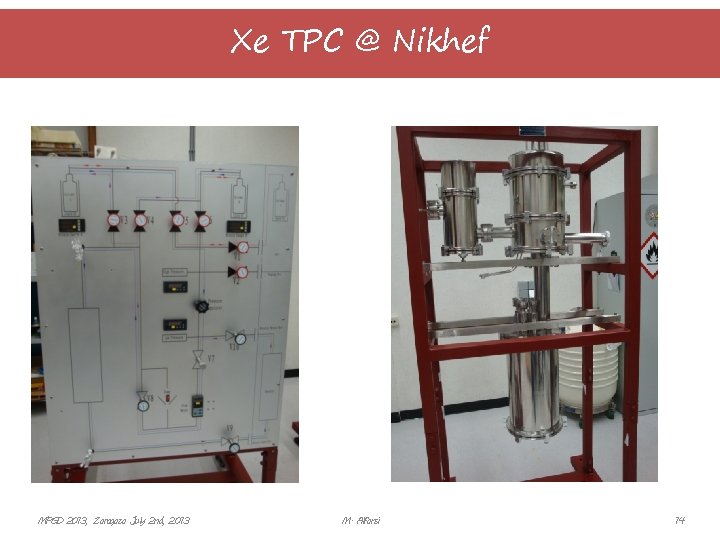

Xe TPC @ Nikhef MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 14

Measurements with Grid. Pix MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 15

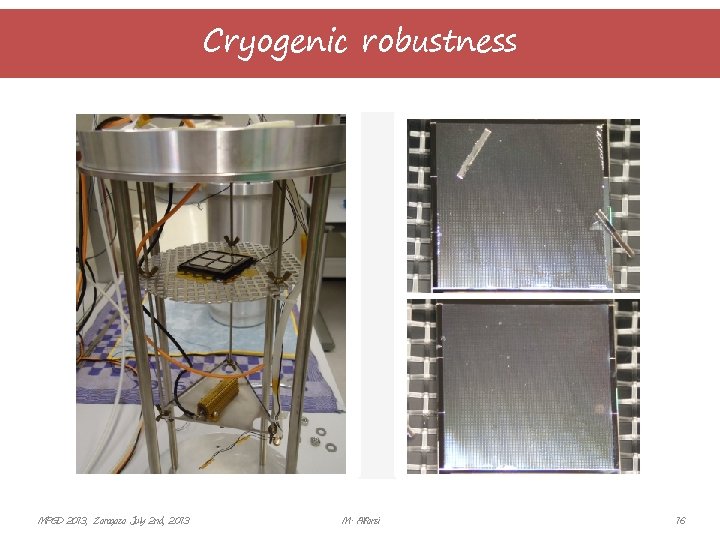

Cryogenic robustness MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 16

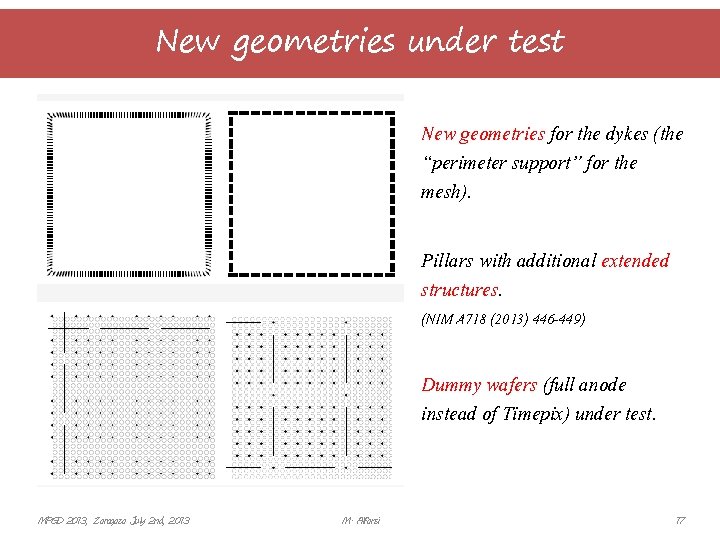

New geometries under test New geometries for the dykes (the “perimeter support” for the mesh). Pillars with additional extended structures. (NIM A 718 (2013) 446 -449) Dummy wafers (full anode instead of Timepix) under test. MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 17

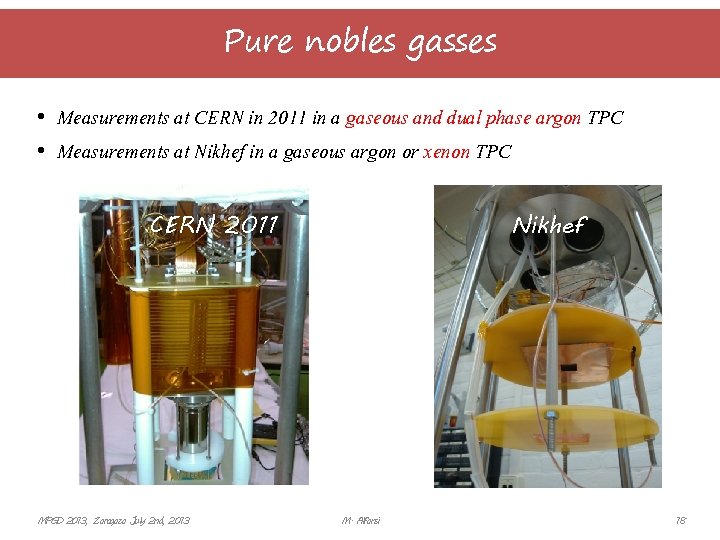

Pure nobles gasses • Measurements at CERN in 2011 in a gaseous and dual phase argon TPC • Measurements at Nikhef in a gaseous argon or xenon TPC Nikhef CERN 2011 MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 18

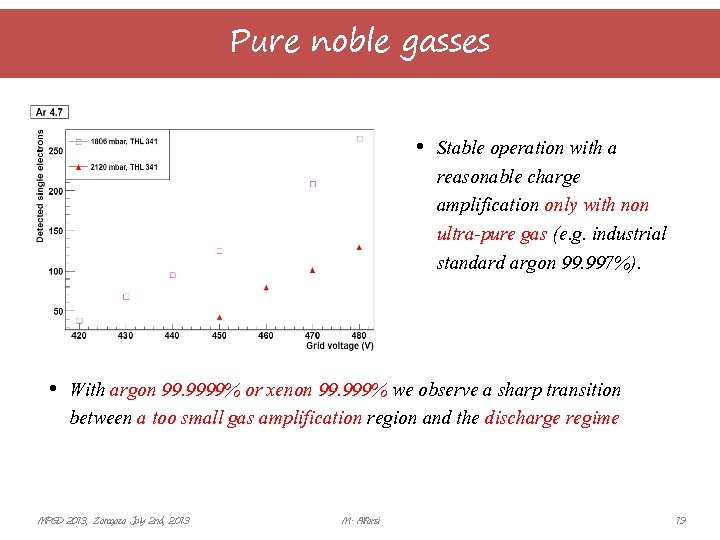

Pure noble gasses • Stable operation with a reasonable charge amplification only with non ultra-pure gas (e. g. industrial standard argon 99. 997%). • With argon 99. 9999% or xenon 99. 999% we observe a sharp transition between a too small gas amplification region and the discharge regime MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 19

Future plans MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 20

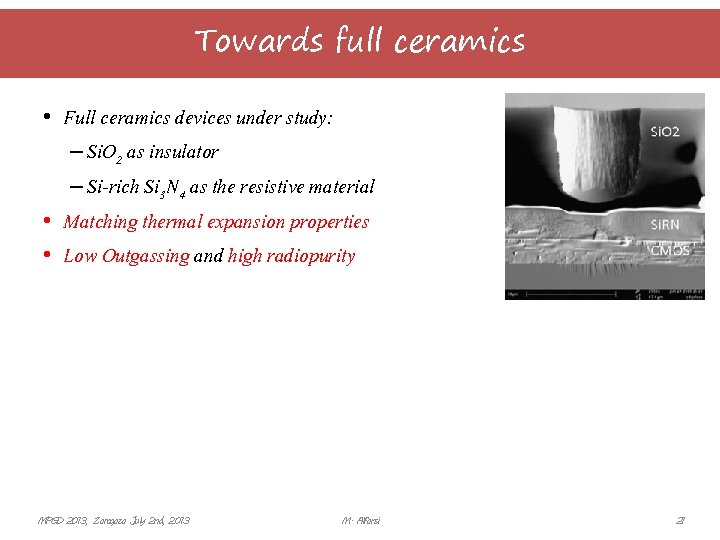

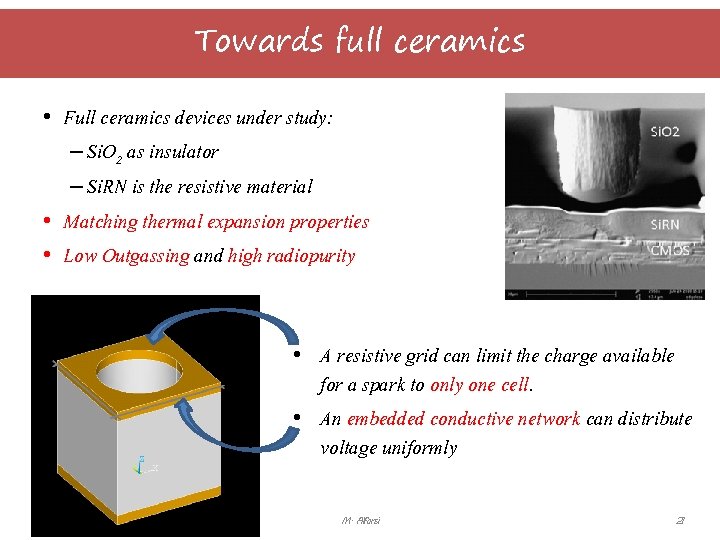

Towards full ceramics • Full ceramics devices under study: – Si. O 2 as insulator – Si-rich Si 3 N 4 as the resistive material • Matching thermal expansion properties • Low Outgassing and high radiopurity MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 21

Towards full ceramics • Full ceramics devices under study: – Si. O 2 as insulator – Si. RN is the resistive material • Matching thermal expansion properties • Low Outgassing and high radiopurity • A resistive grid can limit the charge available for a spark to only one cell. • An embedded conductive network can distribute voltage uniformly MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 21

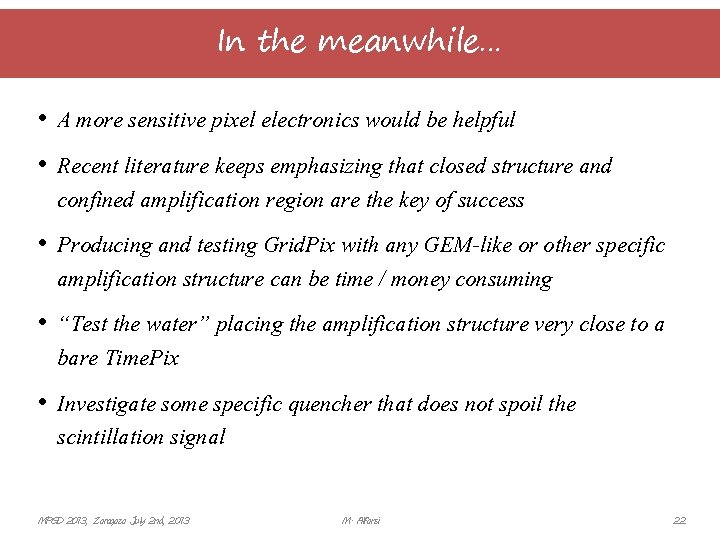

In the meanwhile… • A more sensitive pixel electronics would be helpful • Recent literature keeps emphasizing that closed structure and confined amplification region are the key of success • Producing and testing Grid. Pix with any GEM-like or other specific amplification structure can be time / money consuming • “Test the water” placing the amplification structure very close to a bare Time. Pix • Investigate some specific quencher that does not spoil the scintillation signal MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 22

Thanks for your attention! MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 23

Spare slides MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 35

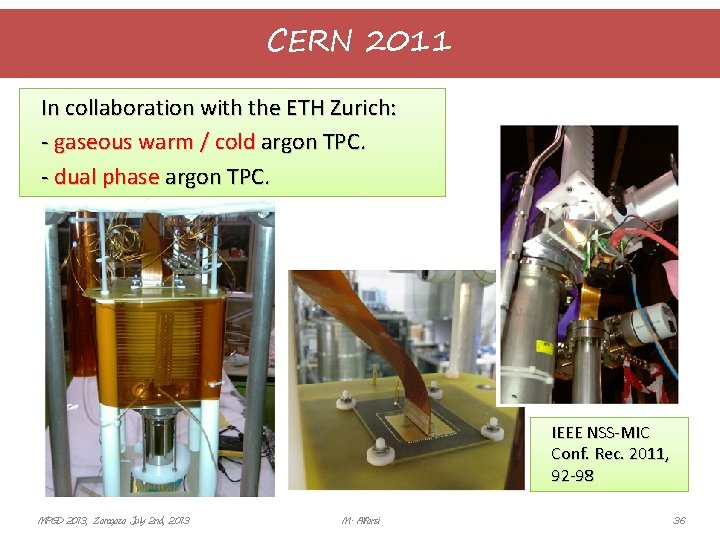

CERN 2011 In collaboration with the ETH Zurich: - gaseous warm / cold argon TPC. - dual phase argon TPC. IEEE NSS-MIC Conf. Rec. 2011, 92 -98 MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 36

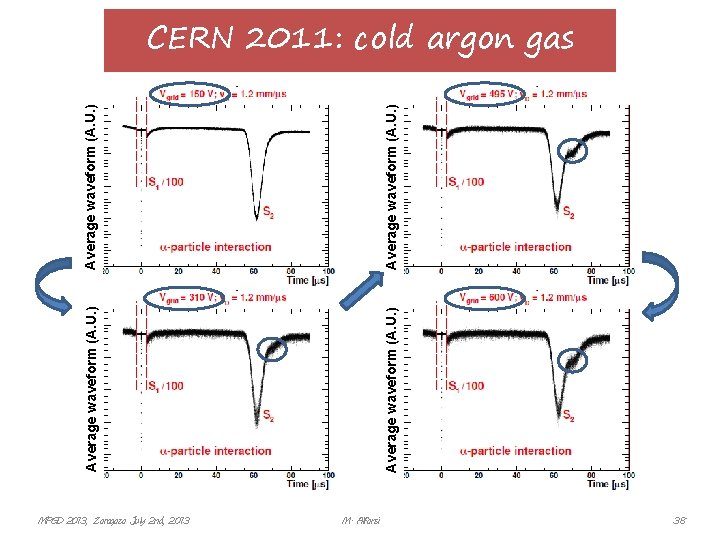

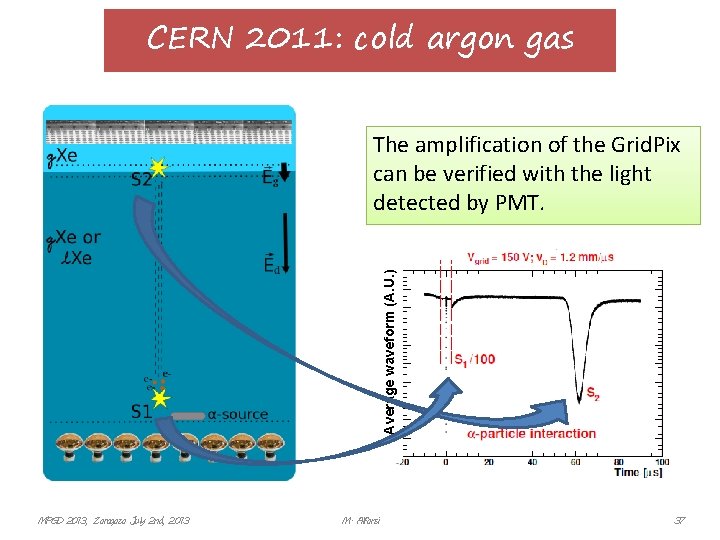

CERN 2011: cold argon gas Average waveform (A. U. ) The amplification of the Grid. Pix can be verified with the light detected by PMT. MPGD 2013, Zaragoza July 2 nd, 2013 M. Alfonsi 37
