Dipolo Infinitesimal Sandra CruzPol Ph D INEL 5305
- Slides: 26
Dipolo Infinitesimal Sandra Cruz-Pol, Ph. D. INEL 5305 ECE UPRM Mayagüez, PR

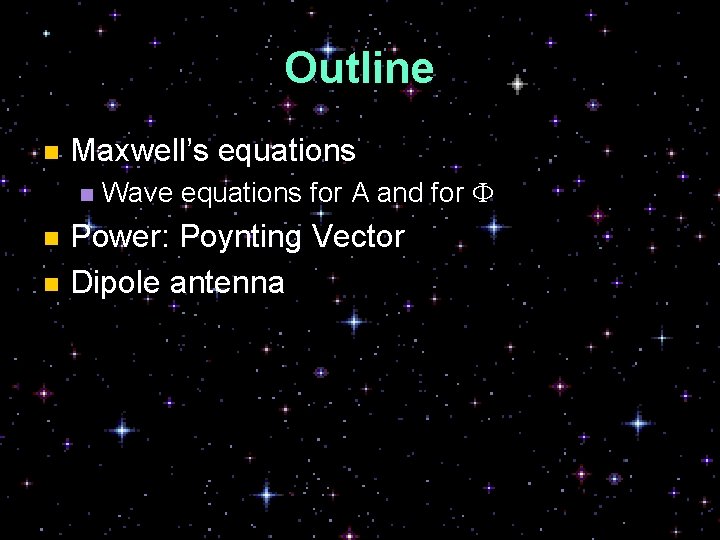

Outline n Maxwell’s equations n Wave equations for A and for F Power: Poynting Vector n Dipole antenna n
Maxwell Equations Ampere: Faraday: Gauss:
Relaciones de Continuidad
Potencial Magnético Vectorial A n Si lo sustituimos en la Ley de Faraday: F is the Electric Scalar Potential
Usando Ley de Ampere:

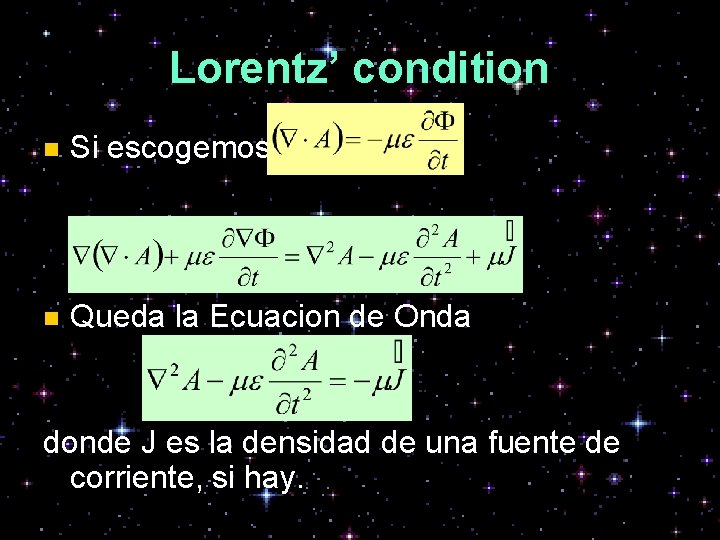

Lorentz’ condition n Si escogemos n Queda la Ecuacion de Onda donde J es la densidad de una fuente de corriente, si hay.
de la Ec. de Gauss Eléctrica
Wave equation n For sinusoidal fields (harmonics): where
Outline n Maxwell’s equations n Wave equations for A and for F Power: Poynting Vector n Dipole antenna n
Poynting Vector

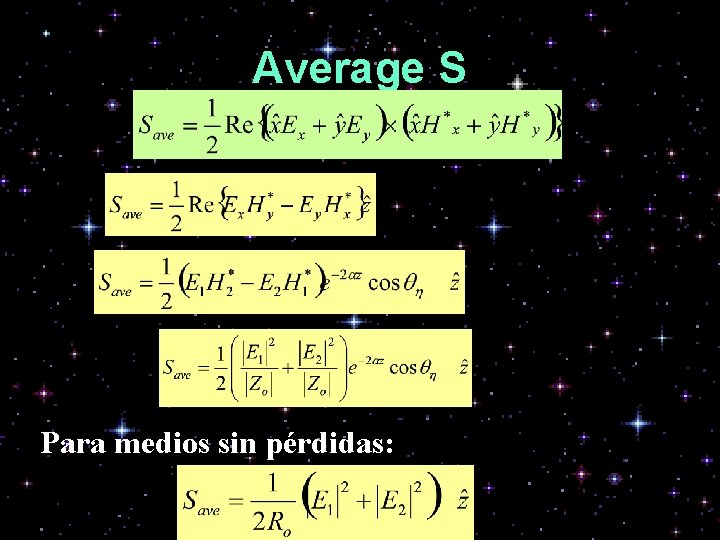

Average S Para medios sin pérdidas:
Outline n Maxwell’s equations n Wave equations for A and for F Power: Poynting Vector n Infinitesimal Dipole antenna n
Find A from Dipole with current J n Line charge w/uniform charge density, r. L Assume the simplest solution Az(r): z Az r q Jz x 0 r
To find…. Assume the simplest solution Az(r):
Fuera de la Fuente (J=0) Which has general solution of:
Apply B. C. n If radiated wave travels outwards from the source: n To find C 2, let’s examine what happens near the source. (in that case k tends to 0) n So the wave equation reduces to
Now we integrate the volume around the dipole: n And using the Divergence Theorem
Comparing both, we get:
Now from A we can find E & H n Using the Victoria IDENTITY: n And n Substitute:
The magnetic filed intensity from the dipole is:
Now the E field:

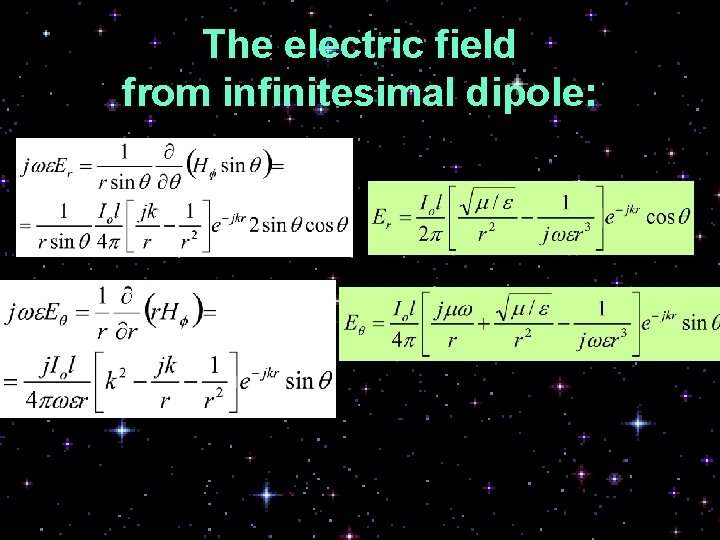

The electric field from infinitesimal dipole:
General @Far field r> 2 D 2/l Note that the ratio of E/H is the intrinsic impedance of the medium.
Power : Hertzian Dipole
Resistencia de Radiacion n La potencia tiene parte real y parte reactiva n La potencia irradiada es: n Comparando con la P total, se halla la Impedancia n COmparando cno la Prad, halla la Rrad.
